DSLRKIT Gigabit 8 Ports Passive PoE Switch Injector Ethernet NO Power Adapter

DSLRKIT DIM7P1UKG Passive PoE Injector Switch

ALL Gigabit Ethernet

Power supply not included
Supports 12~57V DC power supply
(Maximum current 4 amps)

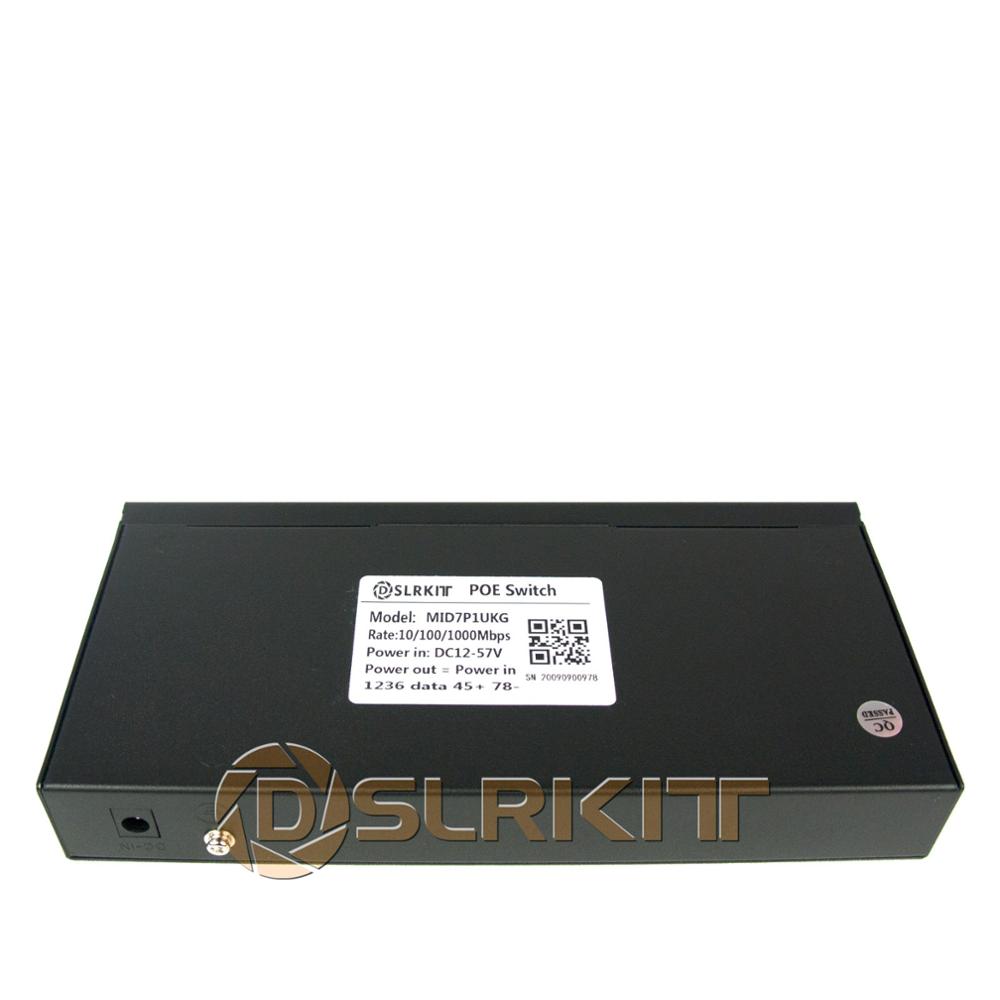

DC IN port 5.5X2.1mm, inside positive (+)  outside  negative (-)

8 Ports (1Uplink, 7 PoE) 10/100/1000Mbps

Midspan Mode-B Unsolicited Power(4,5+/7,8-)

This item do not include the power adapter,  you need to buy an extra power adapter according to your requirement. So it only suitable for PoE professional customers.

If your camera is with word “12V/PoE” as this picture shows, then please select 48V(or 52V) Power Adapter, do not select 12V Power Adapter.
Because "12V/PoE" means it can offer power supply to camera via 12V DC port or 48V PoE Ethernet port:

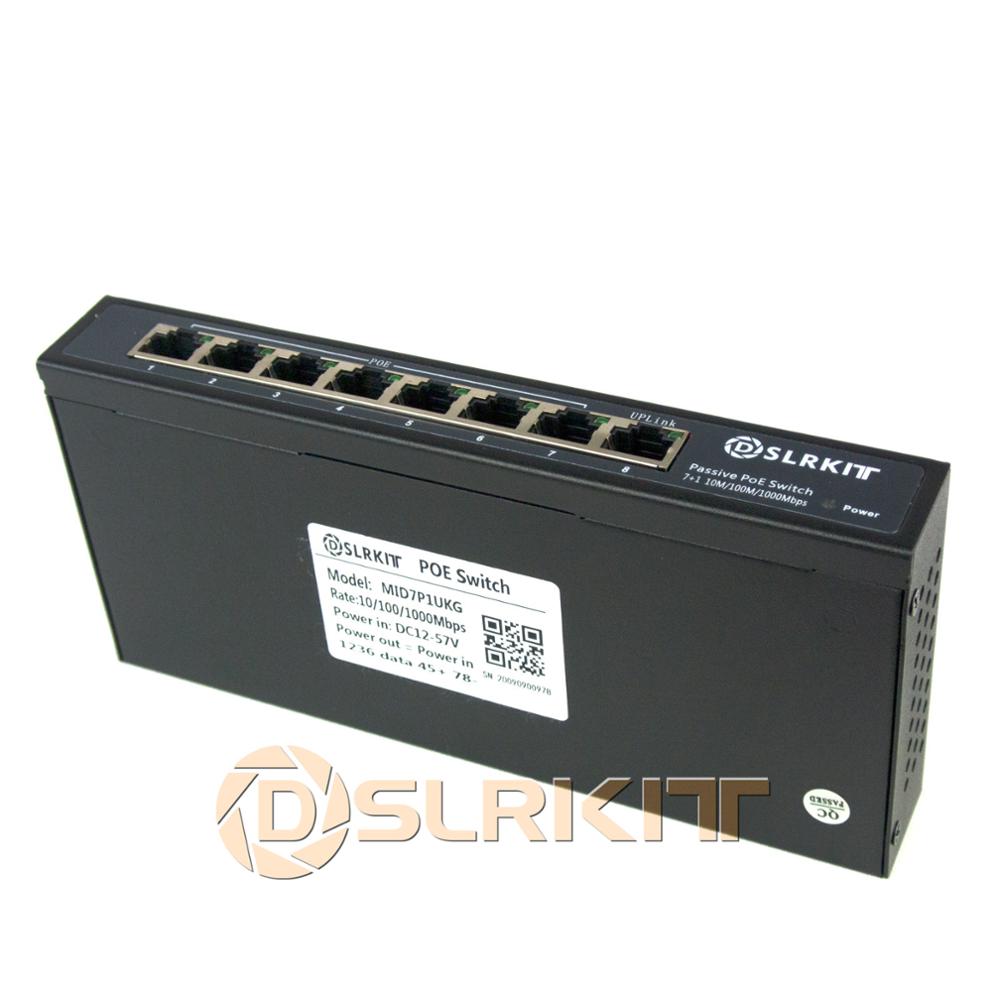

This is an Passive Power Over Ethernet of 8 port 10/100/1000Mbps-T Ethernet switches, including 7 unsolicited PoE Ethernet ports and 1 Uplink ports. DC port apply 12~57V power supply adapter(not included), any one of the 7 port can provide output power, each Ethernet port can provide network transmission speeds of up to 10/100/1000Mbps , with Cat5 / 5e / 6 network cable.

Please do not connect any "NONE PoE gigabit ethernet device and Uplink device" on "PoE 1X~PoE 7X" port, this will damage your device..

NONE PoE gigabit ethernet device and Uplink device can only access "8x" port, Please do not access "PoE 1X~ PoE 7X", this will damage your device.

Features:

• 8 x 10/100/1000Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 7-Ports PoE function(port 1-port 7)

• Switch Controller Chips Realtek RTL8370N

• Midspan Mode-B Unsolicited Power(4,5+/7,8-)

• Per port Maximum current: 0.84A

• Supports 12~57V DC power supply

• Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.

• Full/half duplex transfer mode for each port.

• Power Input
  Supports INPUT 12-57V DC power supply
  Power DC port 5.5 x 2.1mm,inside positive (+)  outside  negative (-)

• PoE Power on RJ45
  Power +: pin 4 & pin 5 ; Power -: pin 7 & pin 8
  DC Output: 12-57V, Per PoE port Max 0.84A,

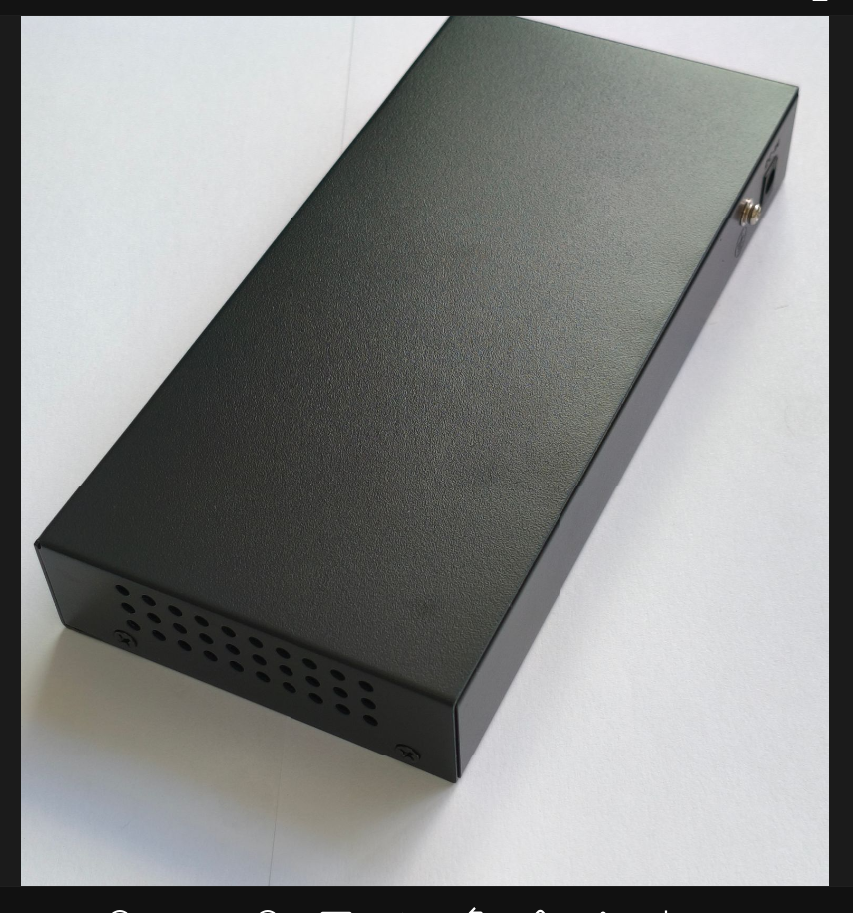

• Product Dimensions 200mm W x 95mm D x 30mm H

• Temperature
  Operation Temperature:0 ~40℃ (32 ~104℉)
  Storage Temperature: -40 ~70℃(-40 ~158℉)

• Humidity
  Storage Humidity 5%~90% non-condensing, Operating Humidity 10%~90% non-condensing

• Filtering Address Table: 2K entries per device

• Packet Filtering Forwarding Rate
  10Mbps Ethernet: 14,880/pps
  100Mbps Ethernet: 148,800/pps
  1000MBase-T Ethernet: 1,488,000/pps.

• MAC address Learning:  Automatic update

• Transmission Method: Store – and- Forward


Item Included:

 DSLRKIT DIM7P1UKG 8pots 7PoE ALL Gigabit PoE switch x1
(Power supply not included)
