Dreambot 3D Professional High Precision Fast Scanning Handheld Portable Laser 3d Scanner for Cnc Machine and 3d Printer

(0 レビュー)

発送予定時間: 3 日々

により販売されています: 自社製品

価格:

$10,828.08 /Pc

量:

(2875 利用可能)

払い戻し:

ポリシーを見る

売れ筋商品

説明レビュー

Hello, welcome to our shop, if you have any questions, please feel free to contact us. ??:+?? ??????????? / ? ????:??????????@??.???

Product Description

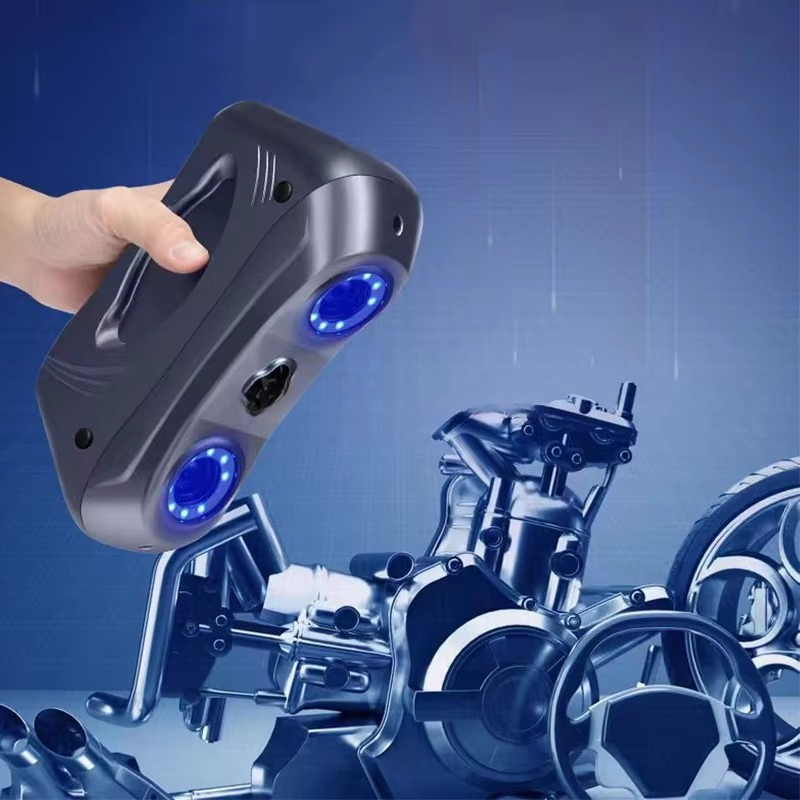

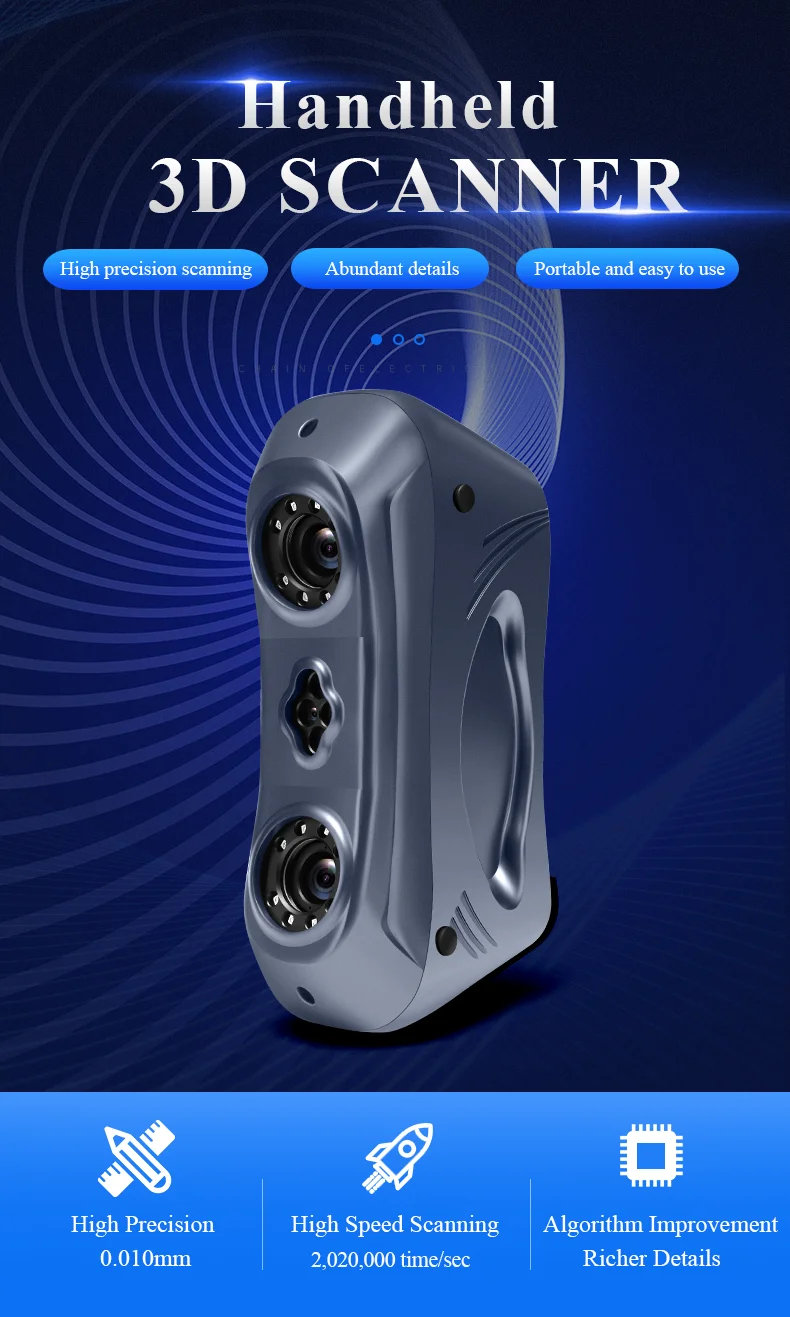

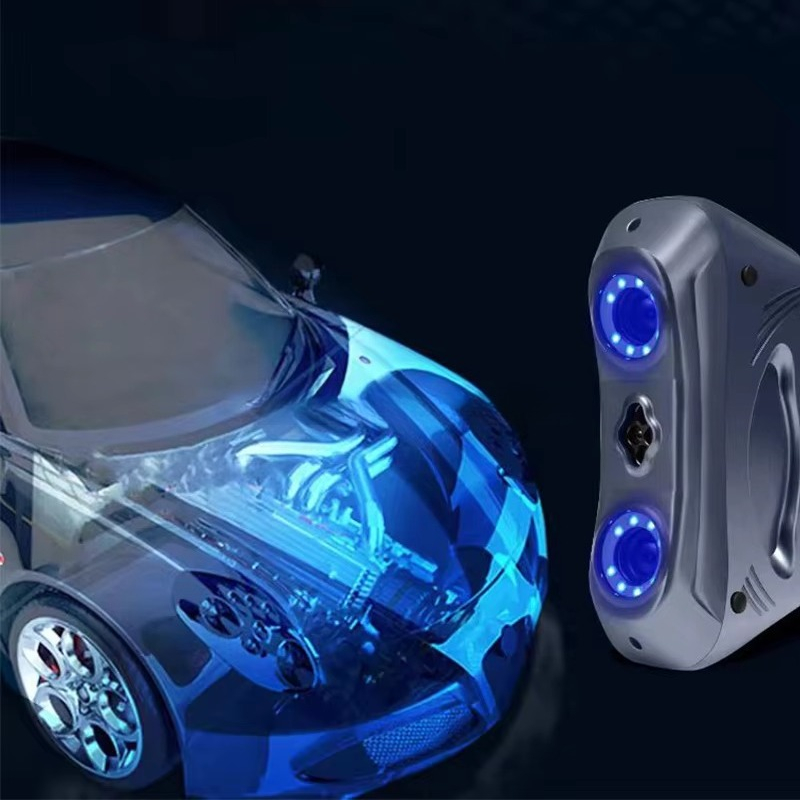

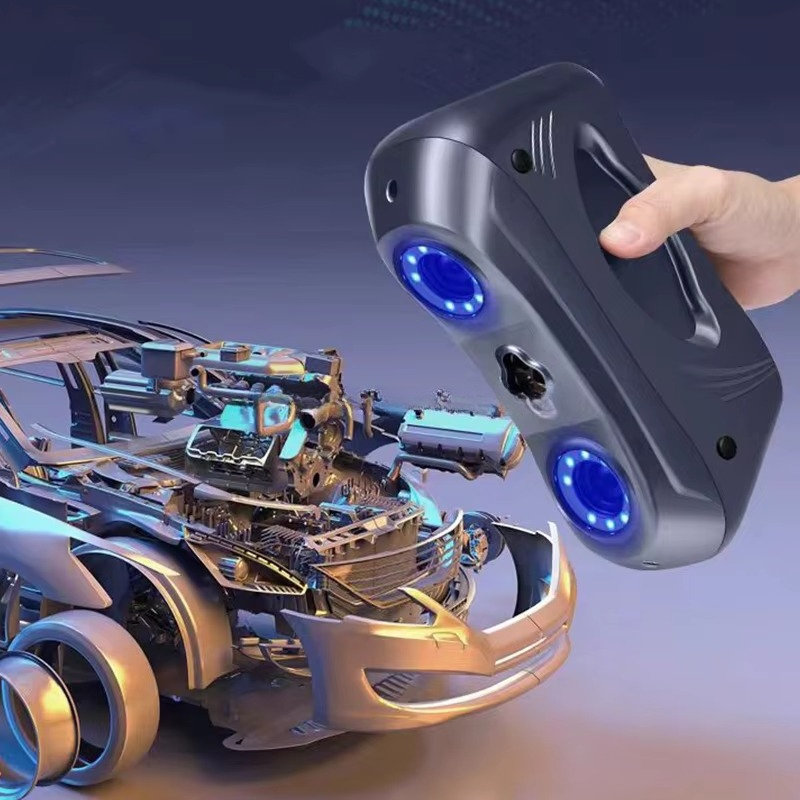

Dreambot 3D Handheld 3d scanner -2F

Dreambot 3D scanner adopts multiple beam laser to obtain the three-dimensional point from

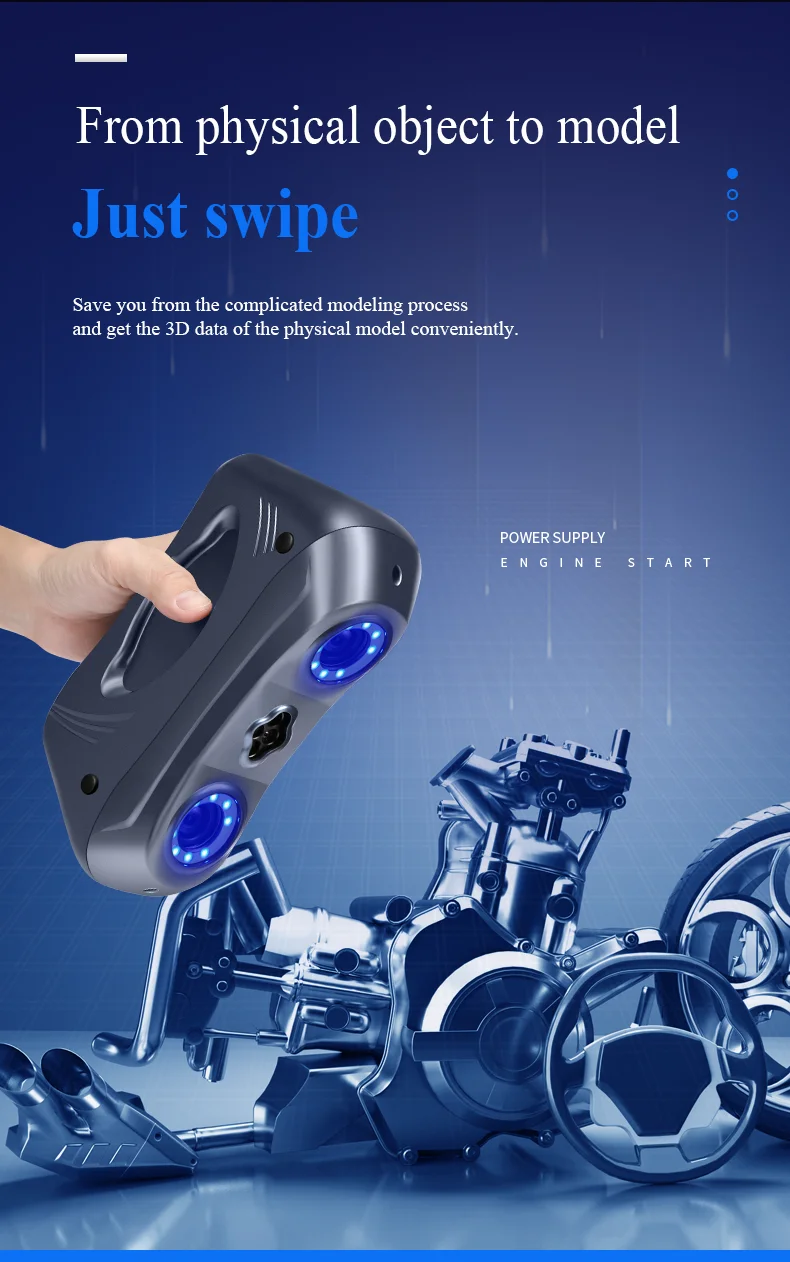

object surface. Operator can hand-hold the device and adjust the distance and angle between the scanner and measured object timely. It is ideal for digitizing medium to large parts such as dies and molds, let you scan small to large objects that are difficult to reach or move, provides the most effective and reliable way to acquire 3D measurements of physical objects, works with our 3D software platform, gathering all scanned data and displaying on software end. Meanwhile, the real time visualization provides a simple, enjoyable scanning experience.

Outstanding features:
* Truly portable and fast scanning speed

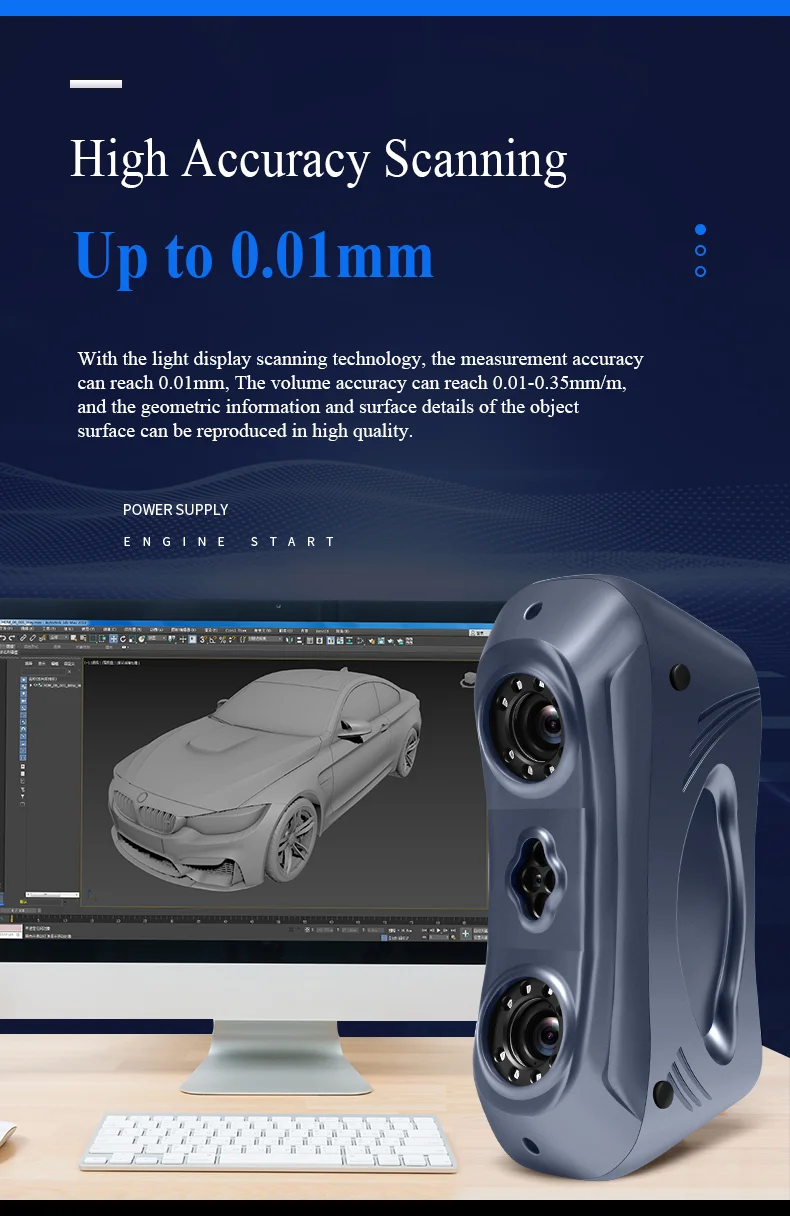

* Metrology scanner, high accuracy up to 0.010mm
* Free to move, scan freely for hard-to-reach areas
* Ideal choice for small to large objects' scan
* Customized export file formats
* Compatible to most 3D software

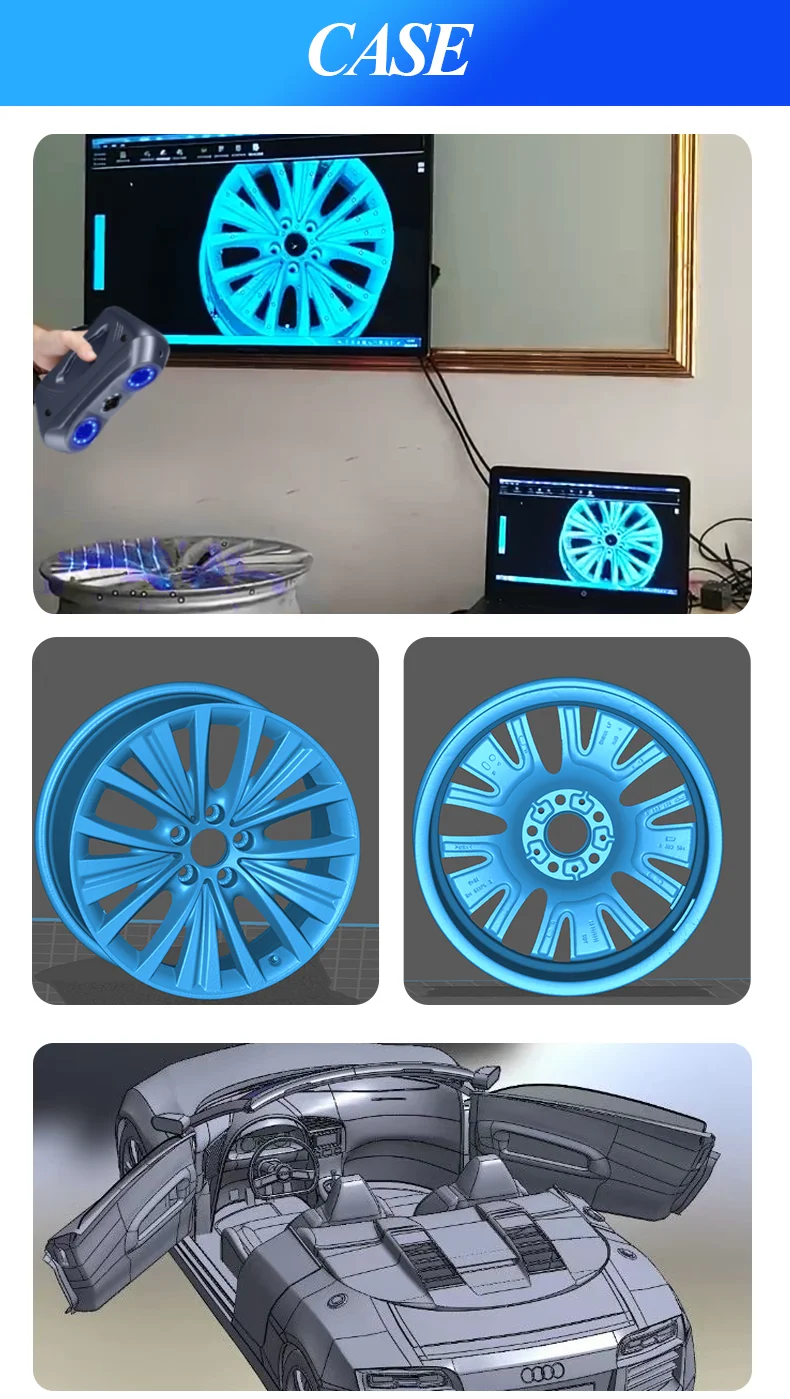

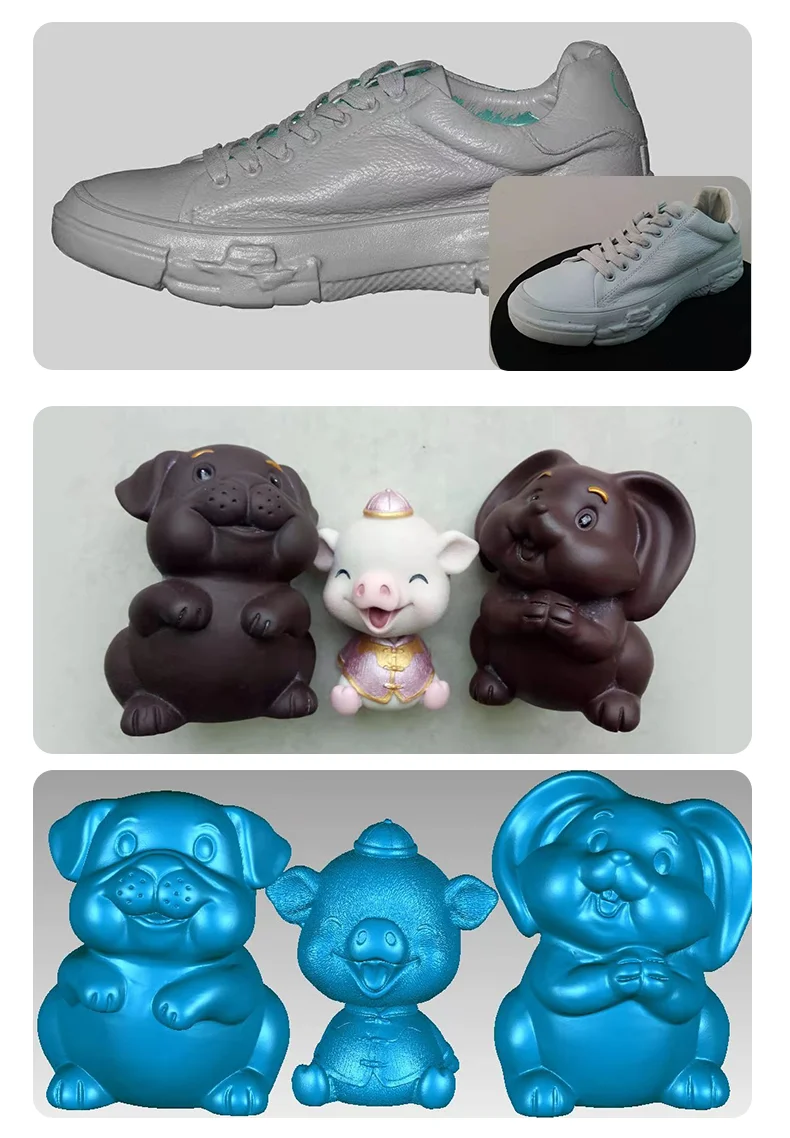

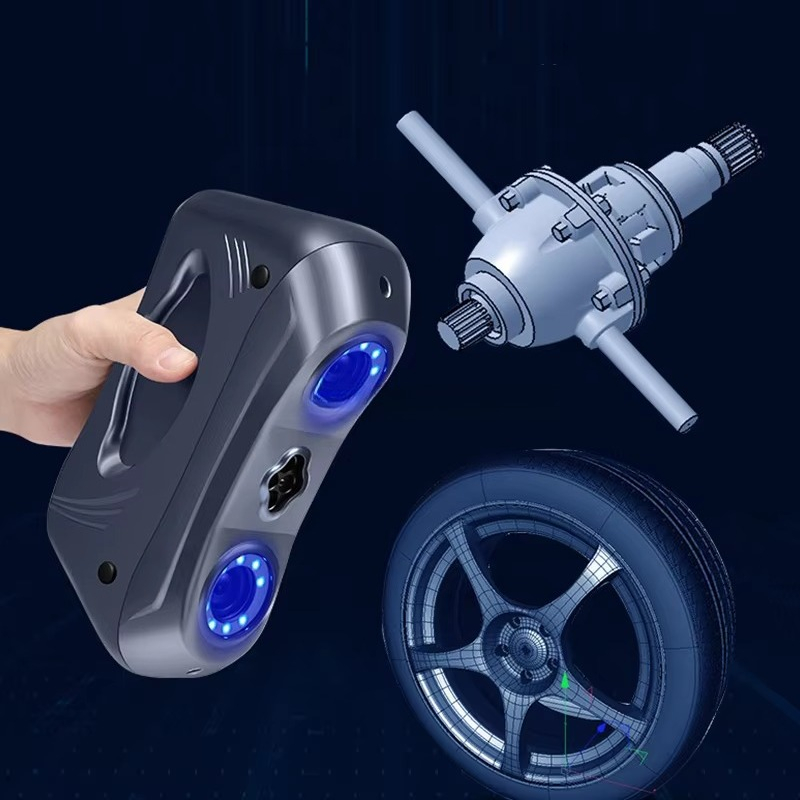

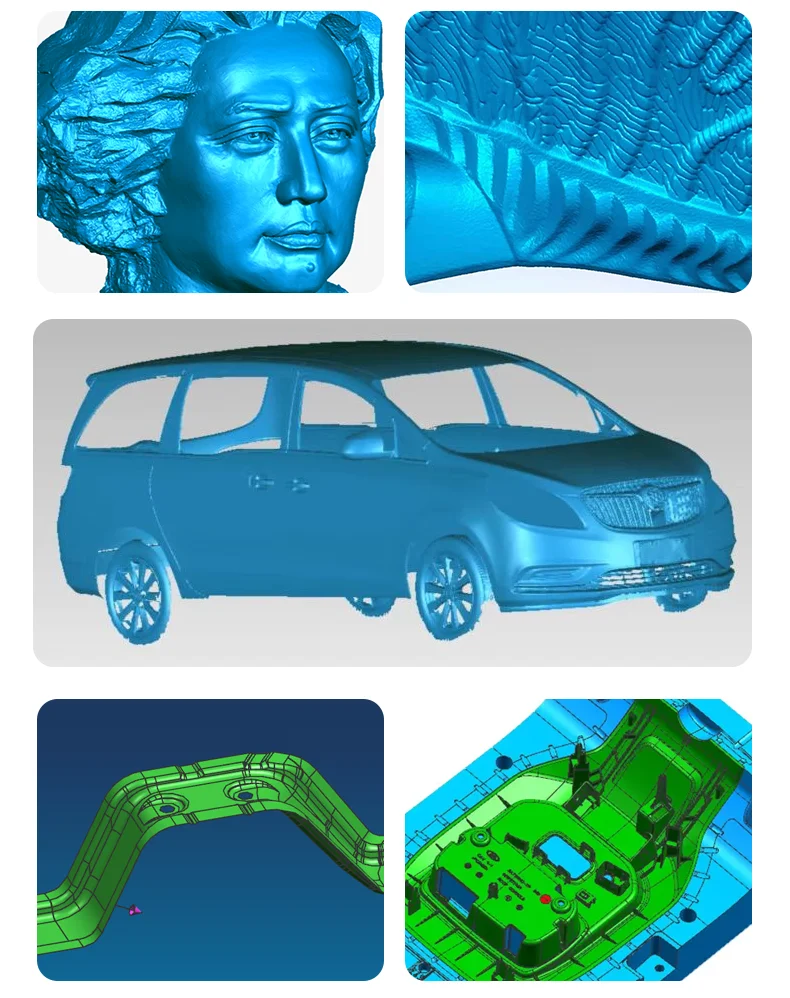

Application and Model Show

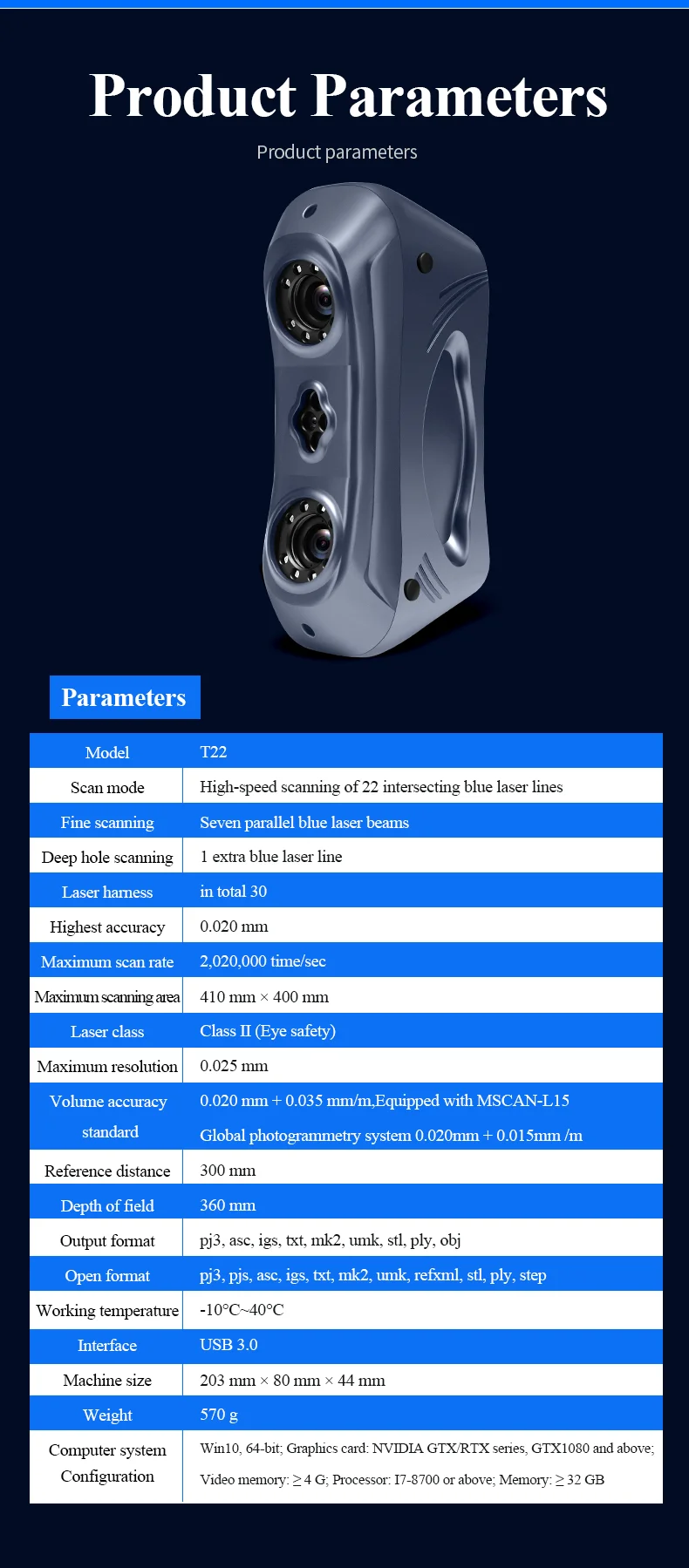

Product Paramenters

T22 Laser 3D Scanner

Easy Operation

- Portable, lightweight and free movement
-Easy to scan large and small object

High Efficiency;

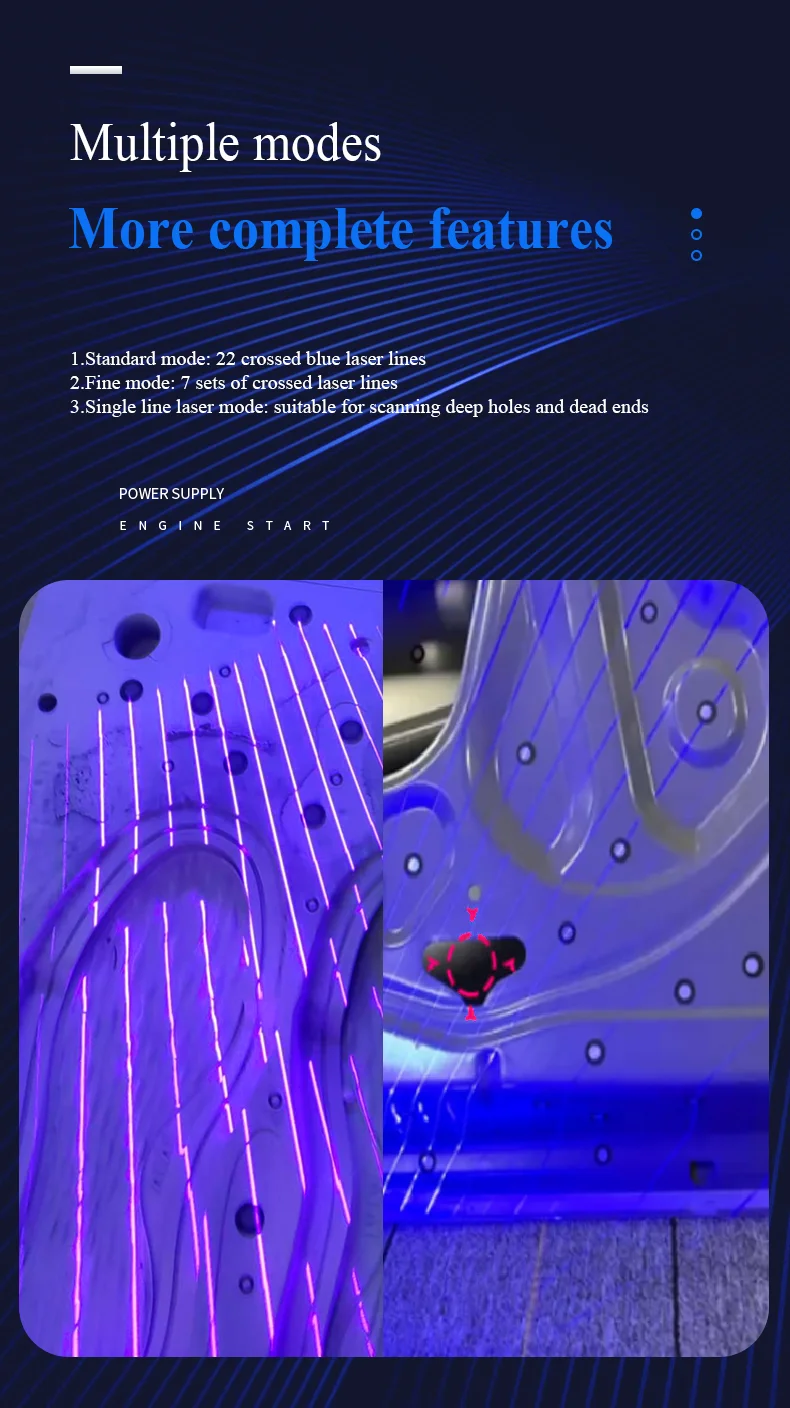

-22 cross blue laser lines + 7 parallel blue laser lines+ 1 extra blue laser line
- Single red laser line scan the deep hole

High precision;
- Metrology-grade accuracy up to 0.02mm
-resolution is up to 0.02mm

-Volumetric accuracy 0.02mm+0.06mm/m

Scanner Model	T22
Product name	Laser Car Scanner ,3d Laser Scanner, Portable Handheld 3D Scanner
Scan Type	Handheld scanning/ Laser scanning
Scanning accuracy	Maximum 0.02mm (0,0008 in)
Volume accuracy	0.02+0.06mm/m (0.0008+0.0007in/ft)

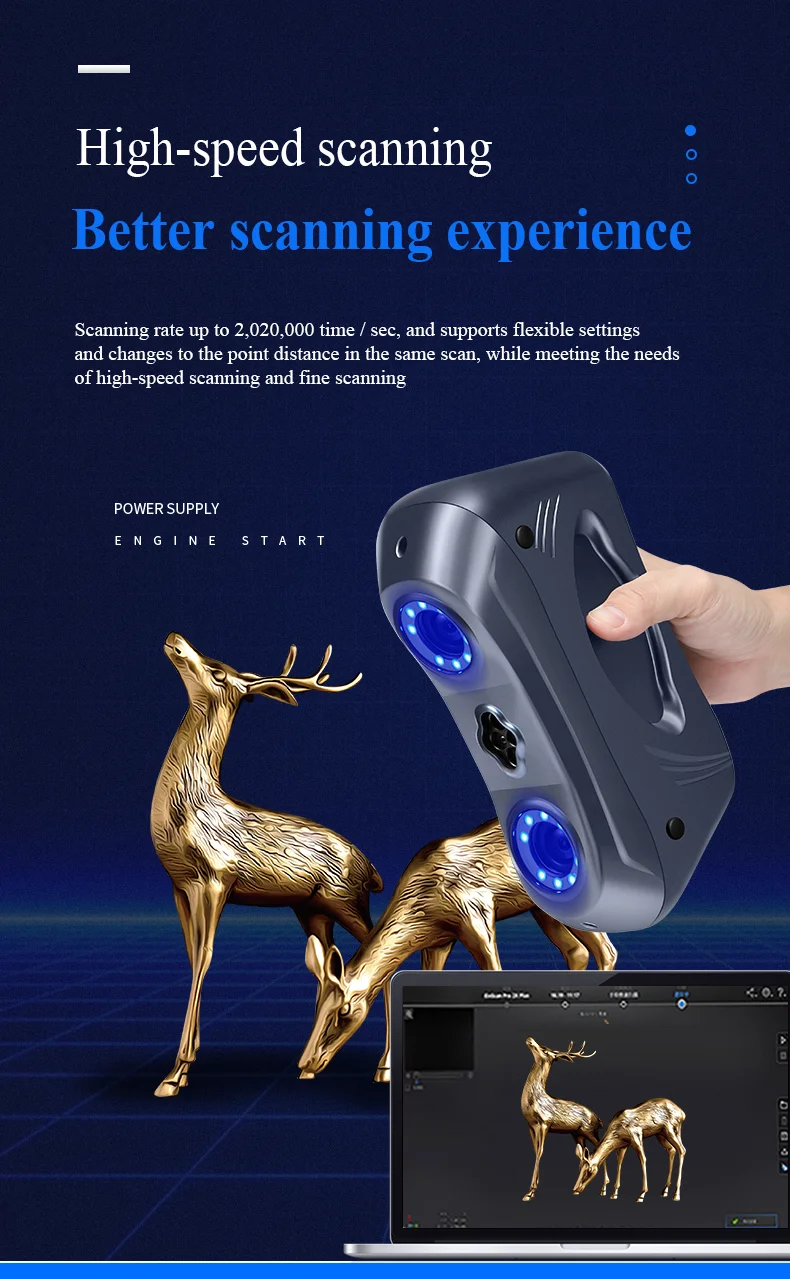

Scanning Speed	2020000 measures/s,22 beams
Scanning area	0.2-2M

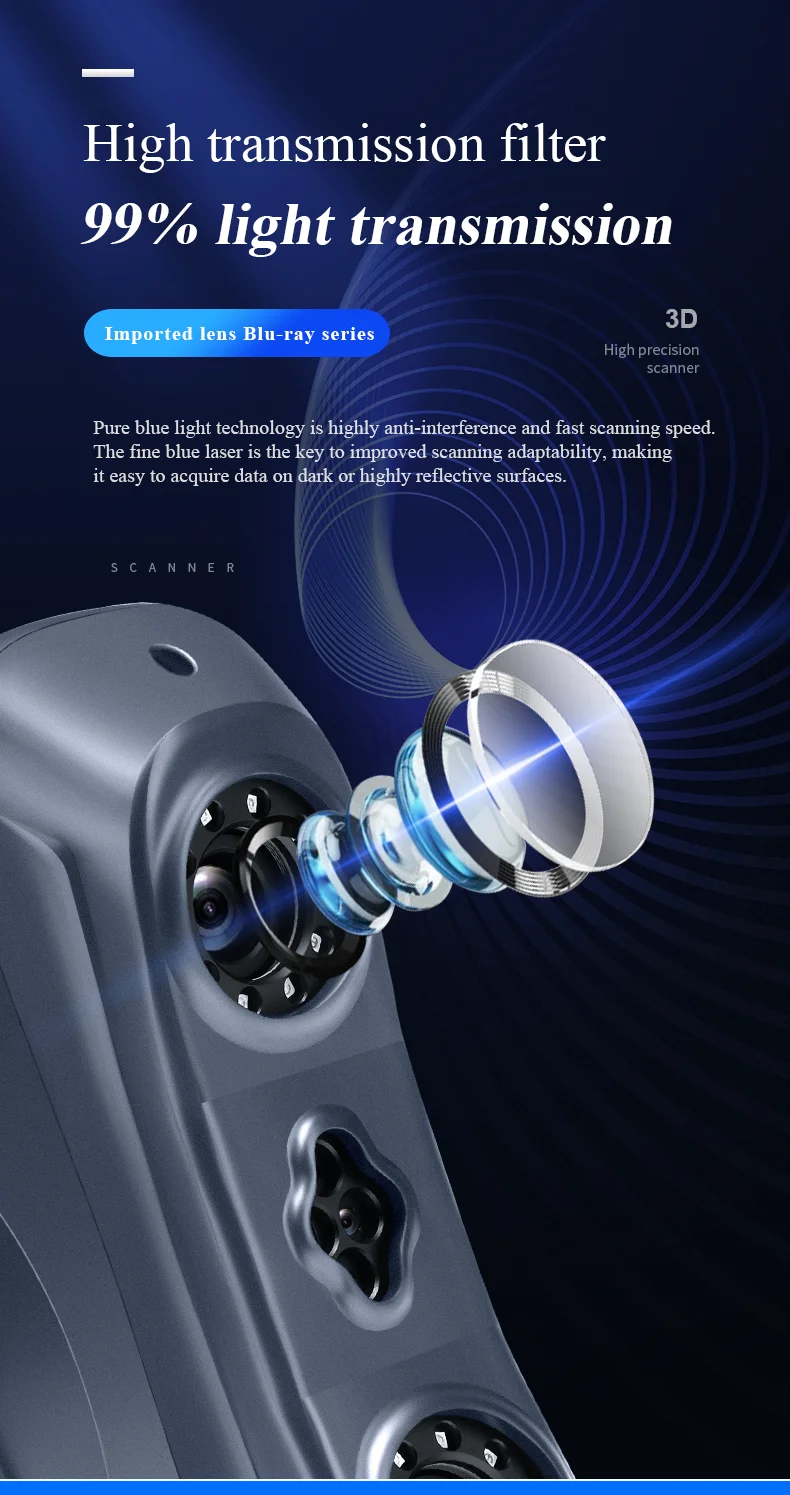

Light source	22 cross blue laser lines + 7 parallel blue laser lines+ 1 extra blue laser line
Laser Class	Class II (eye-safe)
Resolution	up to 0.02mm (0.0020in)
Depth of field	150-450mm (9.8in)
Stand off distance	300mm (11.8in)
Space point distance	0.2-2mm
Weight	0.57kg
Dimension	203x80x44mm
System Supported	Win7 Win8 Win10 64bit
Computer requirement	Graphics card: NVIDIA GTX770 or higher; Video Memory: >4G; Processor:i7 or higher; Memory: 16G or more; Port: high speed USB3.0

Packing & Delivery

Whole 3D printer machine with plywood carton box,standard package for express airway and shipping. The forklift mouth is designed at the bottom,to reduce the risk of damage to the machine during transportation.
