Customized Forest Log Trailer With Crane For Tractor

(0 レビュー)

発送予定時間: 3 日々

により販売されています: 自社製品

価格:

$1,484.40 /Pc

量:

(1252 利用可能)

払い戻し:

ポリシーを見る

売れ筋商品

説明レビュー

PLEASE NOTE:

1.The price only for reference, the specific cost based on your requirements and

the destination port, please contact us for more product details and quotations

2.We ship you by sea !!!

3.Door to door please leave message for price !!!

4.For specific information, please consult us. Wishing you a happy life!

5.Whatsapp:+86 182 0366 6368

Emali:chunhuali681@gmail.com

CONTACT US:

Products Description

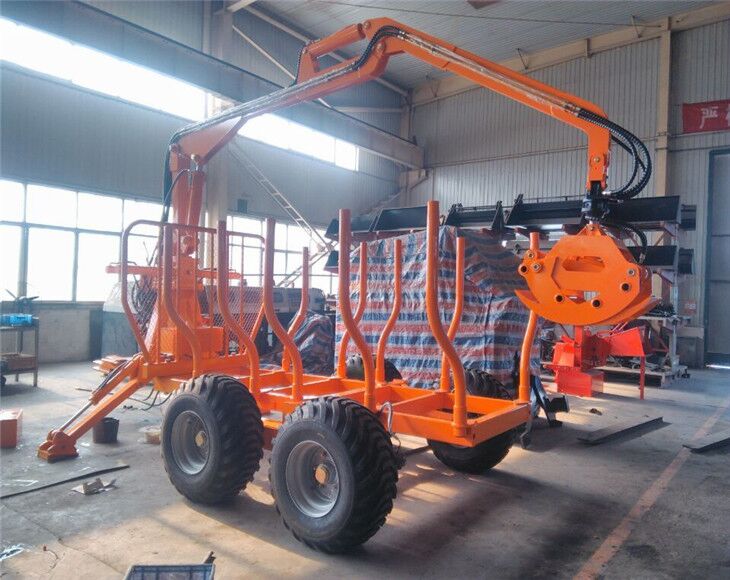

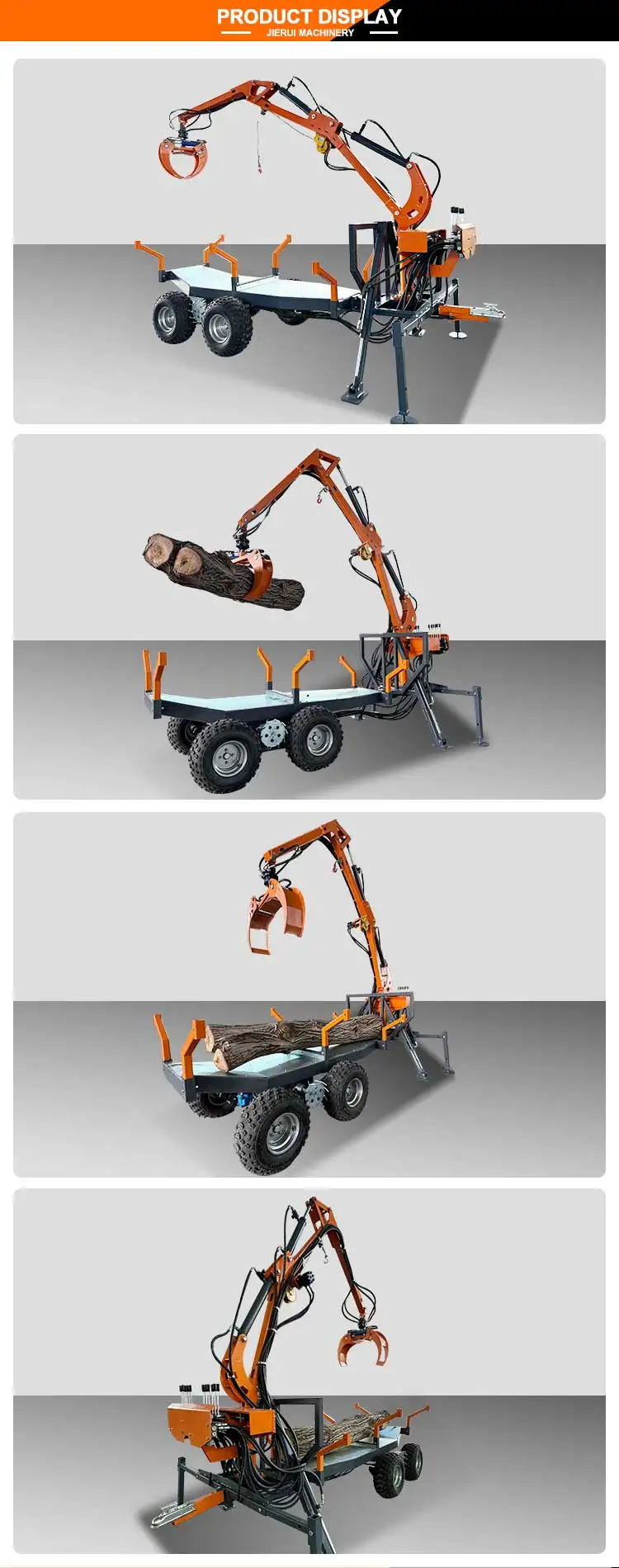

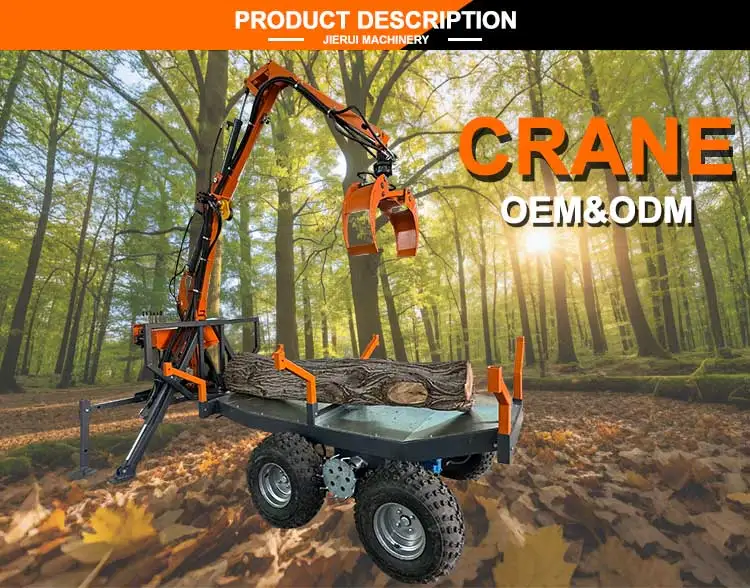

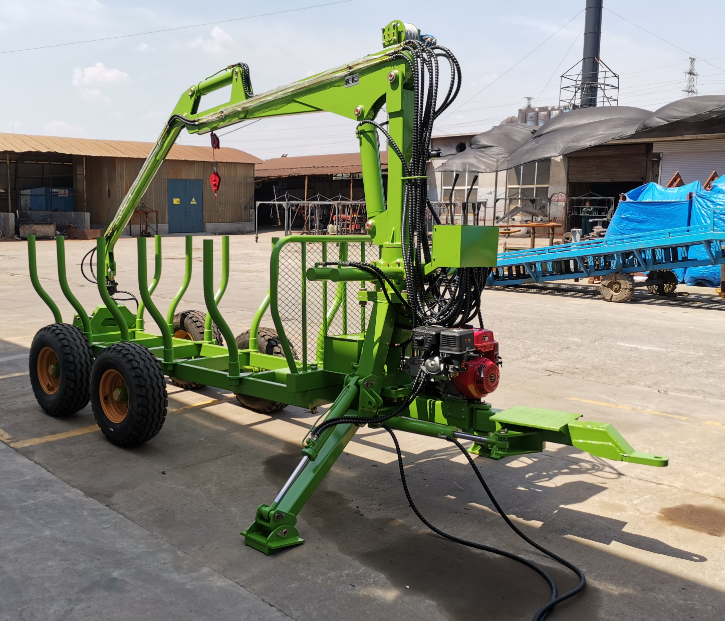

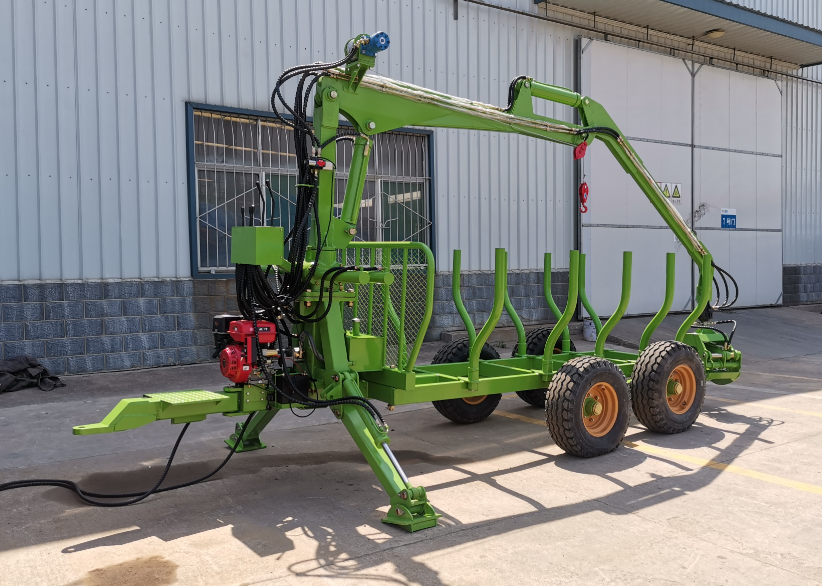

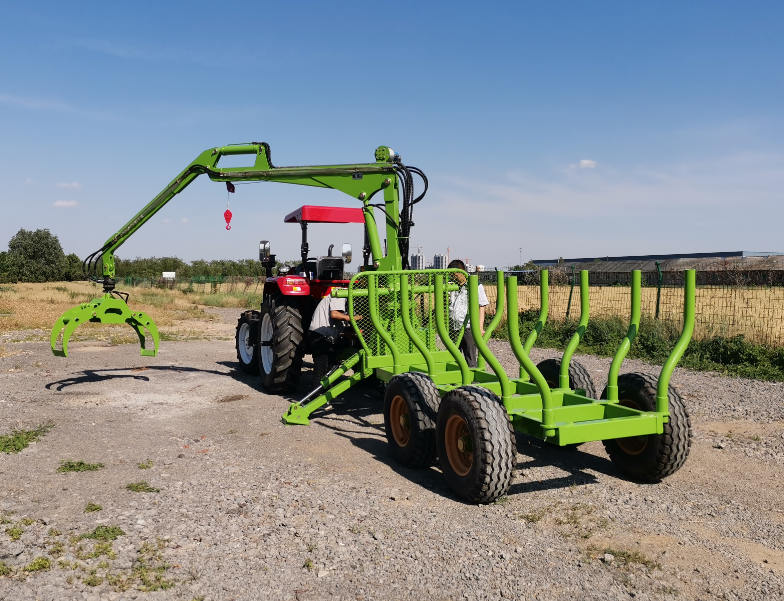

Timber Trailer with Crane

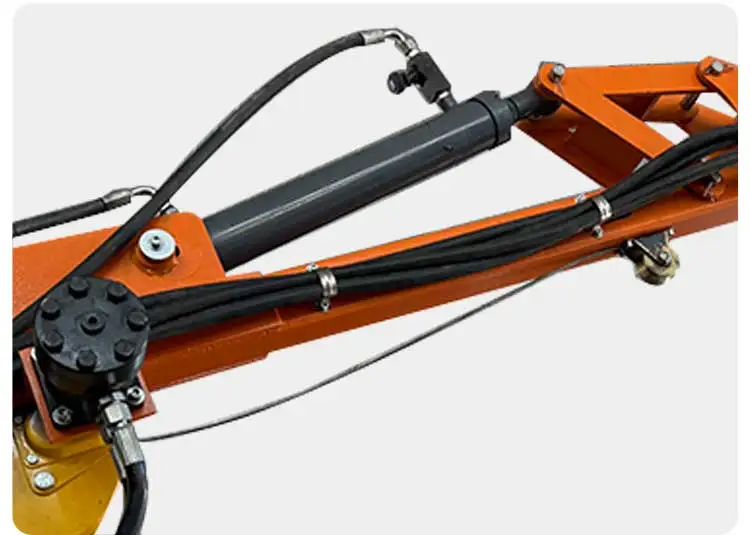

A crane with a log trailer that has strength and full technology.Can be installed on trucks, tractors, and flatbed trailers .Standard multi lever valve block components, simple rotary cylinder, and tilted boom can achieve maximum strength. The comfortable hinge between the first suspension rod and the outer suspension rod can achieve the optimal motion mode. The crane is equipped with top mounted cylinders for the first and outer arms, hidden hoses, exposed hose wear protection devices, and impact protection for the fully rotating rotor, thereby minimizing external damage to the hoses and couplings. Specifically designed for anygrab need related to timber loading, they have great lifting and loading capacity thanks to their special geometry.

Model	YG03	YG03A	YG03B
Timber Crane

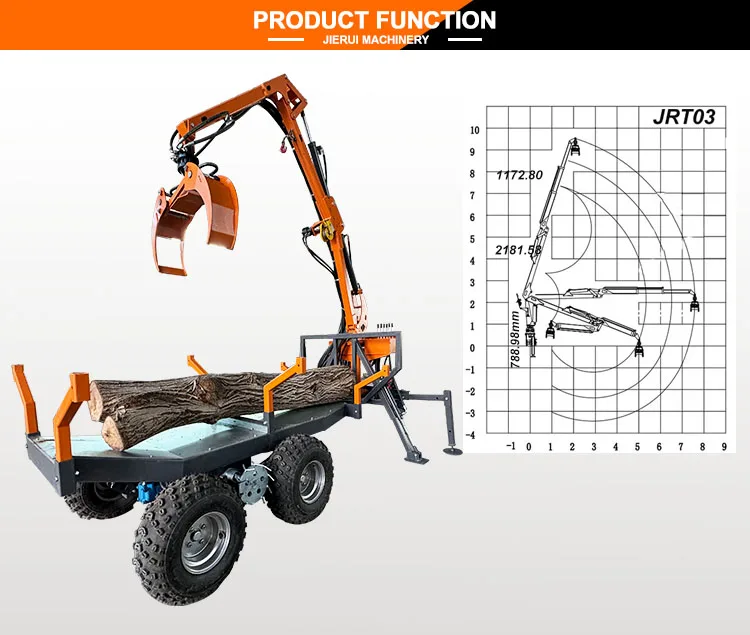

Max reach	3.4m
Lifting capacity(3.4m)	200kg
Turning radius of crane	360°
No. of swing cylinder	2pcs

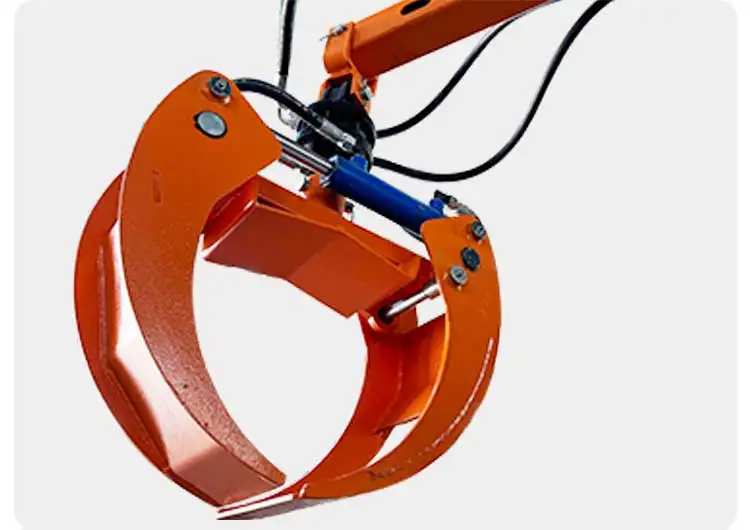

Max. open & area of wood grapple	700mm/0.08 m2 (STANDARD)
Max. load of hydraulic rotator	1 ton(10KN)
Hydraulic rotator turning radius	unlimited
Working pressure	18-22Mpa

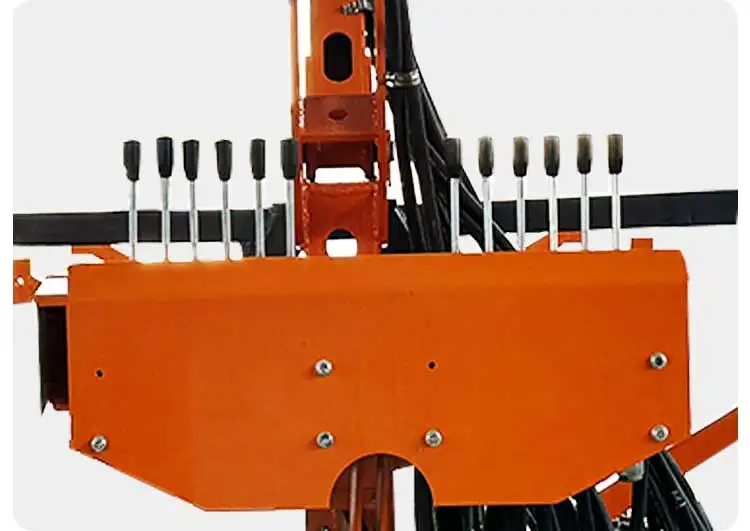

Control valve	5/7 sets	7/9 sets	5/7 sets & 2/4 sets
Power Unit	6.5HP engine 6L hydraulic tank	9HP engine 6L hydraulic tank	9HP engine 6L hydraulic tank
Hydraulic flow	7.5L/min	14.4L/min	14.4L/min
Weight	190kg	190kg	190kg
Timber Trailer
Max. load	1500kg			2000kg
Total length	3230mm			3350mm
Width with wheels	1440mm			1344mm
Height	1600mm			1600mm
Height of front plate	1100x700mm			1100x700mm
No. of "S"	2sets			3sets
Length of loading area	2120mm(3520mm)			2200mm
Loading area volume	1.6-3m3			1.6 m3
Min. ground clearance	200mm			200mm
Standard wheel	22x11-10			25x10-12
Remote 4WD drive	—	YES	YES
Remote Telescopic trailer	—	—	YES
Remote Swing angle	—	—	±45°
Weight	270kg	390kg	565kg
40”HC	24pcs			15pcs
