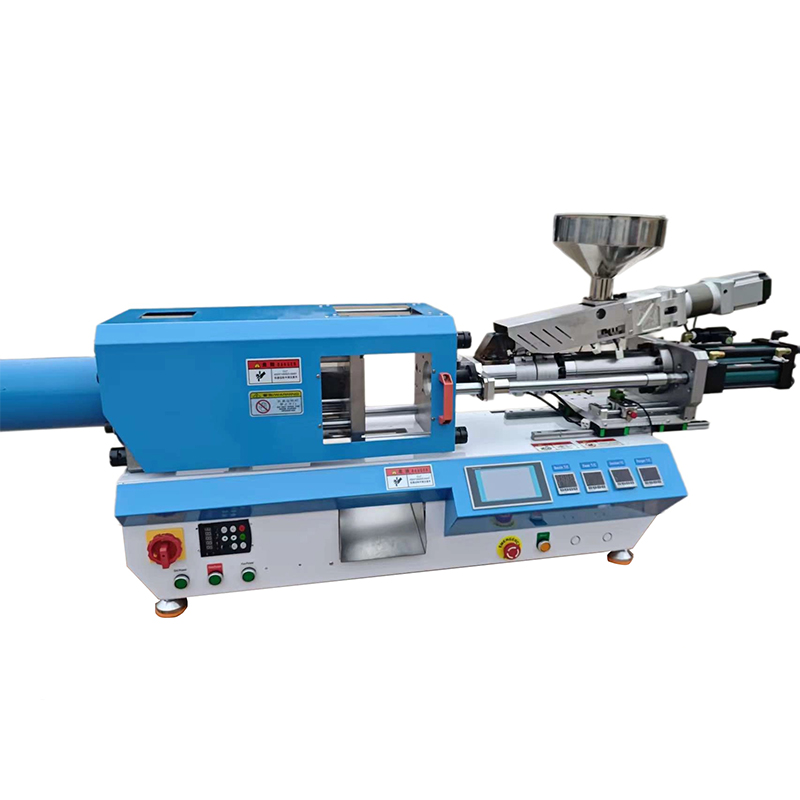

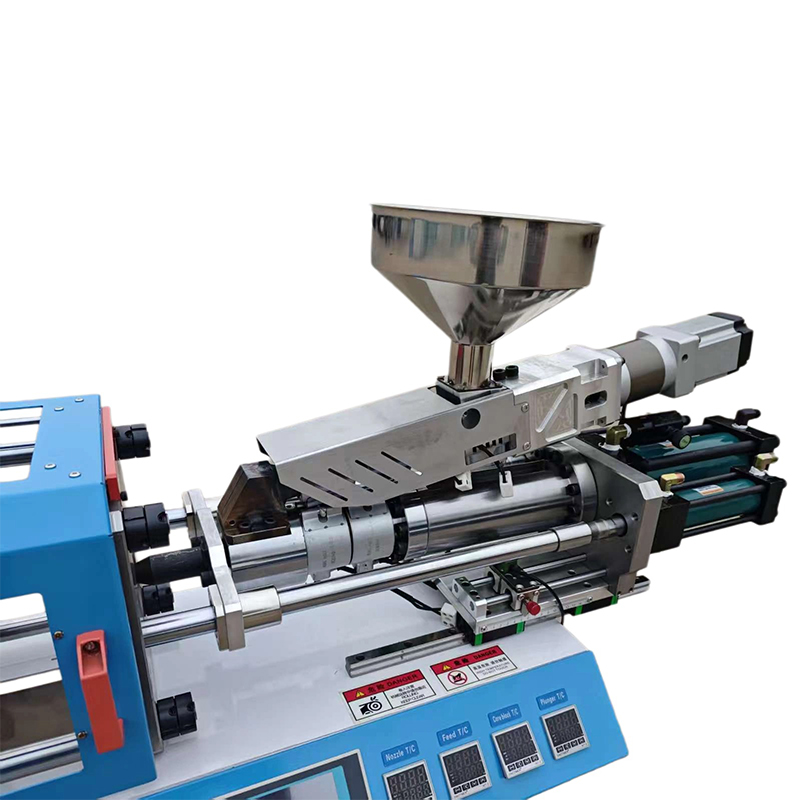

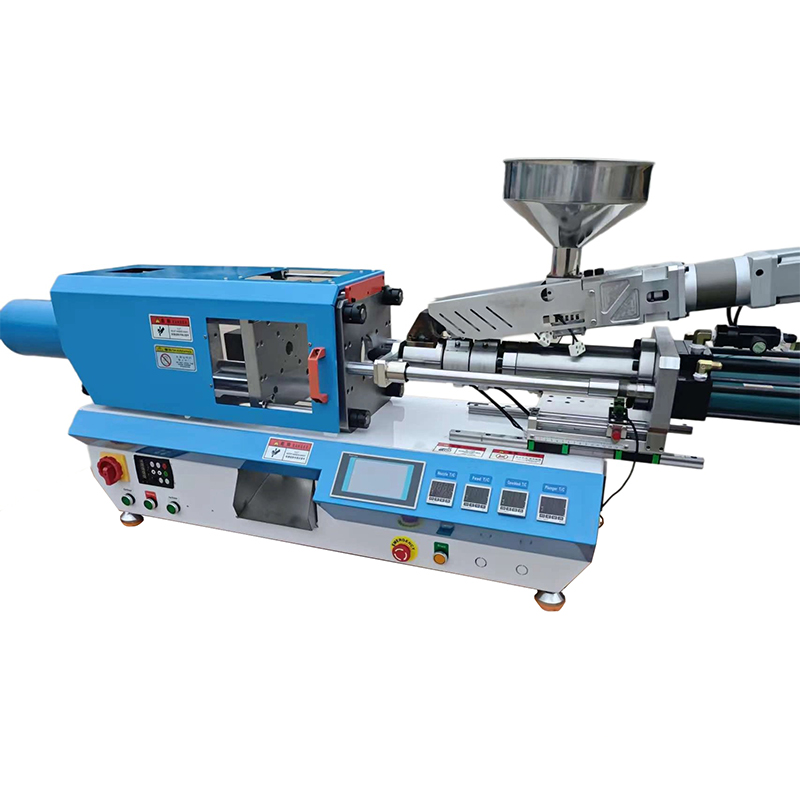

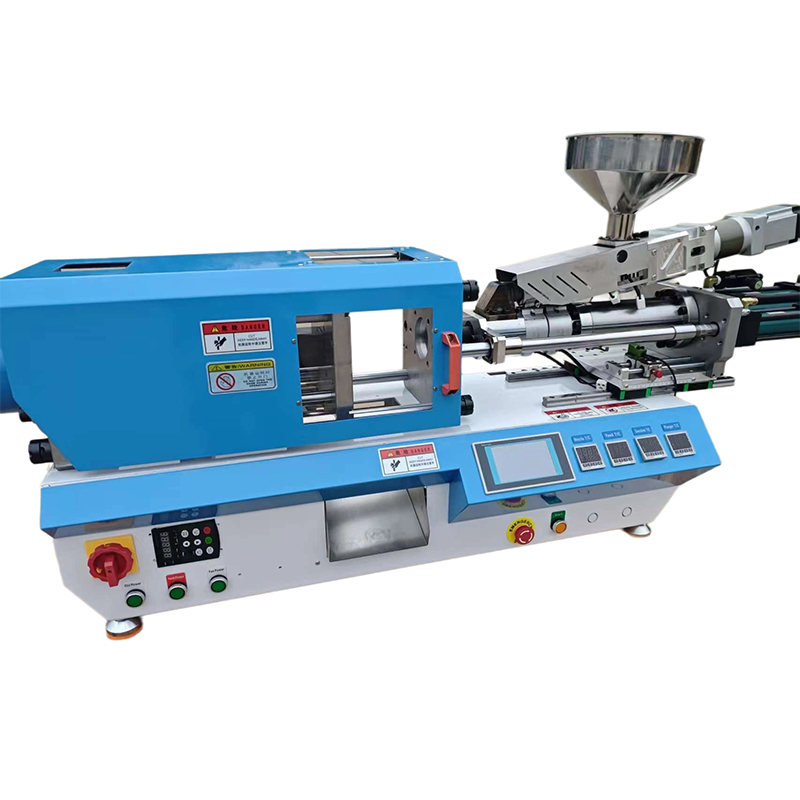

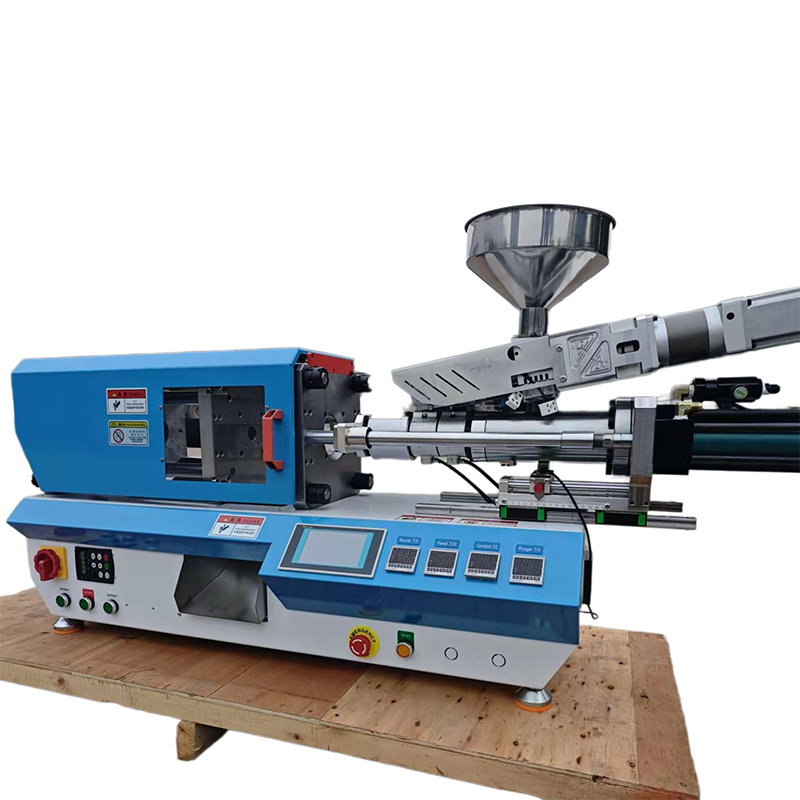

220V/110V 35g/50g Horizontal Hydraulic Injection Molding Machine Automatic Sero 16T Plastic Injection Molding Machine
価格:
$4,210.92
/Pc
払い戻し:
シェア:
売れ筋商品
Buyer Notice:
If you choose the seller's shipping method, the prices in most countries include double customs clearance and door-to-door delivery ,You don't need to pay any additional fees, it can be delivered directly to your shipping address
For hydraulic system integrated machines, it does not require an additional hydraulic workstation
For more information, please contact us for consultation
50g Product parameters
Voltage: 220V/110V (optional)
Maximum output: 50g
Maximum movement distance of mold base: 100mm
Maximum opening distance: 105mm
Top rod stroke: 45mm
Diameter of the guide pillar : 25mm
Spacing between the main sliding rods : 210mm
Maximum injection pressure: 16T
Maximum mold installation size: 185 * 270mm
Power type: electric clamping, hydraulic injection
Need to be paired with a hydraulic station: above 1500W (hydraulic station not included, need to purchase separately)
Machine size: approximately 110 * 35: * 60cm
Machine weight: approximately 280kg
35g Product parameters
Voltage: 220V/110V (optional)
Maximum output: 35g
Maximum movement distance of mold base: 100mm
Maximum opening distance: 105mm
Top rod stroke: 45mm
Diameter of the guide pillar : 25mm
Spacing between the main sliding rods : 210mm
Maximum injection pressure: 10T
Maximum mold installation size: 185 * 270mm
Power type: electric clamping, hydraulic injection
Need to be paired with a hydraulic station: above 1500W (hydraulic station not included, need to purchase separately)
Machine size: approximately 110 * 35: * 60cm
Machine weight: approximately 280kg
If you choose the seller's shipping method, the prices in most countries include double customs clearance and door-to-door delivery ,You don't need to pay any additional fees, it can be delivered directly to your shipping address
For hydraulic system integrated machines, it does not require an additional hydraulic workstation
For more information, please contact us for consultation
50g Product parameters
Voltage: 220V/110V (optional)
Maximum output: 50g
Maximum movement distance of mold base: 100mm
Maximum opening distance: 105mm
Top rod stroke: 45mm
Diameter of the guide pillar : 25mm
Spacing between the main sliding rods : 210mm
Maximum injection pressure: 16T
Maximum mold installation size: 185 * 270mm
Power type: electric clamping, hydraulic injection
Need to be paired with a hydraulic station: above 1500W (hydraulic station not included, need to purchase separately)
Machine size: approximately 110 * 35: * 60cm
Machine weight: approximately 280kg
35g Product parameters
Voltage: 220V/110V (optional)
Maximum output: 35g
Maximum movement distance of mold base: 100mm
Maximum opening distance: 105mm
Top rod stroke: 45mm
Diameter of the guide pillar : 25mm
Spacing between the main sliding rods : 210mm
Maximum injection pressure: 10T
Maximum mold installation size: 185 * 270mm
Power type: electric clamping, hydraulic injection
Need to be paired with a hydraulic station: above 1500W (hydraulic station not included, need to purchase separately)
Machine size: approximately 110 * 35: * 60cm
Machine weight: approximately 280kg
