80/100/125mm Precision 4-Jaw Self-Centering Lathe Chuck - Iron & Steel Wide Clamping Range Automatic Centering for Machine Tools

This 4-jaw self-centering chuck provides stable support for precision machining. It is made of high-class materials to ensure long-term use without deformation and is suitable for a wide range of machine tools. The wide clamping range can be easily adjusted to meet the clamping needs of different sizes of workpieces, giving more stable, convenient, and accurate clamping performance, making it an ideal choice for you to improve work efficiency and machining accuracy.

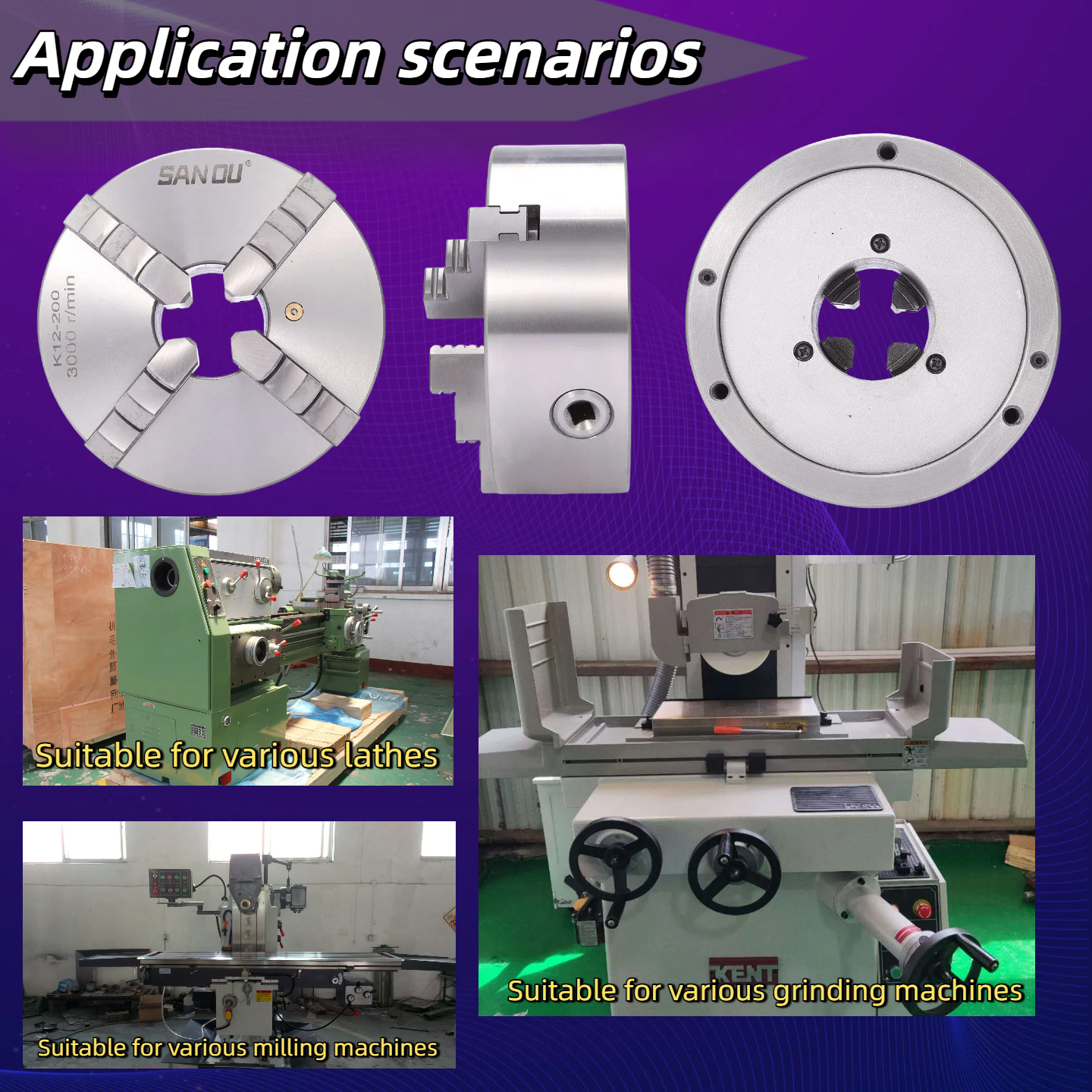

Application

The products are suitable for general machine tools, CNC machine tools, milling and drilling machines, machining centers, etc., to help quickly complete the clamping, milling, drilling, and turning work.

Specifications（K12-80mm）

Color: Silver

Material: Iron, Steel

Max. Speed: 4800 r/min

Compatible Devices: Lathe

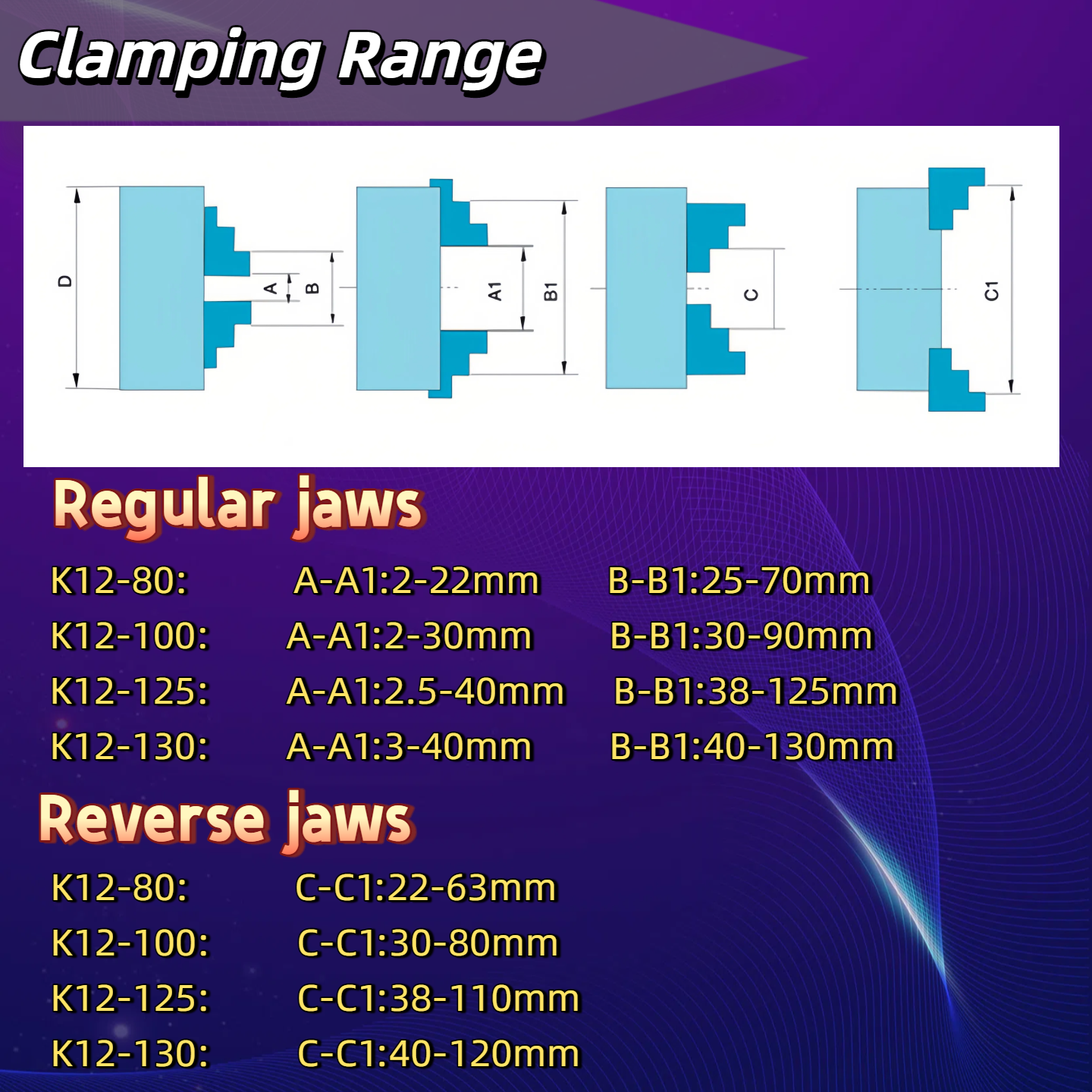

Internal Jaw Clamping Range: 2-22mm/0.079-0.87in

External Jaw Claw Clamping Range: 22-63mm/0.87-2.48in

Internal Jaw Jamming Range: 25-70mm/0.98-2.76in

Centering Precision: 0.07mm/0.0028in

Chuck Hole Diameter: 16mm/0.63in

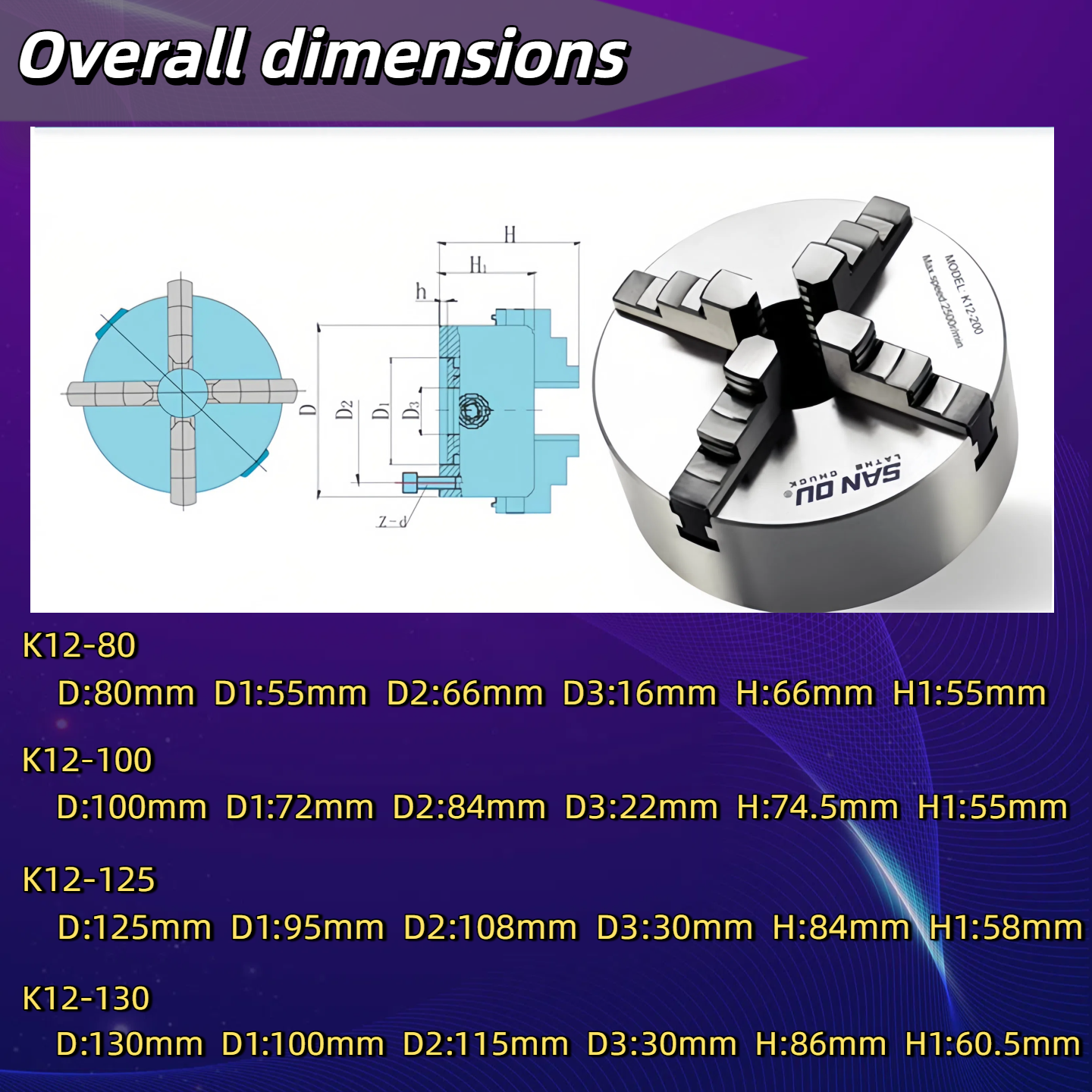

Product Diameter: 8cm/3.15in

Package Size: 15*15*13cm/5.91*5.91*5.12in

Net Weight: 2kg/4.41lbs

Specifications（K12-100mm）

Color: Silver

Material: Iron, Steel

Max. Speed: 4200r/min

Compatible Devices: Lathe

Internal Jaw Clamping Range: 2-30mm/0.079-1.18in

External Jaw Claw Clamping Range: 30-80mm/1.18-3.15in

Internal Jaw Jamming Range: 30-90mm/1.18-3.54 in

Centering Precision: 0.07mm/0.0028in

Chuck Hole Diameter: 22mm/0.87in

Product Diameter: 100mm/3.94in

Package Size: 15*15*15cm/5.91*5.91*5.91in

Net Weight: 3kg/6.61lbs

Specifications（K12-125mm）

Color: Silver

Material: Iron, Steel

Max. Speed: 3800r/min

Compatible Devices: Lathe

Internal Jaw Clamping Range: 2.5-40mm/0.098-1.57in

External Jaw Claw Clamping Range: 38-110mm/1.5-4.33in

Internal Jaw Jamming Range: 38-125mm/1.5-4.92in

Centering Precision: 0.07mm/0.0028in

Chuck Hole Diameter: 22mm/0.87in

Product Diameter: 125mm/4.92in

Package Size: 17.5*17.5*16cm/6.89*6.89*6.3in

Net Weight: 5kg/11.02lbs

Specifications（K12-130mm）

Color: Silver

Material: Iron, Steel

Max. Speed: 3800r/min

Compatible Devices: Lathe

Internal Jaw Clamping Range: 3-40mm/0.12-1.57in

External Jaw Claw Clamping Range: 40-120mm/1.57-4.72in

Internal Jaw Jamming Range: 40-130mm/1.57-5.12in

Centering Precision: 0.07mm/0.0028in

Chuck Hole Diameter: 38mm/1.5in

Product Diameter: 130mm/5.12in

Package Size: 17.5*17.5*16cm/6.89*6.89*6.3in

Net Weight: 5.5kg/12.13lbs

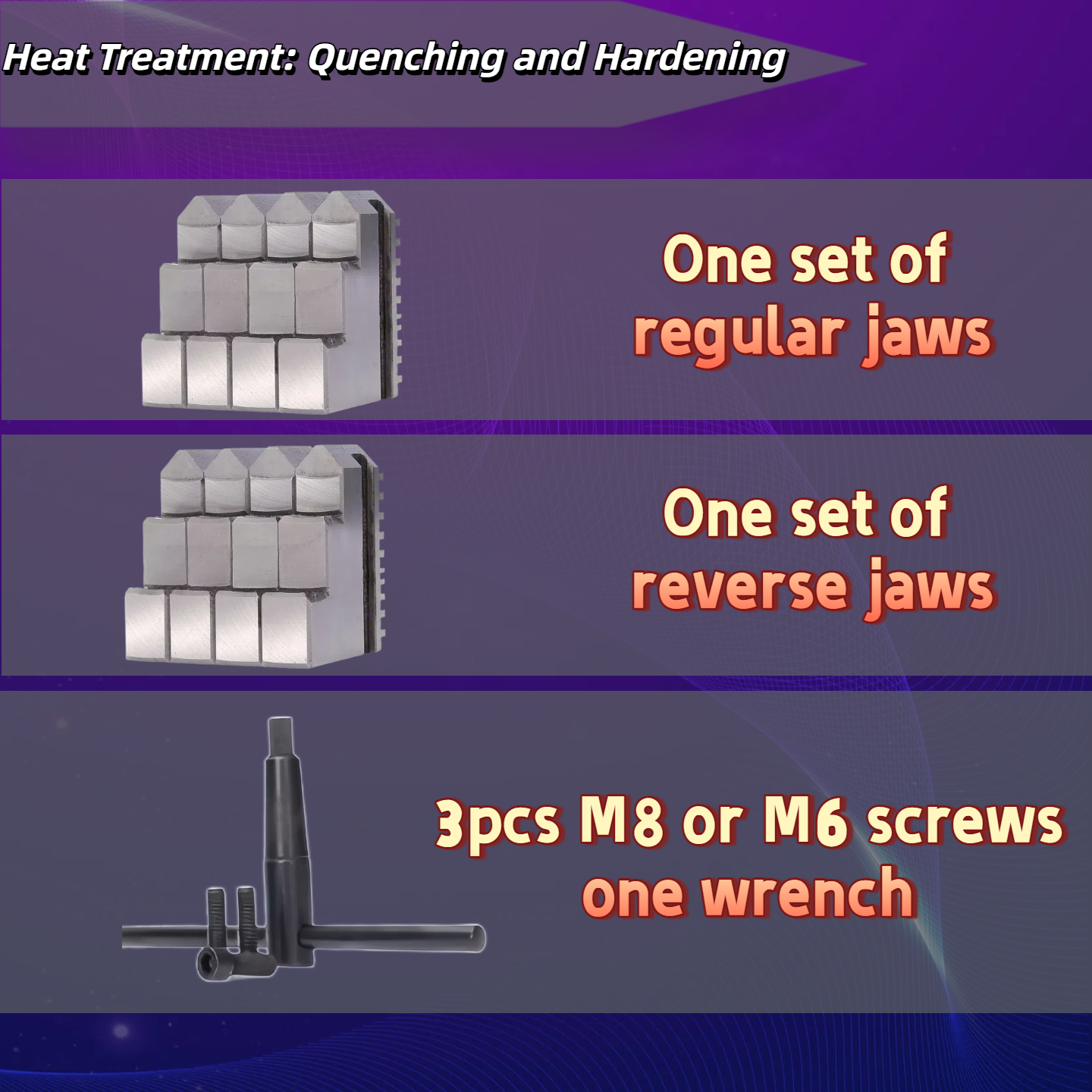

Package Included

1* 4-jawSelf-Centering Chuck

1* External Jaw Set

1* Internal Jaw Set

1* Chuck Wrench

3* Screws

Notes

1. Please check the size carefully before ordering.

2. This product needs a flange(not included) to be fixed on the lathe.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
