The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.

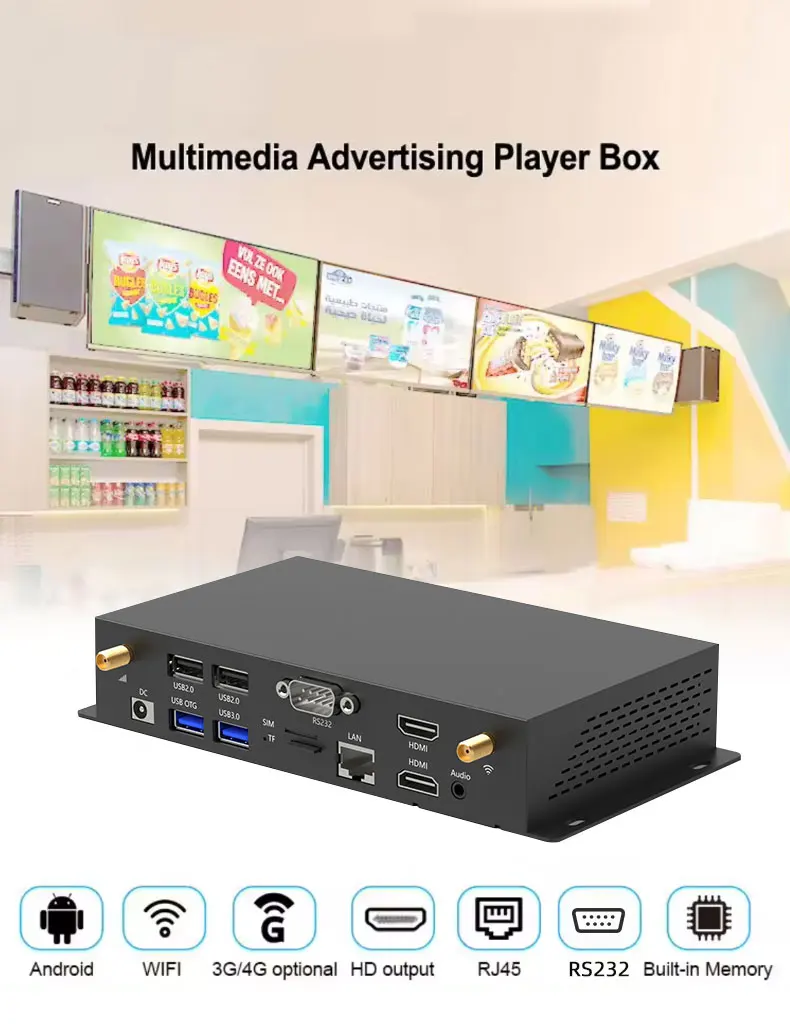

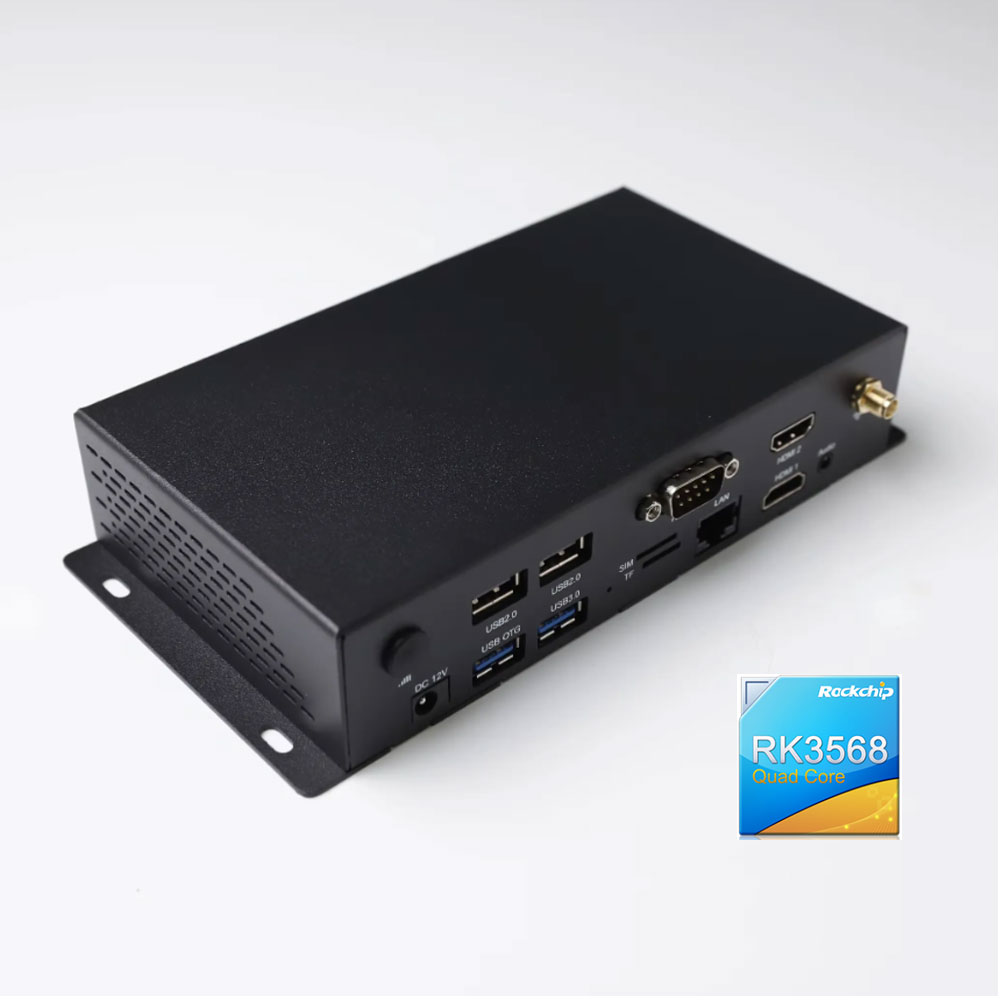

Android RK3568 Google Certified Android 11 System Digital Signage Media Player Box 2G/32G Support 4K 2K Resolution
価格:
$169.95
/Pc
払い戻し:
シェア:
売れ筋商品
Product Description
Overview:
飦�Features:
飦礬t High performance: The RK3288 chip uses the quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.
飦礬t High stability: RK3288 Android integrated board, add their own unique technology in the hardware&software to ensure the stability of the product. To make sure the device 7*24 hours unattended.
飦礬t High integration: RK3288 Android integrated board integrates Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.
飦礬t Multi interfaces: 6*USB ports, 3*UART ports, can connect more peripheral devices.
|
System
|
CPU&GPU
|

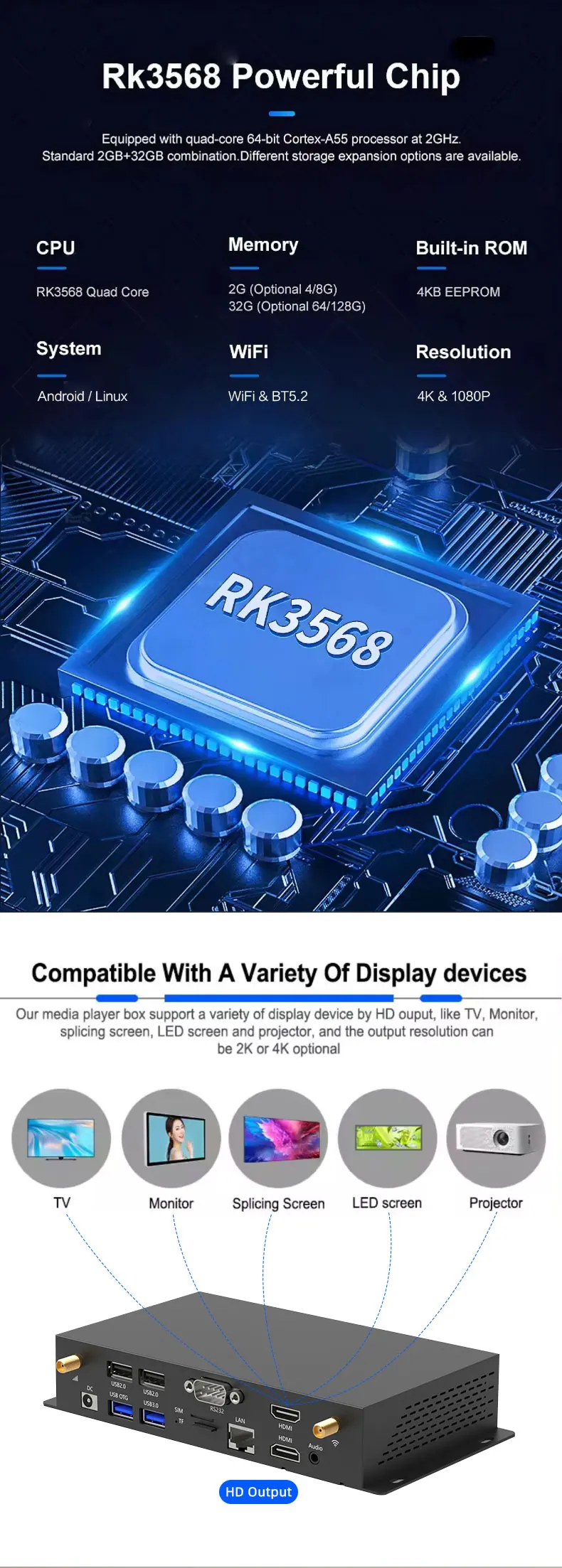

Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
|
||||
|
RAM
|
2GB/4G (optional)
|
|||||
|
Internal Storage
|
8GB/16GB/32GB/64GB(optional)
|
|||||
|
OS
|
Android 11
|
|||||
|
Network
|
WiFi
|
IEEE 802.11b/g/n(optional)
|
||||
|
Ethernet
|
Support 10/100/1000M Ethernet
|
|||||
|
Mobile Network
|

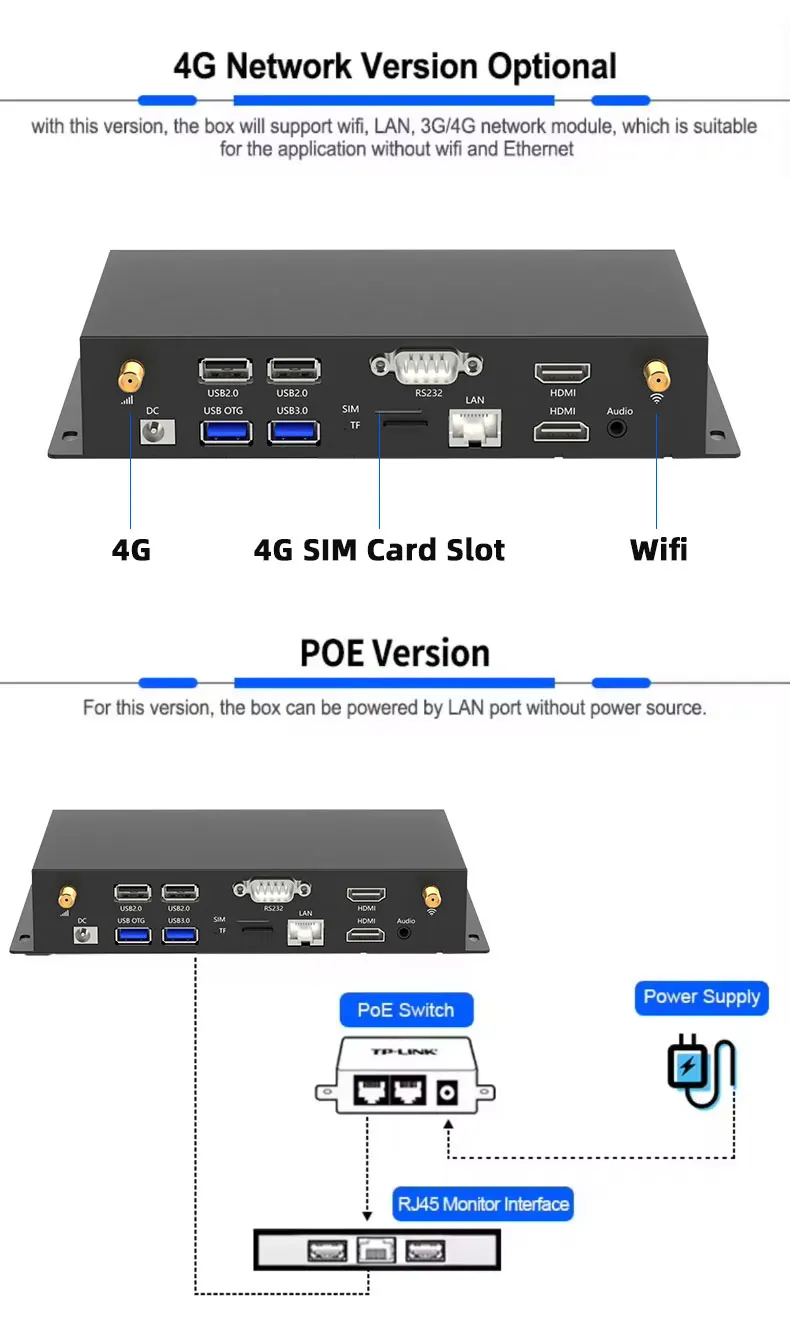

Support wireless 4G network(optional)
|
|||||
|
Bluetooth
|
Bluetooth5.2
|
|||||
|

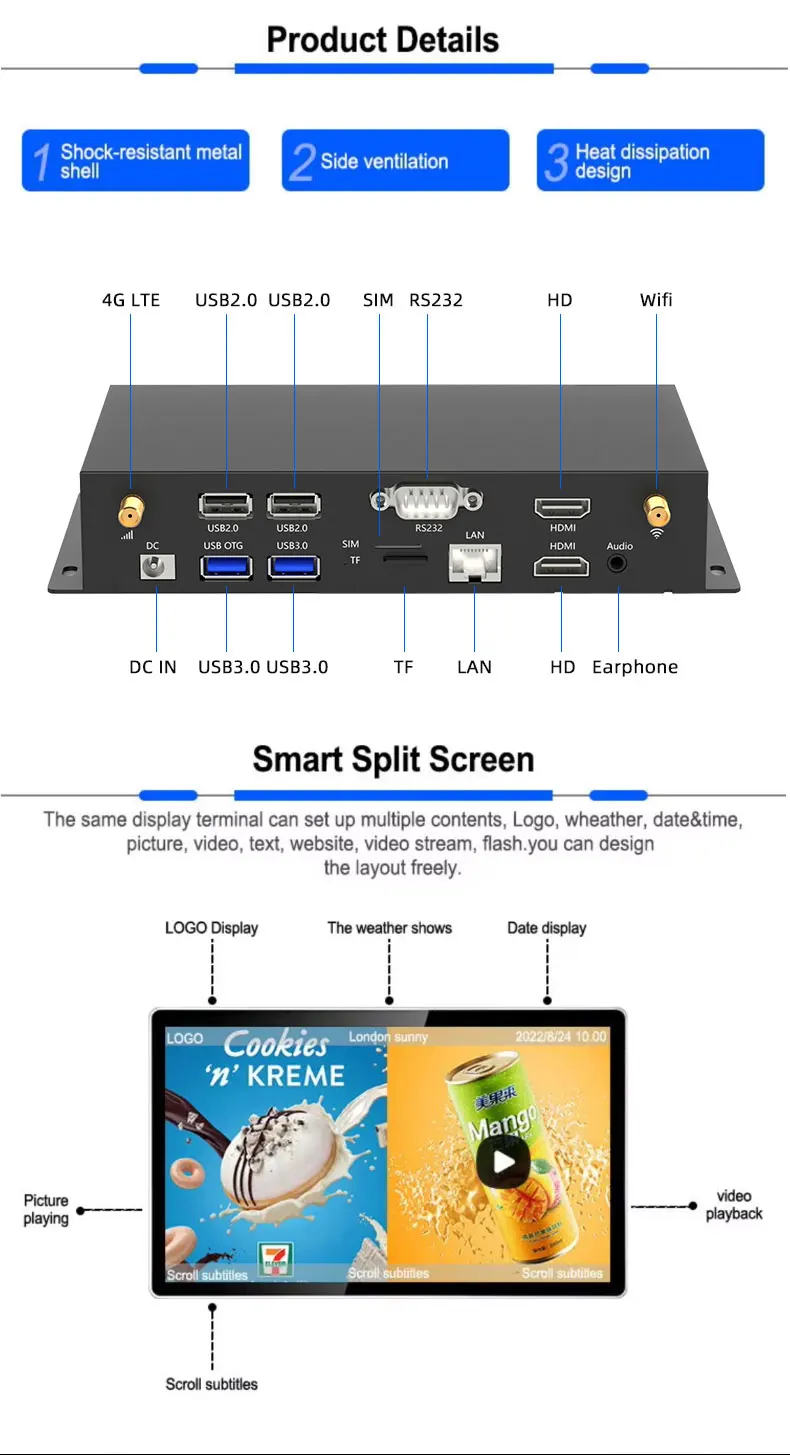

Interface
|

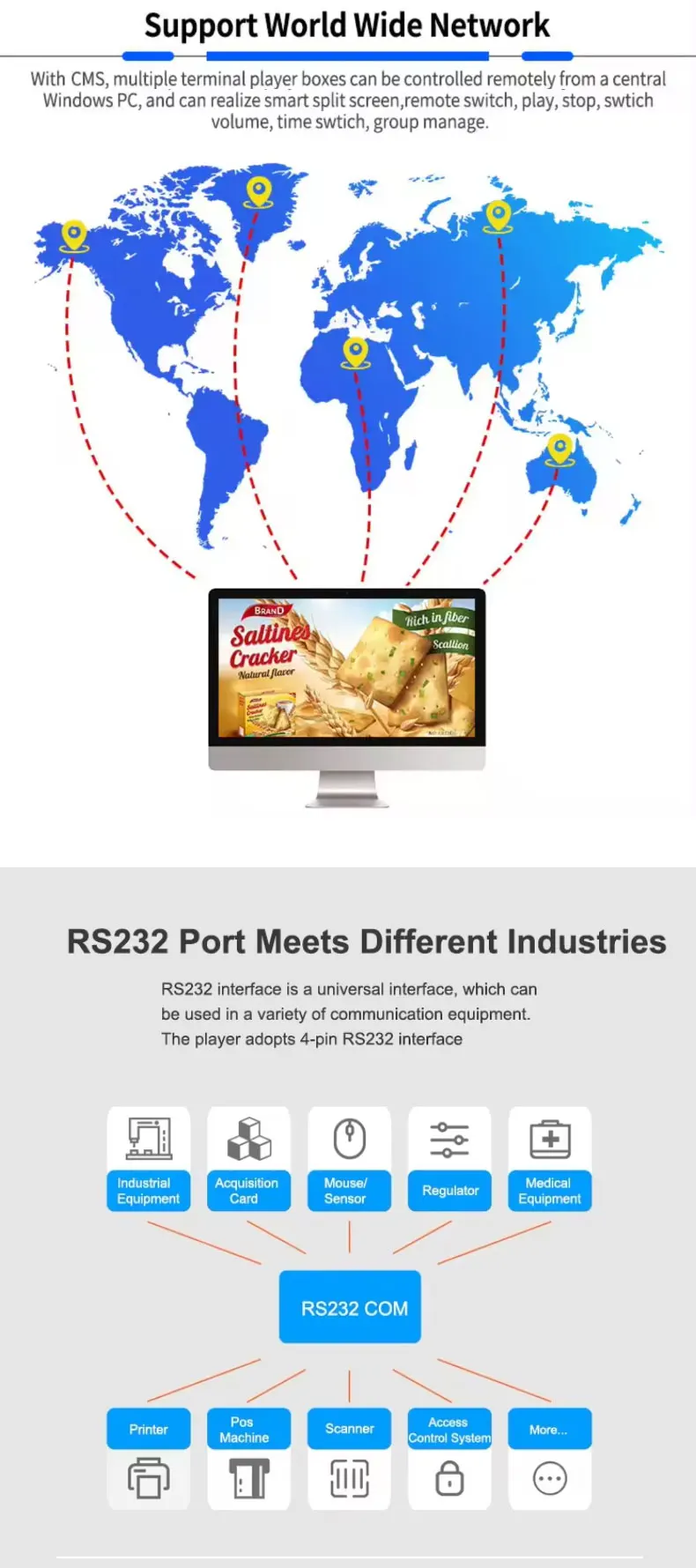

RS232
|
RS232 com port, male head DB9*1
|
||||
|
USB 2.0
|
USB 2.0_A*2
|
|||||
|
HDMI_OUT_2
|
HDMI-A output supporting 1920*1080 60HZ
|
|||||
|
DC holder*1
|
DC_12V input 5.5*2.1mm plug
|
|||||
|
Headphone
|
3.5mm stereo headphone output
|
|||||
|
USB_OTG
|
USB_A*1
|
|||||
|
USB 3.0
|
USB 3.0_A*1
|
|||||
|
HDMI_OUT_1
|
HDMI-A 2.0 output锛坰upporting 3840*2160 60HZ锛�
|
|||||
|
SIM card
|
SIM card slot*1(optional)
|
|||||
|
Extended memory port
|
TF card slot*1
|
|||||
|
Button
|
Button
|
Upgrade button*1
|
||||
|
Environmental Conditions
|
Working Environment
|
Temperature:-20~60鈩�,5%-85%RH (No condensation)
|
||||
|
Storage environment
|
Temperature:-20~70鈩�,5%-95%RH (No condensation)
|
|||||
|
Material
|
Shell material
|
Metal
|
||||
|

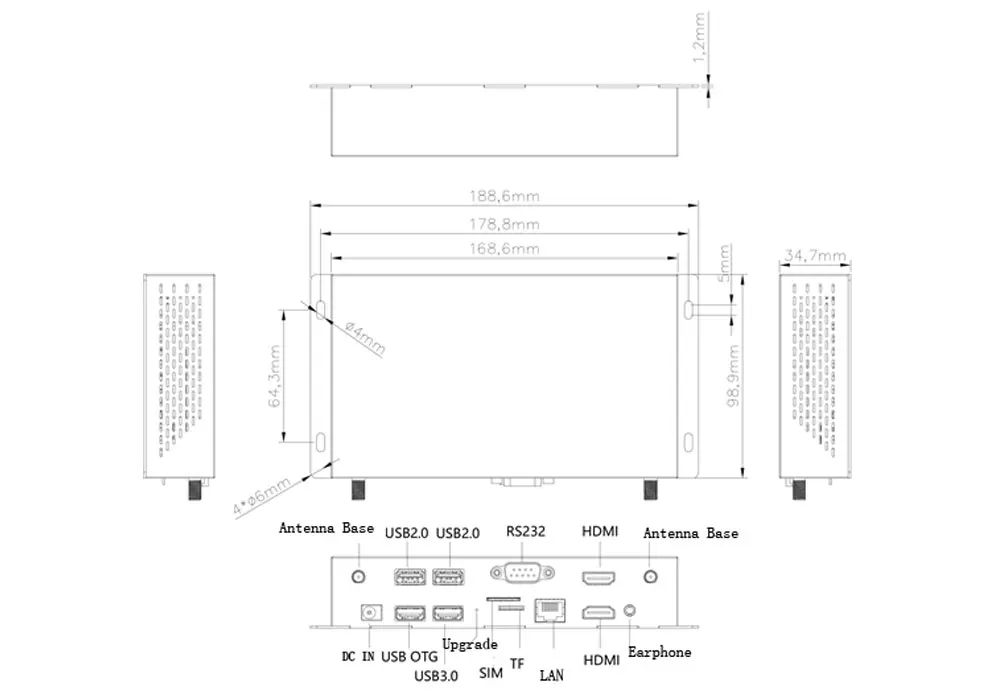

Size
|
Product Size
|
Shell size:190.6*98.9*34.7mm
|
||||
Customization
Related Products
About Sunchip
1. 15 years experience in PCBA
2. Strong R&D team over 70 people
3. Factory passed ISO9001 quality system certification
4. Big workshop area of over 3500 square meters with more than 200 employees.
5. Have a senior R&D team, with hardware engineers, software engineers, product engineers and so on, can undertake all kinds of
OEM/ODM orders processing and production;
6. One-stop production of the factory, from PCB patch. Plug-in. Test. Assembly. Packaging and shipment are completed in this
factory, reducing the flow of intermediate links;
7.We can support drop-shipping for 1pcs, welcome to order, and welcome to visit the factory.
2. Strong R&D team over 70 people
3. Factory passed ISO9001 quality system certification
4. Big workshop area of over 3500 square meters with more than 200 employees.
5. Have a senior R&D team, with hardware engineers, software engineers, product engineers and so on, can undertake all kinds of
OEM/ODM orders processing and production;
6. One-stop production of the factory, from PCB patch. Plug-in. Test. Assembly. Packaging and shipment are completed in this
factory, reducing the flow of intermediate links;
7.We can support drop-shipping for 1pcs, welcome to order, and welcome to visit the factory.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 銆�4K銆慉ndroid media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 銆�8K銆慉ndroid Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 銆�4K銆慉ndroid media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 銆�8K銆慉ndroid Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
Packing & Delivery
1.Packing: carton box or wood case 2.Payment methods: accept T/T,Western Union,Paypal and Cash. 3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge. 4.Warranty: 12 months warranty. Paid maintenance over 12 months. 5.Remark: ROHS, CE & FCC certificates in e-file format are available. 6.MOQ: 1pc, sample order are welcome for your evaluation.
1.We are a professional indoor & outdoor digital signage complete solution & mass production technoloy provider. 2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development. 3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 15 years of experience gives us the edge! 4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages. 5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength. 6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.
Company Profie
SHENZHEN SUNCHIP TECHNOLOGY CO.,LTD
Established in 2011, SUNCHIP is a high-tech engineering company specialized in designing and manufacturing Digital signage, Embedded digital signage, ARM board and Andriod-based customized products, which are compliant with CE, FCC and RoHS standards.
SUNCHIP has a long histroy of OEM and ODM service to many branded customers. With the strong R&D team, intelligent robot production line and strict QC and QA members, SUNCHIP is a technology-leading ODM factory.With more than 100 experienced R&D engineers' hard working, SUNCHIP have mastered a whole set solution of high-definition video encoding&decoding developing and mass production technology.
SUNCHIP is the strategic partner of Rochchip, Intel, Amlogic, Samsung and Allwinner, so we always have a steady supply of reliable chipsets and unlimited technical support from the partners.
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company? A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue. 2) Q: What payment methods are available to me? A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash. 3) Q: How long is the warranty time? A: 1 Year. 4) Q: What are the shipment terms and delivery times of your company? A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping. 5) Q: Do you give any discounts ? A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges. 6) Q: I would like to add my company logo on your products, is this possible? A: SURE.We customize on a regular basis products for many large retailers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
Different methods are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
