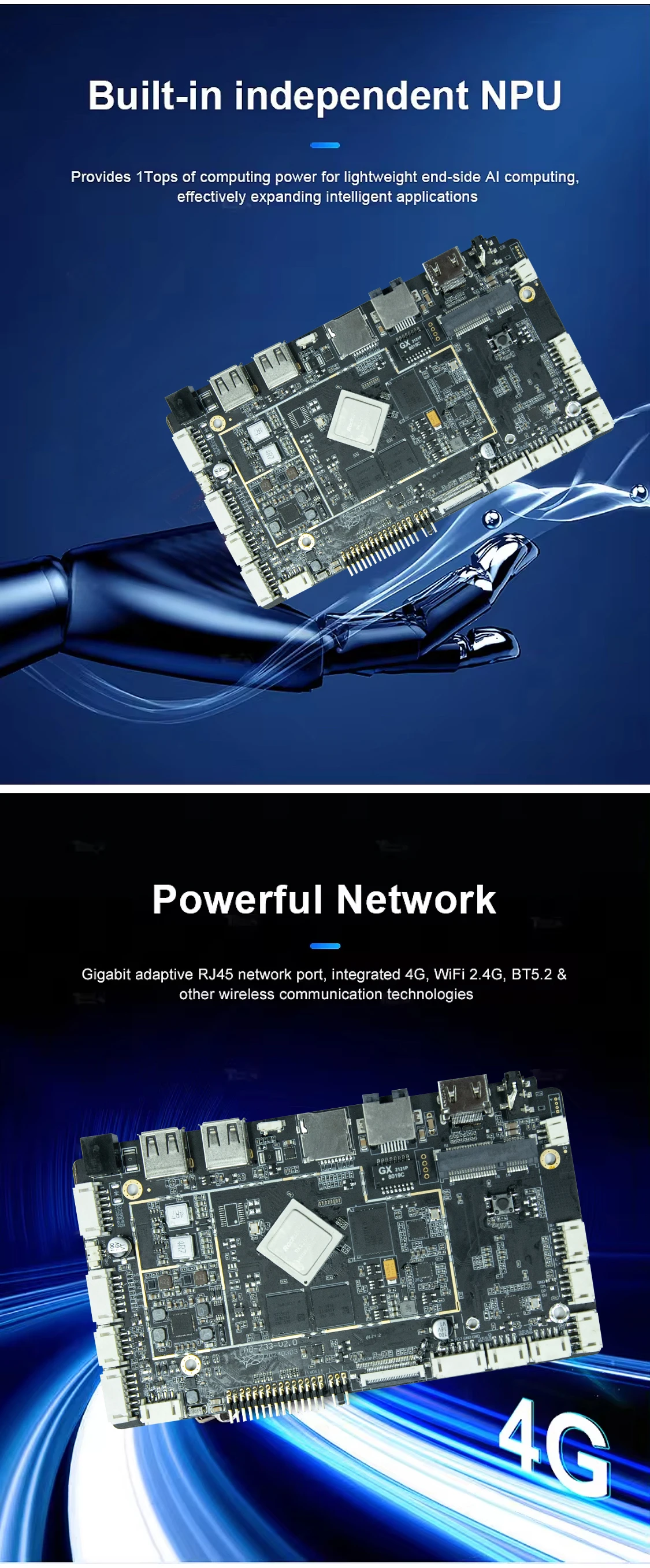

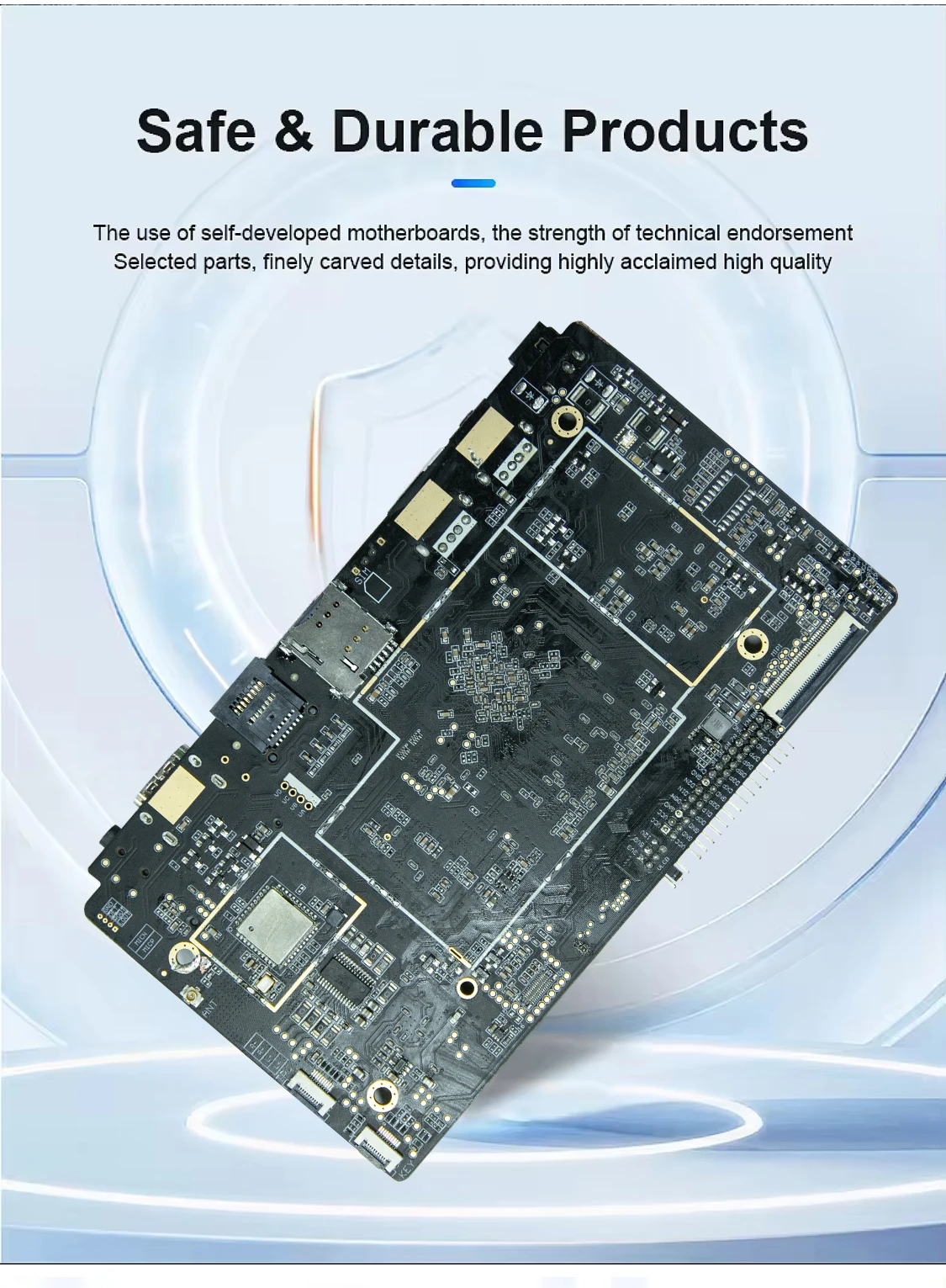

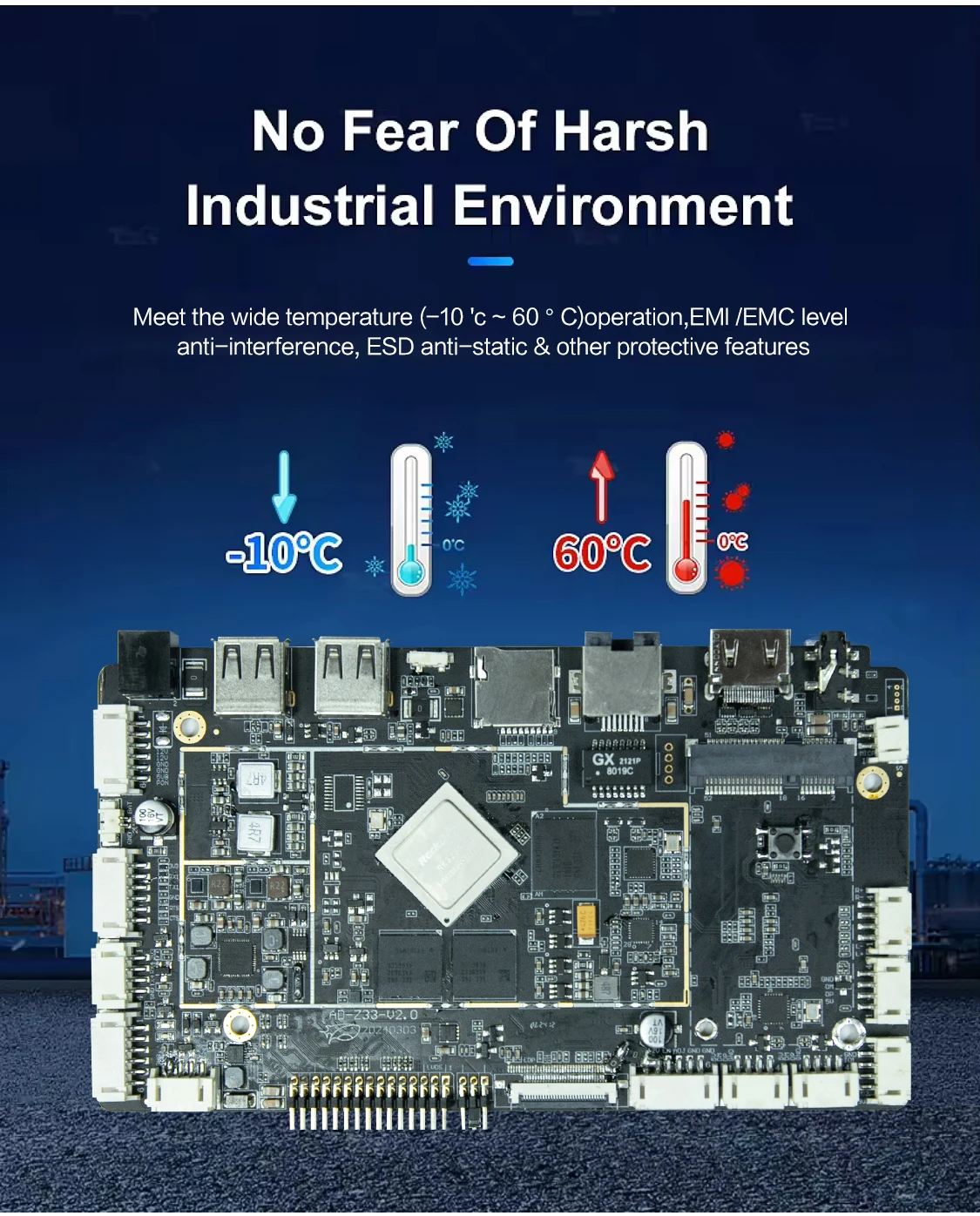

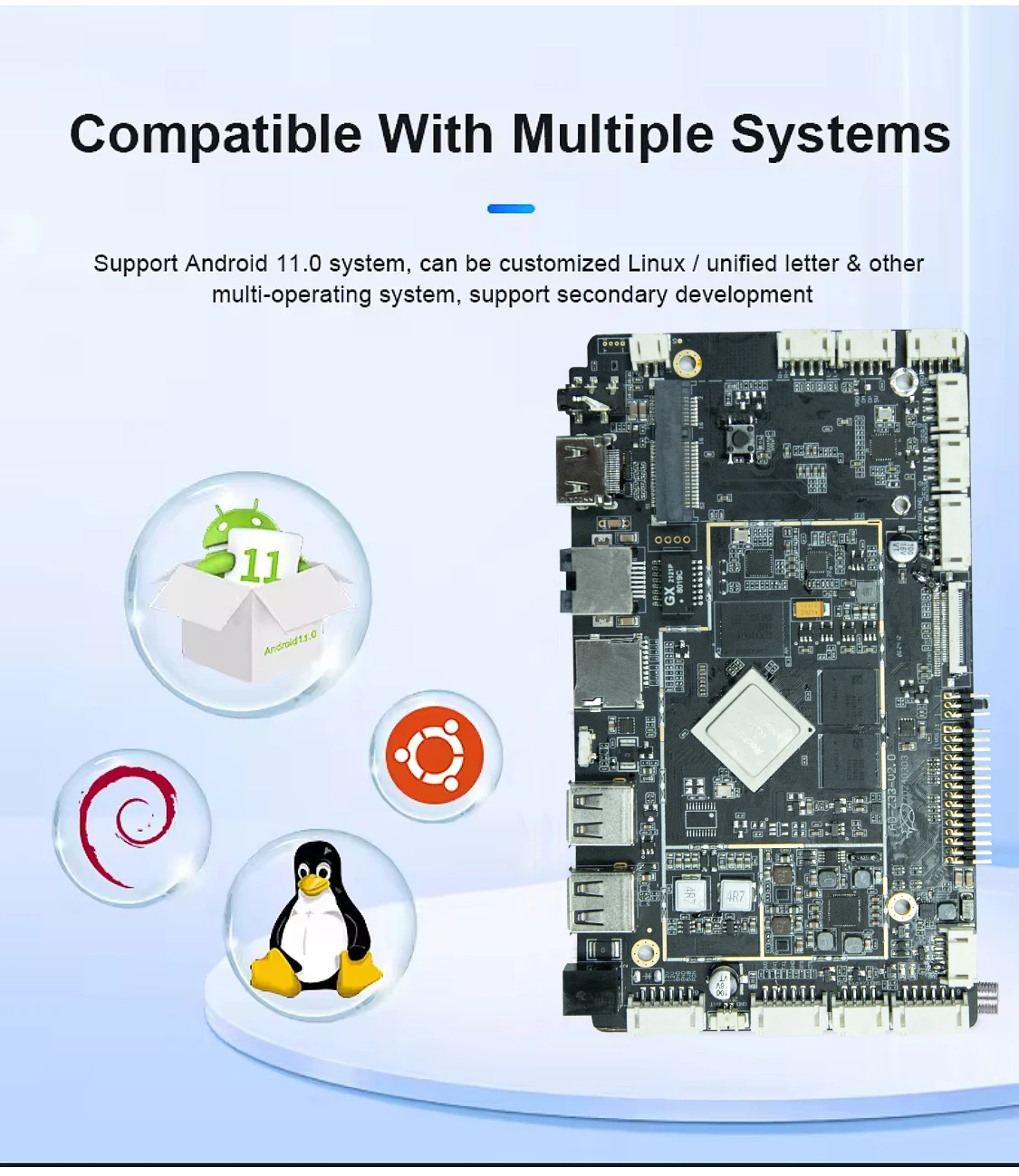

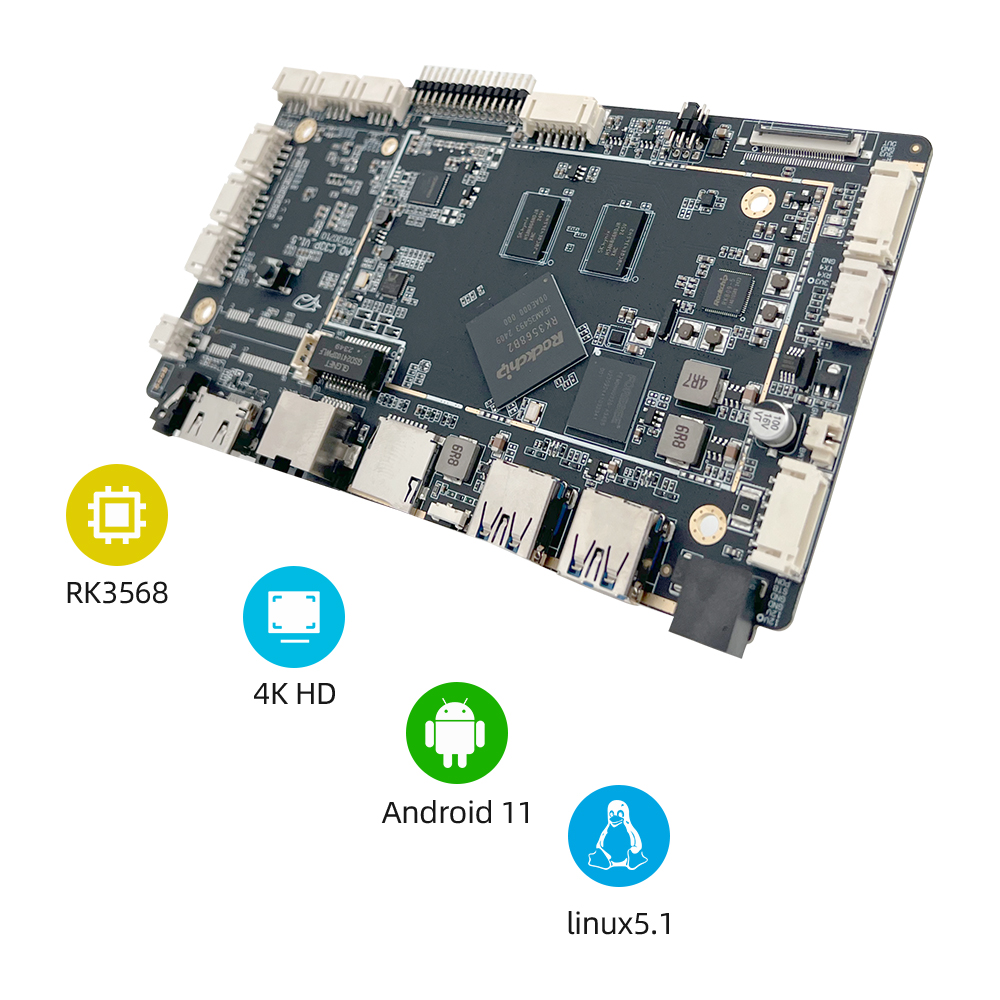

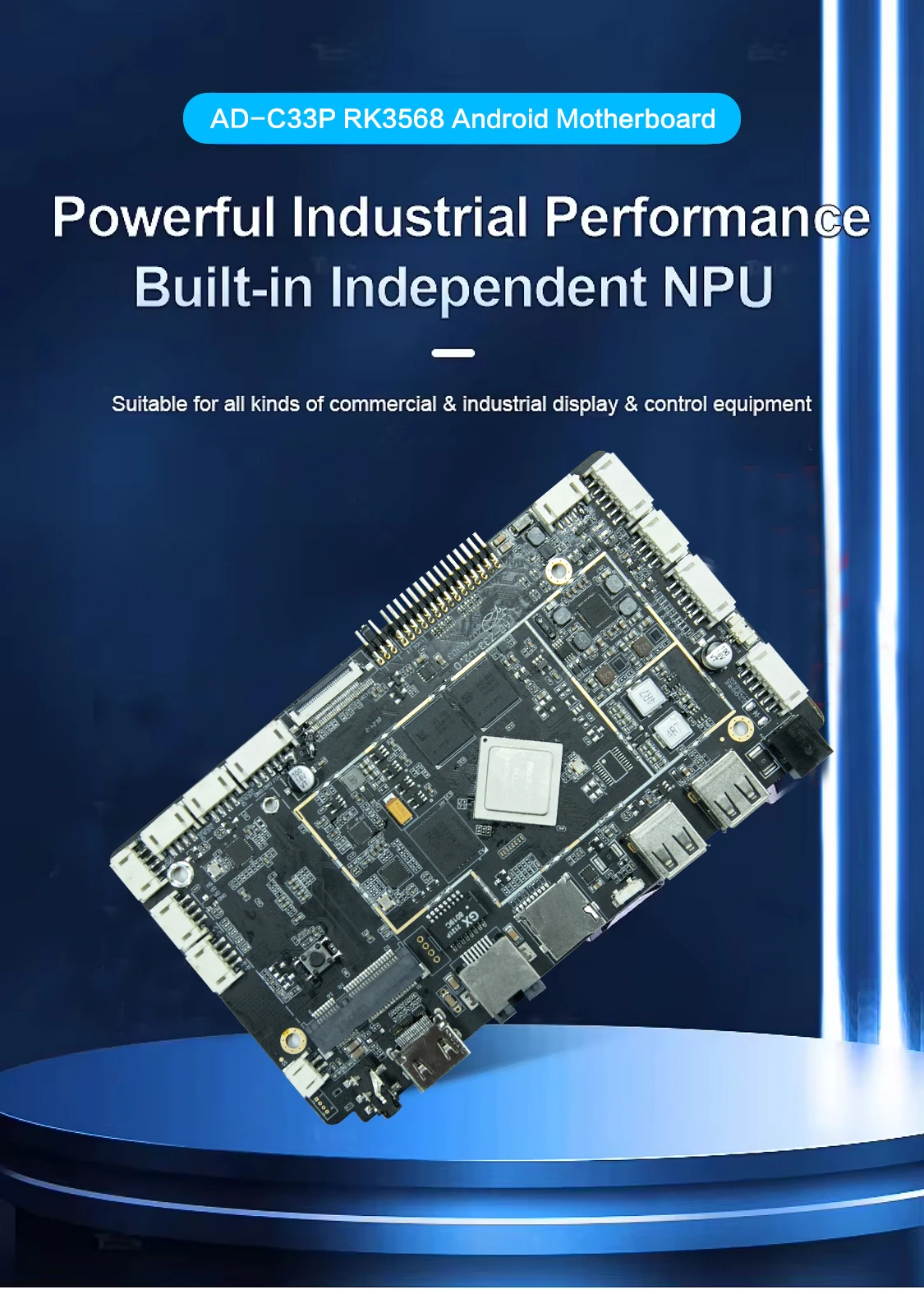

Android 11 OS rockchip rk3568 board 4K HD online digital motherboards of intelligent smart vending machine
価格:
$135.26
/Pc
払い戻し:
シェア:
売れ筋商品
Product Overview
Recommend Products
Product Parameters
|
CPU
|
Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
|
|
Main frequency
|
Up to 2.0 GHz
|
|
RAM
|
DDR4 2G/4G optional
|
|
Built-in storage capacity
|
EMMC 8GB/16G/32G/64G optional (label 16GB)
|
|

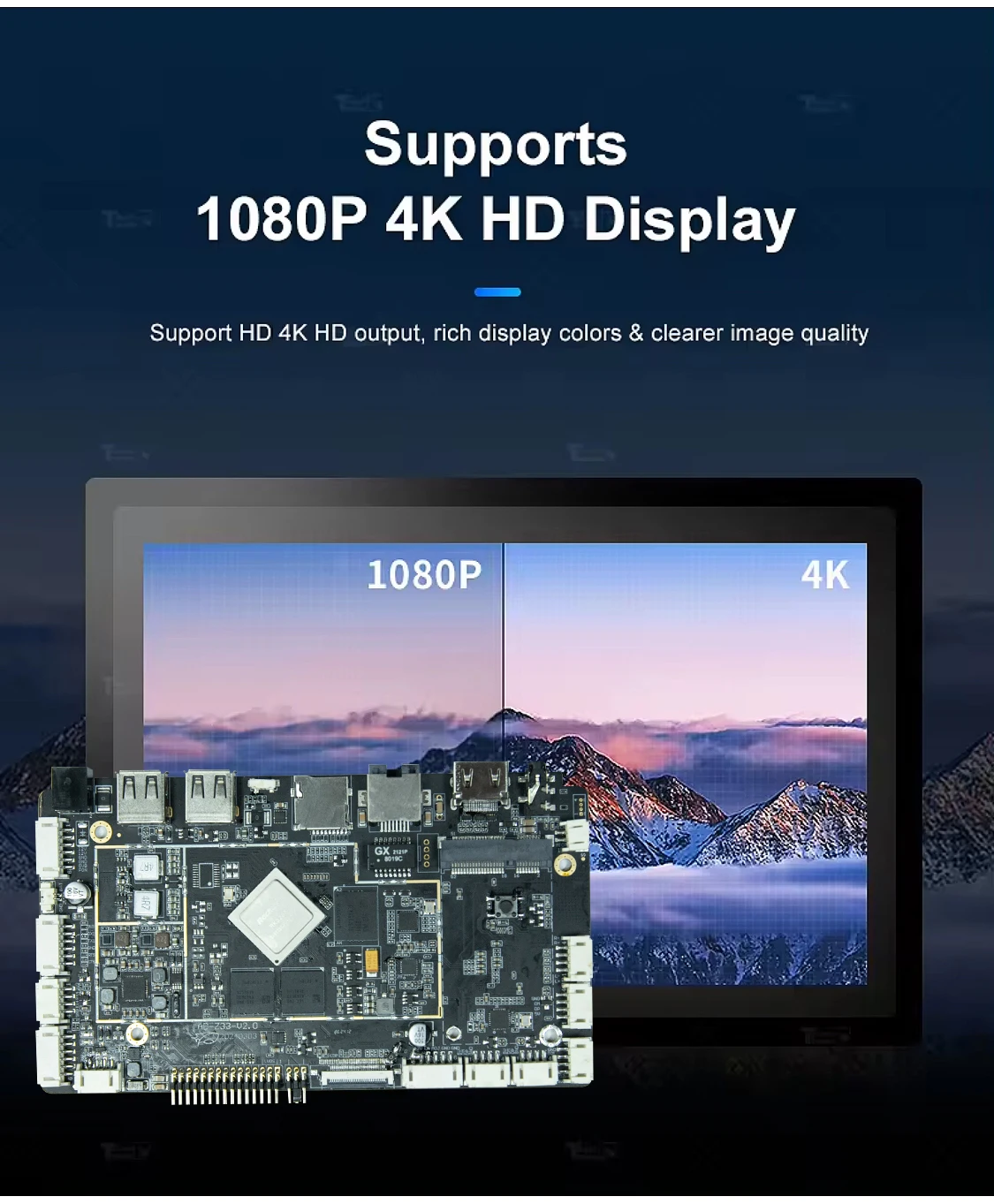

Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
|
|
MIPI interface
|
|
|
EDP interface
|
|
|
Screen voltage
|
Support 3.3V/5V/12V optional
|
|

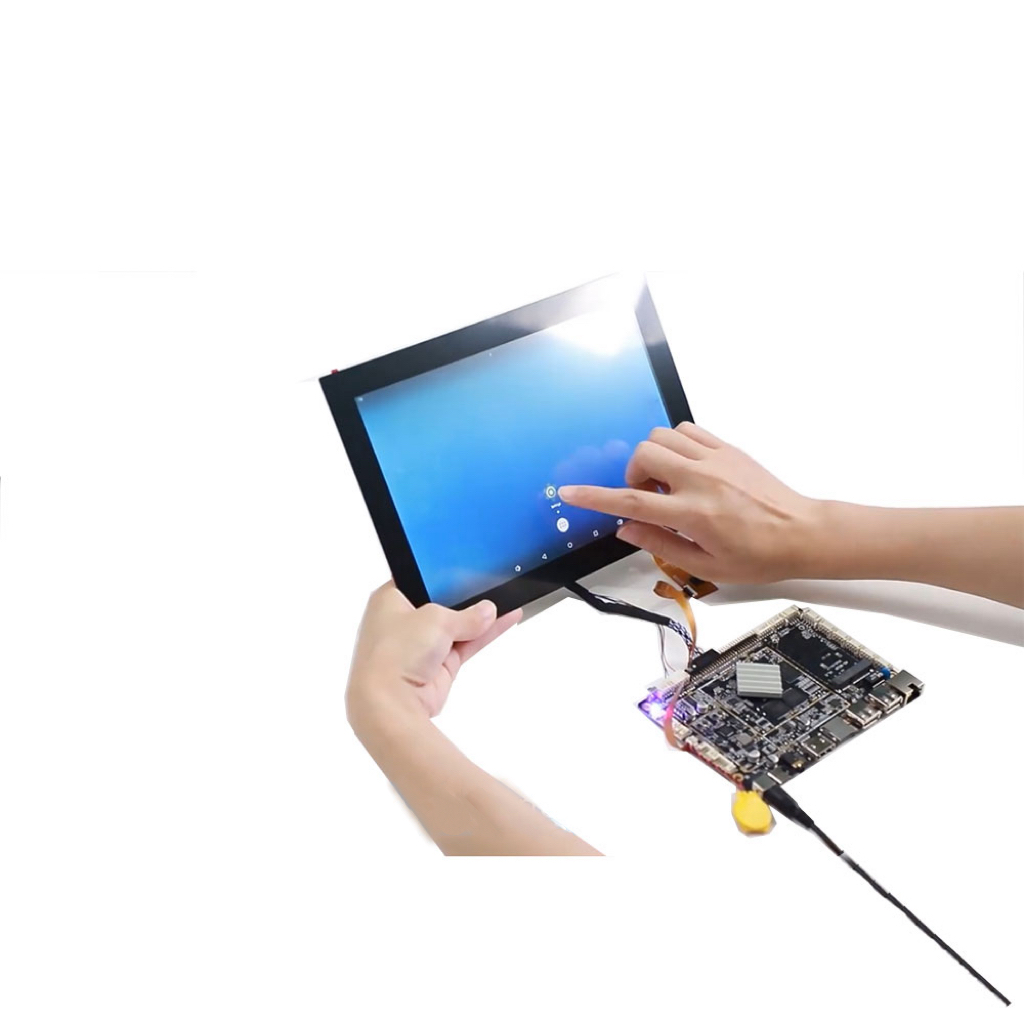

Touch screen
|
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
|
The internet
|
With RJ45 interface, support 10/100/1000M Ethernet.
|
|
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT5.2
|
|
|
Image rotation
|
Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
|
|
Real Time Clock
|
External real-time clock power supply battery
|
|

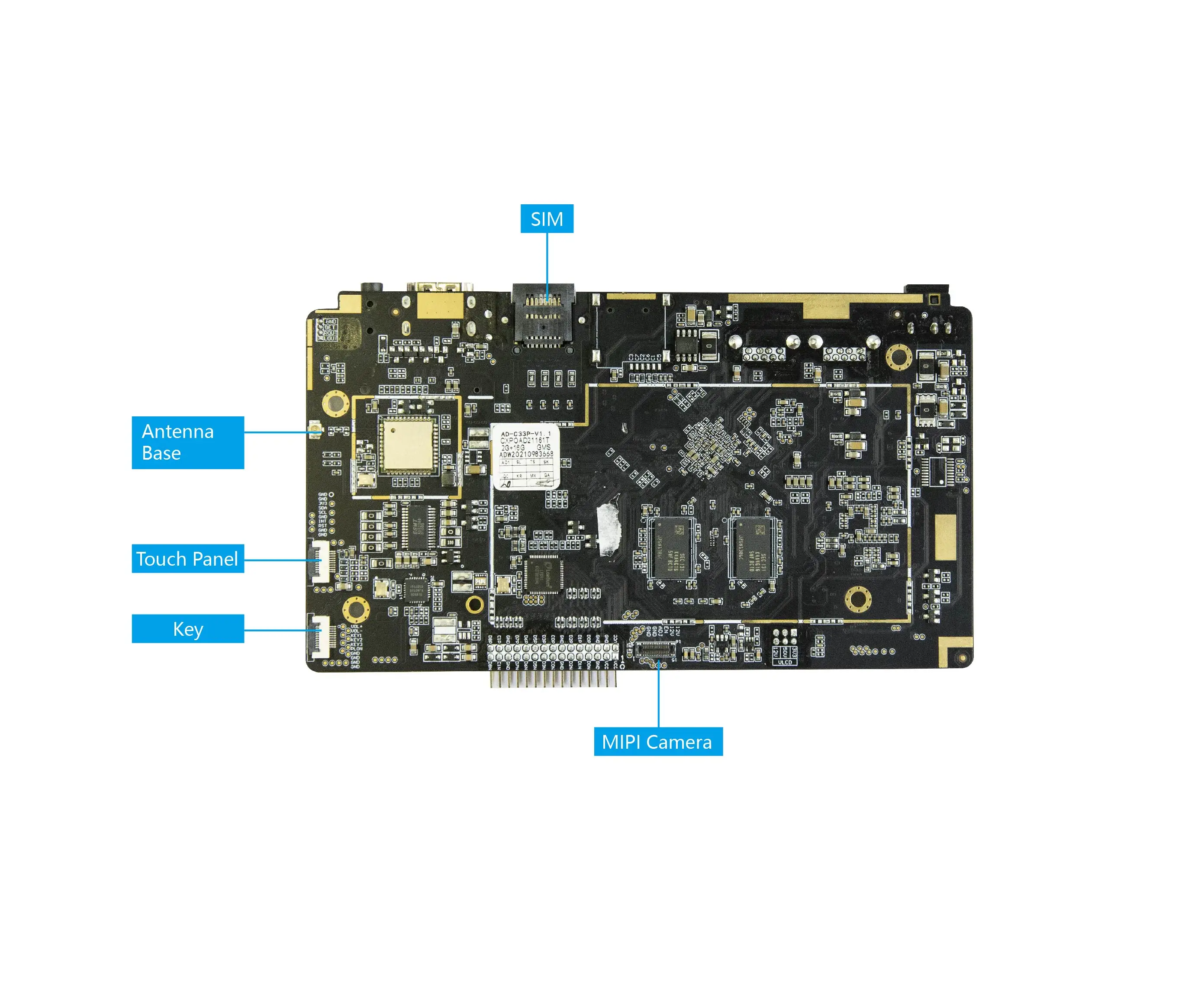

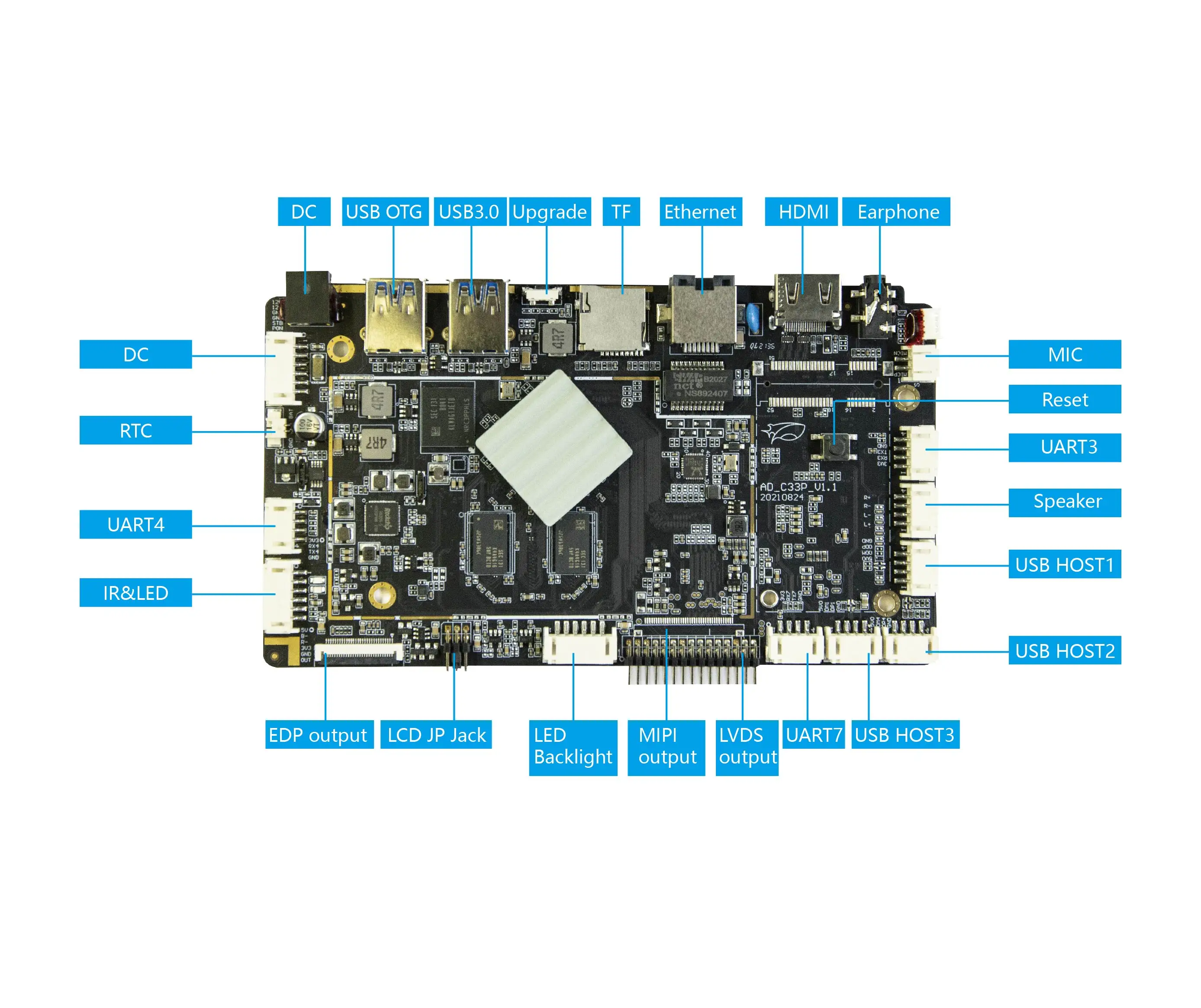

Interface device
|
Support MIPI interface camera, up to 500W pixels
|
|
4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
|
|
|
3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)
|
|
|
TF card, maximum support 32GB
|
|
|
Class D power amplifier: 3W*2 8 ohms, support microphone
|
|
|
HD 2.0 output
|
|
|
Audio
|
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
|
|
Video
|
Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.
|
|
|
Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
|
|
Power Adapter
|
Input: AC100-240V.50-60HZ, output: DC12V 3A
|
Customization
Packing & Delivery
1.Packing: carton box or wood case 2.Payment methods: accept T/T,Western Union,Paypal and Cash. 3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge. 4.Warranty: 12 months warranty. Paid maintenance over 12 months. 5.Remark: ROHS, CE & FCC certificates in e-file format are available. 6.MOQ: 1pc, sample order are welcome for your evaluation.

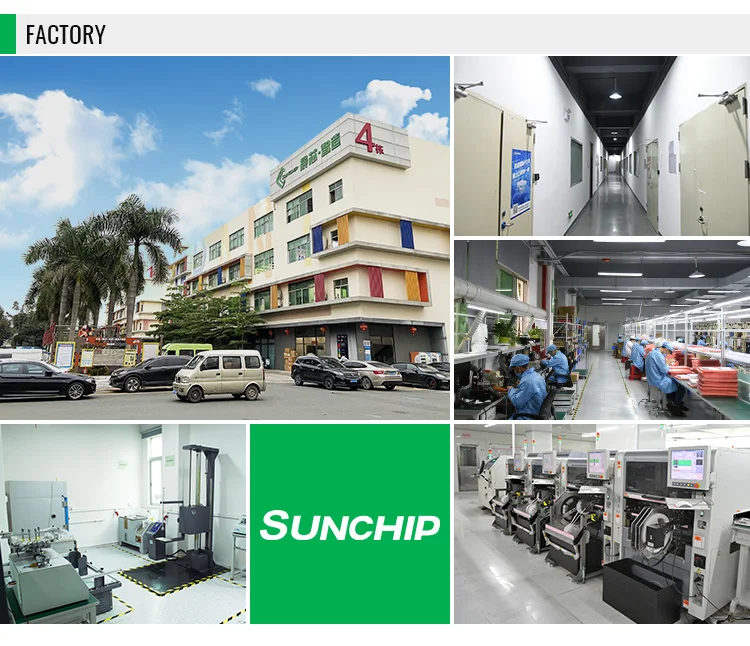

Company Profie
SHENZHEN SUNCHIP TECHNOLOGY CO.,LTD
Established in 2011, SUNCHIP is a high-tech engineering company specialized in designing and manufacturing Digital signage, Embedded digital signage, ARM board and Andriod-based customized products, which are compliant with CE, FCC and RoHS standards.

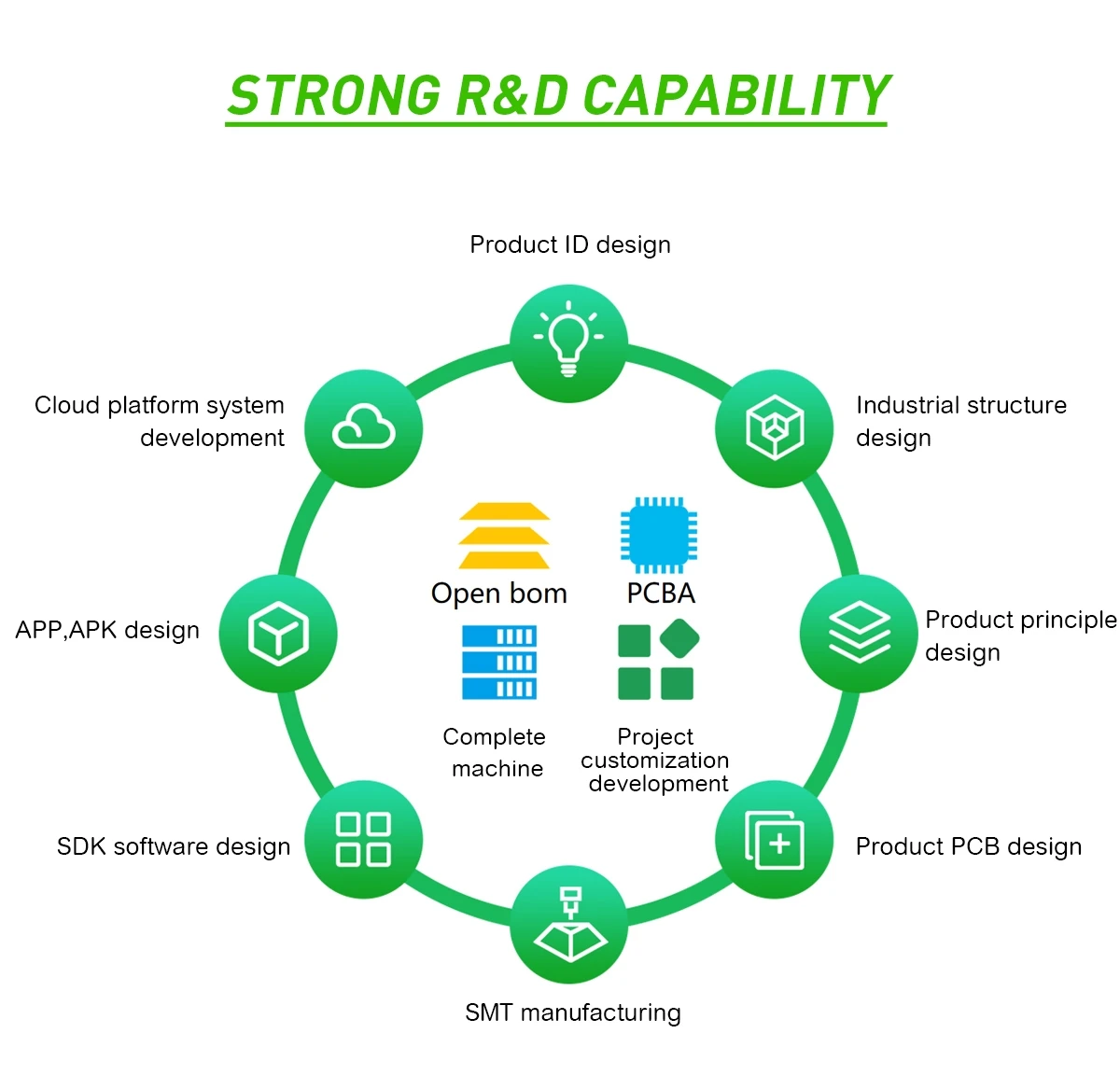

SUNCHIP has a long histroy of OEM and ODM service to many branded customers. With the strong R&D team, intelligent robot production line and strict QC and QA members, SUNCHIP is a technology-leading ODM factory.With more than 100 experienced R&D engineers' hard working, SUNCHIP have mastered a whole set solution of high-definition video encoding&decoding developing and mass production technology.
SUNCHIP is the strategic partner of Rochchip, Intel, Amlogic, Samsung and Allwinner, so we always have a steady supply of reliable chipsets and unlimited technical support from the partners.
1.We are a professional indoor & outdoor digital signage complete solution & mass production technoloy provider. 2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development. 3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 15 years of experience gives us the edge! 4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages. 5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength. 6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.
Certifications
Our certified products also show how we are serious about our exports, for example, CE,UL,RoHS,FCC, ISO9001.We have invested quite a lot of money in this aspect, which is enough to show our control and confidence in quality.
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company? A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue. 2) Q: What payment methods are available to me? A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash. 3) Q: How long is the warranty time? A: 1 Year. 4) Q: What are the shipment terms and delivery times of your company? A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping. 5) Q: Do you give any discounts ? A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges. 6) Q: I would like to add my company logo on your products, is this possible? A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
