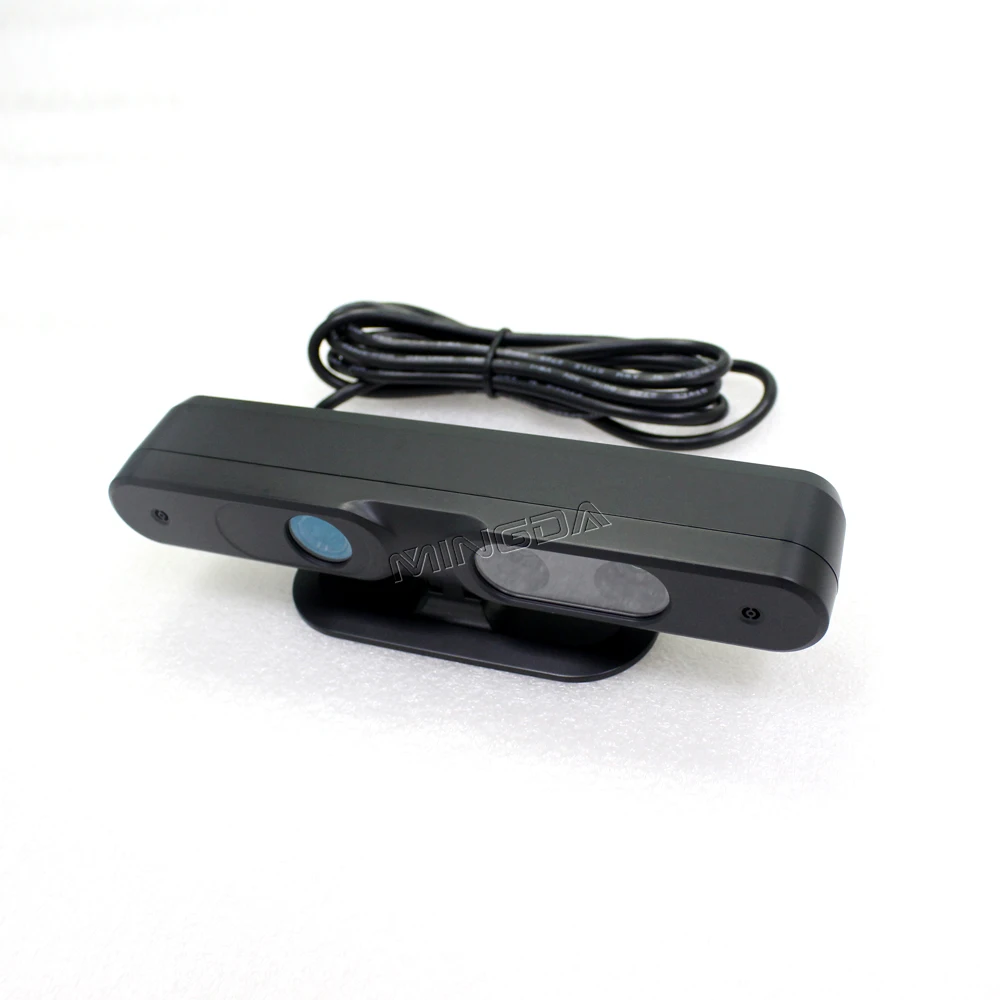

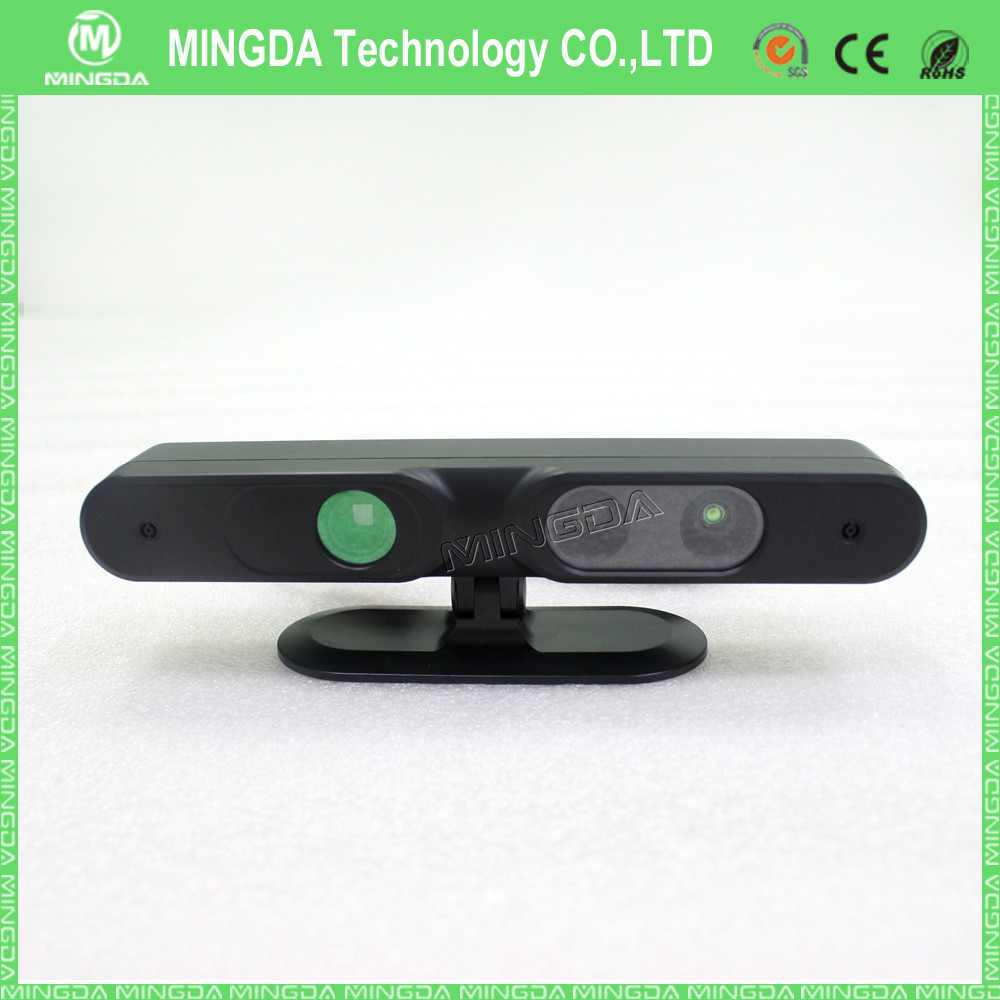

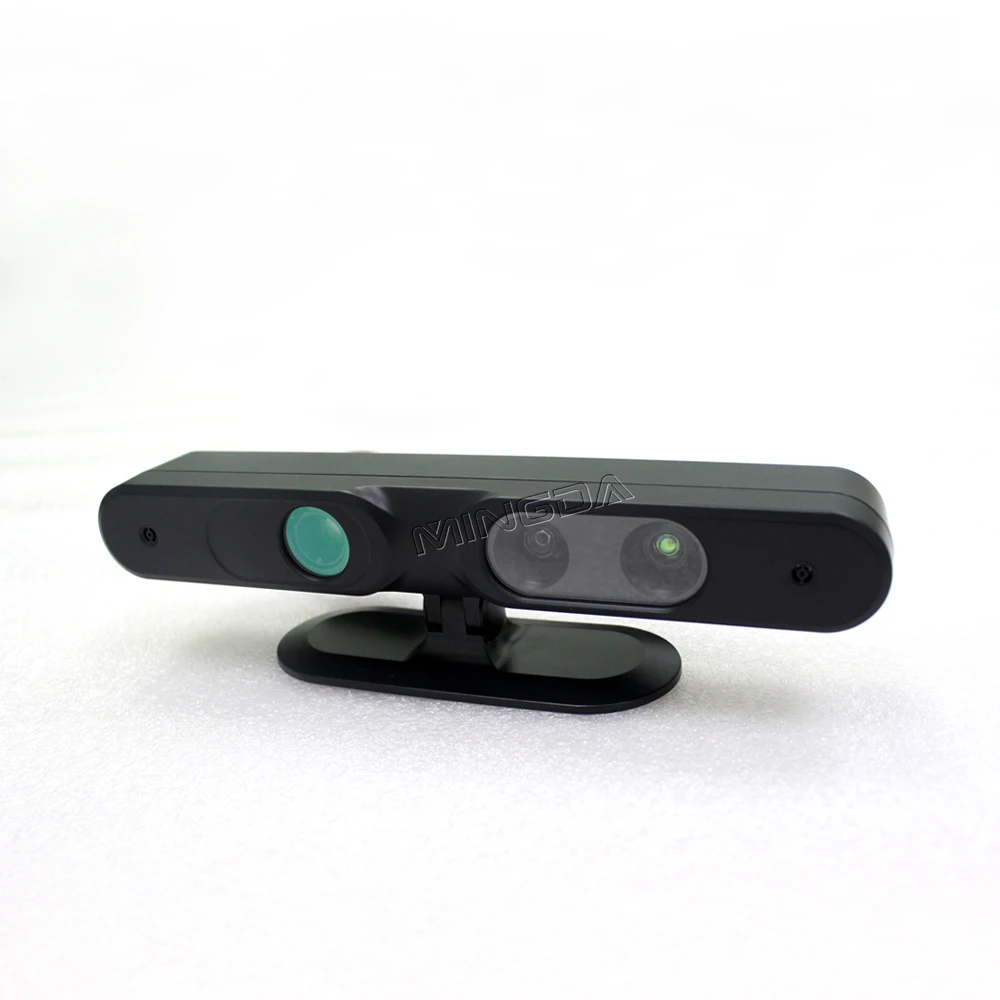

1) Among these three cameras, the one in the middle is RGB camera, used to obtain color images and frame image in seconds.
2) The left one is the infrared raster projection lens for projecting infrared grating;
3) The right one is the depth Lens, used to detect the relative position of the object.
4) A standard 1/4 female extension interface equipped at the bottom of the device for multi-functional expansion of the device;

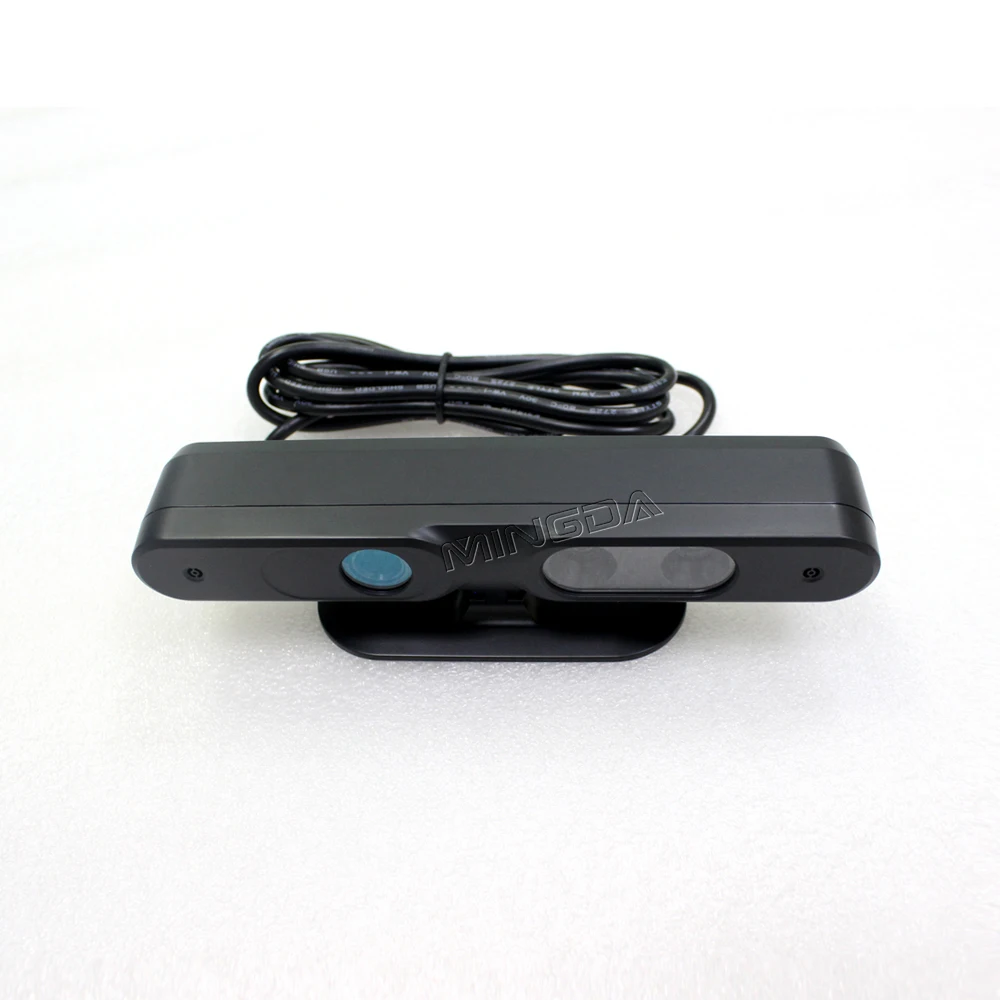

5) A separate USB2.0 (compatible with USB3.0) interface at the back of the device is used for data transmission and power .
High Quality&cheap Price Mingda High Scanning Speed and High Resolution Scanner 3d for 3d Printer,human Body
価格:
$4,623.36
/Pc
払い戻し:
シェア:
売れ筋商品
Products Descripition
Main Advantages of MINGDA MD-6000 Scan Heads 3D Scanner
Real-time Performance
3d scanner usage concept is similar to that of an ordinary video camera – simply move around the object to be captured. However, instead of a video stream you get a complete 3d model in real-time.
Plug and Play Support
Use a high speed USB2.0 data cable to support data communicatio n and power supply.
Across all Scales
Modeling with 3d scanner scales from smaller objects such as human faces up to entire rooms.
Modeling with 3d scanner scales from smaller objects such as human faces up to entire rooms.
Metric Units
3D scanner performs the entire reconstruction in metric space. No need for freaky scaling attempts. The result can be exported to various formats such as STL, OBJ, and PLY.
Texture Support
3d scanner is capable of capturing and processing the color information of the object being scanned, as long as the sensor provides thenecessary color stream.

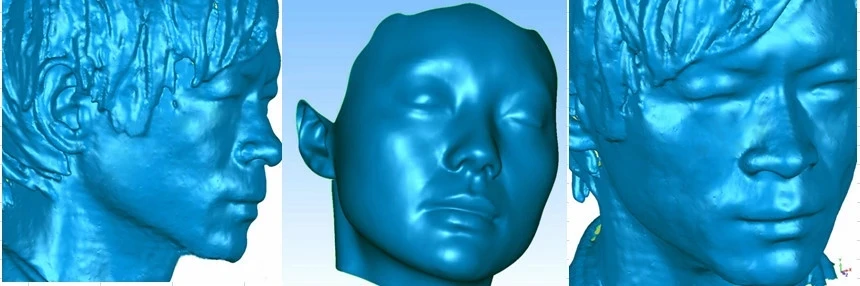

3D Self-Portraits
Using the self-portrait feature, everyone can generate 3D printable busts in a minute without any manual post processing.
High Quality Scan
To provide end users with convenient high quality scan solution.
Hand Operation
To provide end users with convenient and stability hand held experience.
Using the self-portrait feature, everyone can generate 3D printable busts in a minute without any manual post processing.
High Quality Scan
To provide end users with convenient high quality scan solution.
Hand Operation
To provide end users with convenient and stability hand held experience.
Main Advantages of MINGDA MD-6000 Handheld 3D Scanner
1) High Speed: The maximum scanning speed up to 600000 points per second, XHCV portable 3d scanner ten times faster than ordinary scanner speed.
2) Large scan range: Can scan one cubic meters to tens of meters wide range of objects.
3) The scanning of moving objects: It can not only scan the static objects, but also can scan dynamic objects. Because the
portable 3d scanner and camera work similar. Especially suitable for obtaining medical human action and film production in the dynamic facial expressions.
4) Color 3D scanning: This portable 3d scanner can capture the bright colors (24 bit color), which can be scanned 3D shape and capture the object at the same time color
2) Large scan range: Can scan one cubic meters to tens of meters wide range of objects.
3) The scanning of moving objects: It can not only scan the static objects, but also can scan dynamic objects. Because the
portable 3d scanner and camera work similar. Especially suitable for obtaining medical human action and film production in the dynamic facial expressions.
4) Color 3D scanning: This portable 3d scanner can capture the bright colors (24 bit color), which can be scanned 3D shape and capture the object at the same time color
|
Parameter
|
|
|
|
|
|
|
|
Operation Temperature
|
10-40 鈩�
|
|
|
Data Interface
|
USB 2.0
|
|
|
Operation Range
|
350-1400 mm
|
|
|
Spatial X/Y resolution @350mm
|
0.6 mm @500mm锛�0.9 mm @1400mm锛�2 mm
|
|
|
Depth Z resolution @350mm
|
0.05cm @500mm锛�0.1cm @1400mm锛�0.5cm
|
|
|
Color image size
|
640 x 480
|
|
|
Power consumption
|
2.25 W
|
|
|
Export Data Format
|
STL, OBJ, PLY etc.
|
|
Details Images
Main Features of MINGDA MD-6000 3D Scanner
1)
Distributed expansion The product supports multiple devices simultaneously scan, it can be extended to four devices connected to a computer for on-line distributed scanning, to provide users with a rapid three-dimensional scanning experience.
2) Real-time reconstruction Real-time acquisition of point cloud data space, through advanced differential algorithm will point cloud data automatically fit into polygon data and real-time display to the user.
3) Plug and play Comes with a high-speed USB interface data cable. The data line provides a high-speed data transmission link for the three-dimensional scanner, and at the same time provides it with a stable power supply.
4) Customize the scan space Users can customize the scan space according to actual needs. It Can easily cope with single or even multi-person portrait of the whole body scanning needs.
5) Model export Support multi-format model export function, the exported model format is STL, OBJ or PLY.
6) True color reproduction Real-time recording model of the color information function, to bring users a vivid color 3D scanning experience.
7) High-precision scanning Support for quasi-industrial-grade high-precision scanning, to provide users with convenient and quasi-industrial-level 3D reconstruction program.
2) Real-time reconstruction Real-time acquisition of point cloud data space, through advanced differential algorithm will point cloud data automatically fit into polygon data and real-time display to the user.
3) Plug and play Comes with a high-speed USB interface data cable. The data line provides a high-speed data transmission link for the three-dimensional scanner, and at the same time provides it with a stable power supply.
4) Customize the scan space Users can customize the scan space according to actual needs. It Can easily cope with single or even multi-person portrait of the whole body scanning needs.
5) Model export Support multi-format model export function, the exported model format is STL, OBJ or PLY.
6) True color reproduction Real-time recording model of the color information function, to bring users a vivid color 3D scanning experience.
7) High-precision scanning Support for quasi-industrial-grade high-precision scanning, to provide users with convenient and quasi-industrial-level 3D reconstruction program.
Main Features of MINGDA MD-7000 Scan Heads 3D Scanner MD7000-based 3D scanner is a total of three cameras here.
Recommend Products

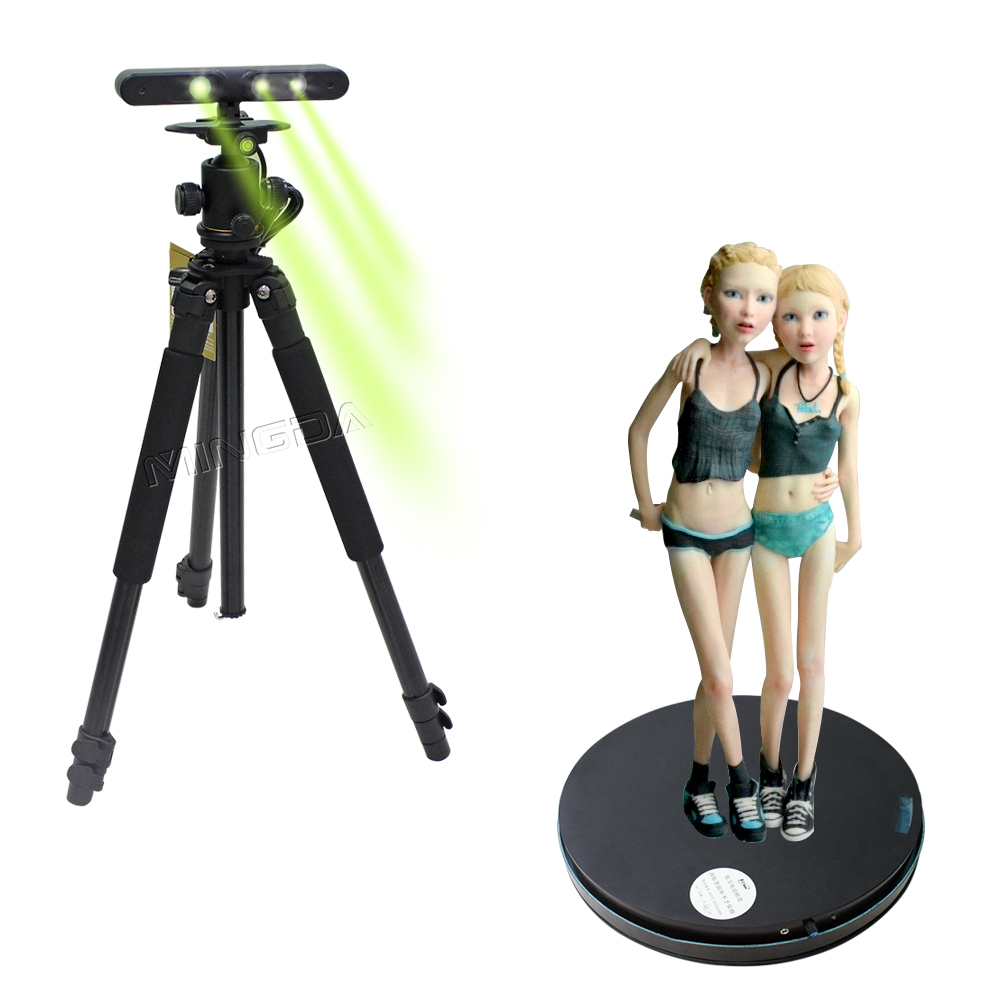

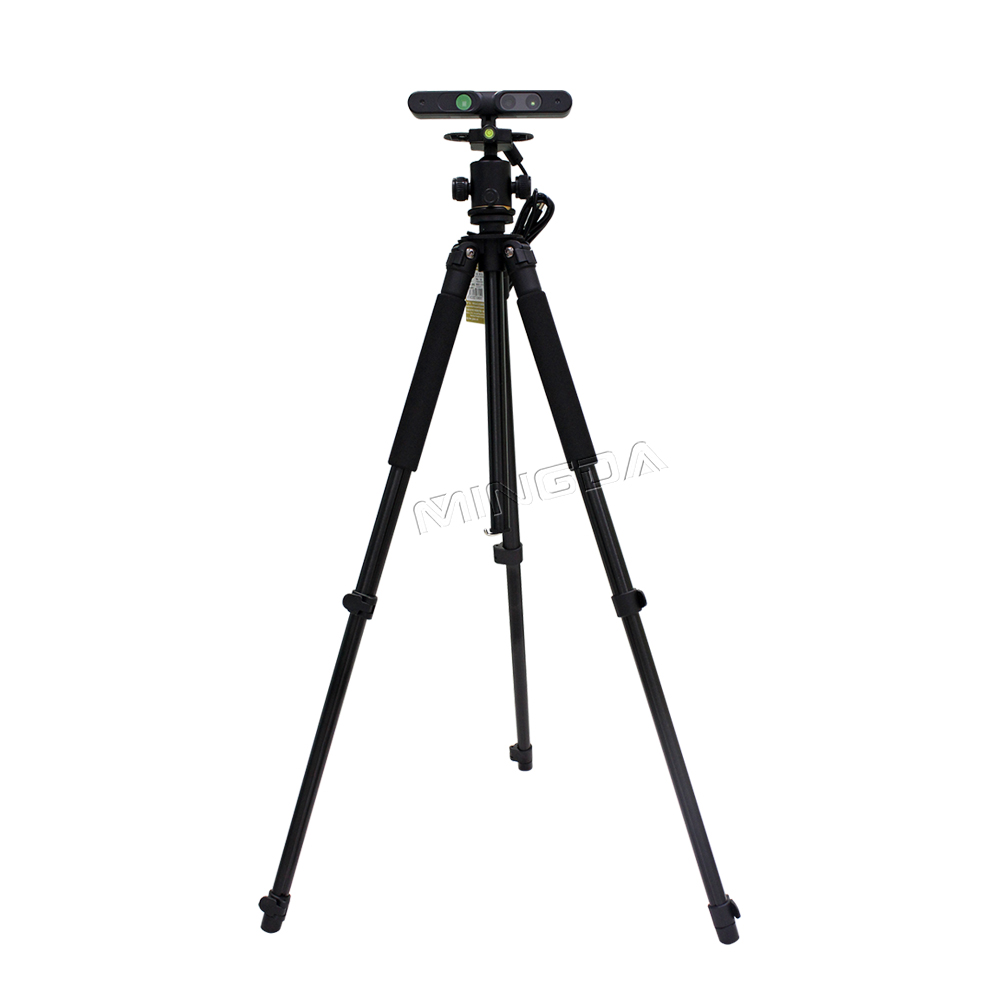

This link is for full sets of MD-6000, include scanner head, turntable, Holder.This product currently has promotional price, welcome for inquiry.
Application
Application Fields
-- Human body digitization and related research
-- Tailor made of clothing industry
-- Virtual fitting and custom clothing in high-end clothing shops
-- Animation game design, the production of film
-- Cultural creative
-- Medical plastic correction and analysis
-- Motion analysis
-- Tailor made of clothing industry
-- Virtual fitting and custom clothing in high-end clothing shops
-- Animation game design, the production of film
-- Cultural creative
-- Medical plastic correction and analysis
-- Motion analysis
Company Profile
Shenzhen Mingda Technology Co., Ltd
Shenzhen Mingda Technology Co., Ltd has more than 10 years of manufacturing and design experience for 3D printers. We specialize in researching and production of 3D printers and 3D filaments. We have professional R&D team, domestic advanced production equipment and precision instruments.
Quality Guarantee is always our aim. We have proven to be a dependable, trustworthy, engaged and efficient company that always adheres to increase customers' satisfaction.All our products have pass CE,FCC,ROHS, ISO9001 certificates.
Quality Guarantee is always our aim. We have proven to be a dependable, trustworthy, engaged and efficient company that always adheres to increase customers' satisfaction.All our products have pass CE,FCC,ROHS, ISO9001 certificates.
FAQ
1. Can I scan the objects by this MD-6000 3d scanner?
MD-7000 is mainly for human body scan use with high precision. Surely, it's also okay if you want to scan the small objects by this 3d scanner.
2. What is the scanning technology it use?
It's continuous scanning technology.It can not only scan the static objects, but also can scan dynamic objects. Because the portable 3d scanner and camera work similar. Especially suitable for obtaining medical human action and film production in the dynamic facial expressions.
3.What is the scan range of MD-6000 3d scanner?
Can scan one cubic meters to tens of meters wide range of objects/Human.
4. What about the scanning speed?
The maximum scanning speed up to 600000 points per second, XHCV portable 3d scanner ten times faster than ordinary scanner speed.
5. What about the supporting software of MD-6000 3d scanner/
International large-scale software fully compatible
It can generate a variety of data formats for use in other software, including stl,stp, ply, asc, ac, pif, igs,iges,obj,etc., can
be converted to AutoCAD, Geomagic Studio, Rapid Form, ImageWare other software for post-processing.
6.What's the difference between MD-6000 and MD-7000 3d scanner?
Both of them can scan human body very well. MD-7000 is the upgraded version of MD-6000, which is more stable and easy to operate.
MD-7000 is mainly for human body scan use with high precision. Surely, it's also okay if you want to scan the small objects by this 3d scanner.
2. What is the scanning technology it use?
It's continuous scanning technology.It can not only scan the static objects, but also can scan dynamic objects. Because the portable 3d scanner and camera work similar. Especially suitable for obtaining medical human action and film production in the dynamic facial expressions.
3.What is the scan range of MD-6000 3d scanner?
Can scan one cubic meters to tens of meters wide range of objects/Human.
4. What about the scanning speed?
The maximum scanning speed up to 600000 points per second, XHCV portable 3d scanner ten times faster than ordinary scanner speed.
5. What about the supporting software of MD-6000 3d scanner/
International large-scale software fully compatible
It can generate a variety of data formats for use in other software, including stl,stp, ply, asc, ac, pif, igs,iges,obj,etc., can
be converted to AutoCAD, Geomagic Studio, Rapid Form, ImageWare other software for post-processing.
6.What's the difference between MD-6000 and MD-7000 3d scanner?
Both of them can scan human body very well. MD-7000 is the upgraded version of MD-6000, which is more stable and easy to operate.
