ANYCUBIC Photon Mono 4 Ultra UV Resin 3D Printer High Speed UV Resin Printers 7inch 10K LCD screen 3D Printing 236x231x430mm
ANYCUBIC Photon Mono 4 Ultra
Technical Specifications
● Exposure Screen: 7" monochrome
●LCD Resolution：10K (9024*5120px)
● Control Panel: 4.3" TFT touch-control
● Printing Speed 1: 80mm/h peek speed(Standard Resin 0.1mm layer height)
● Printing Spee2: 120mm/h peek speed(High Speed Resin 0.1mm layer height)
● Printing Dimensions: 6.04*3.42*6.48in./153.4*87.*165mm (HWD)
● Product Dimensions:236mm*231mm*430mm/ 9.29*9.09*16.93in.(HWD)
● Machine Weight: 5KG/11lb.
●Maximum print volume：2.2L/74.4oz.
10K High-Precision | Faster Curing | Intelligent-Assist Printing
Consistent, Even on All Layers
With the Light Uniformity Algorithm, each device undergoes rigorous screen energy calibration, the light uniform rate reaches >=90%. The algorithms adjust energy points outside the dynamic range, precisely controlling curing light energy. This reduces dimensional errors in each printed layer, ensuring consistent printing.

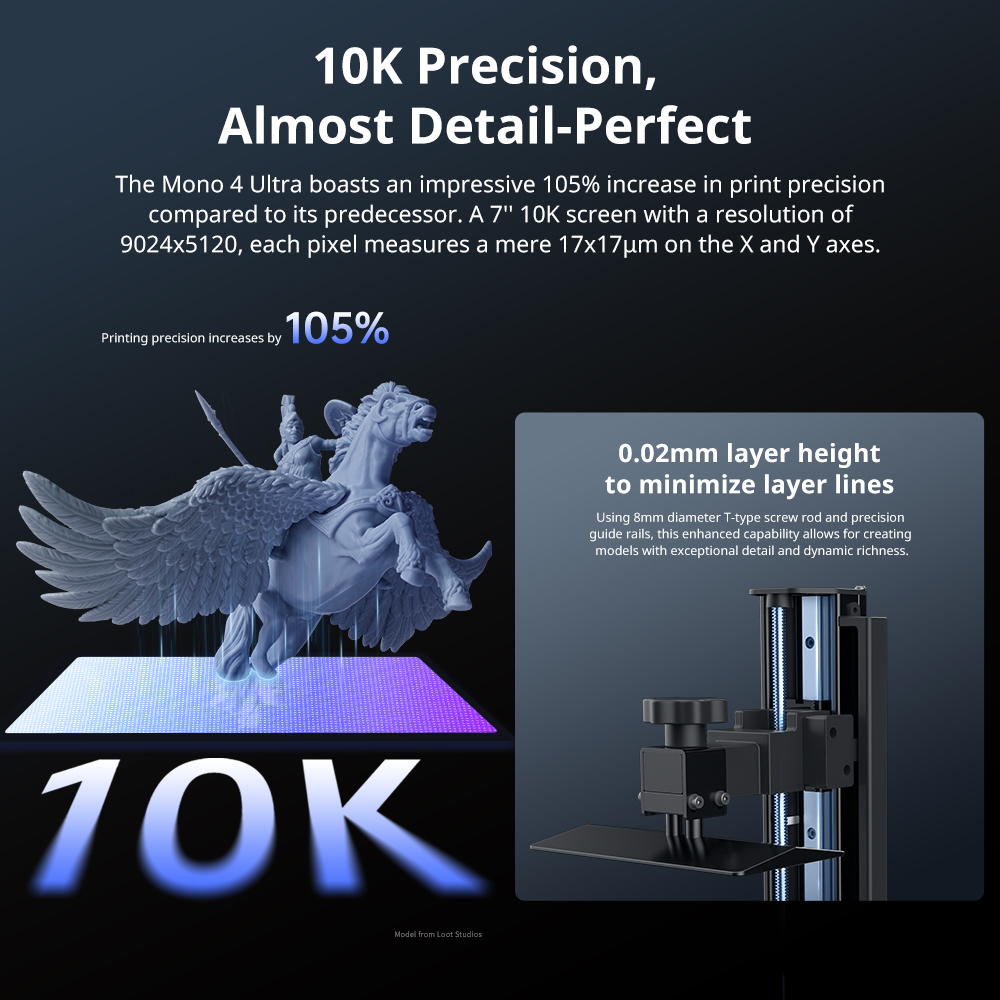

10K Precision, Almost Detail-Perfect
*The Mono 4 Ultra boasts an impressive 105% increase in print precision compared to its predecessor. A 7" 10K screen with a resolution of 9024x5120, each pixel measures a mere 17x17μm on the X and Y axes
*0.02mm layer height to minimize layer lines. Using 8mm diameter T-type screw rod and precision guide rails, this enhanced capability allows for creating models with exceptional detail and dynamic richness.

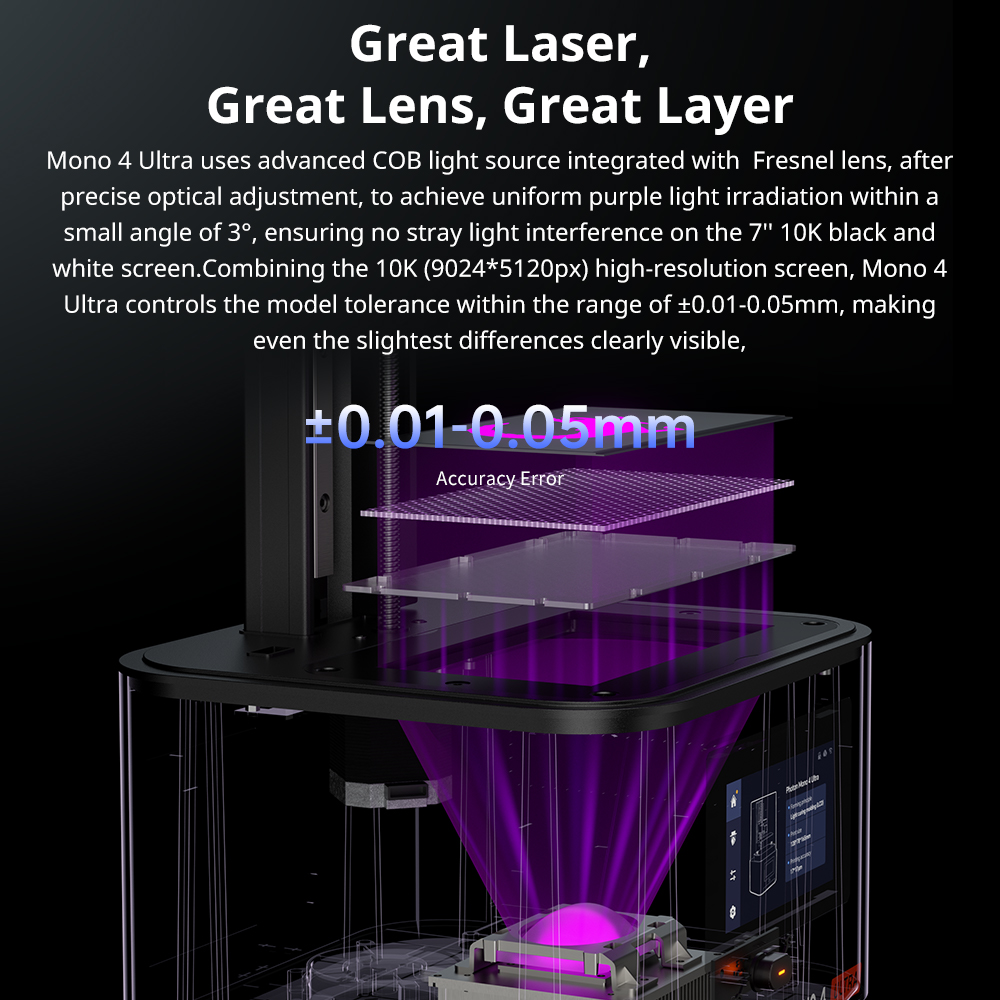

Great Laser, Great Lens, Great Layer
Mono 4 Ultra uses advanced COB light source integrated with Fresnel lens, after precise optical adjustment, to achieve uniform purple light irradiation within a small angle of 3, ensuring no stray light interference on the 7" 10K black and white screen. Combining the 10K (9024 5120px) high-resolution screen, Mono 4 Ultra controls the model tolerance within the range of 0.01-0.05mm, making even the slightest differences clearly visible, ensuring that every detail of the model is accurately carved.

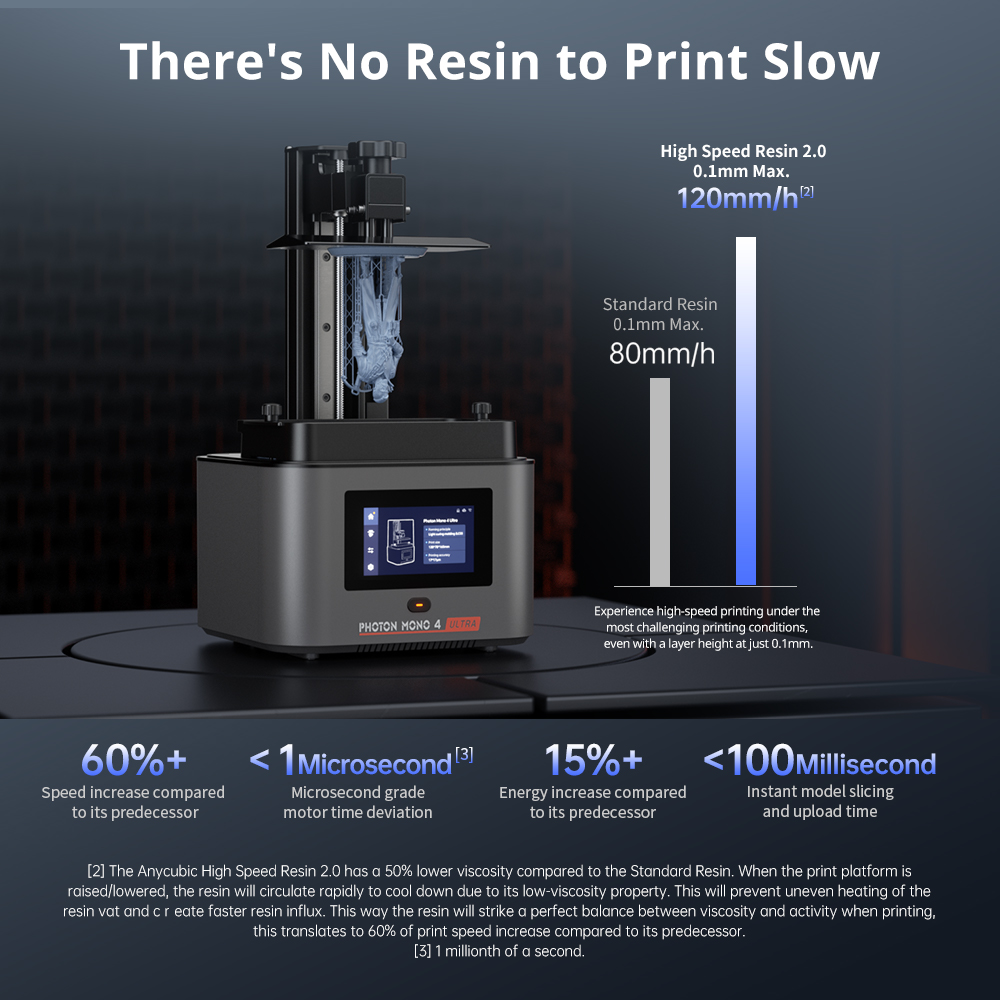

There's No Resin to Print Slow
*High Speed Resin 2.0 0.1mm Max 120mm/h
*Standard Resin 0.1mm Max 80mm/h
*Experience high-speed printing under the most challenging printing conditions, even with a layer height at just 0.1mm.
Level Up & Speed Up
*It's the Latest ACF Film, not Luck Release film coating improvements
* Intelligent Release Algorithm Save 40% on print time, boost 100% of your spirit.

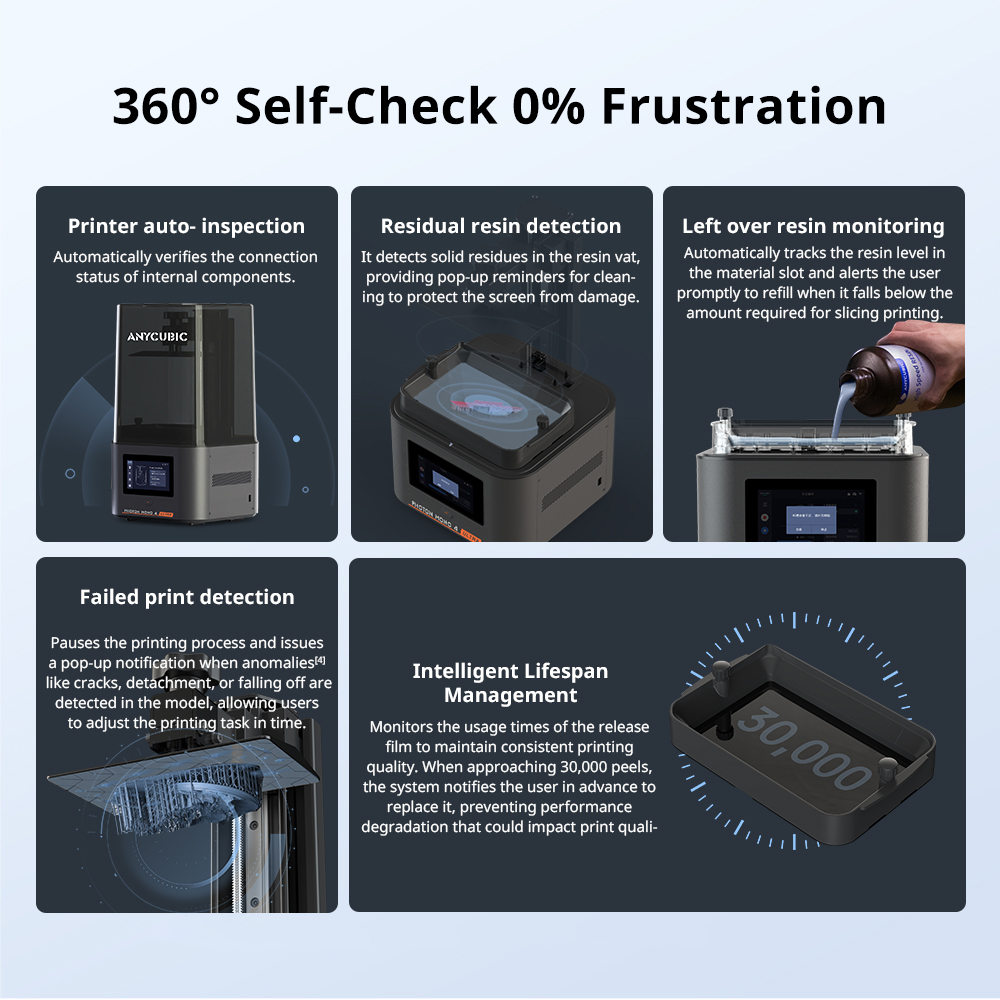

360°Self-Check. 0% Frustration
Printer auto- inspection | Residual resin detection | Left over resin monitoring | Failed print detection | Intelligent Lifespan Management
