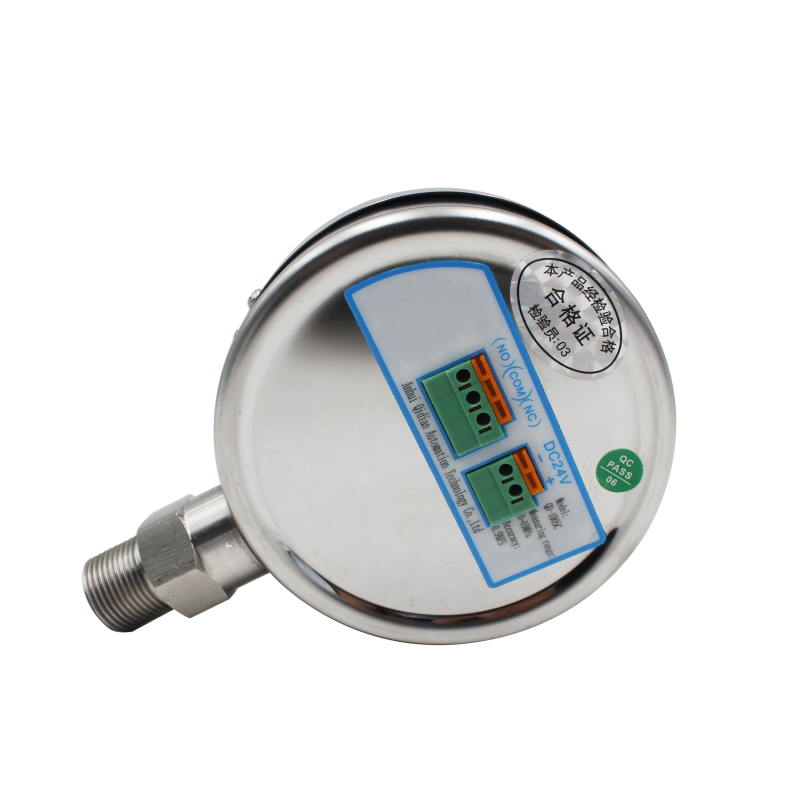

0-100MPa Digital Pressure Gauge 100mm Dial Electronic Contact Hydraulic Pressure Gauge 200Bar 400 Bar 600Bar 1000Bar Manometer

(0 レビュー)

発送予定時間: 3 日々

により販売されています: 自社製品

価格:

$81.44 /Pc

説明レビュー

Notes: Dial size 100mm, if you need customize data, please contact us.

Description of Digital Electric Contact Pressure Gauge

<1>. Intelligent digital electric contact pressure gauge is also called intelligent digital pressure controller, is an intelligent control instrument which integrates pressure measurement, digital display and control together.

<2>. Using imported high-quality sensors and high-quality electronic components, ensure the high accuracy and stability of the instrument. With strict and precise temperature and linear compensation, the instrument adopts CPU modular signal processing, higher and lower limit display setting control, it can set control points at will.

<3>. Compared with the traditional mechanical electric contact pressure gauge, the intelligent digital electric contact pressure gauge is more accurate in measurement, more sensitive in control and more convenient in use. It is widely used in petroleum, industry, electric power, construction, medical equipment and other fields.

Technical Parameters of Digital Electric Contact Pressure Gauge

Product name	Intelligent digital electric contact pressure gauge
Model	QDX50B
Measuring range	-0.1~0~100MPa (Can be customized)
Measuring medium	Gas,liquid,oil,water
Pressure type	Gage pressure, absolute pressure, differential pressure
Accuracy	0.5%FS; 0.2%FS
Respond time	<0.1S
Long-term stability	0.2% FS/year
Thread type	M20*1.5, G1/2, G1/4 (Can be customized)

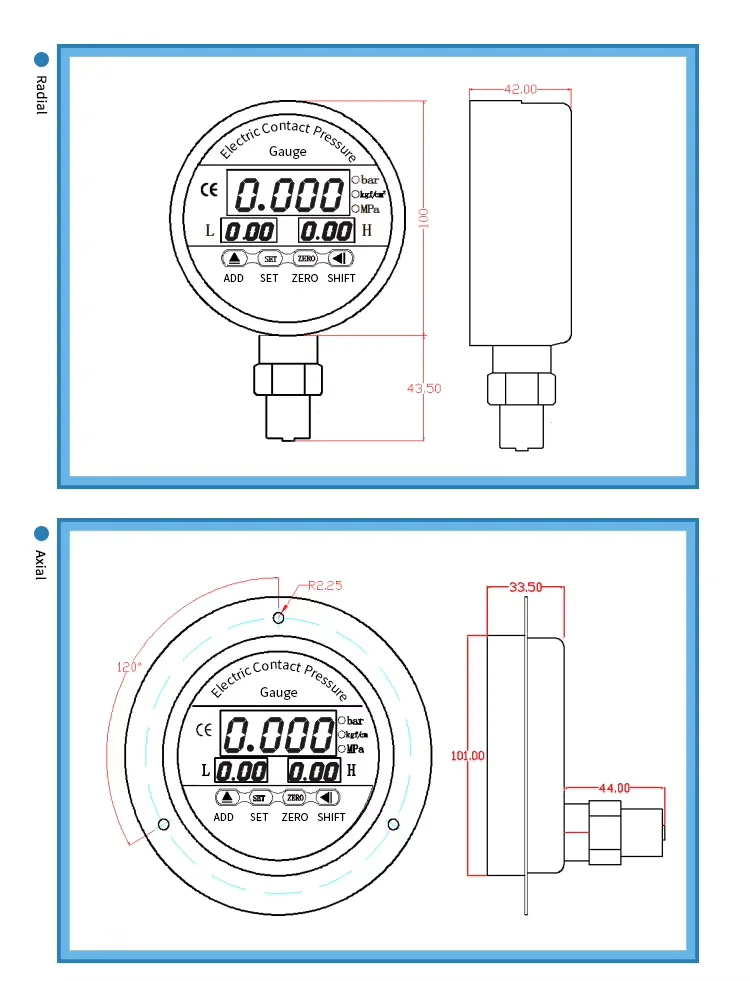

Dail size	100mm
Display digits	4 digits LED display
Power supply	9~24VDC
Shell material	304 stainless steel
Ambient temperature	-20~80℃
Relay	Single / Dual relay, passive switch output
Control logic	5 or 4 wires control mode
