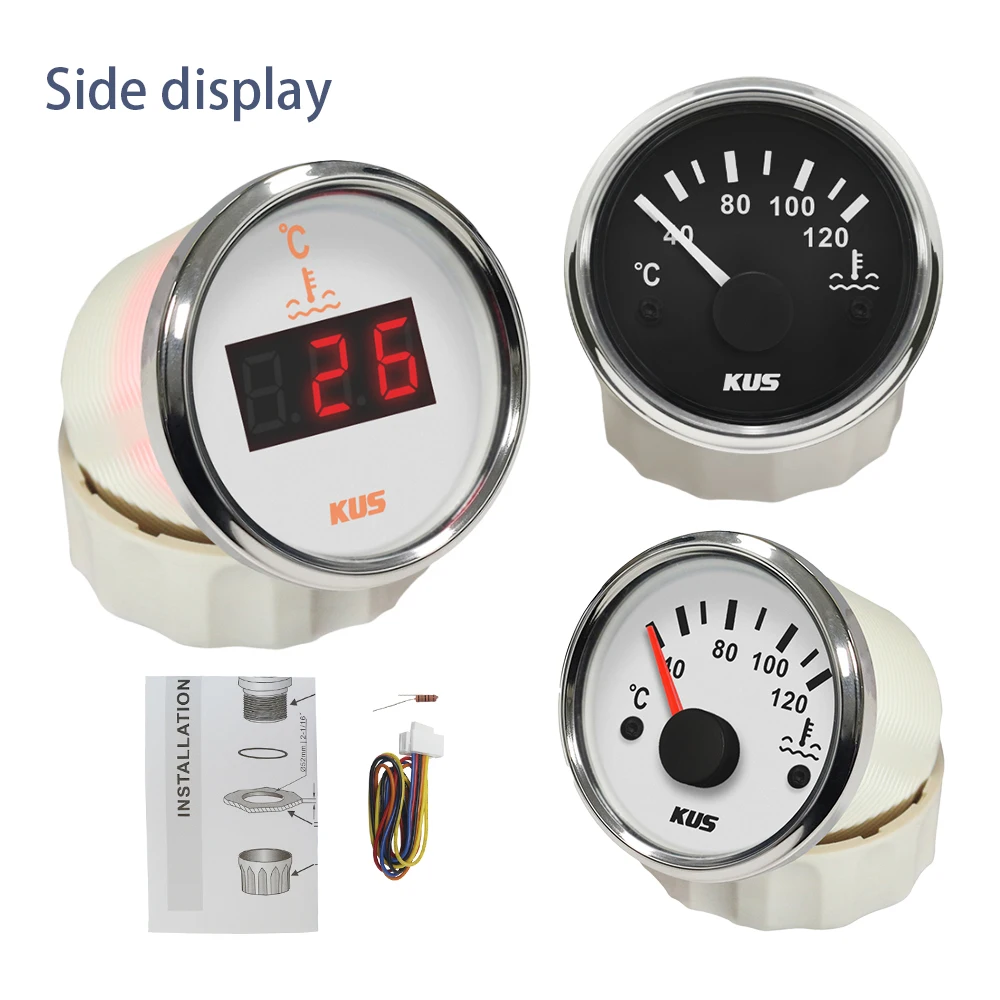

KUS 52mm Digital Waterproof Water Temperature Gauge Indicator Meter 40-120℃ 25-120 Degree with Backlight 12V 24V for Yachts Car
価格:
$18.73
/Pc
払い戻し:
シェア:
売れ筋商品
Please note:
There are different options for sensors and gauges in the link.
Each option is marked with a name and a picture.
Please confirm whether the option you ordered is the product you need.
Thank you
Product Feature:
-Be suitable for all kinds of water temperature sensors ,
and display the temperature of the water tank
-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration
-Operating temperature: -40°C ~+85°C
-Protection rank: IP67
Technical Data:

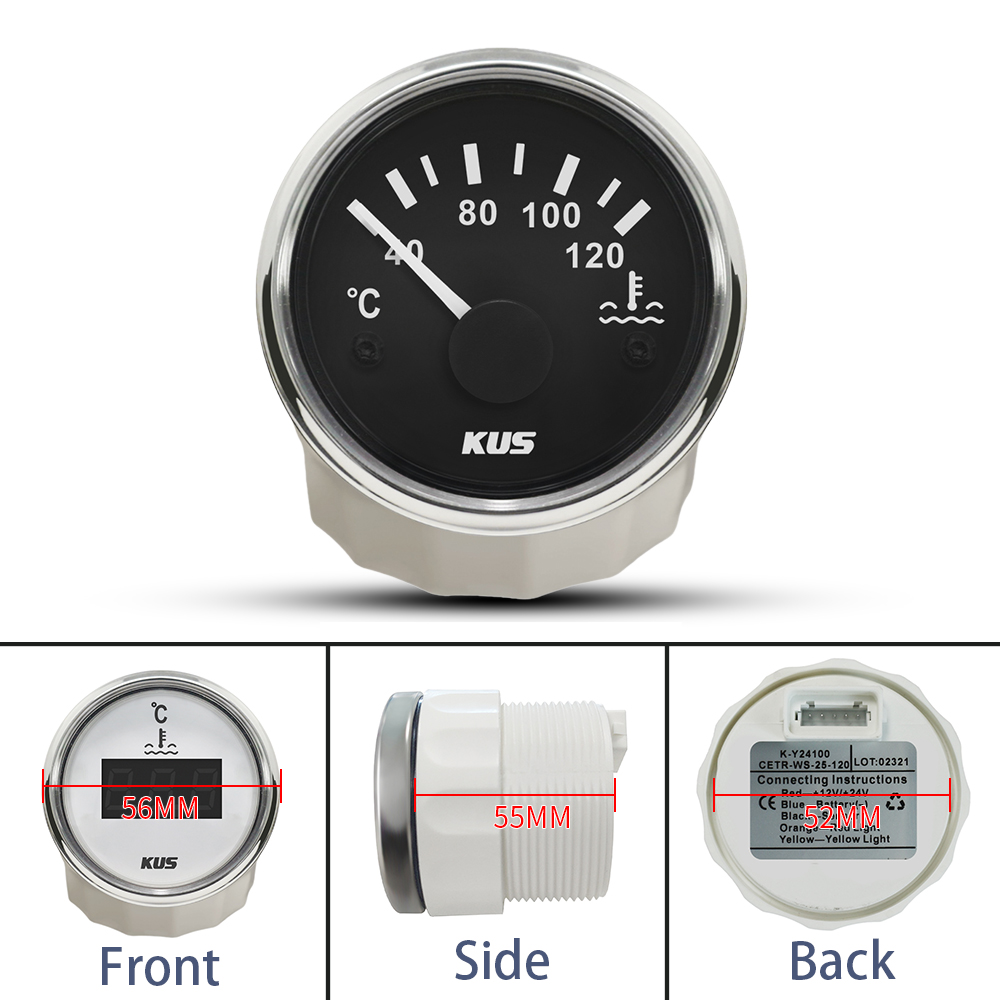

-Fixing dimension: 52mm(2")

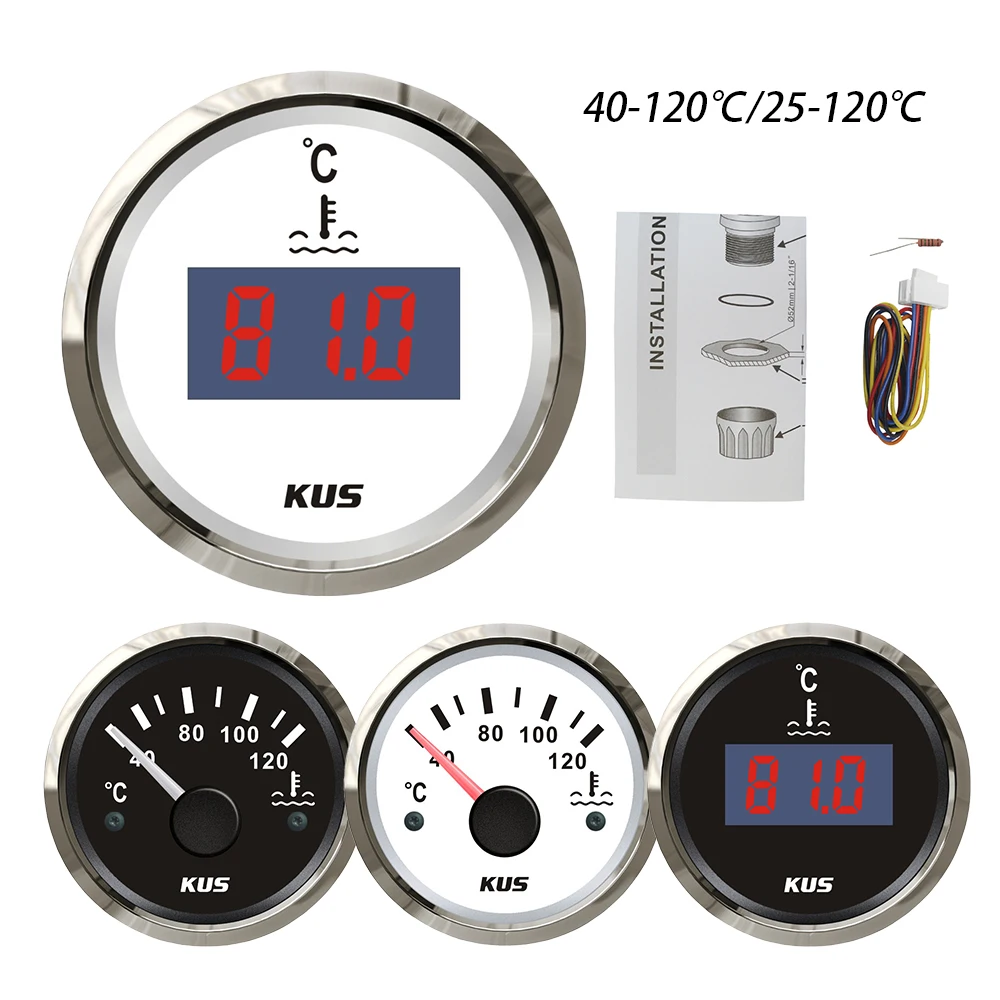

-Indicating Range: pointer style:40-120℃ digital style:25-120℃
-Working Voltage: 12V/24V

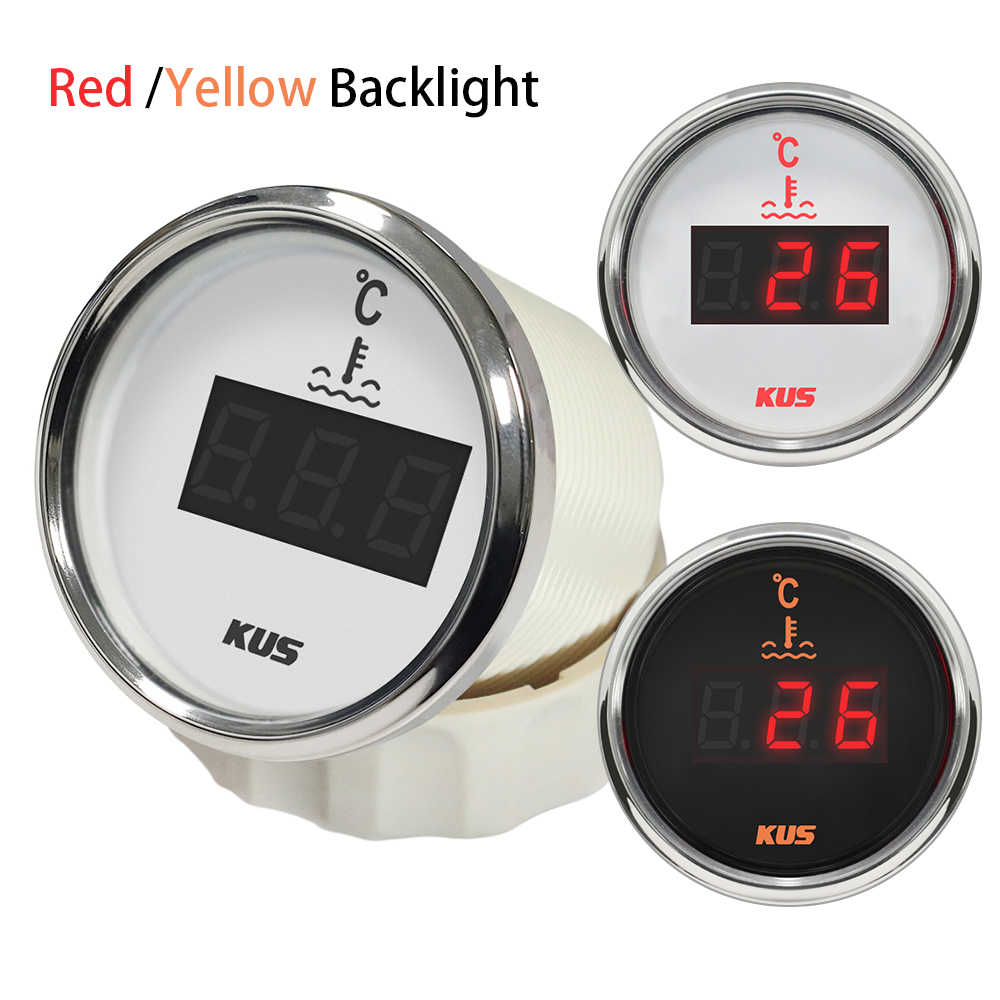

-Choice between red and yellow backlight
-Operation mode: LCD display, stepper motor

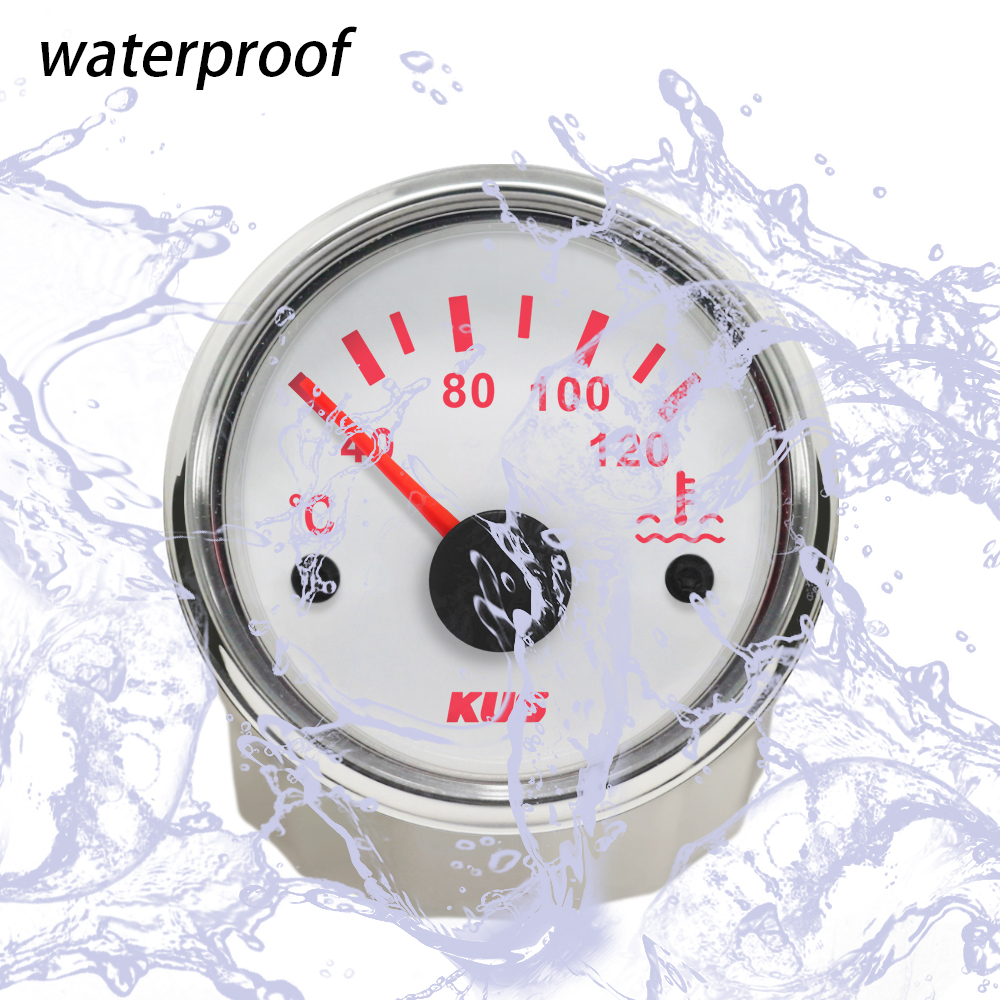

-Protection grade is IP67, the whole body is completely waterproof
-Excellent anti-fogging function
-316 Stainless steel bezel with curved glass
-Convenient Installation by multi-plug socket connecting way

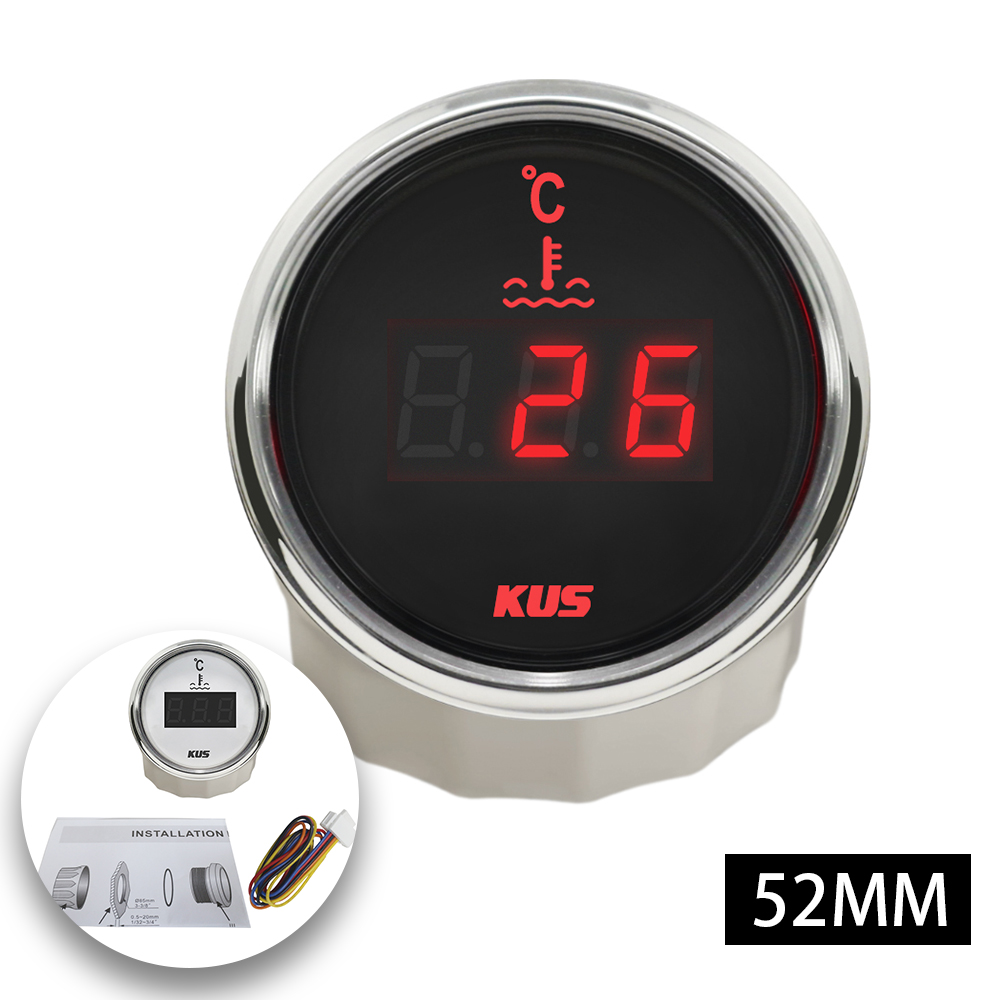

Package Includes:
1x Water Temp. Gauge
1x Multi-plug socket

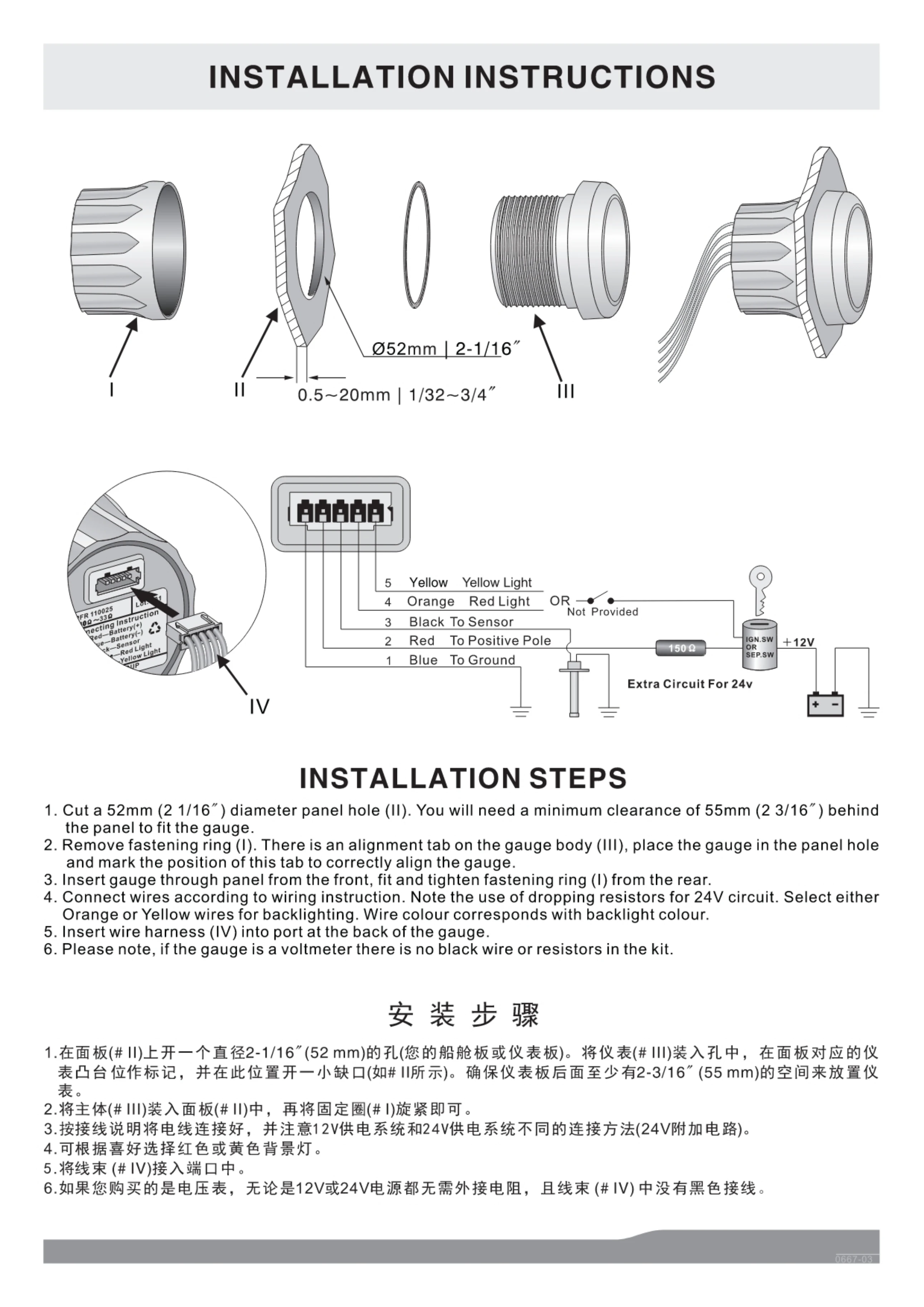

1x Installation Instruction

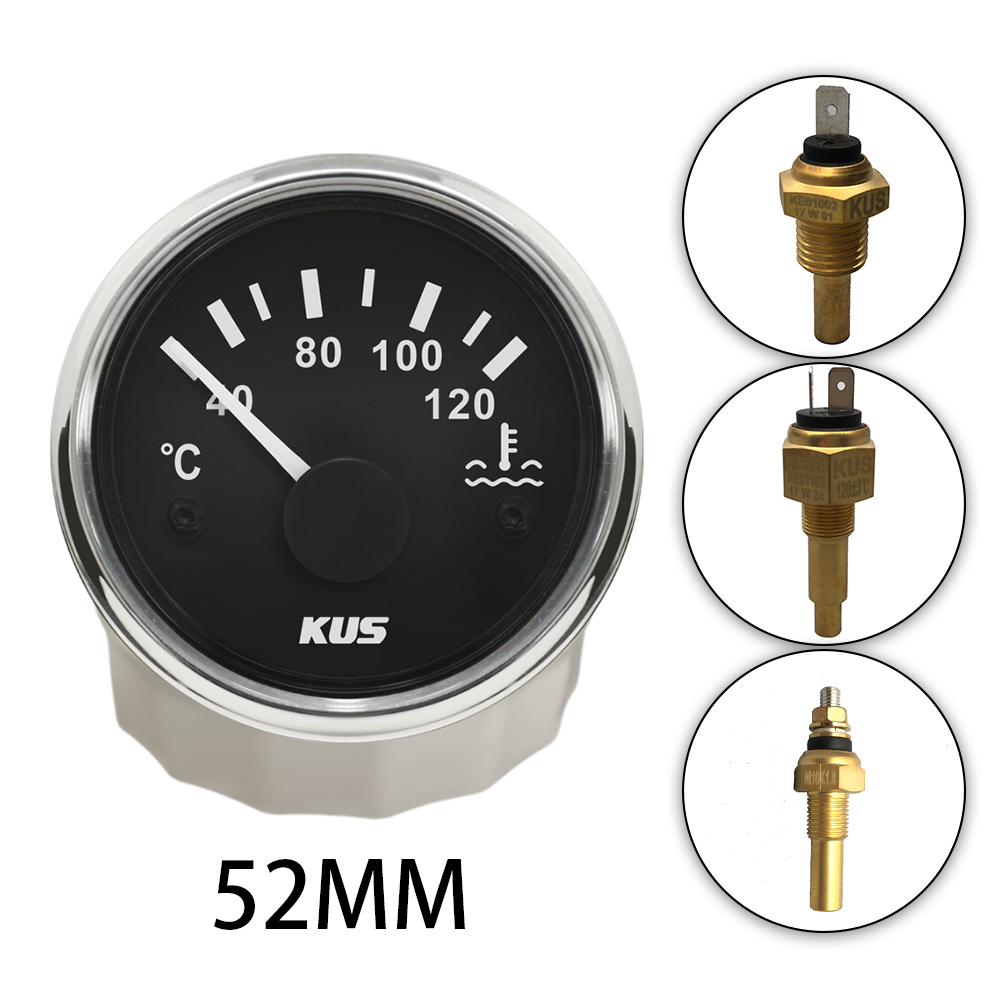

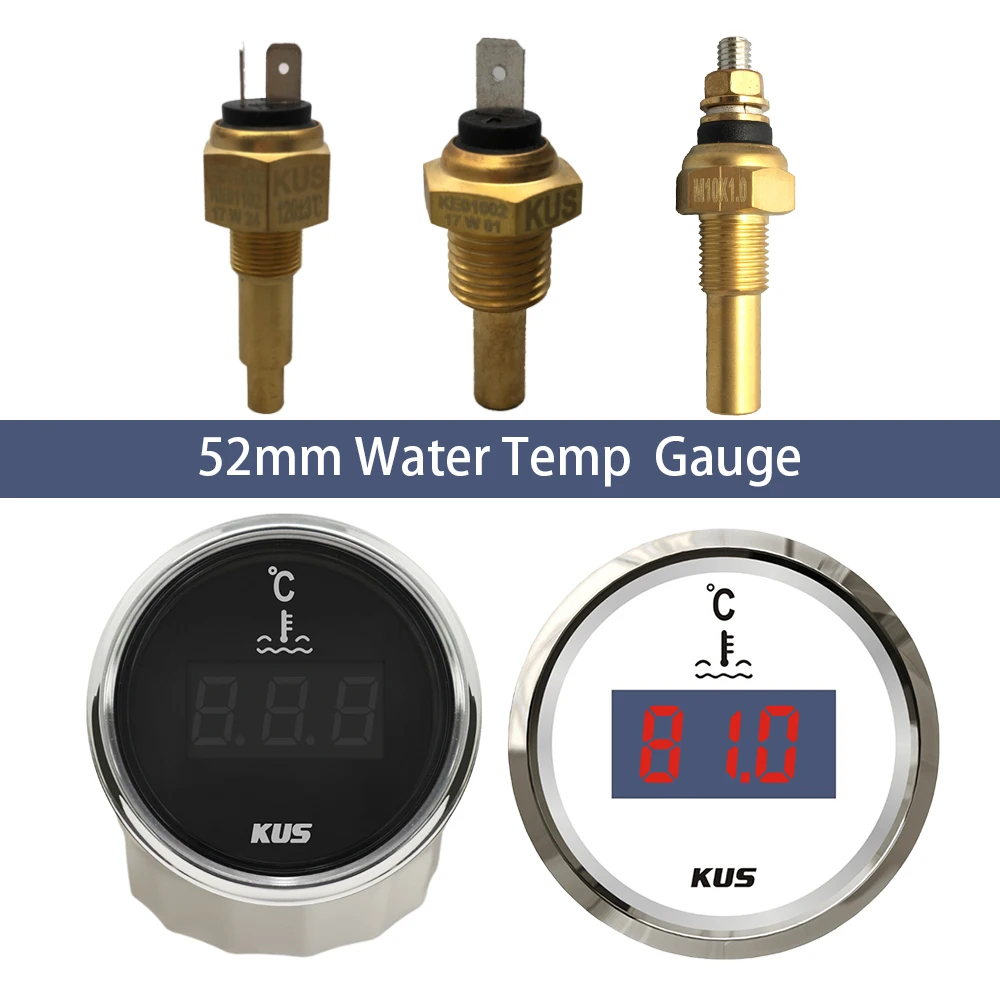

Sensor:
-Rated voltage: 6V-24V
-Rated power for alarm switch: 1.2W-3W
-The temperature alarm tolerance: ±3°C
-Temperature response time: Minimum 3mins after power supply electrified
-The main body is made of brass
-Protection rank: IP67

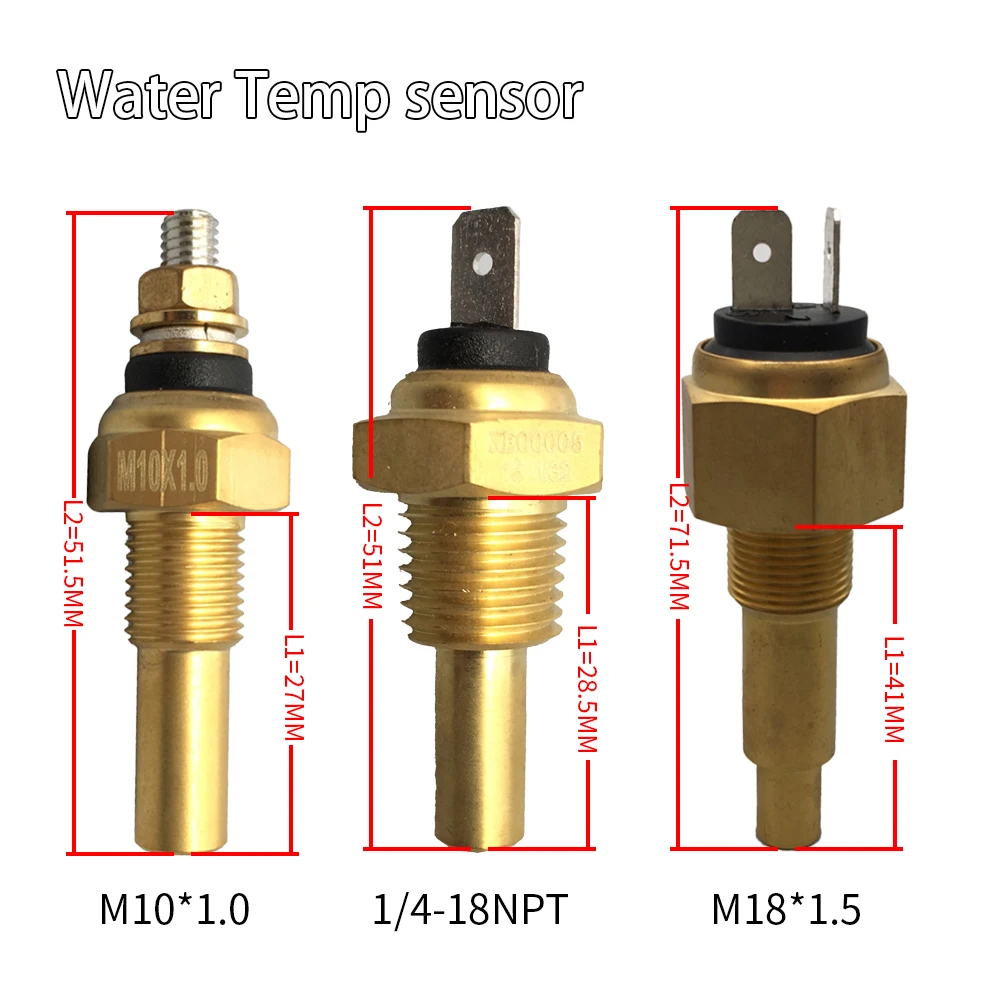

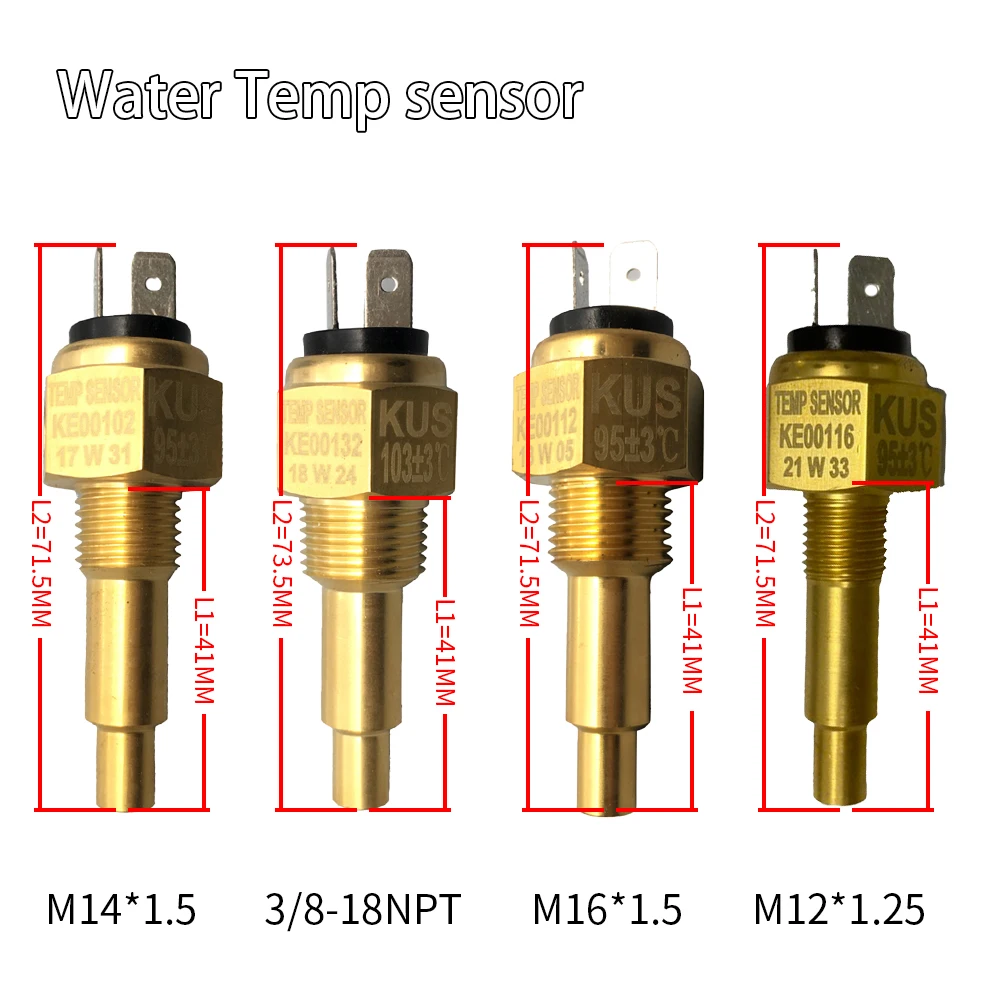

-Thread Type:
M10*1.0 (no alarm) -L1=27mm, L2=51.5mm
M12*1.25 (95 degree alarm) -L1=41mm, L2=71.5mm
M14*1.5 (95 degree alarm)-L1=41mm, L2=71.5mm
M16*1.5 (95 degree alarm)-L1=41mm, L2=71.5mm
M18*1.5 (98 degree alarm)-L1=41mm, L2=71.5mm
1/4"-18NPT (no alarm)-L1=28.5mm, L2=51.5mm
3/8"-18NPT (103 degree alarm)-L1=41mm, L2=71.5mm
