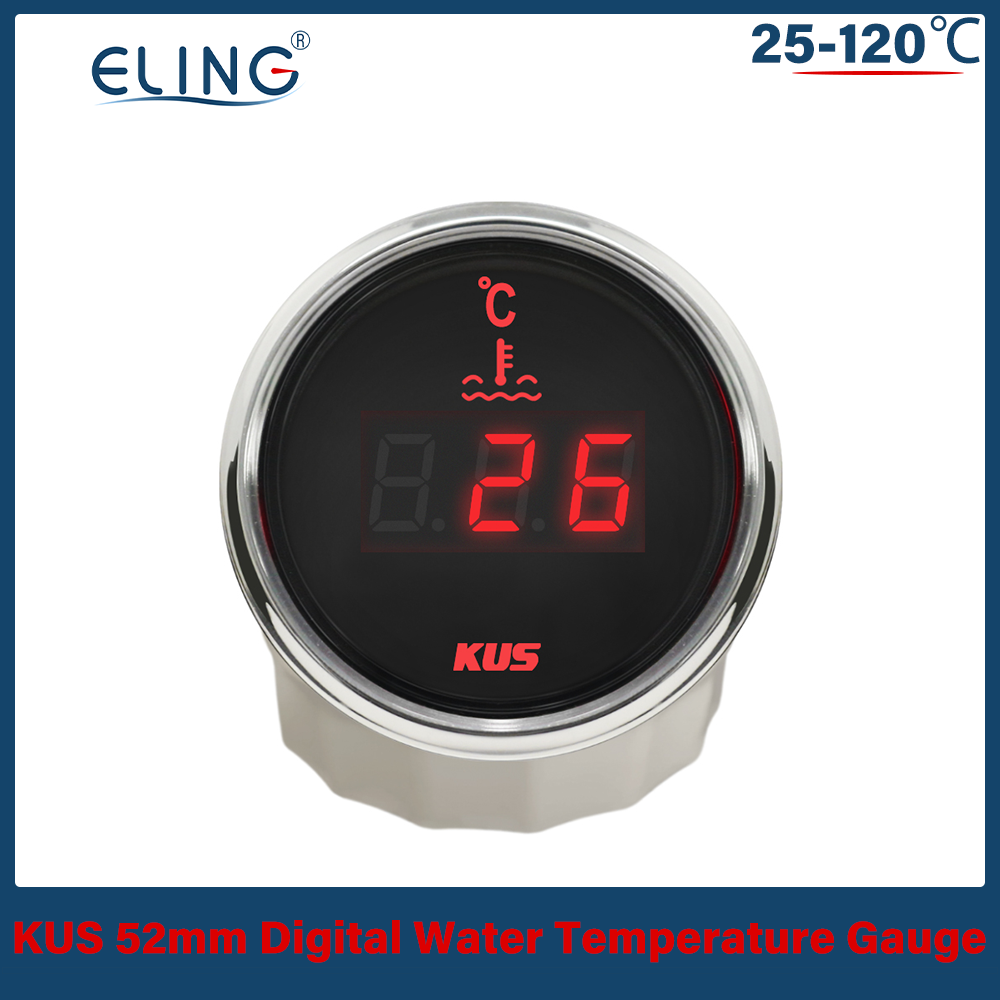

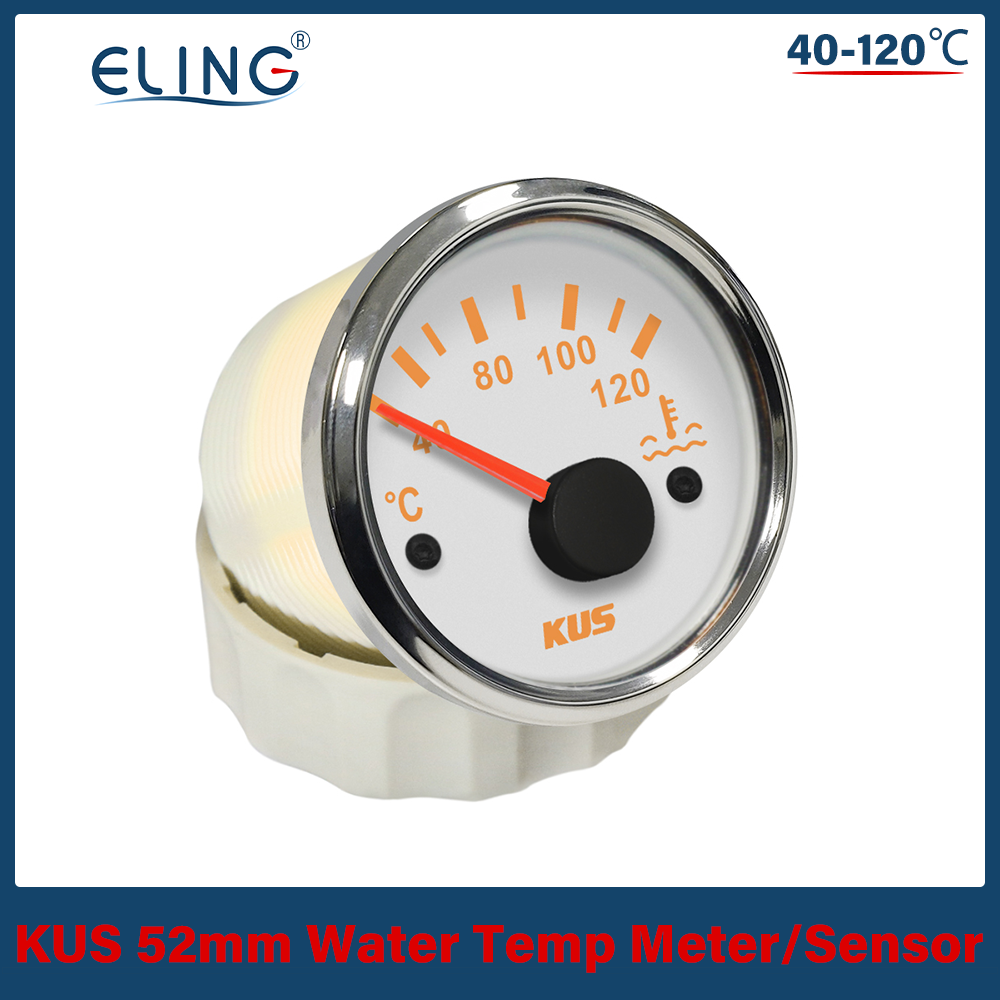

KUS Universal 52mm Water Temp Gauge 40-120℃ 25-120℃ 12V 24V for Auto Boat Red Yellow Light Temperature Sensor M10 M14 M16 M18
価格:
$17.96
/Pc
払い戻し:
シェア:
売れ筋商品
Please note:
There are different options for sensors and gauges in the link.
Each option is marked with a name and a picture.
There are different length: M10*1.0, M14*1.5, M16*1.5, M18*1.5, M12*1.25,
3/8''-18NPT, 1/4''-18NPT. Please confirm the length you need.
Please confirm whether the option you ordered is the product you need.
Thank you.
-Be suitable for all kinds of Water temperature sensors, and display the temperature of the Water tank
-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration
-Operating temperature:+25°C ~+120°C
-Protection rank: IP67

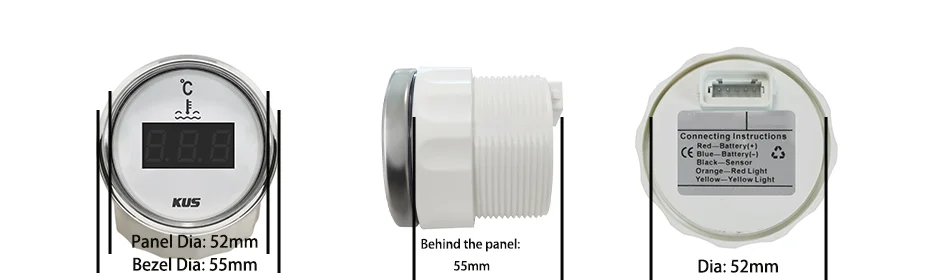

-Fixing dimension: 52mm(2")
-Indicating Range: 40-120℃ 25-120℃
-Working Voltage: 12V/24V

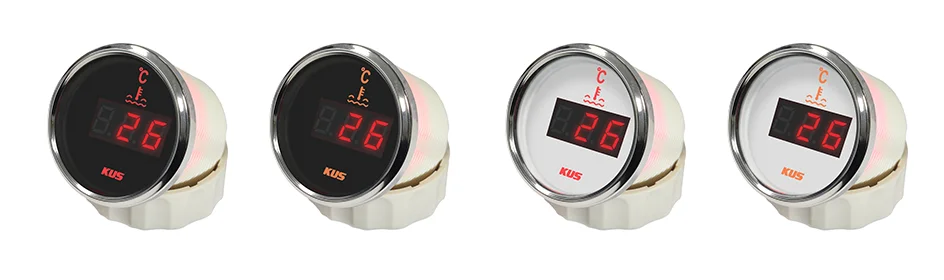

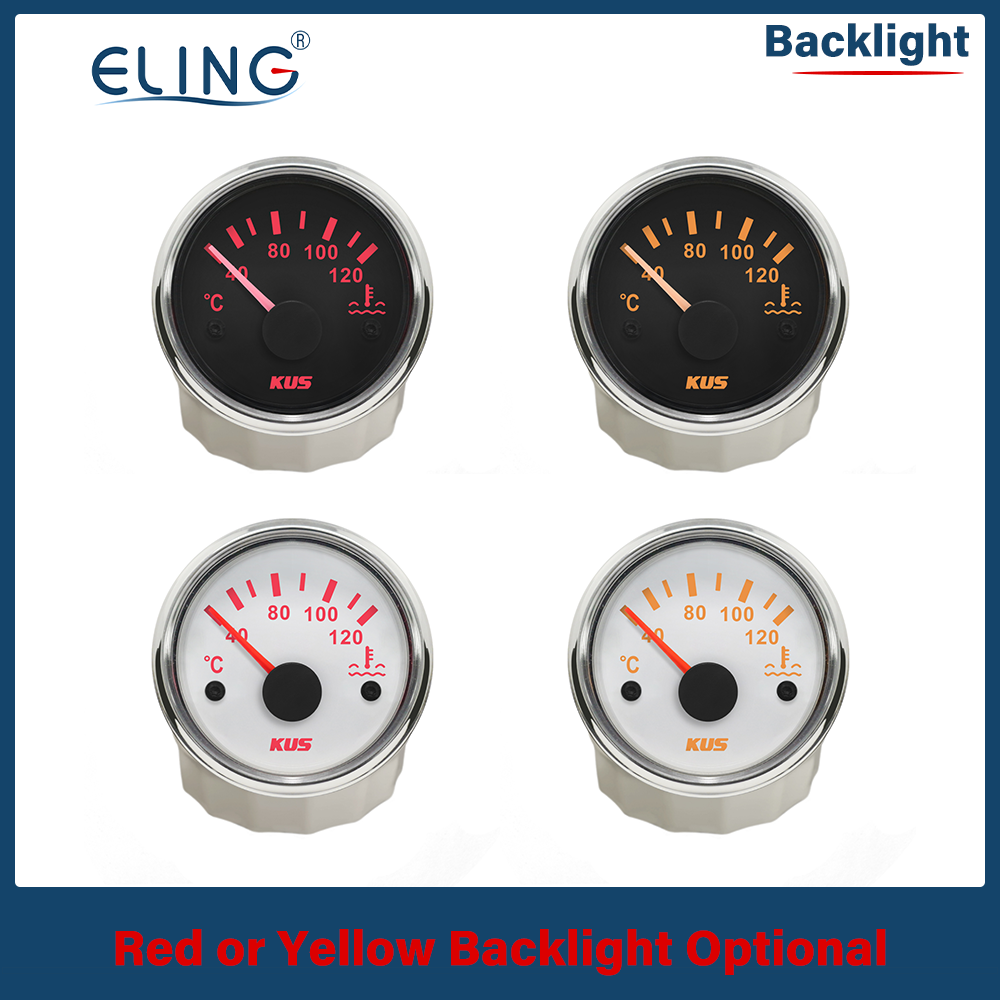

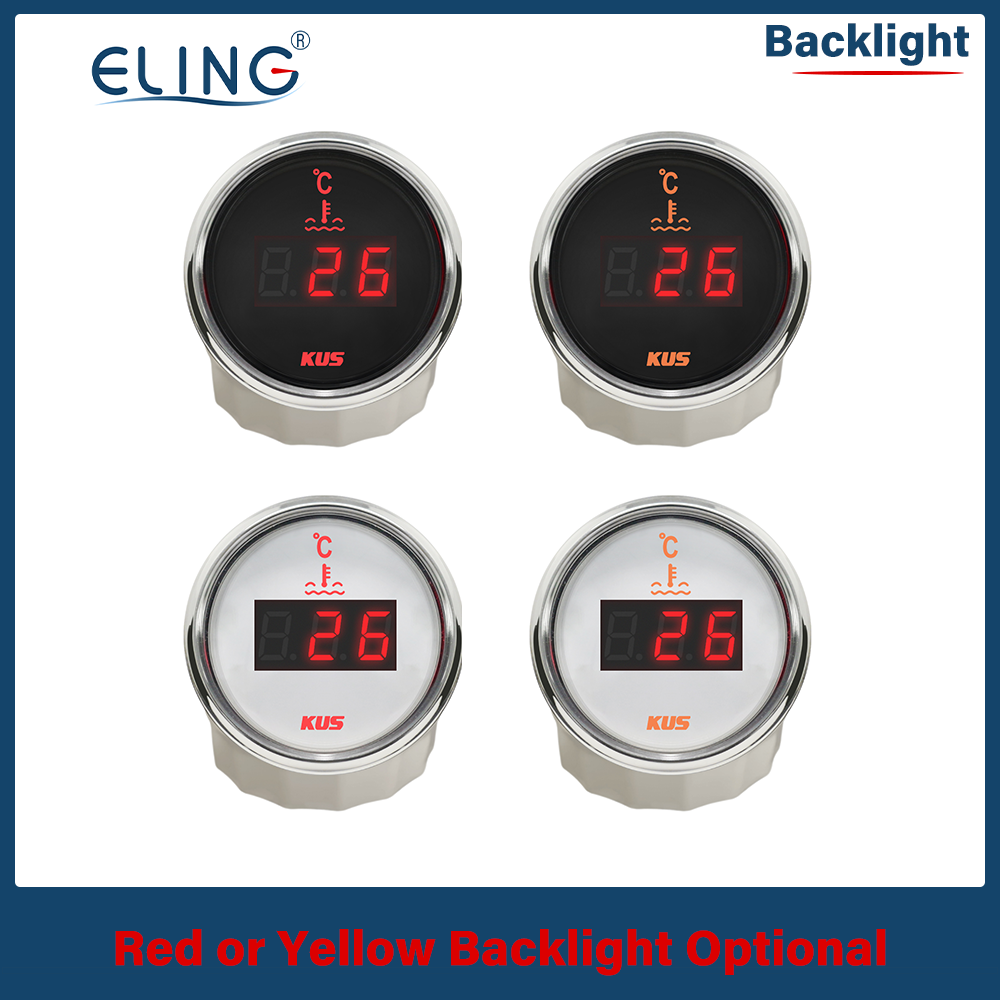

-Choice between red and yellow backlight
-Operation mode: LCD display, stepper motor
-Protection grade is IP67, the whole body is completely waterproof
-Excellent anti-fogging function
-316 Stainless steel bezel with curved glass

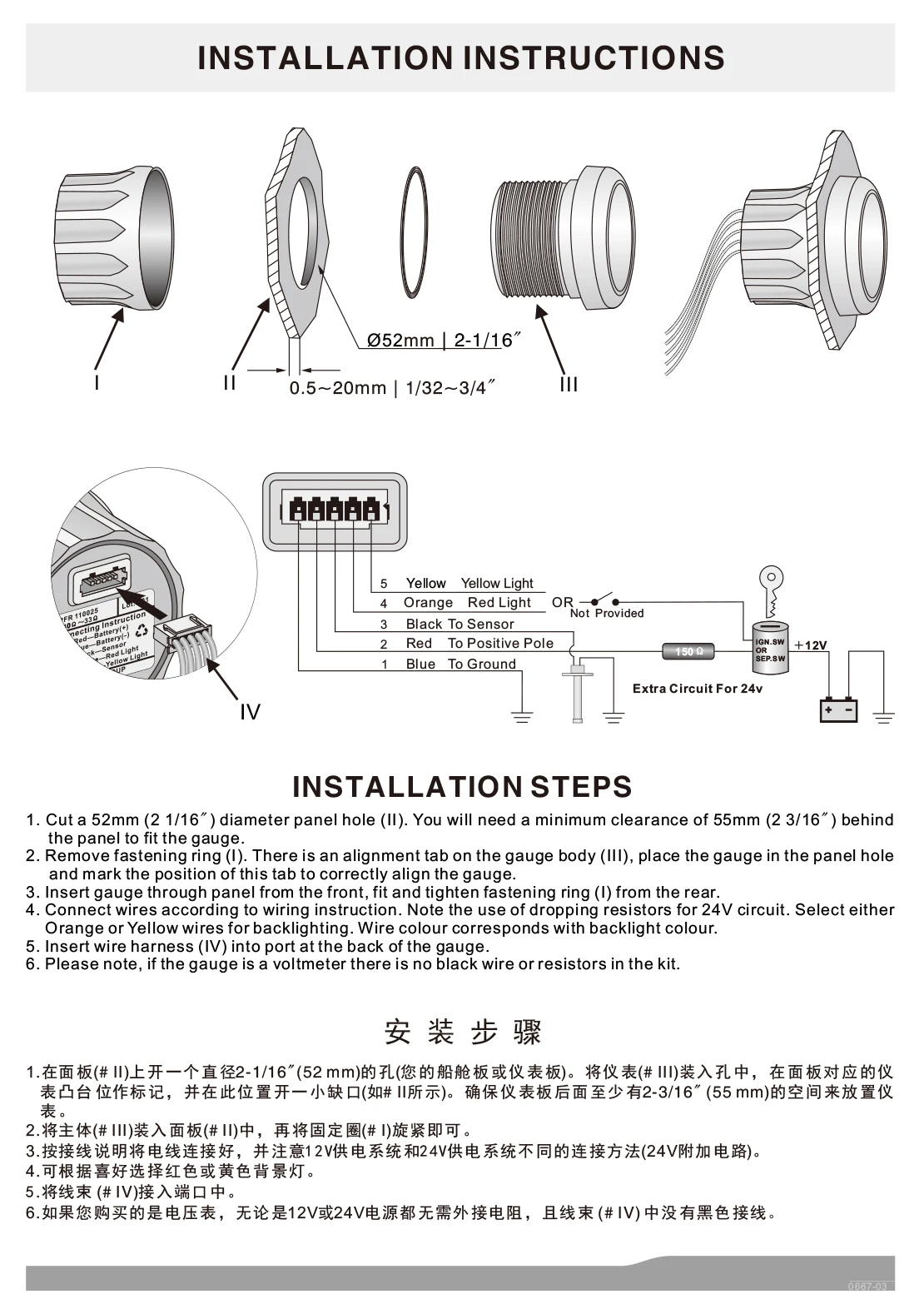

-Convenient Installation by multi-plug socket connecting way

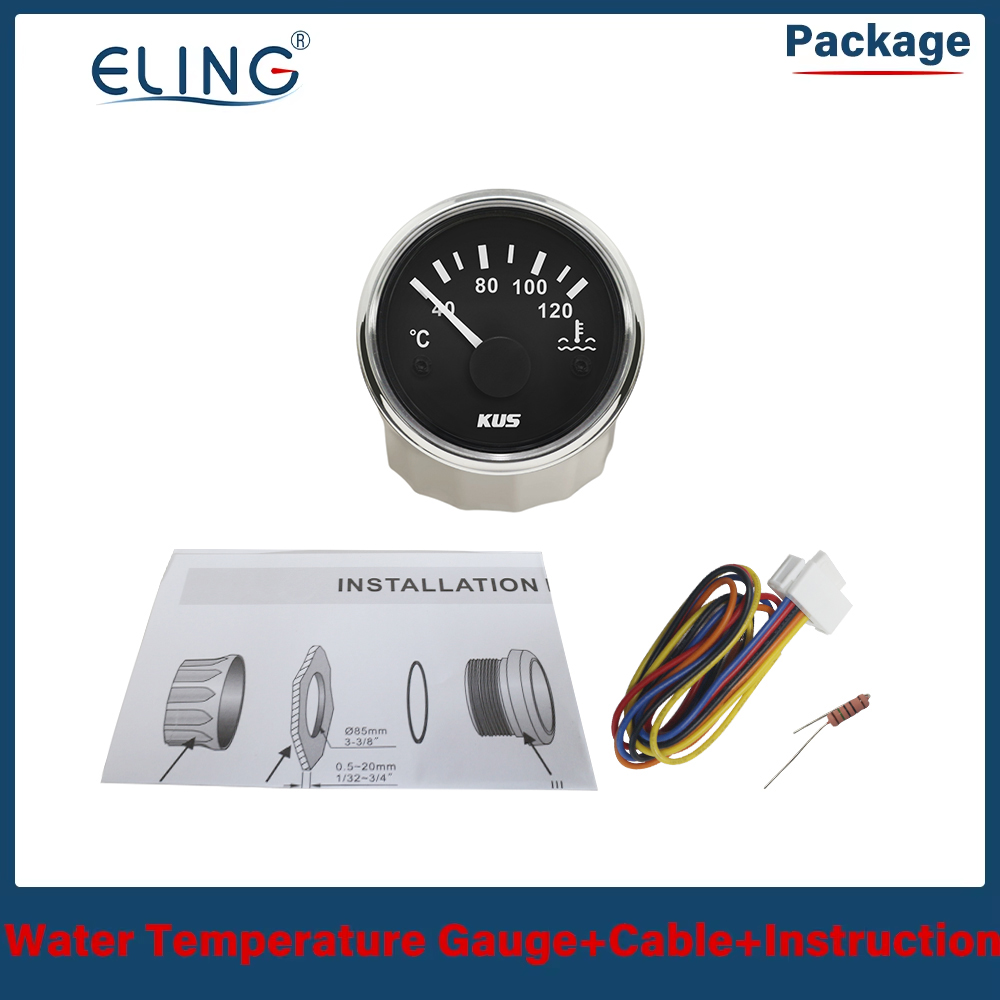

1x Water Temp Gauge 1x Multi-plug socket 1x Installation Instruction

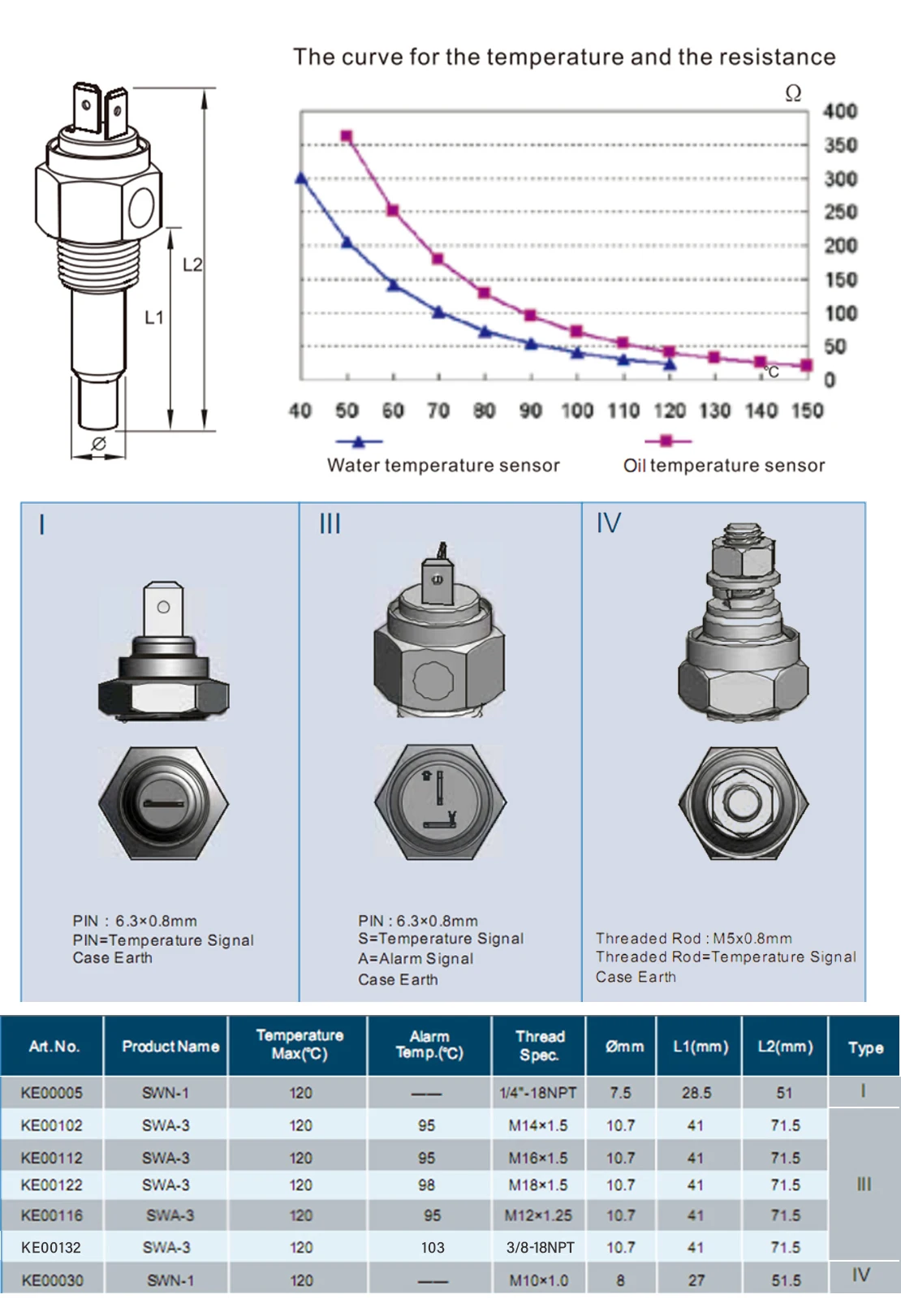

-Thread Type:
M10*1.0(no alarm)-L1=27mm, L2=51.5mm
M12*1.25(95 degree alarm)-L1=41mm, L2=71.5mm
M14*1.5(95 degree alarm)-L1=41mm, L2=71.5mm
M16*1.5(95 degree alarm)-L1=41mm, L2=71.5mm
M18*1.5(98 degree alarm)-L1=41mm, L2=71.5mm
1/4"-18NPT(no alarm)-L1=28.5mm, L2=51mm
3/8"-18NPT(103 degree alarm)-L1=41mm, L2=71.5mm
-Protection rank: IP67
-The main body is made of brass
-Temperature response time: Minimum 3mins after power supply electrified
-The temperature alarm tolerance: ±3°C
-Rated power for alarm switch: 1.2W-3W
-Rated voltage: 6V-24V
