Creality CR-Scan Raptor Portable Handheld 3D Scanner Blue Light NIR 60fps Anti-shaking Full-Color Scanning 0.02mm High-Accuracy
価格:
$1,136.67
/Pc
払い戻し:
シェア:
売れ筋商品
Creality 3D Scanner CR-Scan Raptor 3D Printing Handheld Scan Machine 0.02 mm Accuracy 60fps Scanning Speed Hybrid Blue Laser & NIR
Scanning Mode: Blue Light(Blue 7-line laser) / NIR(infrared binocular structured light)
>>Blue Light(Blue 7-line laser) Mode:
Accuracy: Up to 0.02mm @ 100mm [1]
3D Resolution: 0.02-2mm
Scanning Speed: Up to 60fps
Min. scanvolume: 5mm x 5mm x 5mm
Single Capture Range: 270mmx170mm@300mm
Working distance: 150mm-400mm
Color Mapping: Yes
Alignment mode: Marker
>>NIR(infrared binocular structured light) Mode:
Accuracy：Up to 0.1mm
3D Resolution：0.1-2mm
Scanning Speed：Up to 20fps
Single Capture Range：930mmx580mm@1000mm
Working distance: 170mm-1000mm
Color Mapping: Yes
Alignment mode: Marker / geometry / texture
General Parameters:
3D imaging camera resolution: 1920x1200
Color Supplemental Light: 12 white LEDs
Marker Recognition Enhancement: 12 infrared LEDs
Laser Safety: Class I (eye safe)
Button: Mechanical
IMU: Yes
Output format: OBJ/STL/PLY
Input Power: 12V 2A
Data interface: TypeC/USB3.0
Device Dimensions: 215mmx50mmx74mm

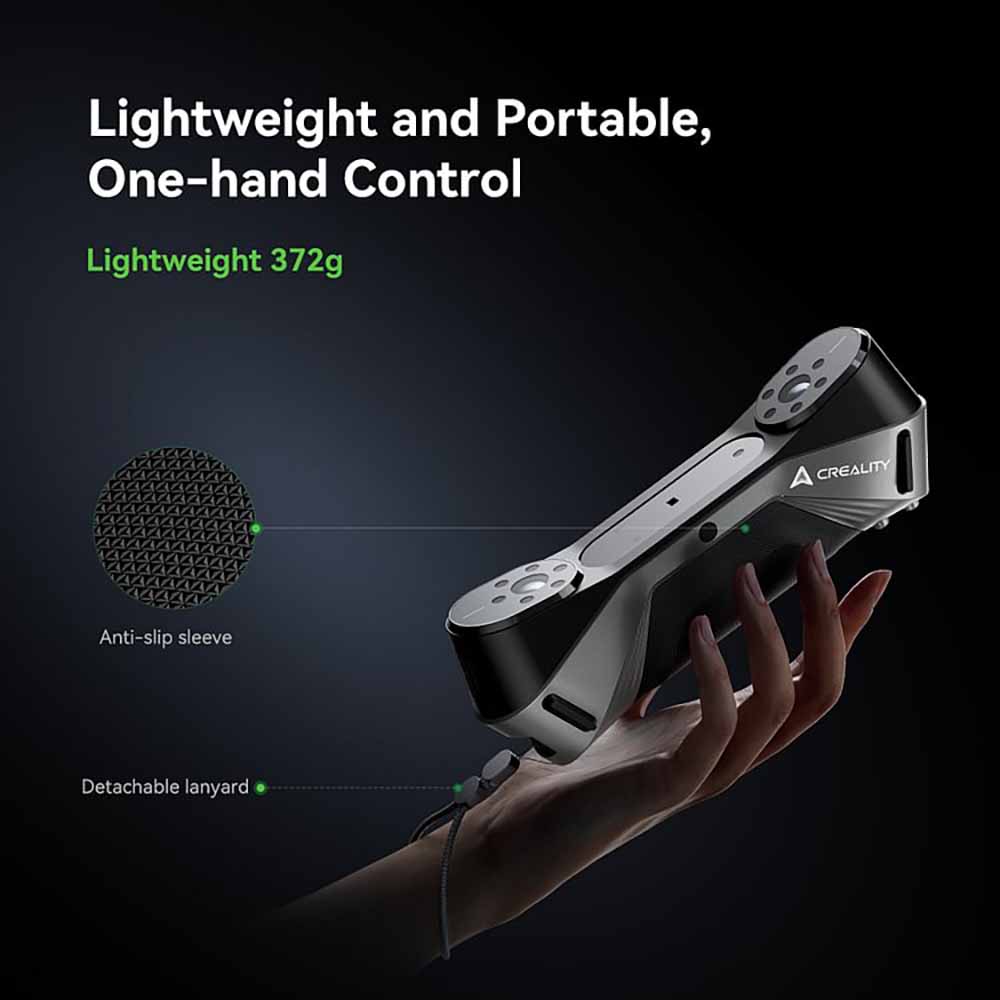

Device Weight: 372g
Calibration board: High-precision glass calibration board
Wireless Scanning: Supported in conjunction with future wireless scanning accessories
System Support：Windows/macOS
Operating temperature：-10°C to 40°C
Operating humidity: 0-90%RH
Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.
