0-190Ohm Water Level Sensor 52mm Water Level Gauge with 7 Color LED Water Tank Meter Indicator for Marine Yacht Boat Car 12V24V

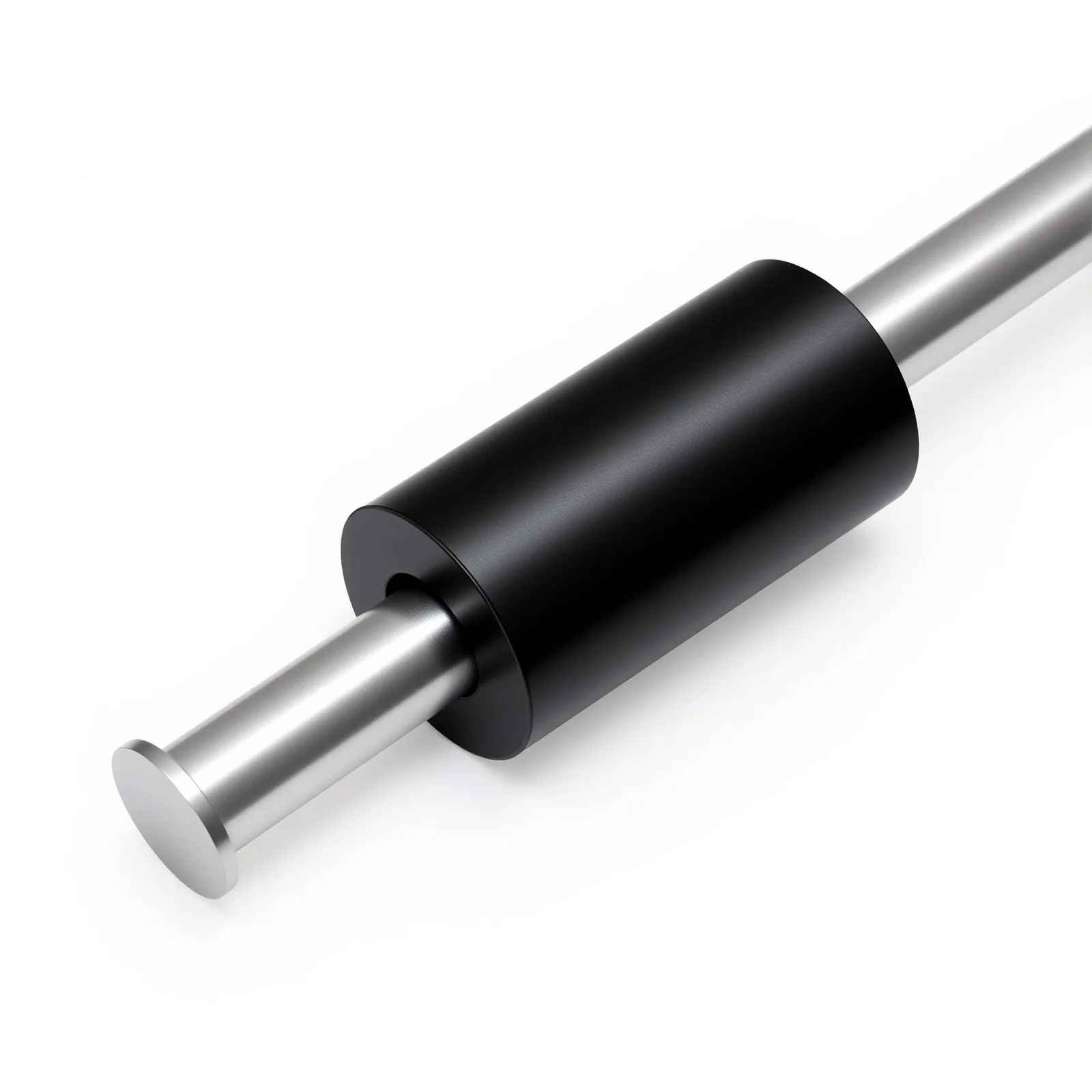

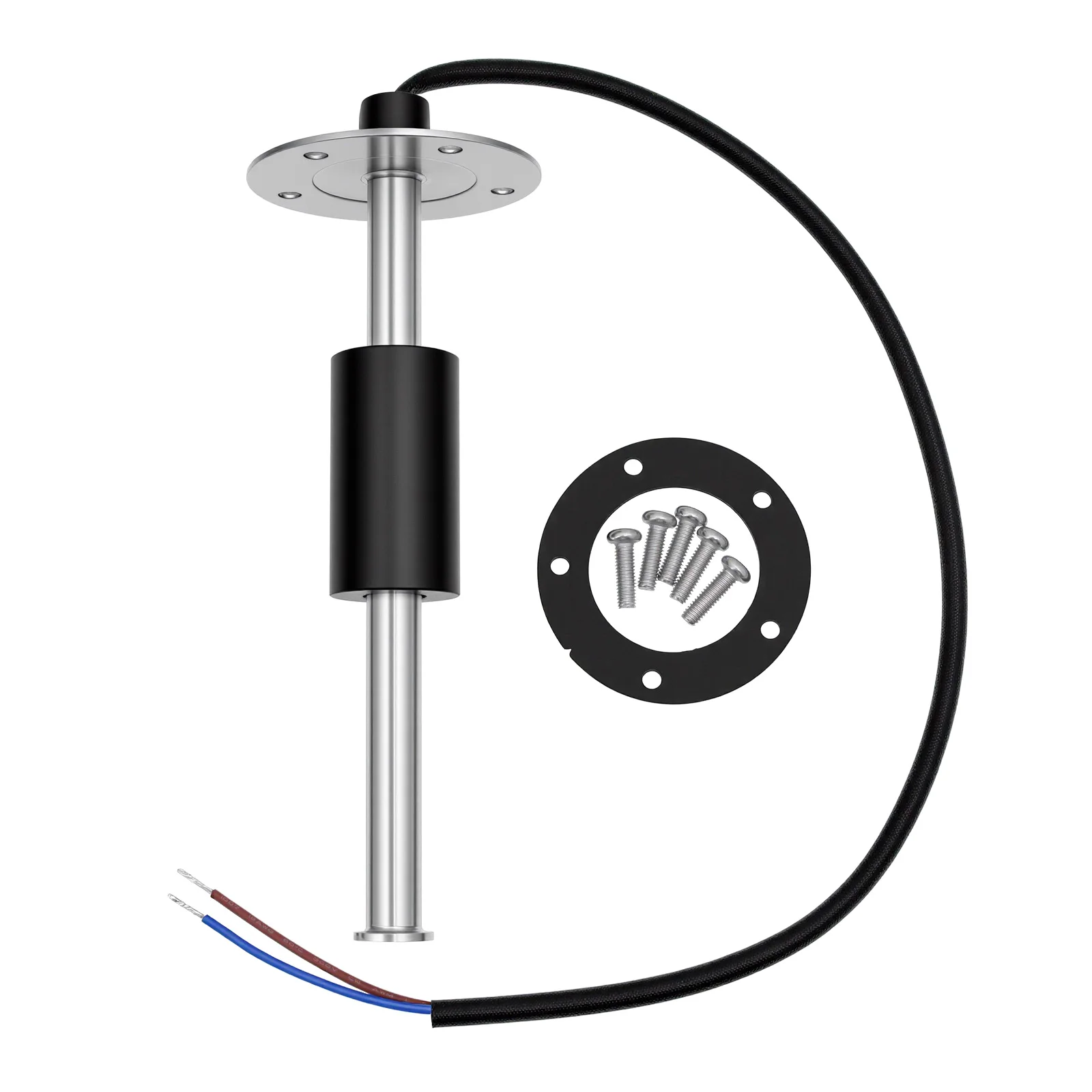

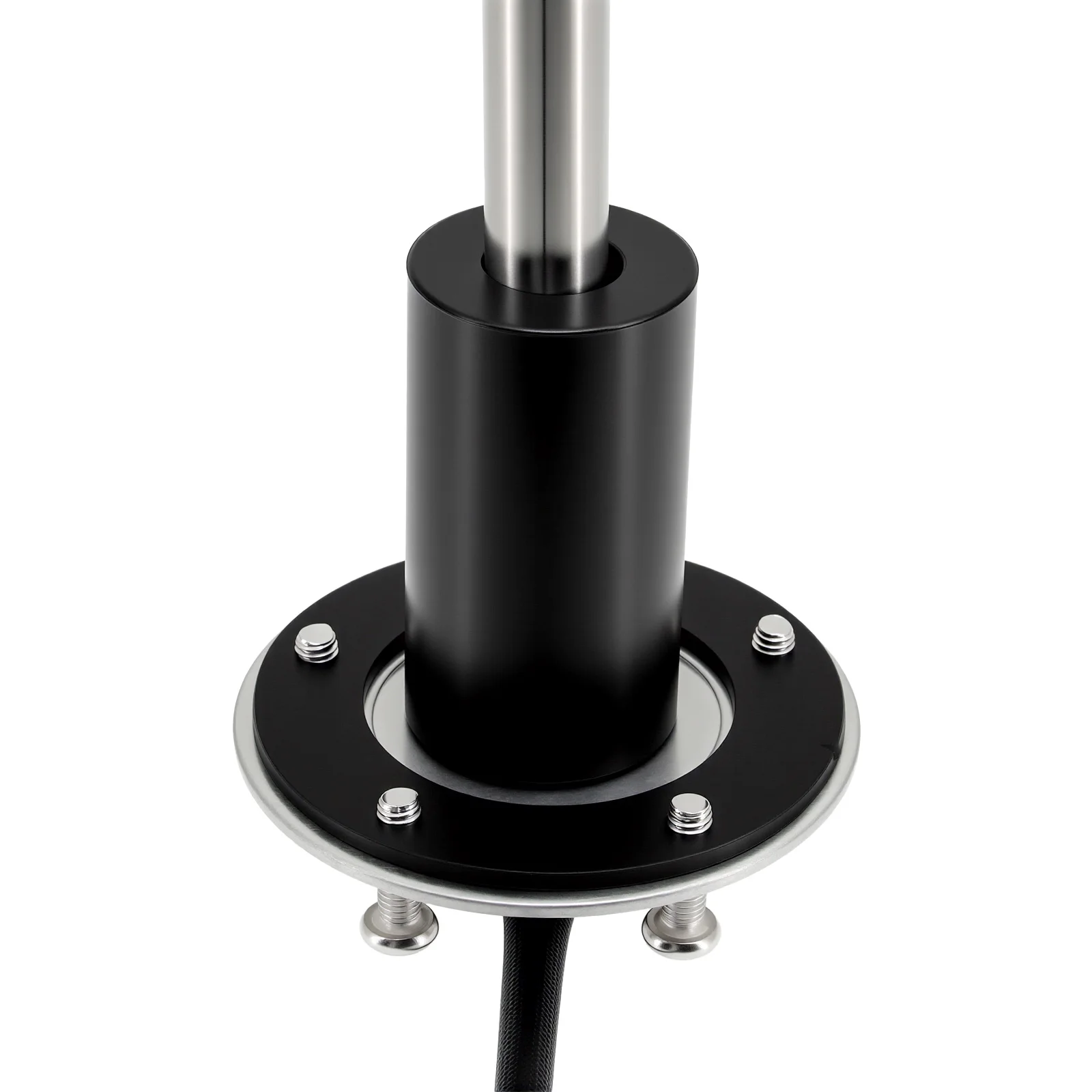

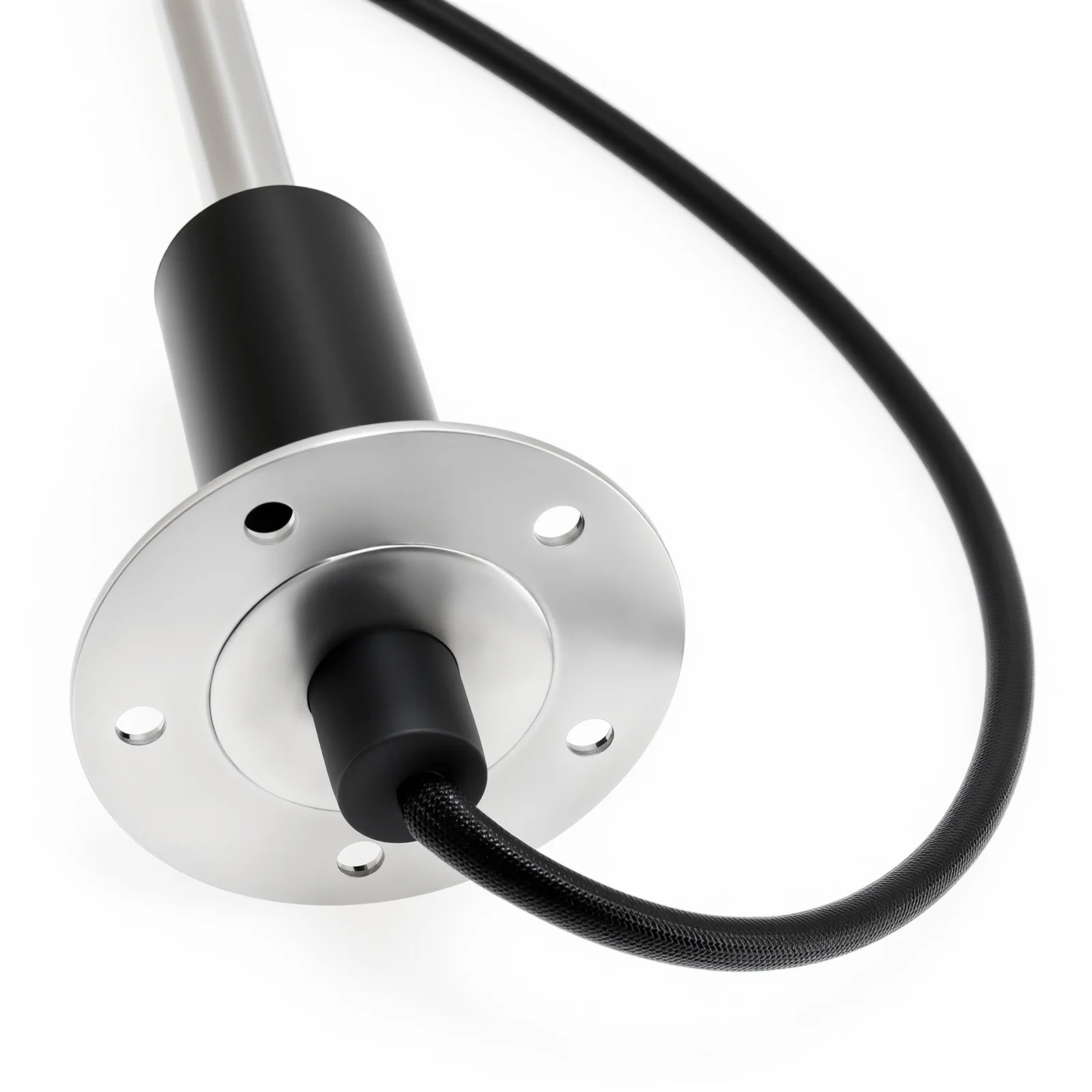

Sensor Feature:
- Protection ank: IP67
- Resolution range: 21 mm
- Assembly: SAE standard 5 holes
- Rated current for alarm switch: 500mA
- Operating temperatures: - 40 to 85 Celsius
- Fit for Fuel Level Gauge and Water Level Gauge

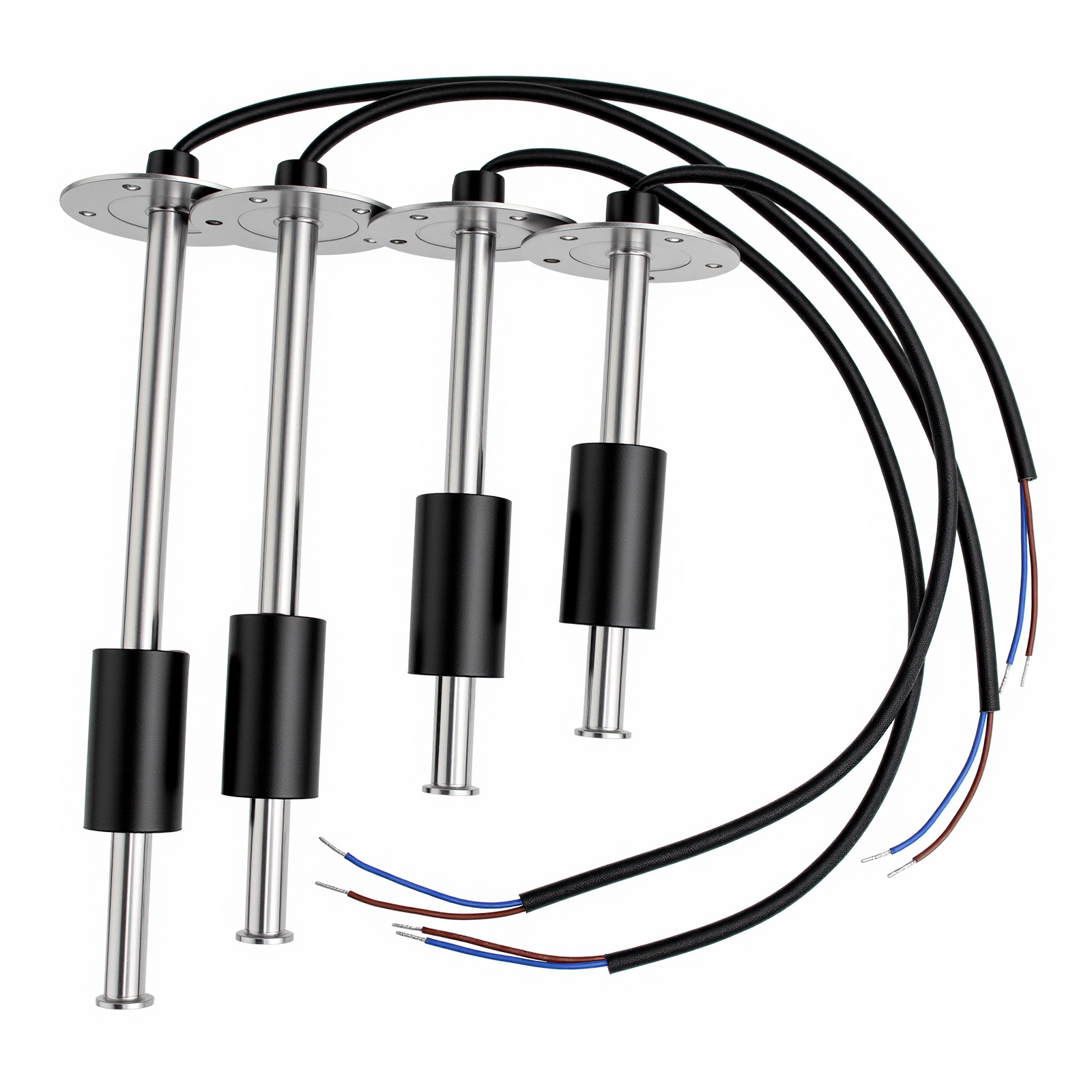

- Sensor Length :100-600mm

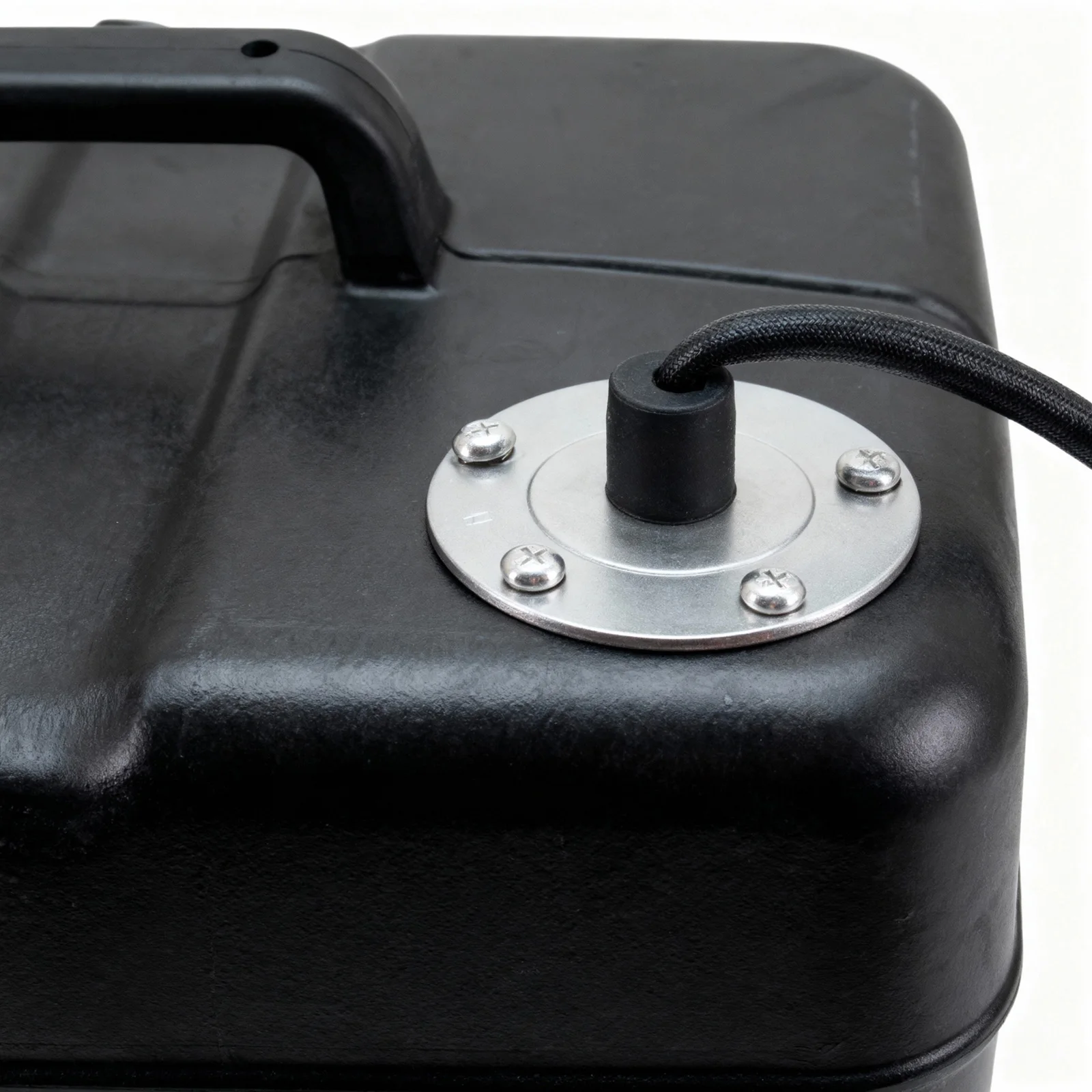

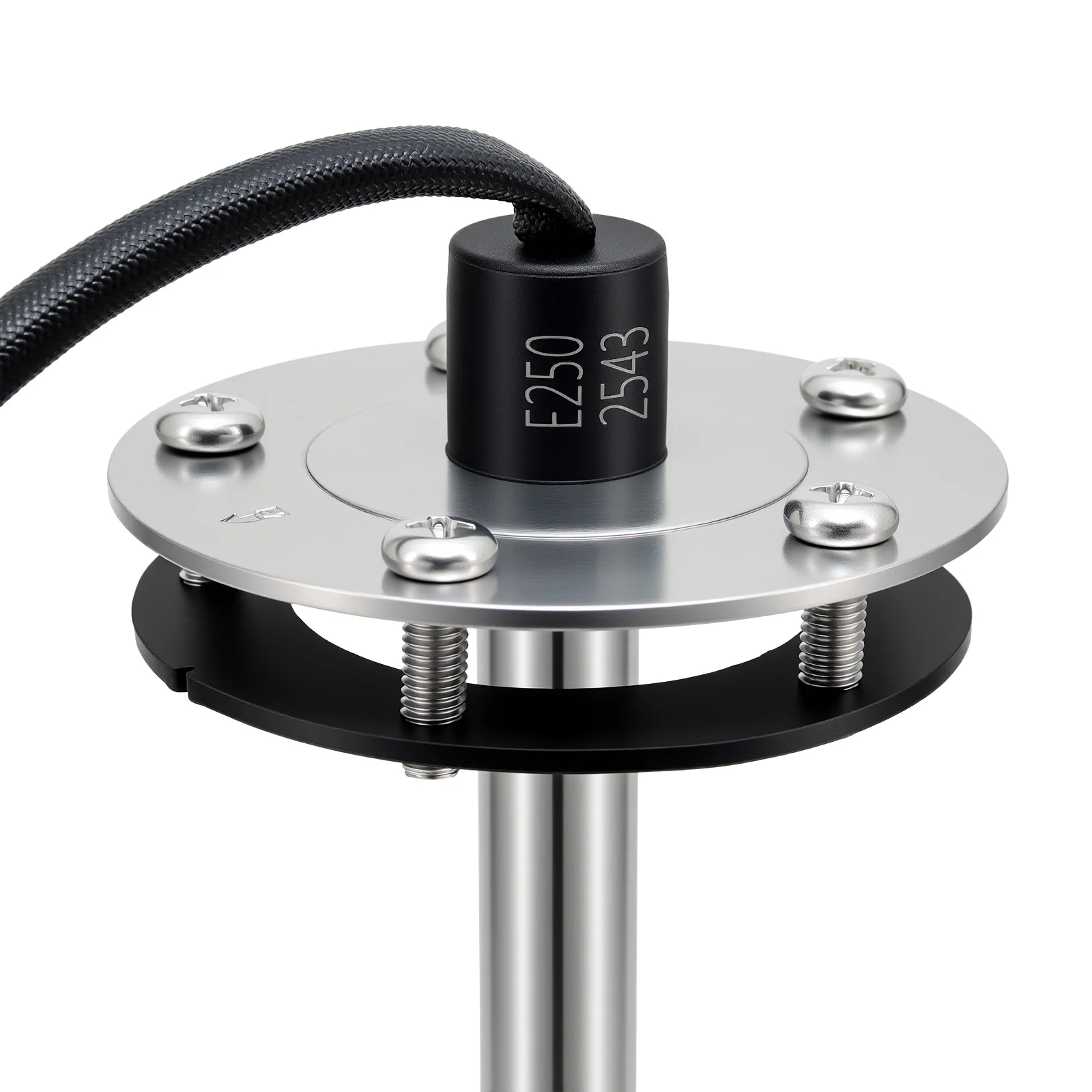

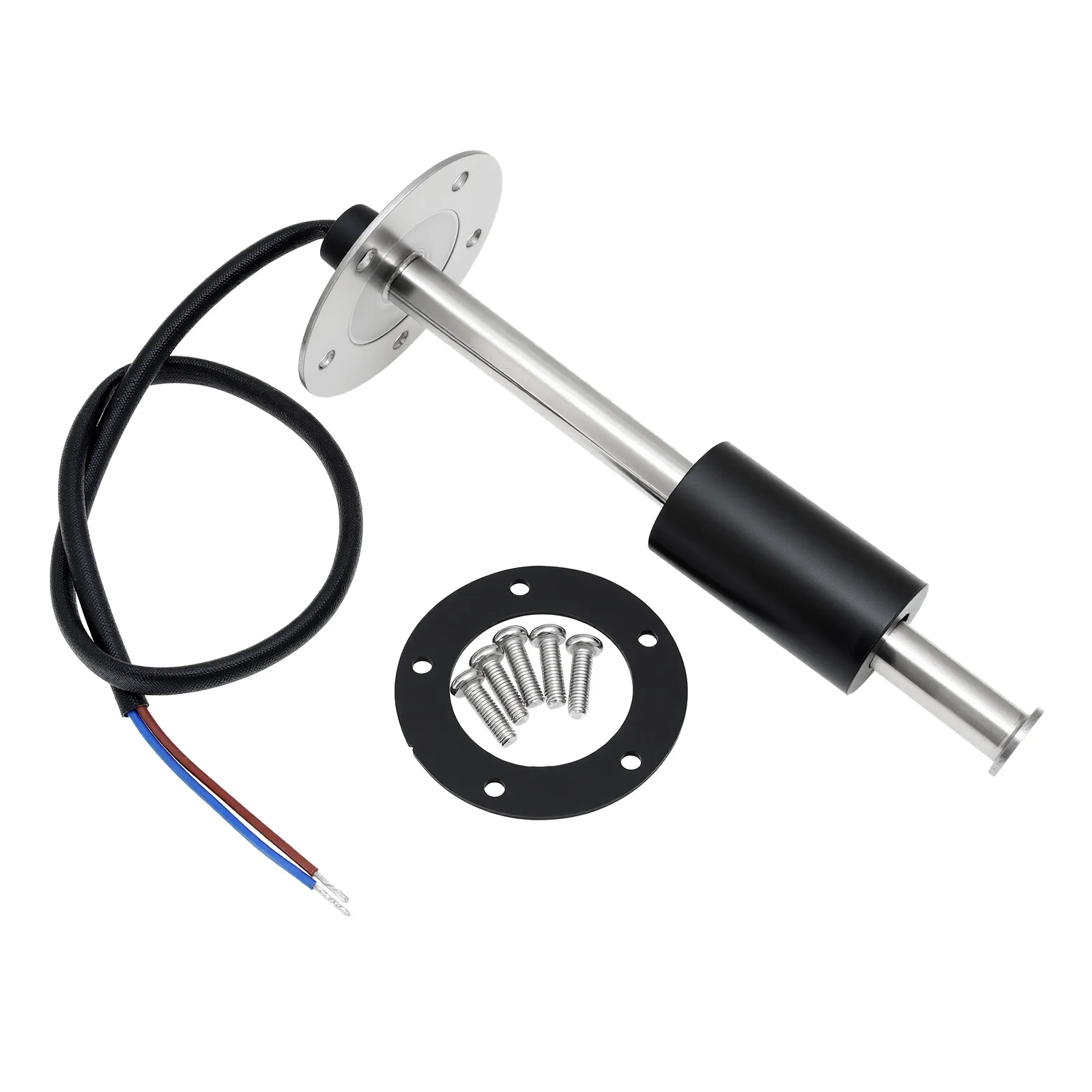

- Mounting: 5 pieces of M5 screws and 2 mm thick gasket
- Output signal: 0~190 ohm (Standard European)
- Fitment: for Gasoline, diesel, methanol fuel, ethanol fuel

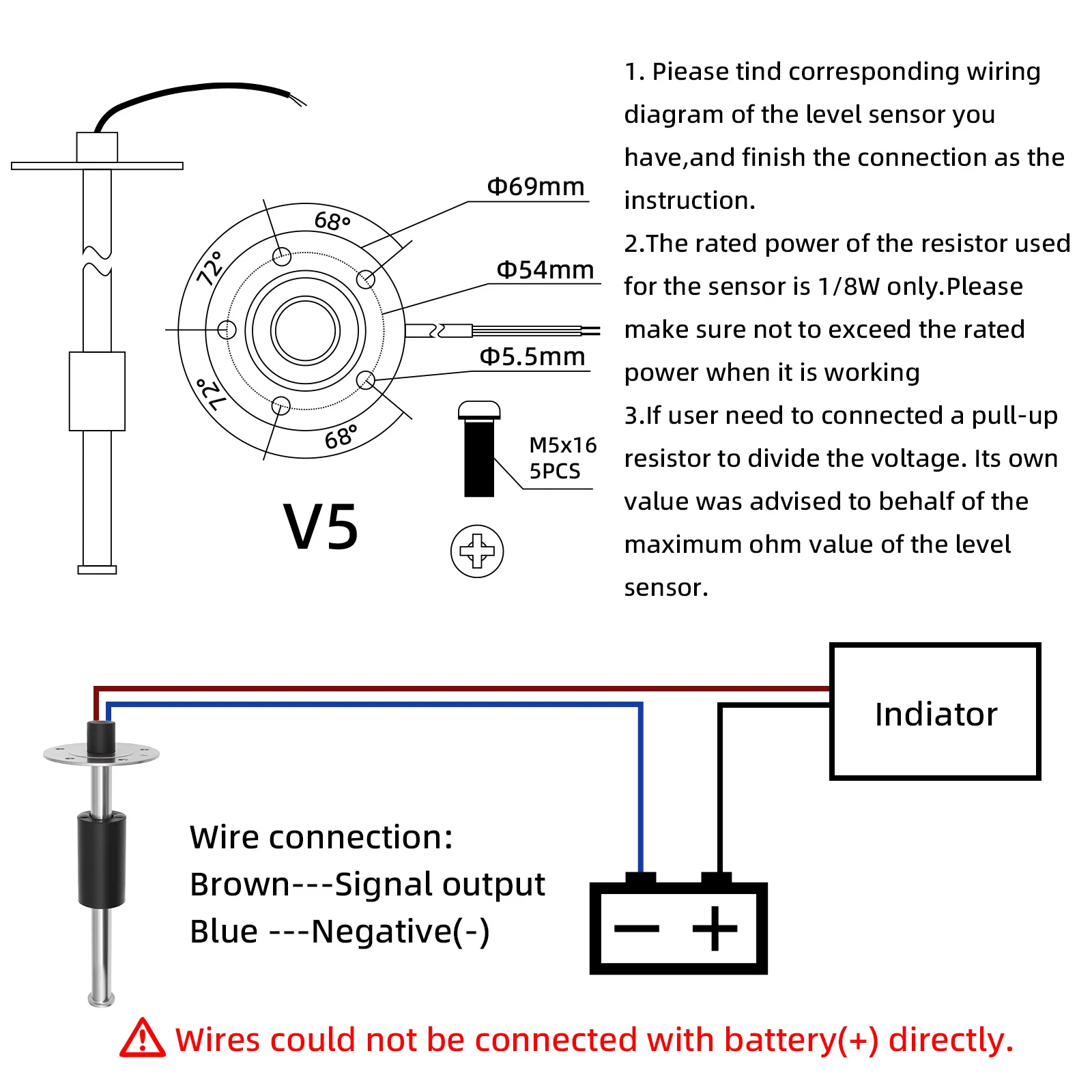

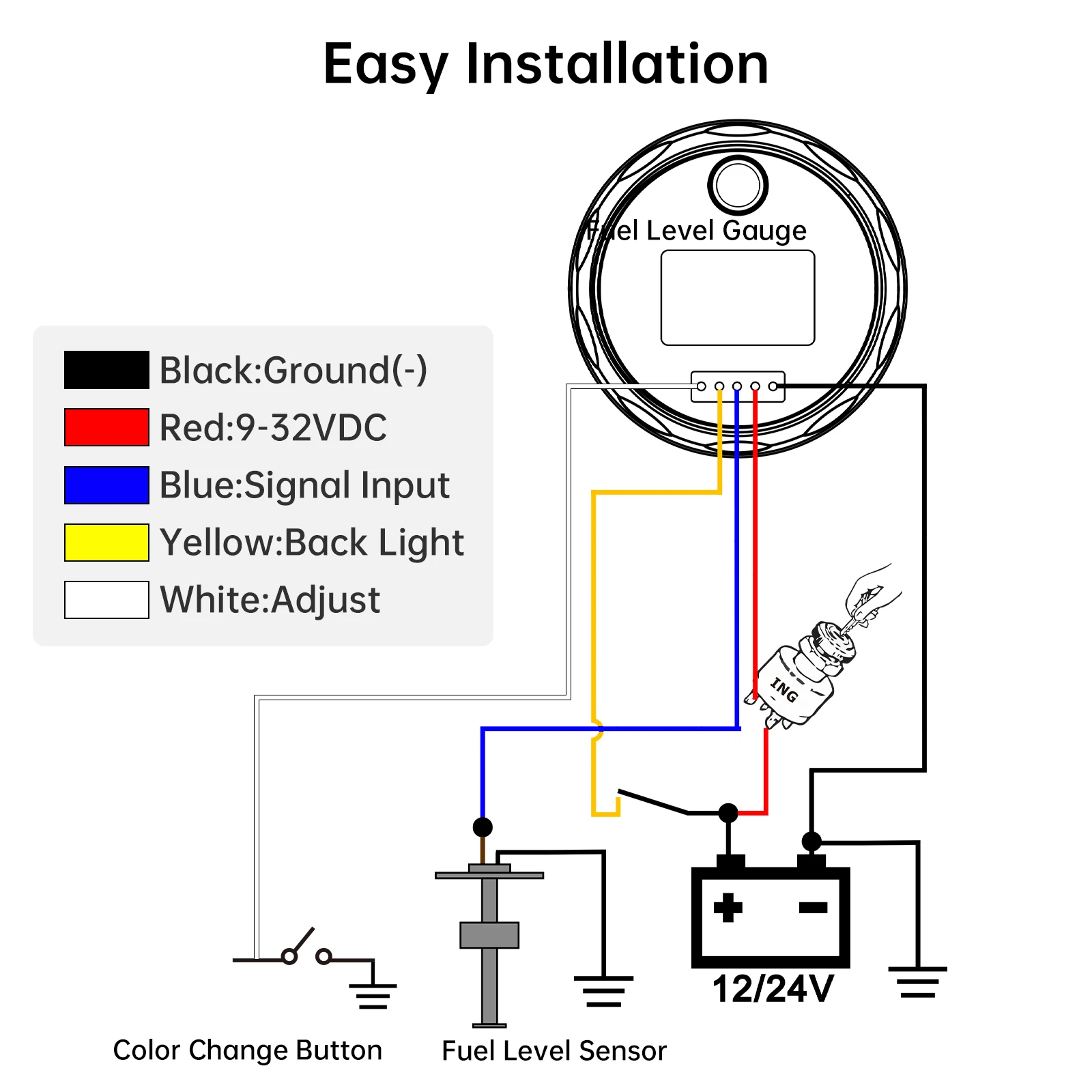

Sensor Connection:
Blue wire: connect the ground wire
Brown wire: connect the gauge signal wire
☆Empty oil level 0 ohm
★Full oil level 190 ohm

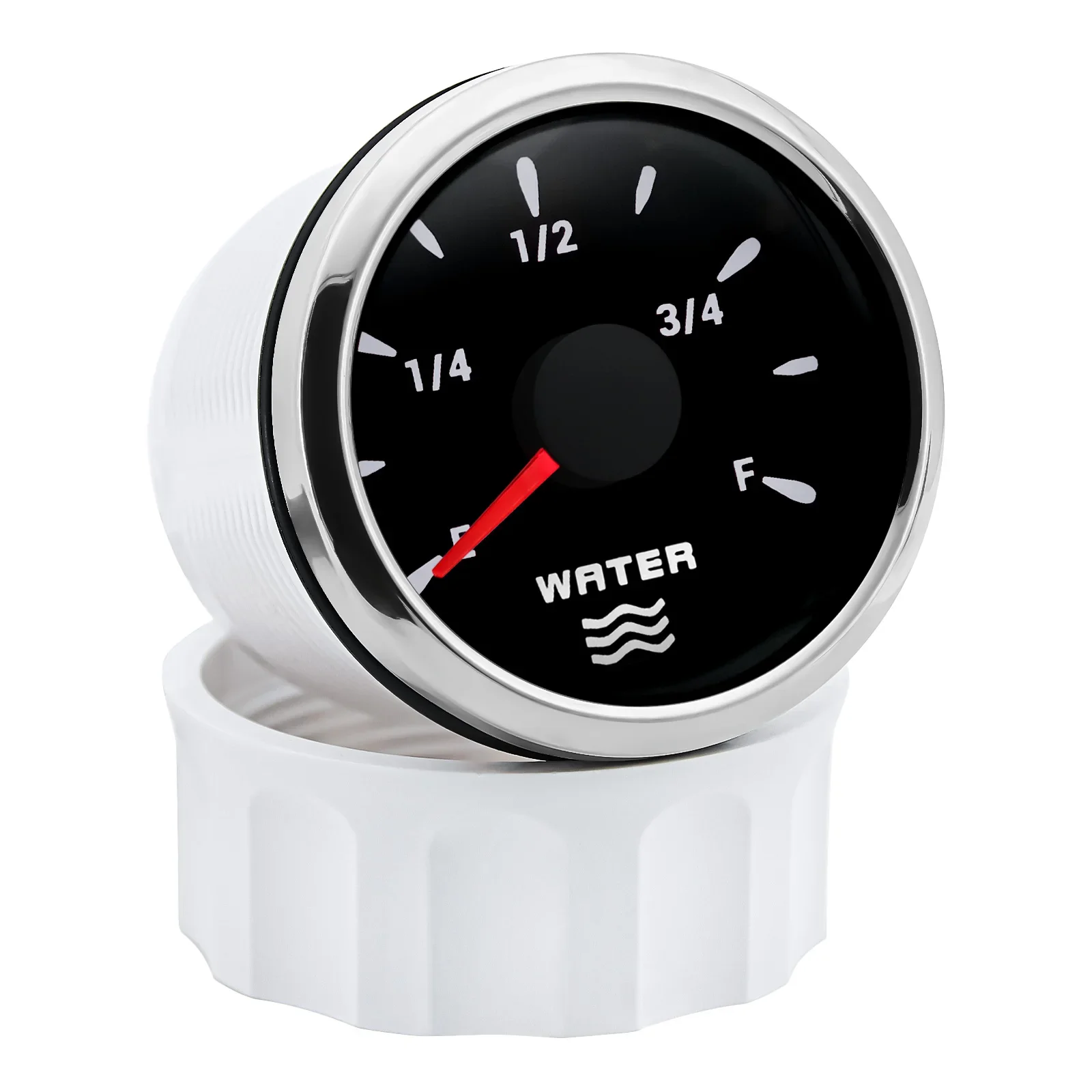

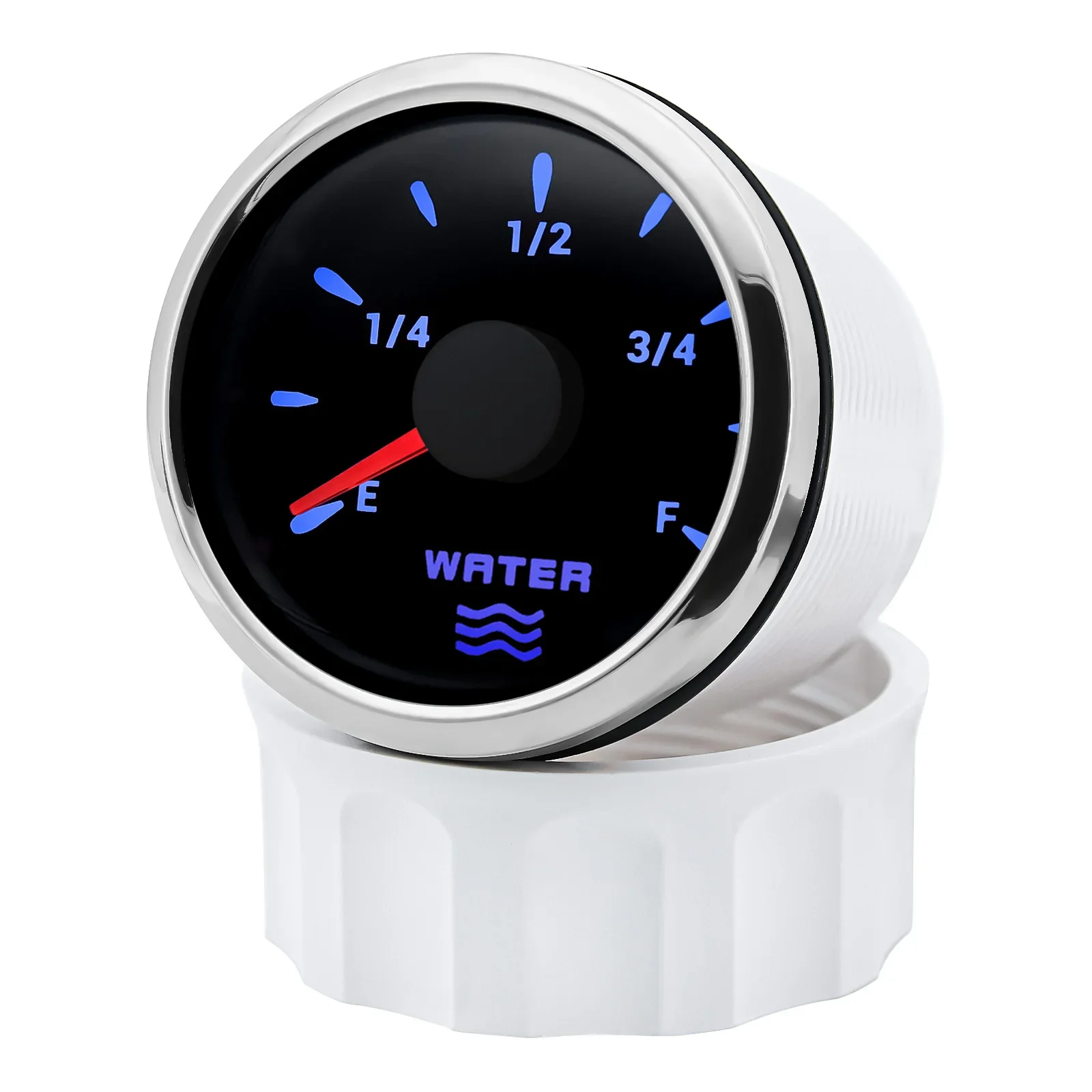

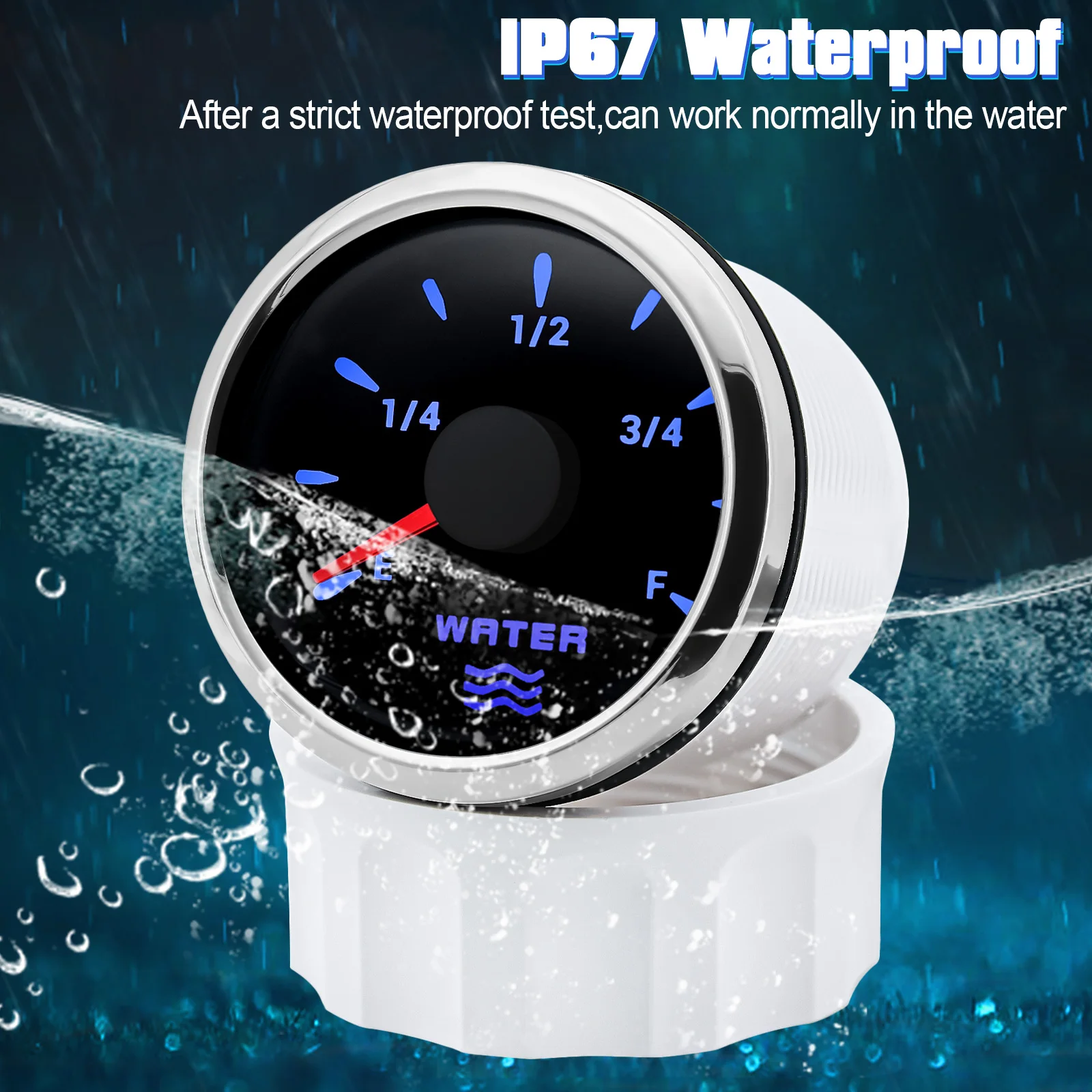

Water Level Gauge:
- Indicating Range:E-1/4-1/2-3/4-F
- Name: Water Level Gauge

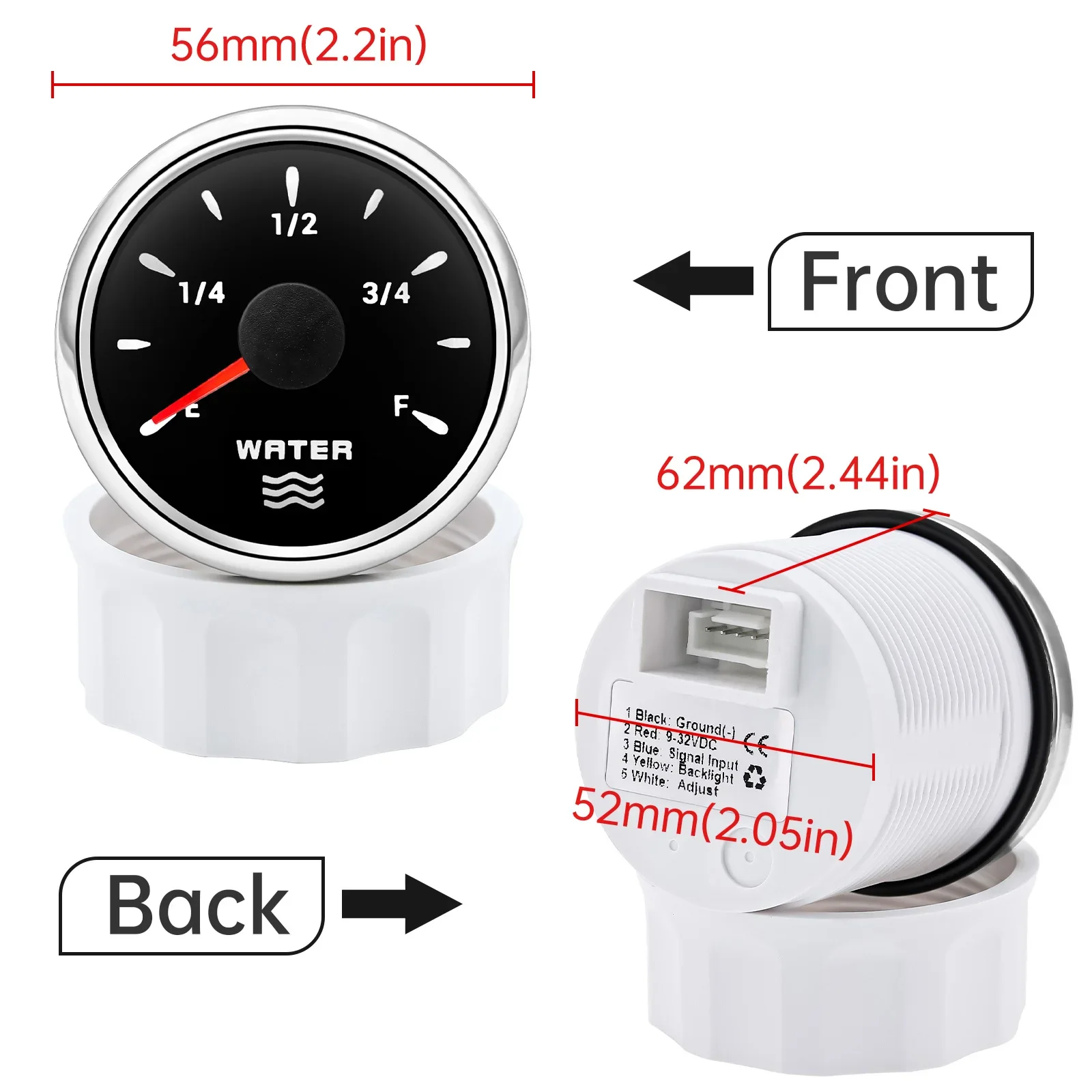

- Fixing dimension: 52mm or 2-1/16"
- Operating Voltage: 9-32V /fit 12V-24V
- Materials: stainless steel+nickel-plated plastic
- Input signal:0~190ohm (European standard),

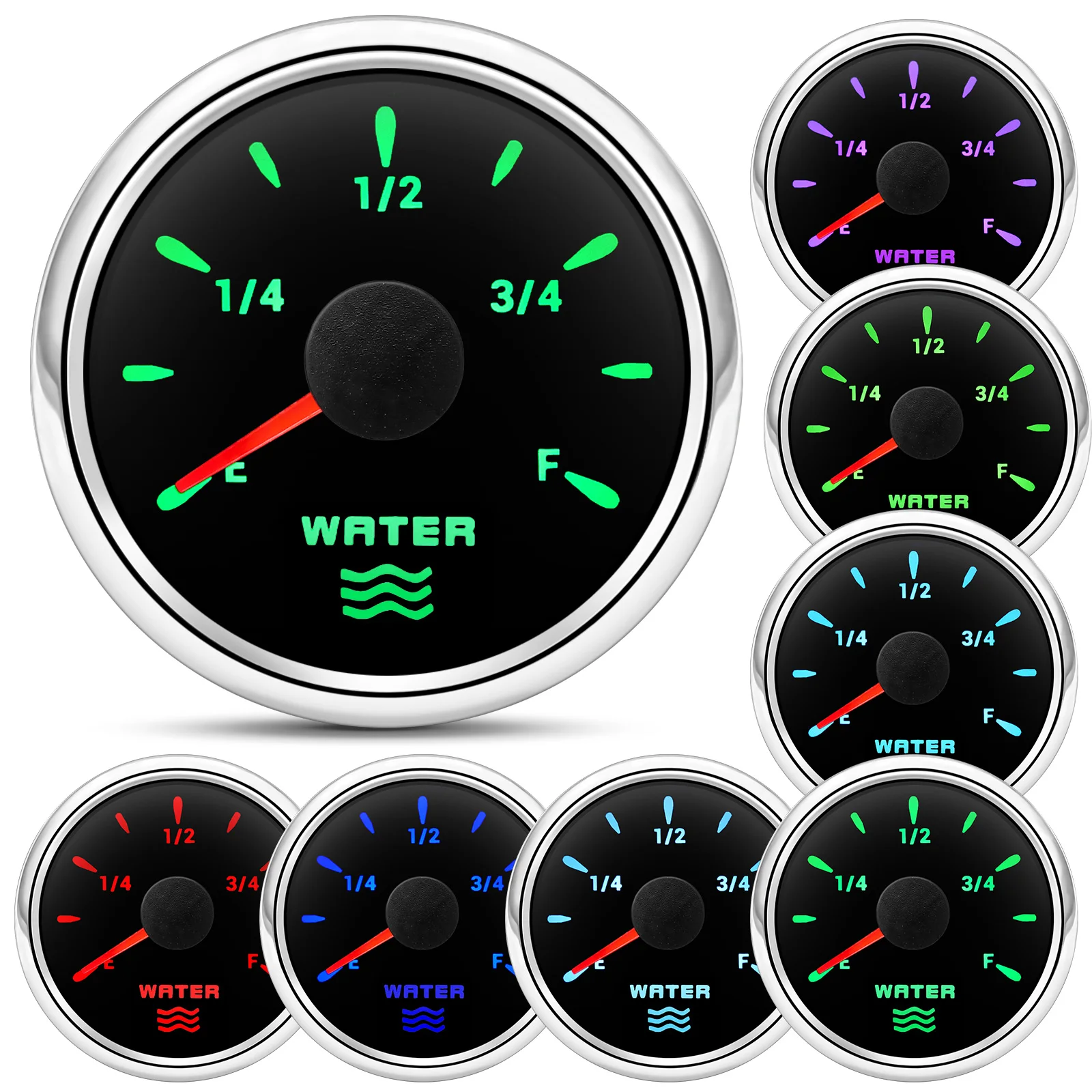

-Backlight Color: 7 Color

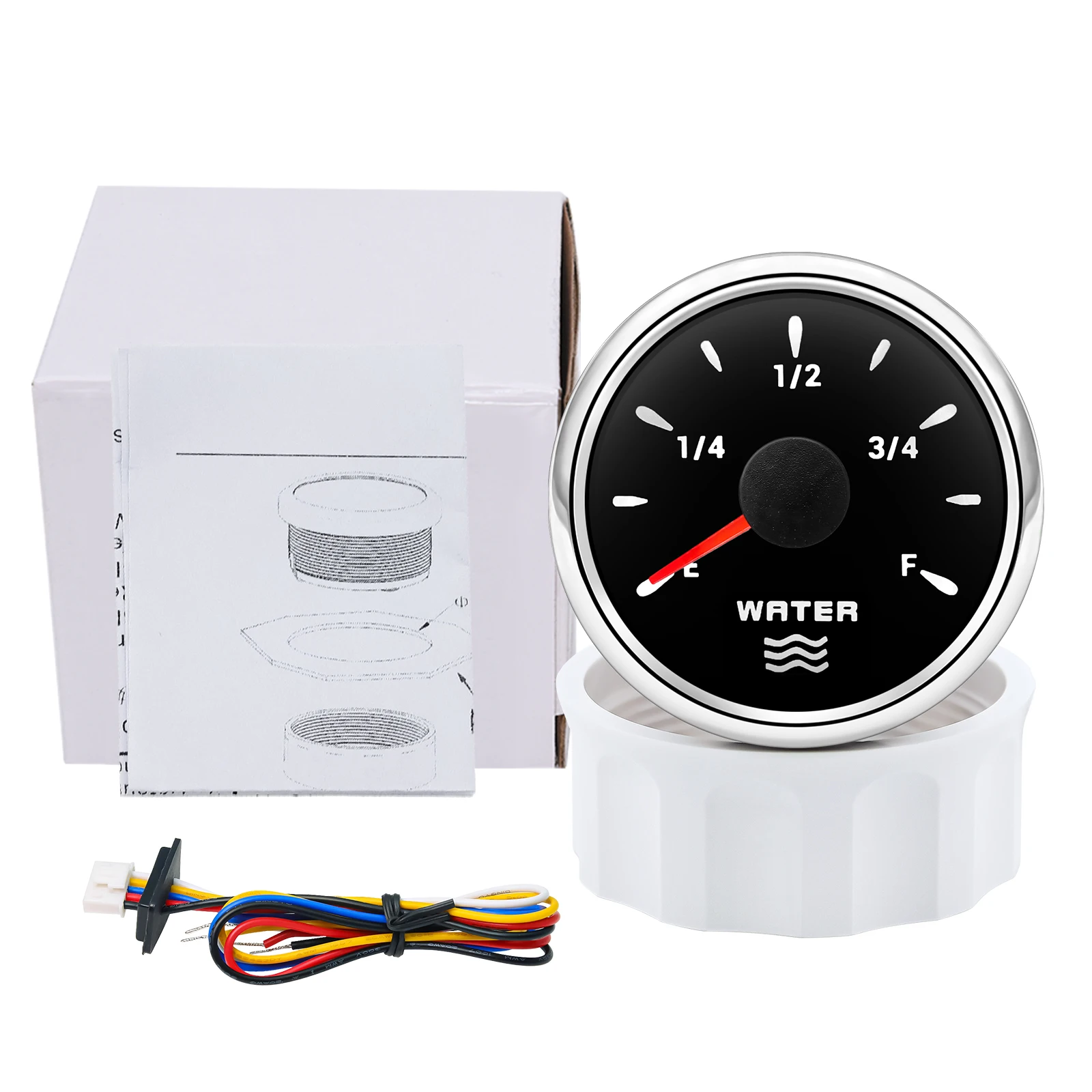

Package:
1 PCS Gauge+Cable+Manual without Sensor
