PCI-e 1X IEEE 1394A 4 Port(3+1) Firewire Card Adapter PCIe PCI Express Internal 1394 A 6Pin To 4 Pin IEEE 1394 Cable For Desktop

PCI-e 1X IEEE 1394A 4 Port(3+1) Firewire Card Adapter PCIe PCI Express Internal 1394 A 6Pin To 4 Pin IEEE 1394 Cable For Desktop

About Description:

Item Description

1-Lane (x1) PCI-Express with transfer rate 2.5Gb/s full duplex channel.
3x external 1394A ports (2 * 6 Pin + 1 * 4 Pin) and 1x internal 1394A port (1 * 6 Pin).
Compliant with PCI-Express revision 1.0a.
Compliant with IEEE 1394-1995, 1394a-2000 standard.
Compliant with IEEE 1394 OpenHCI Specifications V1.0 and V1.1.
Support 400/200/100Mbps data transfer rate.
Allows to connect more 1394a devices to your computer easily.
Attention: Don't Support hot-plugging. Before installation, Turn off the power and then plug in the power cord.
3 external FireWire(1394a) ports to support DV camcorders, hard disk, removable drives, scanner, digital cameras and other FireWire devices.

OS Support:
for Windows 2000/XP/Server 2003/Vista /Windows 7 /Windows 8 / Windows 10 32/64 bit

Please note: The built-in 6-Pin IEEE 1394 female on metal bar can not work with the 9-Pin IEEE 1394 female on board simultaneously.

Specifications:
Material: Plastic + Metal
Color: Black (shown as pictures)
Size: 100×120×18mm/3.94×4.72×0.71in (Approx.)
Cable length: 80cm/31.50in (Approx.)

Connectors:
2* 6-Pin IEEE 1394 female(on metal bar); 1* 6-Pin IEEE 1394 female(on board)
1* 4-Pin IEEE 1394 female
Quantity: 1 Set (other accessories demo in the picture is not included)

Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

You'll receive:

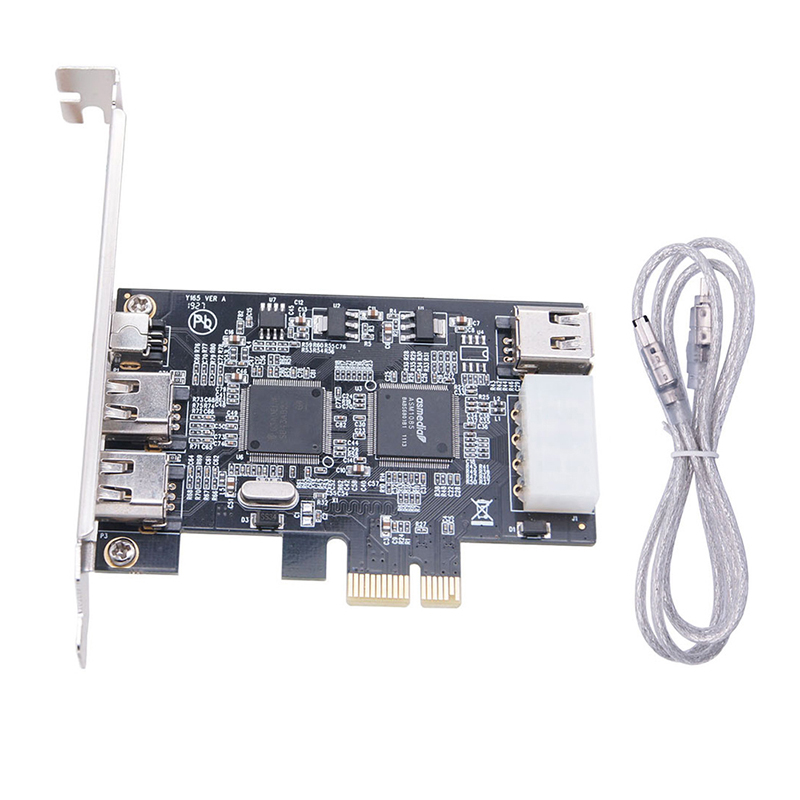

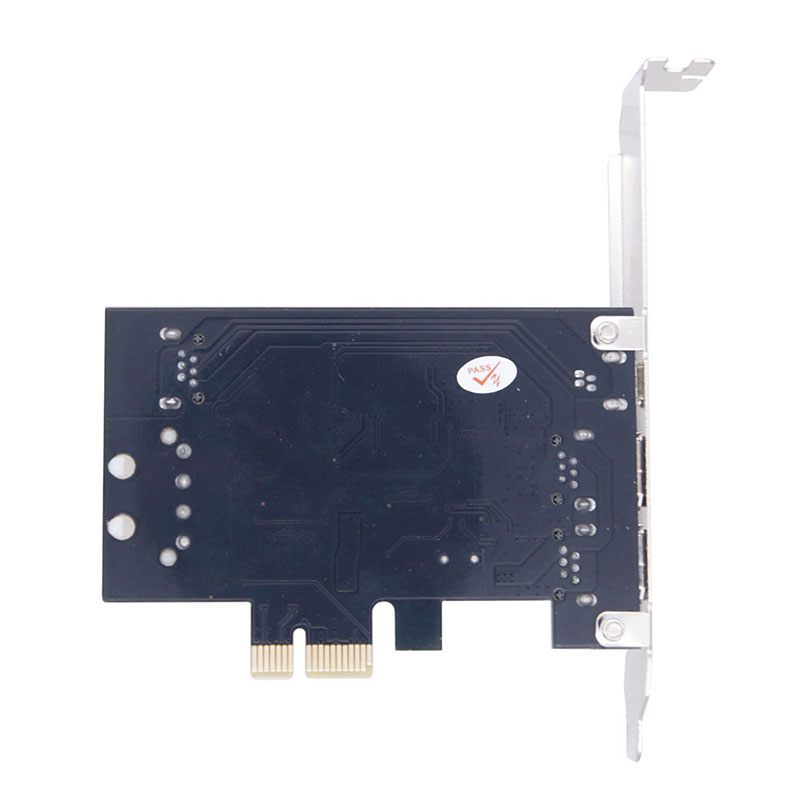

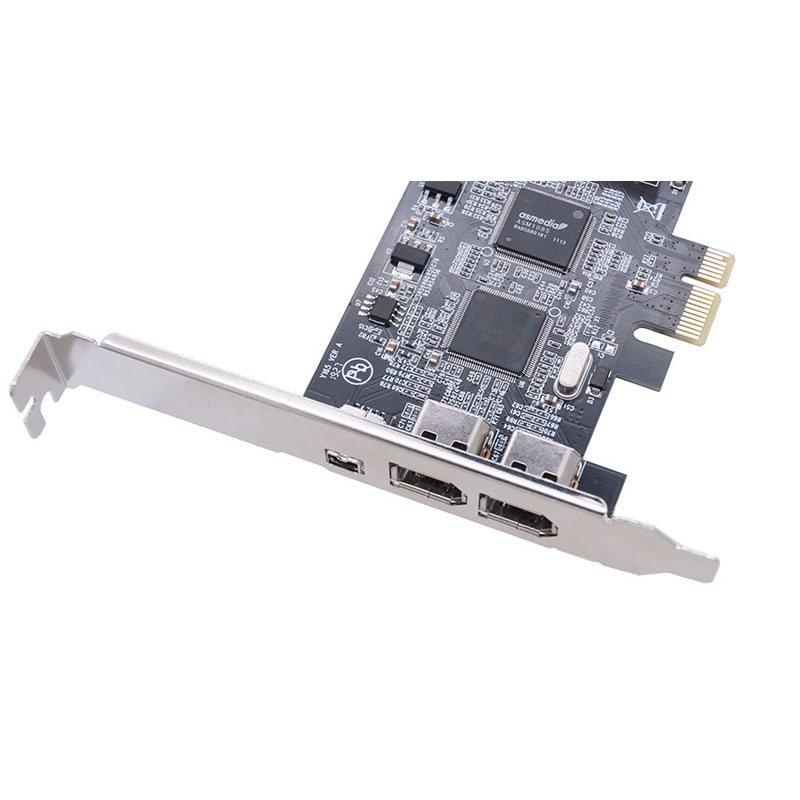

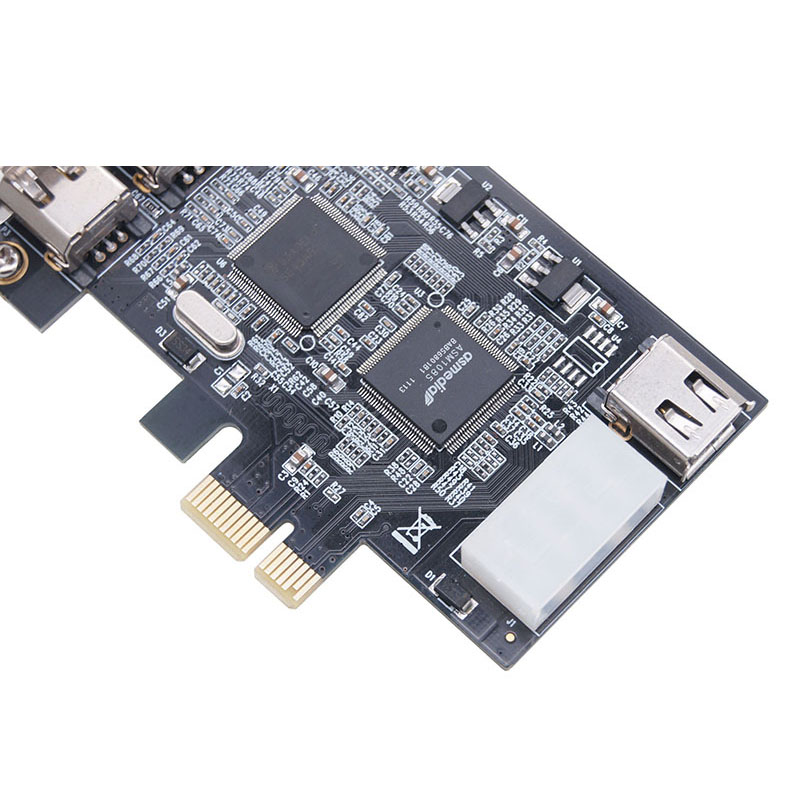

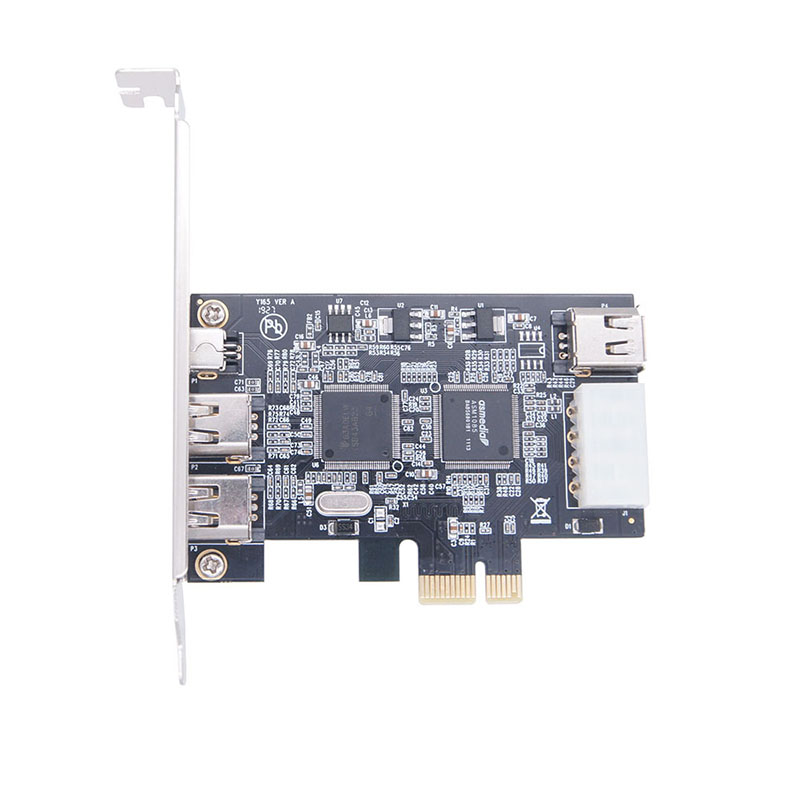

1 x PCI-Express IEEE 1394A Firewire Card

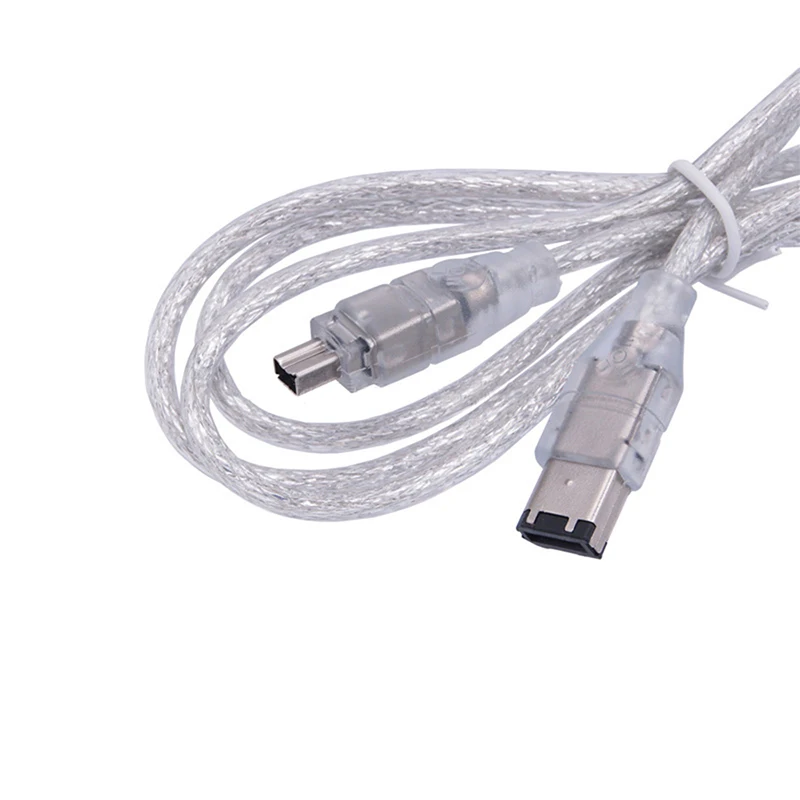

1 x 6Pin To 4Pin IEEE 1394 Cable

• Please check pictures for more details.
