SATA3.0 Hard Drive Expansion Card JMB575 1SATA to 5SATA Hard Drive High-Speed Card Supports Mac Linux Windows7/8/10/11

SATA3.0 1-Port SATA to 5-Port SATA Hard Disk High-Speed Expansion Card JMB575 NAS 1 to 5

Features:

✅Technical compatibility: Extensive cross-platform, multi-device support One of the core advantages of the SATA3.0 expansion card is its high compatibility, which can cover mainstream operating systems and various SATA hard disk devices.

✅Operating system support: Supports Mac, Linux, Windows7/8/10/11 systems, other systems are yet to be tested.

✅Hard drive type adaptation: Supports 2.5-inch and 3.5-inch SATA HDD (mechanical hard drive) and SSD (solid-state drive), without distinguishing between hard drive capacity (such as 1TB, 2TB or even larger capacities), solving the problem that old devices (such as notebooks and desktops without built-in SATA interfaces) cannot use large-capacity SATA hard drives.

✅Actual speed performance: According to user testing and product parameters, when paired with a SATA3.0 SSD, the sequential read and write speed of the expansion card can reach 300-500MB/s (close to the built-in speed of the SATA3.0 SSD); when paired with a mechanical hard drive, the speed is approximately 100-150MB/s (the same speed as the built-in SATA mechanical hard drive).

✅Easy to use: plug-and-play, hot-swappable and flexible experience, the driver-free design and hot-swappable function of the expansion card greatly lower the threshold of use, in line with modern users' needs for "convenience"

✅Plug and Play: Most products do not require any driver installation. The hard disk can be directly recognized after being plugged into the USB interface, saving users time in configuring the driver.

✅Hot plug support: Supports "hot plug" and "hot plug", allowing users to connect or disconnect the hard drive without restarting the computer, allowing users to quickly switch storage devices

✅Portability: The conversion line product is compact and easy to carry, suitable for users who need to transfer data between multiple devices.

✅Multi-disk expansion capability: To meet the storage needs of multiple hard drives, the multi-disk expansion card provides a more flexible solution for users who need to use multiple SATA hard drives at the same time (such as NAS builders, data backup workers)

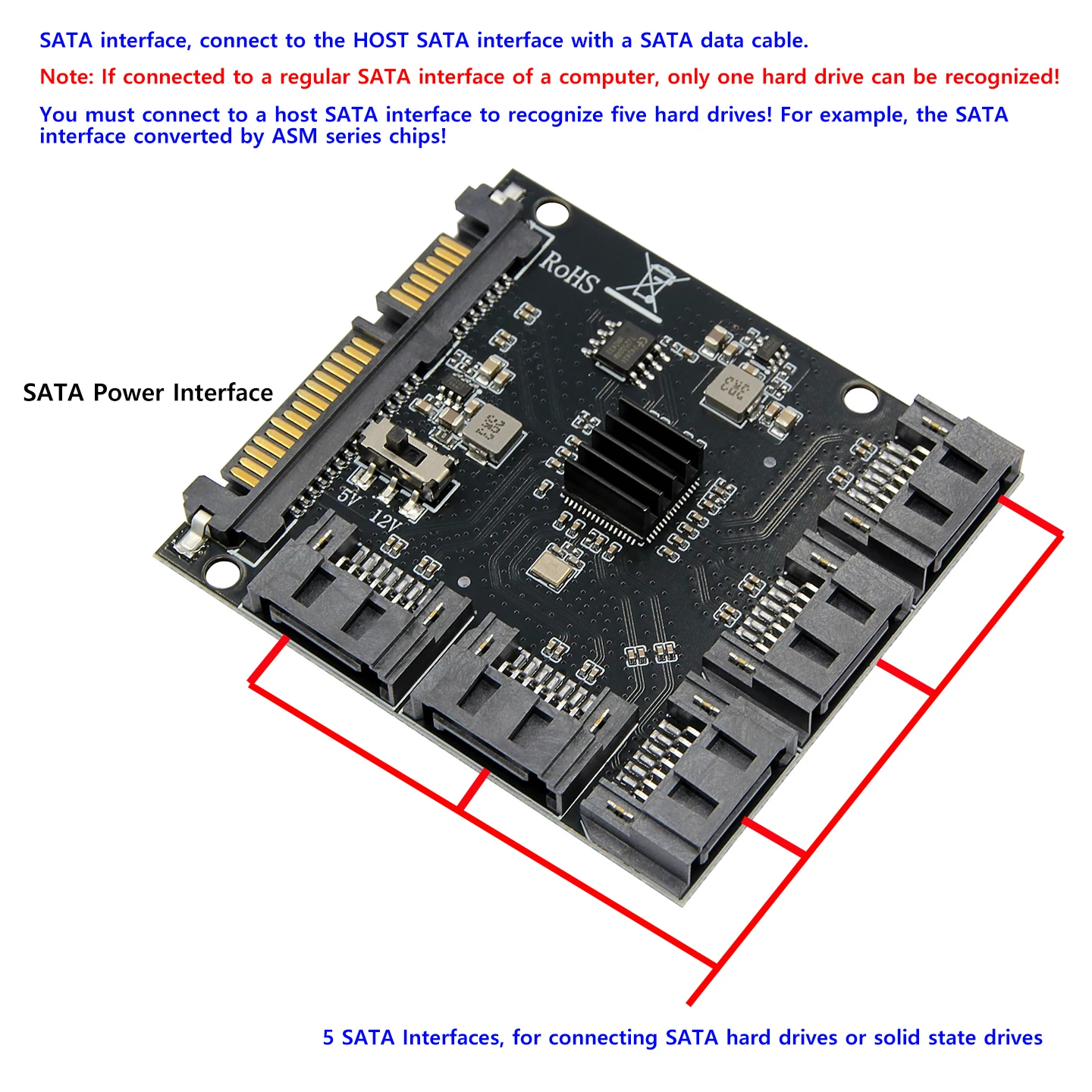

✅Multi-interface design: Some products provide 5 SATA interfaces, which can connect 5 2.5/3.5-inch hard drives at the same time to achieve centralized management and data redundancy of multiple hard drives.

?Package List:

1X SATA3.0 Hard Drive Expansion(This link has multiple options, please check carefully when purchasing)

?Note:

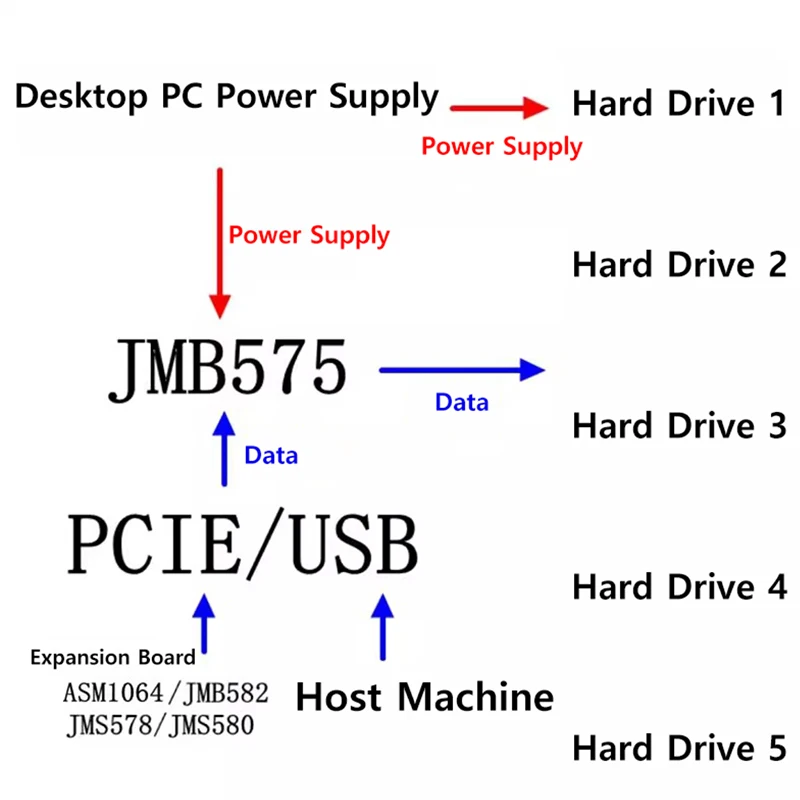

1. This adapter card only supports the SATA interface plug-in PM function, and does not support the motherboard SATA interface! It is recommended to use it with the PCIe to SATA expansion port of ASM chips (such as ASM1064, ASM1166, etc.). If you use a PCIe to SATA interface adapter card with a JMS chip, you need to install the driver under Windows. If you are using another operating system, use with the JMS chip adapter card is not recommended! It should be noted that if used with the PCIe to SATA interface of the ASM1061 chip, a driver needs to be installed under the Windows system.

2. Please do not use USB hubs, USB easy drive cables, HUBs, USB to SATA adapter cards, and SATA hard disk boxes for testing! it's useless! Only the USB 3.0 to SATA circuit board with PM function provided by our store is supported for testing! USB to SATA adapter card does not include data cable!

3. Supports Mac, Linux, Windows7/8/10/11 systems, other systems are yet to be tested.

4. Whether it can be used as a system disk depends on your motherboard and has nothing to do with the adapter card.

5. Only supports SATA interface hard drives, not SAS interface hard drives!

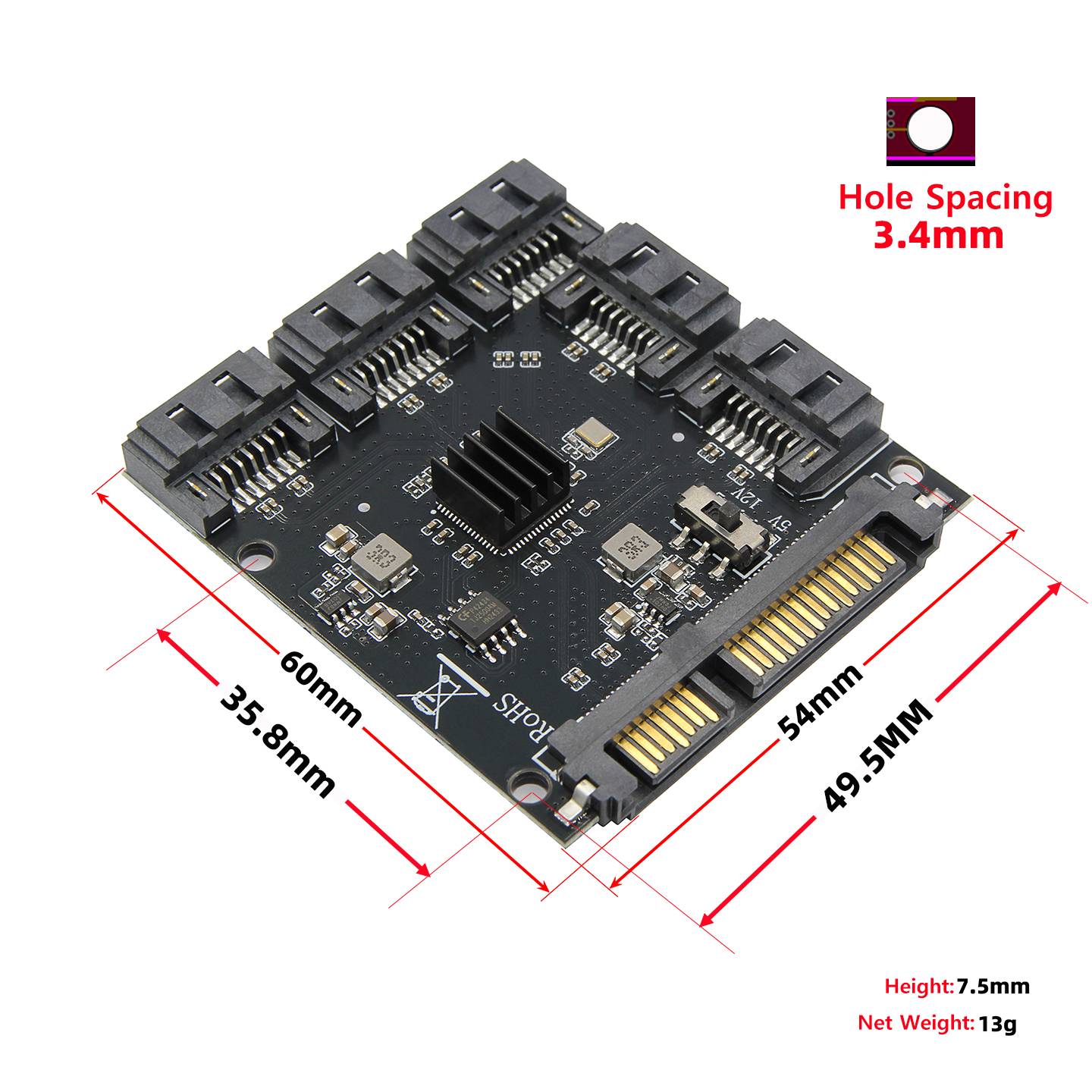

6. Product size: PCB size: length*width*height=60mm*54mm*7.3mm.

7. Our store only tests on WIN8, WIN10, and WIN11 systems, and has not tested other operating systems.

8. Some motherboard SATA interfaces are expanded through chips. This product can be used with the extended SATA interface. The known model in our store is: GA-N3150N-D3V. SATA0/SATA1 are extended by ASM1061.
