/ Universal 3 in 1 Digital Truck Car gauge Water Temp Gauge Oil Pressure Meter Voltmeter 10mm 1/8 NPT Oil Press Sensor 12V

Universal 3 in 1 Digital Truck Car gauge Water Temp Gauge Oil Pressure Meter Voltmeter 10mm 1/8 NPT Oil Press Sensor 12V

Feature:

With digital display, intuitive observation
Parameter display precision and stability, low power consumption
Easy installation, stable performance, anti vibration and anti bump
When the alarm that is displayed flashing alarm

Description:

Name: Car LCD 3 in 1Gauge(Water Temperature/Oil Pressure/voltage Gauges)
Material:Plastic Shell
Product size: 55mm * 100mm * 14mm
Power cable length : approx.50cm
Red --- power +
(Red black) --- power -
Power Supply: DC 9V - 36V
Pressure measuring range :0.00-1.00Mpa

Application:

Suitable for Car,Motorcycle or by your need!
Suit Measurement object: compressed air, oil

Alarm value (measurement accuracy: +0.1%):

When the alarm voltage is below 10V or 16-20V or higher than 31V,it will flash and alarm.
When the temperature is higher than 95 ℃, it will flash and alarm.
Oil test range: 0~1.OMP
When it is lower than 0.1MP,it will flash and alarm.
Oil resistance range: 5~1000 Ω
When it is lower than 10%. it will flash and alarm.

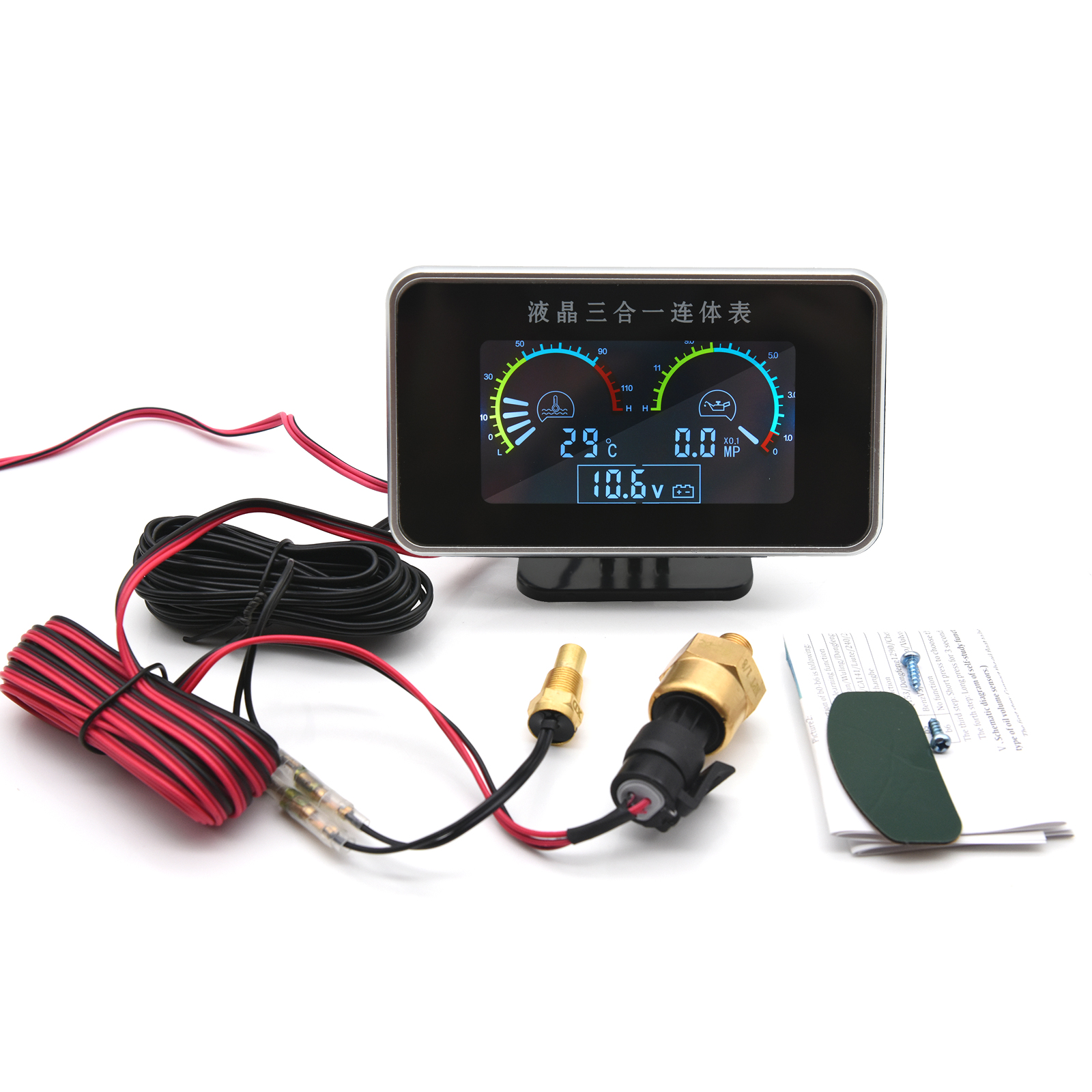

Package Included(as picture):

1x Gauge
1x Water Temperature sensor (10mm)
1x Oil Pressure sensor (1/8 npt)
1 Set Cable

Water temp Adapter

1*28mm
1*30mm
1*32mm
1*34mm
