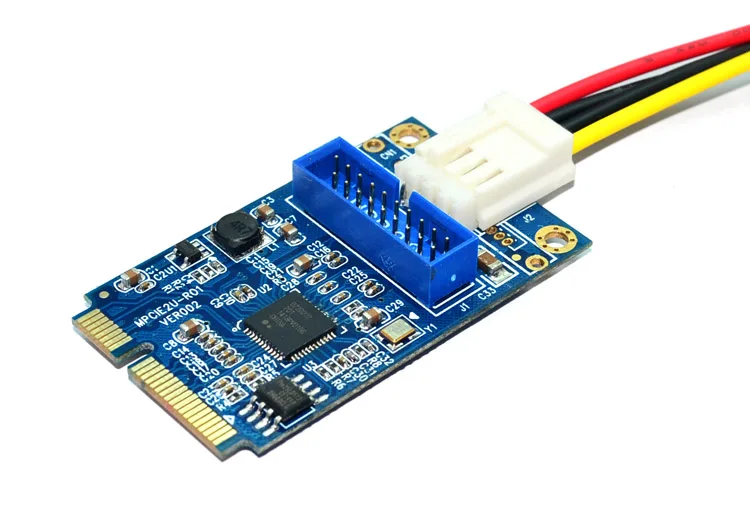

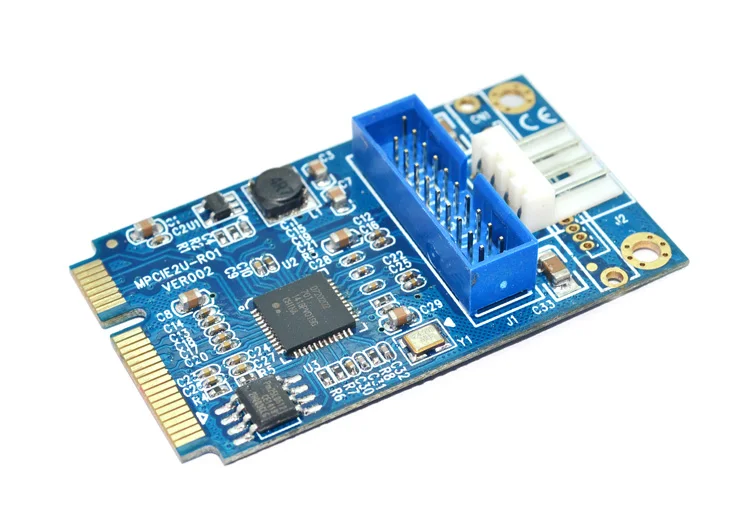

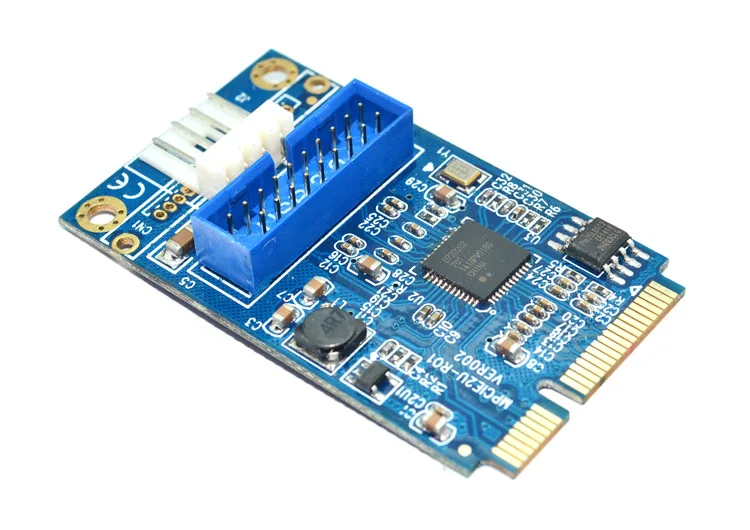

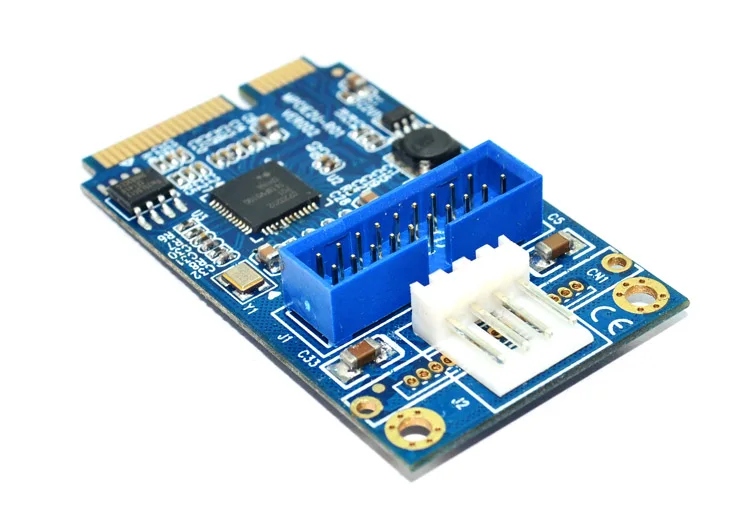

XT-XINTE MINI PCI-E to USB3.0 Adapter Card MINI PCIE to19-pin USB 3.0 Expansion Card
MINI PCI-E to USB3.0 Adapter Card MINI PCIE to19-pin USB 3.0 Expansion Card
Product Name: USB3.0 front 19PIN MINI PCIE expansion card
Product brand: XT-XINTE
Product Type: MPCIE2U-R02
Using the master: Renesas uPD720202
Support interface: MINI PCI-E
Master chip: Renesas uPD720202 chipset
For a free mini PCIe slot computer expansion of a 19-pin USB3.0 slot, the theoretical transmission speed of 5Gbps, much higher than the USB2.0 480Mb / s, up to 10 times;
Backward compatible with USB2.0, USB1.1, USB1.0
Transmission rate: 5000/480/12 / 1.5Mbps
Through the board SATA power, can also be changed to a MINI 4PIN power supply.
Built-in 19-pin can be transferred out of two USB3.0 port
Compliant with PCI-Express specification version 2.0
Conform to xHCI specification version 1.0
Compliant with USB3.0 SuperSpeed specification version 1.0
Support USB hot swap function
Support Windows XP/2003 / Vista/win7/win8/2003/MAC10.8
