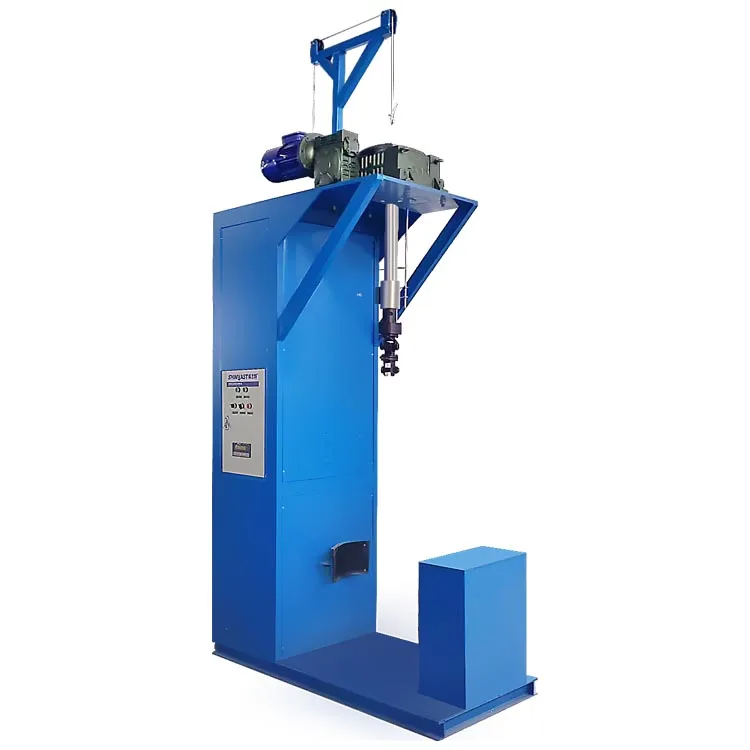

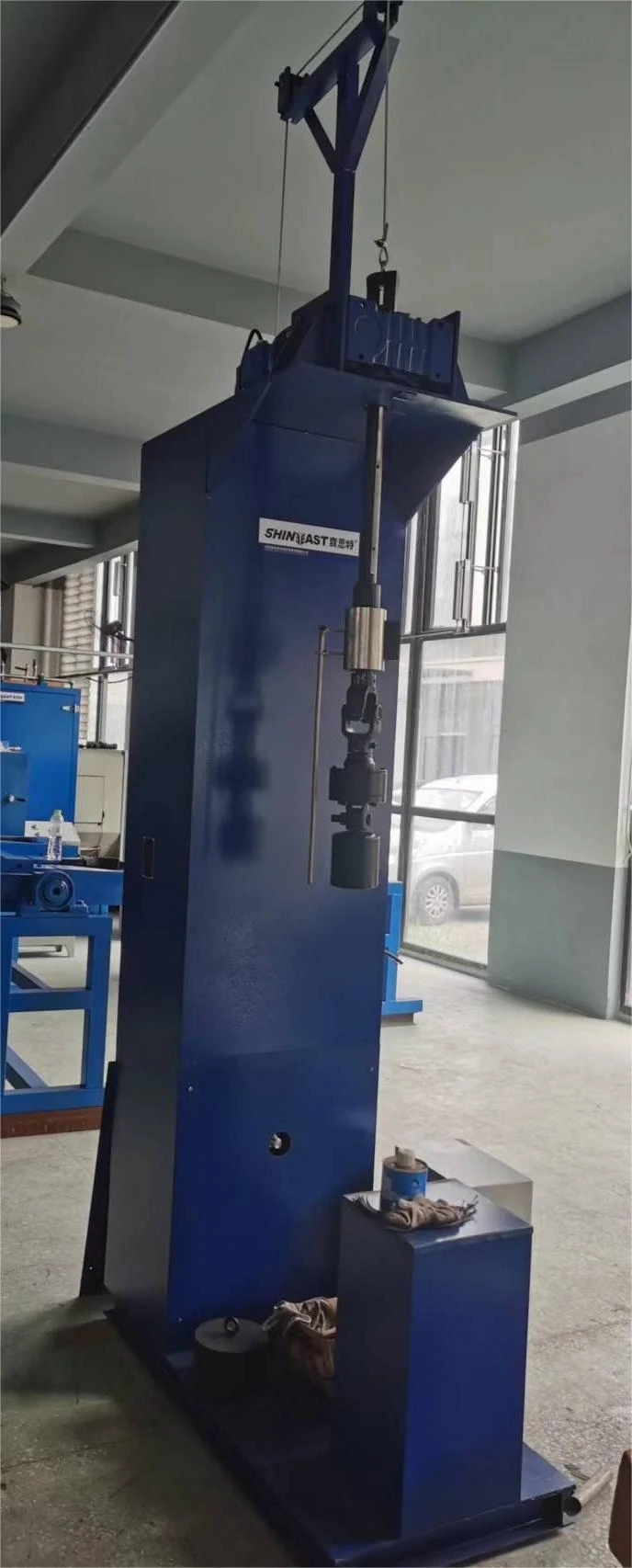

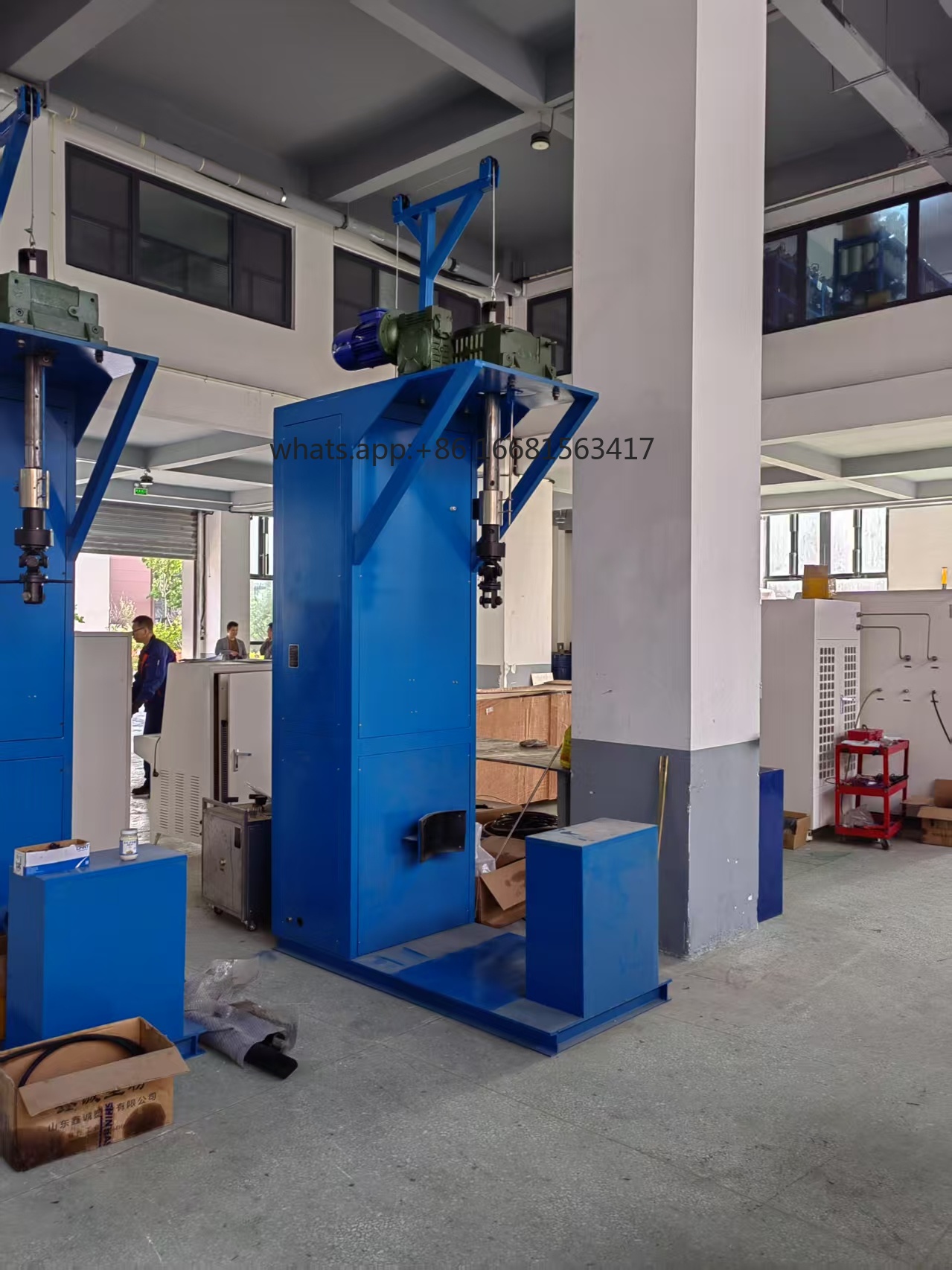

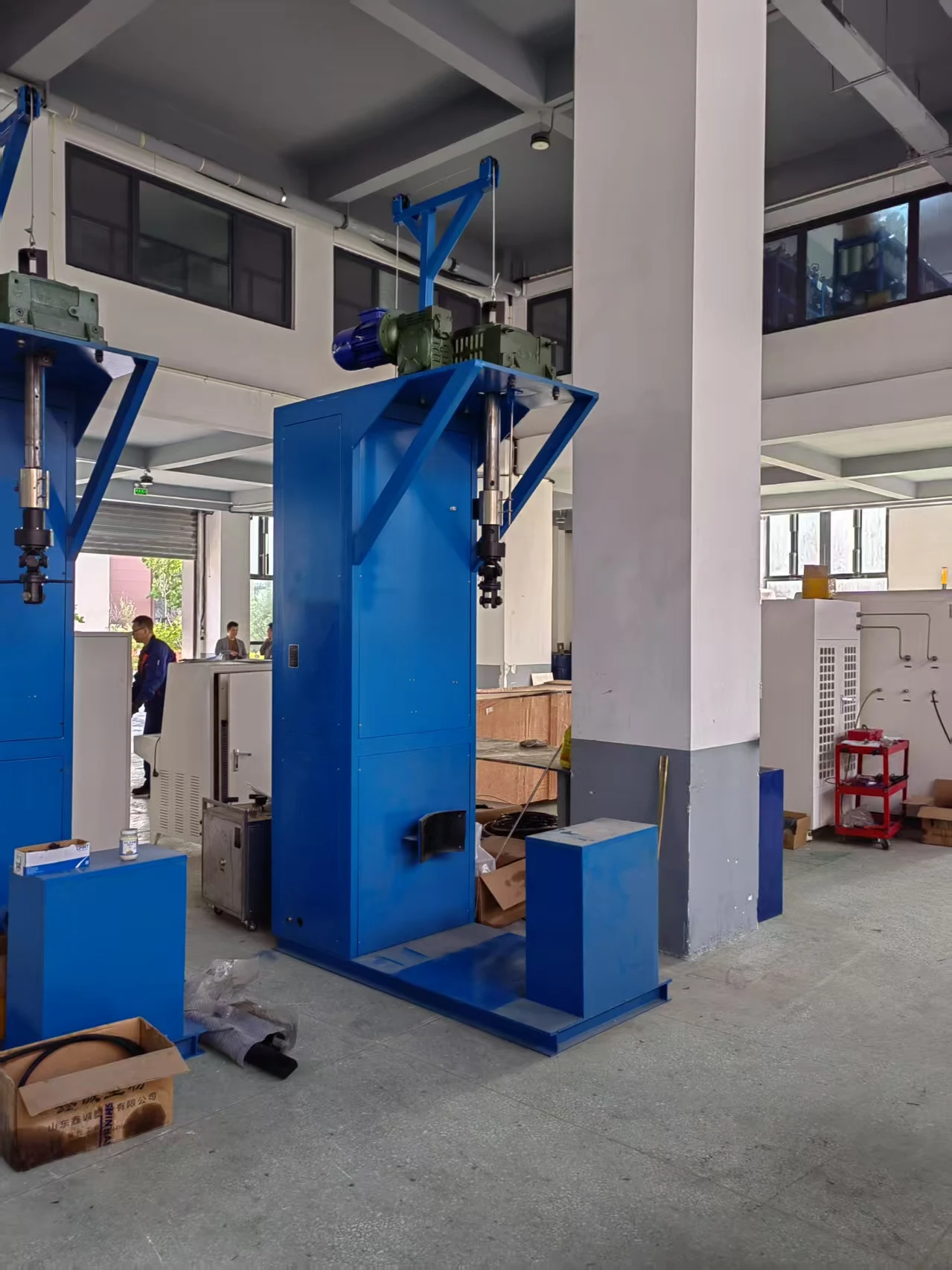

Gas Cylinder Valve Loading and Unloading Machine
Product Overview
Technical parameter
|
Product name
|
Vertical cylinder valve loading and unloading machine
|
||||||
|
Model
|
PFX-02-01
|
||||||
|
Voltage
|
1.5KW, 380V/50Hz
|
||||||
|
Applicable gas cylinder
|
Diameter:150mm-300mm
Height: 900-1600mm
|
||||||
|
Spindle speed
|
17.5r/min
|
||||||
|
Driven air pressure
|
5-8 bar
|
||||||
|
No. of station
|
Single station
|
||||||
|
Torque
|
500Nm
|
||||||
|
Twist torque
|
300-400Nm
|
||||||
|
Equipment dimension
|
1270x600x3400mm
|
||||||
Product features

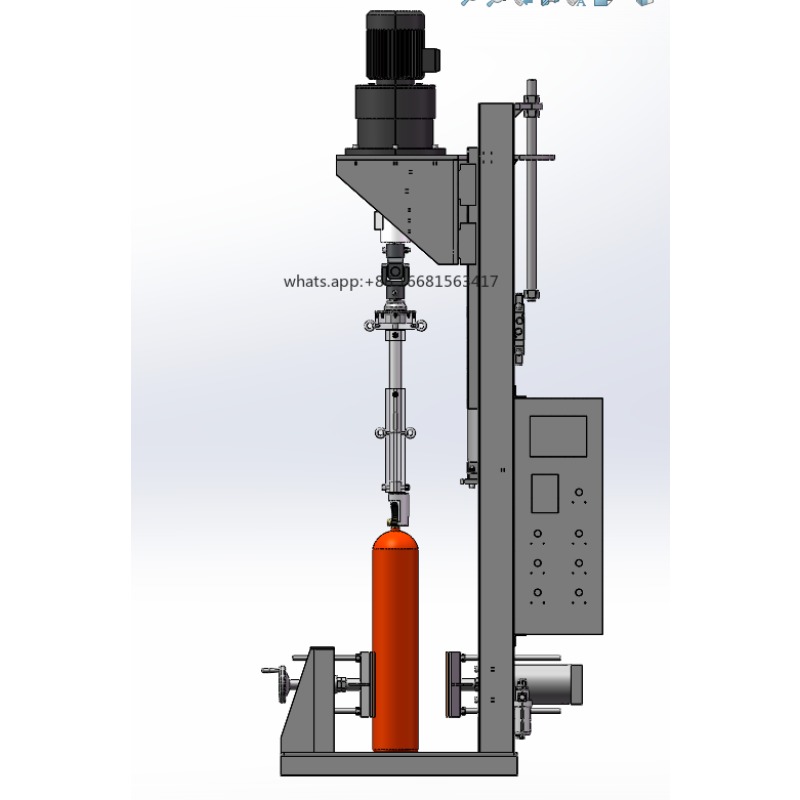

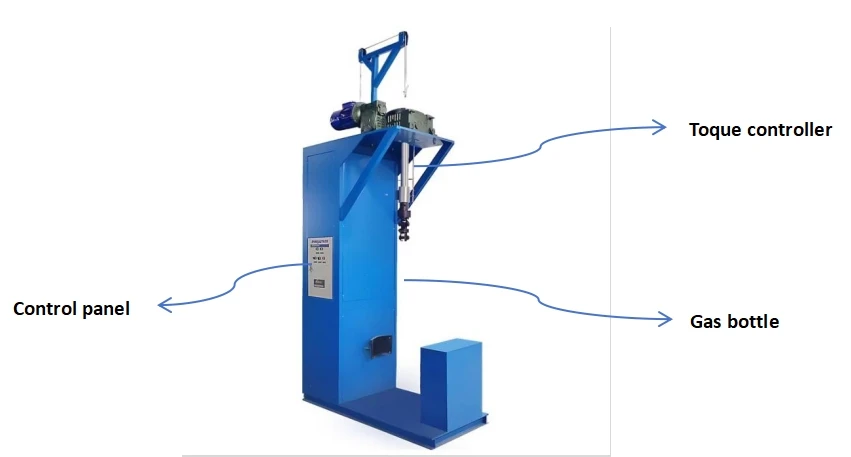

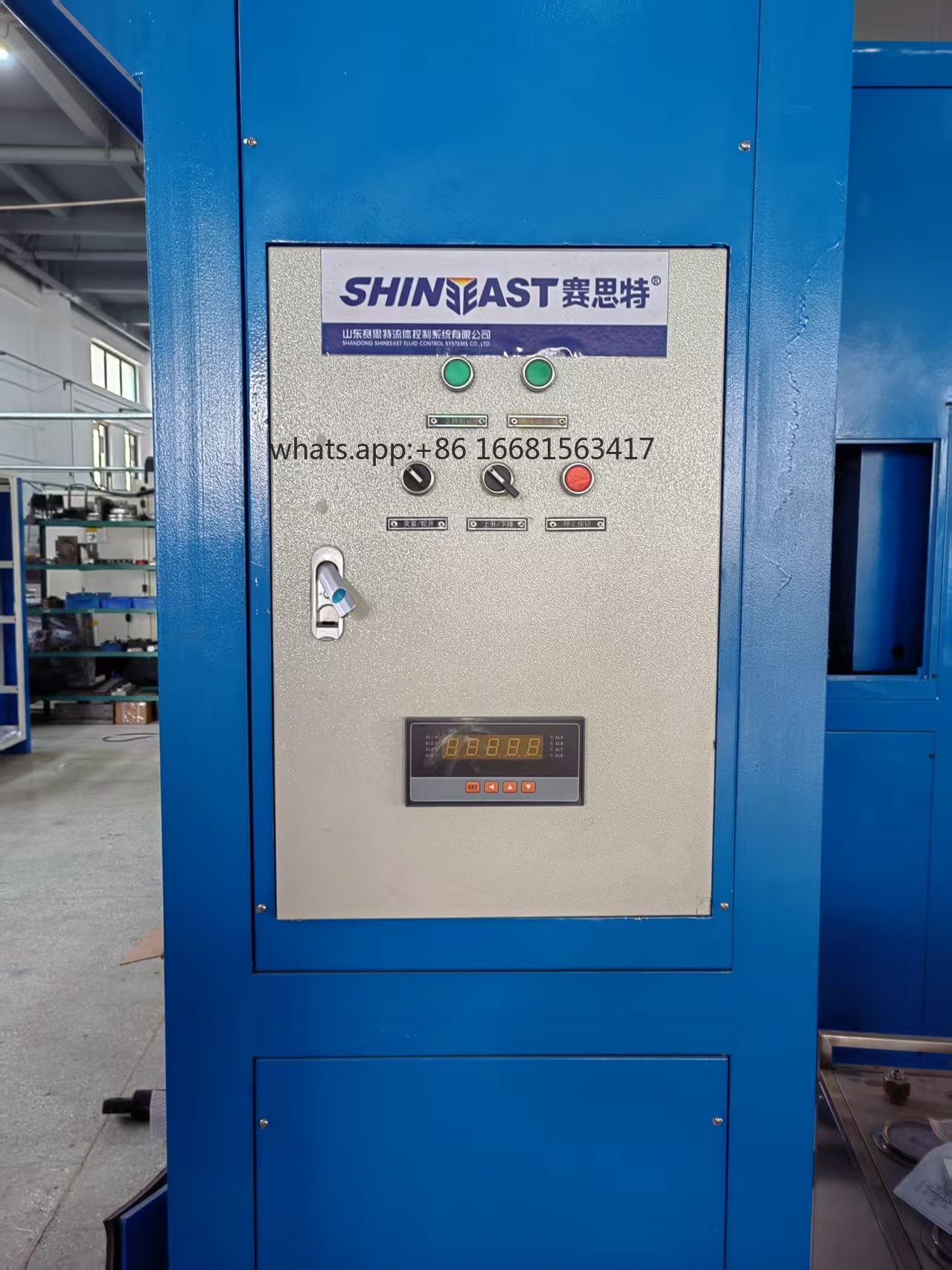

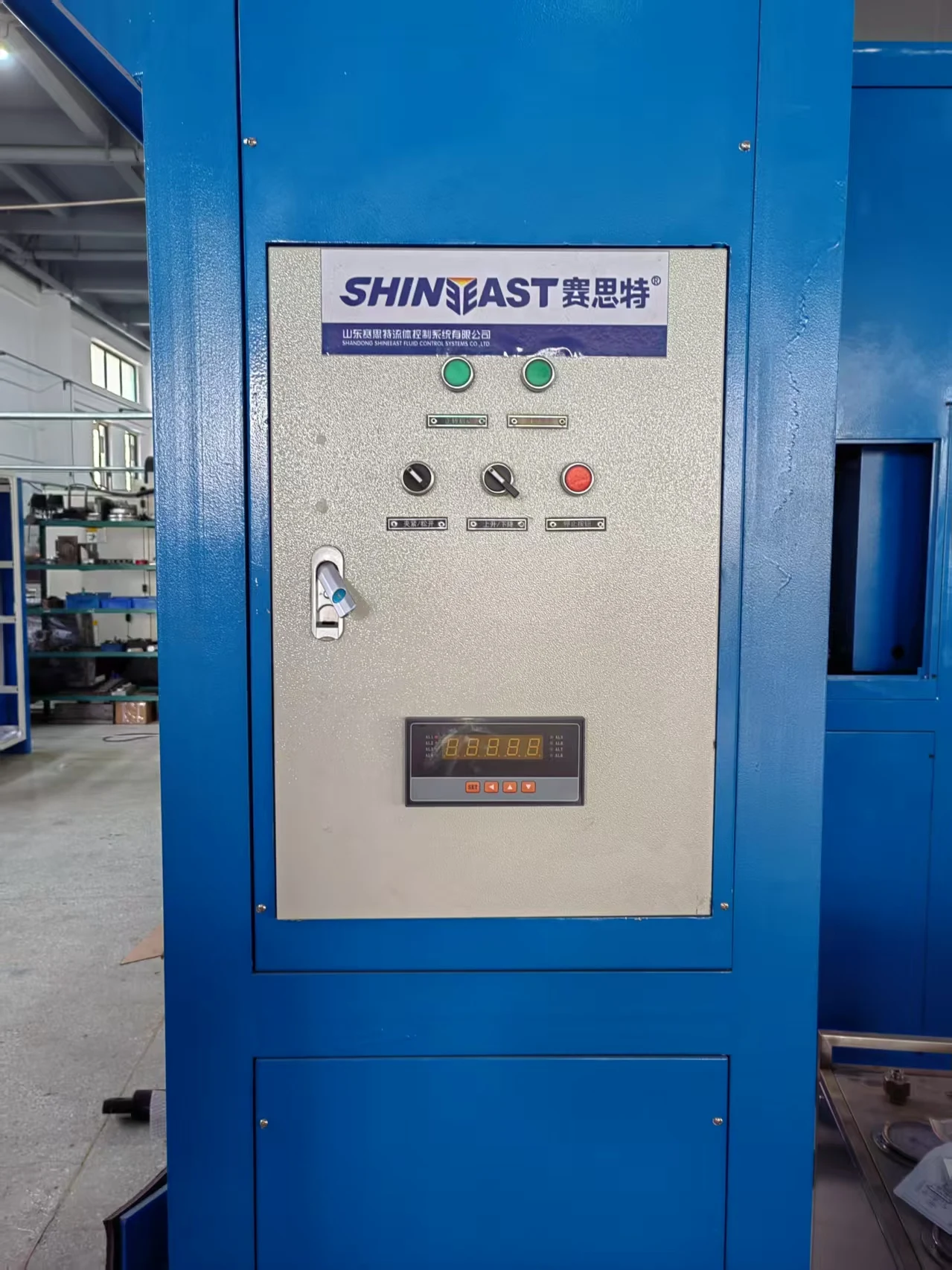

This equipment is composed of a frame, a clamping device, a torque instrument, a transmission device, and electrical control. The clamping device compresses and loosens the cylinder through the action of the cylinder. The transmission device is driven by an electric motor to drive the reducer to rotate the main shaft. The main shaft is equipped with a universal joint and a clamp for loading and unloading bottle valves. The clamp can move up and down and forward and backward. The electrical control system controls the motor to rotate forward and reverse. It is equipped with a device to determine the torque of the bottle valve and an automatic stop device. The automatic loading and unloading machine is designed and manufactured according to the requirements of the state that it is forbidden to use pipe chain pliers or other tools that are easy to damage the bottle body and unload the bottle valve and needs of the cylinder factory, inspection stations and other bottle valve work. Cylinder vertical cylinder valve loader is suitable for co2 bottles/fire extinguisher cylinders/oxygen cylinders, etc. It is suitable for filling and discharging all kinds of gas cylinders with diameters in the range of 219-426mm. Simple operation and reliable performance.

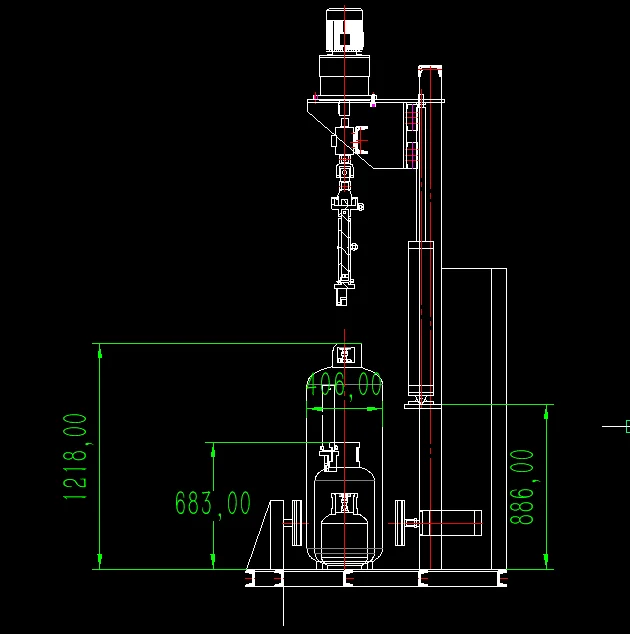

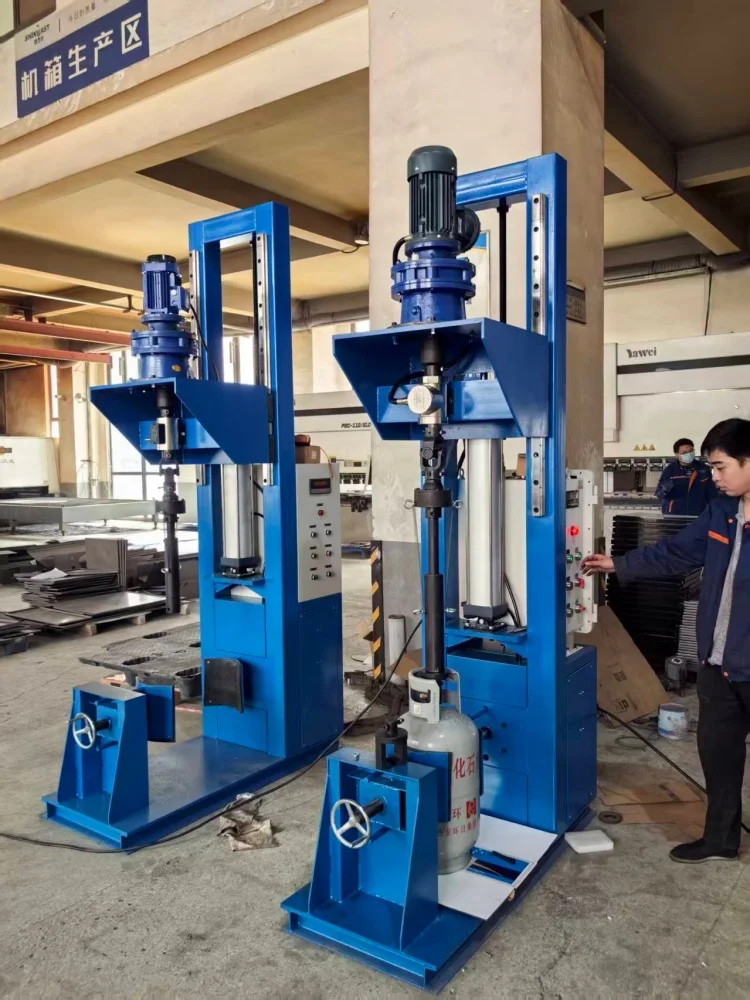

LPG cylinder vertical type valve loading and unloading machine
Diameter: 250-406mm
Height: 400-1218mm

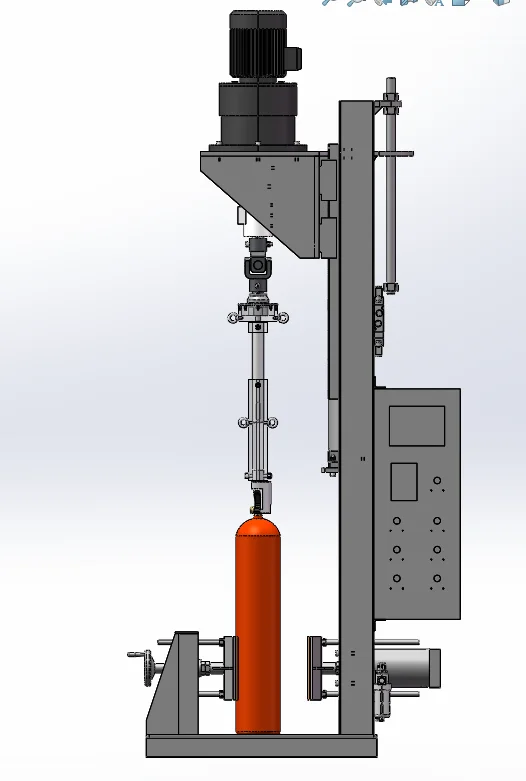

CO2 cylinder vertical type valve cylinder loading and unloading machine
Diameter: 110-140mm
Height: 480-810mm
Products Application

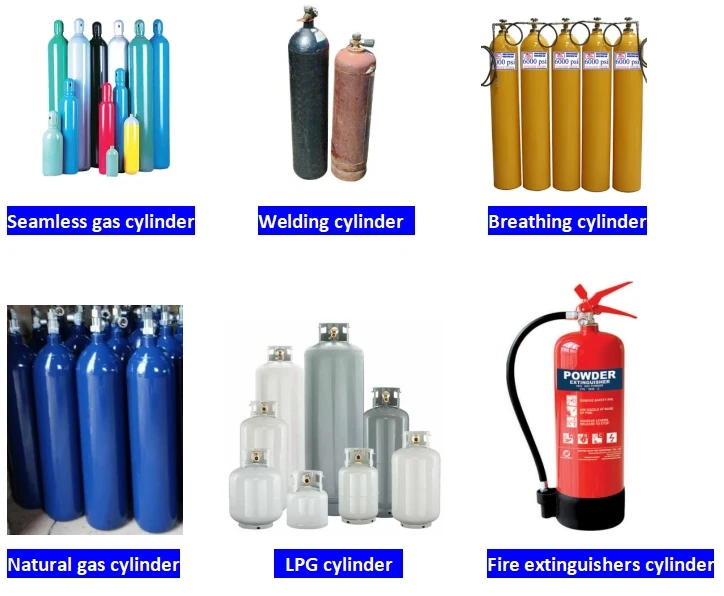

Application cylinders:
Seamless gas cylinder, welding cylinder, breathing cylinder, natural gas cylinder, LPG cylinder, fire extinguishers cylinder

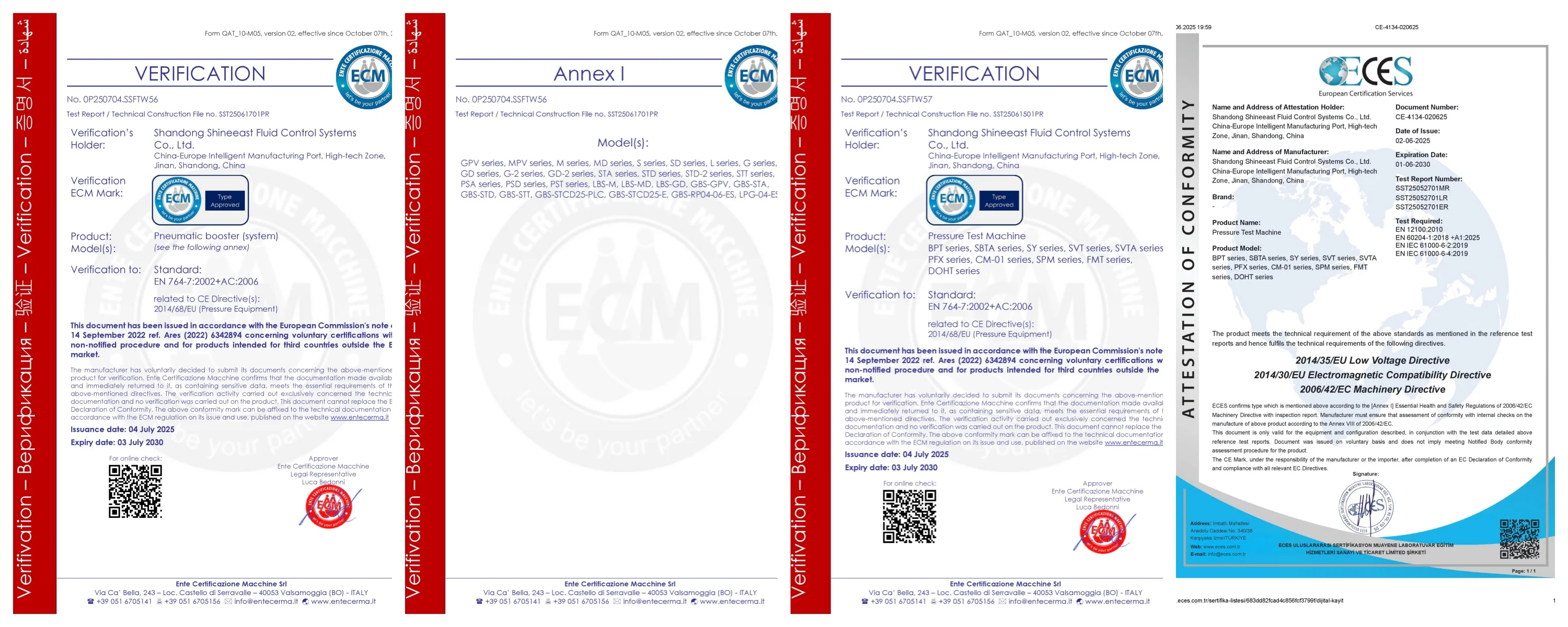

Certification

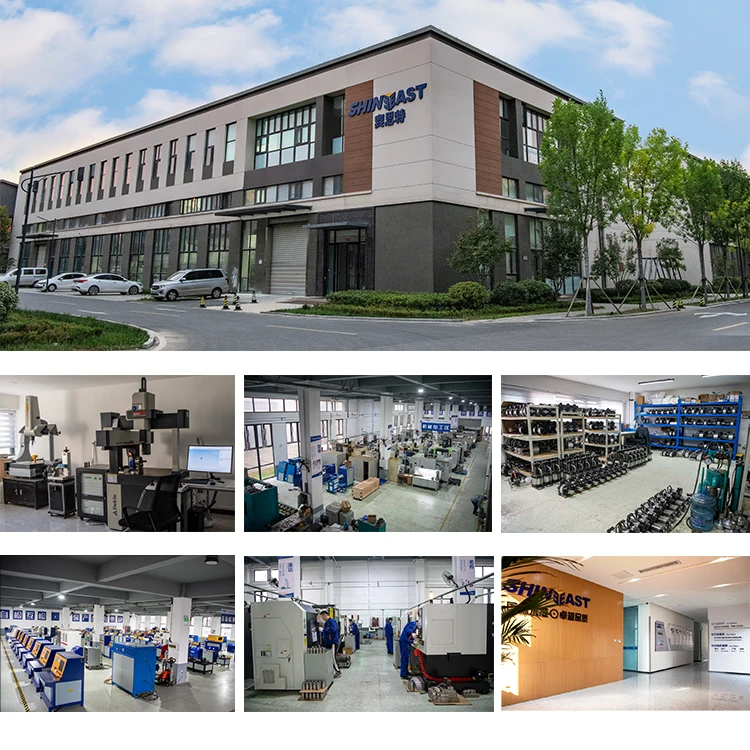

Company Profile
Shandong Shineeast Fluid Control Systems Co., Ltd., founded in 2001, is a professional manufacturer of highly engineered fluid and gas handling equipment designed to generate, store and control high pressure gases and liquids.
In addition to offering a comprehensive range of air driven liquid pumps, air pressure boosters, air driven gas boosters, high pressure valves, fittings and accessories, pneumatic power packs and hydraulic presses, pressure test machines, valve and pipe fittings test equipment, finishing pumps and related equipment, gas cylinder test equipment and the oil and gas field special controls and test equipment, we customize and build pneumatic power packs and test equipment. Our main manufacturing locations are fully registered to ISO9001 and CE.
Our products are widely used in industry, machine tool industry, diesel engine industry, aerospace industry, automobile
manufacturing, household electrical appliances, industrial electronics industry, shipbuilding industry, petrochemical industry, oil and gas field, CNG vehicle conversion industry, pressure test industry and other fields.
In addition to offering a comprehensive range of air driven liquid pumps, air pressure boosters, air driven gas boosters, high pressure valves, fittings and accessories, pneumatic power packs and hydraulic presses, pressure test machines, valve and pipe fittings test equipment, finishing pumps and related equipment, gas cylinder test equipment and the oil and gas field special controls and test equipment, we customize and build pneumatic power packs and test equipment. Our main manufacturing locations are fully registered to ISO9001 and CE.
Our products are widely used in industry, machine tool industry, diesel engine industry, aerospace industry, automobile
manufacturing, household electrical appliances, industrial electronics industry, shipbuilding industry, petrochemical industry, oil and gas field, CNG vehicle conversion industry, pressure test industry and other fields.
Product packaging
FAQ
Q1：What's the type of your cylinder?
Q2: What's the size of your cylinder? (diameter and height)
Q3: Please provide the cylinder valve size.
Please provide this information to get detailed solution and quote!
