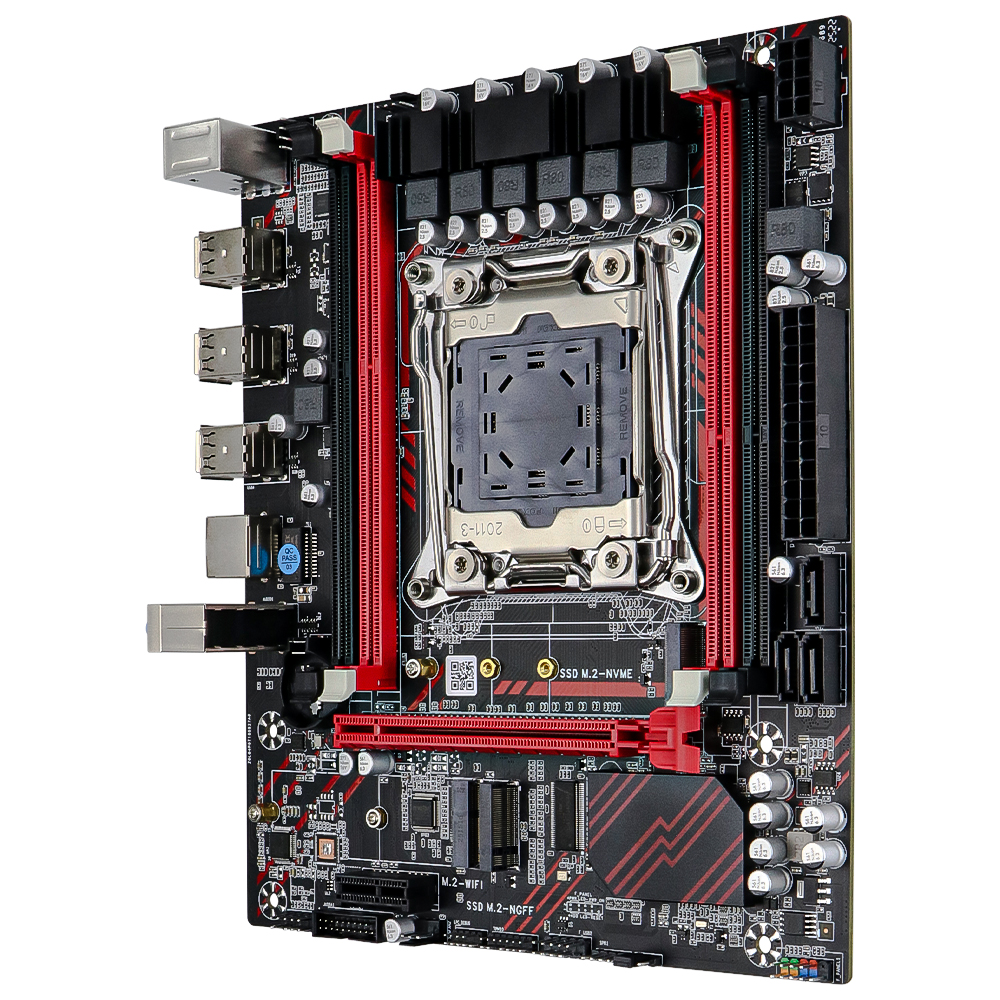

SOYO X99E DDR3 Full Kit PC Gamer TPM2.0 Intel Xeon LGA2011-3 CPU E5 2676 V3 + RAM Memory 8GB Support PCIe3.0 * 16 NVMe M.2
価格:
$44.22
/Pc
払い戻し:
シェア:
売れ筋商品
Translation into Portuguese (Brazilian Market, standard computer vocabulary)
Dual Channels of DDR3 Memory
The two channels of DDR3 memory enhance system stability and speed, providing exceptional performance for gaming and computer use.
USB 2.0 connectivity
Connect devices with ease via the motherboard's USB 2.0 ports, ideal for peripherals and fast data transfers.
Two SATA 2.0 Ports
Two SATA 2.0 ports offer extensive connectivity for storage, supporting fast data transfers for your gaming and work needs.
High Capacity of Memory
Supports up to 128 GB of DDR3 RAM, ensuring fluid multitasking and crash-free intensive gaming sessions.
Two Slots PCI-E 3.0
Equipped with two PCI-E 3.0 slots, the motherboard allows flexible expansion with high-speed video cards and other peripherals.

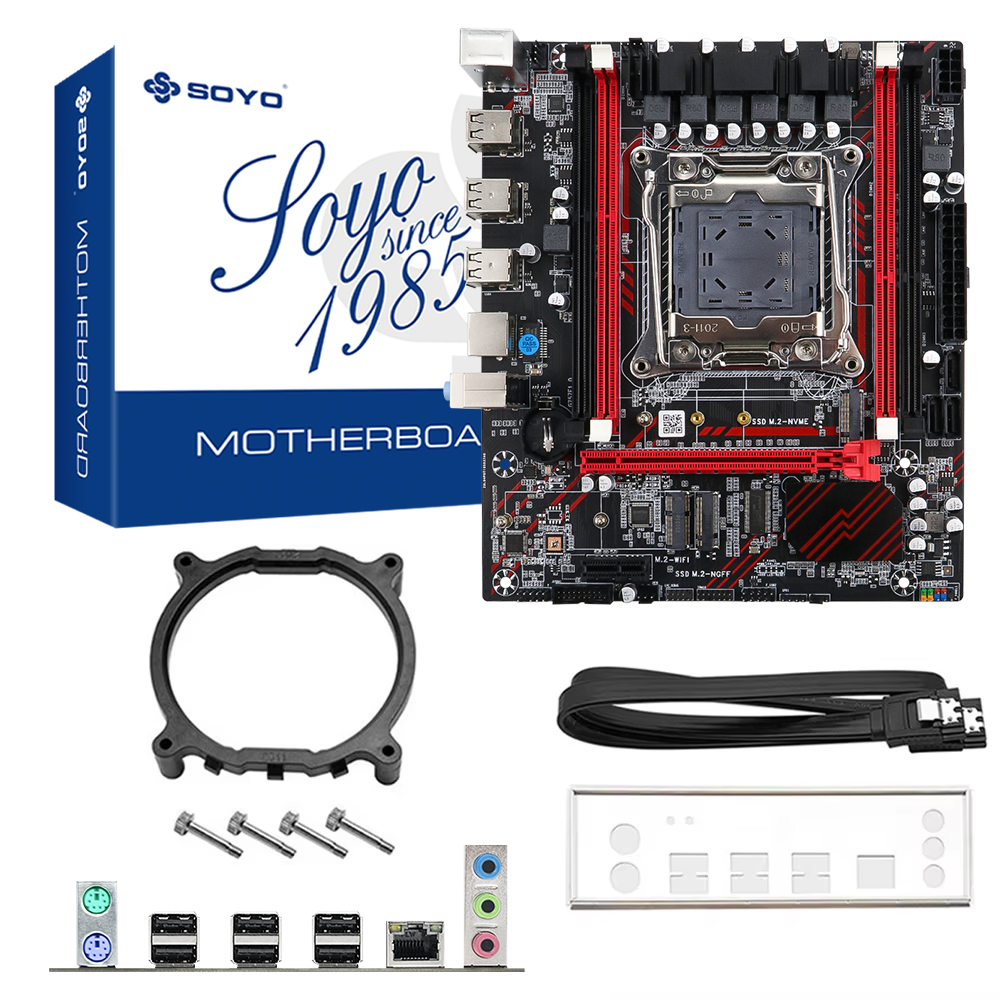

Differences between Kits:

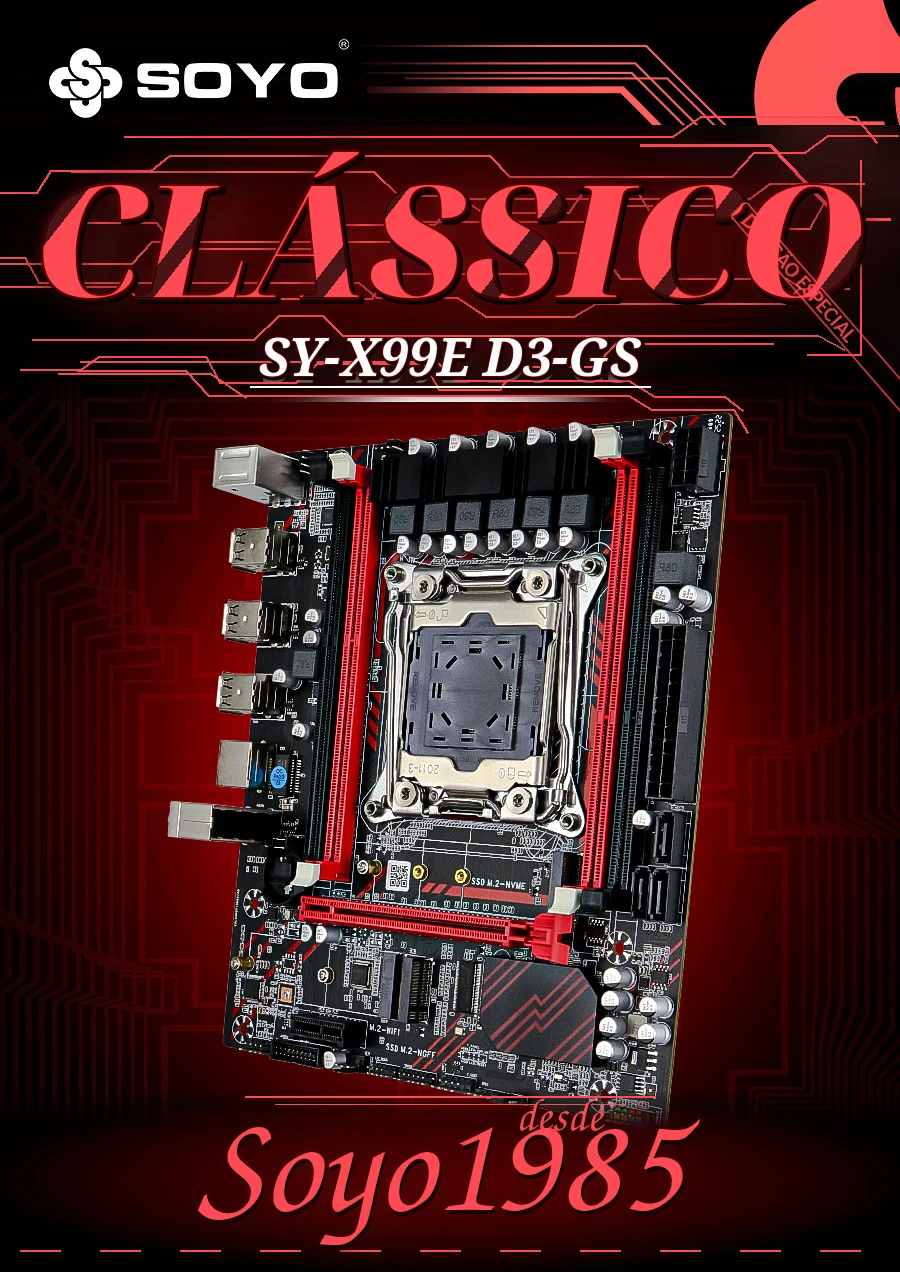

Motherboard Only: 1 SY-X99E D3 motherboard
Motherboard + Processor: SY-X99 D3 + CPU E5 2676 V3
Motherboard + Processor + Memory: SY-X99 D3 + CPU E5 2676 V3 + DDR3 8GB × 1
Check the differences between the kits before you complete the purchase. If you do not accept configuration, do not request.

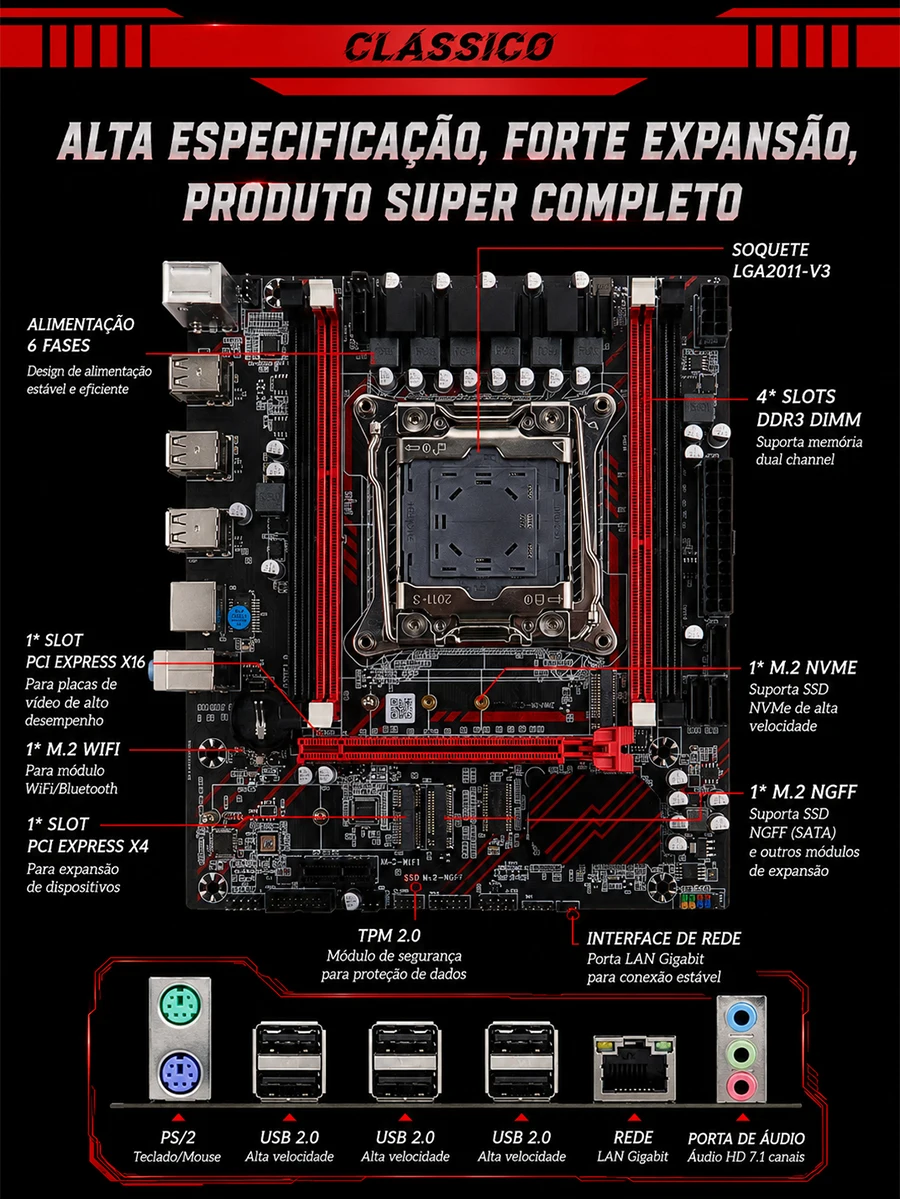

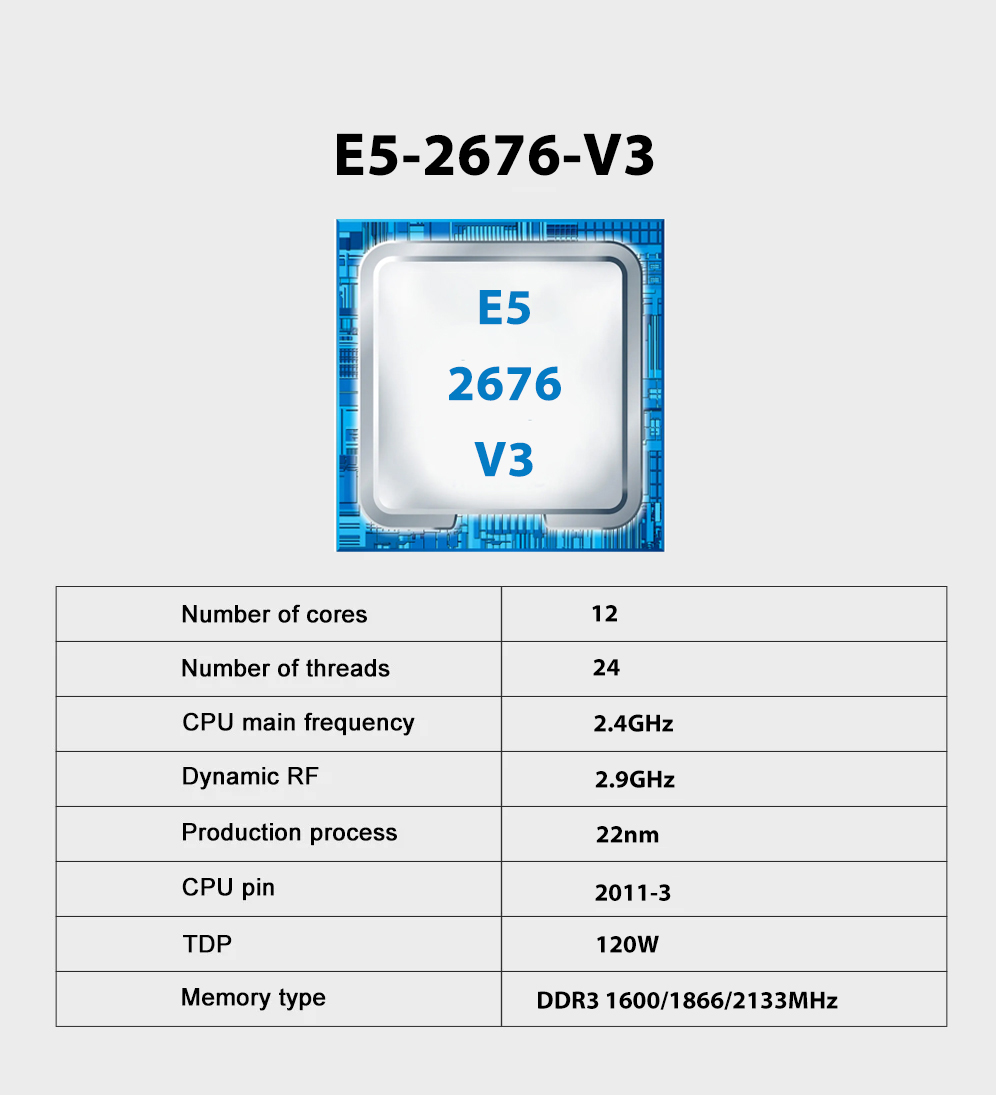

⚙️ Main Specifications
Model:Intel Xeon E5-2676 V3
Socket:LGA2011-3 (2011 v3)
Architecture:Haswell EP (22nm)
Cores/Threads:12 cores/24 threads
Base Frequency:2.4 GHz
Turbo Boost:Up to 3.0 GHz
Total Cache:35 MB Smart Cache (L3)
TDP:120W
Maximum Temperature:79 °C
Compatible Memory:DDR3 / DDR4 up to 2133 MHz
Channels of Memory:Quad-Channel (4 channels)
PCIe:3.0 (40 lanes
Integrated Chart:No iGPU (use a video card)
Multiplier:Locked (not overclocking)

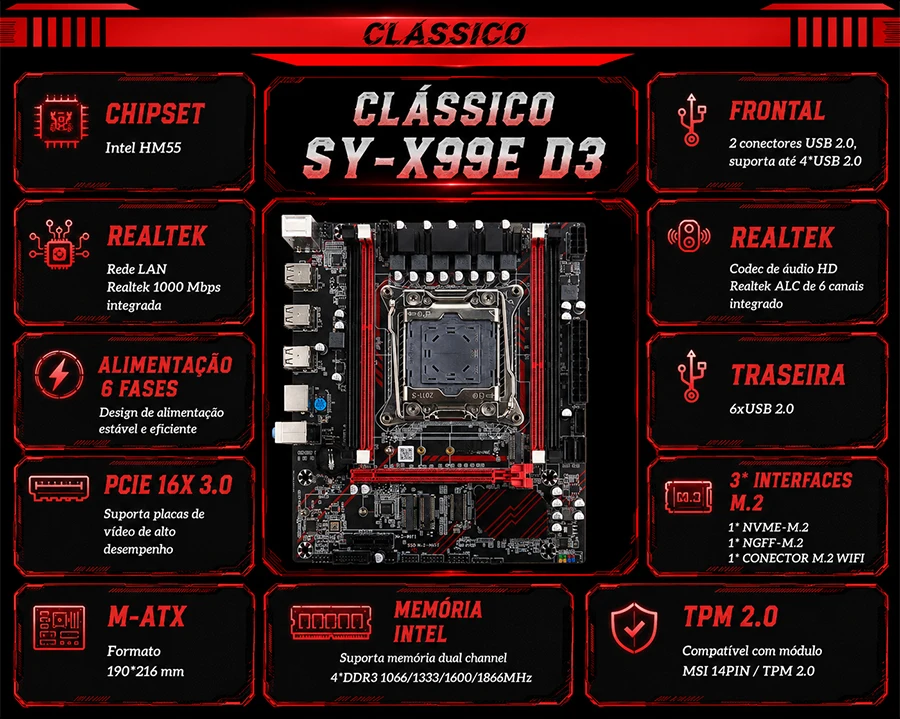

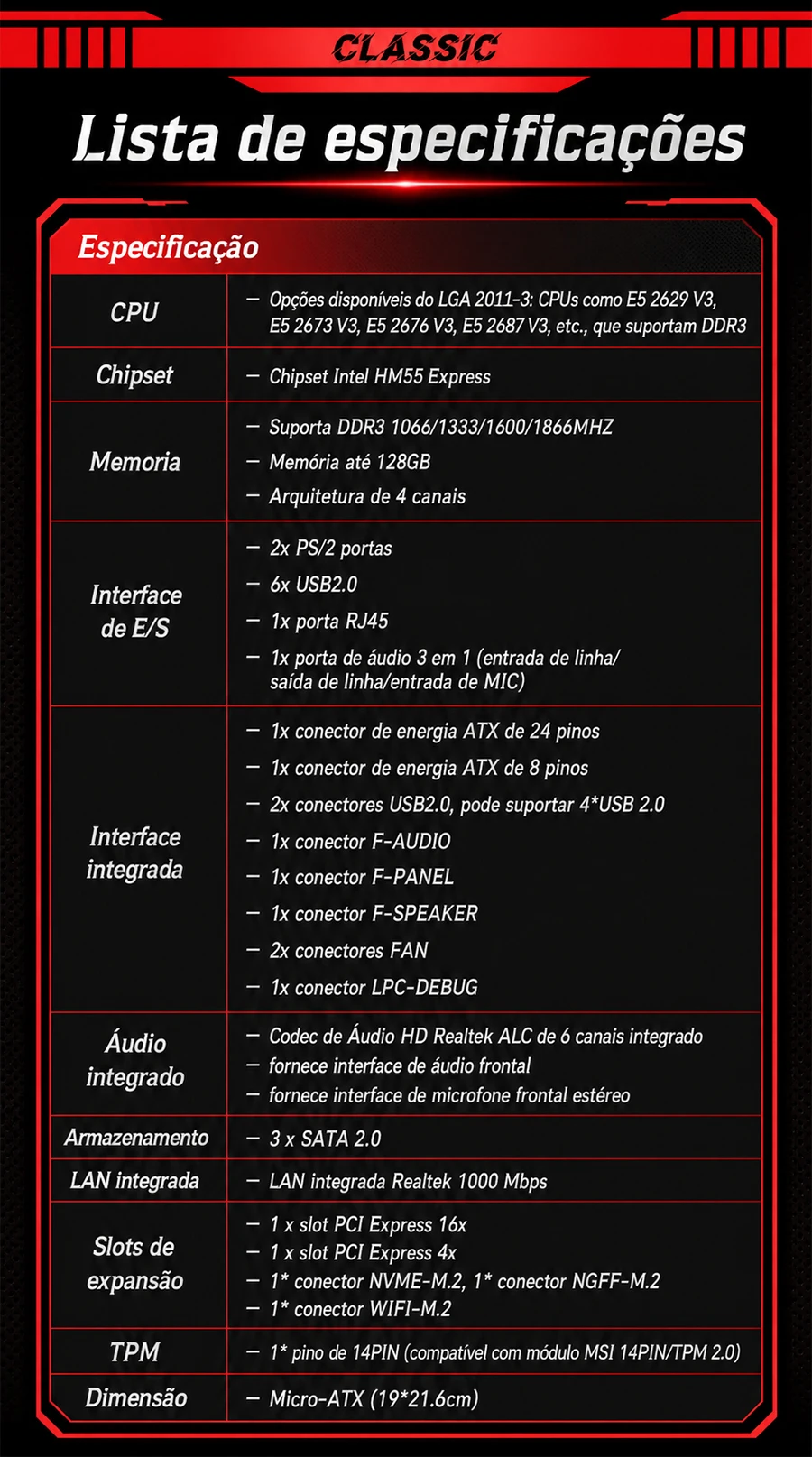

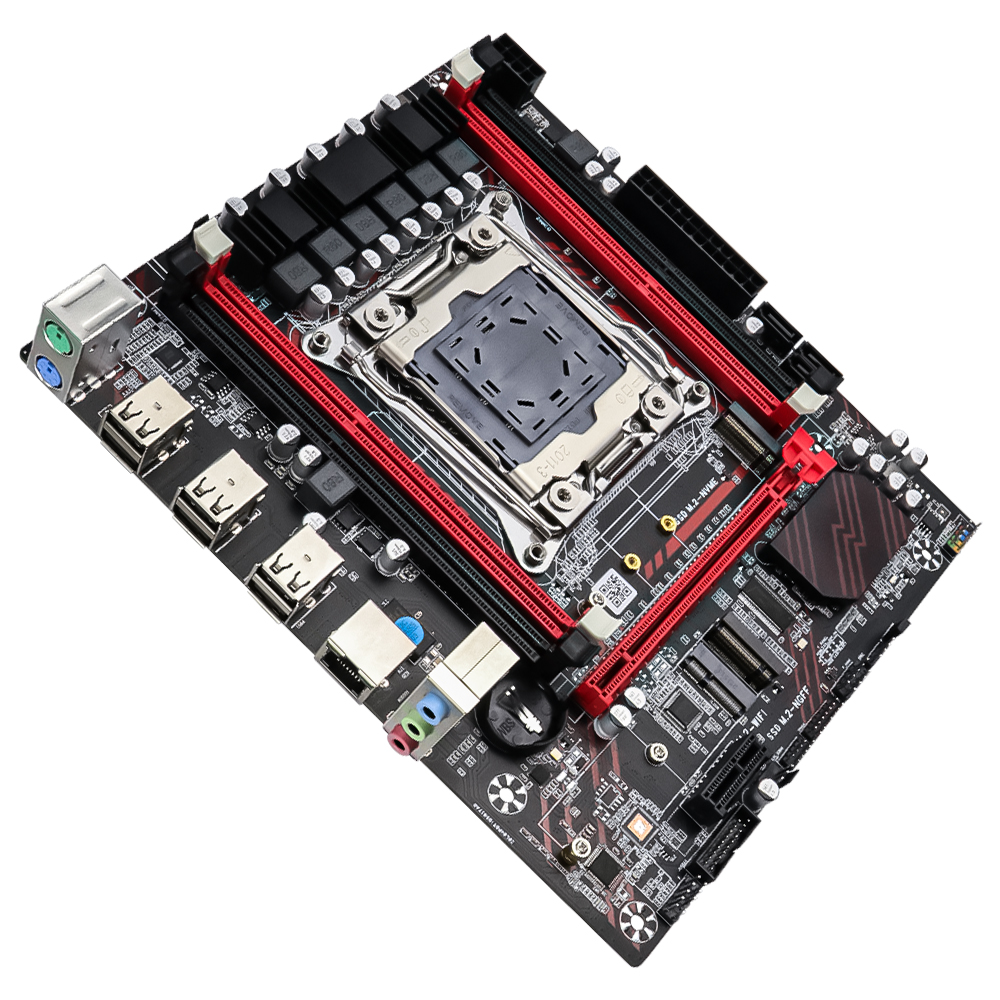

?Chipset of Motherboard
Intel HM55 Chipset
?Support of Processors
Intel Xeon E5 Processors for Socket LGA2011-0
Optional models:E5-2629 V3 / E5-2673 V3 / E5-2676 V3 / E5-2687V3 and other models compatible with DDR3

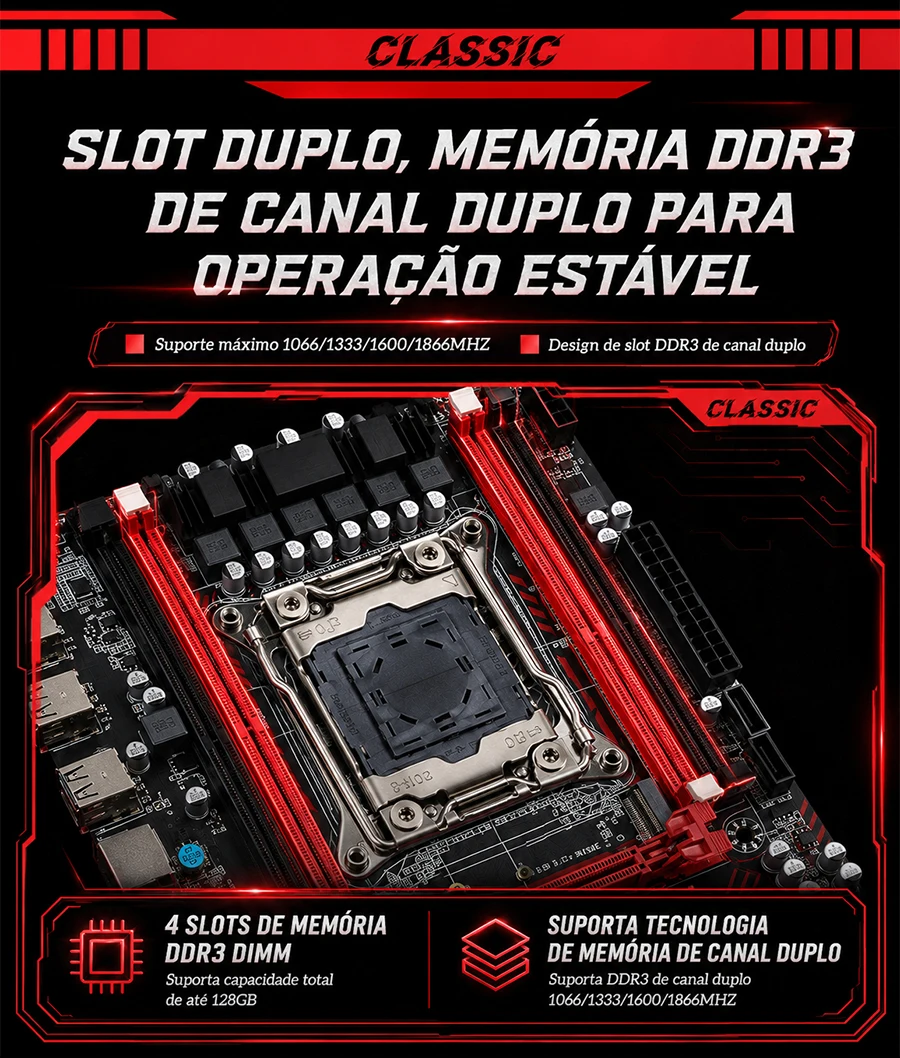

?System Memory
4 DDR3 DIMM slots, dual-channel operation (black = main channel, Red = secondary channel)
Supported frequencies: 1066/1333/1600/1866MHz
Maximum capacity per slot: 32GB

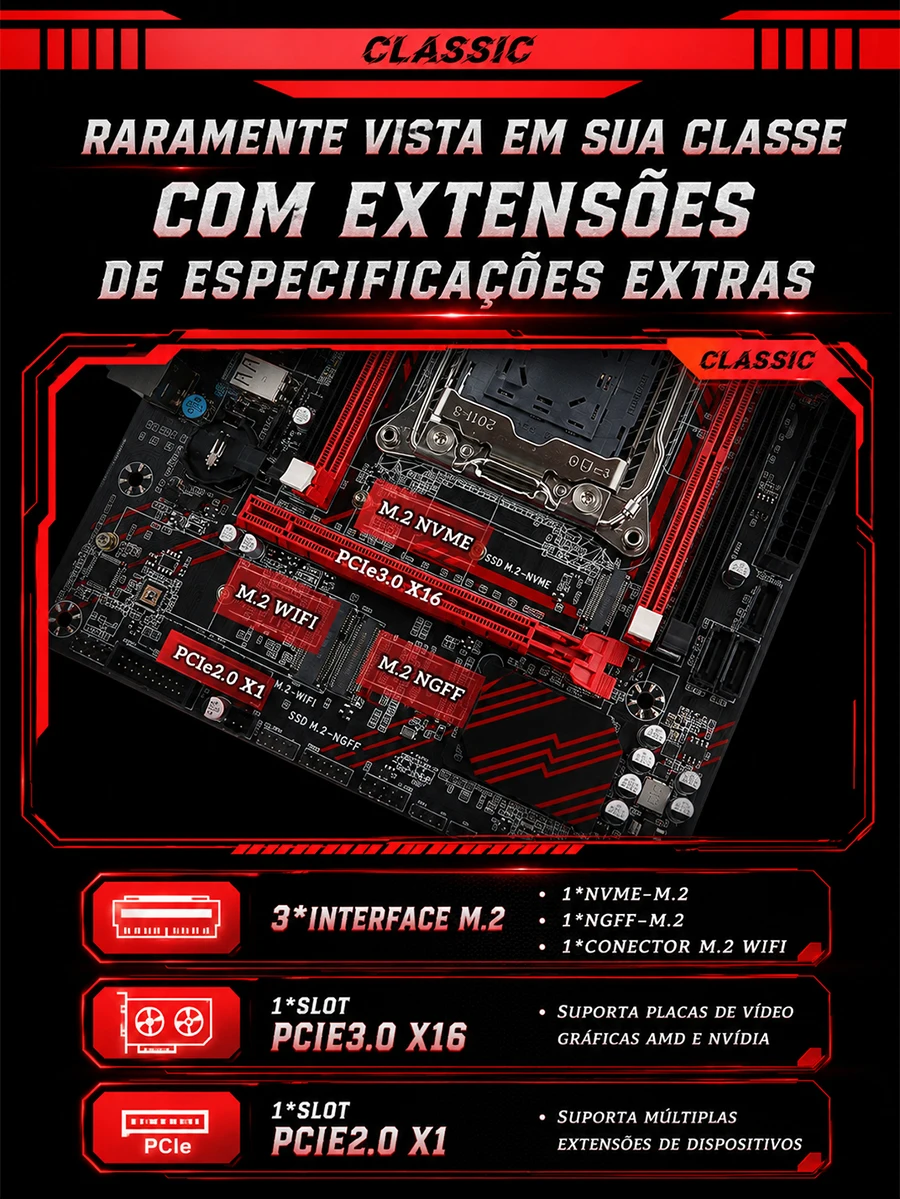

?Interfaces of Storage
1 M.2 NVME slot | 1 M.2 NGFF slot | 3 SATA 2.0 ports
?Networking and Connectivity
1 Gigabit RJ45 Port | 1 M.2 slot for WIFI card
Chip de network: Realtek RTL8111H Gigabit Ethernet
?️Slots of Expansion
1 PCIe X1 slot | 1 PCIe X16 slot
?Audio
Line Out | Microphone In | Line In | F_Audio Connector onboard
Chip de audio: Realtek HD Audio

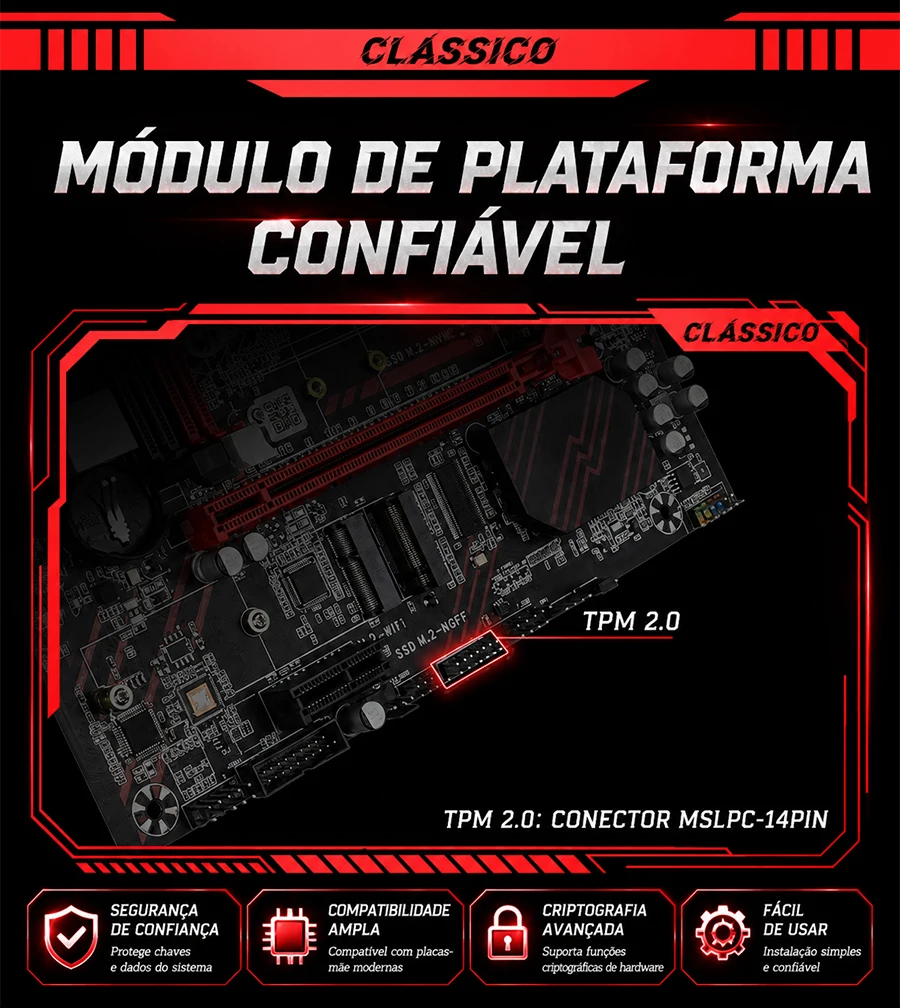

?Security
External TPM connector compatible with ASUS 14-pin TPM 2.0 Module
?USB interfaces
Rear panel: 6 USB2.0 ports
Onboard connectors: 2 groups of USB2.0 connectors (expandable to 4 more USB2.0 ports)

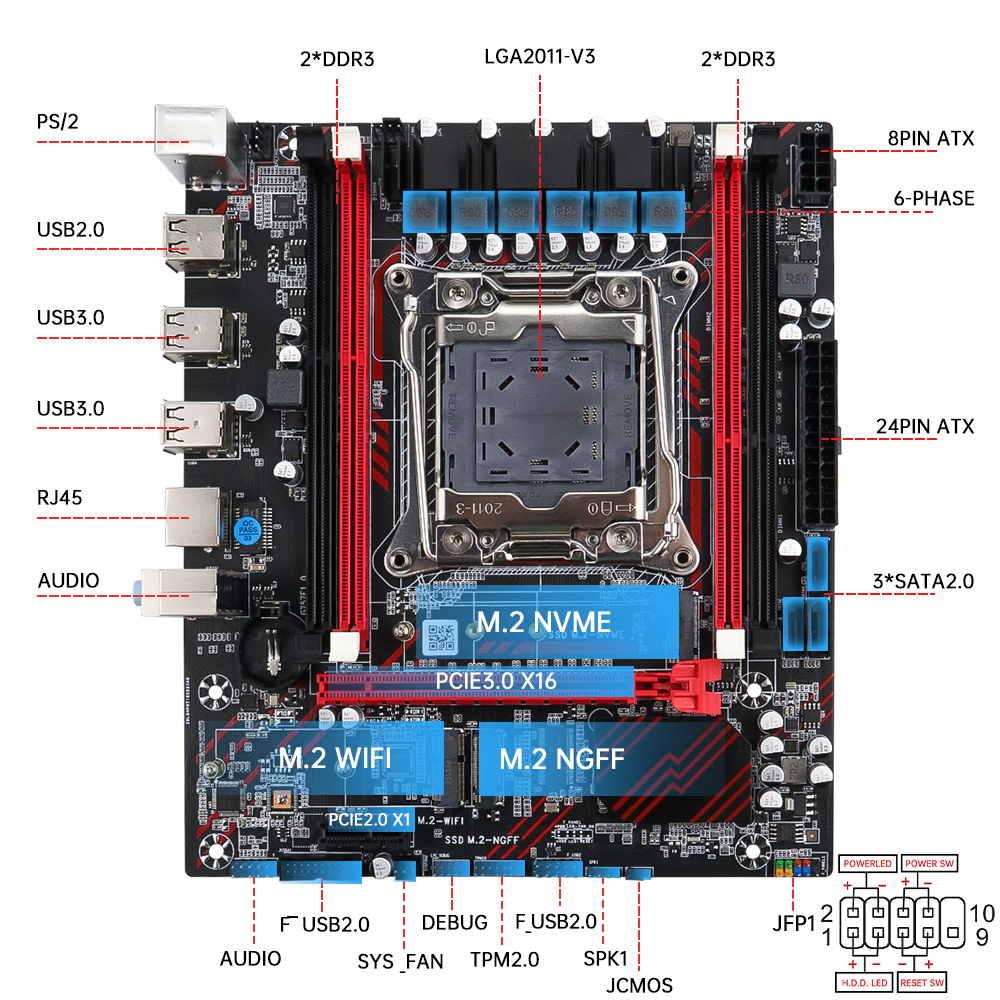

?Onboard Connectors
1 FPANEL connector for front panel | 1 4-pin buzzer connector
2 4-pin CPU fan connectors | 1 3-pin system fan connector

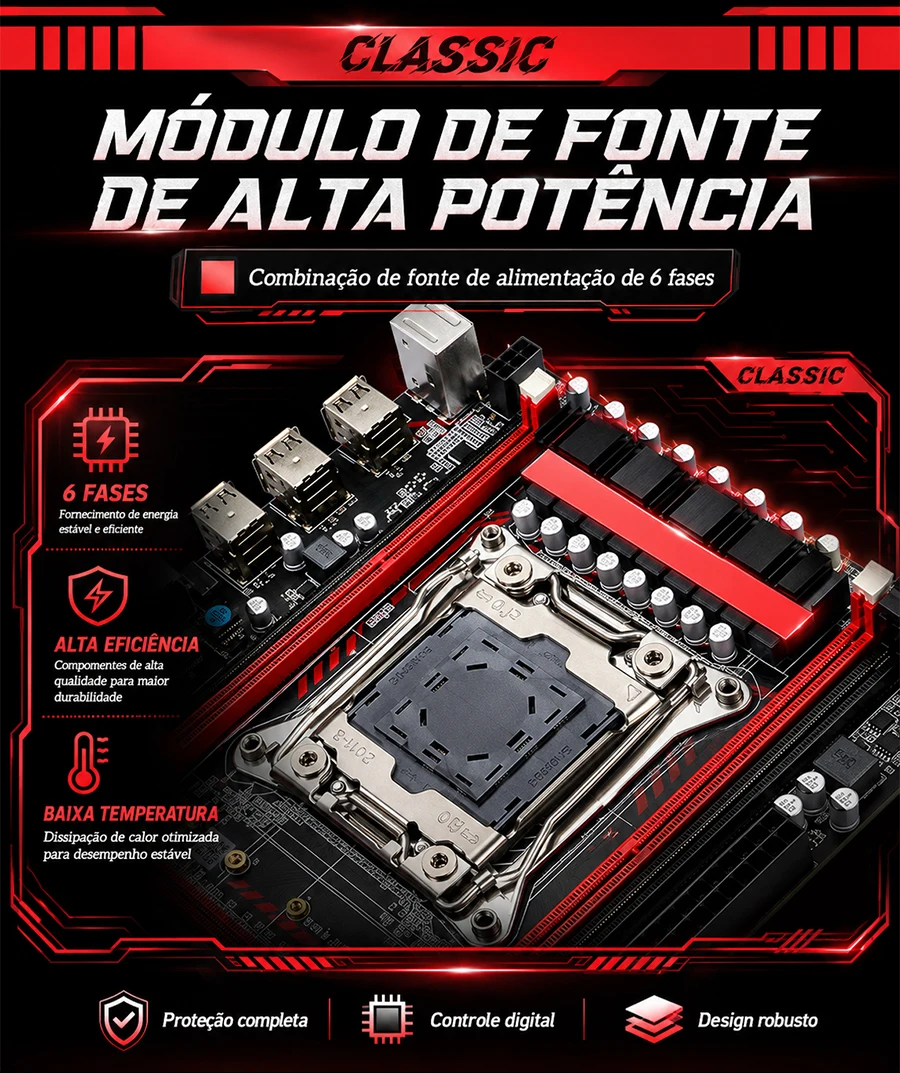

?Input of Energy
24-pin + 8-pin ATX connector
?Physical Specifications
Format: Standard M-ATX
Dimensions: 190mm × 216mm, 4-layer PCB
⚡Energy Consumption
Standby consumption: 50 ~ 70W
Consumption under full load: 180 ~ 260W (value for reference only)
✨Other Features
1 BAT jumper | 2 5-pin debug board interfaces
