CE FCC Rosh Passed 100g/h Water Cooled Ozone Generator Industrial Ozonator for Water Treatment Air Purification
価格:
$402.71
/Pc
払い戻し:
シェア:
売れ筋商品
Our test equipment:
AC voltage regulator, DC voltage regulator, voltage stabilizer, LCR digital bridge tester, intelligent program-controlled frequency conversion power supply, electrical parameter meter, ozone concentration analyzer, oxygen cylinder, oxygen machine, air compressor, oil-water separator, pressure regulating valve, flow meter, ambient temperature and humidity meter, aging test bench...
AC200V-AC240V, we will set: AC240V 50HZ for you.
AC100V-AC130V, we will set: AC130V 60HZ for you.
If the local voltage or frequency is special, when you order our products, you can leave a message to us.
When you get this product, please read the installation and operation instructions carefully, it is very important.
.
.
.
Water cooling, inner and outer electrodes are 316L stainless steel, high ozone concentration, smaller size, lower temperature rise, high efficiency, longer service life
(The ozone PSU cannot work alone, you need to correctly install the ozone tube and the ozone PSU, connect them together, this ozone tube needs water to cool it, turn on the air/oxygen source, and then you can turn on the power.)
.
.
.
.
.
We have increased the thickness of the shell and flange: more sturdy.
We have increased the length of the shell: the discharge area is larger and the distance between the inner and outer electrodes is farther.
We increased the diameter of the shell: the distance between the inner and outer electrodes is further.
We fix the glass tube at the center position of the outer electrode: to ensure uniform discharge gap.
.
It is very important to increase the distance between the inner and outer electrodes, which can ensure that the inner and outer electrodes do not spark.
.
.

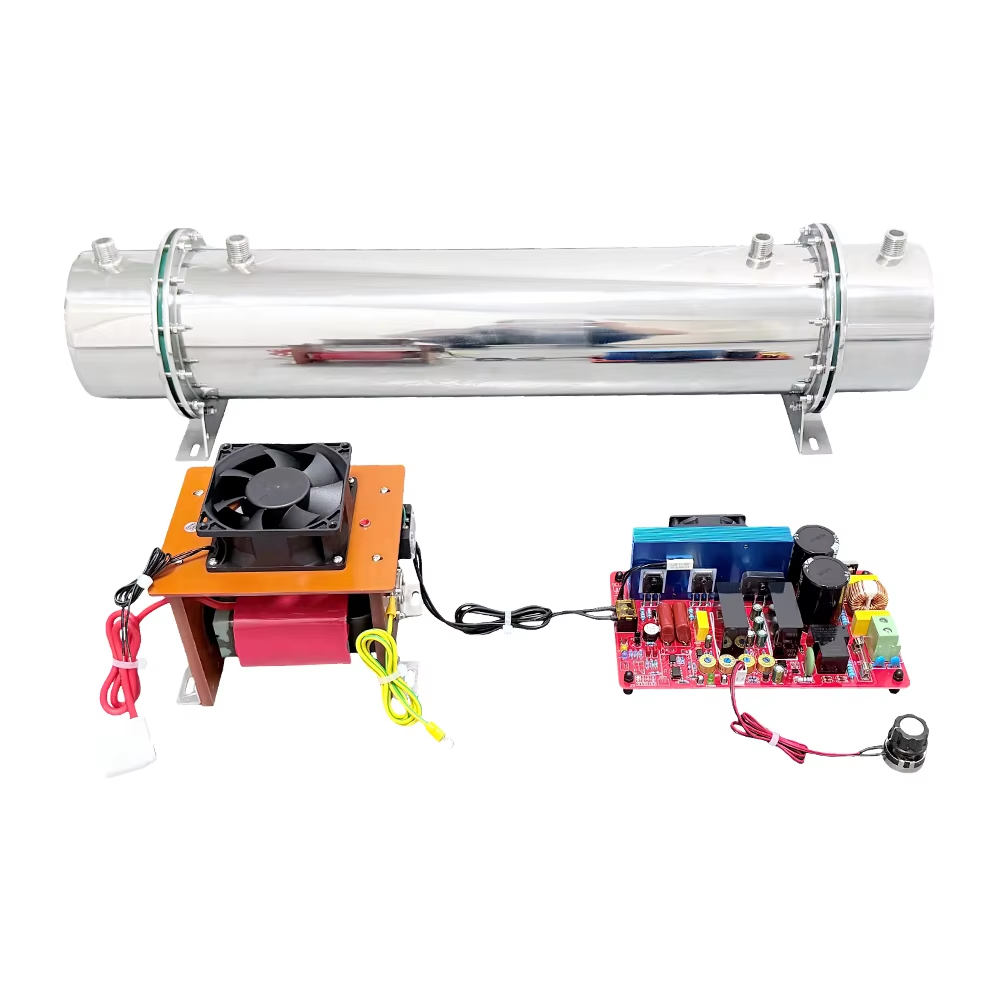

New version 100g/h water-cooled ozone generator kit:
Product model: PL-100QSWO
Ozone output: 100g/h (adjustable)
Power: 1000w
Air flow: ≤200L/min
Oxygen flow: ≤40L/min
Cooling mode: water cooling
.
Gas source: air source, oxygen source
Gas source temperature: ≤35℃
Gas pressure: ≤100kpa (1bar/0.1mpa)
.
Cooling water temperature: ≤35℃
Water pressure: ≤500kPa (5bar/0.5mpa)
Water flow: ≥1000L/h
.
Ambient temperature: -10~45℃
Optimal ambient temperature: 1-20℃
Environmental humidity: ≤85%RH
.
Shell: 304 stainless steel
External electrode: 316L stainless steel
Dielectric material: high-purity quartz glass tube
Inner electrode: 316L stainless steel
Discharge gap: 0.5mm
Length of the outer electrode: 564mm
Length of the inner electrode: 530mm
Quantity of quartz tubes: 7pcs
The distance between the inner and outer electrodes inside the lid: 31mm
.
Patented product
Brand: Pinus longaeva (we can print your logo and paste it on the ozone tube)
Product certification: CE FCC ROHS
Product application: air purification and water sterilization
Service life / Warranty: more than 20000 hours / 2 years
Customized: can be customized
.
We have set the correct parameters for this ozone PSU, so please do not adjust the knob on the ozone PSU.
ZDK: set the minimum power of the ozone PSU.
TK: set the maximum power of the ozone PSU.
F: set the output frequency (you need an oscilloscope).
BH: set the alarm power (we do not recommend that you modify it).
ZDK: set the minimum power of the ozone PSU.
TK: set the maximum power of the ozone PSU.
F: set the output frequency (you need an oscilloscope).
BH: set the alarm power (we do not recommend that you modify it).
.
Indicator light:
Red: power on indicator
Green: working indicator
Blue: overcurrent alarm indicator light
Yellow: high-temperature alarm indicator light
(If short-circuited, the ozone PSU will automatically reduce the output power to 20w)
.
Size:
Ozone tube: 765*170*185mm 14.15kg
.
Ozone PSU:
Circuit board: 212*122*65mm 0.65kg
High-voltage coil: 175*130*160mm 2.35kg
.
Joint:
Air / oxygen input: 1/2 inch, DN15, 20mm external thread.
Ozone output: 1/2 inch, DN15, 20mm external thread.
Cooling water input and output: 1/2 inch, DN15, 20mm external thread.
.
Water cooling system, please click here >>>
.
Product features:

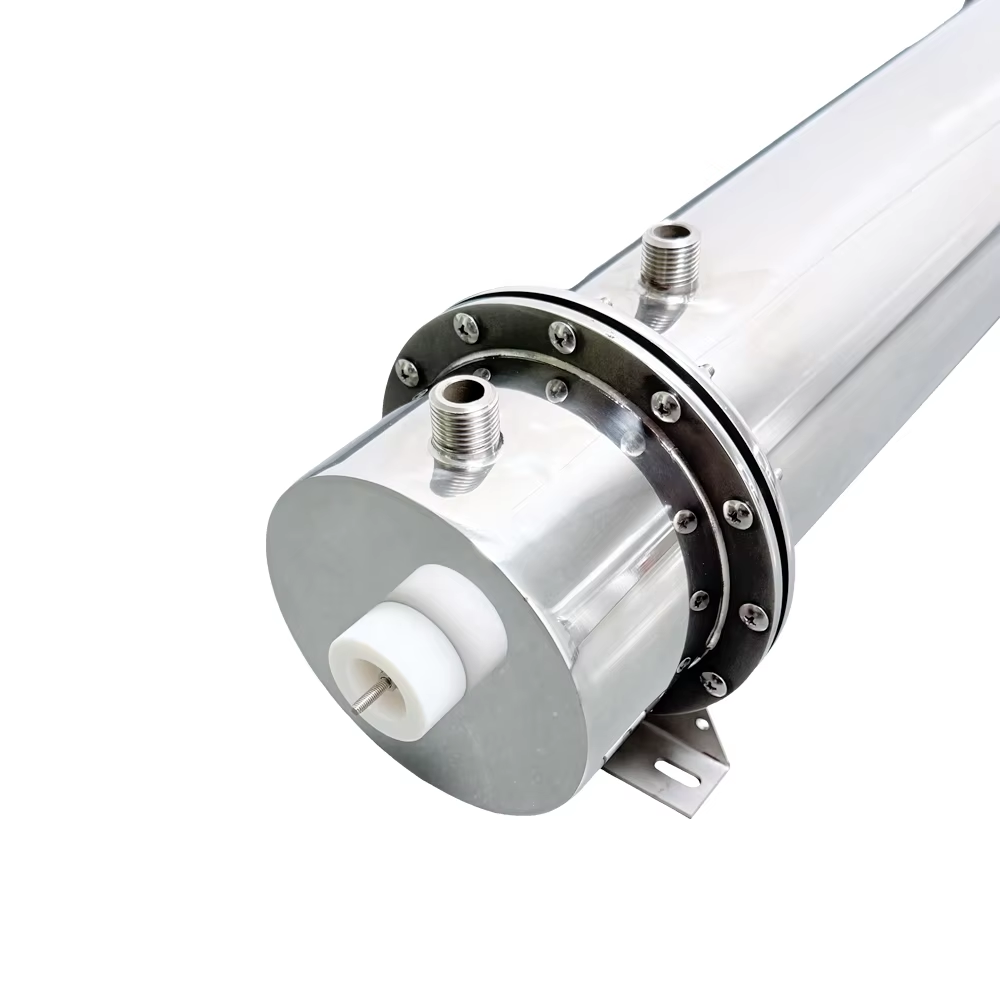

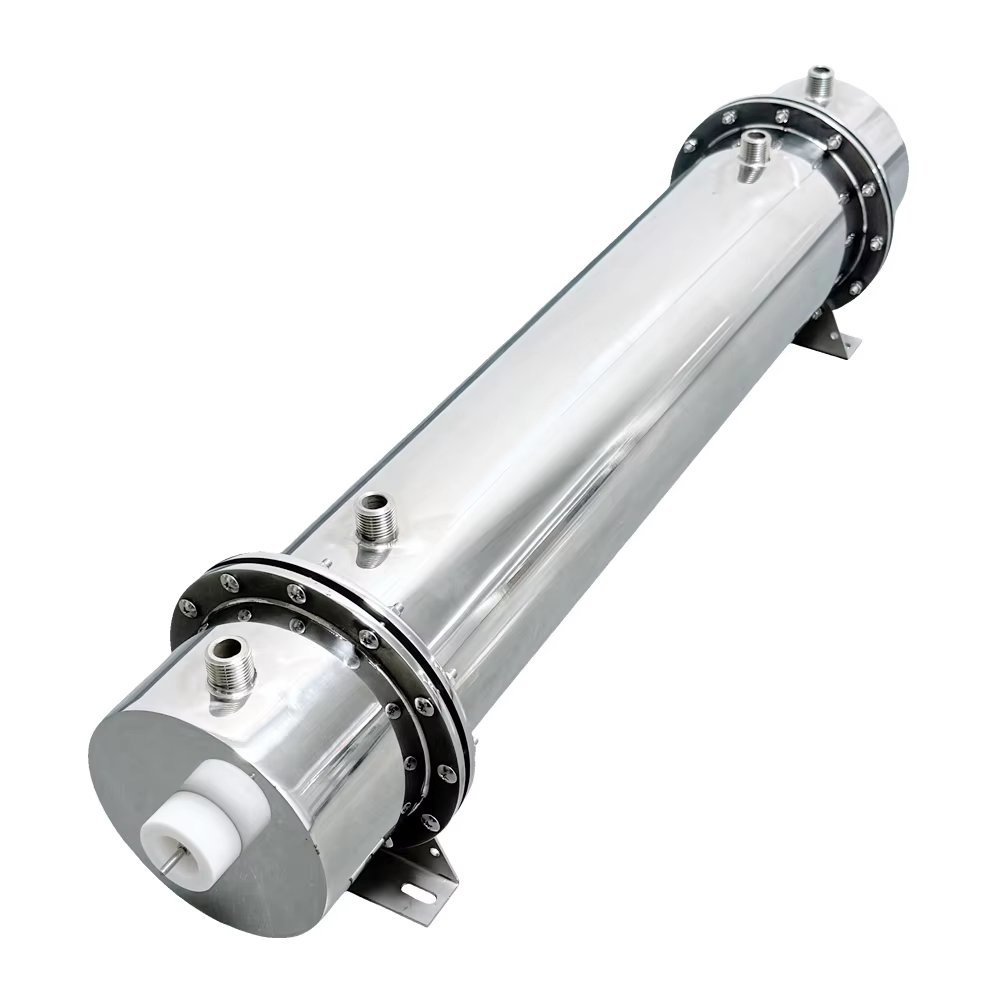

Ozone tube:
Patented product, larger heat dissipation area, lower temperature rise, higher ozone concentration, more efficient, built-in 316L stainless steel tube, longer service life.
.

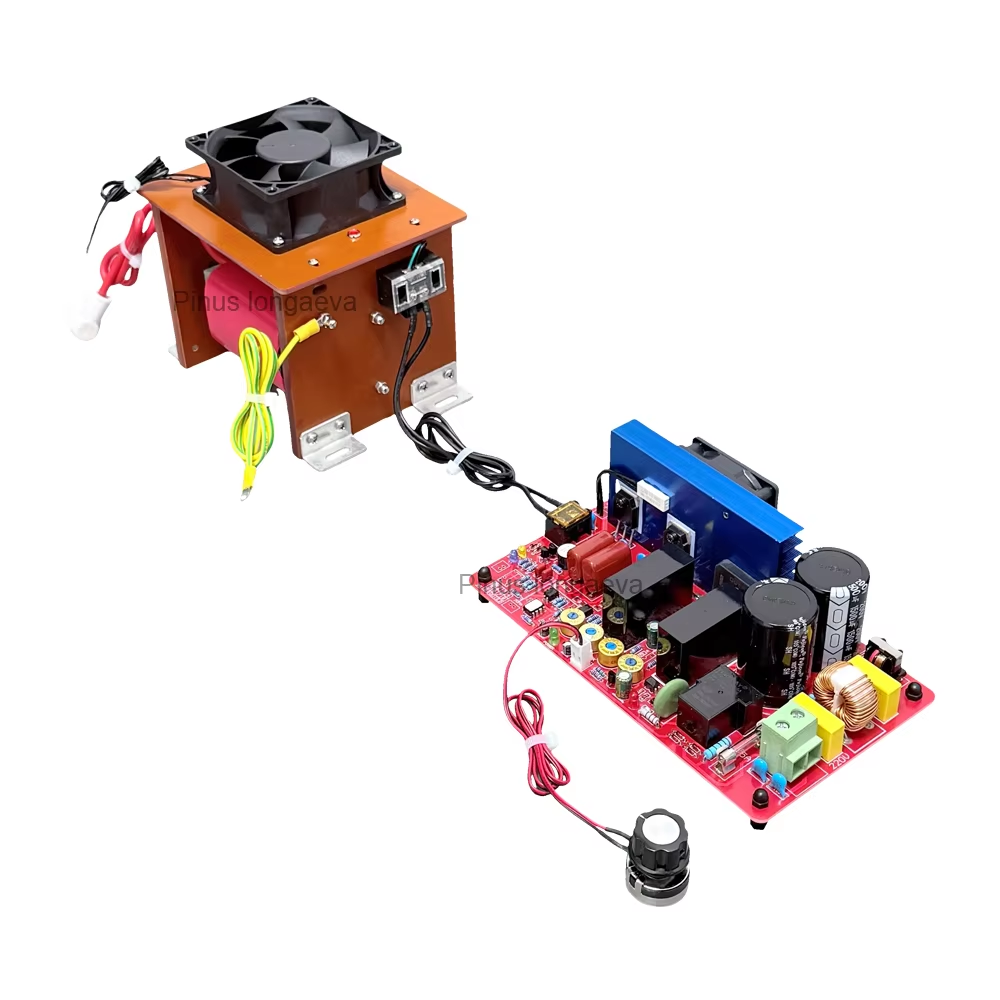

Ozone PSU:
1. lower temperature rise, more stable, longer service life.
2. ozone tube short circuit/open circuit, the ozone PSU will automatically reduce output power.
3. the optimal output frequency is 5khz, the low output frequency is conducive to reducing the heat of the ozone tube, when the oxygen flow rate is less than or equal to 1L/min, it can effectively improve the ozone concentration.
4. the output power of the ozone PSU is very stable.
5. the maximum power of this ozone PSU is 1100w, and the optimal output power ≤1100w, this 100G ozone tube needs 1000w.
6. we have added the function that can switch the input voltage (AC240V/AC130V), please let us know if you need to switch the input voltage.
.
Please let us know:
If you need us to remove the stickers on the ozone tube,
If you need us to change the length of the red high voltage wire and yellow wire,
If you need us to change the length of the potentiometer wire,
If you need us to change the direction of the nozzle,
and so on,
please let us know.
If you need us to remove the stickers on the ozone tube,
If you need us to change the length of the red high voltage wire and yellow wire,
If you need us to change the length of the potentiometer wire,
If you need us to change the direction of the nozzle,
and so on,
please let us know.
.
Due to system reasons, maybe some countries can not see all the products on our website, if you need a product list, please leave a message to us.
We are the manufacturer, we produce 0.5g/h-600g/h ozone generator kits, ozone machines, oxygen machines.
Due to system reasons, maybe some countries can not see all the products on our website, if you need a product list, please leave a message to us.
We are the manufacturer, we produce 0.5g/h-600g/h ozone generator kits, ozone machines, oxygen machines.
.
Note:
After you complete the installation, please send us the installation pictures, maybe we can give you some suggestions.
Correct installation is extremely important.
If you install and use them correctly and they are damaged within two years, you can contact us at any time and we can send you free parts.
.
.

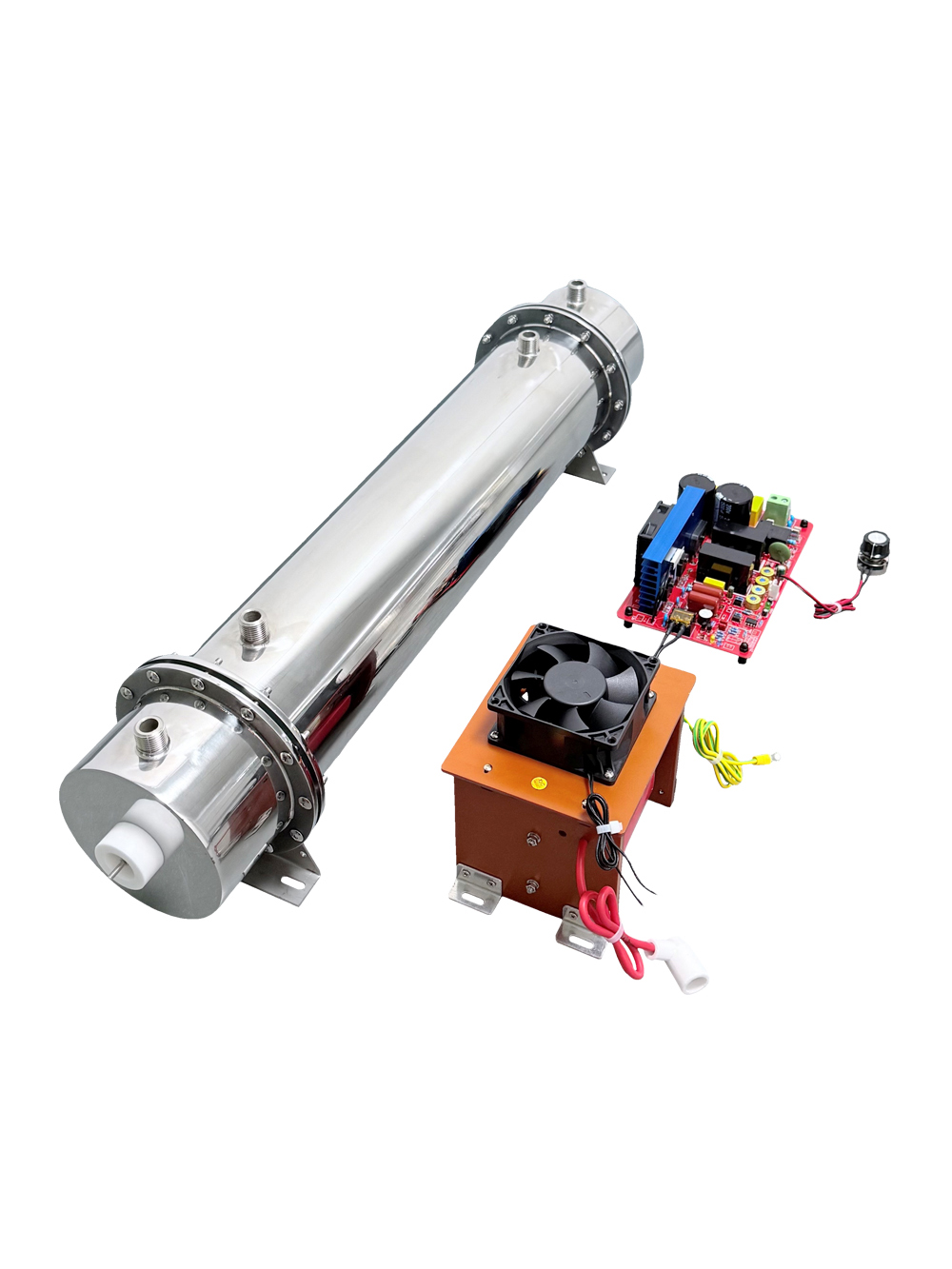

Product picture: (please connect the ground wire to the ozone tube shell, please connect the yellow wire of the high voltage coil to the ozone tube shell)
...
.
.
.
..
.
.
.
.
Installation requirements:
1. Ozone tube: you can install it on the metal shell, we recommend that you connect an additional ground wire to the ozone tube shell.
Please install the ozone tube vertically according to the prompts, the cooling water inlet at the bottom and the water outlet at the top.
Air inlet on top, ozone outlet on bottom.
2. The closest distance between the high voltage coil and the ozone tube is 15cm.
3. The closest distance between the high voltage coil and the metal shell or other electrical appliances is 15cm.
4. The closest distance between 2pcs high voltage coil is 30cm.
5. Red high voltage wire: away from the metal shell and other wires for more than 2cm.
6. You need a dry and clean air source or oxygen source.
7. Please connect the red high voltage line and the ozone tube electrode socket, the yellow line and the ozone tube shell, according to the picture.
8. If you need to disinfect water, you can connect ozone output to air stone or venturi through the teflon tube.
.
Ozone PSU away from ozone tube / metal plate / metal shell / other electrical appliances (A B C D), more than 15cm.
When you get our products, you will get installation instructions, operation instructions and wiring diagrams.
If you still have any questions, you can contact us at any time.
