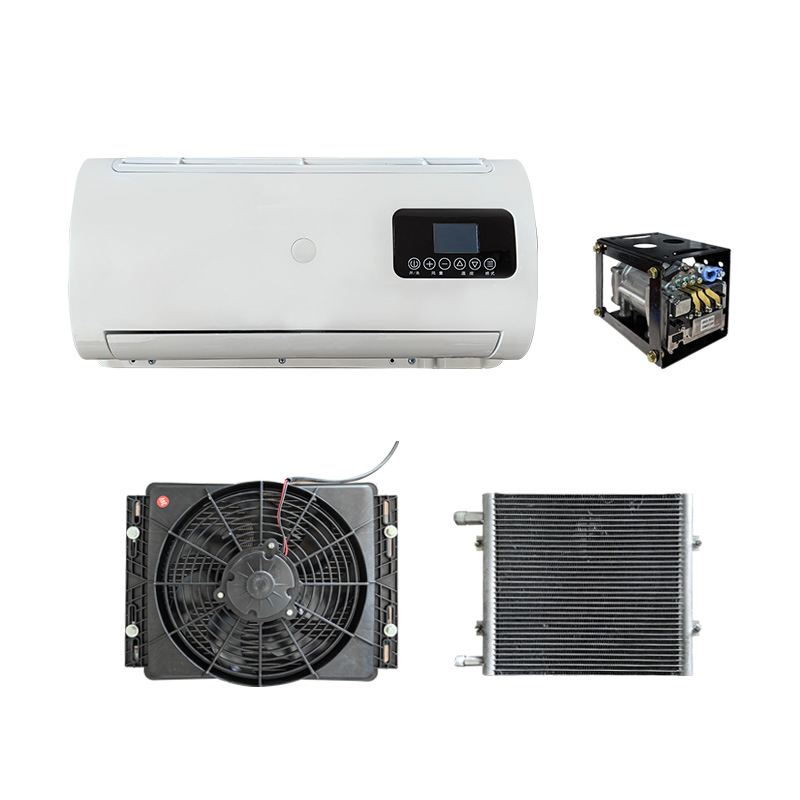

DEFU New Universal 24V/12V RV Bus Camper Van Car Truck Parking Electric Air Conditioner
価格:
$714.08
/Pc
払い戻し:
シェア:
売れ筋商品
Products Description
|
Rated voltage
|
12V
|
24V
|
|
|
Cooling capacity
|
7500-8500 BTU
|
8500-9500 BTU
|
|
|
Current
|
50-80A
|
35-50A
|
|
|
Rated Power
|
200-800W
|
200-800W
|
|
|

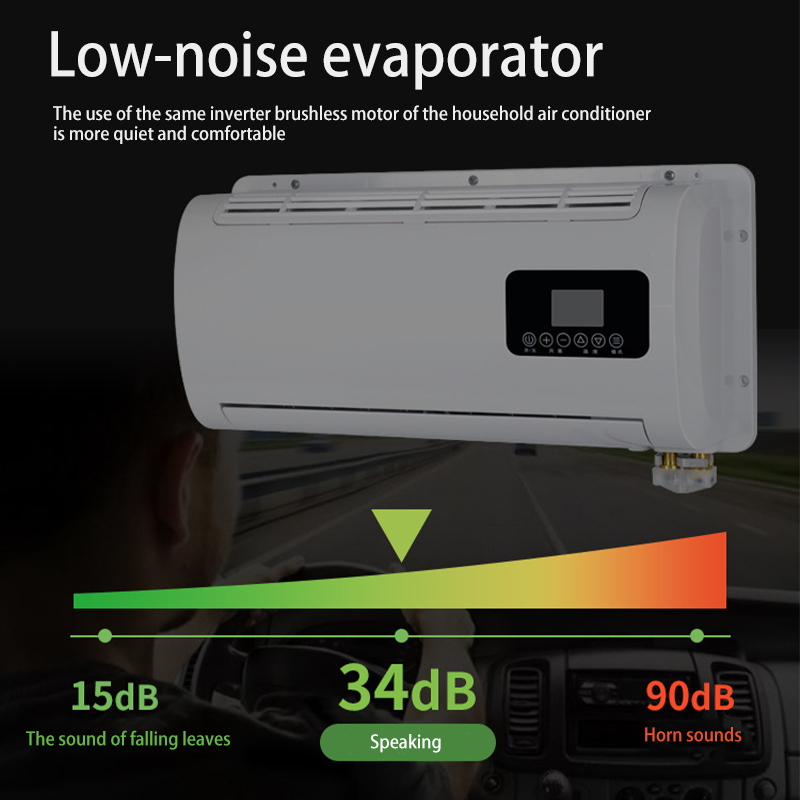

Noise level
|
35-55daB
|
||
|
Air flow
|
200-400 m³ mc/h
|
||
|
Refrigerant
|
R134a, 600g±10g is needed
|
||
|
Install method
|
Horizontal, hanging on the bottom/top of the vehicle
|
||
|
Compressor speed
|
3000rpm, 200*170*170mm withmount bracket
|
||
|
Condenser
|
Aluminum, 500*370*160mm
|
||
|
Evaporator
|
rushless Copper, 668*331*191mm, with air filter
|
||
|

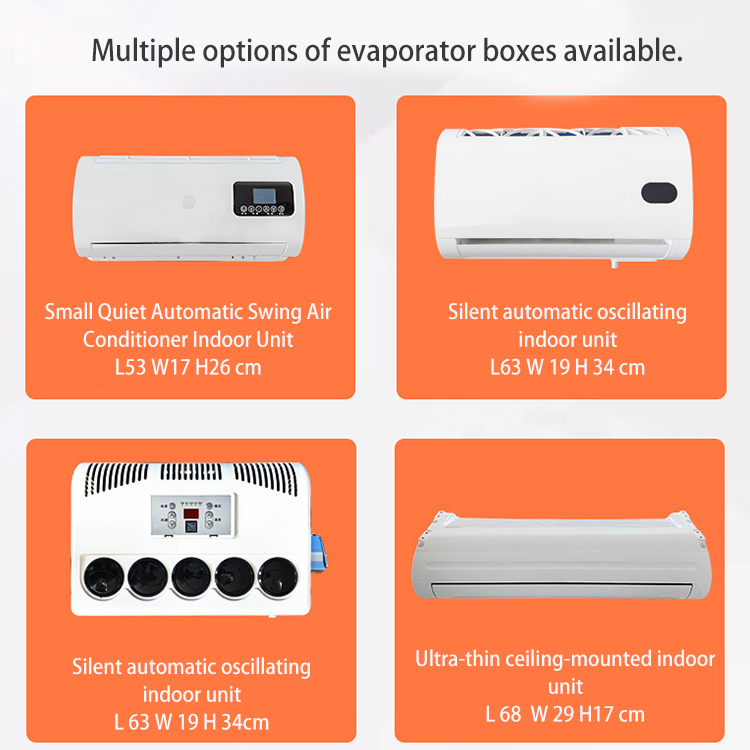

Cold air outlets
|
many kinds can be Optional
|
||
|
Package
|
Outdoor: 58*60*35cm,19KG;
Indoor: 87*39*21cm 9.5KG / 41*46*20cm, 5KG
|
||

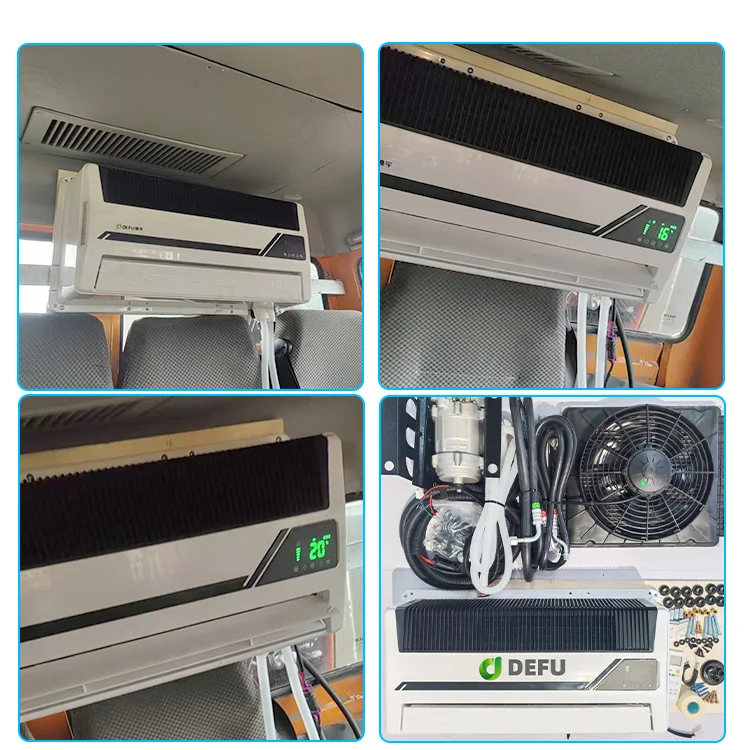

Under dash parking air conditioning is a parking air conditioning system that is integrated into the vehicle and does not take up additional space.
The installation position of the hidden car air conditioning condenser is basically the same as that of traditional car air
conditioning. The hidden design differs in that this model relies on an additional battery for power, without consuming the
original vehicle's fuel.1. Core installation position of the condenser
1. Traditional fuel vehicles & new energy vehicles At the
front of the vehicle, in front of the water radiator, forming a 'cooling module' with the radiator and fan. The hidden design may use a thinner condenser or integrate it with the radiator to reduce external volume.
2. Special layout of pure electric vehicles Front compartment or chassis:
Electric vehicles do not have an engine, so the front compartment space is more flexible. The condenser may be installed in the same position as in traditional fuel vehicles or integrated into the heat pump system.
Design features of the hidden air conditioning condenser Compact design
Uses microchannel condensers to meet the stringent space requirements of hidden air conditioning. Integrated module Shares some piping with the electronic fan, heat pump system, or battery cooling system to reduce exposed components. Active cooling technology Relies on an intelligenttemperature control system to adjust fan speed, compensating for the potential decrease in cooling efficiency caused by the hidden layout.
3. Why cannot the condenser be completely 'hidden'?
Rigid demand for heat dissipation: The condenser must be exposed to air(or in a forced ventilation environment) to dissipate heat effectively and cannot be entirely visually hidden like air vents. ...
conditioning. The hidden design differs in that this model relies on an additional battery for power, without consuming the
original vehicle's fuel.1. Core installation position of the condenser
1. Traditional fuel vehicles & new energy vehicles At the
front of the vehicle, in front of the water radiator, forming a 'cooling module' with the radiator and fan. The hidden design may use a thinner condenser or integrate it with the radiator to reduce external volume.
2. Special layout of pure electric vehicles Front compartment or chassis:
Electric vehicles do not have an engine, so the front compartment space is more flexible. The condenser may be installed in the same position as in traditional fuel vehicles or integrated into the heat pump system.
Design features of the hidden air conditioning condenser Compact design
Uses microchannel condensers to meet the stringent space requirements of hidden air conditioning. Integrated module Shares some piping with the electronic fan, heat pump system, or battery cooling system to reduce exposed components. Active cooling technology Relies on an intelligenttemperature control system to adjust fan speed, compensating for the potential decrease in cooling efficiency caused by the hidden layout.
3. Why cannot the condenser be completely 'hidden'?
Rigid demand for heat dissipation: The condenser must be exposed to air(or in a forced ventilation environment) to dissipate heat effectively and cannot be entirely visually hidden like air vents. ...
Evaporator :Brushless Copper, 668*331*191mm, with air filter

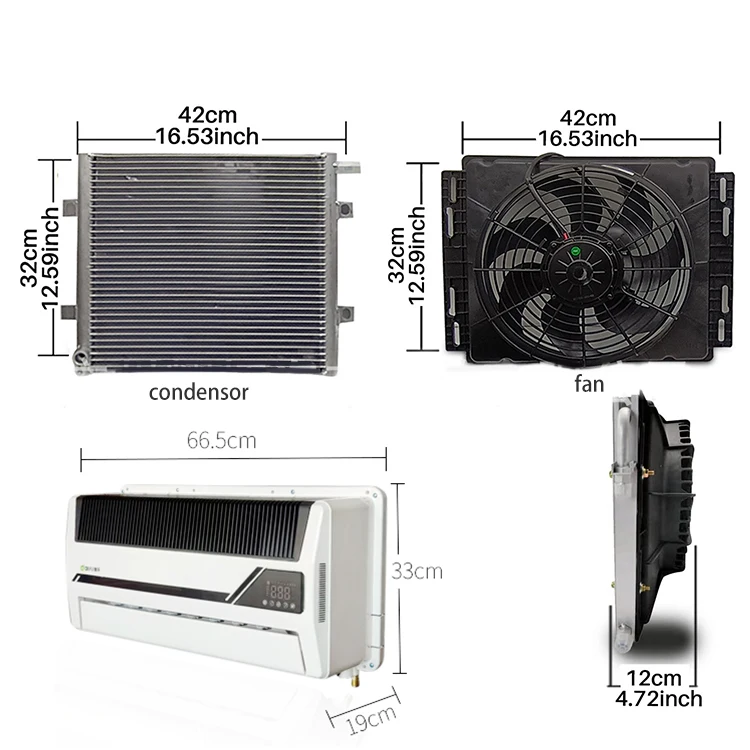

Hign densty condensor
Core advantages of aluminum evaporator:
Lightweight: 65% lighter than copper, suitable for vehicle-mounted and portable air conditioners.
Lightweight: 65% lighter than copper, suitable for vehicle-mounted and portable air conditioners.

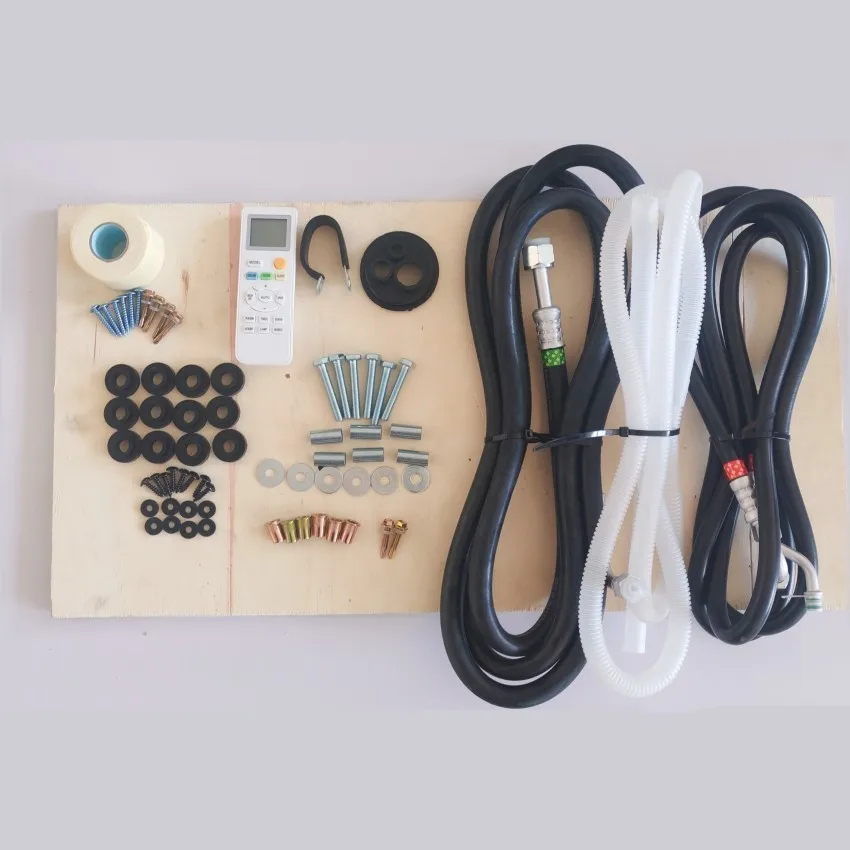

Accessories follow the package will be shipping

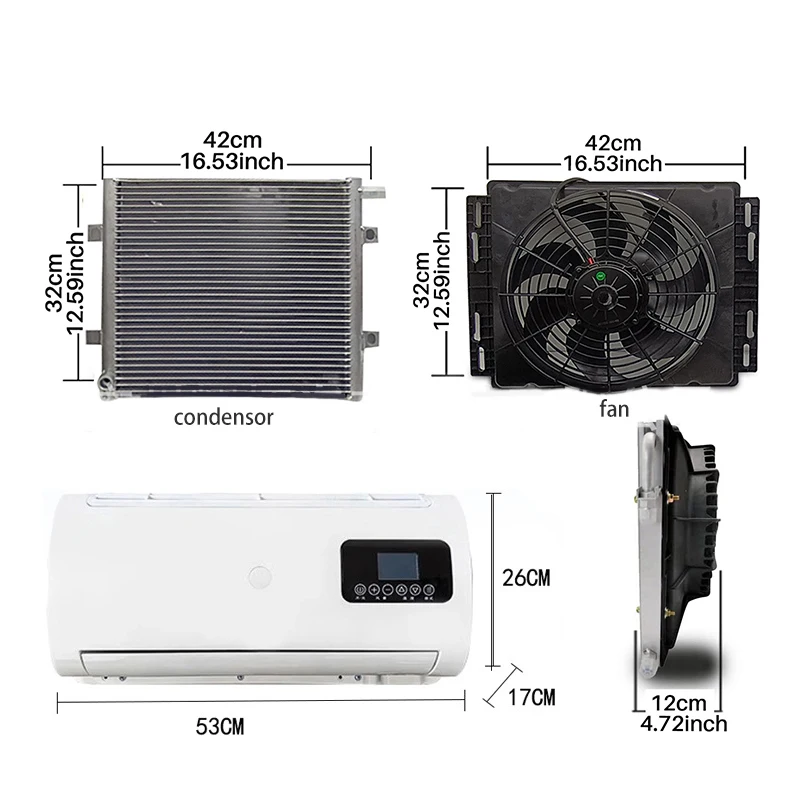

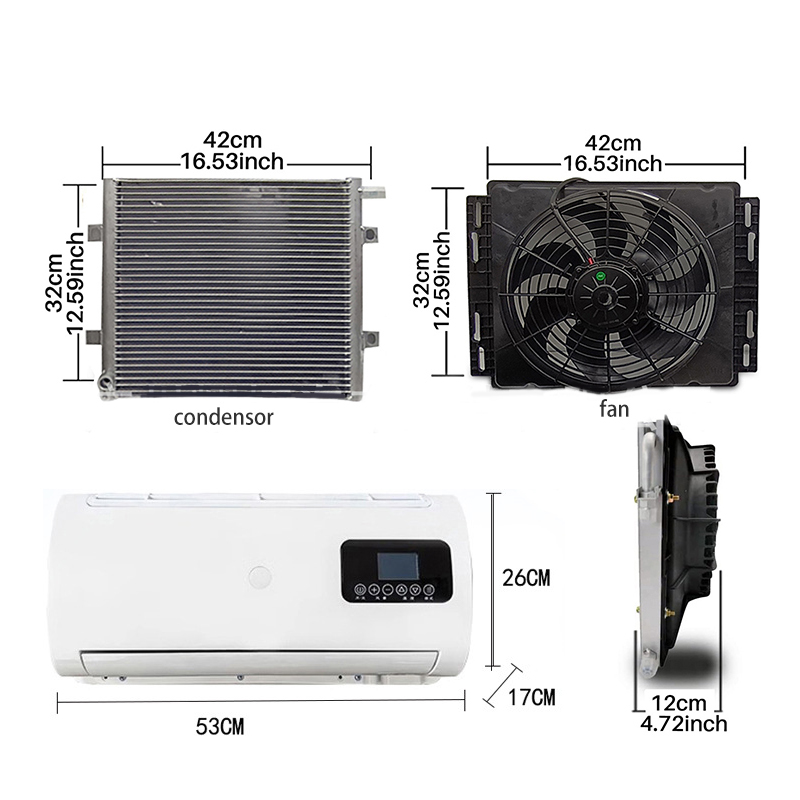

Hign densty condensor and seven-leaf fan
Details Images

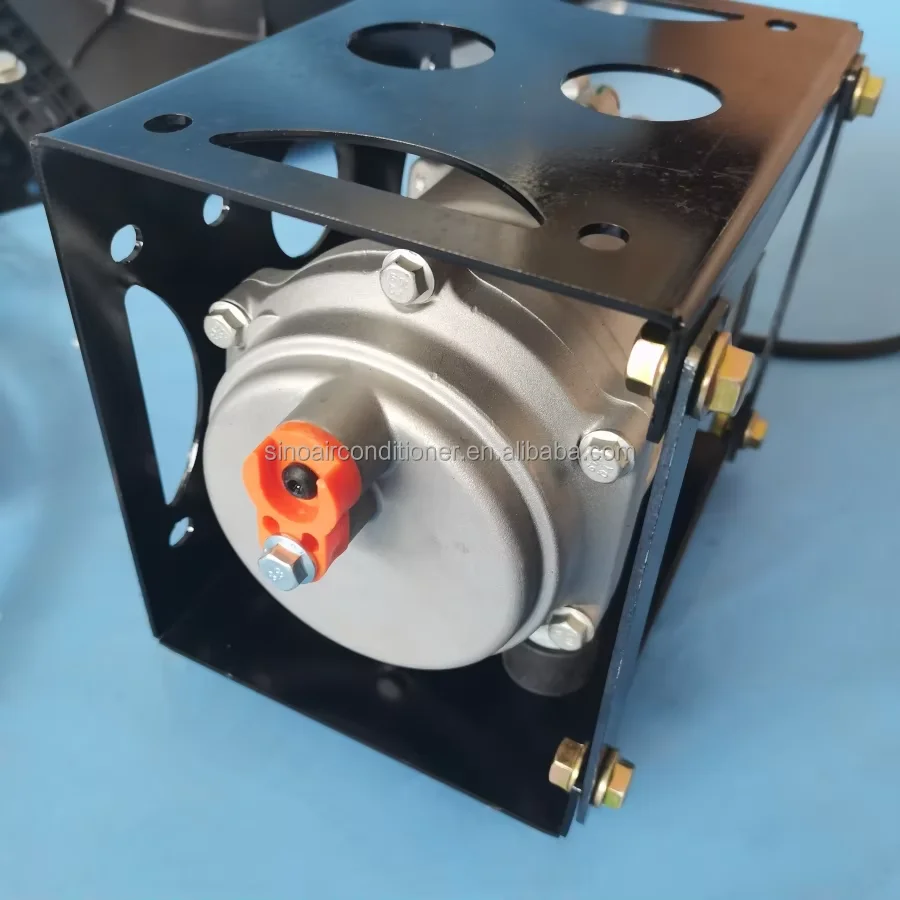

Scroll compressor
High efficiency and low energy consumption High mechanical efficiency: the volumetric efficiency can reach more than 95%. High isentropic efficiency: the compression process is close to isentropic process, which saves energy by 10%~15% compared with reciprocating compressor. Low start-stop loss: frequent start-stop is not required, reducing energy waste. Smooth operation, low noise and vibration.High reliability and long service life Simple structure and less wear.
Aluminum evaporator:
Lightweight: 65% lighter than copper, suitable for vehicle-mounted and portable air conditioners. Efficient heat exchange: optimize design (such as microchannel) to improve thermal conductivity. Corrosion resistance: surface treatment is corrosion resistant and has long service life. Low cost: materials and processing costs are lower than copper. Environmental protection: 100% recyclable, in line with green standards. Compact design: thinner structure, saving space.

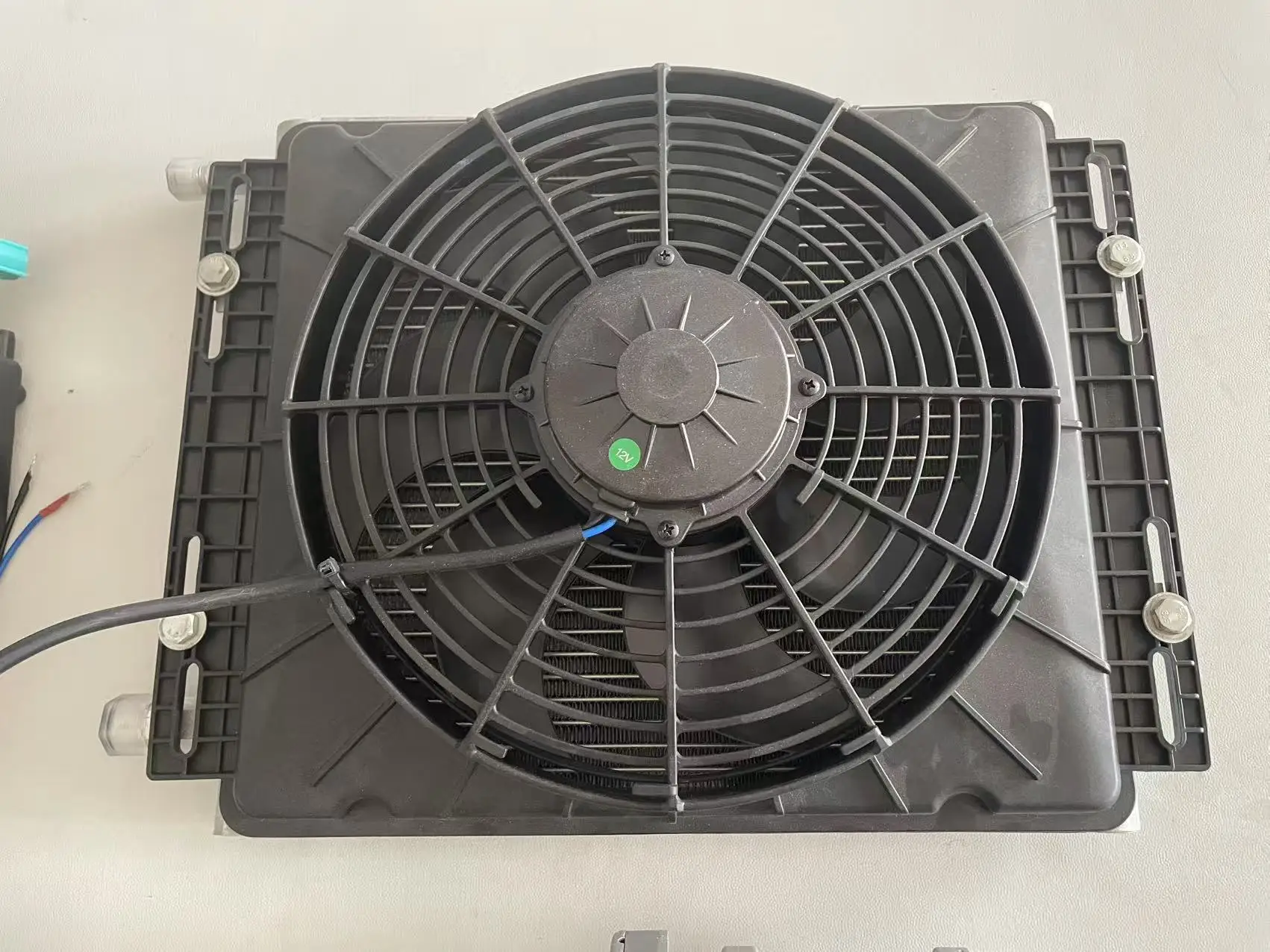

Seven-leaf design has larger and more uniform air volume and faster cooling
Low noise operation:The number of blades is large, which reduces the rotation frequency and has less noise than the traditional five-blade fan. Save energy and electricity:Optimize the blade profile to reduce wind resistance, reduce motor load and prolong the battery life.
Electric auto swing air outlet
Peculiarity:Driven by a micro motor, automatic sweeping (multi-angle oscillation) is realized.
Advantage:The air supply is even, avoiding direct blowing, and improving comfort.
Support remote/panel control, integrated into smart air conditioning systems.
Advantage:The air supply is even, avoiding direct blowing, and improving comfort.
Support remote/panel control, integrated into smart air conditioning systems.
Title goes here.
Brackets and bezels*1
Mounting screws*1
Power cord 3 meters*1
Lowpressorpipe*1
Hign pressorpipe*1
Signal lines for external units*1
Remote control*1
Mounting screws*1
Power cord 3 meters*1
Lowpressorpipe*1
Hign pressorpipe*1
Signal lines for external units*1
Remote control*1

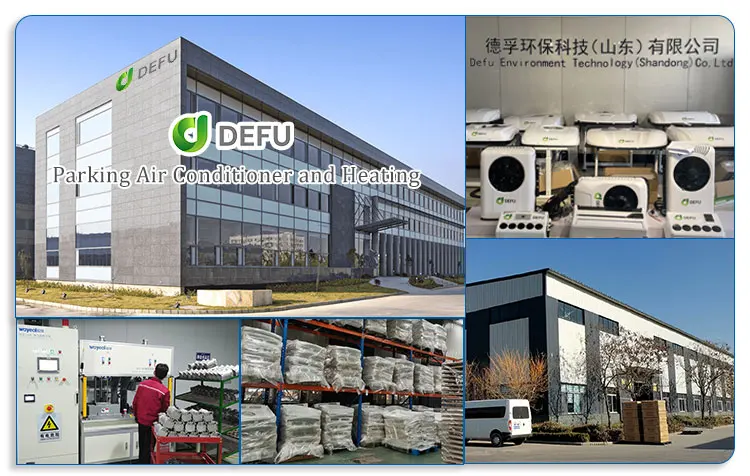

Company Profile
Dezhou Sino Air Conditioner Equipment Co., LTD. With standard workshops over 35,000 square meters, our factory covers an area of 80 acres. Concentrating on automotive air treatment, we manufacture air conditioners, heaters, filters, generators and so on, more than 50 types. including Swiss CNC machining equipment, Japanese turning-milling composite processing equipment, German CNC grinder, Japanese three-coordinate measuring machine, ect. Being responsible is a basic requirement for every member in Sino Air.We are dedicated to customers' satisfaction and our business. From first time consulting, placing order, production management, shipment to after sale service, all details will be seriously taken by our team members.
FAQ
1. How many hours can the unit work?
For 400Ah battery, it can work around 8-10 hours at night, around 6-8 hours in the day because it’s hotter during the day and you may adopt the strong wind mode.
For 400Ah battery, it can work around 8-10 hours at night, around 6-8 hours in the day because it’s hotter during the day and you may adopt the strong wind mode.
2. How loud is it?
It is under 50dB, it won't create loud noise.
3. Does this unit comes with interior control panel and remote? Is this a complete unit?
Yes, it is a complete unit with control panel and remote.
4. Is the unit fully self-contained? Or does it require compressor connecting as well?
The unit is fully self-contained.
5. What all else besides unit would i need to purchase in order for unit to function properly?
Nothing else. You will need a minimum of 100amps battery to run the unit.
6. Do you have installation video?
Yes. It takes around 1 hour to install a unit.
It is under 50dB, it won't create loud noise.
3. Does this unit comes with interior control panel and remote? Is this a complete unit?
Yes, it is a complete unit with control panel and remote.
4. Is the unit fully self-contained? Or does it require compressor connecting as well?
The unit is fully self-contained.
5. What all else besides unit would i need to purchase in order for unit to function properly?
Nothing else. You will need a minimum of 100amps battery to run the unit.
6. Do you have installation video?
Yes. It takes around 1 hour to install a unit.
