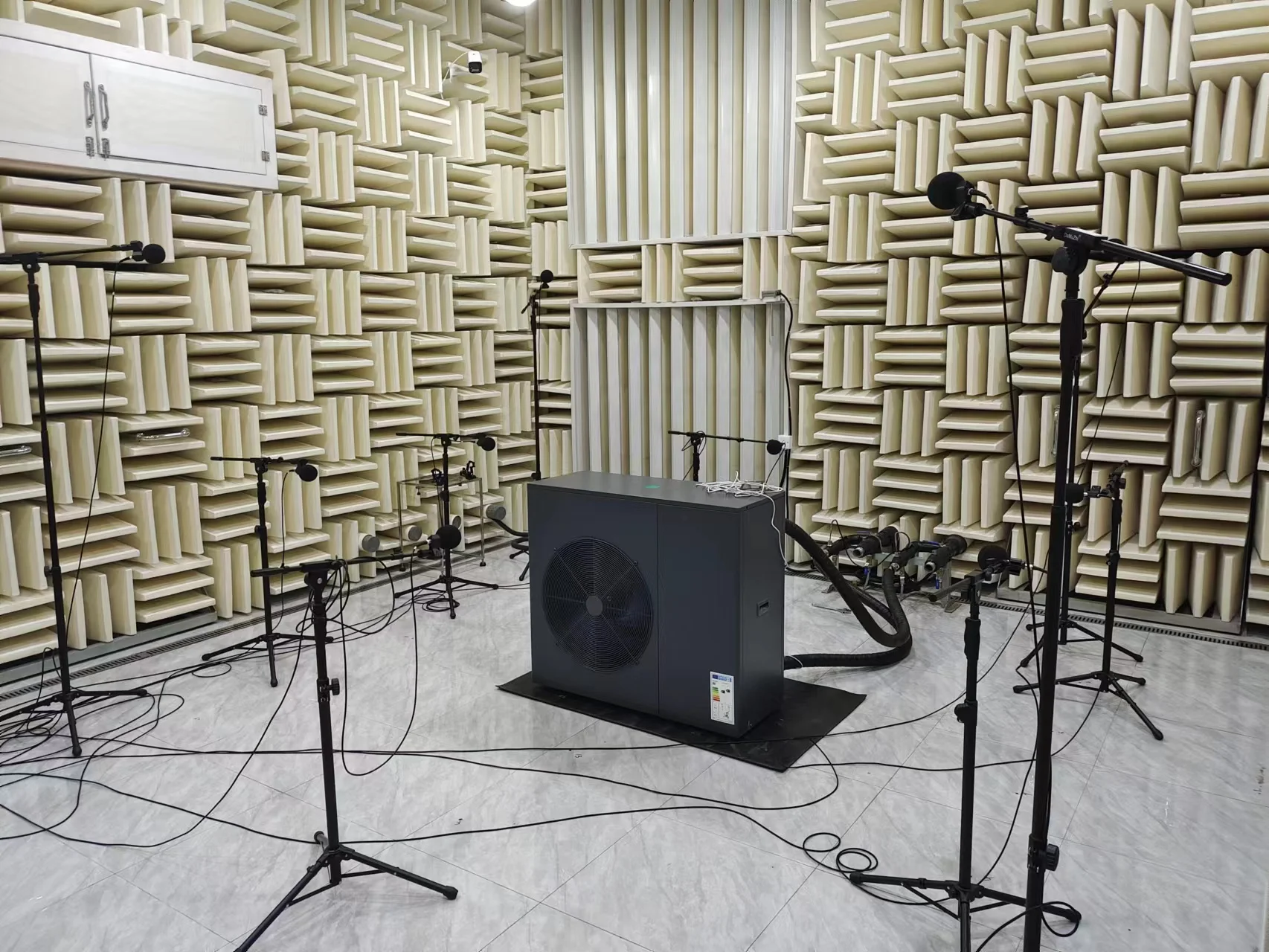

Thanks to the patented silent design, it makes a quieter swimming environment and a friendly neighborhood for you. The sound level is only 45 dB.
Above Ground 3kw Swimming Pool Heat Pump Water Heating Cooling Mini Pool Heater
価格:
$633.36
/Pc
払い戻し:
シェア:
売れ筋商品
Products Description

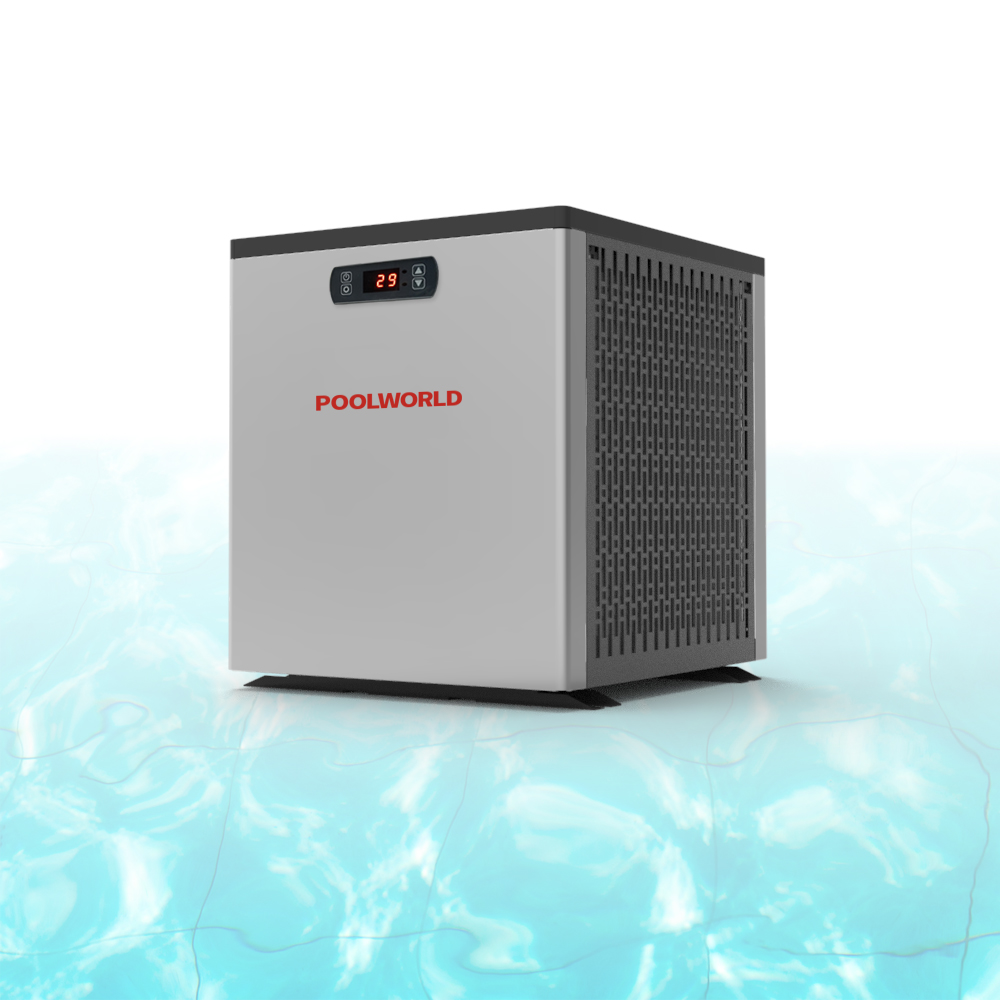

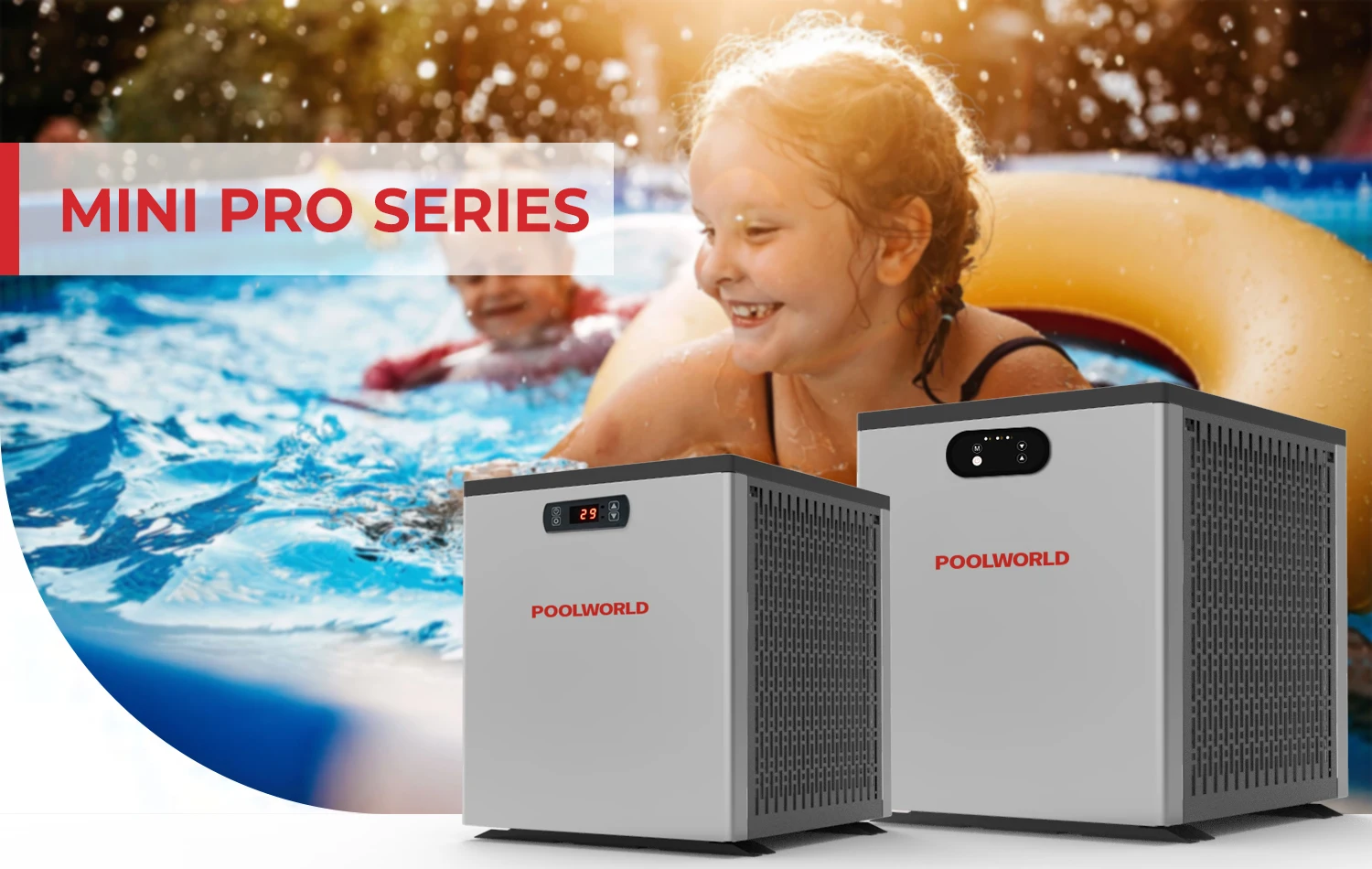

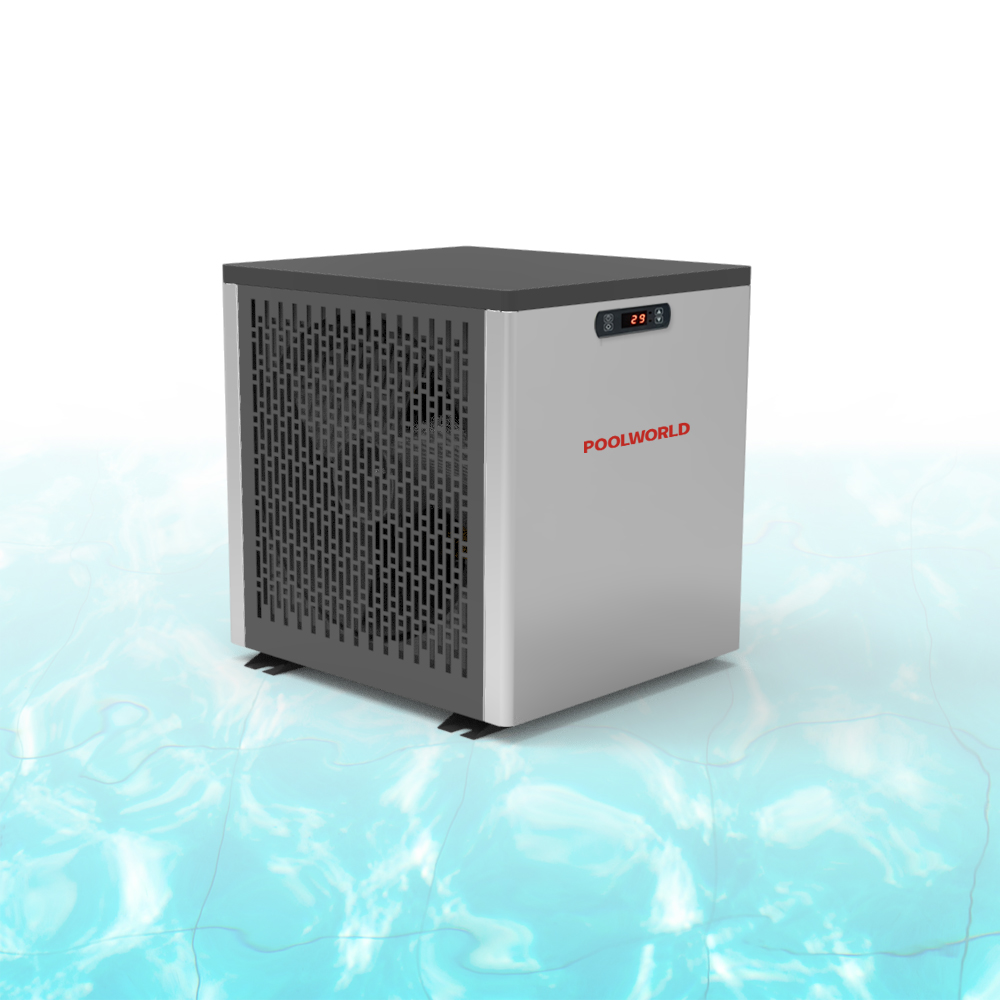

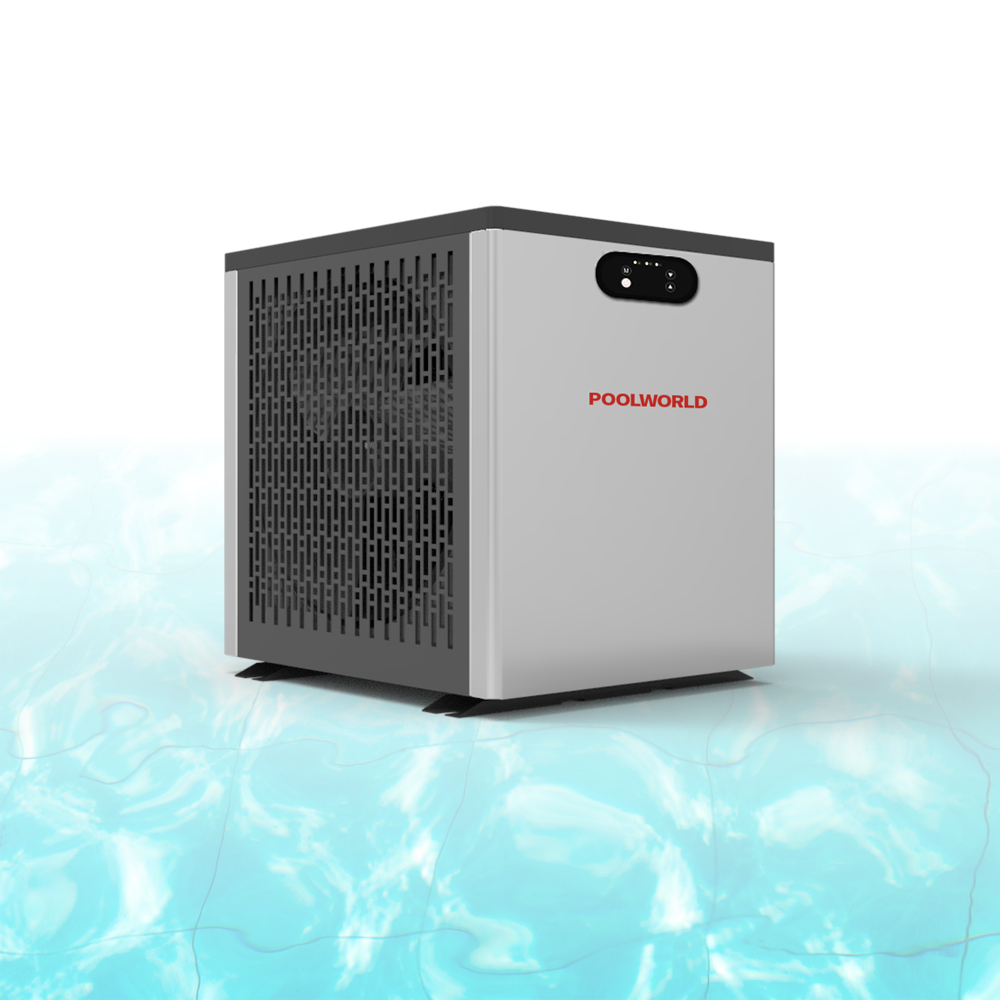

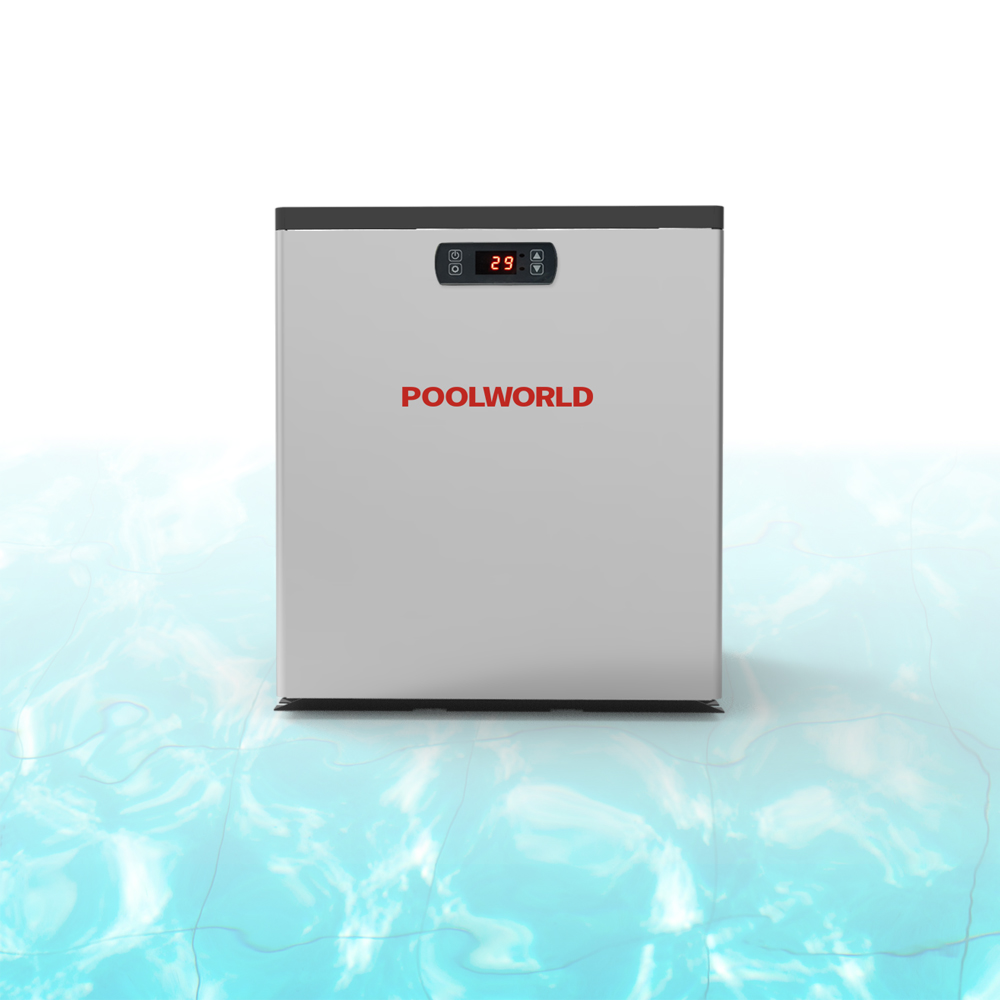

Mini Pro Series Swimming Pool Heat Pump
The Mini Pool Heat Pump is a new model available in the pools & spa market. It is featured by quick installation without previous installation or specifying a by-pass.
It is a Plug & Play product that is placed on the same circuit as the pool filtration.
They are very economic and effective pool heat pumps.
The range of ON/OFF Mini Pro Series, which is featured by quick start & fast heating, is composed of 4 models for pools & spas up to 15m³, 20m³, 22m³, and 25m³. It can be installed for any type of pool: wood, steel, composite, inflatable, or tubular and also adapts to small and medium pools.

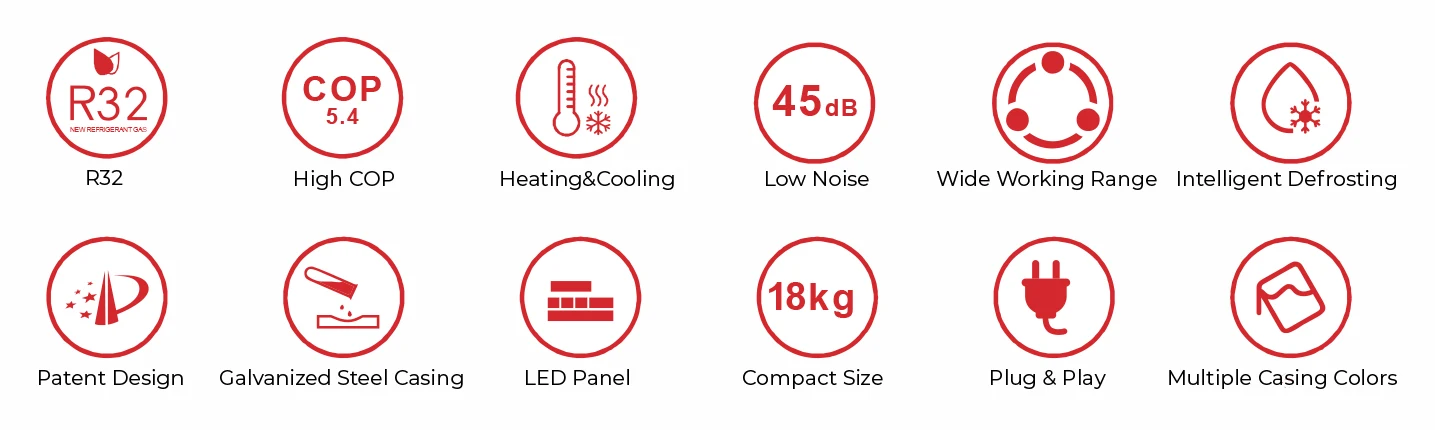

Main Features

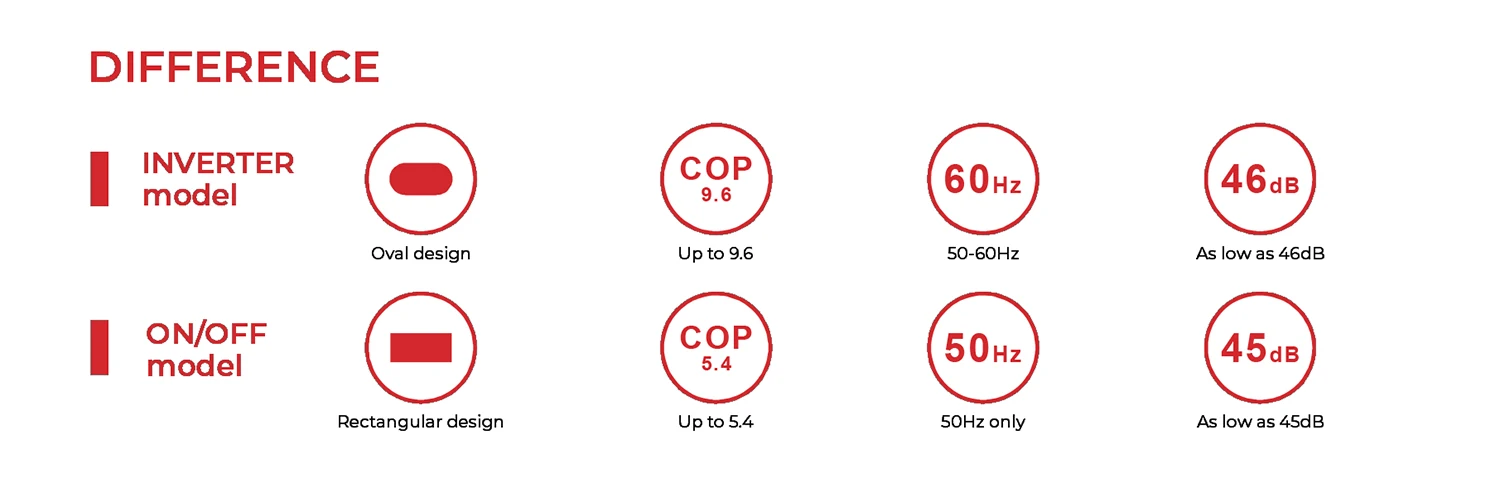

INVERTER VS ON/OFF
* Different control panel, ON/OFF model is a rectangular design, while INVERTER model is an oval design.
* Different COP, ON/OFF model reaches as high as 5.4, INVERTER model reaches as high as 9.6.
* Different frequency, ON/OFF model can only be 50Hz, while INVERTER model can reach 60Hz.
* Different noise level, ON/OFF model is 45dB, while INVERTER model is 46 dB.
* Different COP, ON/OFF model reaches as high as 5.4, INVERTER model reaches as high as 9.6.
* Different frequency, ON/OFF model can only be 50Hz, while INVERTER model can reach 60Hz.
* Different noise level, ON/OFF model is 45dB, while INVERTER model is 46 dB.
Our Advantages

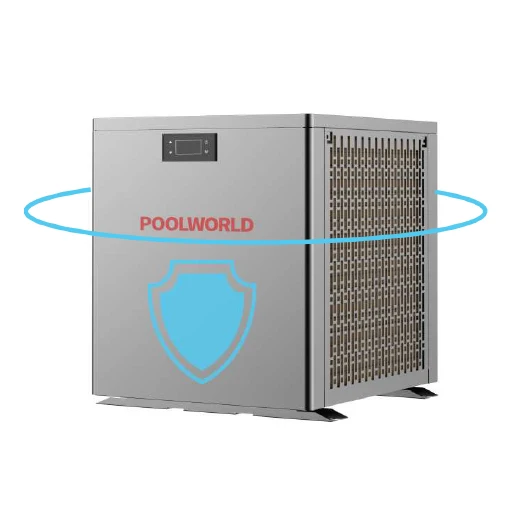

ANTI-CORROSION CASING
The product adopts a screwless design as a whole. The color of the unit is uniform, which means a minimalist design style. Regarding the color of the unit, it also provides customers with several colors of anti-corrosion spraying materials to choose from. With the precise spraying process, the galvanized steel unit has ultra-high corrosion resistance.

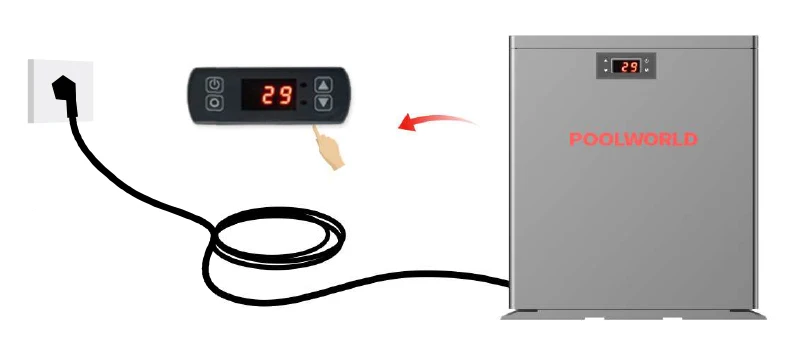

PLUG & PLAY
With the compact size and powerful LED panel, the plug & play and quick installation & start of this product bring a more comfortable and more convenient experience to our customers.

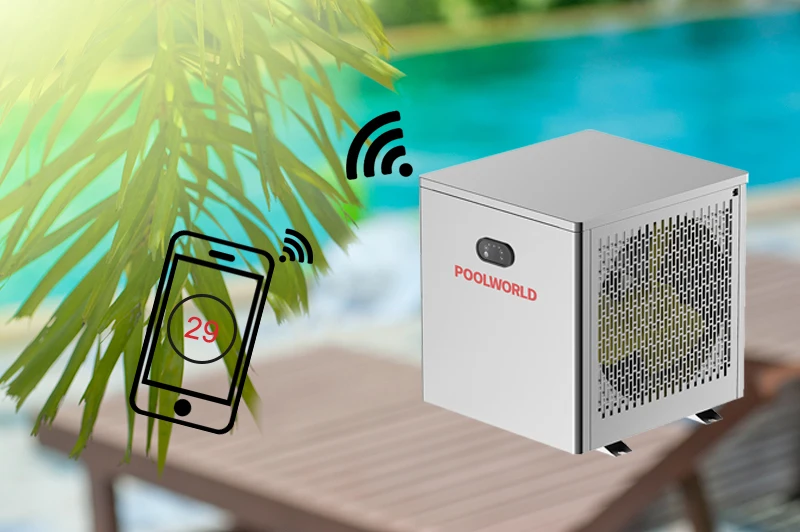

APP CONTROL
The Wi-Fi function is built into the control panel.
When you want to adjust the temperature of the swimming pool from a certain distance, as long as you configure the network for the unit when you use it for the first time, just click on the APP on your phone, and then you can control it from anywhere on the earth, but you need to make sure that your phone is connected to the Internet, and then you can change the temperature or other settings as needed.
Product Paramenters
|
Model
|
PW08-CY-DCF
|
PW15-CY-DCF
|
||
|
Advised pool volume (m3)
|
10~20
|
15~25
|
||
|
Operating air temp. (℃)
|
-5~43℃
|
|
||
|
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
|
|
|
||
|
Heating capacity (kW)
|
4.0~1.0
|
5.5~1.4
|
||
|
Heating capacity(Btu)
|
13600~3400
|
18700~4760
|
||
|
Consumed power (kW)
|
0.8~0.11
|
1.1~0.15
|
||
|
COP
|
5.0~9.5
|
5.0~9.6
|
||
|
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
|
|
|
||
|
Heating capacity (kW)
|
2.5~0.65
|
3.7~0.8
|
||
|
Heating capacity(Btu)
|
8500~2210
|
12580~2720
|
||
|
Consumed power (kW)
|
0.6~0.1
|
0.9~0.13
|
||
|
COP
|
4.0~6.1
|
4.0~6.0
|
||
|
Performance Condition: Air 35℃,Water 28℃, Humidity 80%
|
|
|
||
|
Cooling capacity (kW)
|
2.0
|
3.3
|
||
|
Sound pressure at 1m dB(A)
|
46
|
48
|
||
|
Sound pressure at 10m dB(A)
|
30
|
32
|
||
|
Heat exchanger
|
Spiral titanium tube in PVC
|
|
||
|
Casing
|
Metal Casing
|
|
||
|
Power supply
|
220 ~240V/1Ph/50Hz~60Hz
|
|
||
|
Water connection (mm)
|
Φ32
|
|
||
|
Rated input current at air 15℃(A)
|
2.6~0.4
|
3.9~0.57
|
||
|
Water flow volume(m³/h)
|
1.5-2.0
|
2.0-2.5
|
||
|
Water pressure drop (max) kPa
|
2
|
4
|
||
|
Net weight/Gross weight(kg)
|
26/28
|
34/37
|
||
|
Net size(mm)
|
394*444*435
|
498*499*500
|
||
|
Package size(mm)(carton)
|
420*510*485
|
555*576*542
|
||
|
Package size(mm)(Polywood)
|
437*510*475
|
572*576*545
|
||
|
Loading QTY (20GP/40GP/40HQ)
|
208/416/520
|
144/288/288
|
||
|
Refrigerant consumption(g)
|
180
|
To be pending
|
||
|
Refrigerant
|
R32
|
|
||
|
Compressor type/QTY
|
Rotary type/1
|
|
||
|
Defrosting
|
By four-way valve
|
|
||
|
Throttle device
|
Electronic expansion valve
|
|
||
|
Operating water temp. (℃) heating
|
9 ~43
|
|
||
|
Operating water temp. (℃) cooling
|
9 ~35
|
|
||
|
Note:
The data above is for reference only. Please refer to the nameplate on the unit for more specific data. |
|
|
||

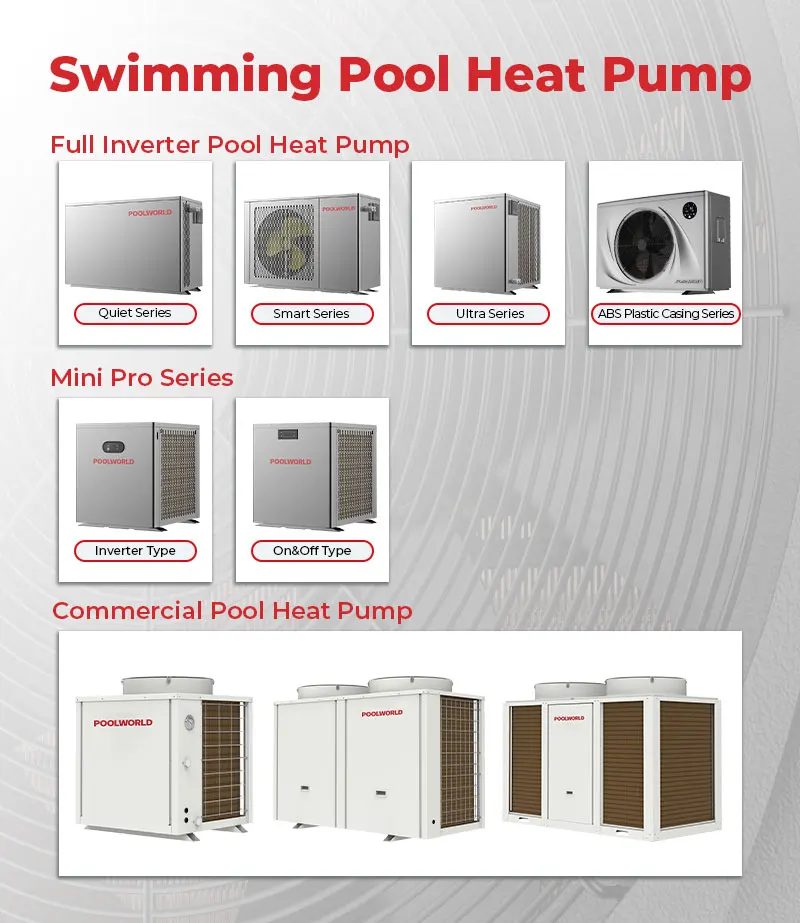

Recommend Products

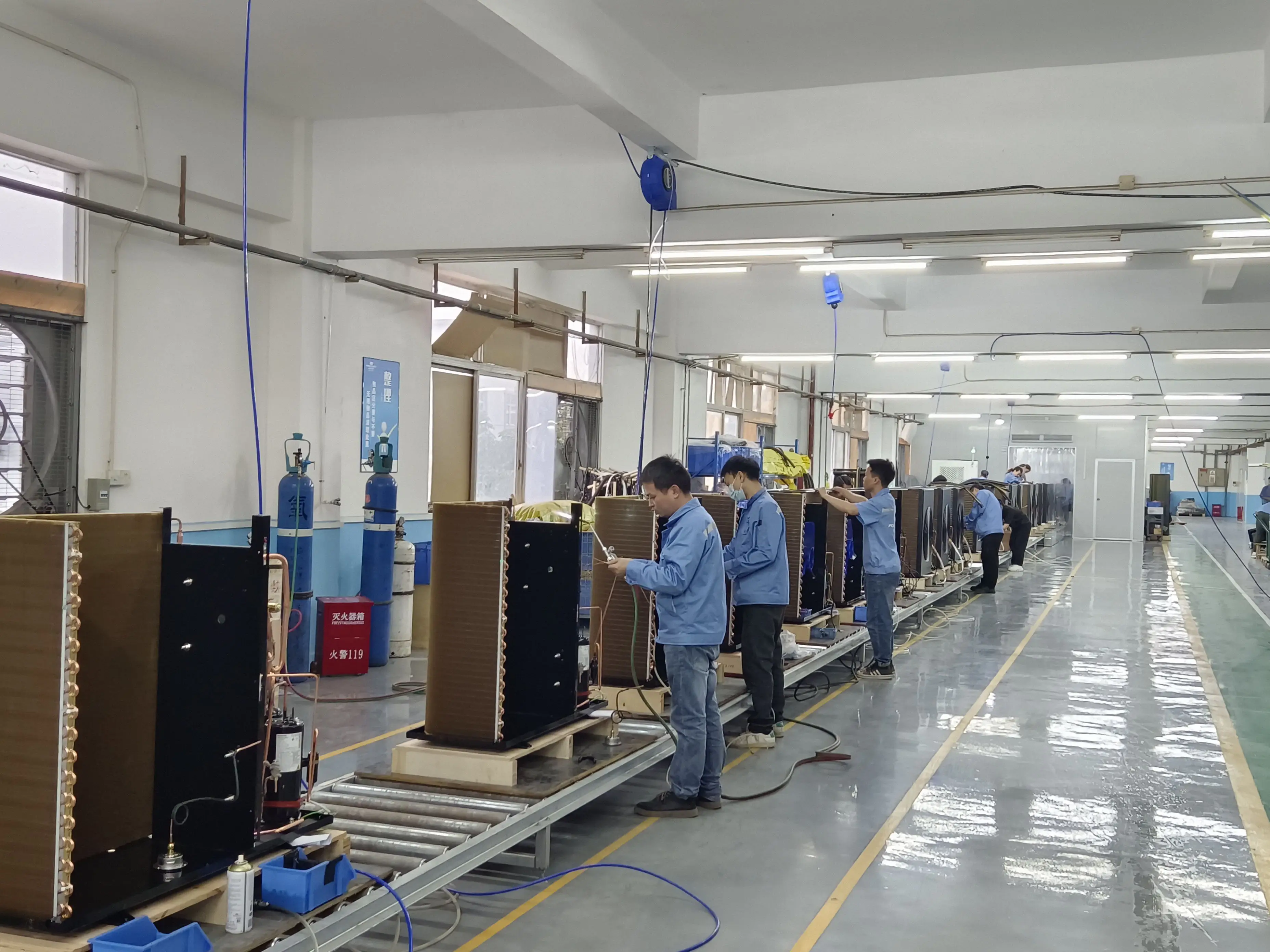

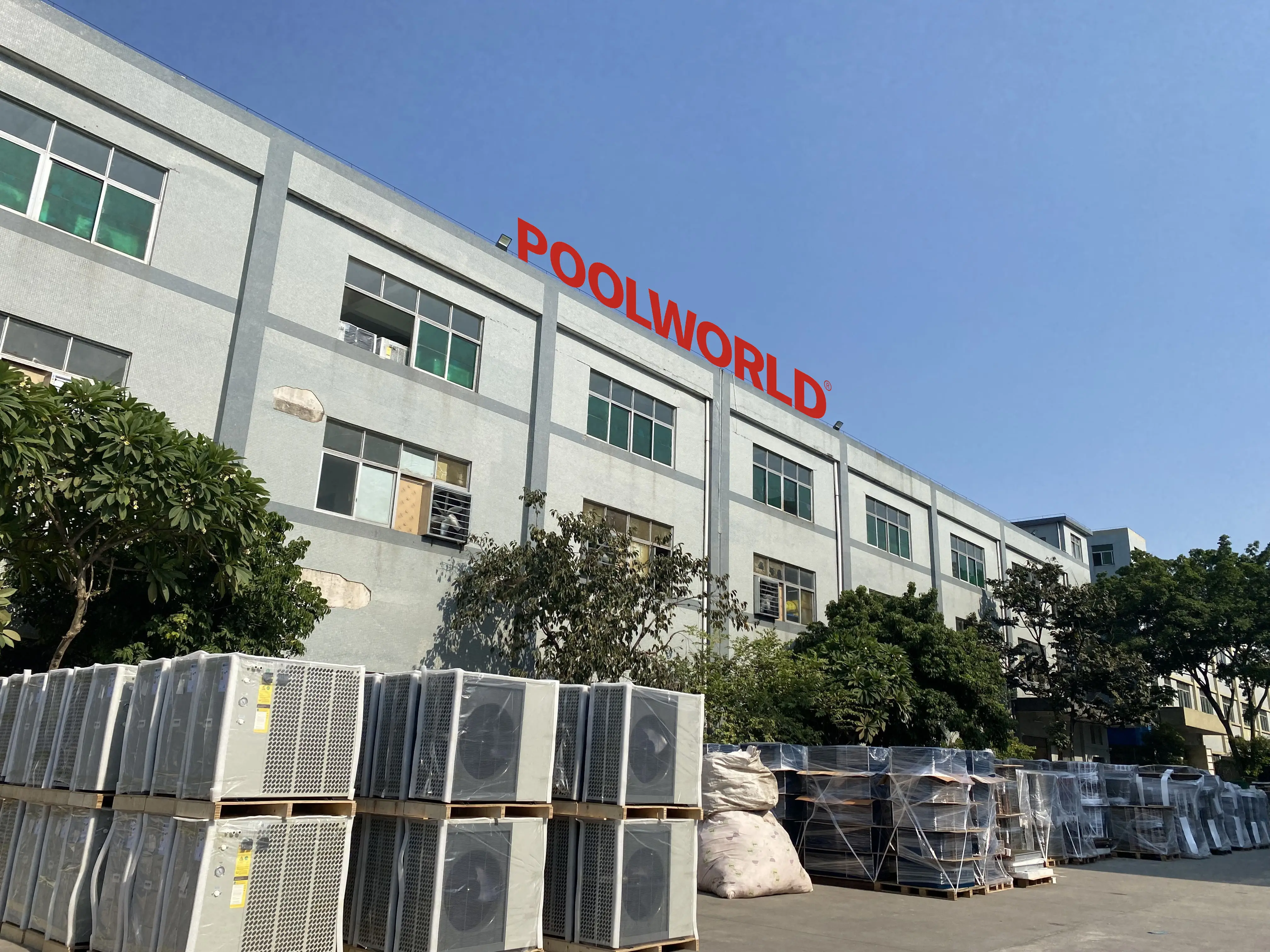

Company Profile
Guangzhou Pool World Environmental Technology Co., Ltd

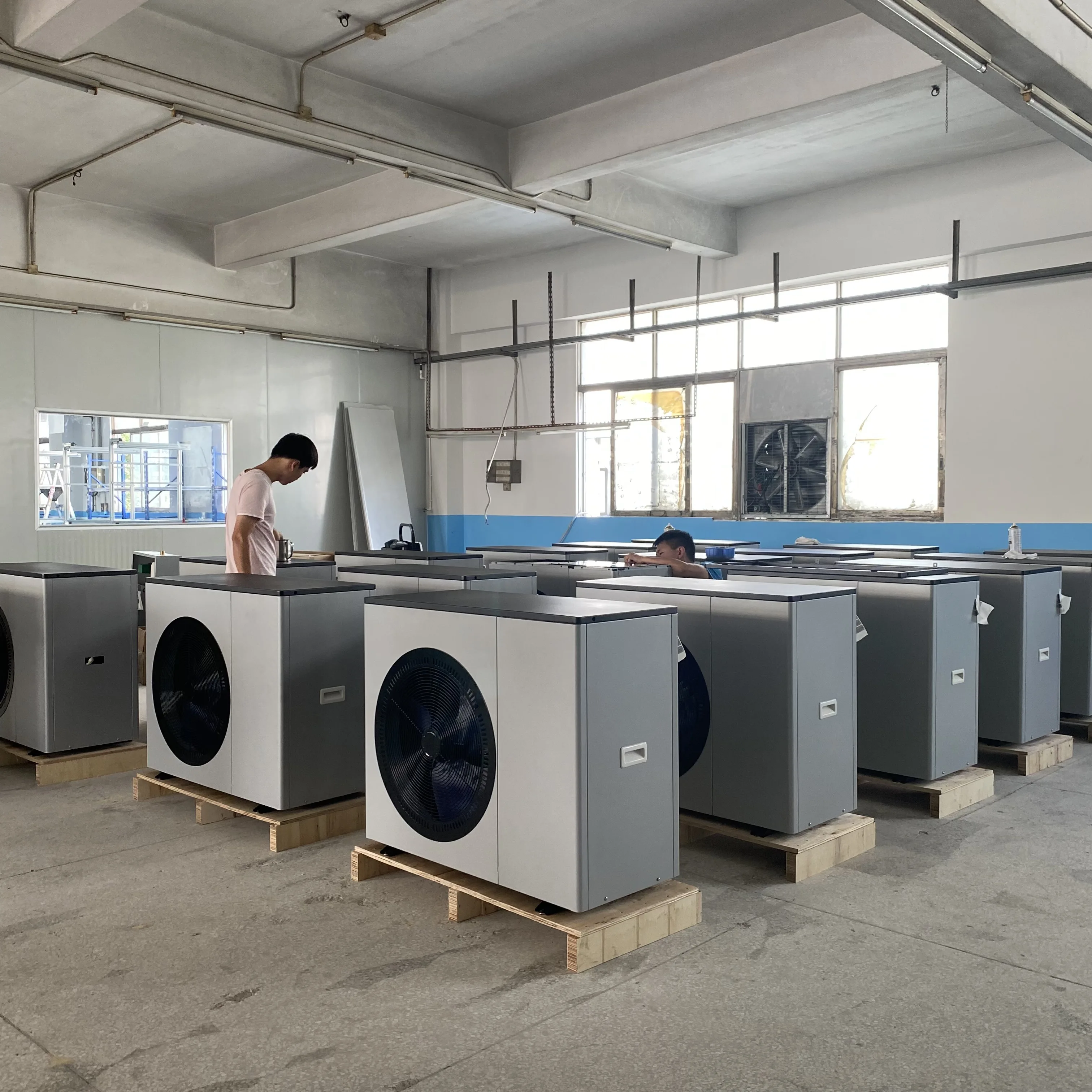

Guangzhou Pool World Environmental Technology Co.,Ltd specializes in heat pump R&D, manufacturing and providing comprehensive energy-saving heating solutions to worldwide market since 2008, our factory is located in Dongguan, China,
which respectively manufacture heat pumps including pool heat pumps\Heating&Cooling&DHW Heat Pump etc., covering an area of 30,000 square meters, with 4 international laboratory attained EN14511 certificate(TUV certificated) and more than 50 R&D professional engineers, Pool World has obtained 416 patents, the products were certificated by CE,CB, ROHS, and passed the European EN14825 and EN14511 energy efficiency certificate which is complied strictly based on the latest EHPA requirement,most products are exported to Europe, Southeast Asia, South America, Middle East markets.
With over 13 years export experience,Pool World has the rich experience and the good knowledge with our professional, worldwide and customer oriented team are trained to support our partners in finding the right solution that satisfies their requirements. We are conscious that our customers are the most valuable part of our business. Therefore, we focus on giving the product quality and service that exceeds your expectations, with integrity, professionalism, and a teamwork approach.
We will strive to exceed expectations,boost the enterprise energy conservation and keep promoting the environment protection all the time.
OEM & ODM Support
01. OEM
POOLWORLD provides high efficiency air source heat pumps for your brand.
02. ODM
POOLWORLD custom manufactures heat pumps to your design.
03.POOLWORLD Provides the Following Services for Your OEM/ODM:
√ Produce European standard products with your brand/logo.
√ Shape, color and material can be customized according to your needs.
√ Customized parameter specifications according to your architecture.
√ Produce heat pump with competitive ex-factory price to guarantee your satisfactory profit.
√ Sign a non-disclosure agreement!
We will implement your heat pump OEM/ODM strategy. Let us hear from you and start your project.
POOLWORLD provides high efficiency air source heat pumps for your brand.
02. ODM
POOLWORLD custom manufactures heat pumps to your design.
03.POOLWORLD Provides the Following Services for Your OEM/ODM:
√ Produce European standard products with your brand/logo.
√ Shape, color and material can be customized according to your needs.
√ Customized parameter specifications according to your architecture.
√ Produce heat pump with competitive ex-factory price to guarantee your satisfactory profit.
√ Sign a non-disclosure agreement!
We will implement your heat pump OEM/ODM strategy. Let us hear from you and start your project.
Pre-sales service

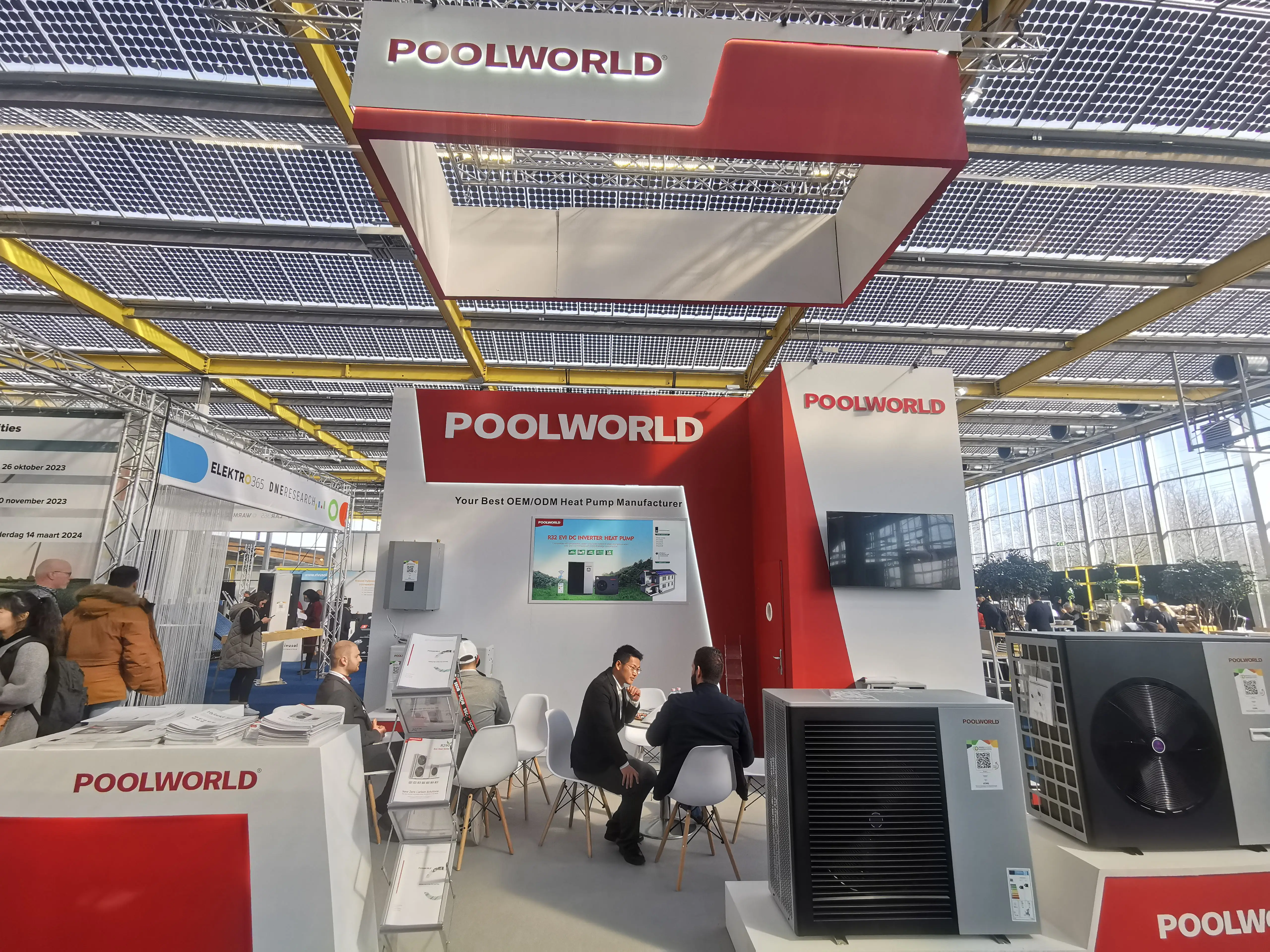

01. EXPO Participation
Even during the epidemic, we participated in various exhibitions around the world, rain or shine, to promote the concept of
environmental protection to the world.
02. Marketing Support
Provide promotional materials of various media, including catalogs, brochures, data, videos, etc. Through various forms, customers can feel the high quality of POOLWORLD products in all directions.
Even during the epidemic, we participated in various exhibitions around the world, rain or shine, to promote the concept of
environmental protection to the world.
02. Marketing Support
Provide promotional materials of various media, including catalogs, brochures, data, videos, etc. Through various forms, customers can feel the high quality of POOLWORLD products in all directions.
In-sales service
01. Instant Answer and Model Selection
24-hour online customer service provides global customers with answers to various questions including model selection, technology,etc.
24-hour online customer service provides global customers with answers to various questions including model selection, technology,etc.
02. Certificate Application
According to your market, apply for the required certification to ensure that your buying and selling process is smooth.
According to your market, apply for the required certification to ensure that your buying and selling process is smooth.
After-sales service
01. Warranty Service
From the moment the customer receives the product, we will provide various warranty services including spare parts, maintenance,
and repairs according to different situations.
02. After-sales Center
24 hours global customer service. Professional technicians in overseas markets, plus the after-sales center built in Germany,
provide you with detailed technical assistance from online to offline.
03. Marketing Guidance
Experienced marketing experts will provide you with a marketing career in your market and help every dealer enter the heat pump
environmental protection industry and grow together.
From the moment the customer receives the product, we will provide various warranty services including spare parts, maintenance,
and repairs according to different situations.
02. After-sales Center
24 hours global customer service. Professional technicians in overseas markets, plus the after-sales center built in Germany,
provide you with detailed technical assistance from online to offline.
03. Marketing Guidance
Experienced marketing experts will provide you with a marketing career in your market and help every dealer enter the heat pump
environmental protection industry and grow together.

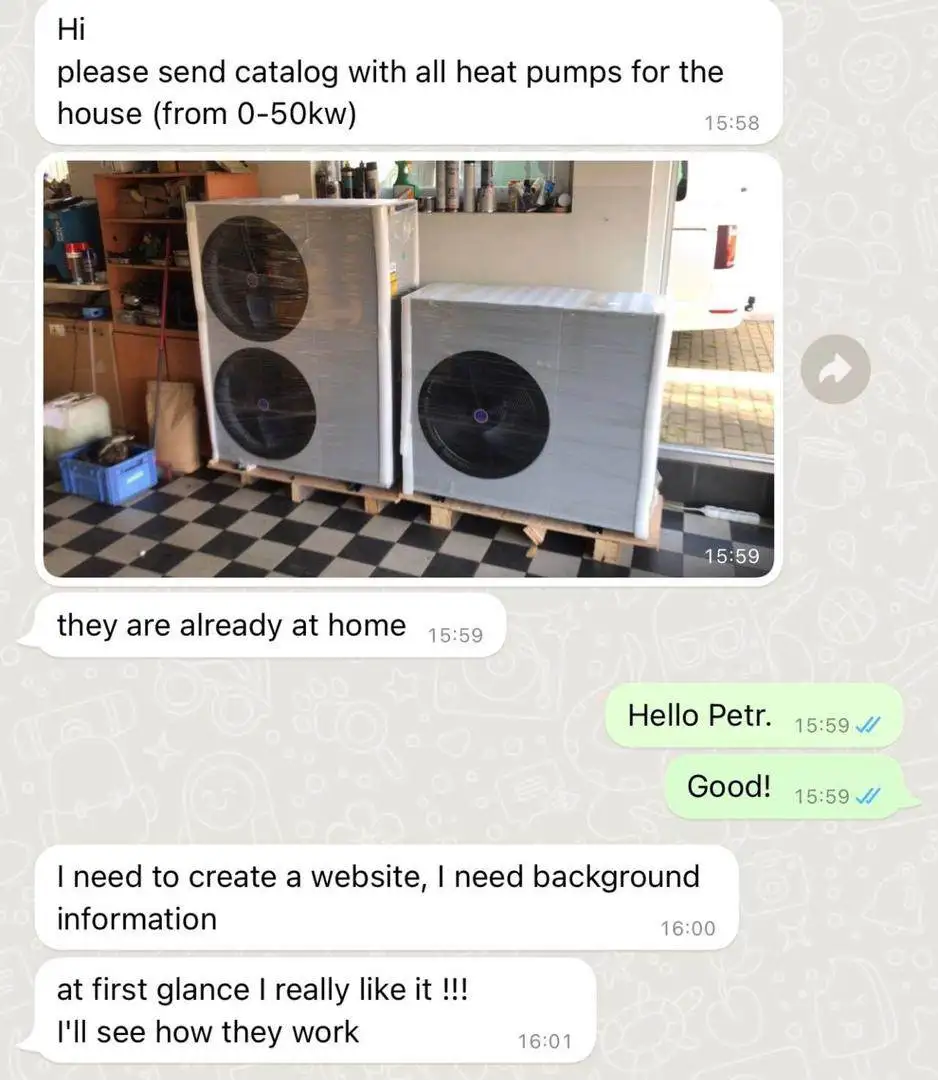

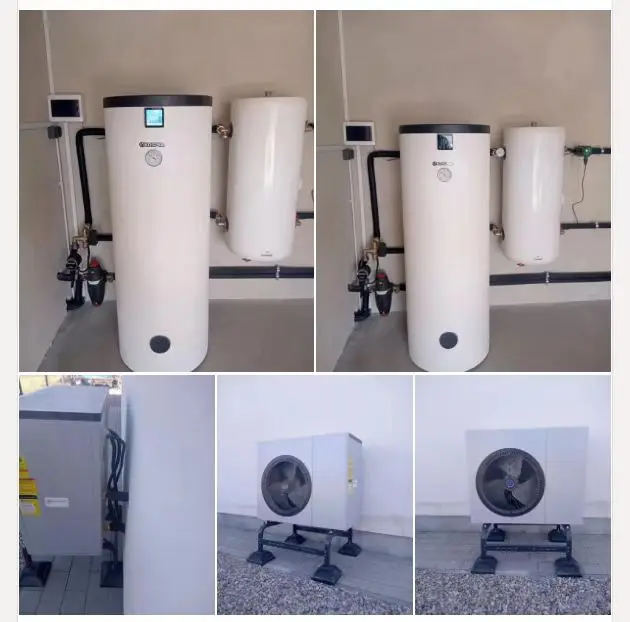

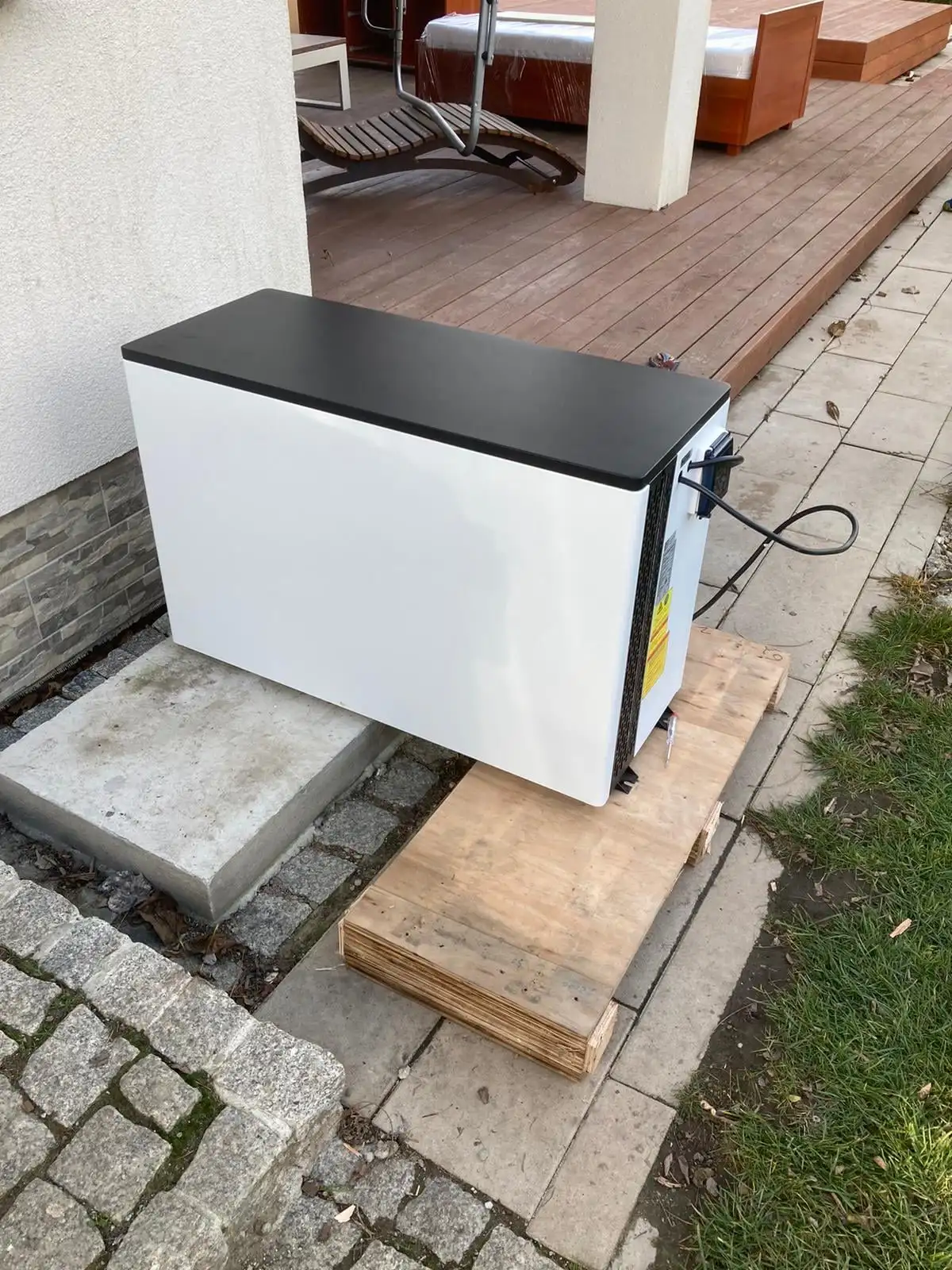

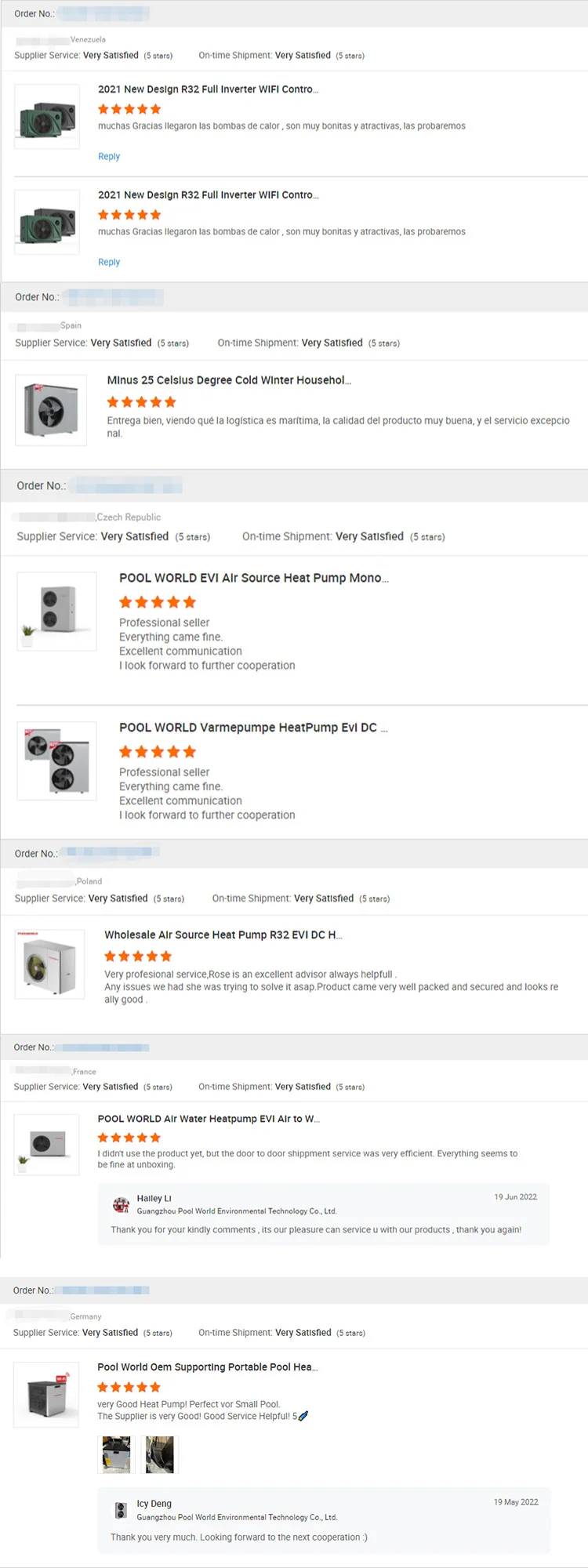

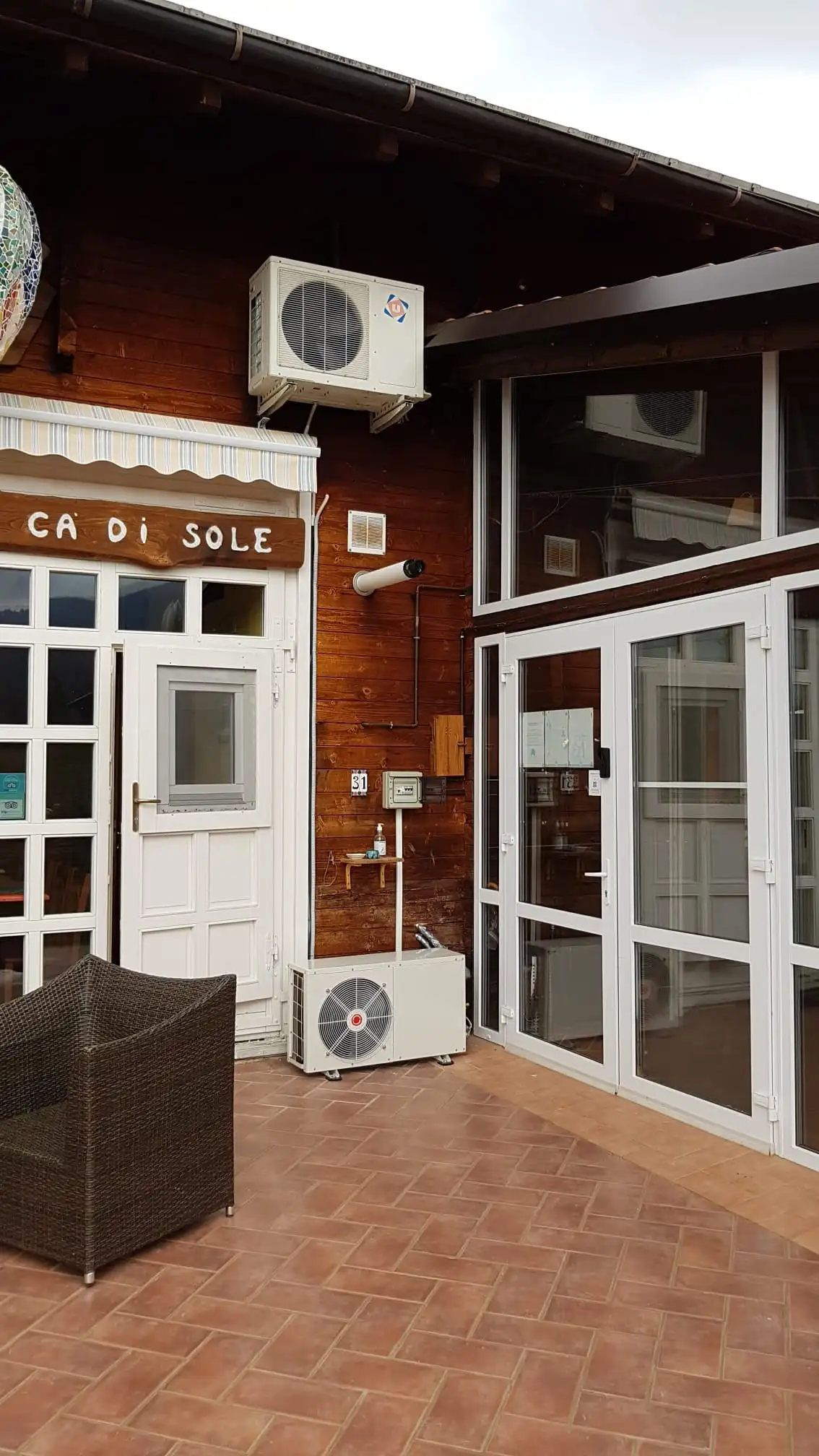

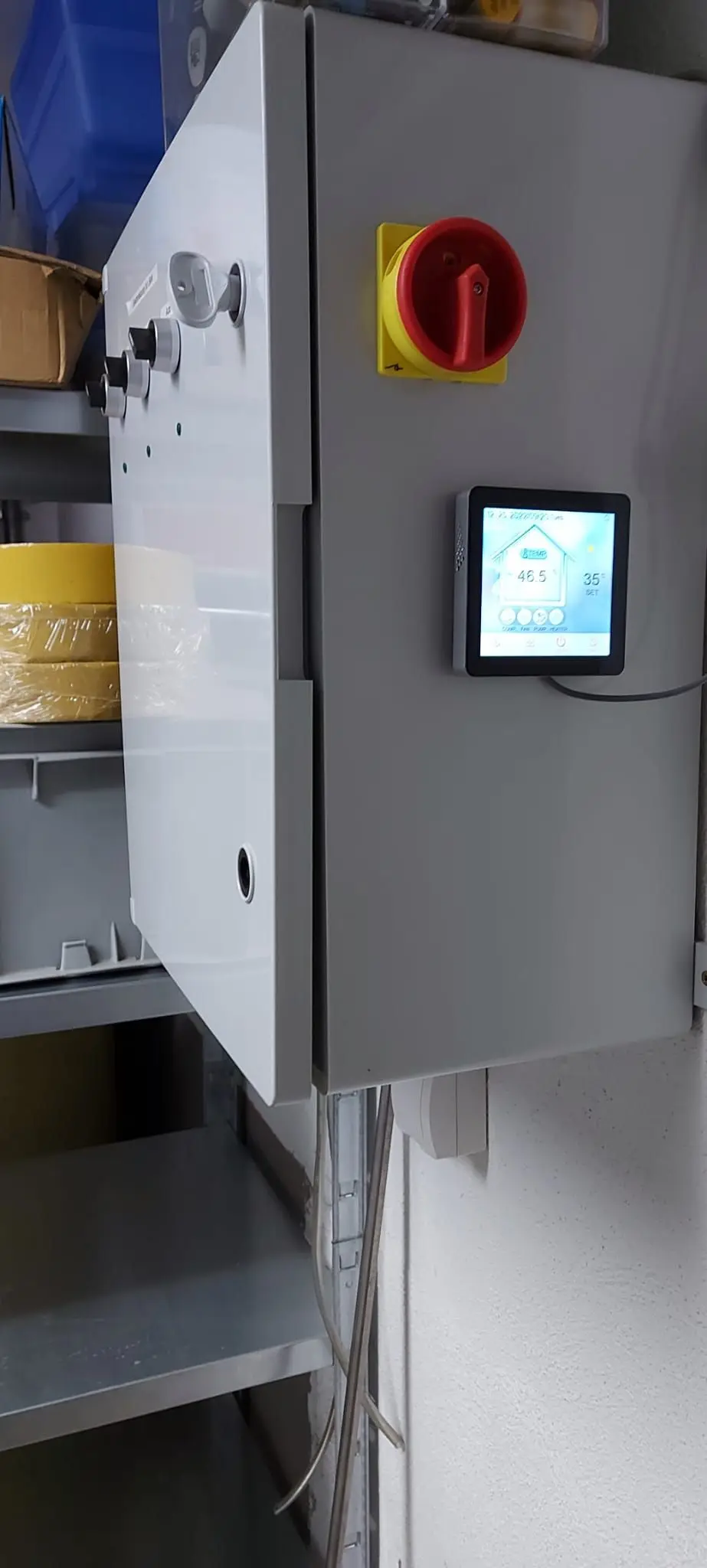

Client feedback
