Customized Street Sweeping Clean Road Truck Robot Industrial Vacuum Sweeper Electric Motor 48V Provided Floor Cleaning Machine
価格:
$5,621.61
/Pc
払い戻し:
シェア:
売れ筋商品
PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com
CONTACT US:
Product Description
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com
CONTACT US:
Product Description

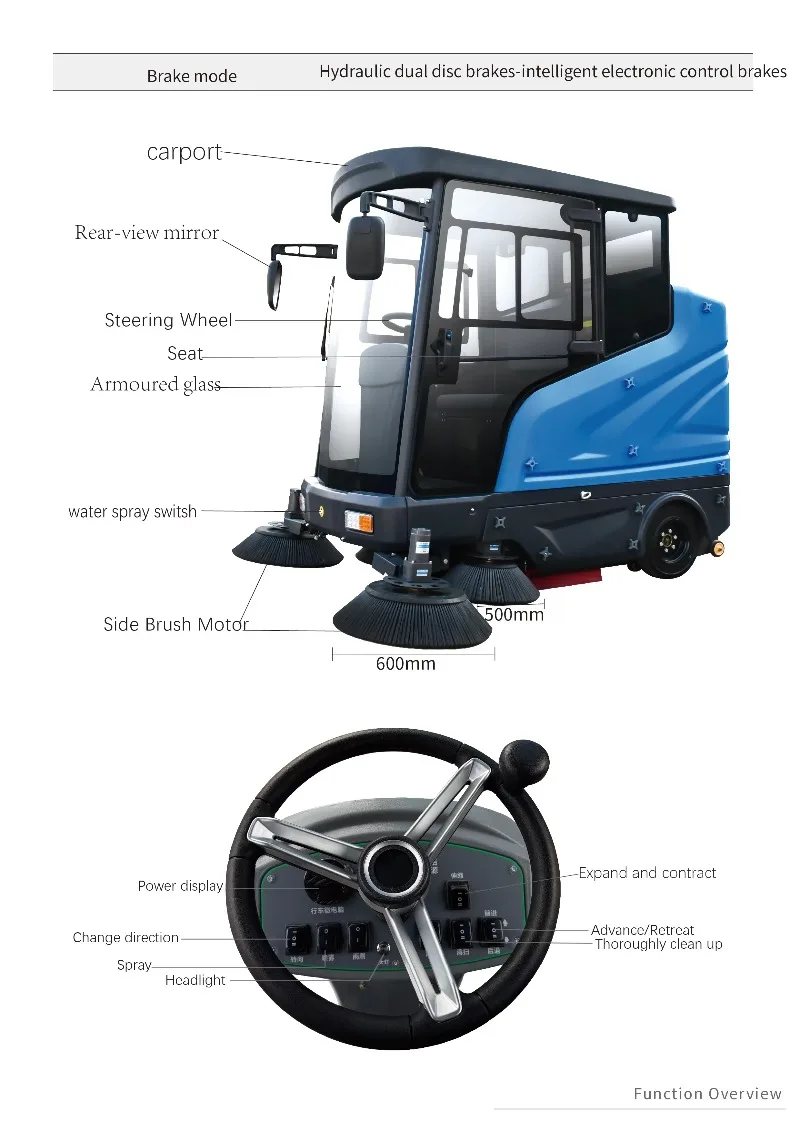

Product characteristics
1. Use colloid maintenance-free batteries to provide power. It operates smoothly and has low noise, especially suitable for indoor and noise limited environment.
2. Center operator's seat, with a wide view; control the steering wheel, lightweight and reliable.
3. Built-in adjustable side brush, with high-speed main brush, can greatly improve the cleaning efficiency.
4. Built-in vacuum cleaning system, combining mechanical cleaning and vacuum cleaning, can effectively reduce the dust generated during cleaning.
5. Front lighting, suitable for night operation.
6. The drum-type dust filter significantly increases the filtering area within a limited volume, which can effectively reduce the wind resistance of the vacuum cleaning system and improve the suction of the vacuum cleaning system.
7. The filter is equipped with a dust-removing motor, which can conveniently clean the dust on it.
8. Adopt a heavy-duty steel chassis, durable wear-resistant solid tires, and a sensitive and reliable hydraulic brake device.
9. Equipped with yellow flashing warning lights to improve the safety when working and walking.
10. Adopt the design scheme of easy dismantling of the machine. It is convenient to replace the main brush, filter and other parts.
11. Use brushless drive motor to reduce operation faults and reduce power consumption.
12. Use four side brushes for cleaning, which can greatly improve the cleaning efficiency.
13. The lifting of the cleaning mechanism adopts an automatically controlled electric push rod, which is more convenient and reliable.
14. Equipped with in-line rear high level spray system, which can greatly reduce the dust haze in the air and improve air quality; the rear outlet pipe can be can be connected to a high-pressure water gun for washing operations.
2. Center operator's seat, with a wide view; control the steering wheel, lightweight and reliable.
3. Built-in adjustable side brush, with high-speed main brush, can greatly improve the cleaning efficiency.
4. Built-in vacuum cleaning system, combining mechanical cleaning and vacuum cleaning, can effectively reduce the dust generated during cleaning.
5. Front lighting, suitable for night operation.
6. The drum-type dust filter significantly increases the filtering area within a limited volume, which can effectively reduce the wind resistance of the vacuum cleaning system and improve the suction of the vacuum cleaning system.
7. The filter is equipped with a dust-removing motor, which can conveniently clean the dust on it.
8. Adopt a heavy-duty steel chassis, durable wear-resistant solid tires, and a sensitive and reliable hydraulic brake device.
9. Equipped with yellow flashing warning lights to improve the safety when working and walking.
10. Adopt the design scheme of easy dismantling of the machine. It is convenient to replace the main brush, filter and other parts.
11. Use brushless drive motor to reduce operation faults and reduce power consumption.
12. Use four side brushes for cleaning, which can greatly improve the cleaning efficiency.
13. The lifting of the cleaning mechanism adopts an automatically controlled electric push rod, which is more convenient and reliable.
14. Equipped with in-line rear high level spray system, which can greatly reduce the dust haze in the air and improve air quality; the rear outlet pipe can be can be connected to a high-pressure water gun for washing operations.

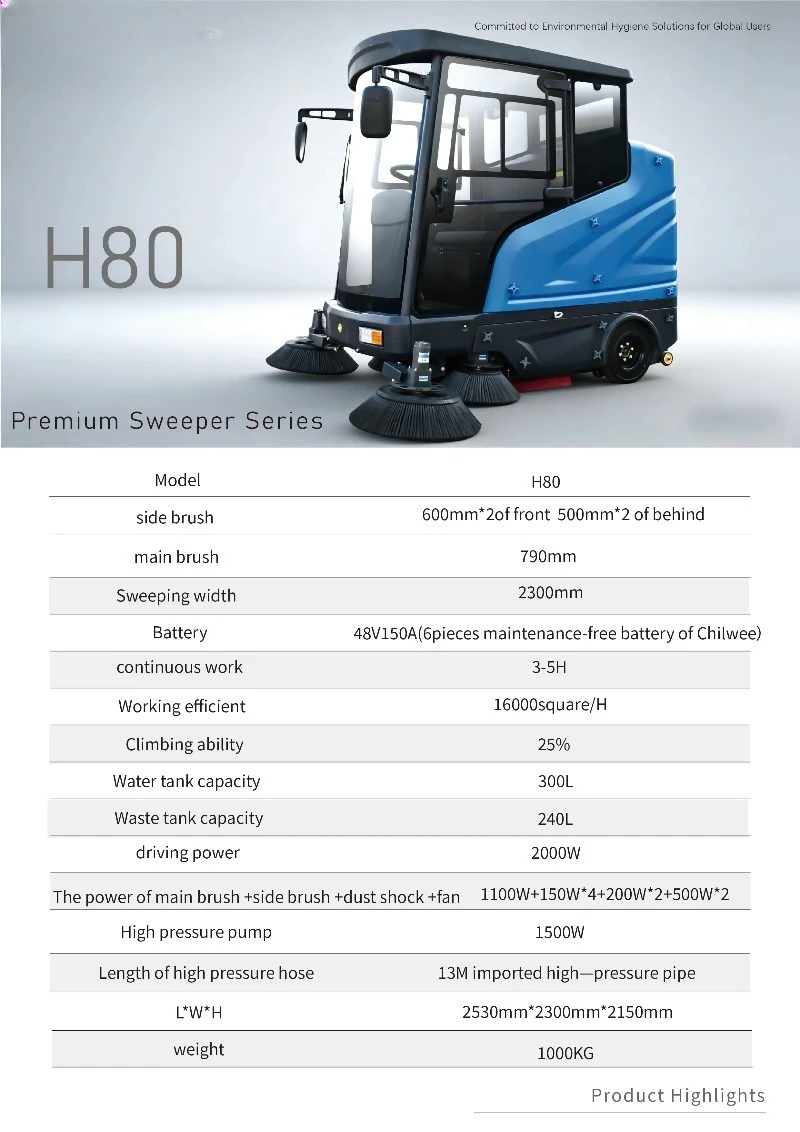

Specification
|
item
|
value
|
|
Type
|
Ride-on
|
|
Applicable Industries
|
Hotels 、 Manufacturing Plant、 Food&Beverage Factory 、 Farms、 Machinery Repair shops 、 Consruction works
|
|
Place of Origin
|
China
|
|
Fuel
|
Electric
|
|
Warranty
|
1 Year
|
|
Weight (KG)
|
360
|
|
Machine Type
|
Floor Sweeper
|
|
Cleaning Type
|
Manual
|
|
Use
|
cleaning
|
|
Brand name
|
YG
|
|
Model
|
JSTSZ23A
|
|
Cleaning width
|
2300
|
|
Working time
|
4-6H
|
|
colour
|
Customer customization
|
|
Battery
|
48V150AH
|
|
Working speed
|
6km/h
|
|
Tank volume
|
500L
|
|
Dustbin capacity
|
215L
|
|
After-sales service
|
Video technical support
|
|
Technical parameters
|
|
|
|
|||
|
Item name
|
Value
|
Unit
|
Remarks
|
|||
|
Width of sweeping
|
2200
|
mm
|
|
|||
|
Work efficiency
|
13200
|
m2/h
|
|
|||
|
Grade climbing ability
|
＞15%
|
|
＞8.53°
|
|||
|
Main brush length
|
800
|
mm
|
|
|||
|
Storage battery
|
48 (8 pcs 6V)
|
V
|
150Ah
|
|||
|
Continuous working hours
|
4-6
|
h
|
Working hours may vary depending on temperature and operating conditions
|
|||
|
Dustbin capacity
|
215
|
L
|
|
|||
|
Side brush diameter
|
500
|
mm
|
|
|||
|
Drive power (motor)
|
2200
|
w
|
|
|||
|
Operating power (motor)
|
1000+350*2+100*4+50*2+50
|
w
|
Main brush + Fan + Side brush + Shake cleaning + Sprinkling
|
|||
|
Turning radius
|
1160
|
mm
|
Spot turn
|
|||
|
Appearance size
|
2610*2200*2426
|
mm
|
Length X Width X Height (including side brushes and fog cannons)
|
|||
|
Maximum working speed
|
6
|
km/h
|
|
|||
|
Maximum running speed
|
8
|
km/h
|
|
|||
|
Filtering area
|
16
|
M2
|
No tools required for disassembly
|
|||
|
Net weight
|
900
|
kg
|
|
|||
|
Sweeping efficiency
|
≥90%
|
|
|
|||
|
Vehicle body color
|
Red/Yellow/Blue/Green/White
|
|
Can be customized according to customer service requirements
|
|||
|
Water tank volume
|
500
|
L
|
|
|||
|
Pressure of high-pressure water pump
|
13
|
MPa
|
|
|||
|
High pressure water pump power
|
1500
|
W
|
Ordinary fog cannon, high pressure washing
|
|||
|
|
3000
|
W
|
With air-assisted fog cannon, side washing
|
|||

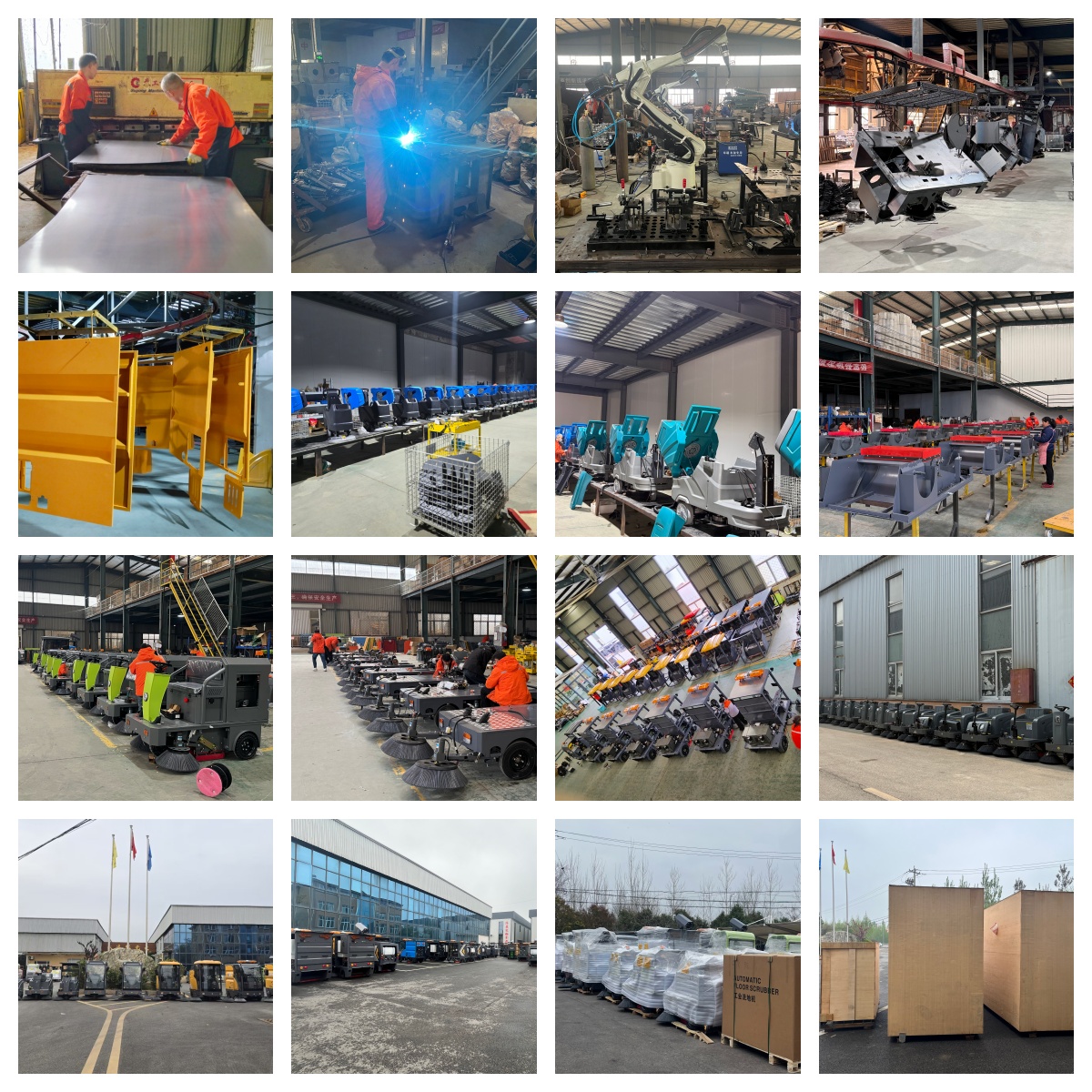

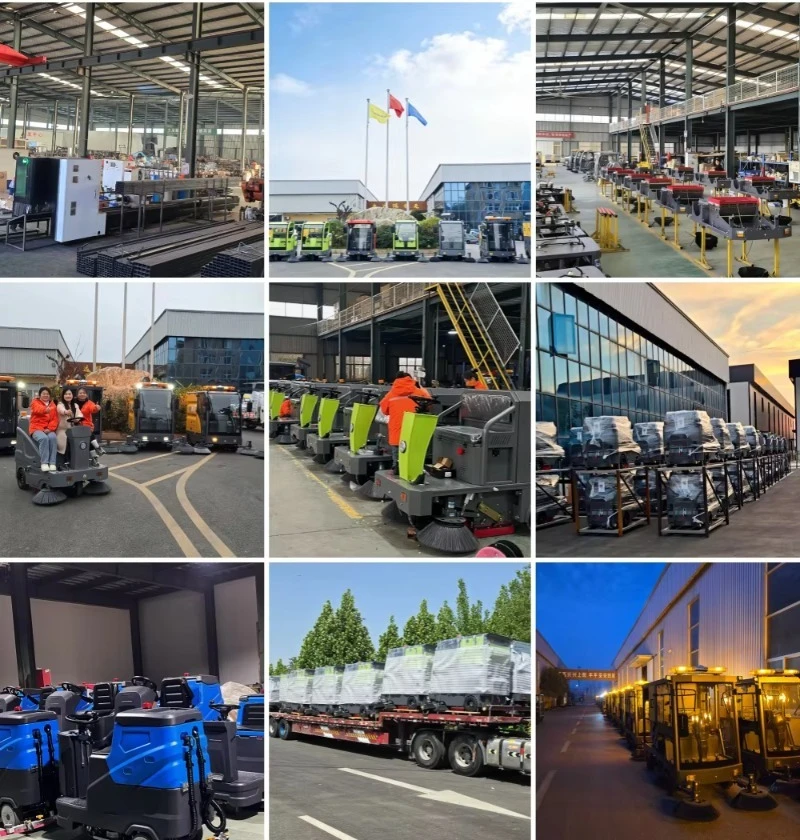

Company Profile
Packing & Delivery
FAQ
Q: Who are we? A: JIEST is a cleaning equipment manufacturer with professional technical team, which can provide world-class products and solutions. Products have been sold well at home and abroad.
Q: Does your company accept custom-made? A: Yes, we support OEM and ODM. If you want to be our distributor or agent, just connect us directly.
Q: What products can we provide? A: Road sweeper, Floor scrubber, Street vacuum, Sanitation vehicle, Dust collector, High pressure washing equipment.
Q: What terms of payment can be accepted? A: For terms of payment, Ali Platform credit order payment, T/T, D/A, D/P, could accepted
Q: What kinds of package can you provide? A: We can provide paper or wooden packing meets the requirements of sea transportation.
Q: Does your company accept custom-made? A: Yes, we support OEM and ODM. If you want to be our distributor or agent, just connect us directly.
Q: What products can we provide? A: Road sweeper, Floor scrubber, Street vacuum, Sanitation vehicle, Dust collector, High pressure washing equipment.
Q: What terms of payment can be accepted? A: For terms of payment, Ali Platform credit order payment, T/T, D/A, D/P, could accepted
Q: What kinds of package can you provide? A: We can provide paper or wooden packing meets the requirements of sea transportation.
