Features

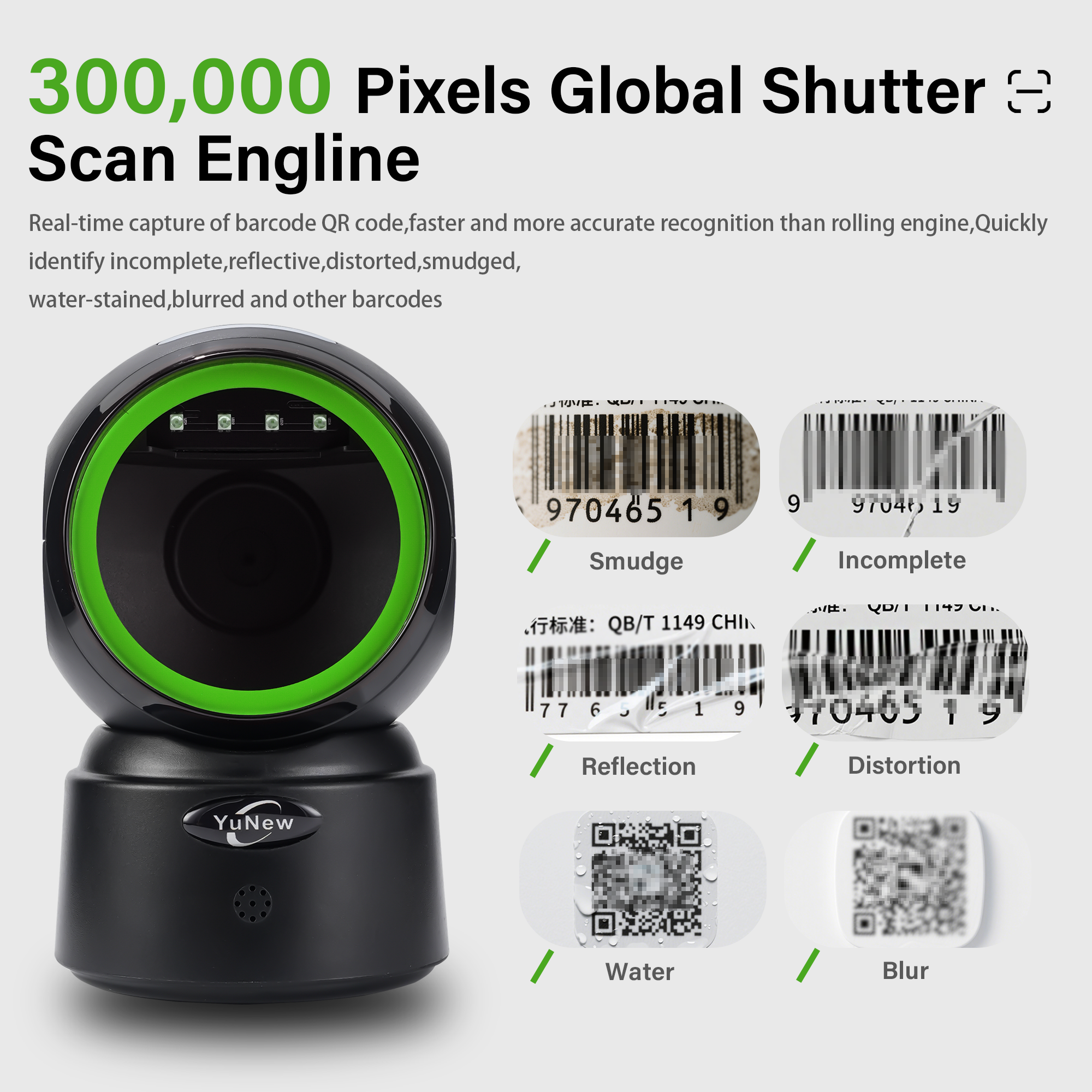

▶ Strong 1D/2D/QR code decoding ability. It supports screen scanning, can accurately and quickly identify 1D barcodes and 2D QR codes on labels, papers, mobile phones and computer screens. It also reads deformed, broken, fuzzy and colored barcodes smoothly.
▶ Desktop hands-free design saves labor and improves work efficiency. Fast and sensitive decoding greatly speeds up mobile payment checkout.

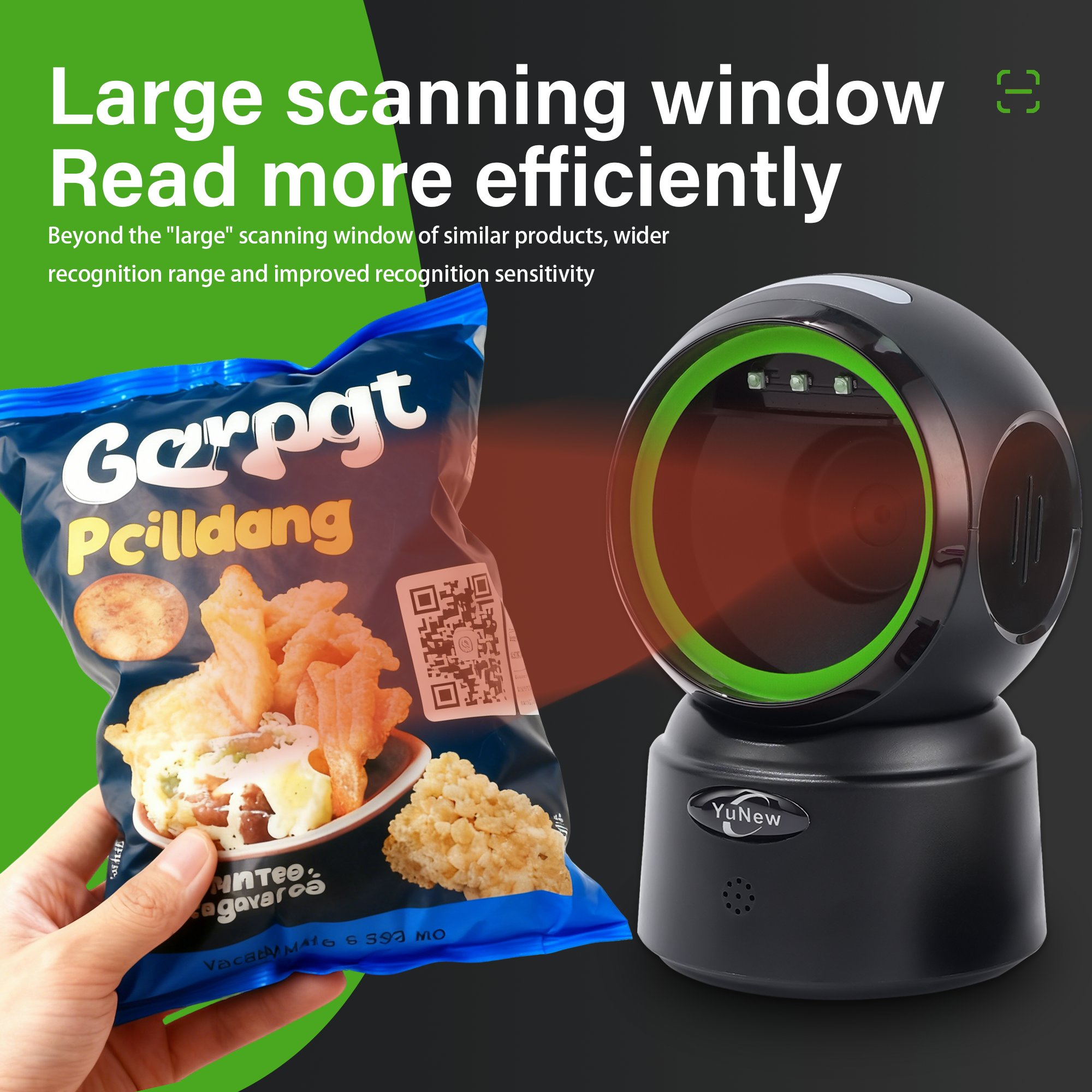

▶ Built-in 62mm large scanning window with tilt design for easy scanning. The scan head can be adjusted up and down freely to protect your eyes.
▶ Plug and play, no driver or software needed. Easily connect with laptop, desktop computer and POS machine via USB cable.
▶ Suitable for supermarkets, retail shops, restaurants, apparel stores, pharmacies, libraries, warehouses and more places.
Specifications
Scanning Mode: Auto-induction / Continuous Scanning
Communication Interface: USB-HID Keyboard, USB-COM Virtual Serial Port, RS232 Serial Port
Interface Type: USB Type-B
Alert Mode: Buzzer Sound + LED Light
Setting Method: Press button and scan setting codes manually

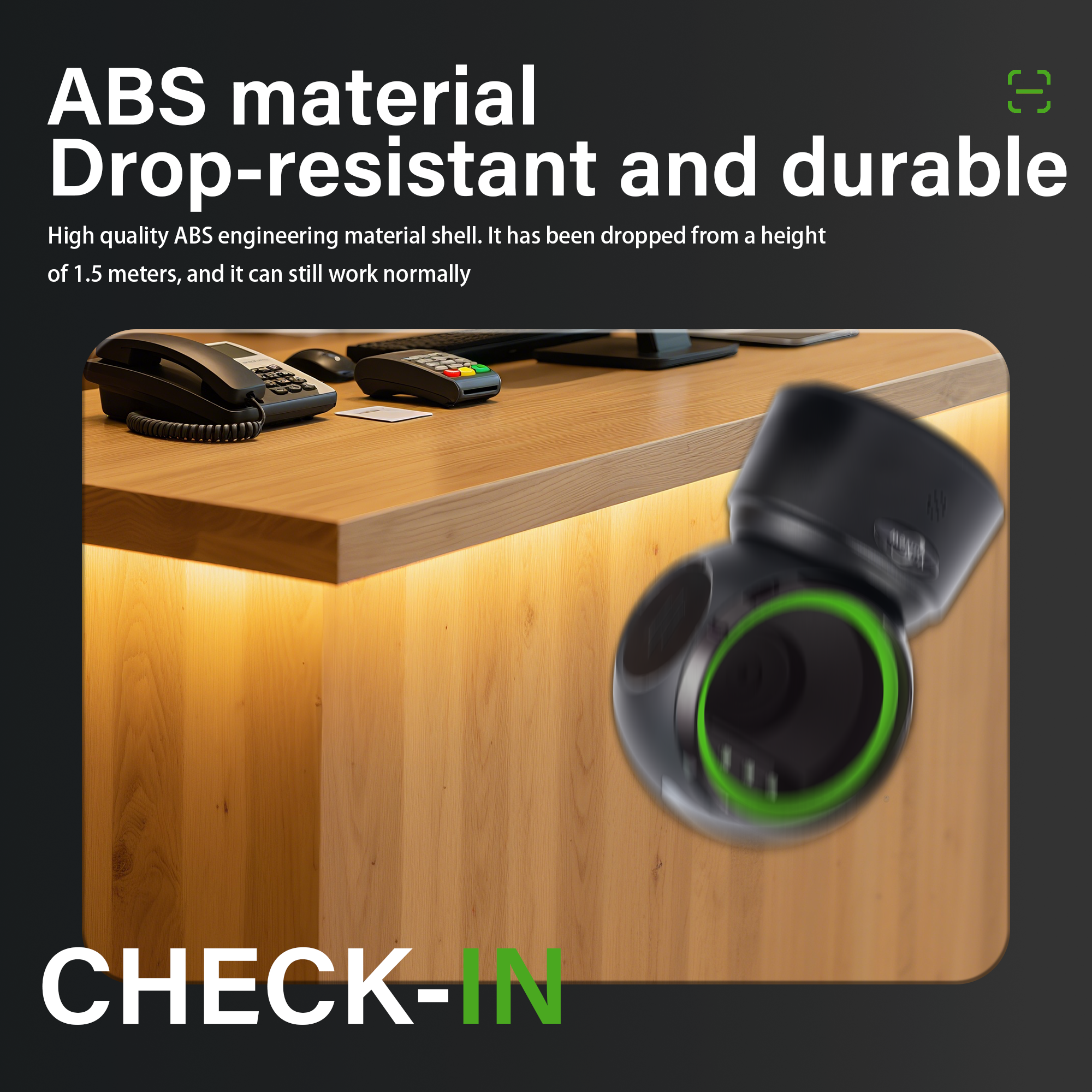

Material: ABS+PC
Cable Length: 1.5m straight cable
Product Size: 158 mm × 90 mm × 90 mm
Net Weight: 335g
Performance Parameters
Image Sensor: CMOS Global Exposure
Resolution: 640*480
Light Source: 617nm Red LED
Scanning Angle: ±60° left-right, ±54° front-back, 360° all-direction
Scanning Speed: 120 scans per second
Field of View: 48°(H) × 30°(V)
Minimum Print Contrast: 20%
Supported Barcodes
1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, Codabar, MSI, RSS-14, RSS-Ltd, RSS-Exp, Standard 2 of 5, Plessey, China Post 25, GS1 Composite
2D: QR Code, Data Matrix, PDF417, Hanxin Code, Micro PDF417, Micro QR Code, MaxiCode, Aztec Code, Code16K, support phone screen scanning
Min Reading Resolution: 4mil
Package Size: 17×11.6×11.6cm
Gross Weight: 421g / 14.8oz
Packing List
1 x 2D Desktop Barcode Scanner
