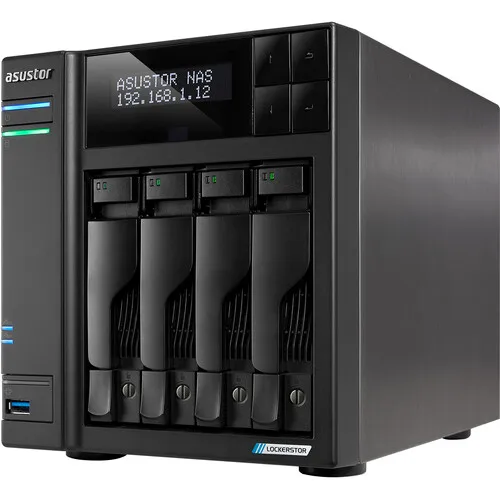

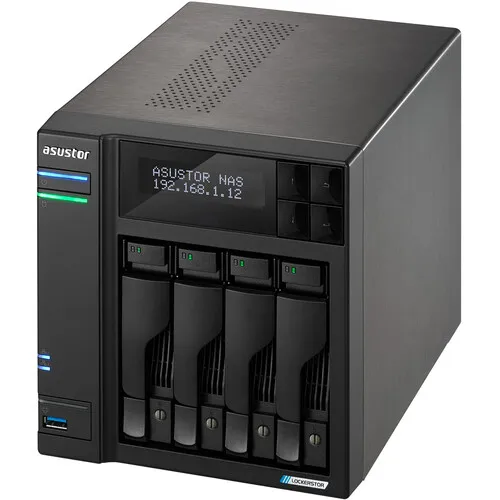

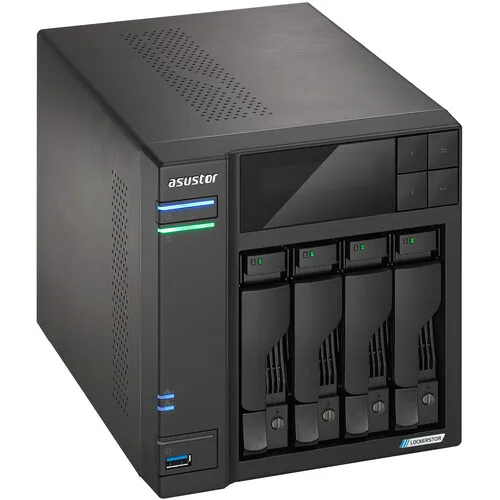

Asustor AS6704T Lockerstor 4 Gen2 4-Bay NAS Network Storage Enclosure SSD with 2.5-Gigabit Ethernet ports PK Synology♪ds923
Model Number : AS6704T
Brand Name : asustor
Origin : Mainland China
Brand Name : Asustor
Origion : China
CPU Model : Intel Celeron N5105
CPU Architecture : x64 64-bit
CPU Frequency : Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory : 4GB SO-DIMM DDR4
Memory Module Pre-installed : 4GB (1x 4GB)
Total Memory Slots : 2
Memory Expandable up to : 16GB (2x 8GB)
Flash Memory : 8GB eMMC
Drive Bays : 4
M.2 Drive Slots : 4
Expansion : 2x USB 3.2 Gen 2x1
Network : 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
PCIe Expansion Slots : 1x for optional expansion 10 GbE card
HDMI Output : 1x HDMI 2.0b
System Fan : 1x 120mm
Power Supply Unit / Adapter : 90W x1
Input Power Voltage : 100V to 240V AC
Certification : FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Warranty : 3 Years
Noise Level : 17.6dB (HDD idle)
Operation Temperature : 0°C~40°C (32°F~104°F)
Humidity : 5% to 95% RH
Size : 185.5(H) x 170(W) x 230(D) mm
Weight : 2.94 kg / 6.48 lb

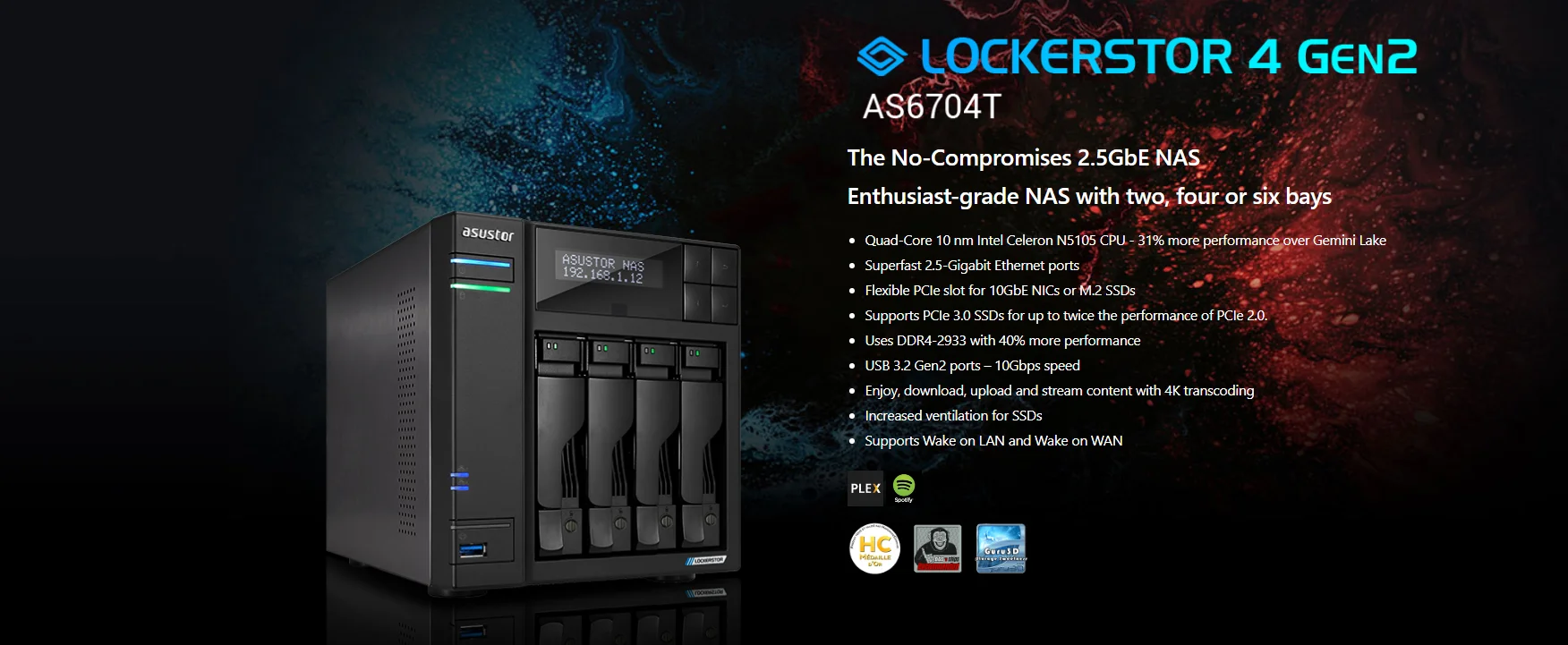

Asustor AS6704T Overview
Designed to handle intensive tasks such as direct video editing, the Lockerstor 4 Gen2 4-Bay NAS Enclosure from Asustor offers the speed and capabilities to take on almost any project. In addition to featuring four 3.5''/2.5'' SATA drive bays, this high-performance network storage enclosure has four M.2 2280 NVMe PCIe 3.0 SSD slots that may be configured for cache or storage. You can also mix and match M.2 configurations and set up RAID modes depending on your needs. The dual 2.5G Ethernet ports support SMB multichannel technology, which allows you to combine their throughput to reach 5G speeds with compatible devices, giving you the bandwidth to share massive files with your team. Powered by a 2.0 GHz Intel Celeron N5105 quad-core processor with 4GB of DDR4-2933 memory, the Lockerstor 4 Gen2 can deliver up to 590 MB/s read and 555 MB/s write speeds in RAID 5 configuration.
Install a 10G Ethernet network adapter into the PCIe slot for even greater performance. Please note that the PCIe slot is occupied by an M.2 daughter board with all four of the system's M.2 SSD slots. Installing an expansion card requires its removal. The two memory slots support up to 16GB total. Other features include two USB 3.2 Gen 2 Type-A slots that can transfer data at up to 10 Gb/s with compatible devices.

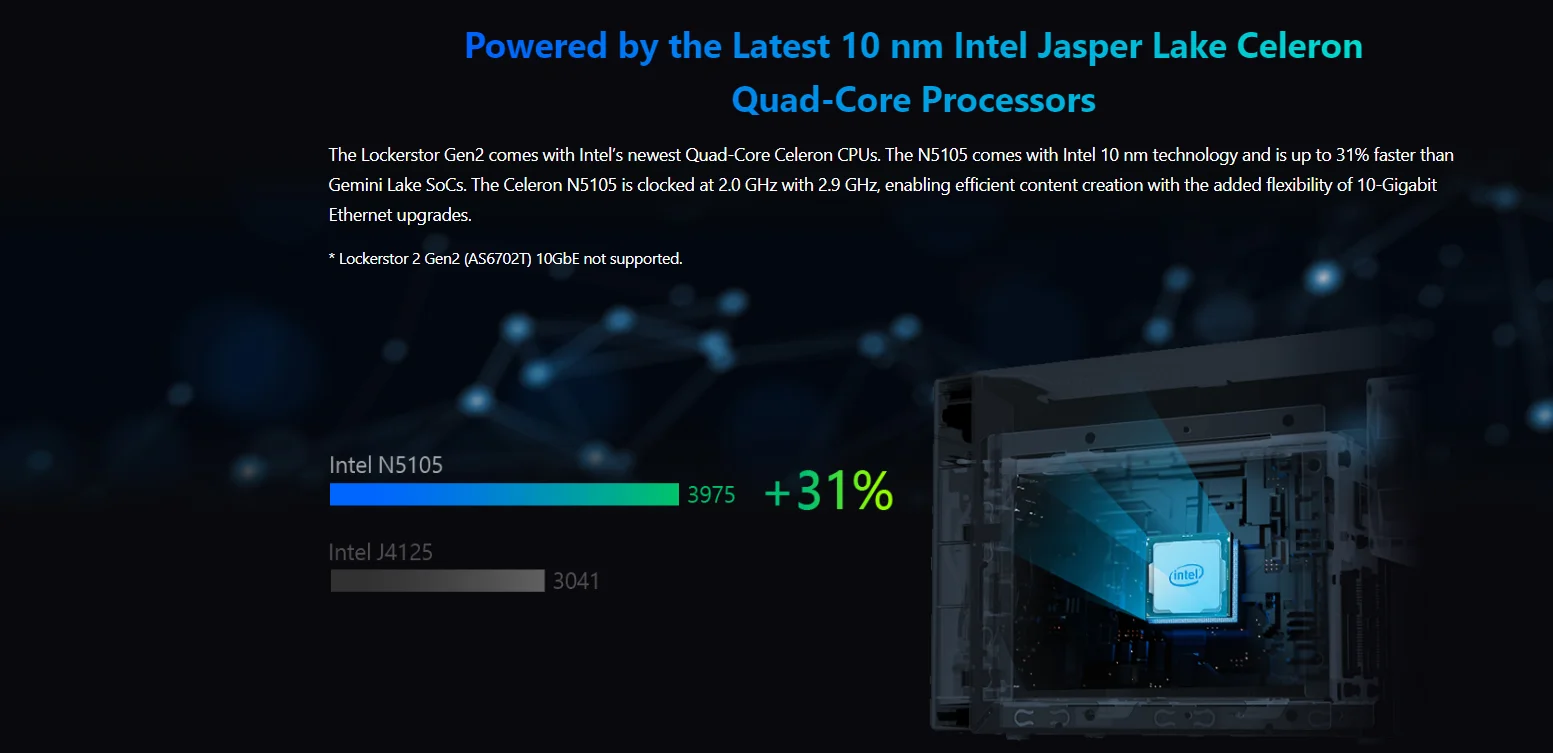

Powered by an Intel Celeron Quad-Core ProcessorThe Lockerstor Gen2 comes with a 2.0 GHz Intel Celeron N5105 Quad-Core processor. The N5105 comes with Intel's 10nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with a boost speed of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10 Gigabit Ethernet upgrades.

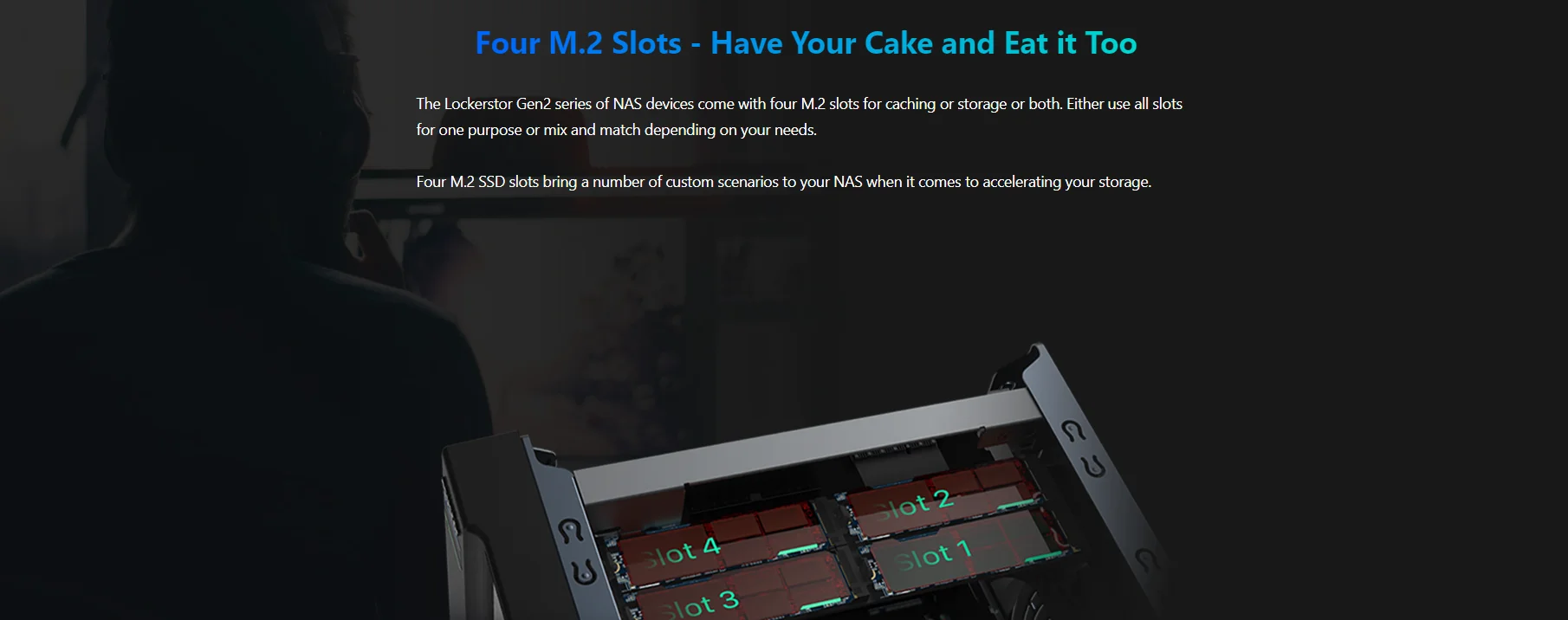

Four M.2 SlotsThe Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching, storage, or both. Either use all slots for one purpose or mix and match depending on your needs. Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.

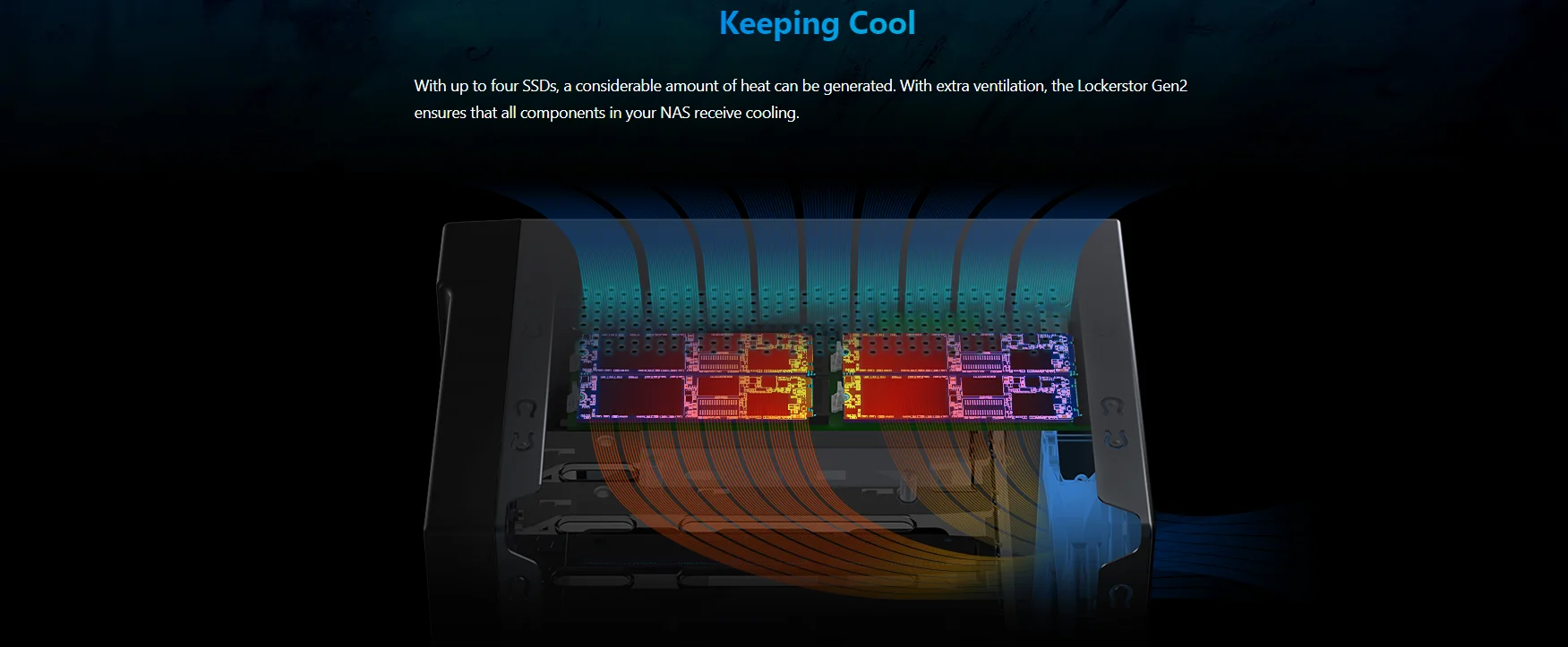

Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.

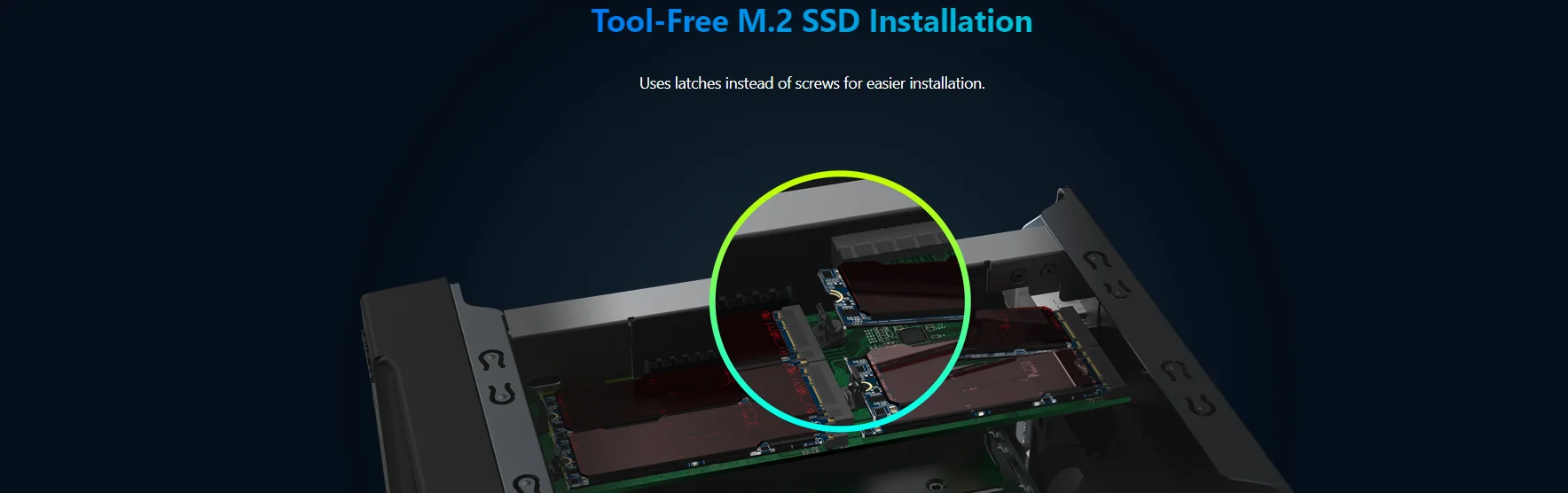

Tool Free M.2 SSD InstallationUse latches instead of screws for easier installation.

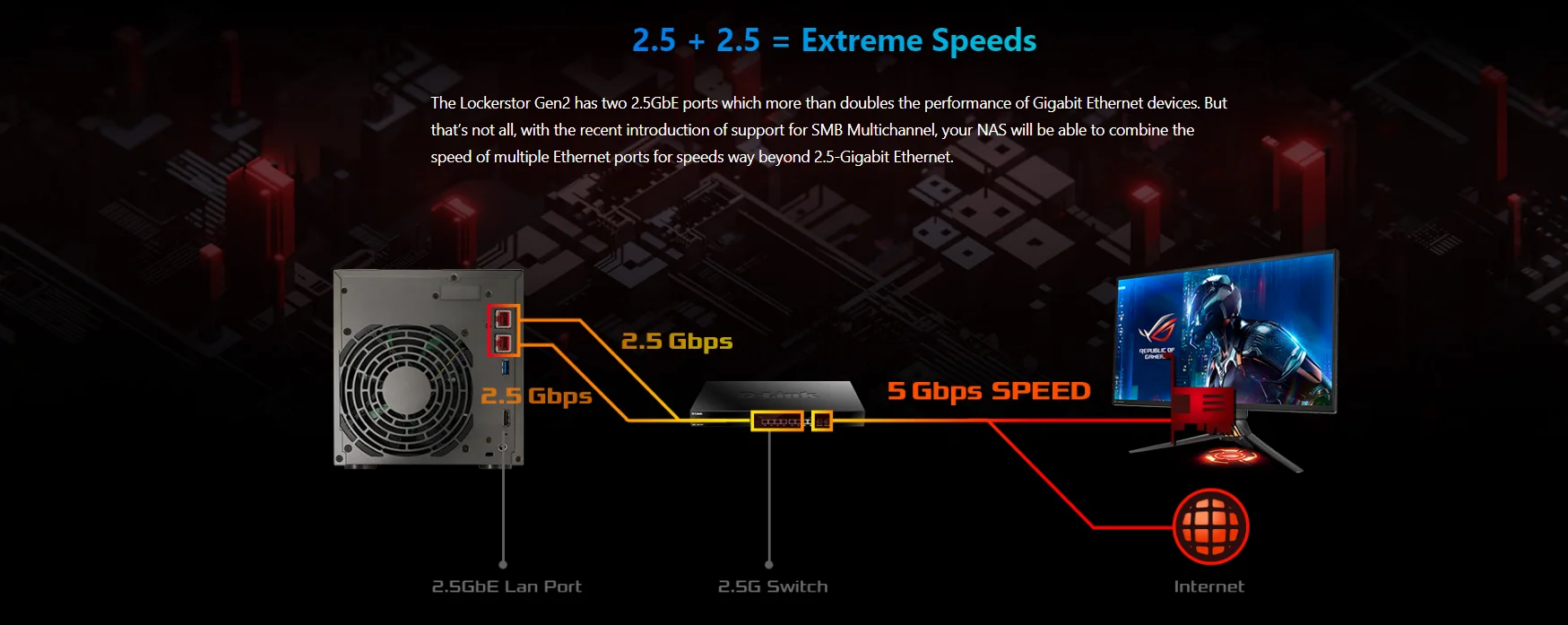

2.5 + 2.5 = Extreme Speeds
The Lockerstor Gen2 has two 2.5GbE ports, which more than doubles the performance of Gigabit Ethernet devices. But, that's not all. With the recent introduction of support for SMB Multichannel, your NAS will be able to combine the speed of multiple Ethernet ports for speeds way beyond 2.5 Gigabit Ethernet.
SMB Multichannel (RAID 5)Achieve read speeds of up to 590 MB/s and write speeds of up to 555 MB/s.

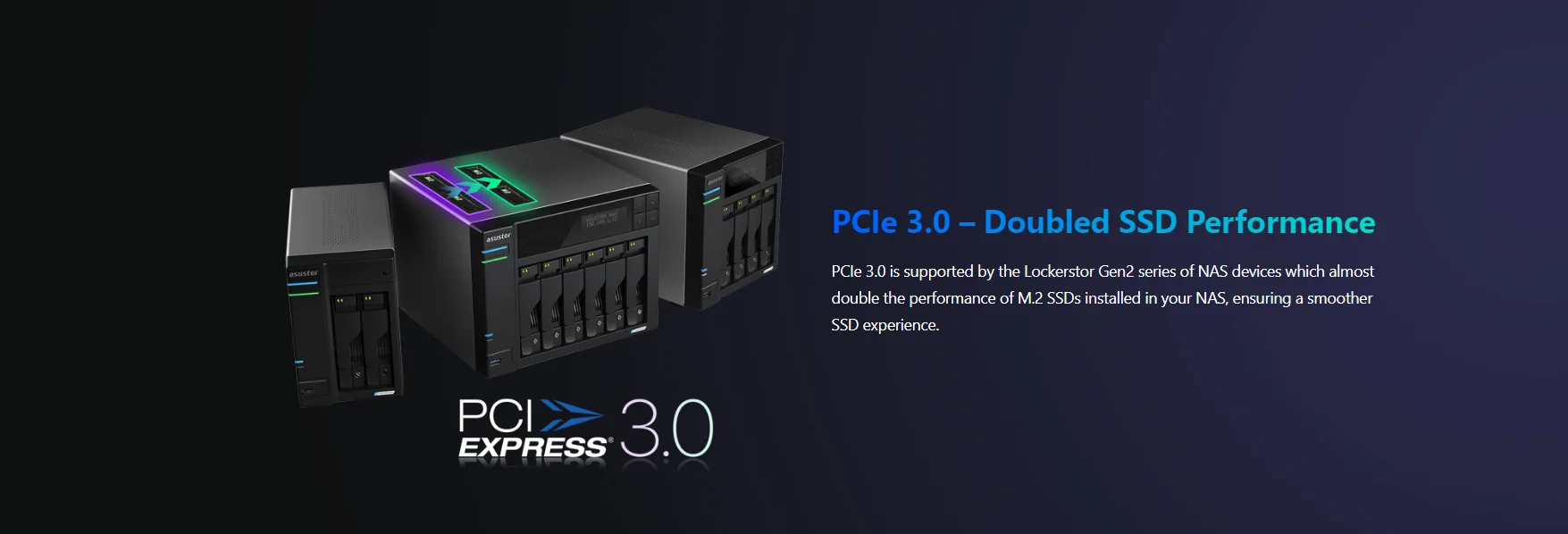

PCIe 3.0 - Doubled SSD Performance
PCIe 3.0 is supported by the Lockerstor Gen2 series of NAS devices, which almost doubles the performance of M.2 SSDs installed in your NAS, ensuring a smoother SSD experience.

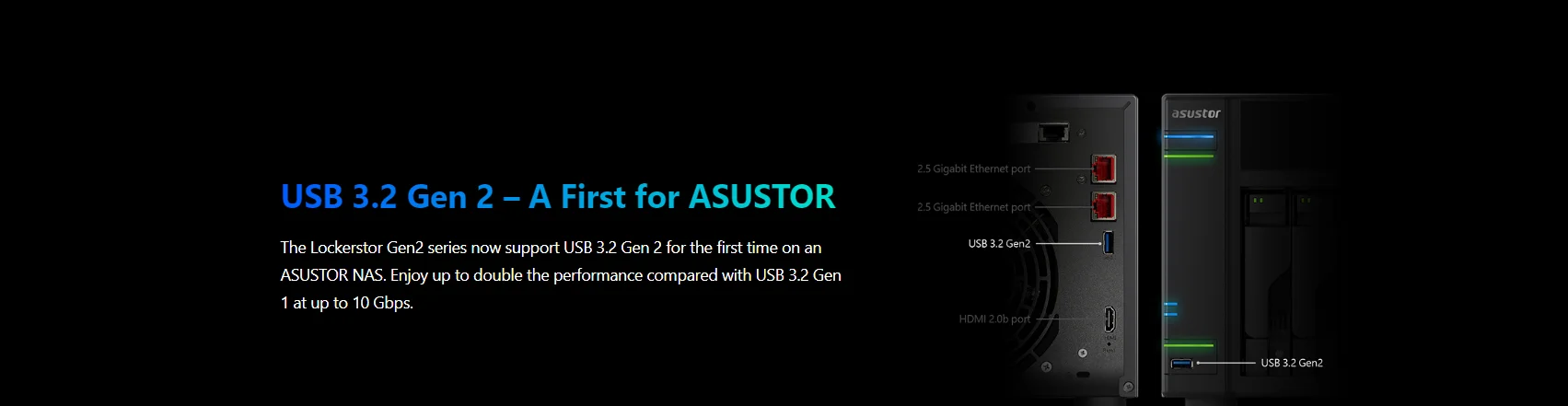

USB 3.2 Gen 2 Type-A PortsThe Lockerstor Gen2 series supports USB 3.2 Gen 2, so you can enjoy up to double the performance compared with USB 3.2 Gen 1, at up to 10 Gb/s.

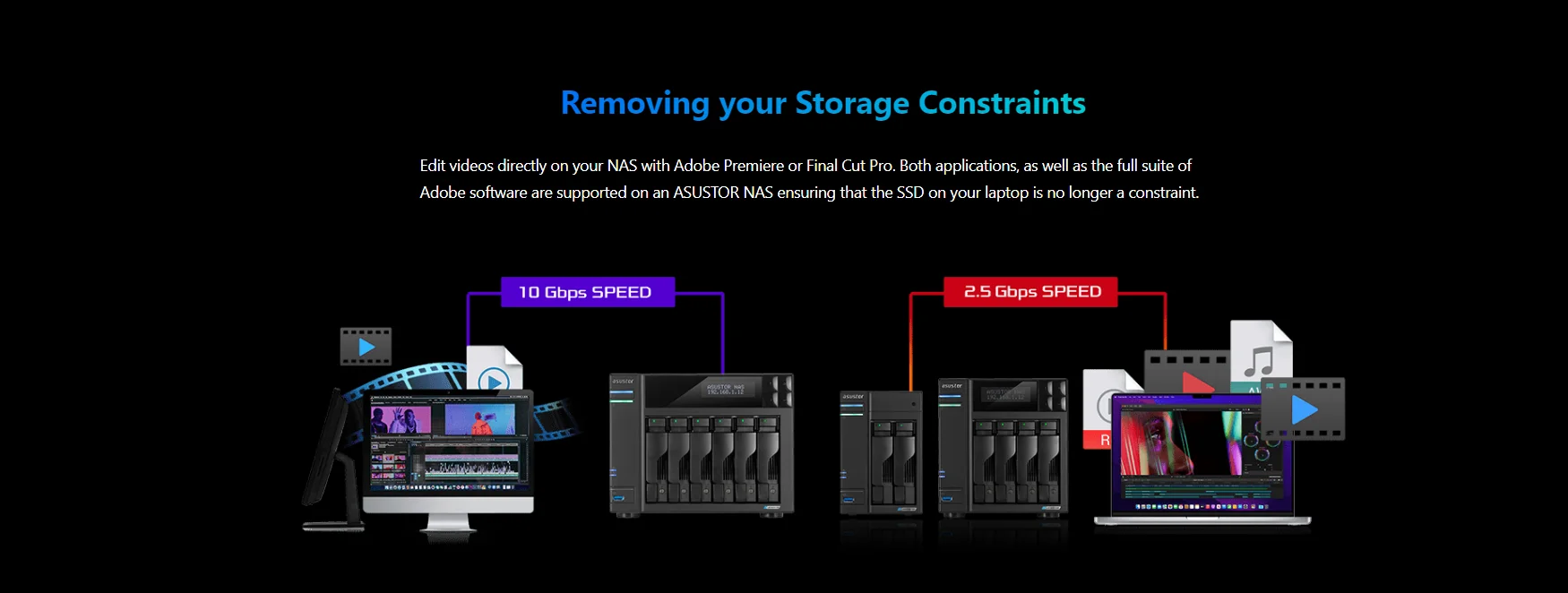

Removing your Storage ConstraintsEdit videos directly on your NAS with Adobe Premiere or Final Cut Pro. Both applications, as well as the full suite of Adobe software, are supported on your ASUSTOR NAS, ensuring that the SSD on your laptop is no longer a constraint.

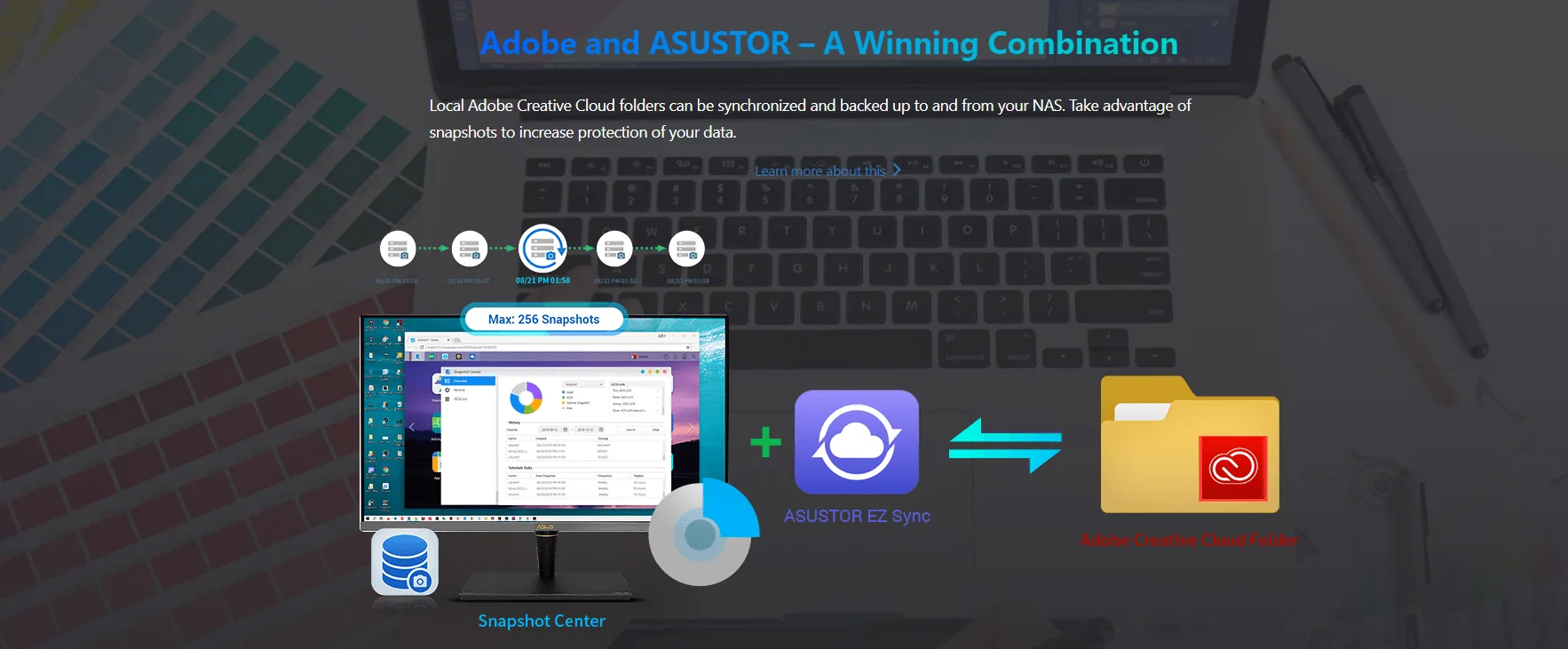

Adobe and ASUSTOR - A Winning Combination
Local Adobe Creative Cloud folders can be synchronized and backed up to and from your NAS. Take advantage of snapshots to increase protection of your data.

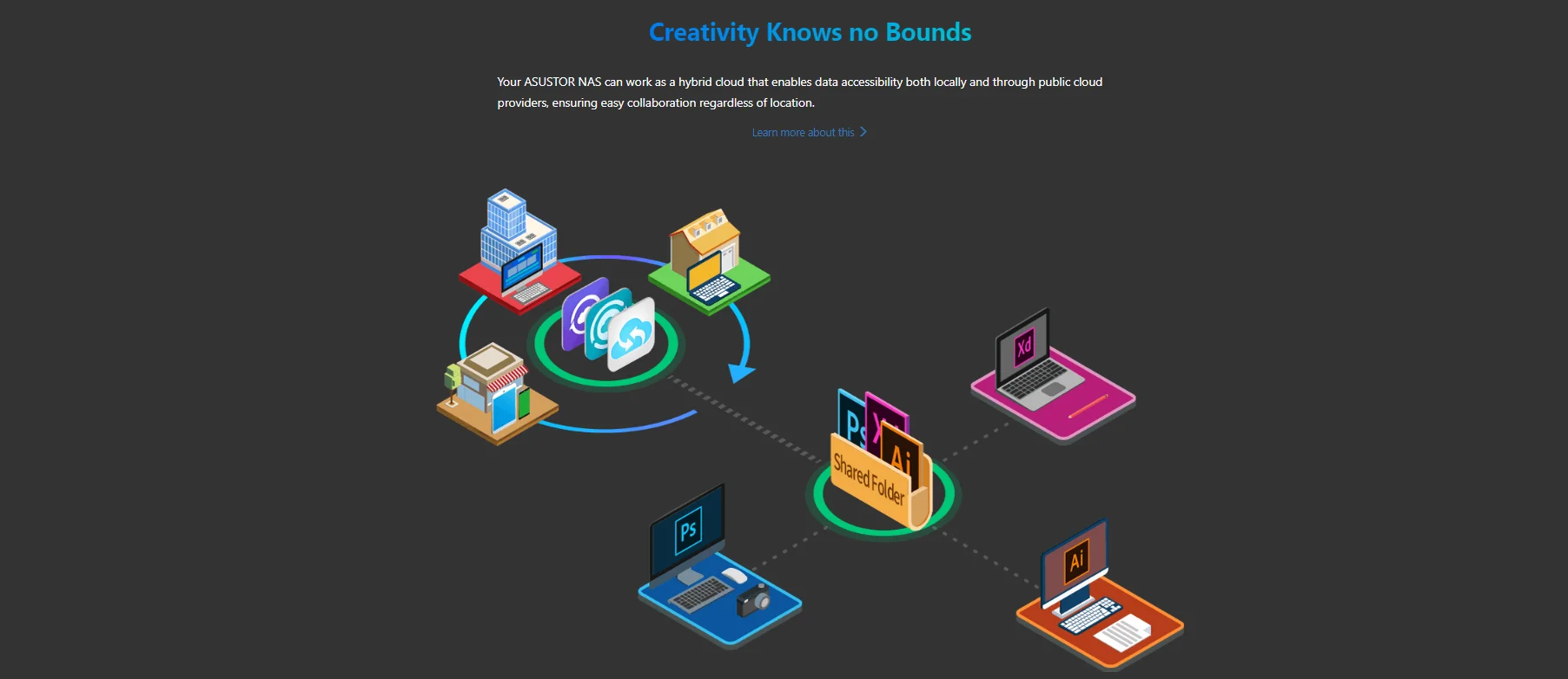

Creativity Knows No BoundsYour ASUSTOR NAS can work as a hybrid cloud that enables data accessibility both locally and through public cloud providers, ensuring easy collaboration regardless of location.

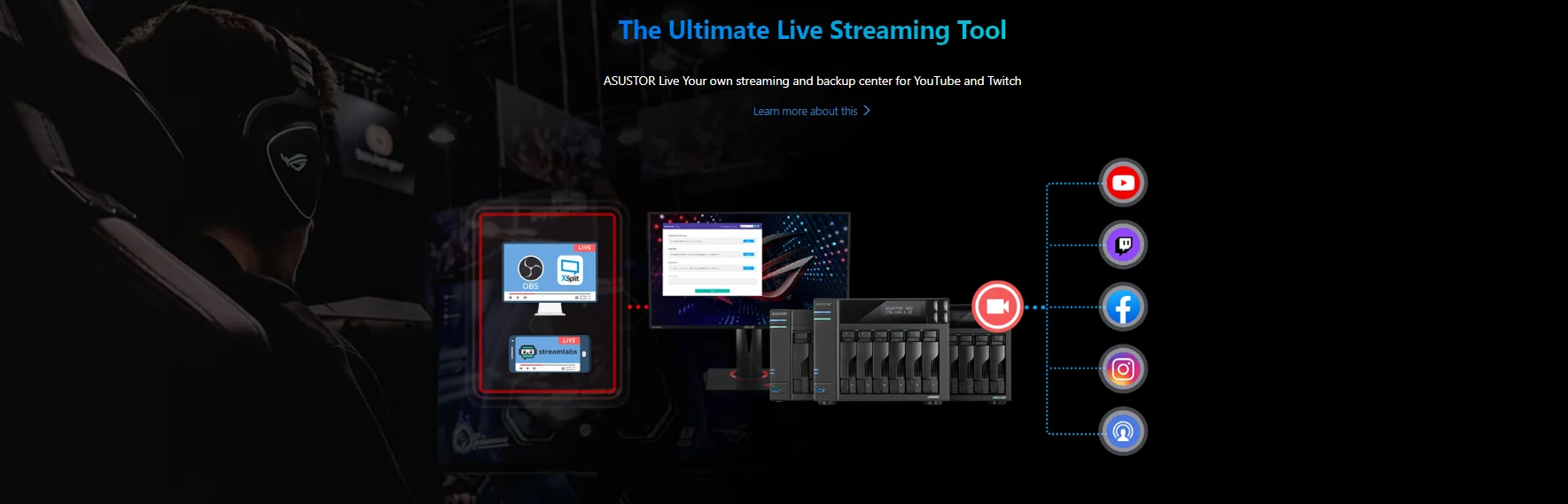

The Ultimate Live Streaming ToolCreate your own streaming and backup center for YouTube and Twitch.
Comprehensive Backup and Virtualization Solution
MyArchive cold storage backups
Snapshot Center, Cloud Backup Center, DataSync Center
Complete iSCSI/IP-SAN and NFS support
VMware, Citrix, and Hyper-V ready
Supports Virtualization and Docker apps
More Efficient
Easily transcode 10-bit 4K H.265 media with hardware decoding and smooth video playback in LooksGood for the ultimate in 4K enjoyment.
24/7 Reliability and DurabilityAll ASUSTOR NAS are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests, to test durability in extreme conditions. Heat sinks were added to sensitive components to dissipate heat, helping to maintain the longevity of the device.
Protected From the Inside and Out
Protect your data from loss, damage, and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive, and ADM's various backup tools help protect ransomware even better.

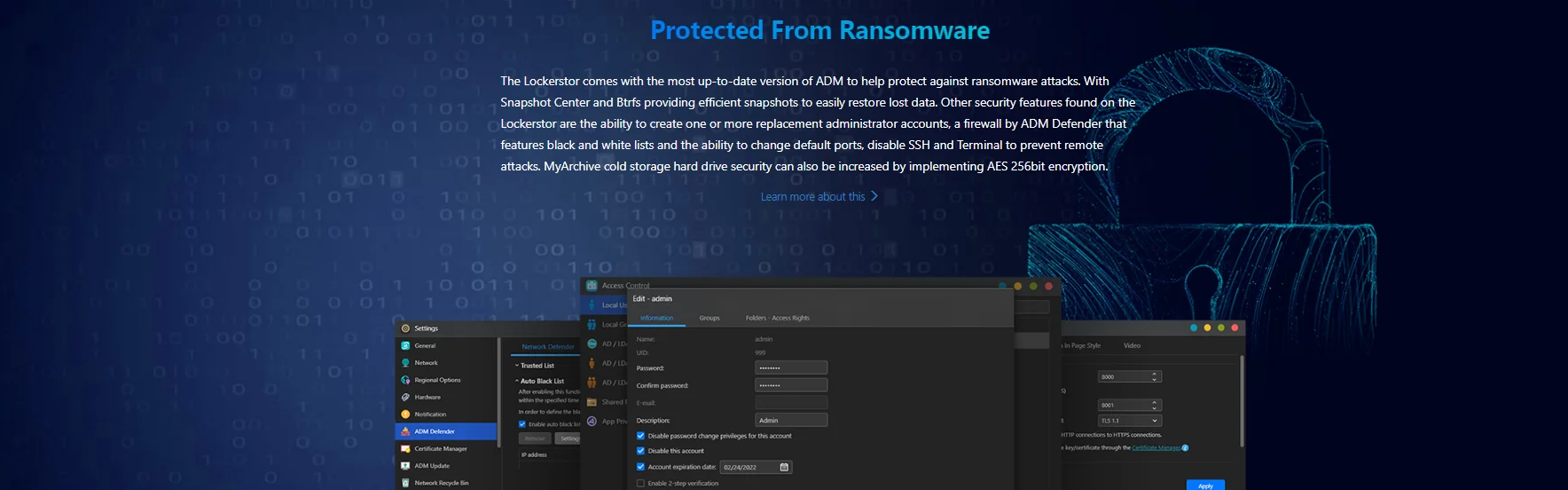

Protected from Ransomware
The Lockerstor comes with the most up-to-date version of ADM to help protect against ransomware attacks, with Snapshot Center and Btrfs providing efficient snapshots to easily restore lost data. Other security features found on the Lockerstor are the ability to create one or more replacement administrator accounts, a firewall by ADM Defender that features black and white lists and the ability to change default ports, disable SSH, and Terminal to prevent remote attacks. MyArchive cold storage hard drive security can also be increased by implementing AES 256-bit encryption.
Exclusive MyArchive Cold Backup Technology Unlimited Capacity Expansion
MyArchive cold storage technology turns NAS hard drives into removable storage archive drives. Directly insert a MyArchive hard drive into a free bay inside your NAS to easily access, backup, and share terabytes of content.
Snapshot Center
Snapshot Center is a feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost. MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.
DataSync Center
DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive, and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.
Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, SFTP, and WebDAV. Control your data with instant and scheduled backups, as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.
ASUSTOR EZ Sync
Redesigned UI. Simpler and easier to operate. View NAS information quickly.
More complete settings - offering detailed folder lists. Easily select folders and files not in a folder.
Notifications for abnormal status.
Support 2-step verification to increase account safety.
Improve NAS connecting and file sync system stability for better user experience.
