High end 1G/H 1gram 1000mg adjustable ozone generator Kit household ozonator drinking water air purifier CE FCC ROHS passed
価格:
$18.95
/Pc
払い戻し:
シェア:
売れ筋商品
Our test equipment:
AC voltage regulator, DC voltage regulator, voltage stabilizer, LCR digital bridge tester, intelligent program-controlled frequency conversion power supply, electrical parameter meter, ozone concentration analyzer, oxygen cylinder, oxygen machine, air compressor, oil-water separator, pressure regulating valve, flow meter, ambient temperature and humidity meter, aging test bench...
AC200V-AC240V, we will set: AC240V 50HZ for you.
AC100V-AC130V, we will set: AC130V 60HZ for you.
South Korea, Brazil, Peru, Philippines, Saudi Arabia: AC240V 60HZ.
Japan: AC110V 60HZ.
If the local voltage or frequency is special, when you order our products, you can leave a message to us.
When you get this product, please read the installation and operation instructions carefully, it is very important.
Patented product, high ozone concentration, smaller size, larger heat dissipation area, lower temperature rise, high efficiency, longer service life, built-in 316L stainless steel tube.
(The ozone PSU cannot work alone, you need to correctly install the ozone tube and the ozone PSU, connect them together, install 1pc 12cm cooling fan to cool the ozone tube, turn on the air/oxygen source, and then you can turn on the power.)
High-end 1g/h air cooling ozone generator kit:
Product model: PL-1QBAOS
Ozone output: 1g/h (adjustable)
Power: 15w
Air flow: ≤15L/min
Oxygen flow: ≤1L/min
Cooling mode: air cooling
Gas source: air source, oxygen source
Gas source temperature: ≤35℃
Gas pressure: ≤100kpa (1bar/0.1mpa)
Ambient temperature: -10~45℃
Optimal ambient temperature: 1-20℃
Environmental humidity: ≤85%RH
Heat sink: aluminum alloy (appearance can be customized)
Color: black (other colors can be customized)
White flange: teflon (PTFE)
Dielectric material: high-purity quartz glass tube
Thickness of the glass tube: 1.5mm
Inner electrode: 316L stainless steel
Discharge gap: 0.5mm
Screws and nuts: 304 stainless steel
Color: black (other colors can be customized)
White flange: teflon (PTFE)
Dielectric material: high-purity quartz glass tube
Thickness of the glass tube: 1.5mm
Inner electrode: 316L stainless steel
Discharge gap: 0.5mm
Screws and nuts: 304 stainless steel
Patented product
Brand: Pinus longaeva (we can print your logo and paste it on the ozone tube)
Product certification: CE FCC ROHS
Product application: air purification and water sterilization
Service life / Warranty: more than 20000 hours / 2 years
Customized: can be customized
We have set the correct parameters for this ozone PSU, so please do not adjust the knob on the ozone PSU.
TK: set the maximum power of the ozone PSU (rotate to the right to increase the power).
Size:
Ozone tube: 98*47*52cm 0.2kg
Ozone PSU: 125*48*50mm 0.2kg
Ozone PSU: 125*48*50mm 0.2kg
Joint:
Air / oxygen input: we recommend that you use 4*7mm silicone tube or 5*8mm PU tube.
Ozone output: we recommend that you use 6*8mm teflon tube.
If you need to change the connector, please contact us.
Product features:
Ozone tube:
Patented product, smaller size, larger heat dissipation area, lower temperature rise, higher ozone concentration, more efficient, built-in 316L stainless steel tube, longer service life.
Ozone PSU:
1. lower temperature rise, more stable, longer service life.
2. ozone tube short circuit/open circuit, the ozone PSU will automatically reduce output power.
3. the output power of the ozone PSU is very stable.
4. the maximum power of this ozone PSU is 50w, and the optimal output power ≤50w, this 1G ozone tube only needs 15w, this ozone PSU can easily start this ozone tube.
5. we have added the function that can switch the input voltage (AC240V/AC130V), please let us know if you need to switch the input voltage.
Please let us know:
If you need us to remove the stickers on the ozone tube,
If you need us to change the length of the red high-voltage wire or the black wire,
If you need us to change the length of the potentiometer wire,
If you need us to change the nozzle size,
If you need us to change the direction of the nozzle,
and so on,
please let us know.
Due to system reasons, maybe some countries can not see all the products on our website, if you need a product list, please leave a message to us.
We are the manufacturer, we produce 0.5g/h-100g/h ozone generator kits, ozone machines, oxygen machines.
please let us know.
Due to system reasons, maybe some countries can not see all the products on our website, if you need a product list, please leave a message to us.
We are the manufacturer, we produce 0.5g/h-100g/h ozone generator kits, ozone machines, oxygen machines.

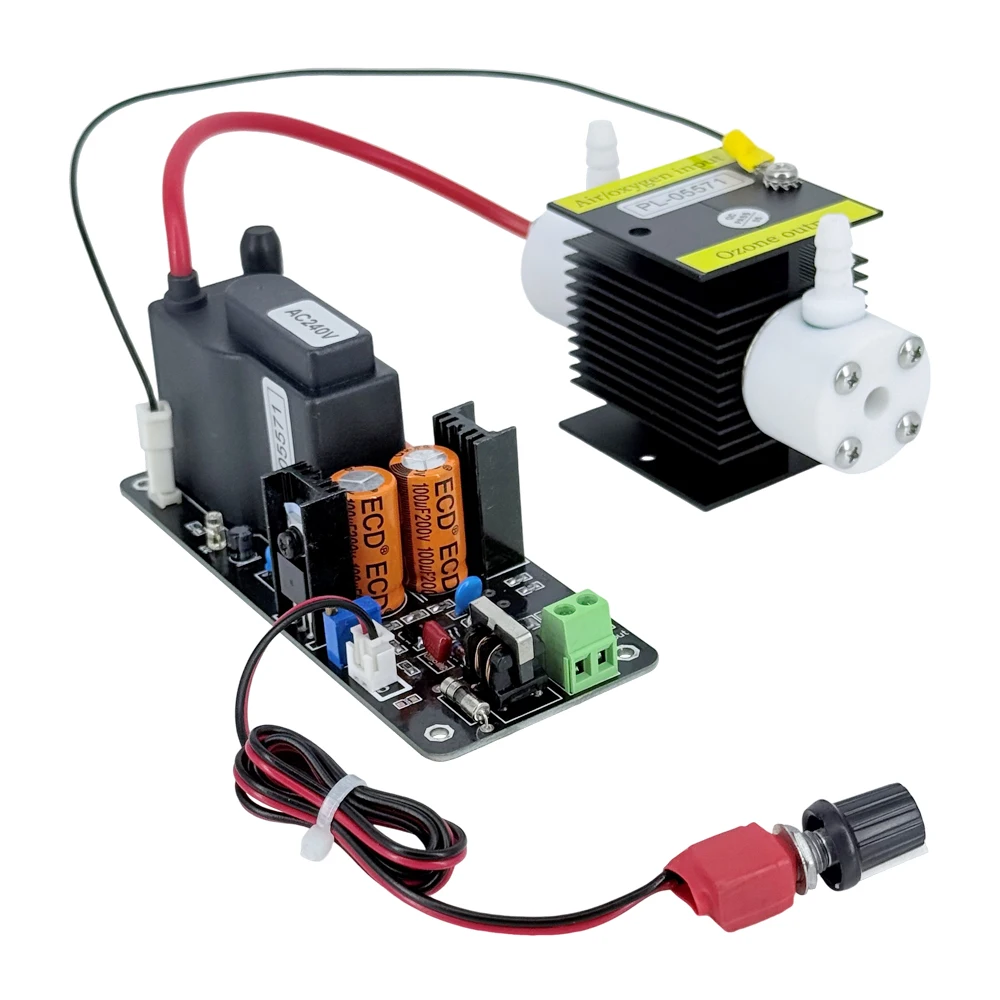

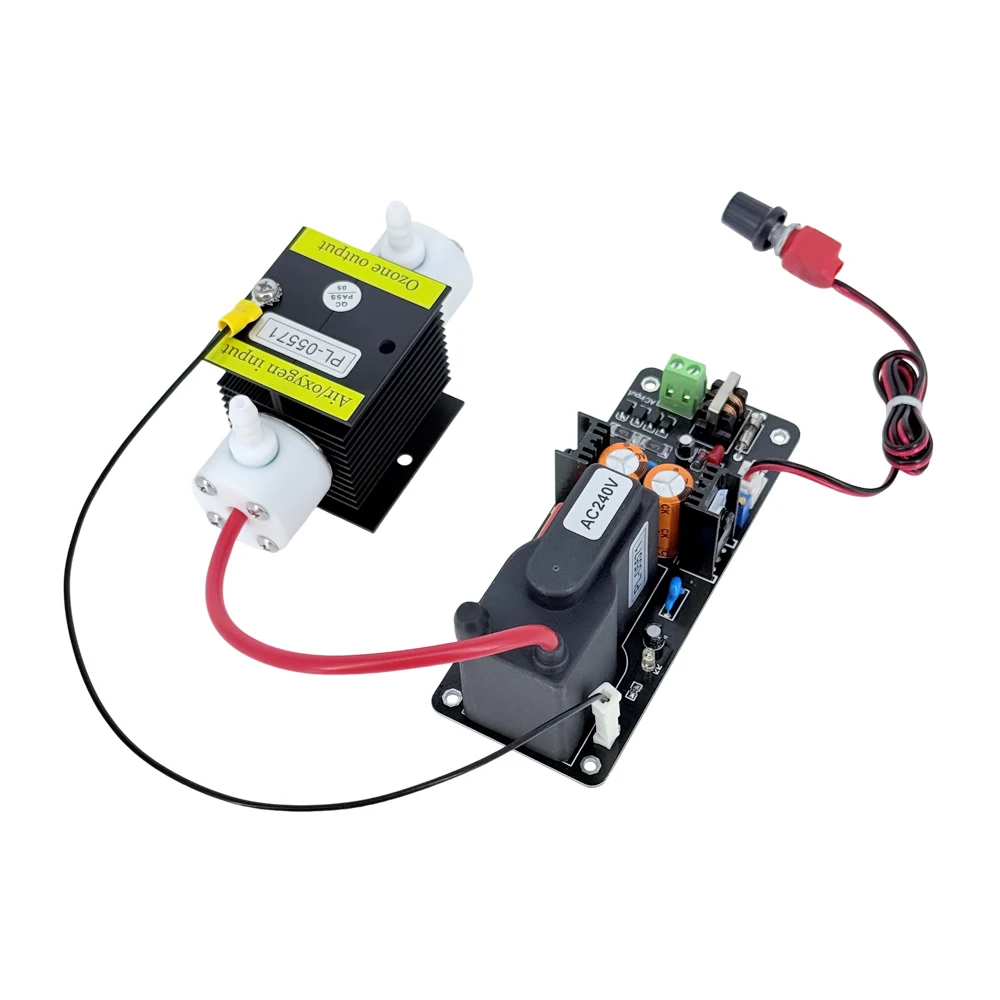

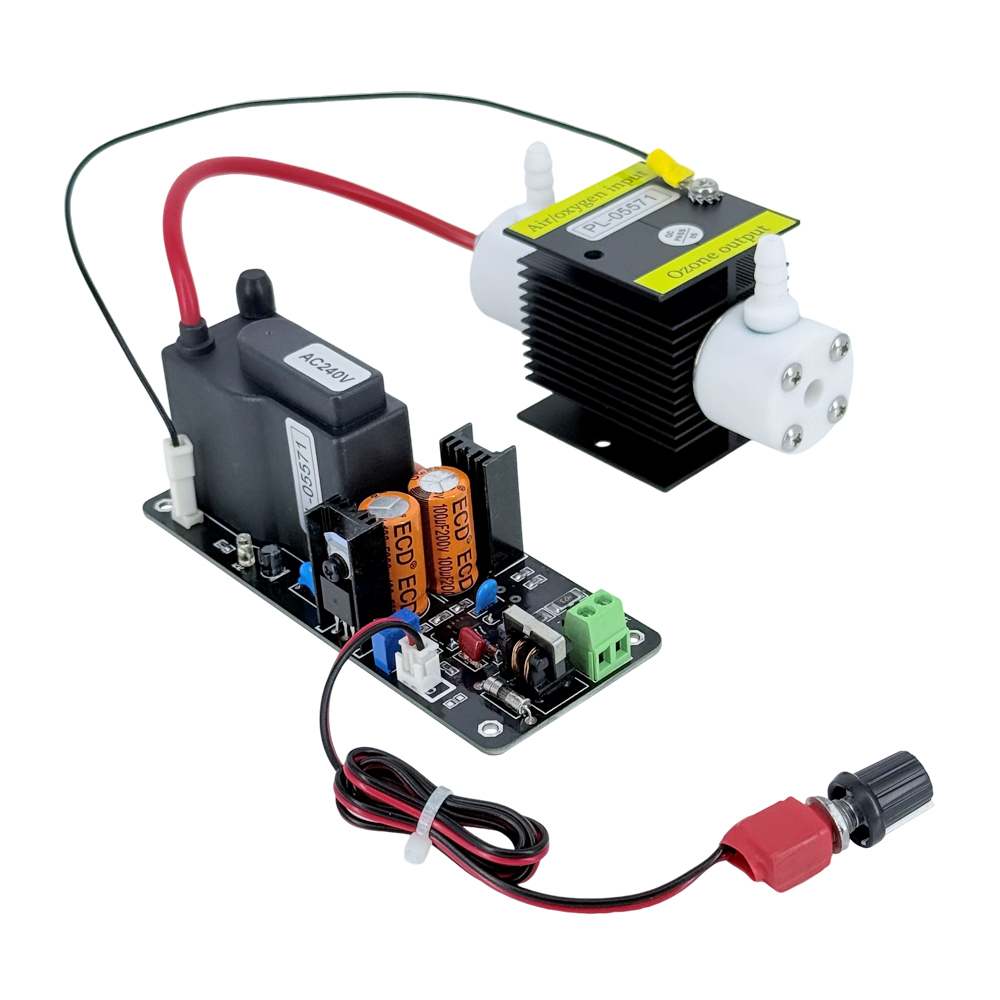

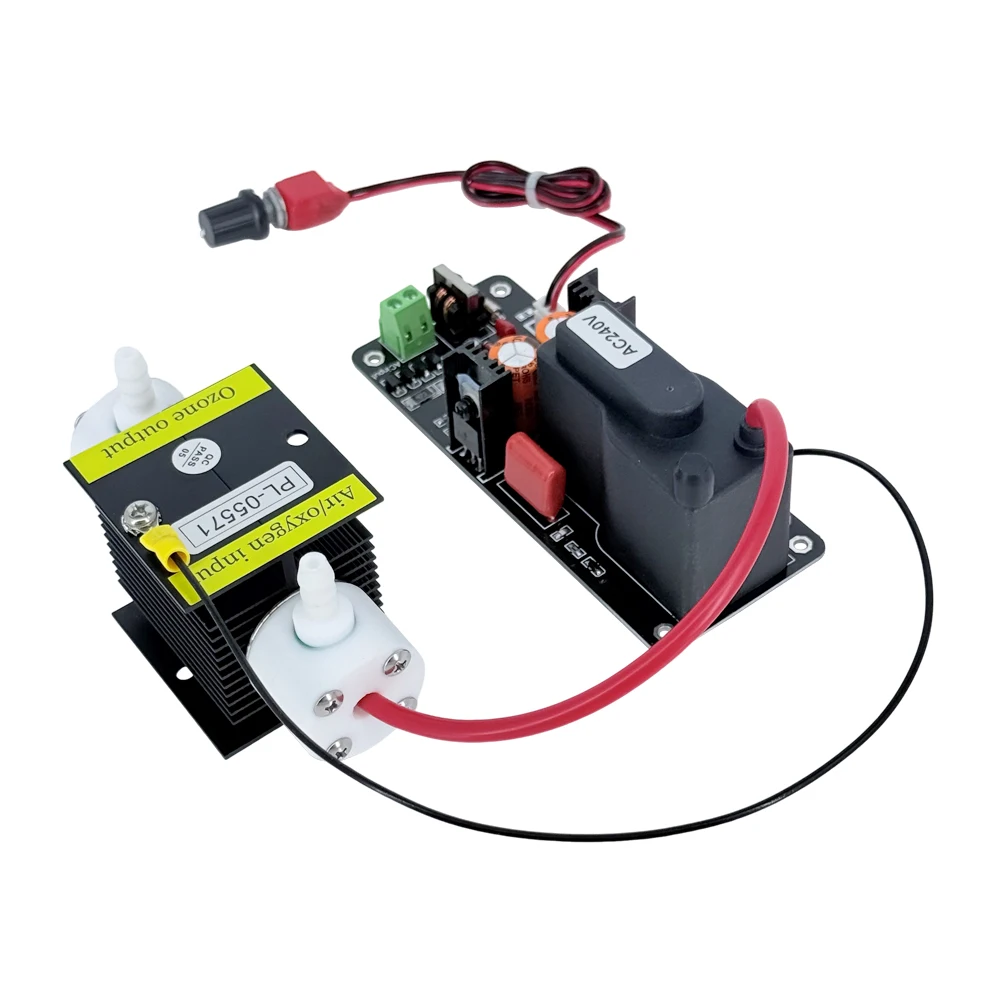

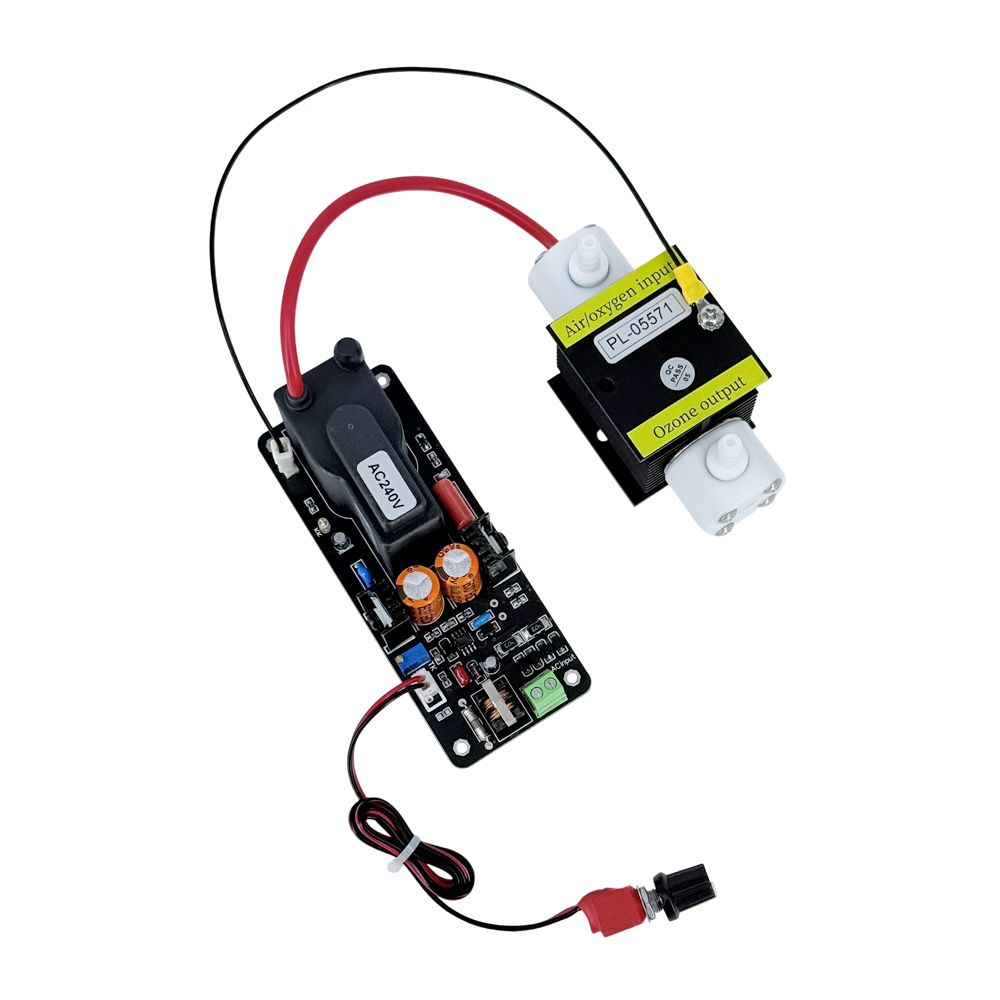

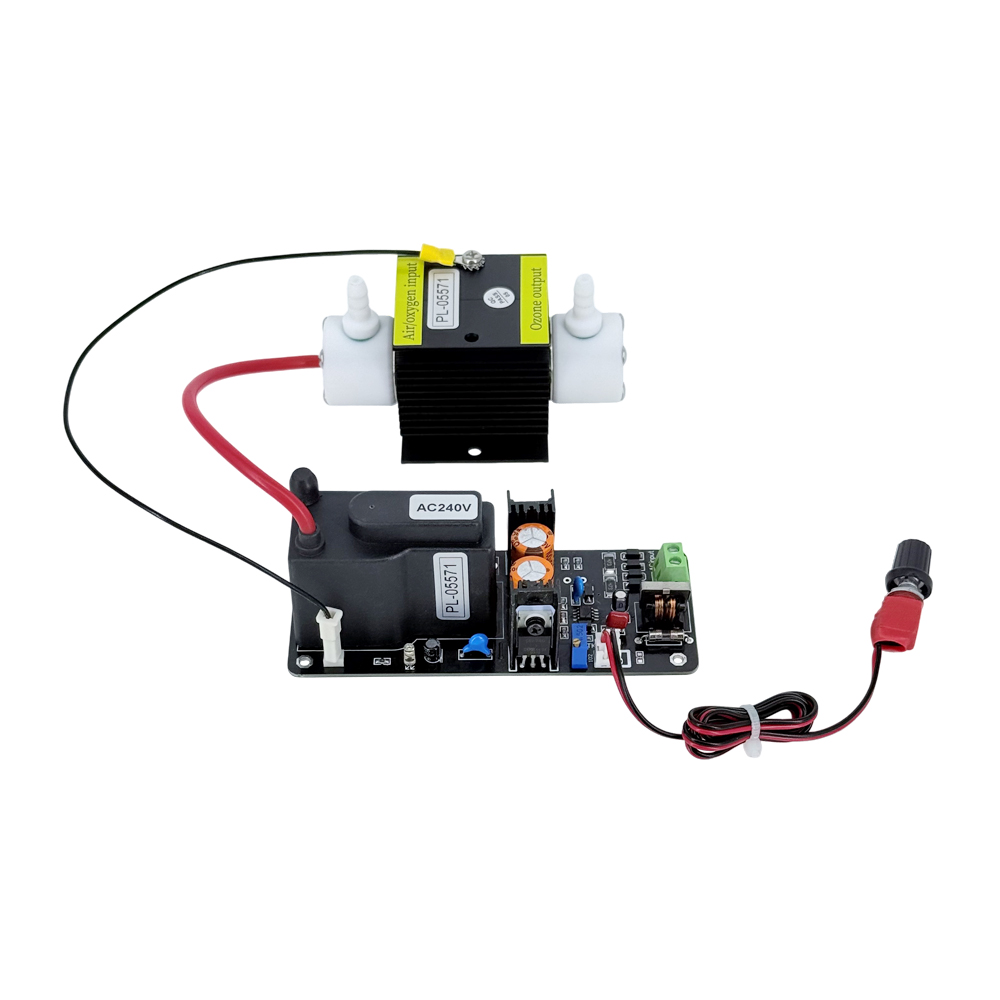

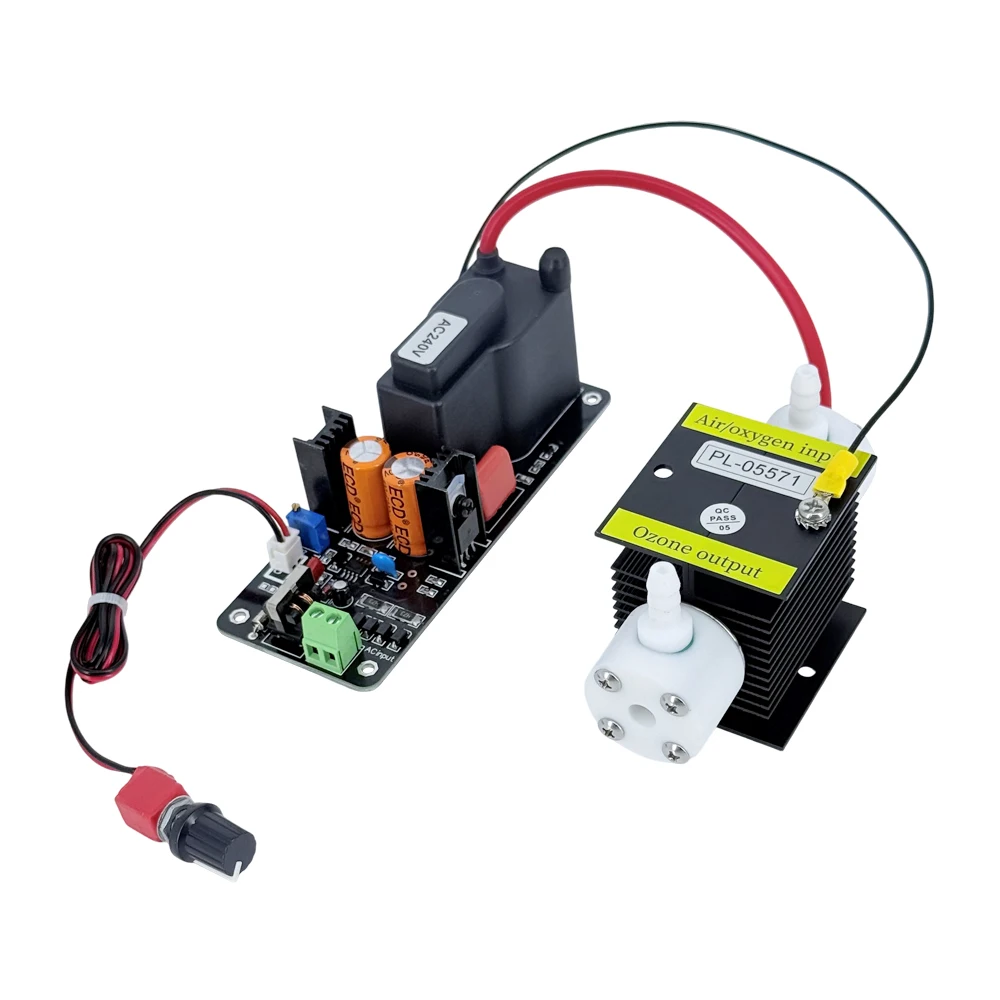

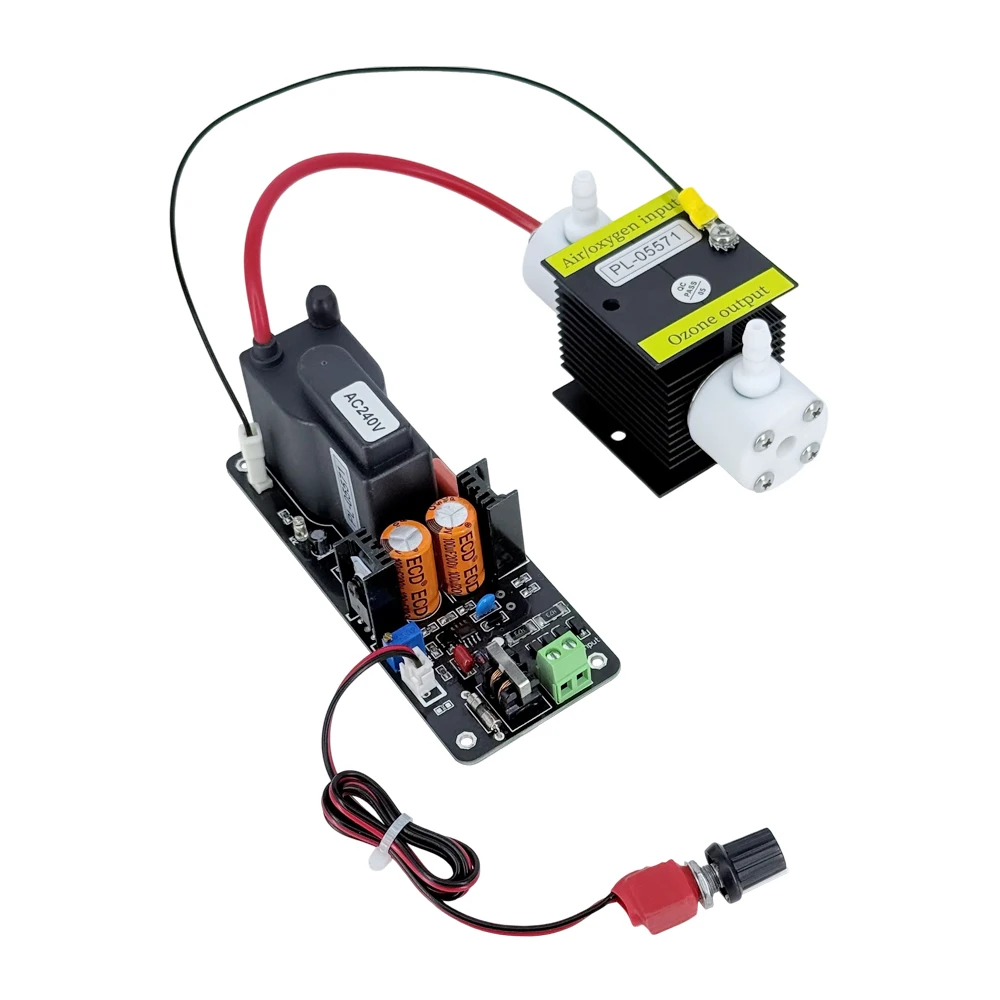

Product picture: (when the product works, there is no electricity on the black radiator, which is very safe)
Installation requirements: (1g/h ozone generator)
Note: Correct installation and usage are extremely important.
#1: The ozone power supply(ozone PSU) must not be installed in an enclosure without ventilation openings.
#2: The ozone power supply cannot operate alone and must be connected to an ozone tube.
#3: The ozone power supply must be kept at least 3cm away from the nearest ozone tube/metal plate/metal enclosure/other electrical devices.
#4: Even if the ozone power supply is installed on a plastic/insulating board, it must be kept at least 3cm away from any metal enclosure beneath the insulating board.
#5: It is necessary to maintain a distance of at least 3cm from metal plates not only at the bottom but also on the sides and top.
#6: If two or more sets of the same product are installed in one enclosure, the installation distance between every two ozone power supplies must be at least 6cm.
#7: You may install the ozone tube and ozone power supply on an insulating board or metal enclosure, if installed on a metal enclosure, connect an additional ground wire to the metal enclosure.
#8: the red high-voltage wire of the ozone power supply must be inserted into the center of the ozone tube.
the black wire must be secured to the heat sink of the ozone tube.
the red high-voltage wire must not contact the heat sink of the ozone tube.
#9: Avoid contact between the red high-voltage wire and other electrical devices/metal enclosures/other wires.
#10: The red high-voltage wire must not pass above the circuit board.
#11: The air-cooled ozone tube needs a cooling fan to cool the ozone tube.
#12: For optimal performance, ensure your air or oxygen supply is both dry and clean.
#13: Do not use the product under direct sunlight or in very humid environments, install and use it in a dry and well-ventilated area.
If you have any other installation or usage questions, please contact us.
This product is an ozone generator kit, the red high-voltage wire of the ozone power supply carries high voltage.
Please pay attention to electrical safety during installation and use.
#1: The ozone power supply(ozone PSU) must not be installed in an enclosure without ventilation openings.
#2: The ozone power supply cannot operate alone and must be connected to an ozone tube.
#3: The ozone power supply must be kept at least 3cm away from the nearest ozone tube/metal plate/metal enclosure/other electrical devices.
#4: Even if the ozone power supply is installed on a plastic/insulating board, it must be kept at least 3cm away from any metal enclosure beneath the insulating board.
#5: It is necessary to maintain a distance of at least 3cm from metal plates not only at the bottom but also on the sides and top.
#6: If two or more sets of the same product are installed in one enclosure, the installation distance between every two ozone power supplies must be at least 6cm.
#7: You may install the ozone tube and ozone power supply on an insulating board or metal enclosure, if installed on a metal enclosure, connect an additional ground wire to the metal enclosure.
#8: the red high-voltage wire of the ozone power supply must be inserted into the center of the ozone tube.
the black wire must be secured to the heat sink of the ozone tube.
the red high-voltage wire must not contact the heat sink of the ozone tube.
#9: Avoid contact between the red high-voltage wire and other electrical devices/metal enclosures/other wires.
#10: The red high-voltage wire must not pass above the circuit board.
#11: The air-cooled ozone tube needs a cooling fan to cool the ozone tube.
#12: For optimal performance, ensure your air or oxygen supply is both dry and clean.
#13: Do not use the product under direct sunlight or in very humid environments, install and use it in a dry and well-ventilated area.
If you have any other installation or usage questions, please contact us.
This product is an ozone generator kit, the red high-voltage wire of the ozone power supply carries high voltage.
Please pay attention to electrical safety during installation and use.
Ozone PSU away from ozone tube / metal plate / metal shell / other electrical appliances (A B C D), more than 3cm.
The left side is correct and the right side is wrong:
When you get our products, you will get installation instructions, operation instructions and wiring diagrams.
If you still have any questions, you can contact us at any time.
Dehydroxylation high purity silica quartz tube ozone generator kit:
#1: Quartz tube composition: 99.9% silica, with strong hardness, high temperature resistance, low coefficient of thermal expansion (CTE), thermal shock resistance, good chemical stability & electrical insulation properties.
#2: High efficiency: narrow-gap discharge of 0.5mm, with high ozone conversion rate and low noise.
#3: Low power consumption: high-voltage high-frequency corona discharge, with a power consumption rate of 8KW.h/kg O3.
#4: High voltage resistance: the operating voltage of the tube is only 1/6 of its breakdown voltage, with a high dielectric constant.
#5: High quality: the dielectric material is made of high-purity silica quartz, sintered at the high temperature, with high precision and uniform discharge. It is equipped with the 316L stainless steel inner electrode, PTFE flange gas nozzle and anti-corrosion high-purity fluorine rubber ring seals. Using the latest patented high-density aluminum alloy heat sink technology is applied for external air cooling of heat dissipation, which can achieve more efficient heat dissipation. And the long time ozone decay is very low, <1/10.
#6: Service life: more than 20,000 hours.
#7: Ozone PSU: with over-current and over-voltage protection, short-circuit protection, open-circuit protection. If the quartz glass tube is damaged, ozone PSU will automatically stop output high voltage.
