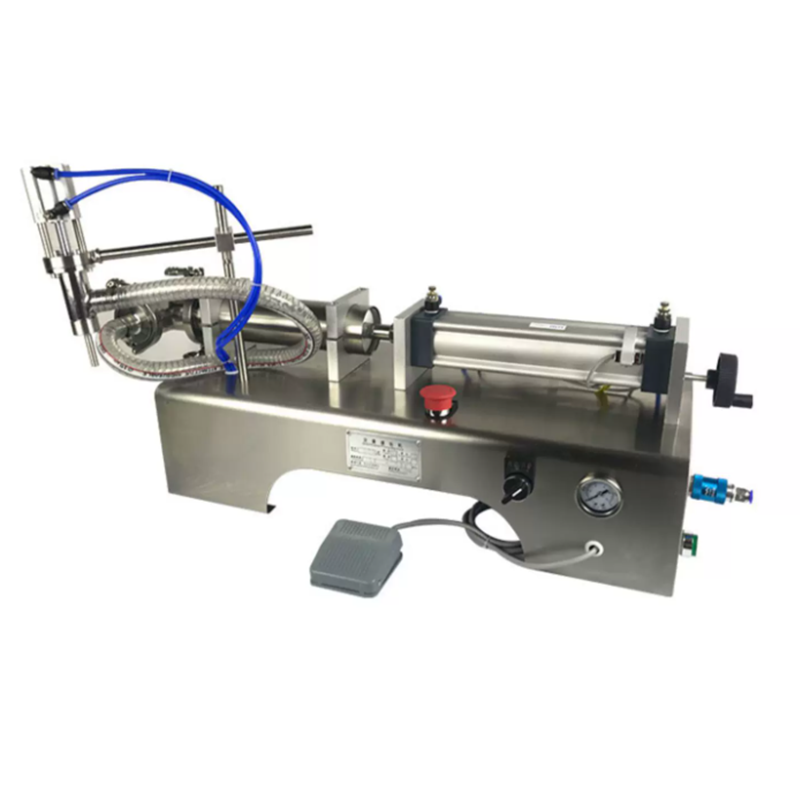

Horizontal Pneumatic Filling Machine Single Head Single Nozzle Rotary Valve Quantitative Liquid Packaging Equipment

Overview

This series of filling machines are innovatively upgraded based on advanced filling technology. Featuring simple and reasonable structure, high precision and easy operation, the humanized design fully meets the production demands of modern enterprises. Widely applicable to pharmaceutical, cosmetic, food, pesticide and other special industries, it is an ideal quantitative filling device for high-viscosity liquids and pastes.

Features

  This filling machine boasts reasonable structure, compact size, stable operation and high filling precision with simple operation. It adopts pneumatic power structure, and all parts in contact with materials are made of 316L stainless steel, which complies with GMP standards. The filling volume and speed can be adjusted freely according to actual needs.

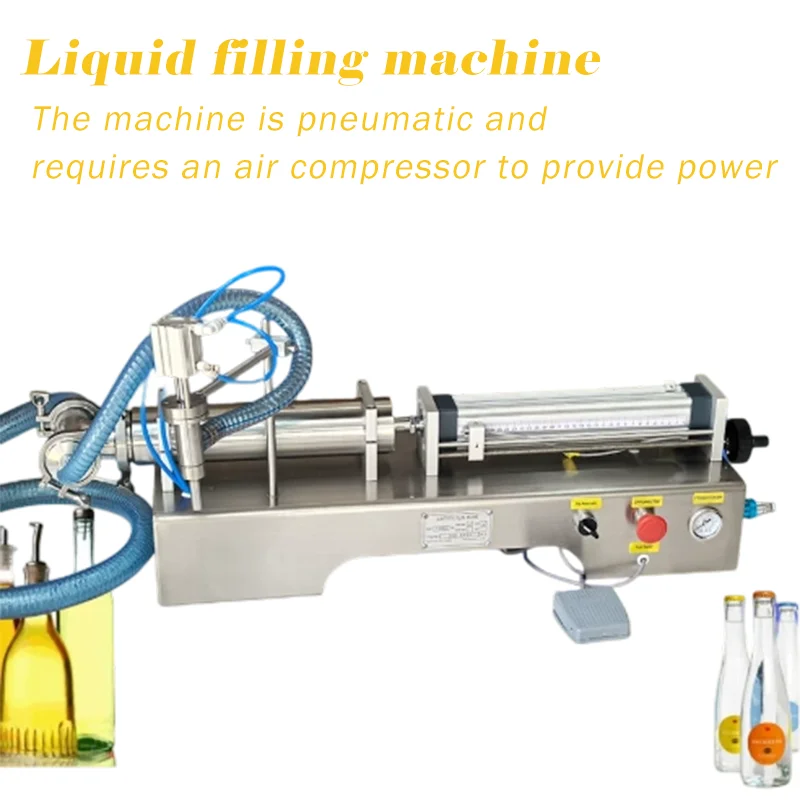

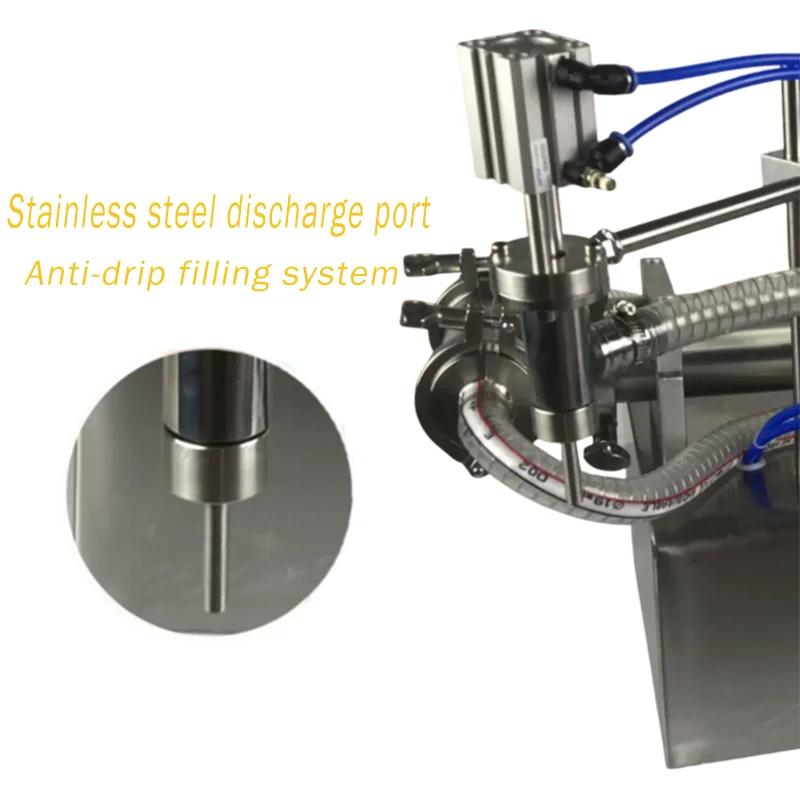

  The filling head is designed with anti-drip and lifting filling function. This machine is driven by air pressure, so customers need to prepare an air compressor separately.

Product Advantages

1 Driven by compressed air, it is safe to use in explosion-proof and humid working environments.

2. Adopts pneumatic control and mechanical positioning to ensure filling accuracy within 1%.

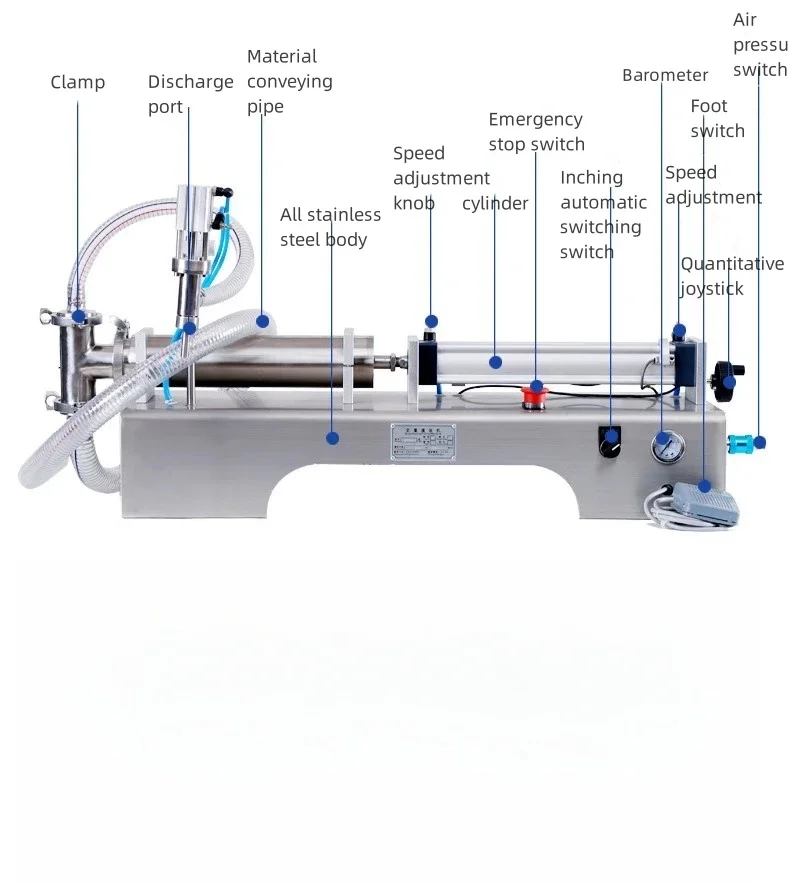

3.  Equipped with screw and digital counter for precise filling volume adjustment with clear digital display.

4.  Built-in emergency stop function. Press the switch to stop filling instantly and reset the piston automatically.

5.Low failure rate, stable and durable in long-term use.

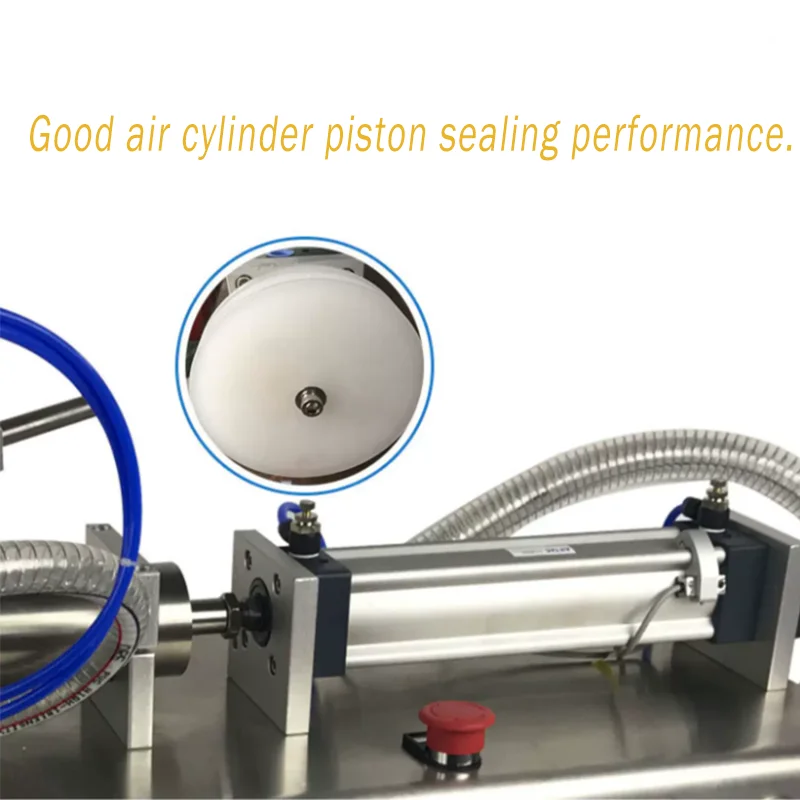

6. Adopts three-way filling valve and reciprocating piston structure. When the piston retracts, material inlet 7.opens for feeding; when the piston pushes forward, material outlet opens for filling.

Technical Parameters

• Working Voltage: 110V/220V 50-60Hz

• Filling Accuracy: ≤ ±0.5%

• Filling Speed: 5-35 bottles per minute

• Working Air Pressure: 0.4-0.9MPa

• Air Consumption: ≥0.1m³/min

• Nozzle Sizes: 4mm, 6mm, 8mm, 10mm, 12mm

Please note your required nozzle size when placing an order.

Warm Tips

Our products are constantly upgraded and optimized, so there may be slight differences between the actual goods and pictures. Minor color deviation may also exist due to different production batches. Please kindly understand.

We provide one-year free warranty service. Any quality damage caused by normal use can be repaired or replaced free of charge within one year after purchase.

If you are unsatisfied with the product, you can return it within 30 days for a full product refund, excluding shipping fees.

We can supply machine spare parts at cost price permanently after you place the order.
