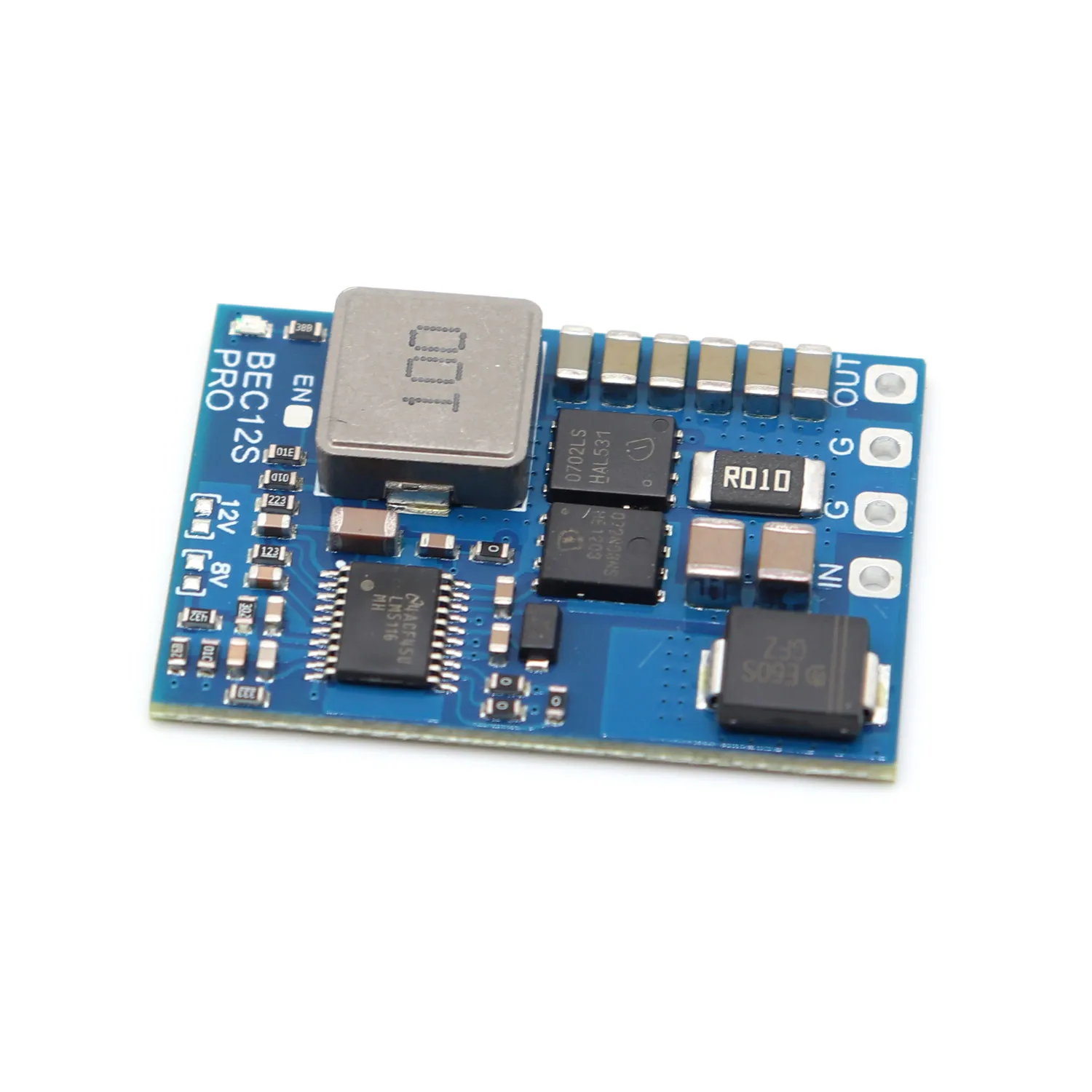

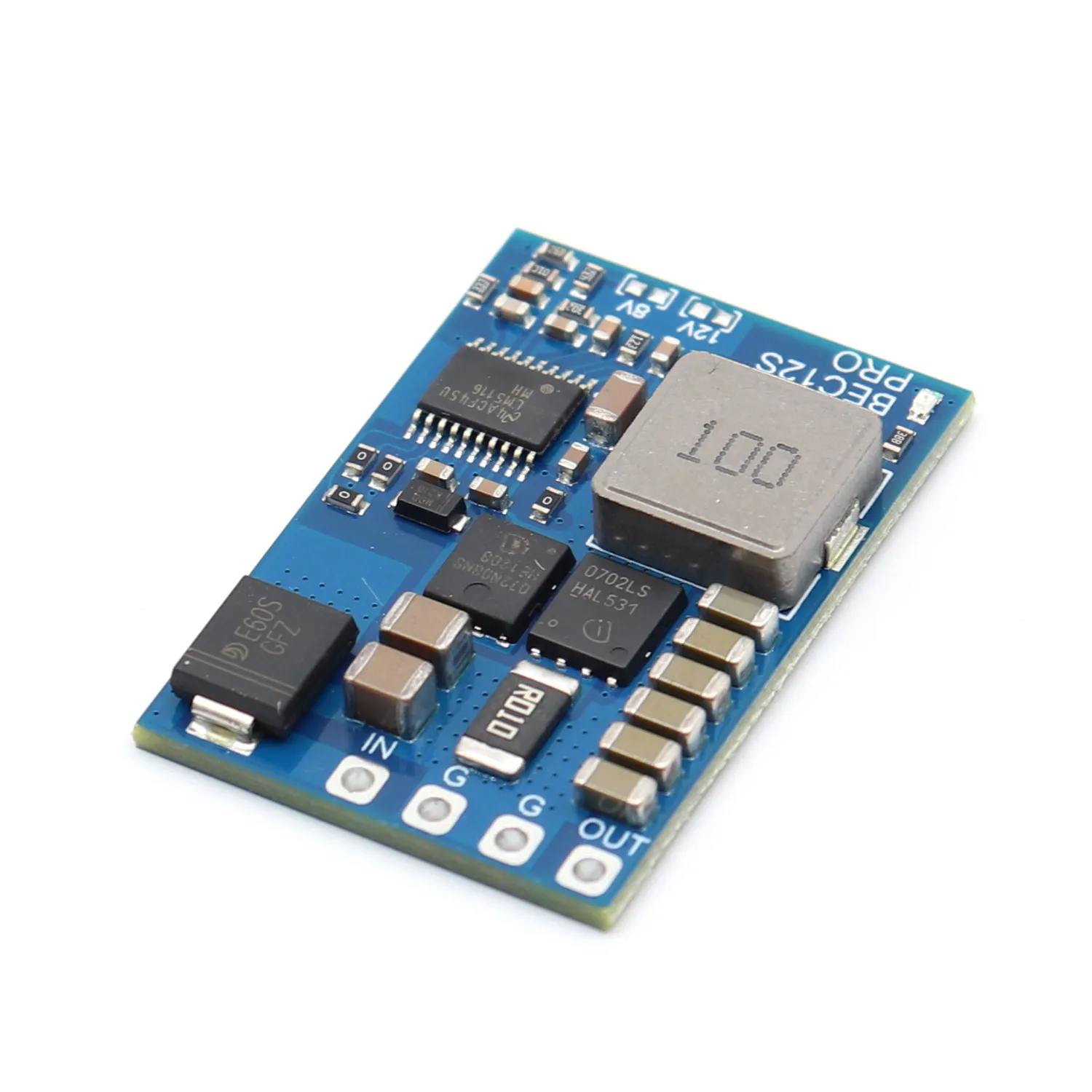

BEC12S PRO 9-55V TO 5V/8V/12V-5A BEC Module 3-12S Overcurrent Protection & Self-recovery for RC Airplane Multirotor MATEK Style
価格:
$21.27
/Pc
払い戻し:
シェア:
売れ筋商品
Features
Wide 9V to 55V Operating Input Range with TVS protection

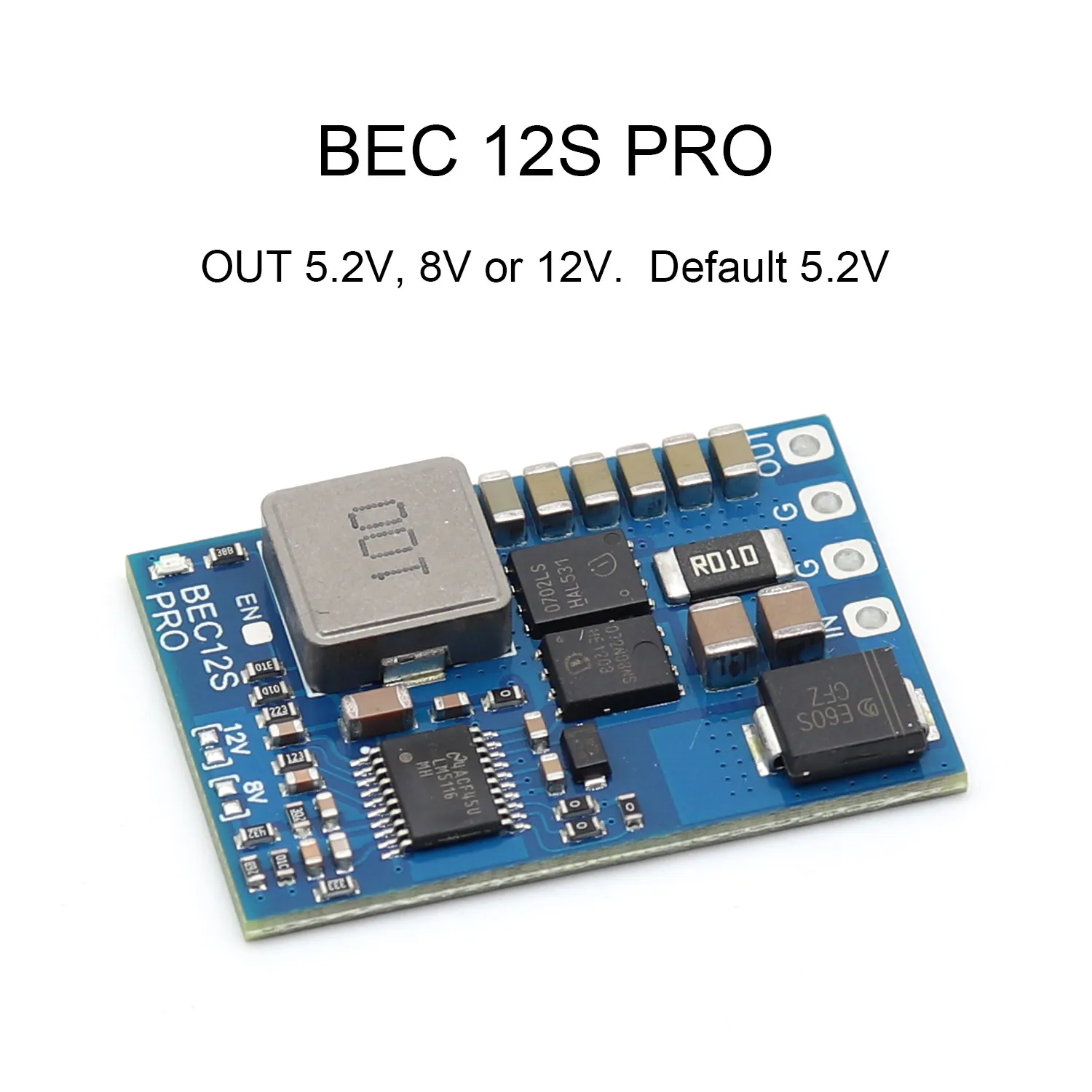

3x Output voltage options, 5.2V, 8V or 12V. Default 5.2V.
Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
Supports continuous output current of up to 5A, peak current of 9A.
Output ripple 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
Standby current: 5~10mA
No reverse-input voltage protection
Thermal Shutdown
Output Short-circuit tolerant (2 seconds)
Overcurrent protection & self-recovery
Dropout voltage: 2V (Input>=14V is required for stable 12V output)
Pins distance: 3.81mm

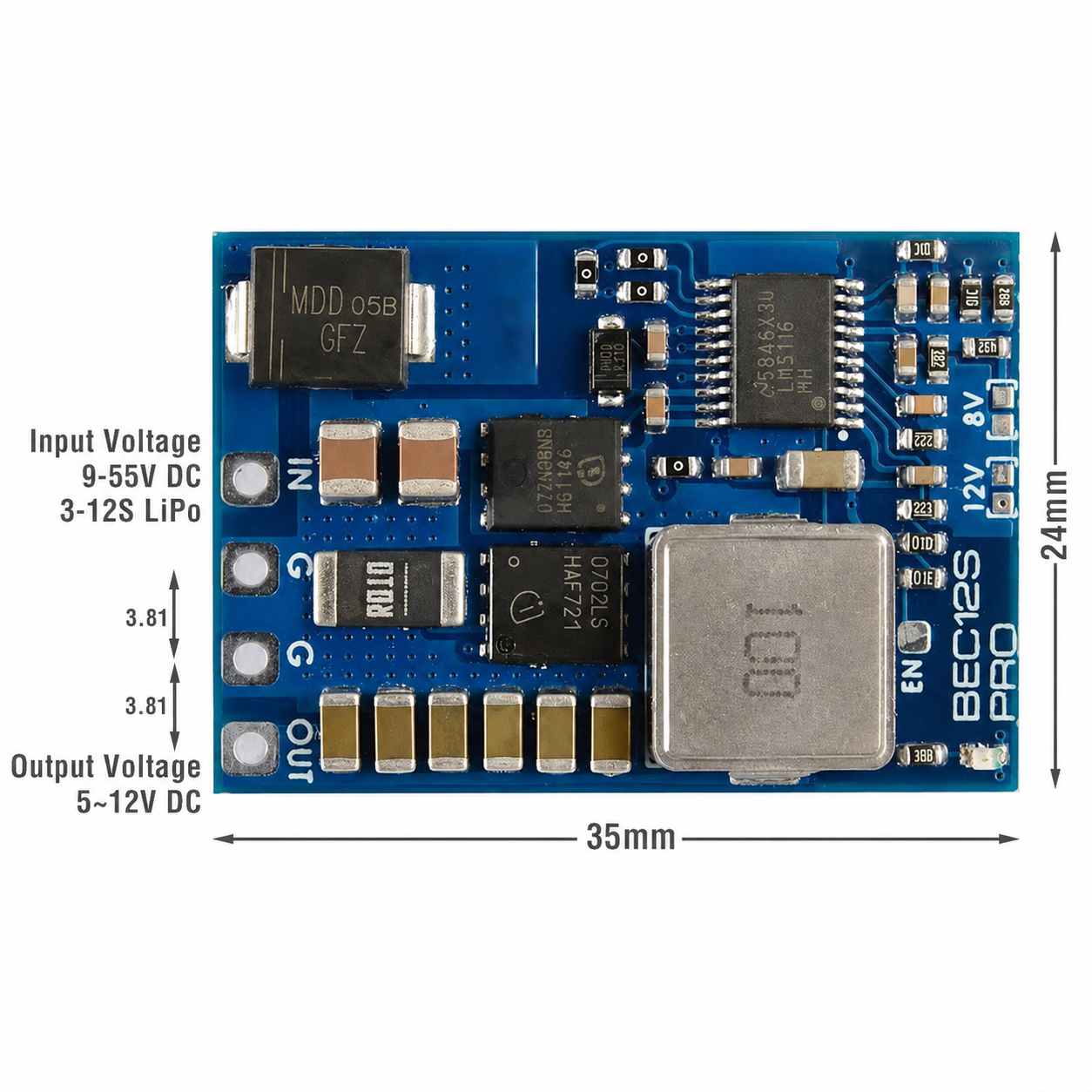

Size & Weight: 35 x 24 x 5.5mm, 5g

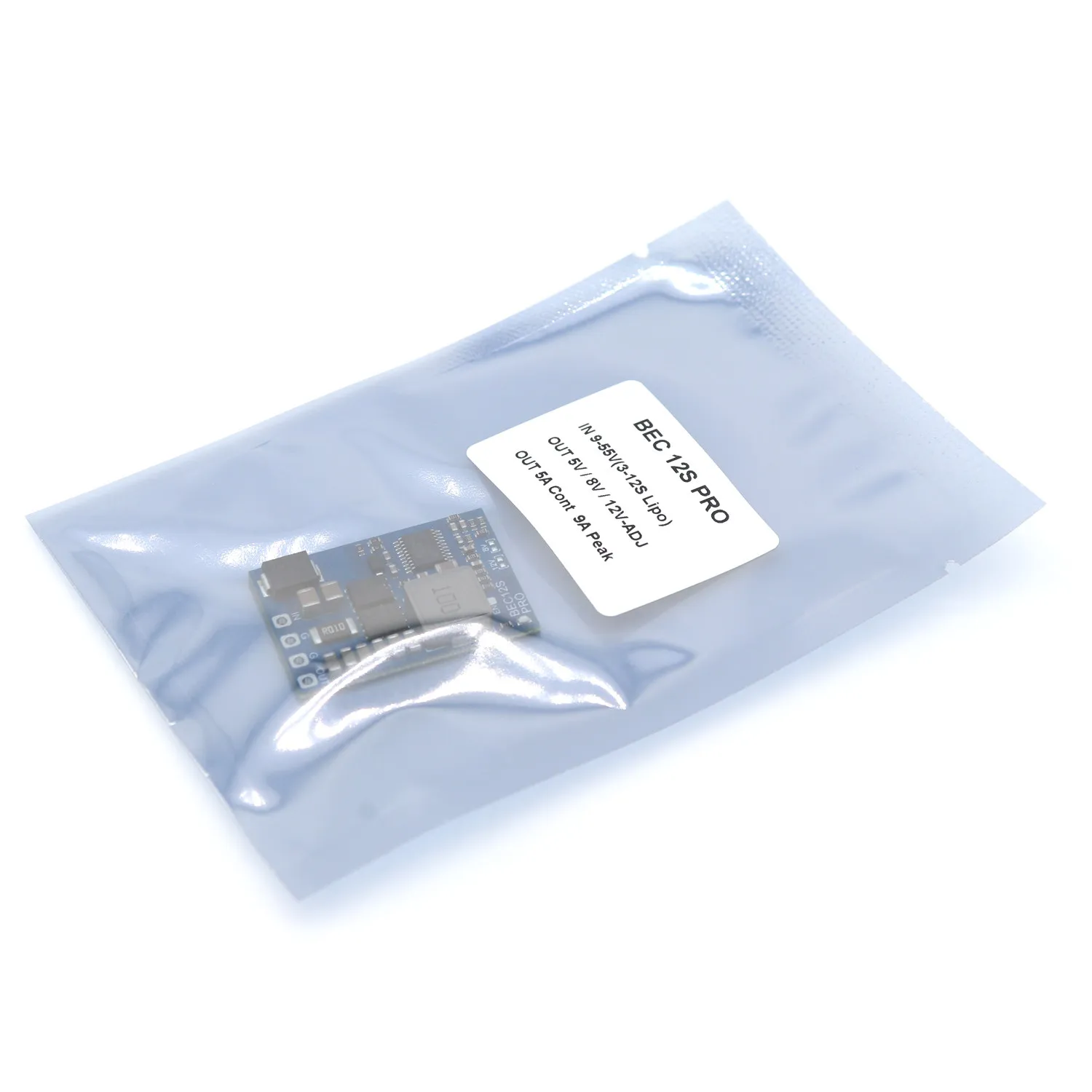

Packing: 1pc/package
