Customized Automatic 30 Concrete Mixer Pump High Pressure Fine Stone Delivery Pump Construction Machinery
価格:
$6,550.00
/Pc
払い戻し:
シェア:
売れ筋商品
PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com
CONTACT US:
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com
CONTACT US:
Products Description

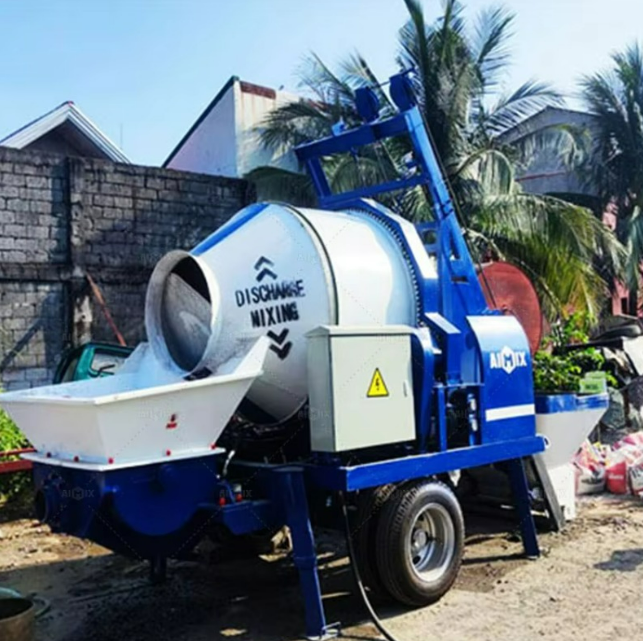

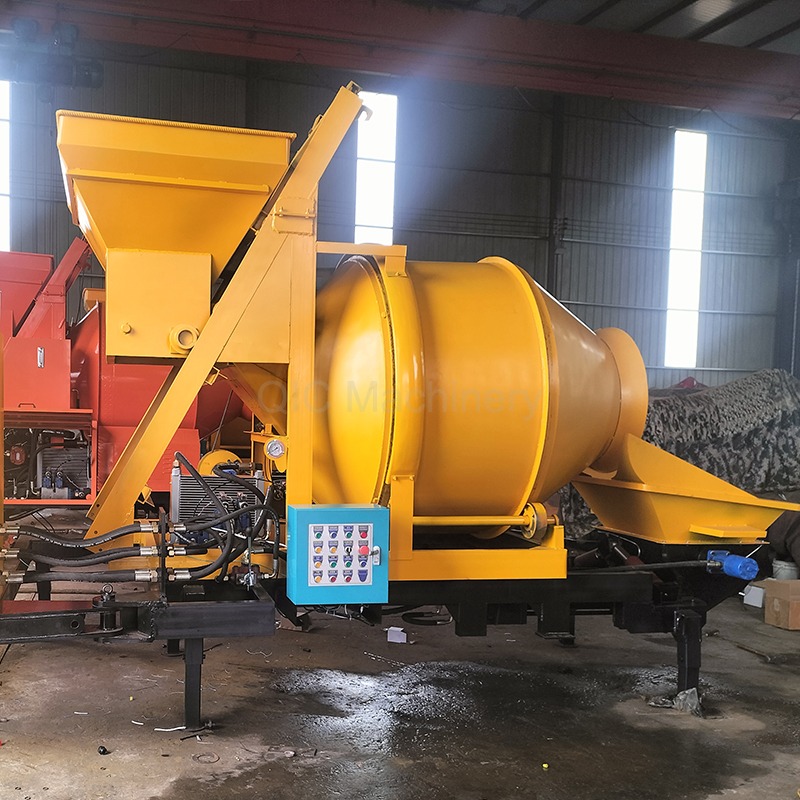

The mobile concrete mixing and pumping machine is a small concrete pump which adopts a fully automatic construction operating system and integrates feeding, mixing and high-pressure pumping. It can realize on-site mixing and continuous pumping, which greatly improves the construction efficiency. This mobile concrete mixer pump is simple to operate, stable in performance and convenient to move.
Product Advantages
Multiple Functions with One Machine and Cost Saving
It integrates the functions of mixing and pumping, without additional mixing equipment, saving more than 30% of equipment purchase and lease costs and reducing labor input.
The concrete mixing integrated pump can realize on-site mixing and continuous pumping, and the efficiency can reach 4-6 times that of the traditional concrete mixer and concrete delivery pump, and the construction efficiency can be improved by more than 50%.
Efficient and Stable Long-distance Pumping and Fast Construction
Adopt high-pressure pumping system, the max. pumping pressure is 10MPa, the max. vertical transportation is 120m, and the horizontal transportation is 500m, with automatic pressure regulation and stable transportation, so as to prevent pipe blockage.
The pipeline is made of high-strength wear-resistant alloy, and its wear resistance is 3-5 times that of ordinary steel pipe. With high-performance seals, it can effectively prevent leakage and ensure the continuity and integrity of transportation.

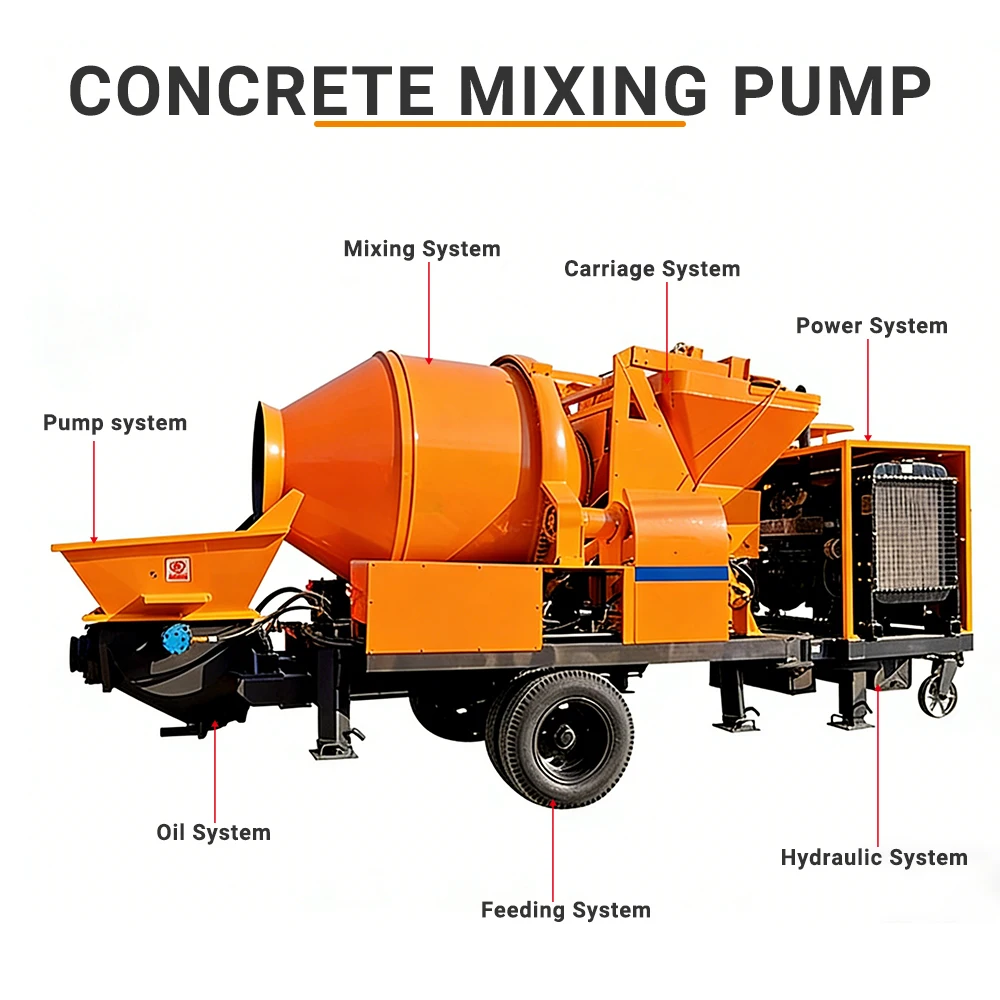

Product Details
Diesel Engine

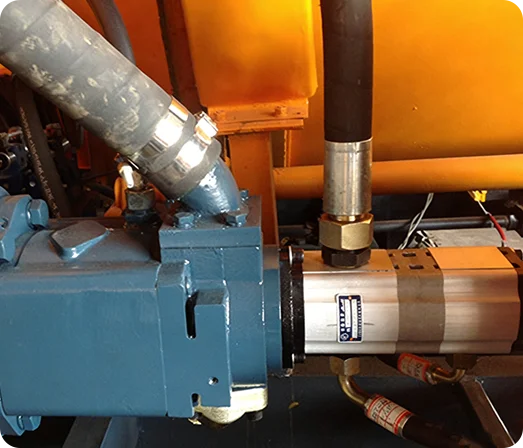

Main Oil Pump

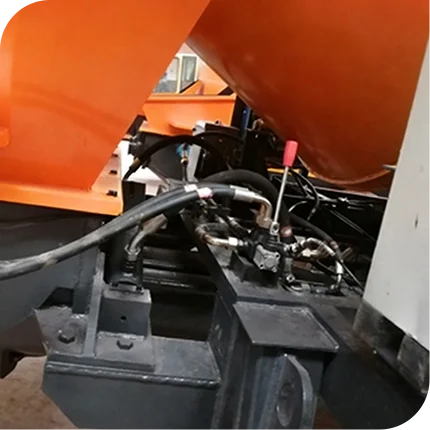

Hydraulic Oil Pipe
Seamless Steel Pipe

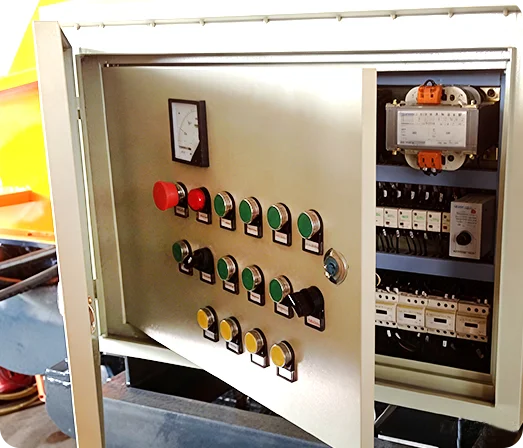

Automatic Control Panel
Remote Control
Air Cooling System
Cleaning Ball
Products Description
Small Concrete Mixer With Pump And Hose small Concrete Mixer With Pump self-loading Concrete Mixer With Pump
Concrete Mixer With Pump

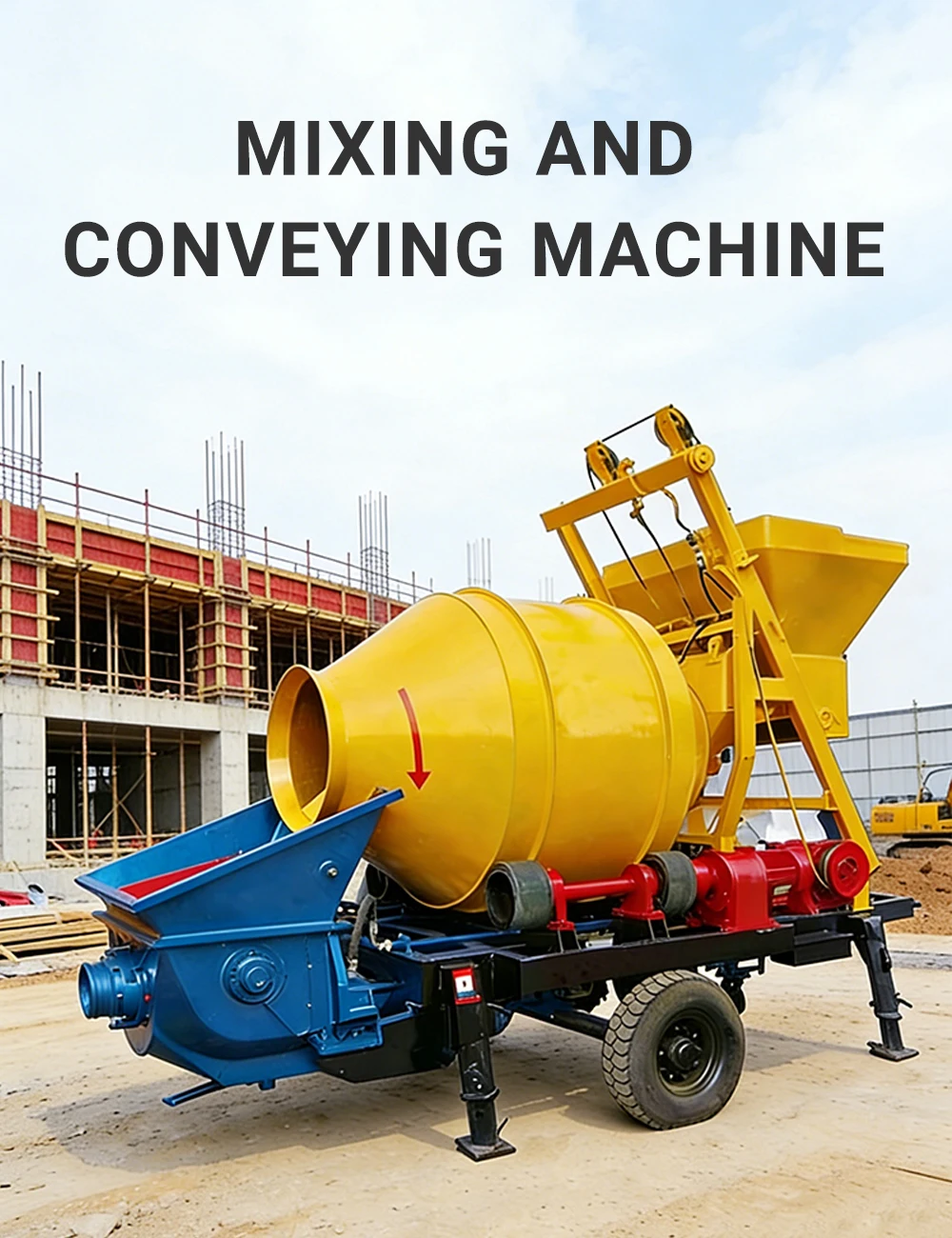

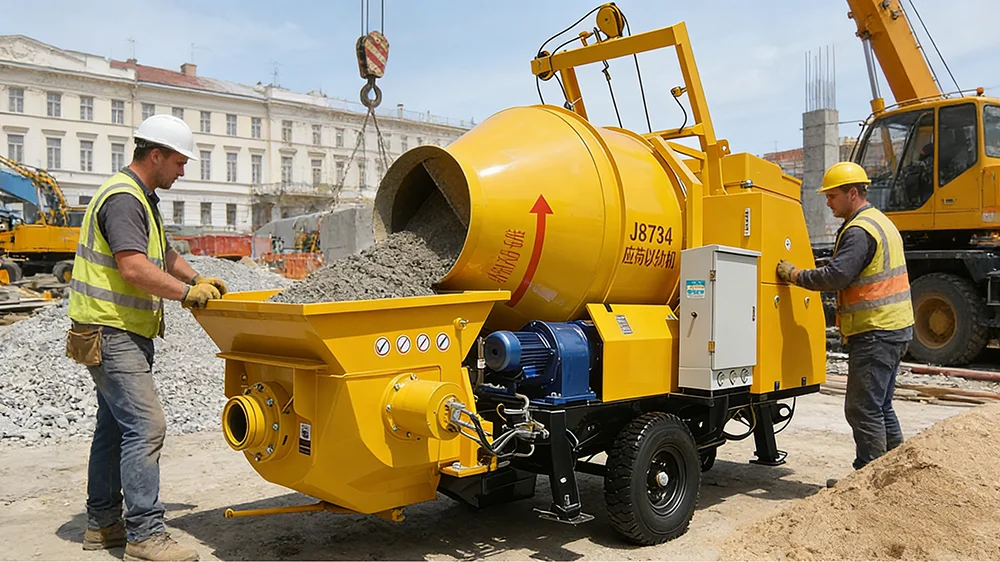

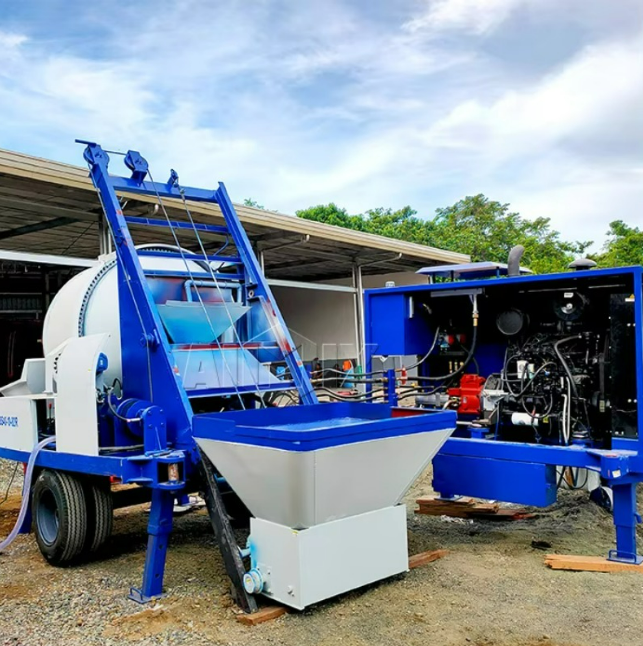

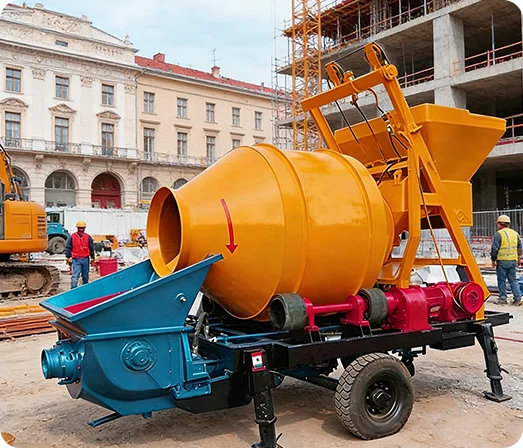

The mixer equipped with a conveying pump—also known as an integrated mixing-and-pumping machine or a trailer-mounted mixer pump—serves the core function of mixing concrete on-site and directly pumping it under high pressure for placement. By integrating the processes of mixing, conveying, and pouring, it significantly boosts construction efficiency at small-scale or dispersed work sites.
Product Parameters
|
Items
|
|
YG-30
|
YG-40
|
YG- 30
|
YG- 40
|
|||
|
Transfer Pump
|
Power type
|
Motor
|
Motor
|
Diesel
|
Diesel
|
|||
|
Fuel tank capacity
|
Theoretical Pumping Pressure
|
9Mpa
|
10Mpa
|
10Mpa
|
10Mpa
|
|||
|
Brush material
|
Max. conveyor height
|
140m
|
160m
|
140m
|
160m
|
|||
|
Hand grip
|
Max. distance
|
350m
|
500m
|
350m
|
500m
|
|||
|
Maximum operating efficiency
|
Distribution cylinder
|
The S tube placed valve
|
|
|
|
|||
|
Machine power
|
Max. theoretical output
|
30m3/h
|
40m3/h
|
30m3/h
|
40m3/h
|
|||
|
Transmission type
|
Motor power
|
37kw
|
45kw
|
62kw
|
82kw
|
|||
|
Gear range
|
Main oil pump capacity
|
71ml/min
|
112ml/min
|
71ml/min
|
112ml/min
|
|||
|
Operating time after full refueling
|
Hopper capacity
|
550L
|
550L
|
550L
|
550L
|
|||
|
Advantage
|
Max. aggregate diameter
|
20/30mm
|
30/40mm
|
20/30mm
|
30/40mm
|
|||
|
Concrete Mixer
|
Loading capacity
|
560L
|
720L
|
560L
|
720L
|
|||
|
|
Unloading capacity
|
350L
|
450L
|
350L
|
450L
|
|||
|
|
Mixing motor
|
5.5x2kw
|
5.5x2kw
|
/
|
/
|
|||
|
|
Hoisting motor
|
4.5kw
|
4.5kw
|
/
|
/
|
|||
|
Total
|
Dimension
|
4270x2350
x2980mm
|
4800x2200
x2800mm
|
4800x2200
x2800mm
|
6000x2200
x2800mm
|
|||
|
|
Weight
|
3300kg
|
5000kg
|
5500kg
|
6000kg
|
|||
PRODUCT DETAILS

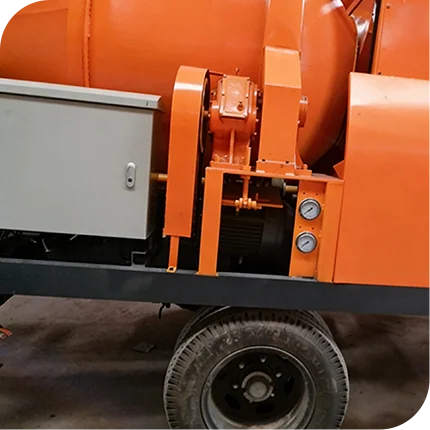

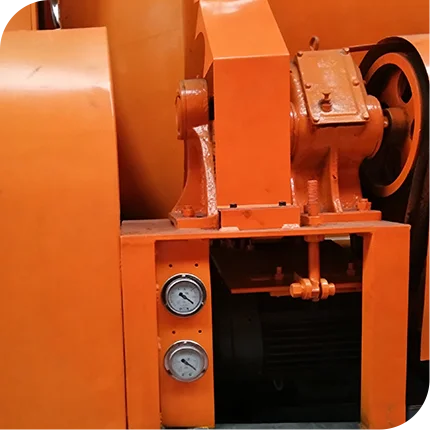

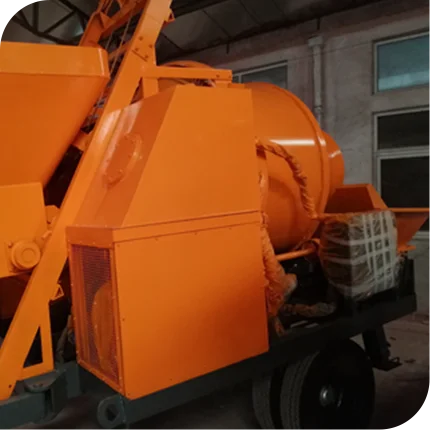

Exquisite workmanship
Product advantages
Wear parts such as glasses plates and cutting rings have long service life and long service life.
The dual-pump, dual-circuit open hydraulic system simplifies the system structure, extends the service life of components, enhances reliability, and facilitates fault diagnosis and troubleshooting.
Hydraulic Oil Filter: Filters impurities generated in the hydraulic oil during operation to ensure the service life of hydraulic components.
The outstanding features of this concrete pump's electronic control system include advanced technology, a compact structure, and high reliability. All electrical components are original imported parts.
It features an anti-clogging function, which helps to promptly resolve blockage faults and enables brief shutdowns.
It adopts an advanced S-valve distribution system capable of automatically compensating for wear gaps, ensuring excellent sealing performance.
The long stroke of the cylinder extends the service life of the cylinder and piston.
It features a wear-resistant alloy spectacle plate and a floating cutting ring, ensuring a long service life.
Company Profile
Product packaging
Through over 20 years hard effort, we have exported to over 40 countries and areas. Establish one complete set of service system and experienced service team, and also build up the golden and valuable ZHUCHENG Brand with top honesty, super quality and intimate service as well as high honor all over the world.
FAQ
Q1: How to choose the suitable model of concrete mixers pump? A: Just tell us the capacity (m3/h)of concrete you want to produce concrete per hour or per month.
Q2: Can you customize by my specialized request? A Yes, we can.
Q3: How is the quality of your products? A: our machines are manufactured strictly according to national and interational standards, and we take a test on each equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q4: How about the price? A: We are factory and be able to give you the lowest price than market one, and we have a policy that for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity .And also offer you one-stop purchasing service:Design, manufacturing, installation & debugging, after sales technical support, etc.
Q5: Do you provide after-sale service? A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q6: Do you provide equipment operation training? A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q7: Service and Payment Terms? A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery We take pictures of finished products before delivery.
Q2: Can you customize by my specialized request? A Yes, we can.
Q3: How is the quality of your products? A: our machines are manufactured strictly according to national and interational standards, and we take a test on each equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q4: How about the price? A: We are factory and be able to give you the lowest price than market one, and we have a policy that for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity .And also offer you one-stop purchasing service:Design, manufacturing, installation & debugging, after sales technical support, etc.
Q5: Do you provide after-sale service? A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q6: Do you provide equipment operation training? A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q7: Service and Payment Terms? A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery We take pictures of finished products before delivery.
