HQ- Full Radio Setup YXHT-1, 300W FM Transmitter With Feeder Antenna And Transmission Cable For School & Aviation Signal
価格:
$1,737.00
/Pc
払い戻し:
シェア:
売れ筋商品

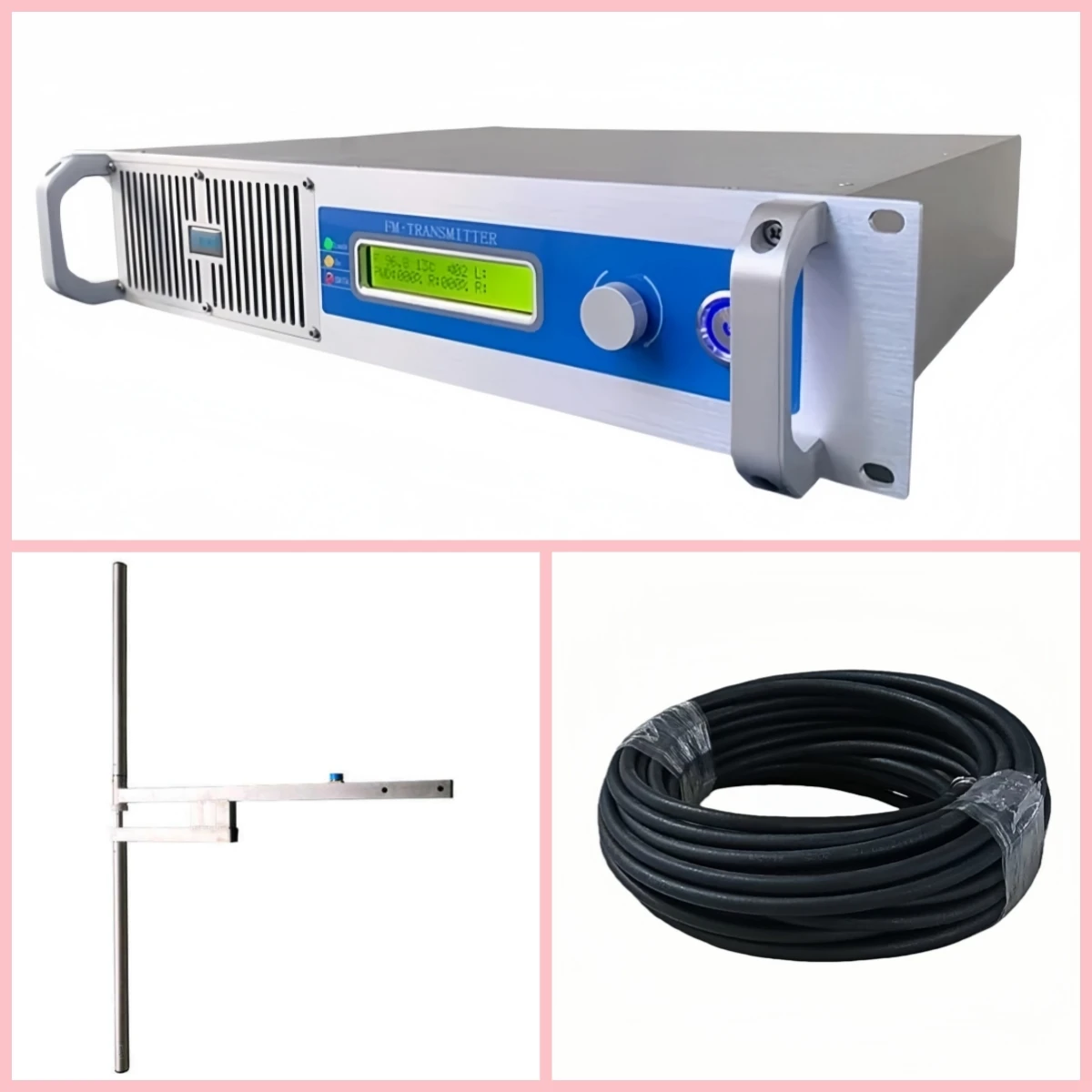

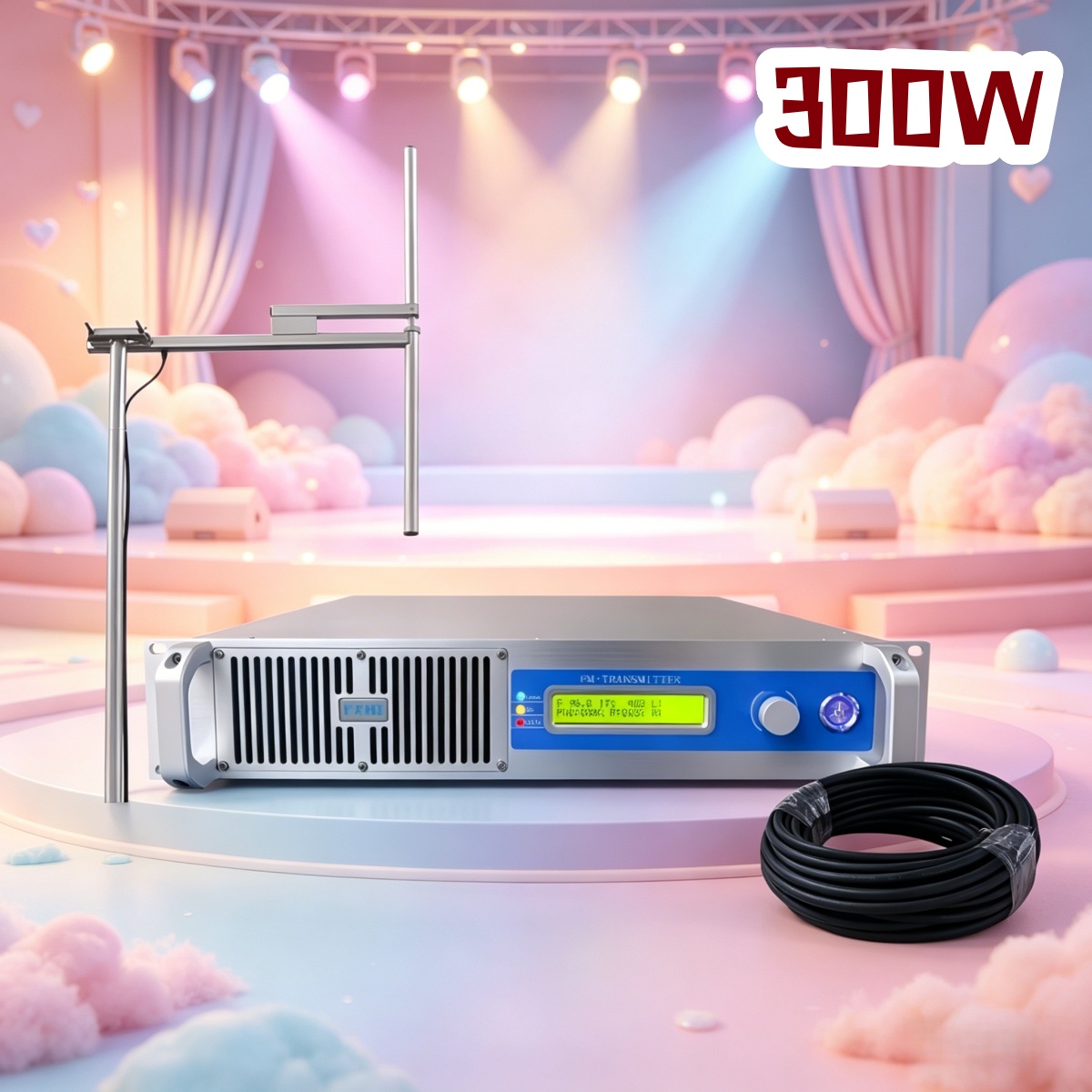

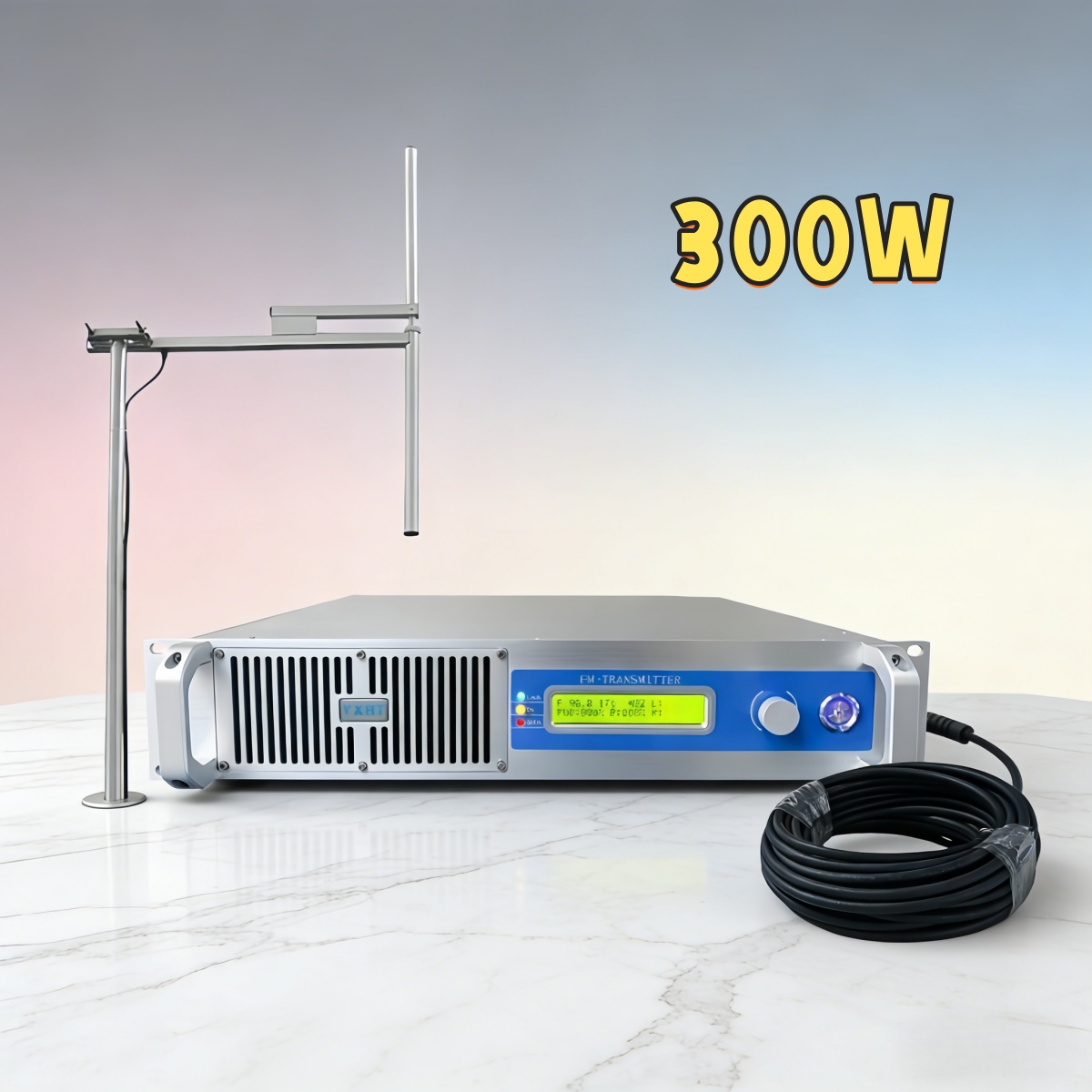

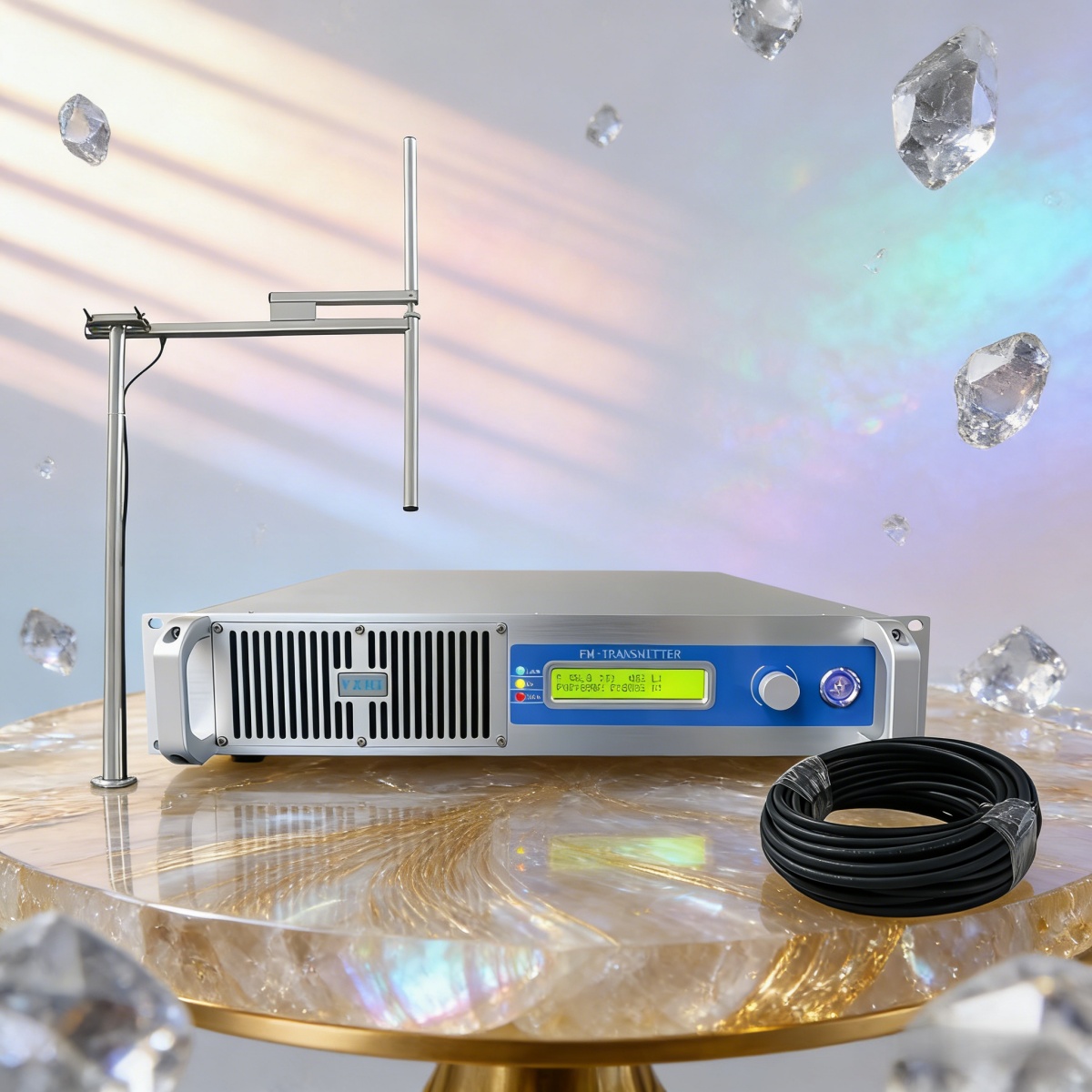

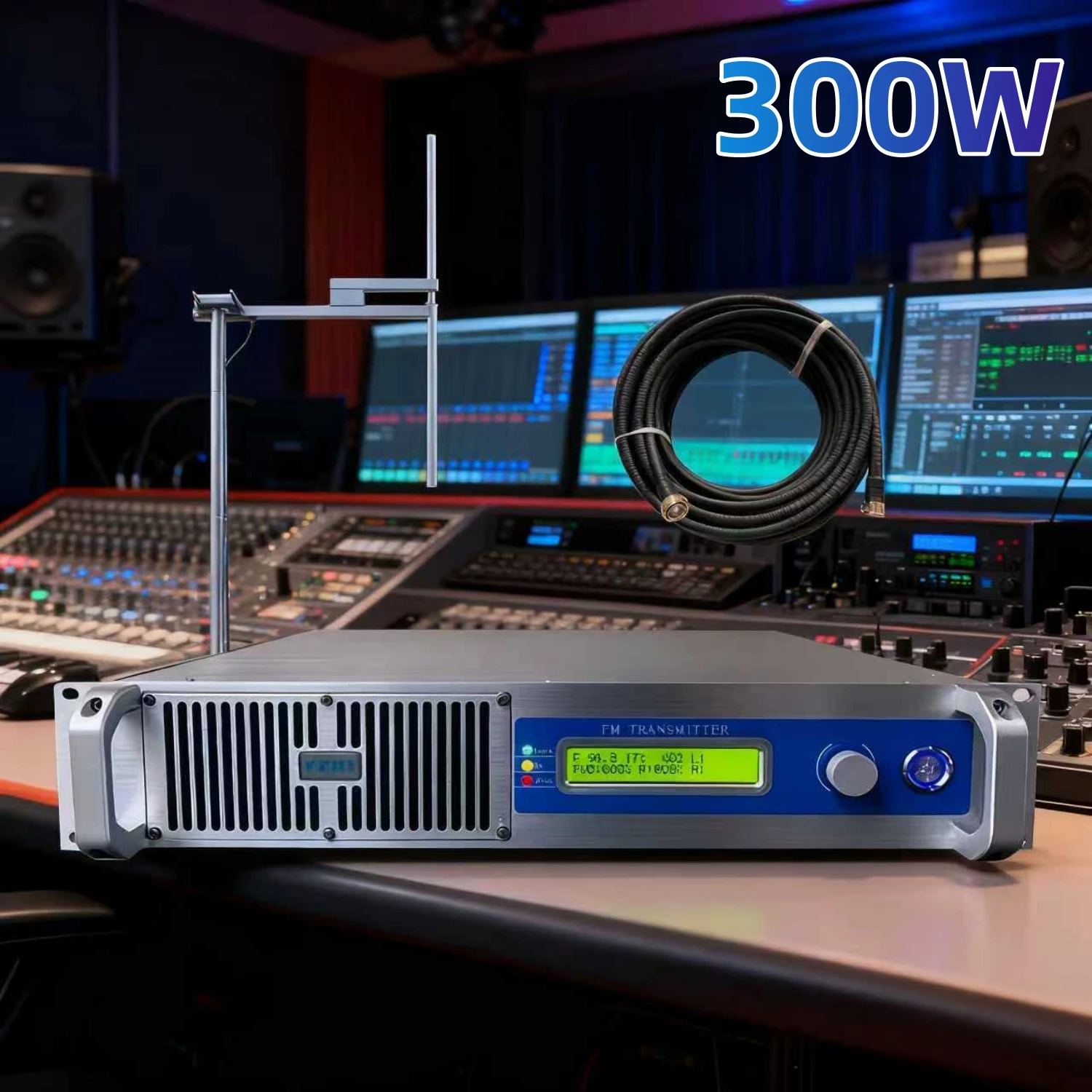

300W FM Transmitter + 1-Bay Antenna + Cable with connectors
Product Description
(1) 300W FM Transmitter
Warranty：The warranty of all transmitters in our factory is 6 years.
|
1. Frequency Range:
|
87.5MHz~108 MHz
|
|
2. Frequency Setting step:
|
10KHz
|
|
3. Carrier Frequency precision:
|
±200Hz
|
|
4. Residual Wave Radiation:
|
≥65dBc
|
|
5. Audio Input Impedance:
|
600Ω,Balance
|
|
6. Separation:
|
60dB Pilot Signal Modulation:8%~10%
|
|
7. Audio Input Level:
|
±10dBm,step 0.01dB
|
|
8. S/N:
|
≥75dB(30H~15kHz,100%)
|
|
9. Audio Harmonic Distortion:
|
<0.05%
|
|
10. Audio response:
|
±0.05dB(30Hz~15KHz)
|
|
11. Output Load Impedance:
|
50Ω
|
|
12. Output Power:
|
300W
|
|
13. Pre-emphasis:
|
0μS,50μS,75μS
|
|
14. Deviation:
|
±75kHz
|
|
15. Pilot Frequency:
|
19 kHz±1Hz
|
|
16. Sub-carrier Suppression:
|
≥65dB
|
|
17.RF Output Connector:
|
7/16'(female)or7/8'Flange
|
|
18.Size:
|
460mm*480mm*88mm
|
|
19.Weight:
|
16KG
|
|
20.Pilot Signal Modulation:
|
8%~10%
|
(2) 1-Bay Dipole Antenna
|
Frequency Range:
|
87.5Mhz-108Mhz
|
|
Impedance:
|
50ohm
|
|
Connector:
|
NK
|
|
VSWR:
|
<1.35:1 MAX
|
|
Polarization:
|
Vertical
|
|
Dimensions:
|
1400*900*50mm
|
|
Weight:
|
4kg with hardware mounting
|
|
Gain:
|
2.0dB
|
|
Max handle power:
|
2KW
|

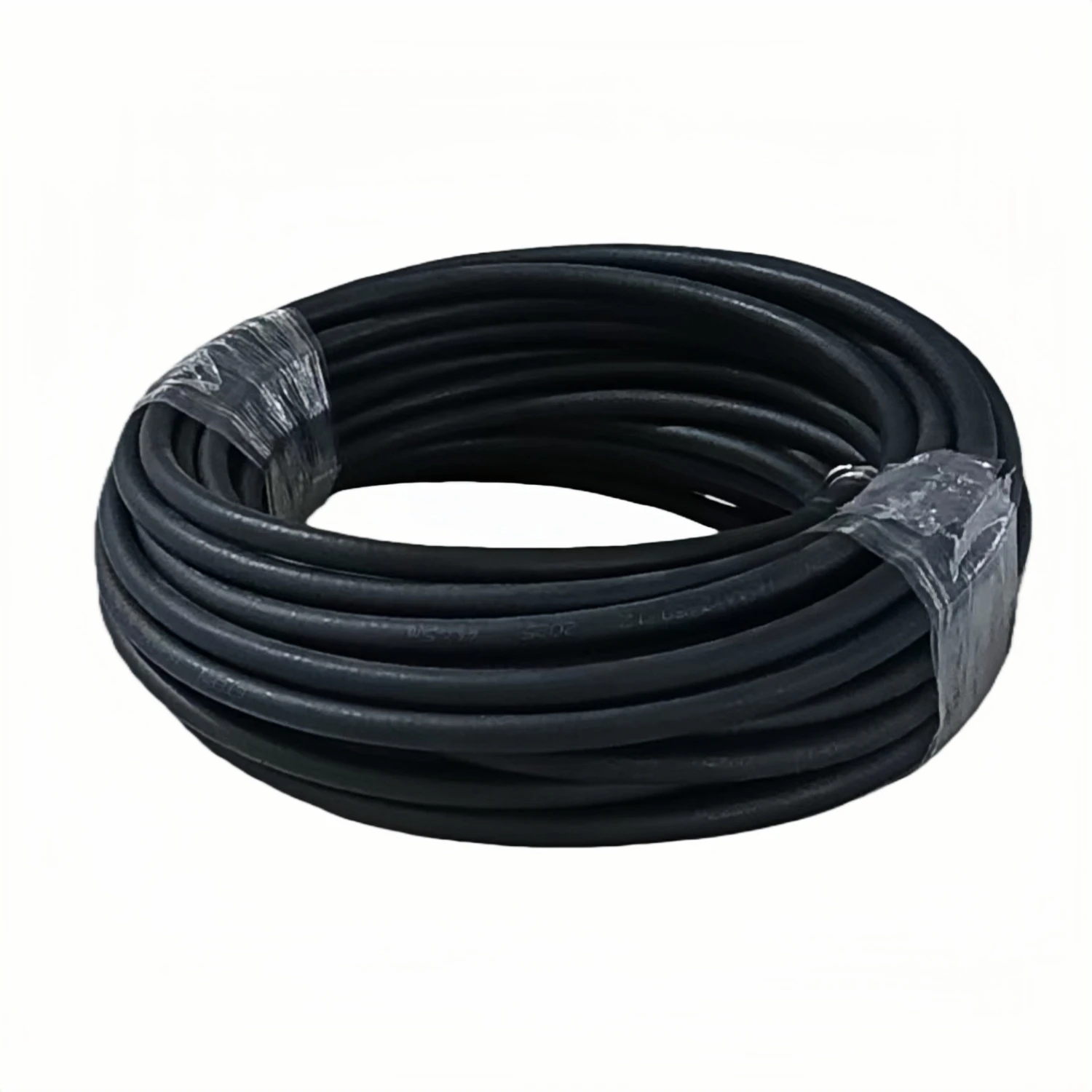

(3) 1/2" Feeder Cable with Connectors
|
Name:
|
Feeder Cables with Connectors
|
|
Length:
|
30 meters or as required
|
Features & Useage
300W FM Broadcast Transmitter
· The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter,DSP&DDS are used to execute all-digital processing,such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
· High performance and very good reliability has been proved by the large usage of YXHT-1100C transmitters.Also it is low cost and small size.
· High performance and very good reliability has been proved by the large usage of YXHT-1100C transmitters.Also it is low cost and small size.
Features:
· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure
FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 300w FM transmitter is continuously adjustable from 0-300 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...300w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 300w FM transmitter is continuously adjustable from 0-300 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...300w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs.
