Professional Dredging Robot Manufacturers Pipe Dredging Machine 2026

(0 レビュー)

発送予定時間: 3 日々

により販売されています: 自社製品

価格:

$8,083.71 /Pc

量:

(3838 利用可能)

払い戻し:

ポリシーを見る

売れ筋商品

説明レビュー

Please note！！！！
1.The price only for reference, the specific cost based on your requirements and the destination port, so the link price is not the final price. please contact the customer service for more product details and quotations!
2.We ship the goods by sea !!
3.Door to door please leave message or whatsapp or email for price !!!
Contact: Milly
WhatsApp/Wechat/Mobile: +86 13837156352
Email: 2045975064a@gmail.com

1.This is a custom-made product; the displayed price is not final.
Delivery terms available: DDP, DAP, EXW, FCA, FAS, FOB, CFR, CIF, CPT, DAT. Freight is calculated per the selected term.
2.Customizable options: color, configuration, model, appearance, logo, engine type, powertrain.
3. Please contact customer service to confirm parameters and final price (varies by country & custom needs).!
Orders without customer service confirmation will not be shipped.

Specification

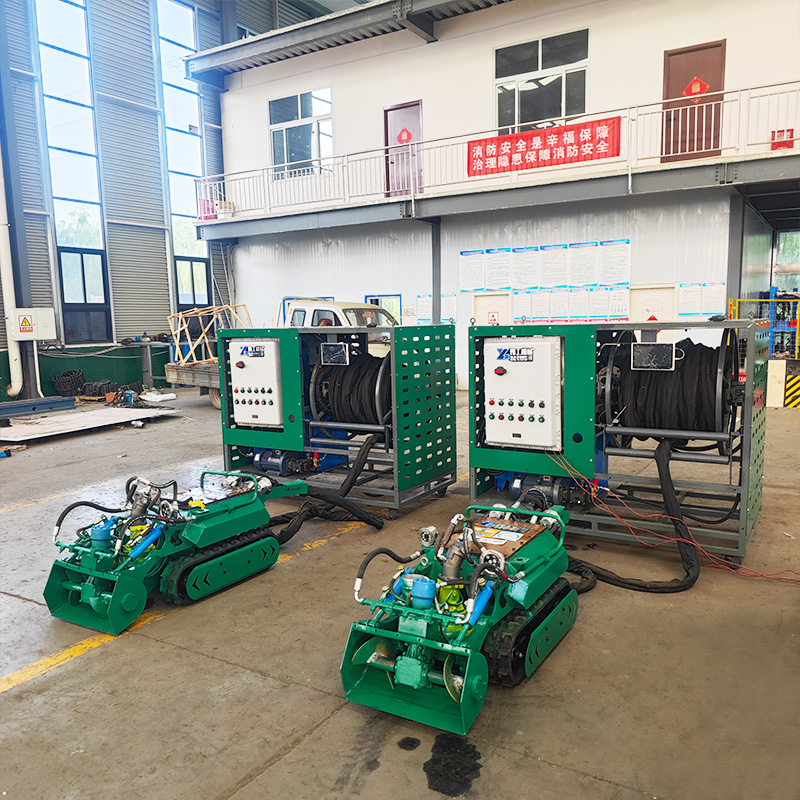

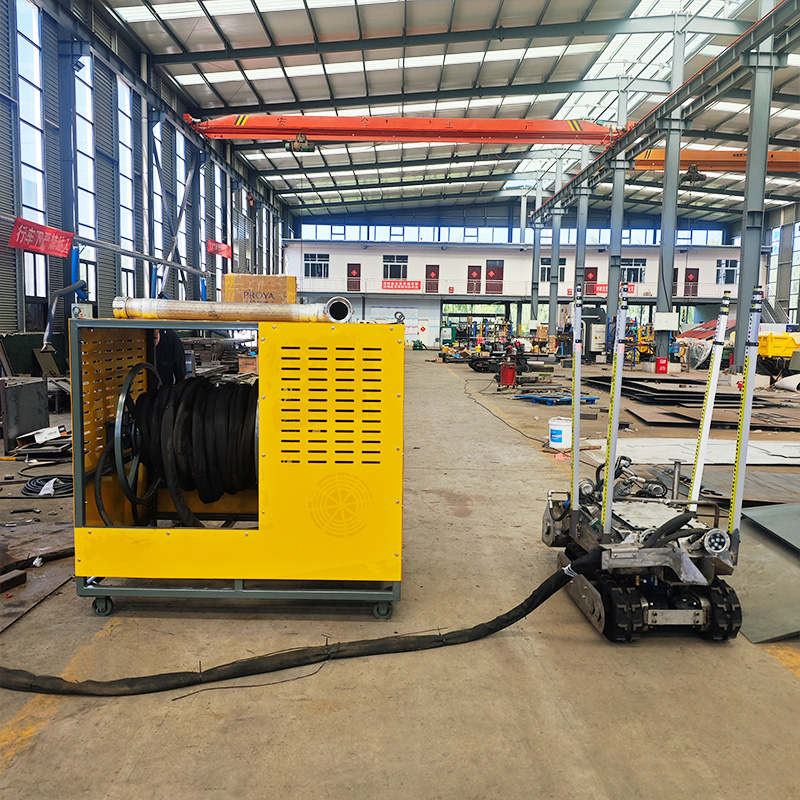

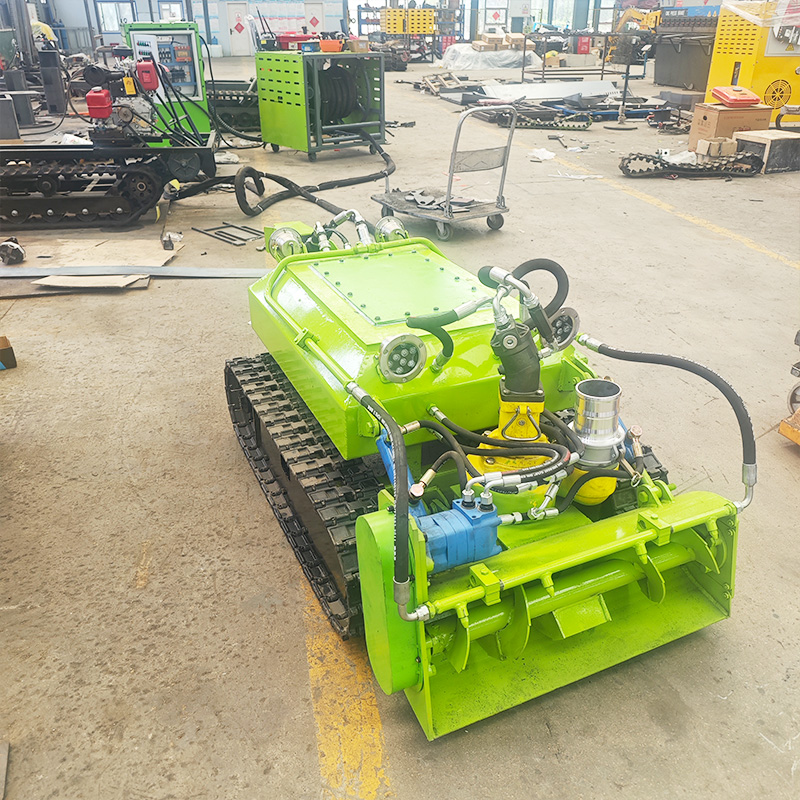

Simple dredging robot
Item	YG-500	YG-600
Robot body	Robot size: 1250mm×500mm×450mm	Robot size: 1350mm×600mm×600mm
		Drainage width: 500mm	Drainage width: 600mm
		Travel speed: 3-9M/min	Travel speed: 3-17M/min
3.5 inch underwater special slurry pump	Used for underwater pumping of sludge		Used for underwater pumping of sludge
		Pumpable particle diameter: 20mm (can be changed according to customer needs)	Pumpable particle diameter: 40mm (can be changed according to customer needs)
		Lift: 15 meters (horizontal conveying distance 100-150 meters)	Lift: 30 meters (horizontal conveying distance 100-150 meters)
Special hydraulic power source for water	Hydraulic system (placed in the main control cabinet)		Hydraulic system (placed in the main control cabinet)
Robot main control compartment (control box)	Used to control all actions of the robot, including the start and stop of the robot, and the lighting system		Used to control all actions of the robot, including the start and stop of the robot, and the lighting system
Underwater lighting system	2 LED lights		2 LED lights
Underwater camera system	Equipped with 1 underwater camera		Equipped with 1 underwater camera
Cable winding system	Electric drive (or manual), speed 0-10r/min		Electric drive (or manual), speed 0-10r/min
Underwater dedicated pipeline	50 fans		50 fans
Main console	Robot ground main control system, used to control the work of underwater robots		Robot ground main control system, used to control the work of underwater robots
Work efficiency	100 cubic meters per hour	150 cubic meters per hour
Suitable for pipes with a diameter greater than 0.5/0.6meters, silt removal in rivers, and large-area rivers need to be customized according to actual conditions

Product Description

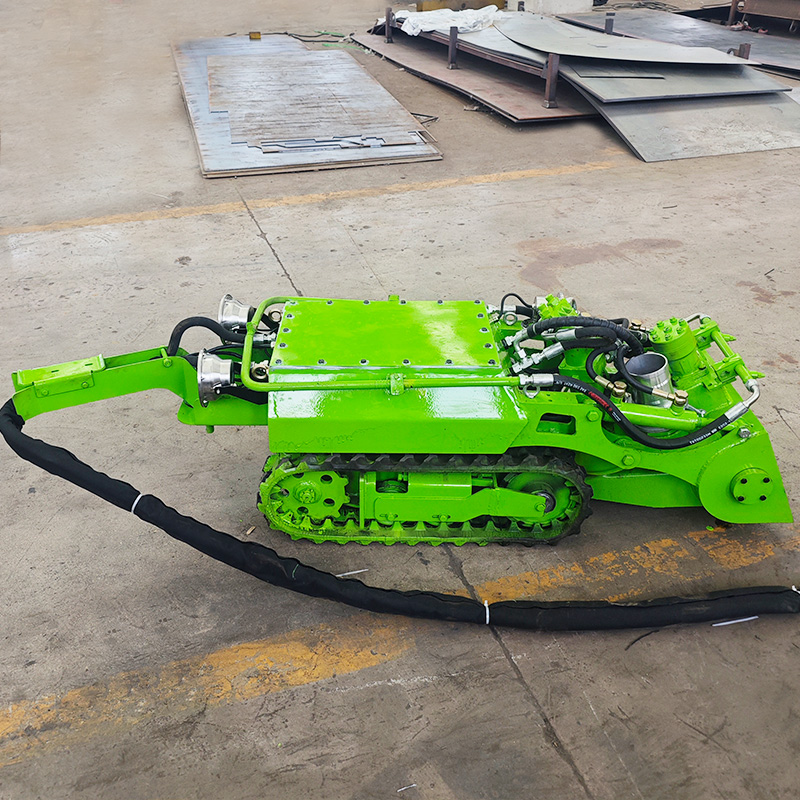

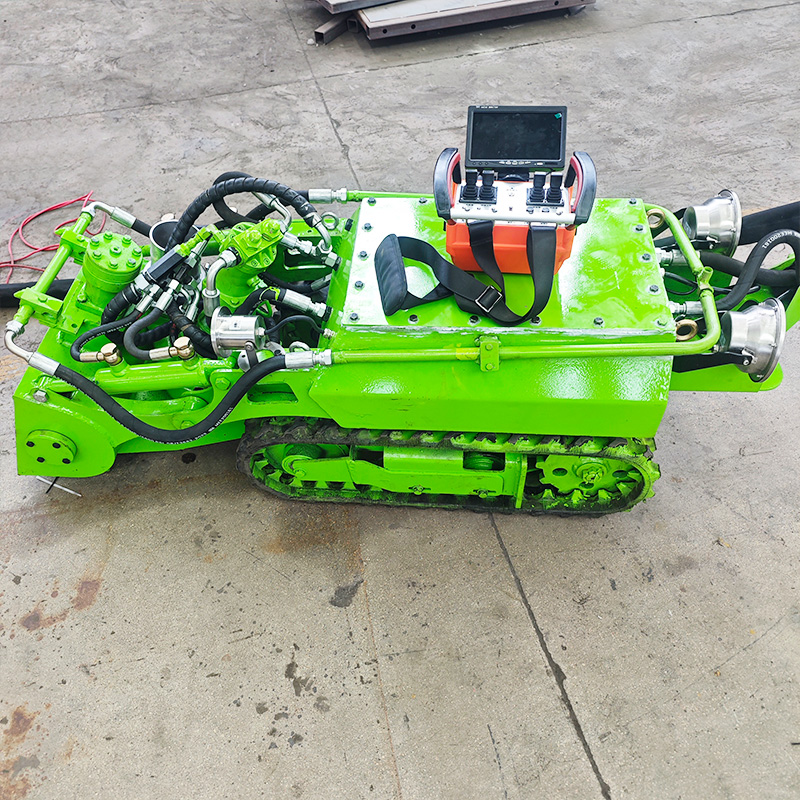

Dredging robots are mainly used for dredging and dredging operations in water areas and deep waters, such as dredging of river septic tanks, dredging of small-diameter industrial sedimentation tanks, sewage tanks, and deep-water cooling tanks.

Equipment composition: The dredging robot is mainly composed of hydraulic stations, dredging robots (divided into above-water and underwater parts) and other equipment Equipment advantages: 1. High degree of automation and intelligence, no human entry and remote control, diverse operation methods, high efficiency and good results. 2. No need to stop work, production, or operation, to maximize production, life and operation. 3. No human entry in dangerous environments to avoid personal safety. 4. Full-process complete set of equipment, no need for complex operation preparation and increased safety protection, ready to use after startup. 5. The equipment can be reused, and the overall cost is greatly reduced. 6. The operation process is completed in a closed loop, without dust and pollutant throwing, ecological and environmental protection 7. A small amount of manpower is required, which greatly improves the production capacity of a single person and a single shift 8. Remote control, line control, monitoring control, to avoid toxic and harmful gases or media endangering personal safety 8. Waterproof design. Power, control, and operation components are safe and optimized 9. Can seamlessly connect to back-end processing equipment, resource environmental protection recycling
