Fish Shrimp Prawn Coating Frying Production Line for Sardine Cod Fish Ball Battering Fryer Food Factory Custom
価格:
$3,801.36
/Pc
払い戻し:
シェア:
売れ筋商品
PLEASE NOTE:
1.This product is custom-made. Please contact us if you have any other requirements.
2.We will provide you with a final price after understanding your specific needs.
3.Due to variations in product size and shipping costs, all products on our website do not include shipping fees.
4.The final cost will be calculated based on your requirements and shipping costs.
5.Please confirm with us before placing your order.
email address : mike052025@163.com
whatsapp:+86：13598012171
1.This product is custom-made. Please contact us if you have any other requirements.
2.We will provide you with a final price after understanding your specific needs.
3.Due to variations in product size and shipping costs, all products on our website do not include shipping fees.
4.The final cost will be calculated based on your requirements and shipping costs.
5.Please confirm with us before placing your order.
email address : mike052025@163.com
whatsapp:+86：13598012171
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:120.51649928263988px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:120.51649928263988px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-6{text-align:center}#detail_decorate_root .magic-7{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-8{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-9{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:250.78124999999997px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:250.78124999999997px}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:288.6281588447653px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:4px;margin-left:4px;width:750px;height:288px}#detail_decorate_root .magic-14{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-15{width:446px}#detail_decorate_root .magic-16{overflow:hidden;width:446px;height:202.72727272727275px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:3.568px;margin-left:0;width:446px;height:207px}#detail_decorate_root .magic-18{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-19{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-20{width:245px;height:174px;overflow:hidden}#detail_decorate_root .magic-21{position:relative;left:11px;top:-21px;width:232px;height:232px}#detail_decorate_root .magic-22{position:relative;left:-7px;top:1px;width:261.65413533834584px;height:174px}#detail_decorate_root .magic-23{position:relative;left:-1px;top:2px;width:245.00000000000003px;height:183.75000000000003px}#detail_decorate_root .magic-24{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-25{width:750px;border-collapse:collapse}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:42px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:211px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:197px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:214px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{overflow:hidden;width:446px;height:311.60533333333336px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:-10.704px;margin-left:3.568px;width:446px;height:331px}#detail_decorate_root .magic-32{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-33{overflow:hidden;width:446px;height:296.748031496063px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:475px;height:296px}#detail_decorate_root .magic-35{margin-top:3.568px;margin-left:2.3786666666666667px;width:446px;height:296px}#detail_decorate_root .magic-36{overflow:hidden;width:446px;height:341.33866666666665px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:1.1893333333333334px;margin-left:42.816px;width:381px;height:381px}#detail_decorate_root .magic-38{overflow:hidden;width:446px;height:379.39733333333334px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:-23.78666666666667px;margin-left:-1.1893333333333334px;width:446px;height:446px}#detail_decorate_root .magic-40{overflow:hidden;width:446px;height:338.96px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:-51.141333333333336px;margin-left:-5.946666666666667px;width:446px;height:446px}#detail_decorate_root .magic-42{width:245px;height:183.75px;overflow:hidden}#detail_decorate_root .magic-43{position:relative;left:0;top:0;width:245.00000000000003px;height:183.75px}#detail_decorate_root .magic-44{position:relative;left:-7px;top:13px;width:269.3793103448276px;height:186px}#detail_decorate_root .magic-45{position:relative;left:17px;top:-20px;width:232px;height:224px}#detail_decorate_root .magic-46{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:5.006747638326586px;margin-left:6.008097165991904px;width:234px;height:234px}#detail_decorate_root .magic-48{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-49{margin-top:3.004048582995952px;margin-left:7.009446693657221px;width:234px;height:252px}#detail_decorate_root .magic-50{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-51{overflow:hidden;width:750px;height:407.4759437453738px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-52{margin-top:0;margin-left:0;width:750px;height:407.4759437453738px}#detail_decorate_root .magic-53{overflow:hidden;width:750px;height:398px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-54{margin-top:-2px;margin-left:-4px;width:676px;height:405px}
Product Overview

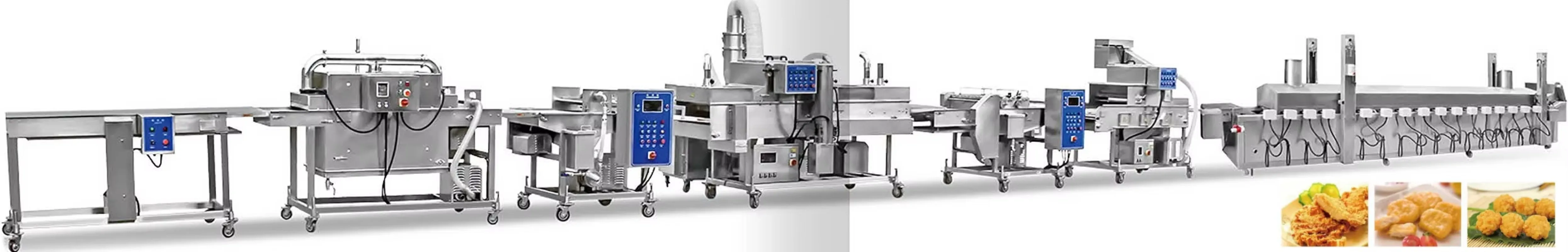

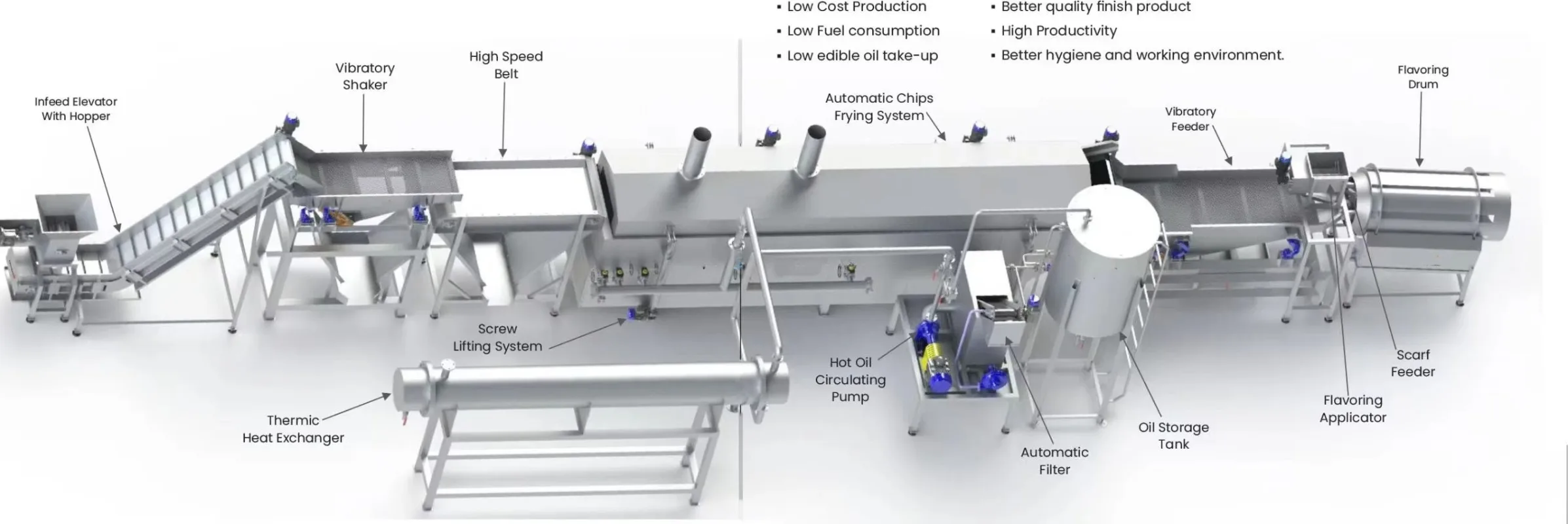

Customized Automatic Continuous Belt Type Deep Frying Machine Line
This Automatic Frying production line is an automated equipment system used for large-scale production of fried foods and snacks, widely used in food processing plants such as sweet potato,cassava and banana and Chicken Nugget Fish Meat Ball Doritos Tortilla Chip Snack Food and so on. The frying production line includes a series of equipment, which are combined with battering machine , bread crumbs coating machine ,cool machine Spiral IQF and other related equipment to achieve continuous production and processing of food.
Professional provider of comprehensive solutions for potato chips and fries frying lines

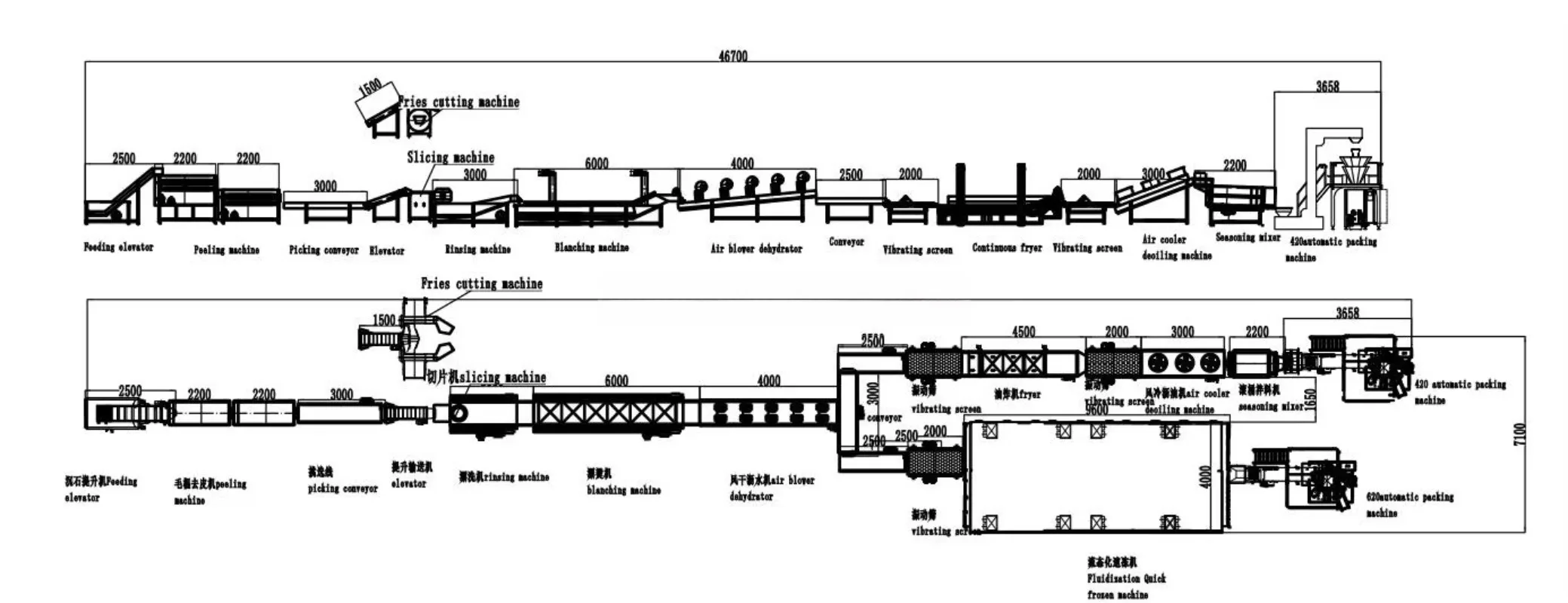

We can customize complete production lines ranging from 100 to 5000 kg/h, design the layout according to the customer's factory, and provide a complete solution. For more details, please contact: WhatApp/TEL: +8613598012171
FEATURES AT A GLANCE
Technical advantages: 1. High degree of automation, saving labor 2. Higher heating efficiency, saving energy 3. The finished product has good quality and meets high food standards 4. The equipment has good stability and a longer service life
PRODUCT SPECIFICATIONS
No. | Description of Machine | Dimension (mm) | QTY (set) |
1 | Batter mixer | 1258*836*1130mm | 1 |
2 | Battering machine (600) | 3000*960*1850mm | 1 |
3 | Breadcrumb coating machine (600) | 3000*1200*2050mm | 1 |
4 | Preduster（Flour coating ）(600) | 2000*1400*1450mm | 1 |
5 | Steam Heated Blanching machine | 5000*1400*1800mm | 1 |

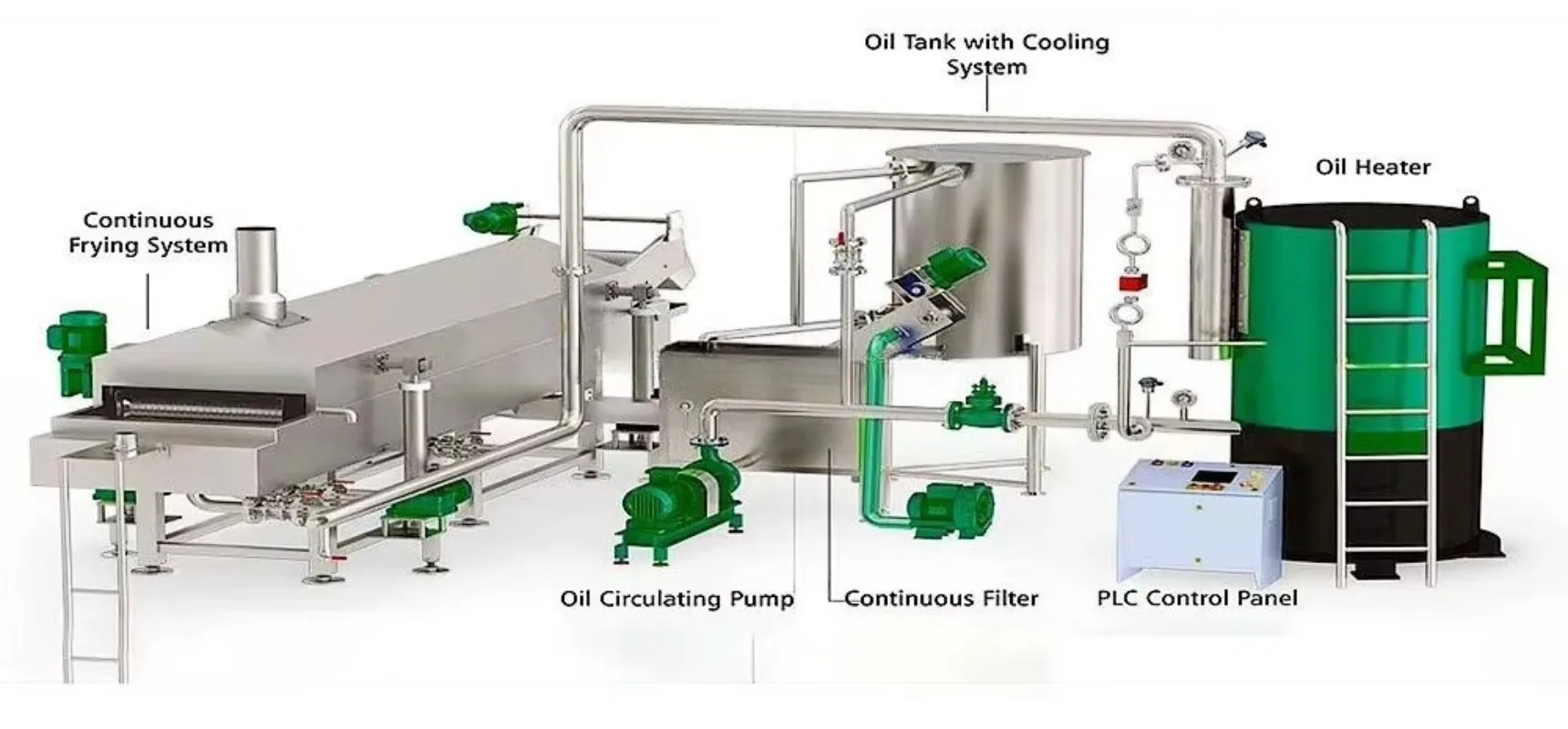

6 | Continuous Frying machine and drum filter and oil tanks | 6000*1500*1800mm | 1 |
7 | Natural gas heated SS304 external heating exchanger and burner | matched to the fryer | 1 |
8 | Vibrating deoiling machine | 2000*1400*1450mm | 1 |
9 | Flip Air-dryer deoiling machine | 5000*1000*1450mm | 1 |
10 | SS304 Hopper Elevator | 2000*800*1600mm | 1 |
11 | Spiral IQF machine | 8500*4000*4500mm | 1 |
12 | Automatic weighing packing machine(420type) | 3610*2610*3650mm | 1 |
PRODUCT CONFIGURATION

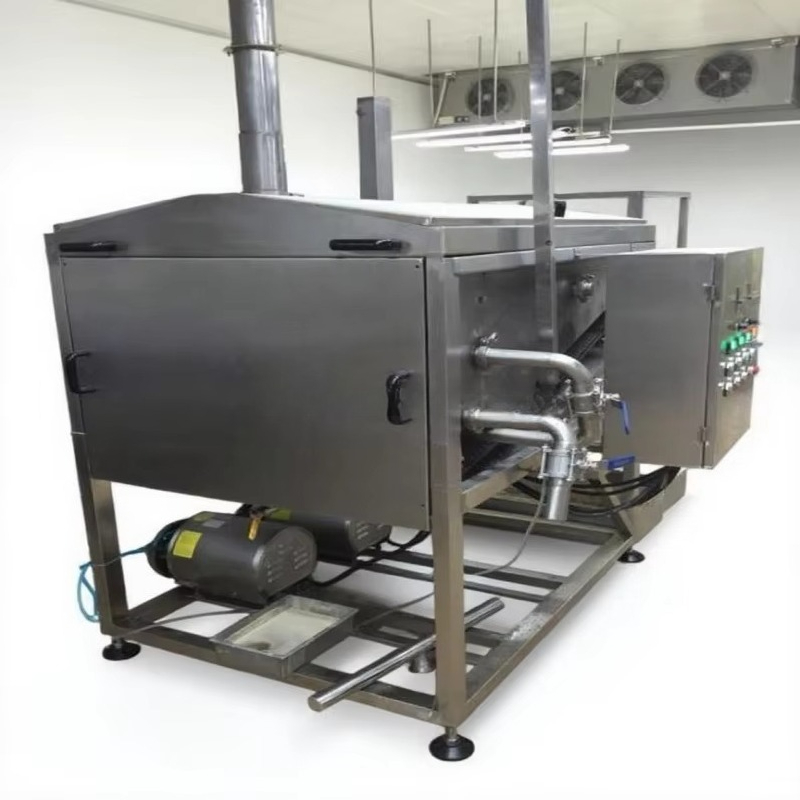

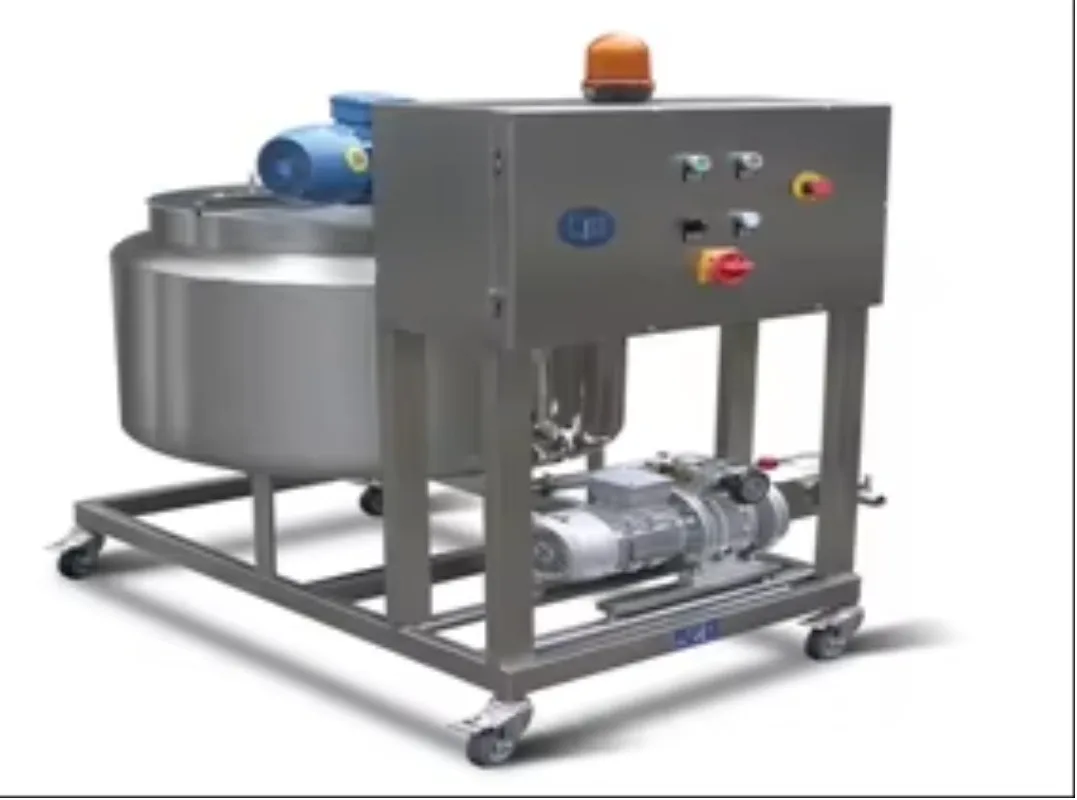

1. Batter mixer
Function :it can uniformly mixes the batter powder with water through a special mixer, and forms an automatic liquid supply system
with the sizing machine. Program control is adopted to realize high-speed mixing - low-speed mixing - slurry use, and complete the
alarm cycle. Prevent slurry sedimentation. The mixing cylinder is provided with thermal insulation. with output pump
Dimension: 1258 * 836 * 1130mm
Power: 1.85kw/380v/ 50Hz
with the sizing machine. Program control is adopted to realize high-speed mixing - low-speed mixing - slurry use, and complete the
alarm cycle. Prevent slurry sedimentation. The mixing cylinder is provided with thermal insulation. with output pump
Dimension: 1258 * 836 * 1130mm
Power: 1.85kw/380v/ 50Hz

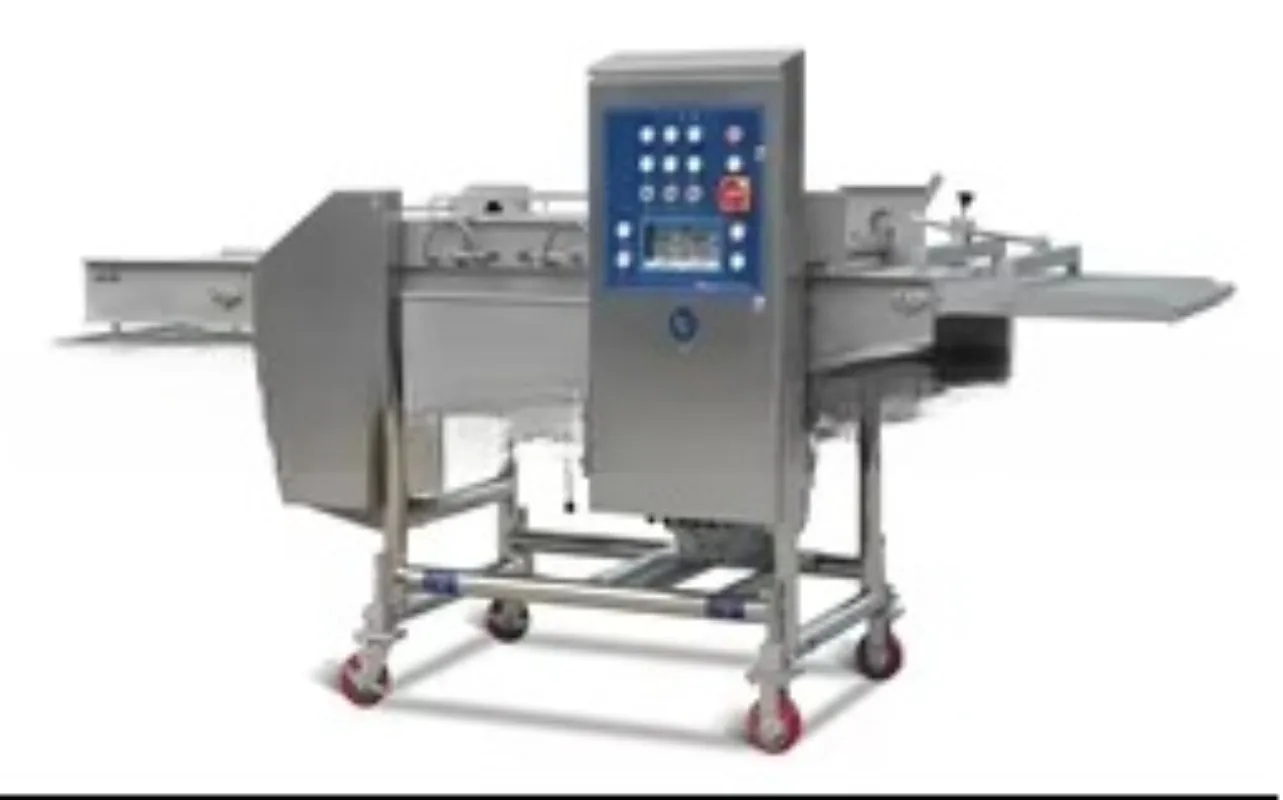

2. Battering machine
(1) use: Automatic dipping in the both dilute and thick starch solution.
(2)Features: Adjustable gap between upper and lower of mesh belts. After battering, the product
is drenched to avoid too much slurry entering the next process.
(3) Technical parameters:
Dimensions: 2400*1050*1400mm
Power:2.1kw /380v/ 50Hz
Input height: 1050mm;
Output height: 800-1000mm;
Conveyor belt width:600mm
weight: 260kg
(2)Features: Adjustable gap between upper and lower of mesh belts. After battering, the product
is drenched to avoid too much slurry entering the next process.
(3) Technical parameters:
Dimensions: 2400*1050*1400mm
Power:2.1kw /380v/ 50Hz
Input height: 1050mm;
Output height: 800-1000mm;
Conveyor belt width:600mm
weight: 260kg

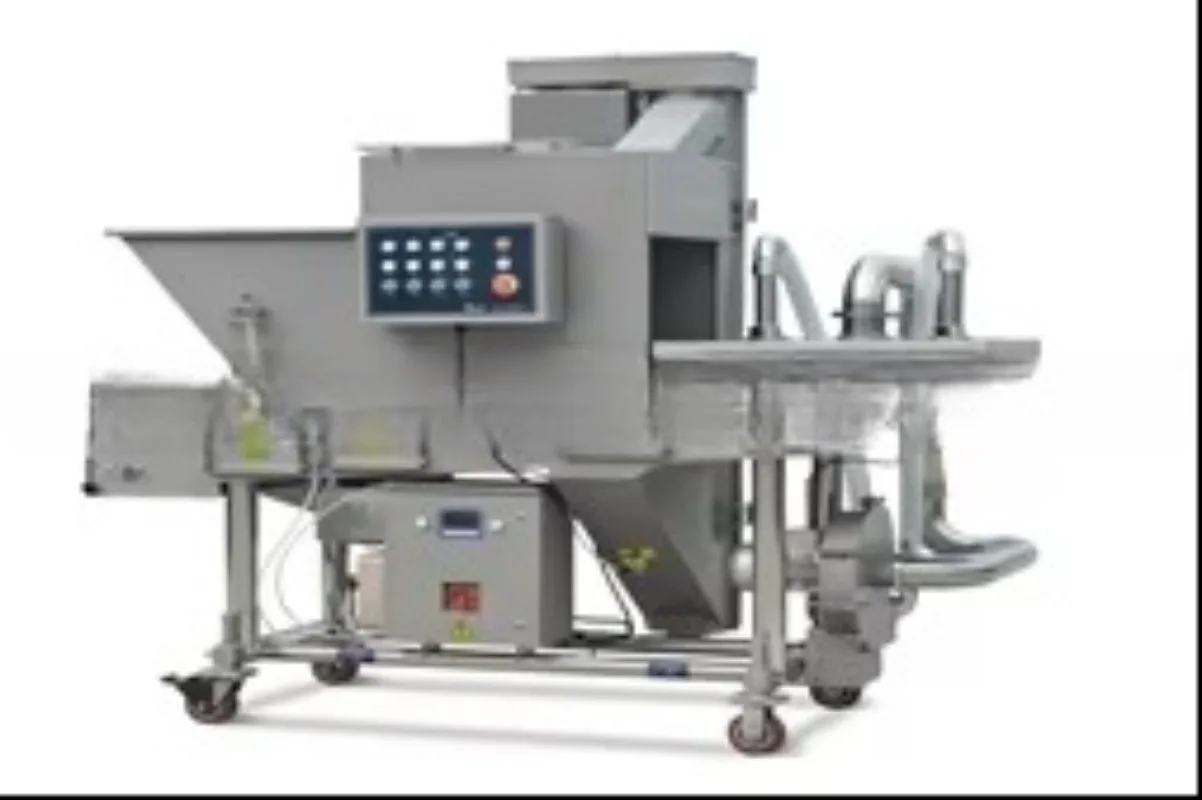

3. Bread Crumbs Coating machine
(1) Function: it can automatically complete the crumbs covering process of products, including fine crumbs and coarse crumbs.
The thickness of bread crumbs on the upper and lower mesh belts can be adjusted conveniently..
(2) technical parameters:
Dimensions: 2638*1050mm*2280mm
Power: 3.7kw /380v/ 50Hz
Conveyor belt width:600 mm,
weight: 400kg
The thickness of bread crumbs on the upper and lower mesh belts can be adjusted conveniently..
(2) technical parameters:
Dimensions: 2638*1050mm*2280mm
Power: 3.7kw /380v/ 50Hz
Conveyor belt width:600 mm,
weight: 400kg

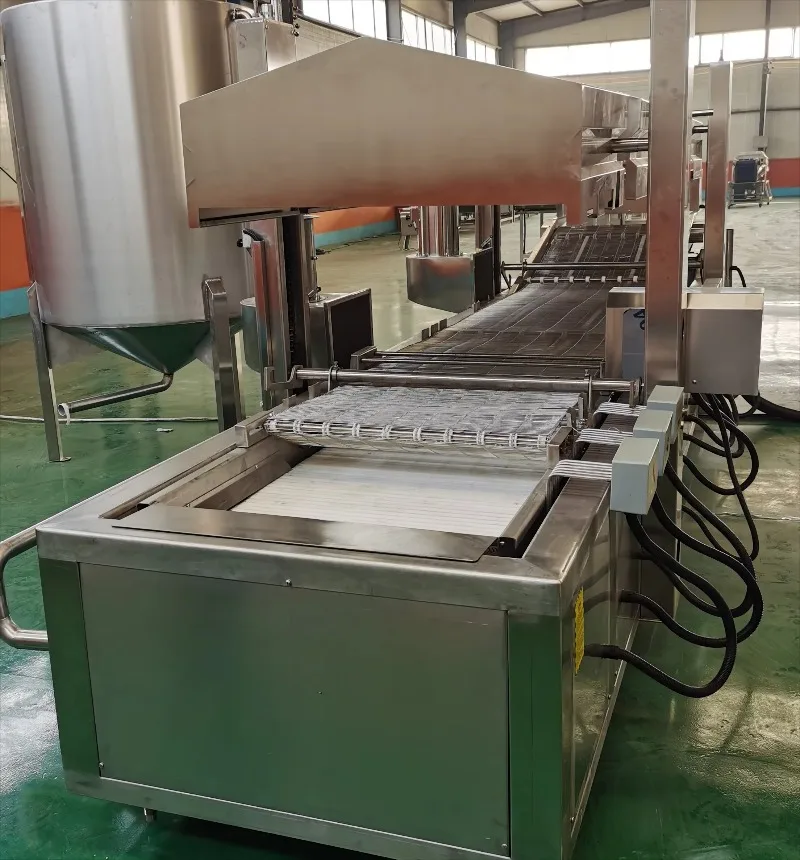

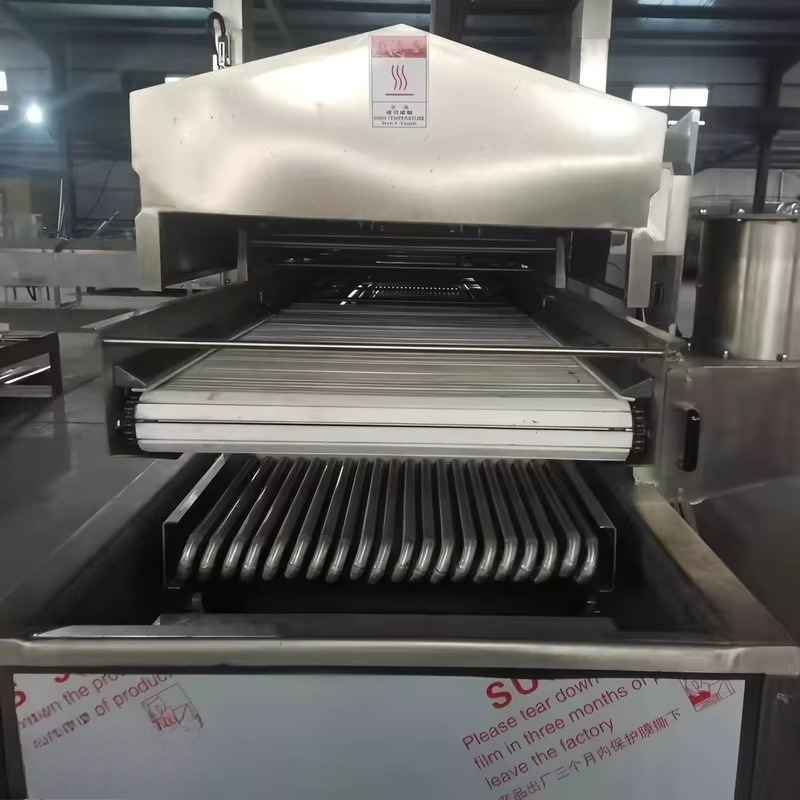

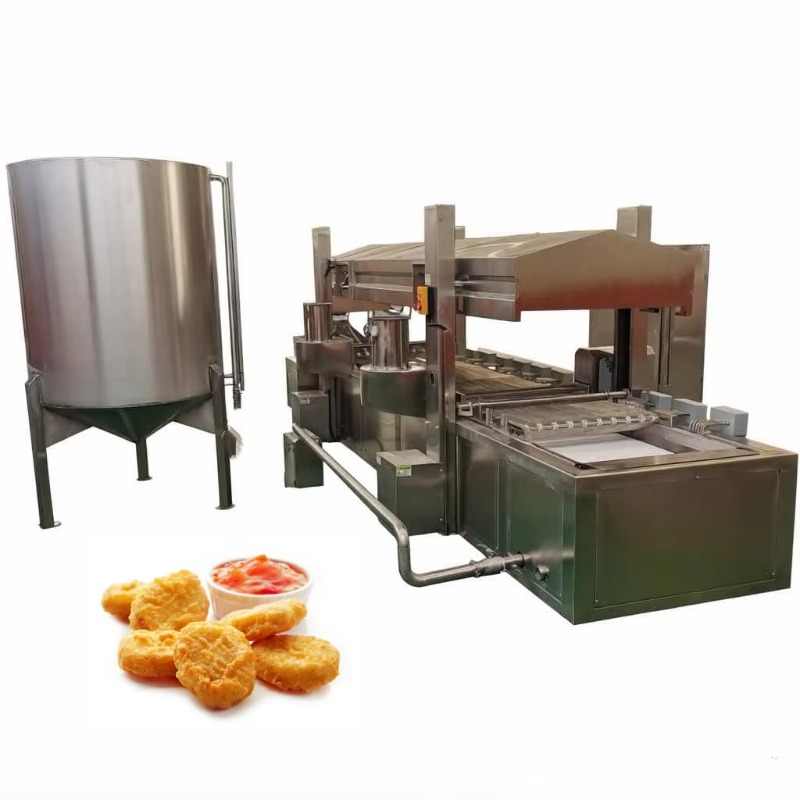

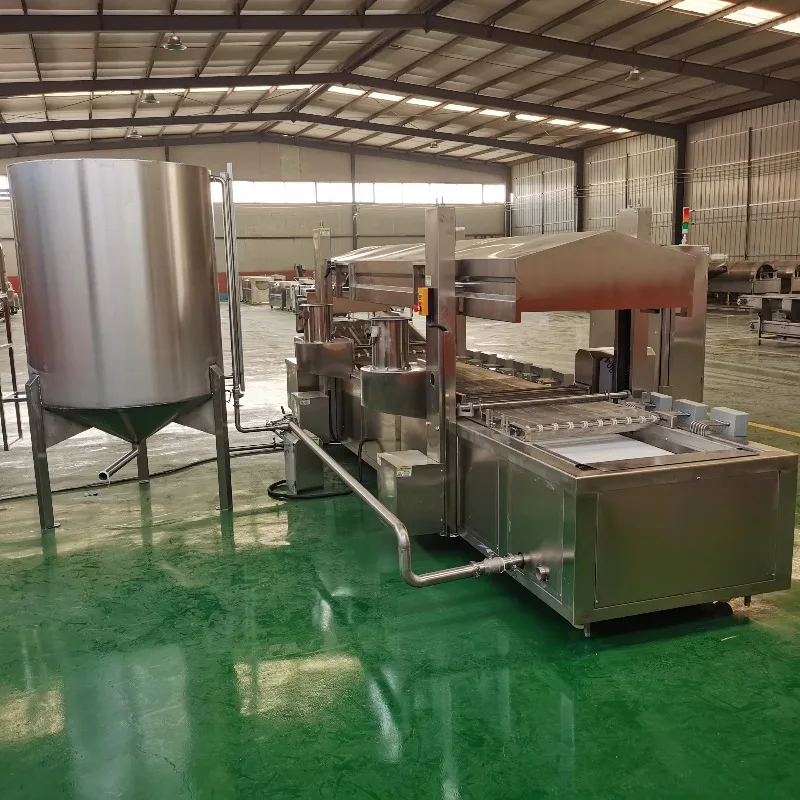

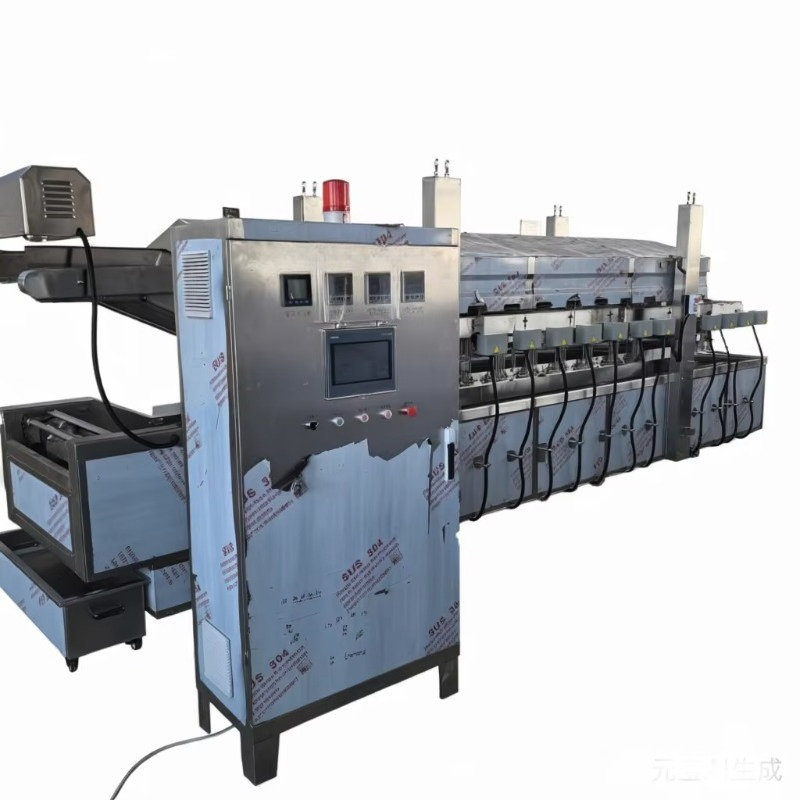

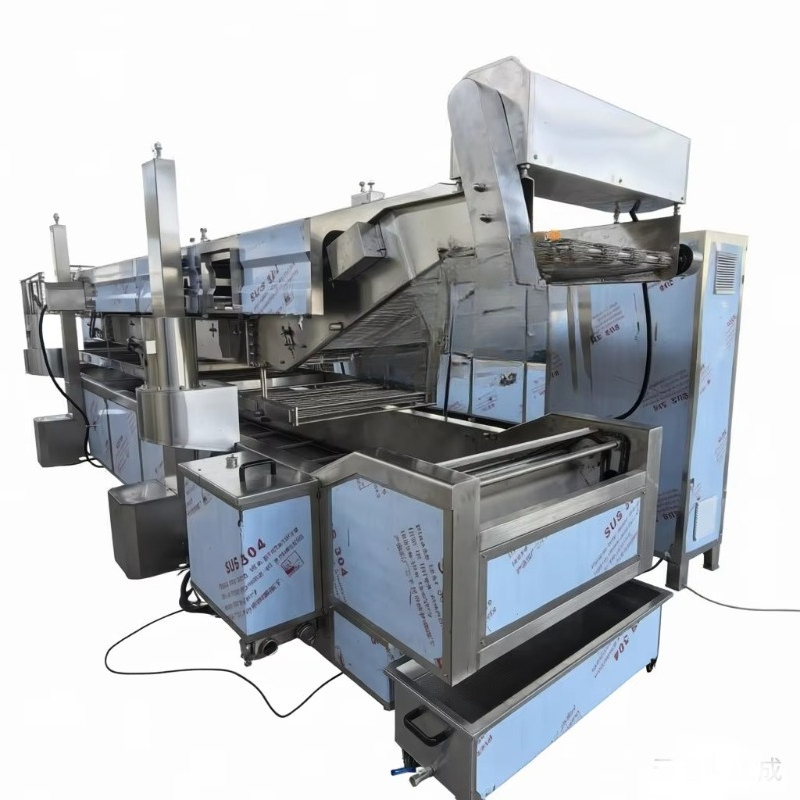

6.Electric/Gas Heated Continuous Frying machine
(1) Function: It can fry the chicken nugget and fries and potato wedges continuously.
(2) Features: made of 304 SS,gas heated fryer , with oil storage tank,the temperature of
can be adjusted, frying time variable, more safe, less energy, Longer service life.
(3) Technical parameters:
Dimensions:7500*1600*1800mm
Conveying power: 20kw/380V/60Hz
Hydraulic lifting power: 1.5kw
Heating power：180kw
Gas burner brand:Riallo or Baltur brand
Fuel consumption: about 50~120m³/h gas.
Drive motor: variable frequency motor
Conveyor belt: 304 stainless steel mesh belt
(2) Features: made of 304 SS,gas heated fryer , with oil storage tank,the temperature of
can be adjusted, frying time variable, more safe, less energy, Longer service life.
(3) Technical parameters:
Dimensions:7500*1600*1800mm
Conveying power: 20kw/380V/60Hz
Hydraulic lifting power: 1.5kw
Heating power：180kw
Gas burner brand:Riallo or Baltur brand
Fuel consumption: about 50~120m³/h gas.
Drive motor: variable frequency motor
Conveyor belt: 304 stainless steel mesh belt

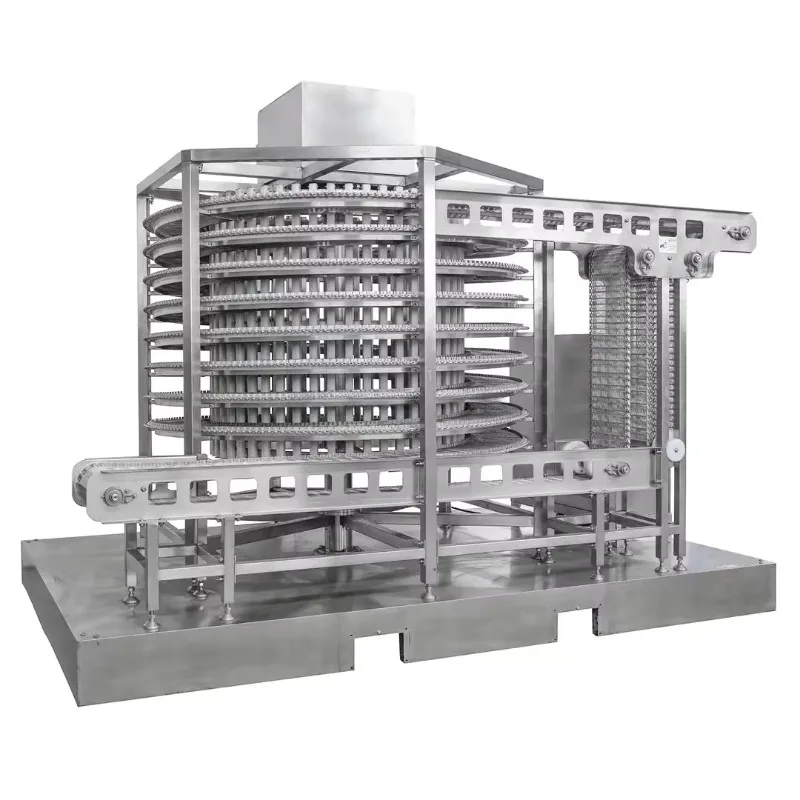

7. Spiral Freon IQF freezer
1.Diemnsion: 8300*5000*3000mm 2.Freezing time: 10-80min (frequency conversion speed regulation) 3. Feed temperature: less than
+15℃ 4.The temperature of discharge center: less than -18℃ 5. The air temperature in the freezing chamber is less than -35℃. 6.
Conveyor belt: effective width 500mm, pitch 38.1mm, thread pitch 12mm, support shaft 6mm, mesh wire 1.5mm, total length:120meters,
Spiral tower diameters:2000mm, 10 layers. 7.Conveyor belt deceleration motor: 3kw+0.75kw (variable frequency speed control), 8.PLC
control: Siemens or Mitsubishi
+15℃ 4.The temperature of discharge center: less than -18℃ 5. The air temperature in the freezing chamber is less than -35℃. 6.
Conveyor belt: effective width 500mm, pitch 38.1mm, thread pitch 12mm, support shaft 6mm, mesh wire 1.5mm, total length:120meters,
Spiral tower diameters:2000mm, 10 layers. 7.Conveyor belt deceleration motor: 3kw+0.75kw (variable frequency speed control), 8.PLC
control: Siemens or Mitsubishi

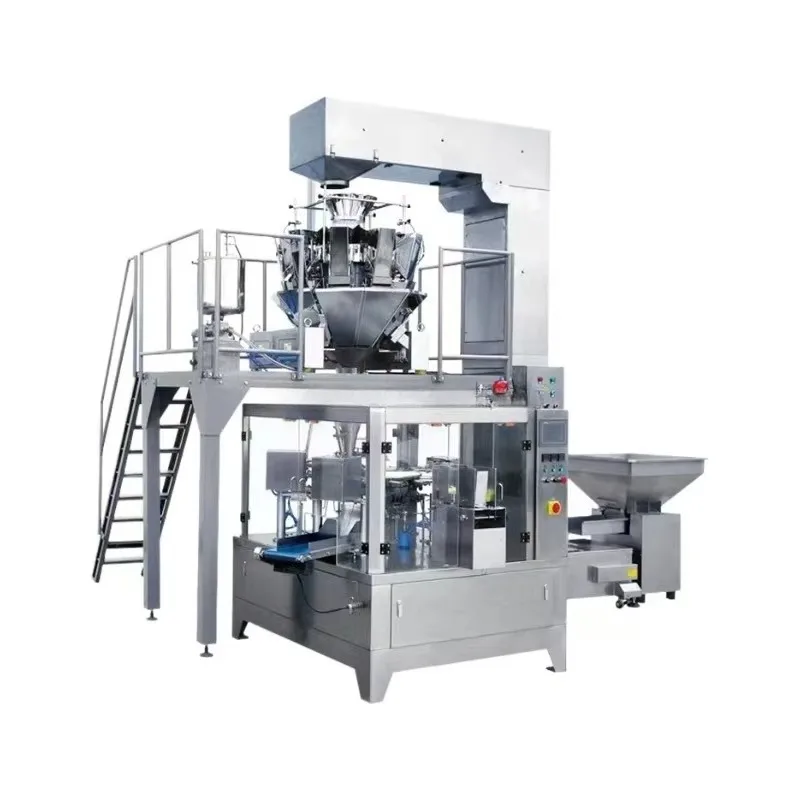

8. Automatic Rotation weighing packing machine-420type
(1) Function: mix flavor with potato chips.
(2)Features: it has the automatic feeding powder, vibrating to spread the seasoning evenly through the screw , the speed of
feeding and vibrating can be adjusted.
(3)Technical parameters:
Model: GTTW3000
Dimensions: 3000 * 900 * 1750 mm
Total power: 0.75 kw / 380 v / 50 hz
Drum diameter: 750 mm,
Frame: 50*50*2mm 304SUS square tube.
(2)Features: it has the automatic feeding powder, vibrating to spread the seasoning evenly through the screw , the speed of
feeding and vibrating can be adjusted.
(3)Technical parameters:
Model: GTTW3000
Dimensions: 3000 * 900 * 1750 mm
Total power: 0.75 kw / 380 v / 50 hz
Drum diameter: 750 mm,
Frame: 50*50*2mm 304SUS square tube.
Details Images
FAQ
Where is your company located? When was it established? What is the scale?
Our company is based in Henan, China, and was established in 2016. Currently, we have between 199 and 399 employees in our office.
What are your main markets?
1. South America (30.00%) * Central America (13.00%)* Mid East (11.00%)* South Asia (8.00%)* Southeast Asia (6.00%)
2.Western Europe (6.00%)* North America (5.00%)* Oceania (5.00%)* Eastern Europe (4.00%)* Northern Europe (4.00%)
3.Domestic Market (3.00%)* Africa (2.00%)* Southern Europe (2.00%)
How do you ensure product quality?
We strictly control quality through two key steps:
1. Always providing a pre-production sample for confirmation before mass production.
2. Always conducting a final inspection before shipment.
What transaction services do you offer?
1. Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, FCA, CPT, DEQ, Express Delivery
2. Accepted Payment Currencies: USD, EUR, HKD, CNY.
3.Accepted Payment Methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash, Escrow.
Dear Buyer,
This product is custom-made, and the price shown is not the final price. We offer a variety of delivery methods, including DDP, DAP, EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT. Freight needs to be calculated based on the delivery mode.
We can customize the color, configuration, model, appearance, logo, engine type, and powertrain. The most important thing is that you need to communicate with our customer service to confirm the product parameters.Specific pricing varies depending on the country and custom requirements, please contact customer service. Orders not confirmed by customer service will not be shipped.
Due to the different product sizes and shipping costs in each country,all products on our website do not include shipping costs.The final shipping cost needs to be calculated based on the actual cost, please confirm with us before placing an order.
email address : mike052025@163.com
whatsapp:+86：13598012171
Our company is based in Henan, China, and was established in 2016. Currently, we have between 199 and 399 employees in our office.
What are your main markets?
1. South America (30.00%) * Central America (13.00%)* Mid East (11.00%)* South Asia (8.00%)* Southeast Asia (6.00%)
2.Western Europe (6.00%)* North America (5.00%)* Oceania (5.00%)* Eastern Europe (4.00%)* Northern Europe (4.00%)
3.Domestic Market (3.00%)* Africa (2.00%)* Southern Europe (2.00%)
How do you ensure product quality?
We strictly control quality through two key steps:
1. Always providing a pre-production sample for confirmation before mass production.
2. Always conducting a final inspection before shipment.
What transaction services do you offer?
1. Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, FCA, CPT, DEQ, Express Delivery
2. Accepted Payment Currencies: USD, EUR, HKD, CNY.
3.Accepted Payment Methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash, Escrow.
Dear Buyer,
This product is custom-made, and the price shown is not the final price. We offer a variety of delivery methods, including DDP, DAP, EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT. Freight needs to be calculated based on the delivery mode.
We can customize the color, configuration, model, appearance, logo, engine type, and powertrain. The most important thing is that you need to communicate with our customer service to confirm the product parameters.Specific pricing varies depending on the country and custom requirements, please contact customer service. Orders not confirmed by customer service will not be shipped.
Due to the different product sizes and shipping costs in each country,all products on our website do not include shipping costs.The final shipping cost needs to be calculated based on the actual cost, please confirm with us before placing an order.
email address : mike052025@163.com
whatsapp:+86：13598012171
