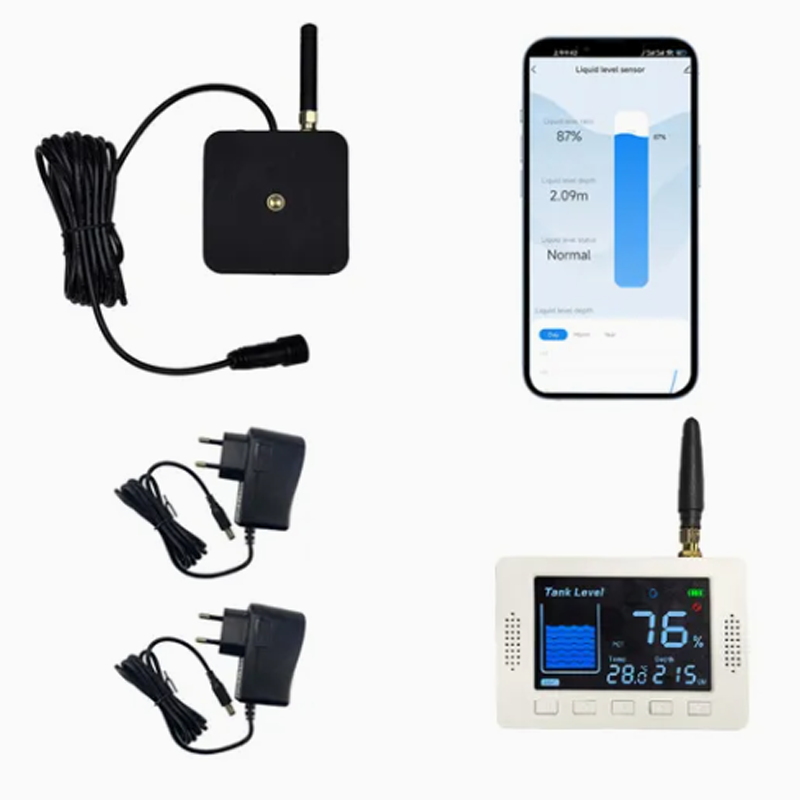

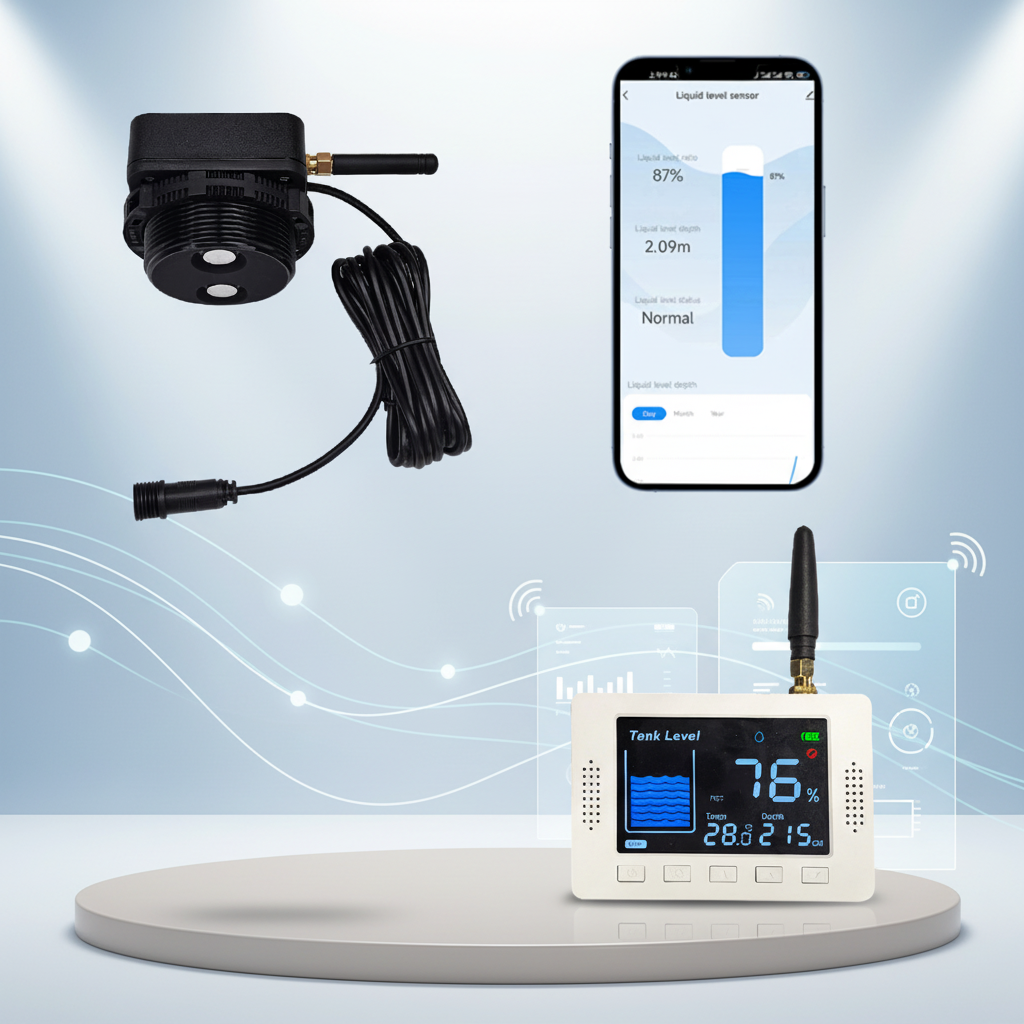

TLC2502LS-WL LoRa Wireless Ultrasonic Level Sensor IP67 LCD Display Remote Real-Time Monitor for Water/Oil/Fuel Tank Management
価格:
$73.85
/Pc
払い戻し:
シェア:
売れ筋商品
Product Description
Setting Video
Ultrasonic Water Level Sensor: Precise liquid level monitoring with ±(1% Reading + 10mm) accuracy.
Tank Lever Monitor: Ideal for fuel and water tanks, ensuring timely alerts.
Remote Control: Manage water levels via Android and iOS apps for convenient control.
Tuya SmartLife Integration: Connect to Tuya ecosystem for enhanced smart home integration.
Long Range Detection: Measures up to 3 meters for wide coverage.
Notice（60% of people will set the wrong data, please pay attention:
1) Set Installation height ①It is distance from sensor to tank bottom.Note:The installation height is different with tank height because the sensor may be install over the tank height.The max installation is 3 meters.If more than 3 meters,it is not suitable for this sensor.2)Set sensor to liquid full line ②It is distance from sensor to full line.Note:The blind zone is 0.1meter.It can't be smaller than 0.1meter.
Notice（60% of people will set the wrong data, please pay attention: 1) Set Installation height ①It is distance from sensor to tank bottom.Note:The installation height is different with tank height because the sensor may be install over the tank height.The max installation is 3 meters.If more than 3 meters,it is not suitable for this sensor.2)Set sensor to liquid full line ②It is distance from sensor to full line.Note:The blind zone is 0.1meter.It can't be smaller than 0.1meter.
Notice（60% of people will set the wrong data, please pay attention:
1) Set Installation height ①
It is distance from sensor to tank bottom.
Note:The installation height is different with tank height because the sensor may be install over the tank height.
The max installation is 3 meters.If more than 3 meters,it is not suitable for this sensor.
2)Set sensor to liquid full line ②
It is distance from sensor to full line.
Note:The blind zone is 0.1meter.It can't be smaller than 0.1meter.

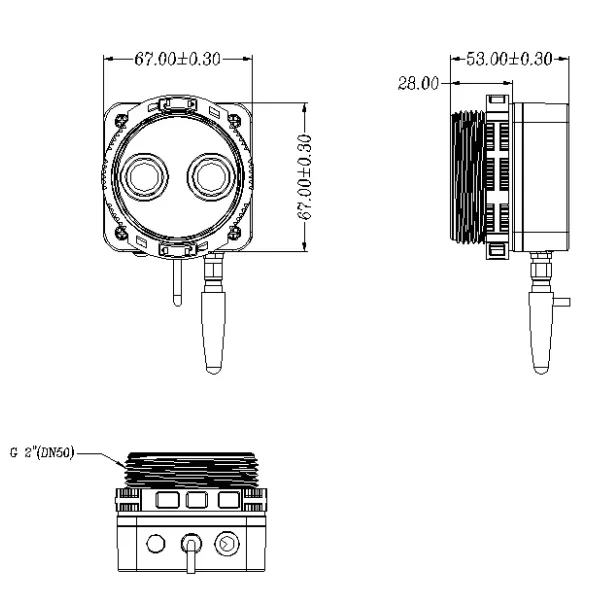

Unit:mm
The closed water tank needs to be installed with holes.

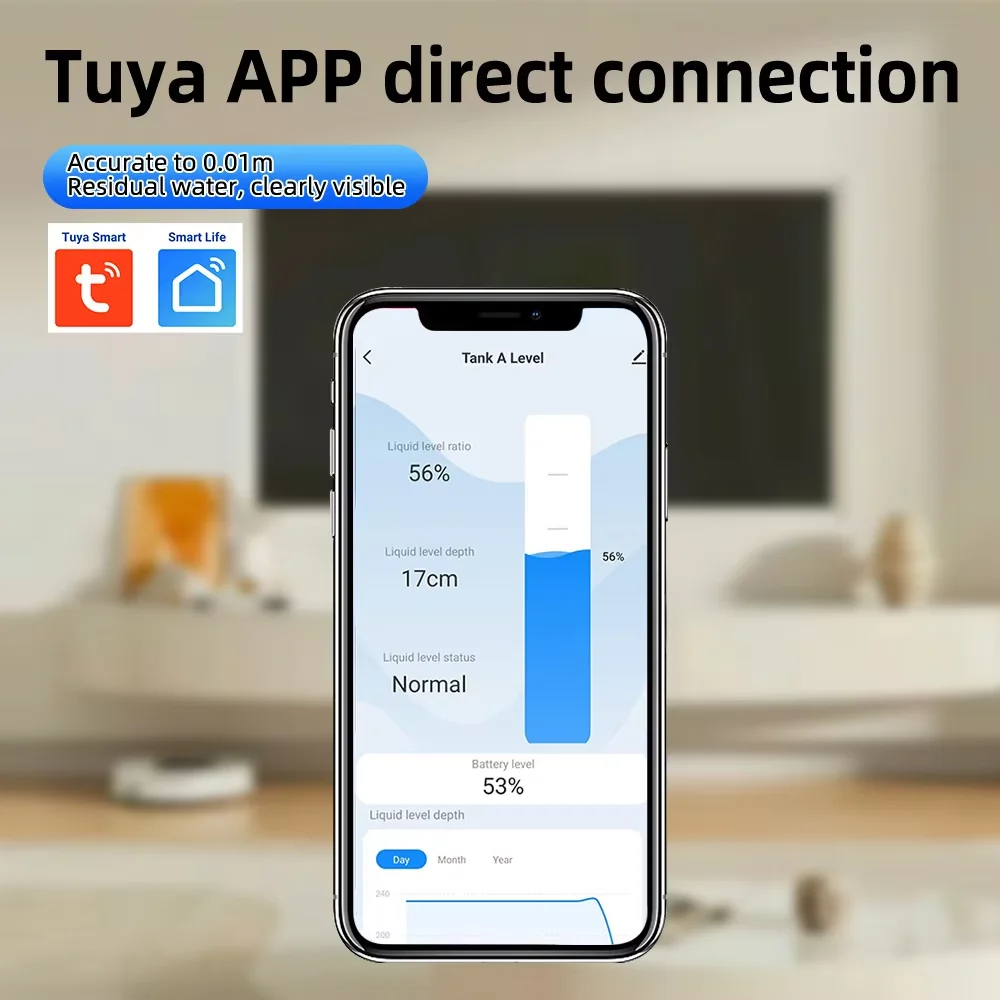

Product Settings1. Search "TUYA Smart APP"or “Smart Life app”on APP Store,support both Android and IOS system(Note: WIFI frequency band can only be 2.4GHz, not 5GHz；2.Set tank size:Max 3 meters height3.Set alarm level:Low level alarm and full alarm4.Be able to connect max 200 sensors to one app;One sensor is able to connect many apps together
Product Settings
1. Search "TUYA Smart APP"or “Smart Life app”on APP Store,support both Android and IOS system
(Note: WIFI frequency band can only be 2.4GHz, not 5GHz；
2.Set tank size:Max 3 meters height
3.Set alarm level:Low level alarm and full alarm
4.Be able to connect max 200 sensors to one app;One sensor is able to connect many apps together
Product Installation

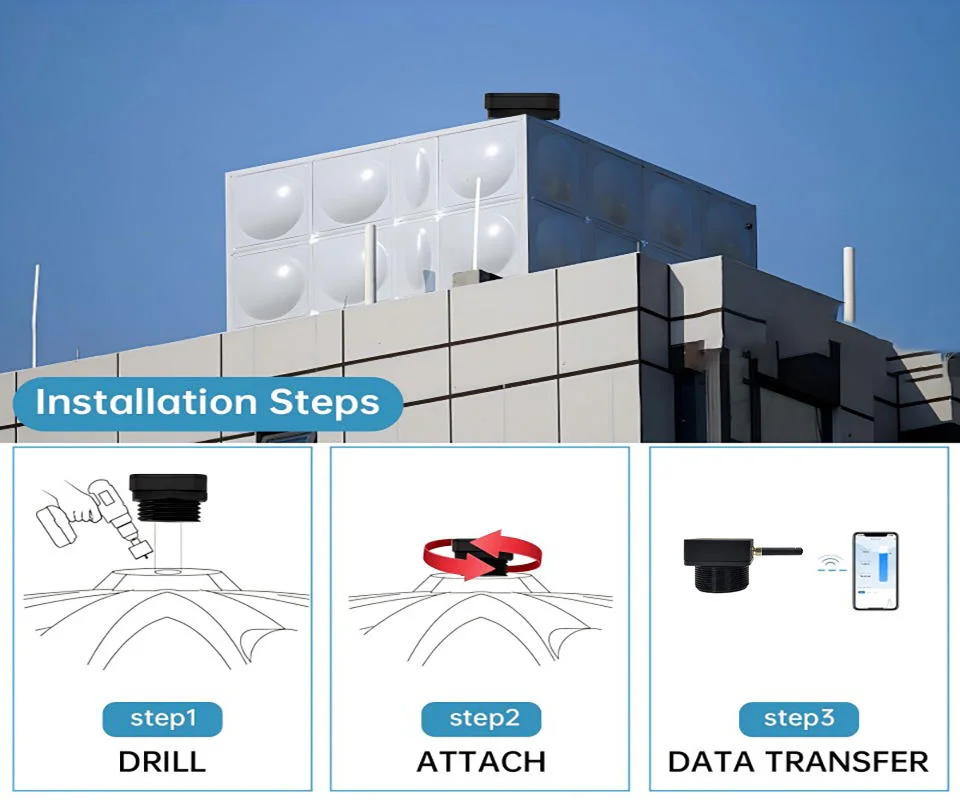

MOUNT THE SENSOR ON THE TANK

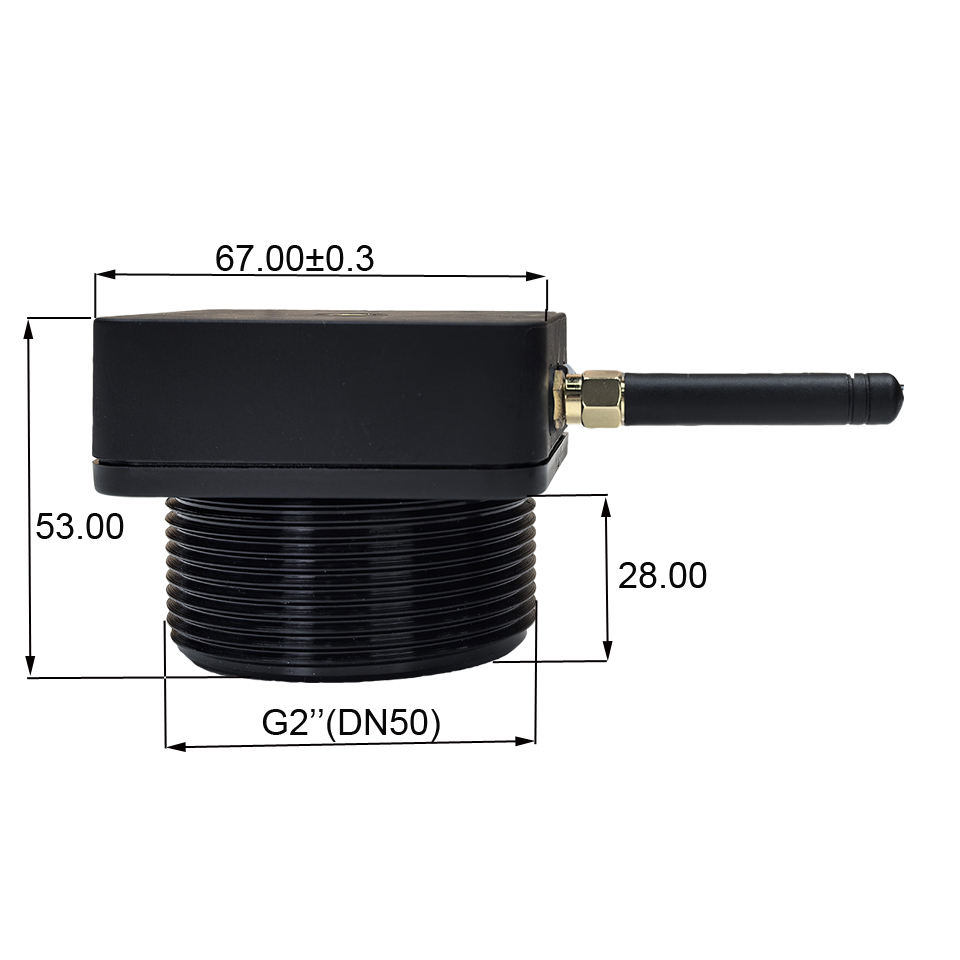

The sensor should be in the middle of the tank and not on a liquid inlet. This can falsify the measurement result. Please refer to the following pictures for the best installation positions. The hole should be 50mm
Company
Shenzhen EPT TECHNOLOGY CO.,LYD
locates in Baoneng science park. Founded in 2003,the company is a high-tech company focusing on R&D producing and sales of all kinds of liquid level sensors,flowmenter,photo interrupter and so on.
Our products sold all over the world and cooperate with many 500 fortune enterprise.
To provide quality and fast service, our company sets up offices in Sichuan,Shanghai,Yuyao and so on. Meanwhile,Xingxing Electric company was established in Hong Kong,It is responsible for the company's new product and global market development and services.
The company branch factory is located in the beautiful Yanydong mountain of economic development zon in Yueqing city ,the factory covers an area of 7800m2,plants space is 20%,which has a specious and bright workshop and garden style work environment.
