Product Description

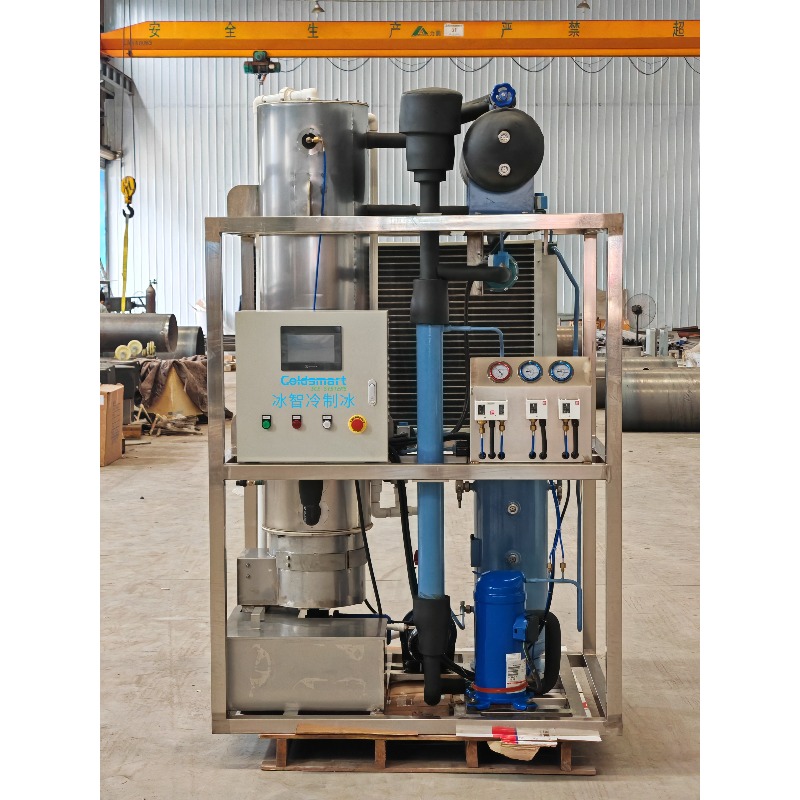

Robin tube ice machine is a type ice machine produces cylinder shape ice with a hole in the middle; it adopts flooded evaporator model, which improves ice making efficiency and capacity. Meanwhile, compact structure design can save installation space. Ice thickness and hollow part size can be adjusted accord: system to work automatically, the machine has high capacity, low-power consumption and minimal maintenance.





Tube Ice Machine Features

1. The ice tube looks like hollow cylinder. Tube ice outer diameter is 20mm, 26mm, 34mm, 40mm; tube ice length: 30mm, 35mm, 40mm, 45mm, 50mm. The inner diameter can be adjusted according to the ice making time. Usually i's between Smm-0mm. 2. The mainframe adopts SUS304 stainless steel. It can put the food directly nto the production room which cover a small area, low Production cost, high frozen efficiency, save energy, shor installation period and easy to operate. 3. The ice is quite thick and transparent, beautiful, long storage, not easy to melt ine permeability. 4. Main application: daily using, vegetable fresh-keeping, pelagic fishery fresh-keeping, chemical processing, building projects and other places need to use ice.

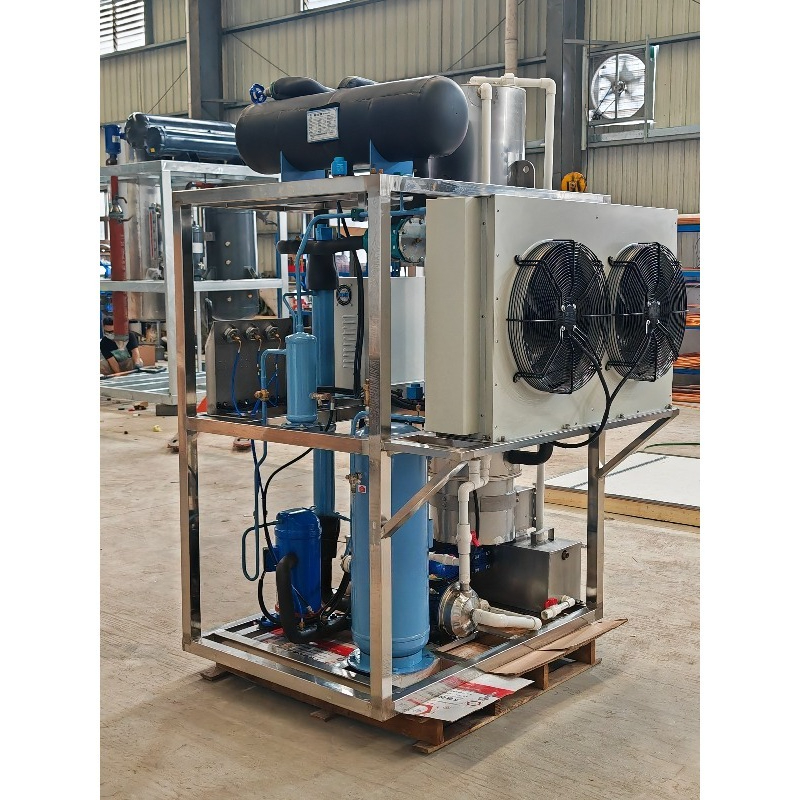

Air Cooling System

.

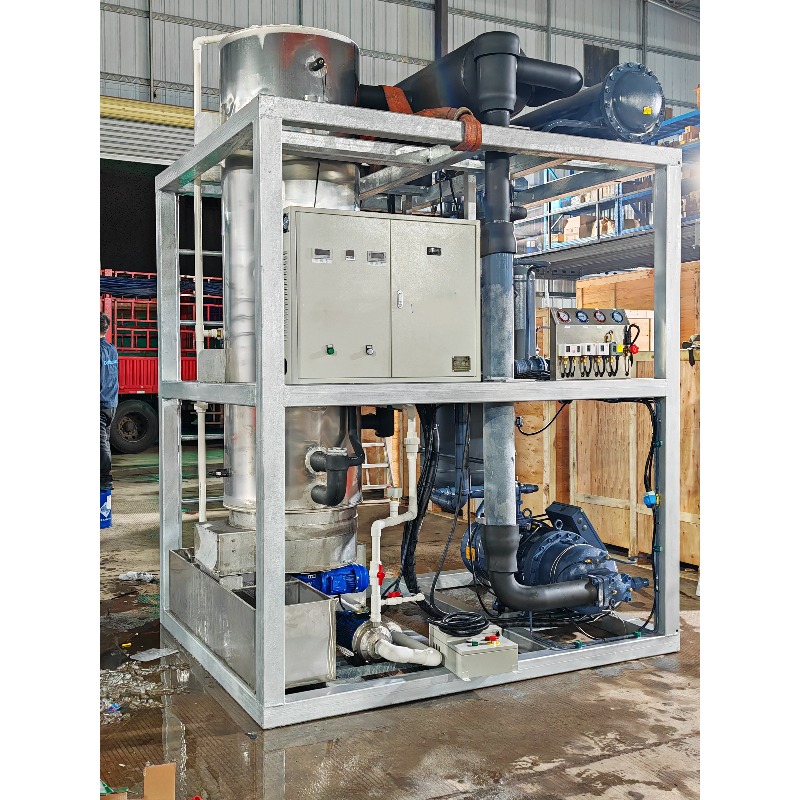

Water Cooling System

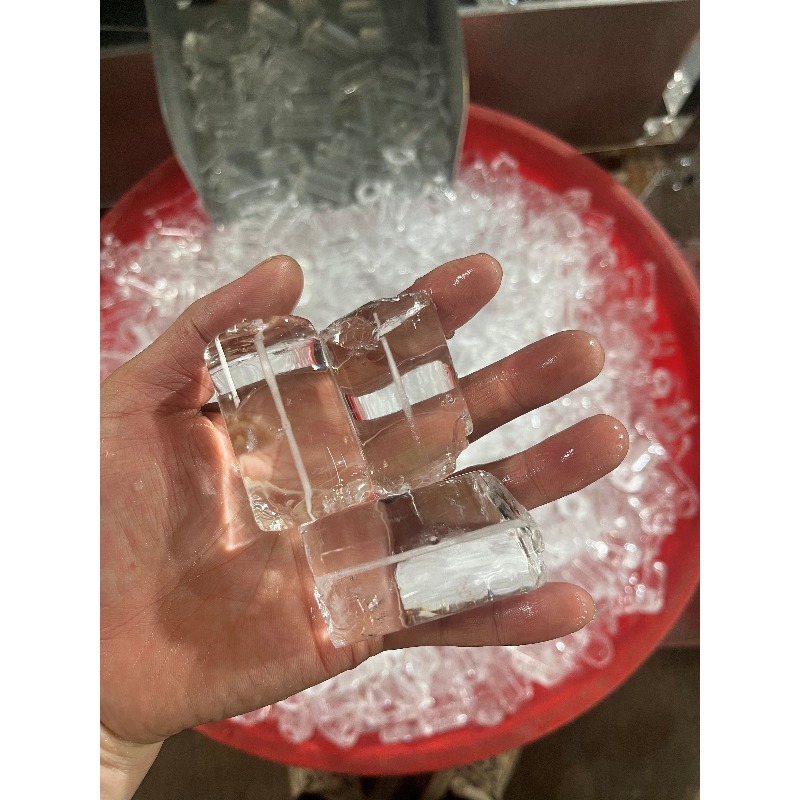

Ice tube Size

Tube ice outer diameter is 16mm, 22mm, 28mm, 34mm, 40mm; The inner diameter can be adjusted according to the ice making time.

External Diameter	Standard Length	Freezing Time
20mm	30mm	16 minutes
28mm	35mm	18 minutes
34mm	45mm	20 minutes
40mm	55mm	25 minutes

Tube Ice Application

1. Edible ice factory

2. Ports and dock ice factories 3. Places where ice is used in coffee shops, bars, hotels, etc. 4. Commercial areas such as supermarkets, convenience stores, restaurants, etc. 5. Aquatic products and food preservation 6. Logistics preservation 7. Chemical and concrete engineering

Main brands on Tube Ice Machine

Parameters of Tube Ice Machine

Model	RBT-1T	RBT-3T	RBT-5T	RBT-10T	RBT-15T
Capacity(Tons/24hours)	1	3	5	10	15
Refrigerant	R22/R404A
Compressor Brand	Bitzer/Bock/Copeland/Franscold
Cooling Way	Water/Air	Water/Air	Water/Air	Water	Water
Compressor Power (HP)	4	14 (12)	28	50 (44)	2*44 (34)
Ice Cutter Motor (KW)	0.37	0.55	0.75	1.1	2.2
Circulating Water Pump (KW)	0.37	0.55	0.75	1.5	2.2
Cooling Water Pump (KW)	0.75 (Water)	1.5 (Water)	2.2	4	4
Cooling Tower Motor (KW)	0.18 (Water)	0.37 (Water)	0.75	1.5	1.5
Cooling Fan Motor (KW)	0.38 (Air)	1.92 (Air)	/	/	/
Length (MM)	1520/1600	1680/1700	1790	2200	4530
Width (MM)	1000/1350	950/1400	1080	1900	1800
Height (MM)	2020/2010	2200/2430	2270	2550	3000
Weight(KG)	900	1750	2070	3200	tube Ice maker part & refrigerationsystem are separate
We also have 2T, 8T, 12T, 20T model for your choice, you can contact with me Supply Power: 380V~420V, SOHz/, 3P; 220V~240V/380V, 60Hz, 3P; 440V~480V, 60Hz, 3P;  Working Conditions: Input Water Temp: 21°C; Evaporating Temp: -15C; Condensing Temp: 40C;  (Notice: the actual ice production will be changed with input water temp and ambient temp.)
