HIKVISION LOCAL+ DS-2CD2087G3-LI2UY 4K 8MP Smart Hybrid Light ColorVu3.0 Acusense3.0 Audio Anti-Corrosion IP67 POE IP Camera
価格:
$267.20
/Pc
払い戻し:
シェア:
売れ筋商品
Hikvision DS-2CD2087G3-LI2UY 4K 8MP Smart Hybrid Light ColorVu3.0 Acusense3.0 40m 2-way Audio Anti-Corrosion IP67 POE IP Camera
Hikvision DS-2CD2087G3-LI2UY is an 8MP 4K ColorVu fixed mini bullet IP camera with NEMA4X anti-corrosion design for harsh environments. It features arrayed dual microphones for high-quality audio, 24/7 full-color imaging via ColorVu, 40m Smart Hybrid Light (IR/white light) and 130dB scene-adaptive WDR. Equipped with AI human/vehicle detection, HikAI-ISP noise reduction, IP67 weatherproofing and PoE power, it’s ideal for professional indoor/outdoor surveillance in coastal, industrial and residential areas.

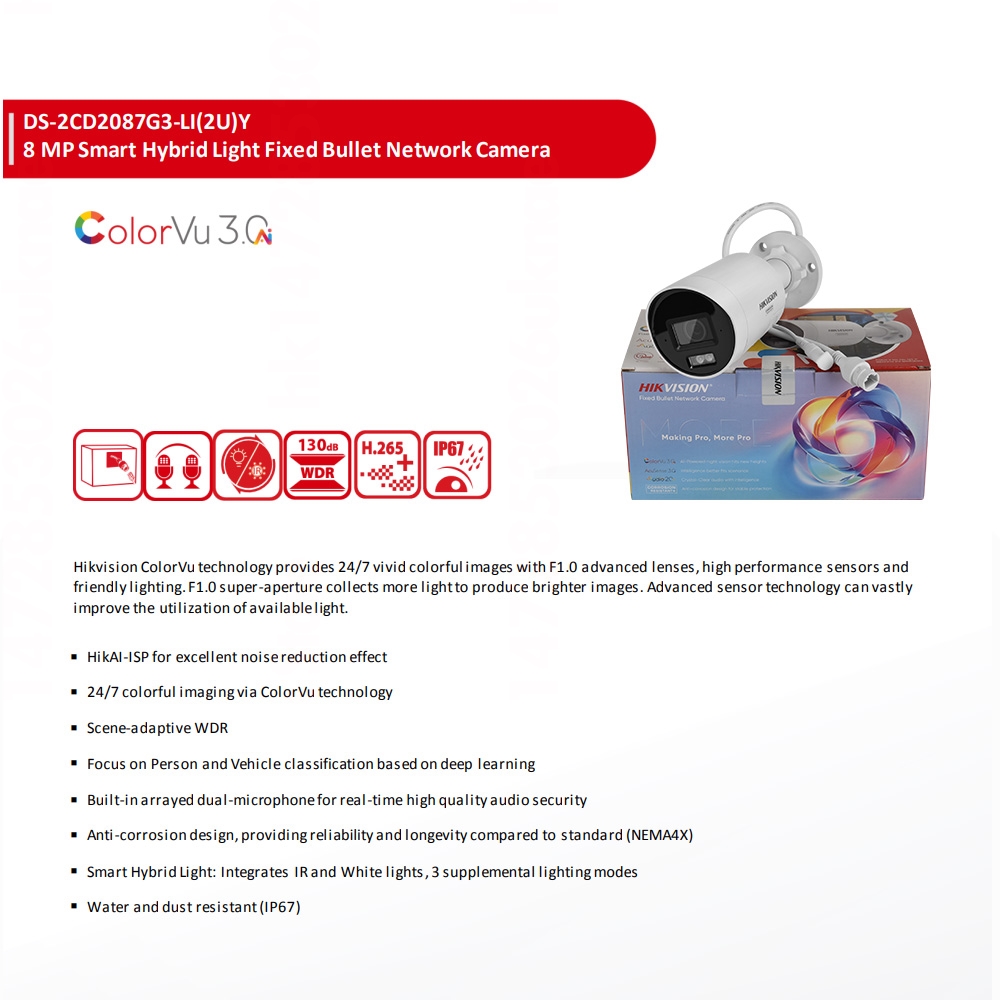

8 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera
HikAI-ISP for excellent noise reduction effect
24/7 colorful imaging via ColorVu technology
Scene-adaptive WDR
Focus on Person and Vehicle classification based on deep learning
Built-in arrayed dual-microphone for real-time high quality audio security
Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
Water and dust resistant (IP67)
Specification : DS-2CD2087G3-LI(2U)Y
1. Camera :
Image Sensor : 1/1.8" Progressive Scan CMOS
Max. Resolution : 3840 × 2160
Min. Illumination : Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time : 1 s to 1/100,000 s
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
2. Lens :
Lens Type : Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV : 2.8 mm: horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
4 mm: horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
Lens Mount : M16
Iris Type : Fixed
Aperture : F1.0
Depth of Field : 2.8 mm: 3.3 m to ∞
4 mm: 3.8 m to ∞
DORI : 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
3. Illuminator :
Supplement Light Type : White Light, IR
Supplement Light Range : Up to 40 m
Smart Supplement Light : Yes
IR Wavelength : 850 nm
4. Video :
Main Stream (50Hz) : 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Main Stream (60Hz) : 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream (50Hz) : 25 fps (1280 × 720, 640 × 480, 640 × 360)
Sub-Stream (60Hz) : 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream* (50Hz) : 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third Stream* (60Hz) : 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression : Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate : 32 Kbps to 16 Mbps
H.264 Type : Baseline Profile, Main Profile, High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR, VBR
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region of Interest (ROI) : 1 fixed region for main stream
5. Audio :
Audio Type : -2U: Mono sound
Audio Compression : -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate : -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate : -2U: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering : -2U: Yes
6. Network :
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View : Up to 6 channels
API : ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host : Up to 32 users
3 user levels: administrator, operator, and user
Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage : NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client : iVMS-4200, Hik-Connect, Hik-Central
Web Browser : Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
Local service: Chrome 80+, Firefox 80+, Edge 89+
7. Image :
Image Parameters Switch : Yes
Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch : Day, Night, Auto, Schedule
Image Enhancement : BLC, HLC, 3D DNR, Distortion Correction, Defog
SNR : ≥ 52 dB
Wide Dynamic Range (WDR) : 130 dB
Image Stabilization : EIS
Privacy Mask : 4 programmable polygon privacy masks
8. Interface :
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone : -2U: Arrayed dual-microphone
Reset Key : Yes
9. Event :
Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage : Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Smart Event : Scene change detection
Deep Learning Function : Face Capture: Yes
Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
10. General :
Power : 12 VDC ± 25%, 0.45 A, max. 5.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 7 W
Material : Front cover: metal, body: metal, bracket: metal
Dimension : Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94")
Package Dimension : 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Weight : Approx. 530 g (1.2 lb.)
With Package Weight : Approx. 810 g (1.8 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language : 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function : Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
11. Approval :
EMC : CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015
Safety : UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment : CE-RoHS: 2011/65/EU
Protection : IP67: IEC 60529-2013
Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
