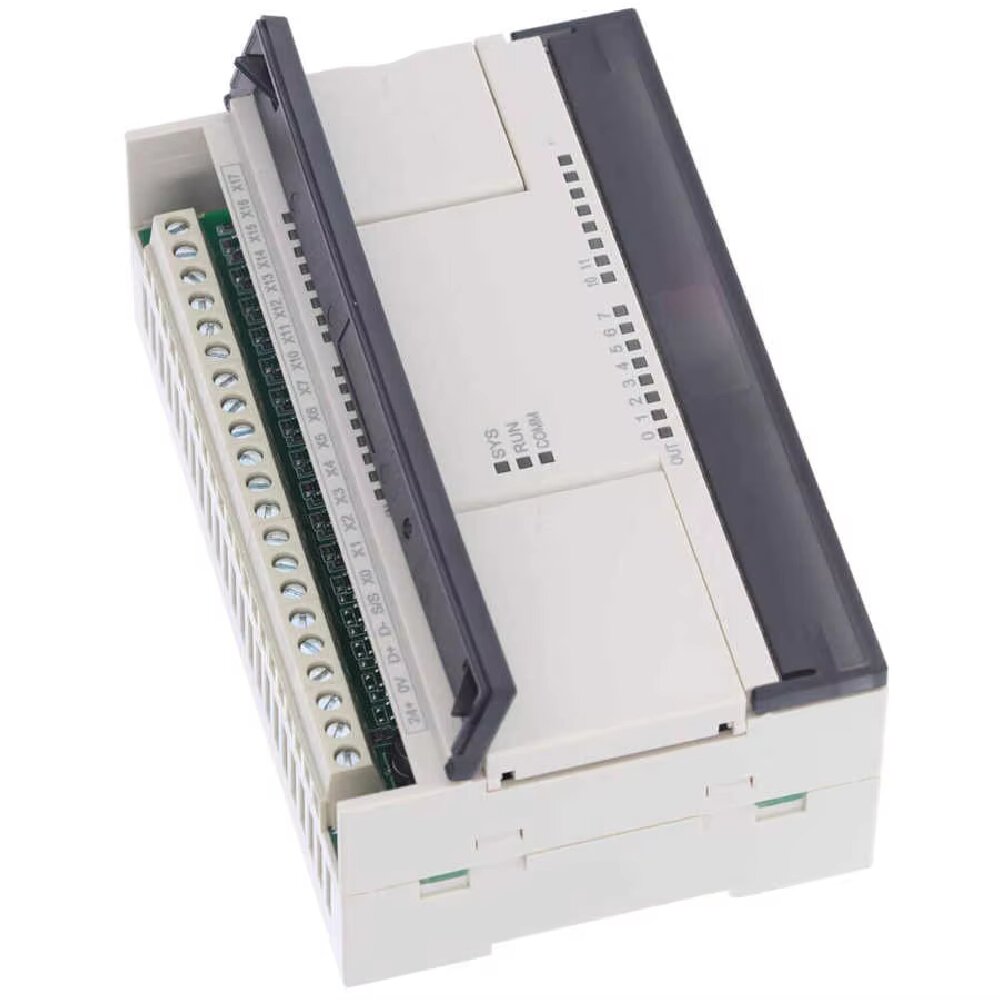

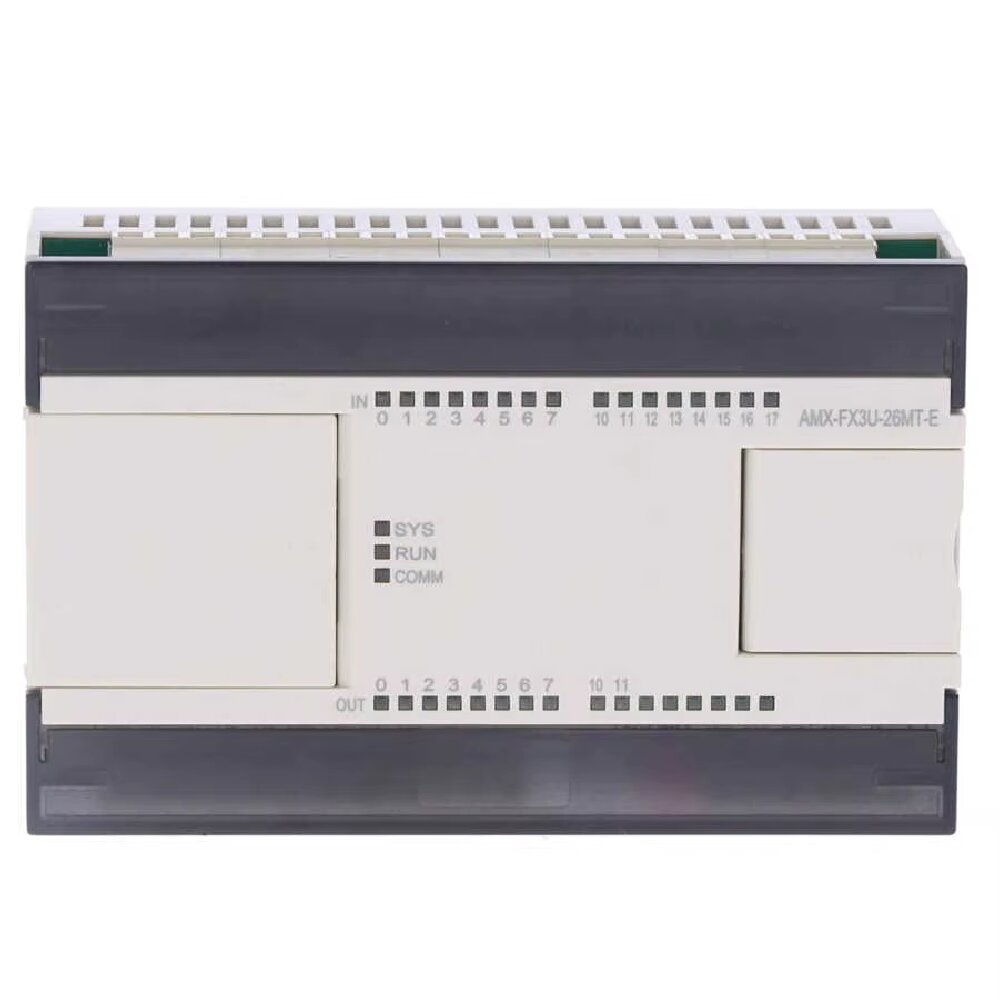

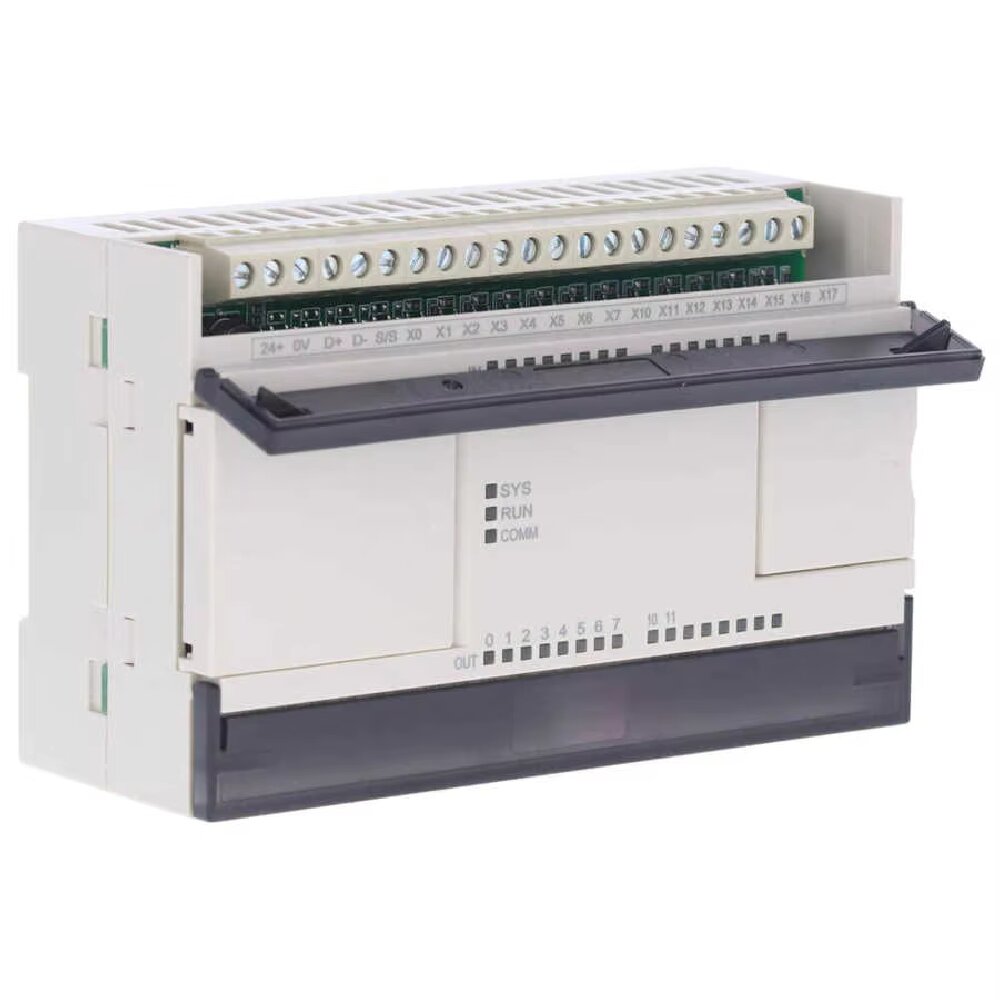

FX3U‑26MT/MR‑E PLC Programmable Logic Controller FX2N FX3U Industrial Automation Control Board

Feature:
1. MCU adopts ARM32 bit industrial processor, suitable for industrial automation applications of small PLC.
2. Compatible for Mitsubishi FX3U most instructions, support GXworks2/GxDeveloper programming;It comes with a separate programming port.
3. All 10 ports use photoelectric isolation to transmit signals, effectively filter out all kinds of interference, input support positive/negative trigger, easy to use.
4. High speed counter function; Support 2 channel 100K high speed pulse output.
5. Built‑in analog input and output channels; The power supply circuit adopts anti‑back connection and anti‑surge design.
6. It is widely used in signal acquisition and control of industrial field equipment.
7. 1 way 10/100mbps network port, supporting MC communication with MODBUSTCP protocol.

Specification:
Condition: 100% Brand New
Item Type: PLC Programmable Controller
Material: Plastic
Model: AMX-FX3U-26MT-E

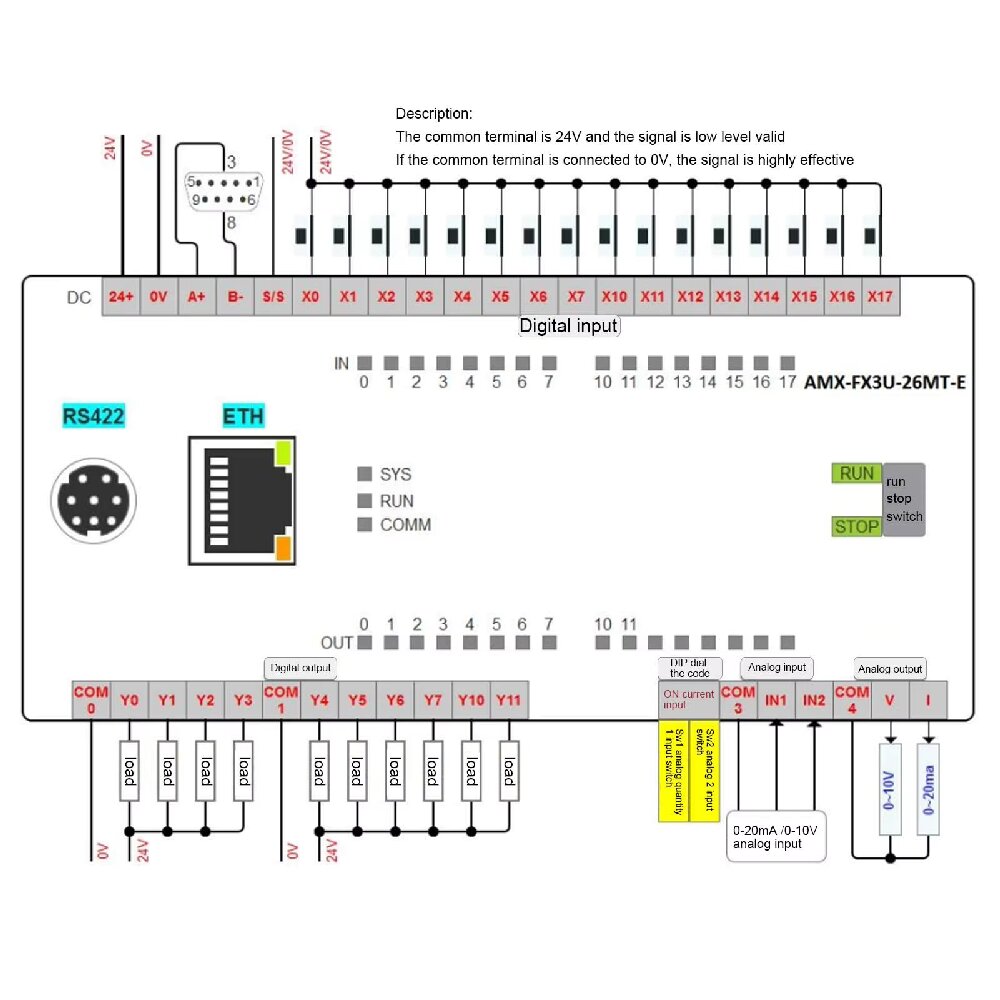

Digital Input:
Input points: 16
Input Signal Type: switch contact signal or level signal, support positive and negative trigger
Input Signal Voltage: DC 18~28V
Insulation Circuit: Optocoupler Isolation

Digital Output:
Output Points: 10
Output Type: Relay
Electric Shock Capacity: DC30V/5A, AC250V/5A
Insulation Circuit: Mechanical insulation

Analog Input:
Input Points: 2
Input Type: Voltage/Current, DIP Switch Switch Input Type
Input Range: 0-10V/0-20mA
Conversion Accuracy: 12 Bits

Analog Output:
Input points: 2
Input Type: Voltage/Current
Input Range: 0-10V/0-20mA
Conversion Accuracy: 12 Bits

High Speed Counter:
Input Points: 6 Channels (X0-X5) Phase, 2 Channels AB Phase
Pulse Frequency: Single Phase 4-Channel 100K (X0-X3), 2-Channel 40K (X4-X5)
Input Signal Voltage: DC 18~28V

High Speed Pulse Output:
Output Points: 2 Channels (Yo-Y1)
Pulse Frequency: 100K Per Channel

Communication Interface:
RS485:1 supports for MODBUS RTU and FX3U PLC communication protocol
Rs422:1 support download, monitor
RJ45:10/100MBps communication rate, for MODBUS TCP, for Mitsubishi FX3U built-in TCP/IPC protocol

Power Supply:
Power Supply: DC24V, Terminal Access; With Anti-Contact Protection
Power: 2~4W
Surge Protection: 600W
Installation: 35mm DIN Rail
Operating Temperature: 0~50℃ (No Freezing)
Working Humidity: 10~80%RH (No Condensation)

Package List:
1 x PLC Programmable Controller
