Customizable Industrial equipment Modular Injection Molding Machine for Flexible Plastic Production Lines

(0 レビュー)

発送予定時間: 3 日々

により販売されています: 自社製品

価格:

$8,892.00 /Pc

量:

(1985 利用可能)

払い戻し:

ポリシーを見る

売れ筋商品

説明レビュー

PLEASE NOTE:

1.This product is custom-made. Please contact us if you have any other requirements.

2.We will provide you with a final price after understanding your specific needs.

3.Due to variations in product size and shipping costs, all products on our website do not include shipping fees.

4.The final cost will be calculated based on your requirements and shipping costs.

5.Please confirm with us before placing your order.

email address : Mike042025@163.com

whatsapp:+86 13598012672

Products Description

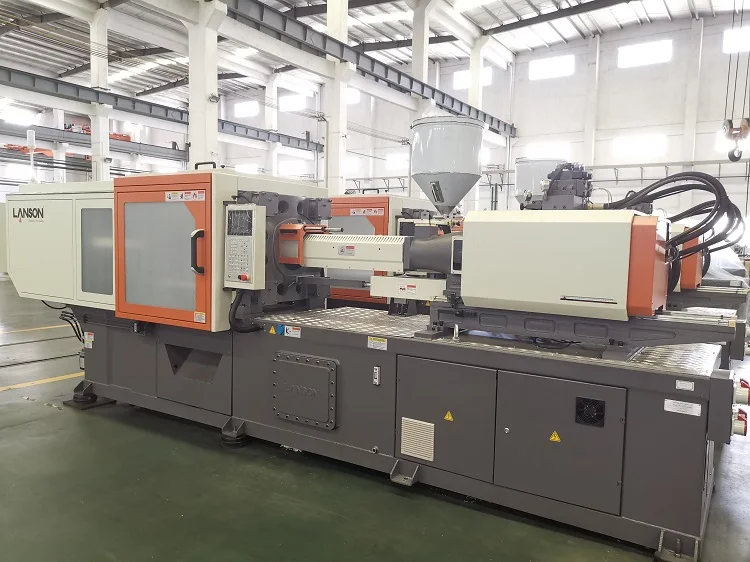

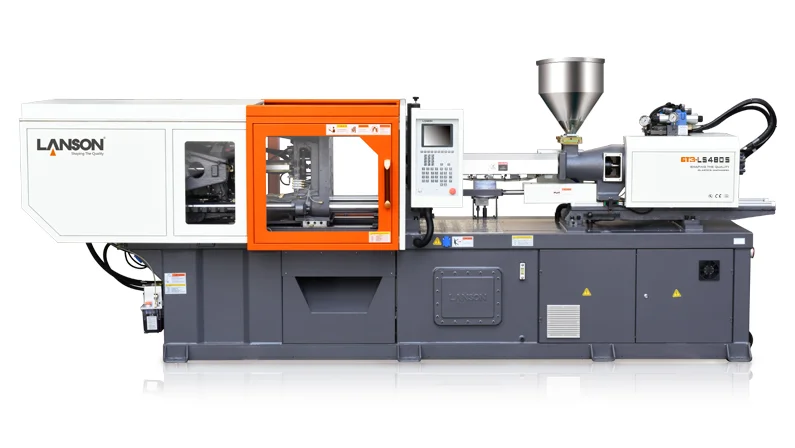

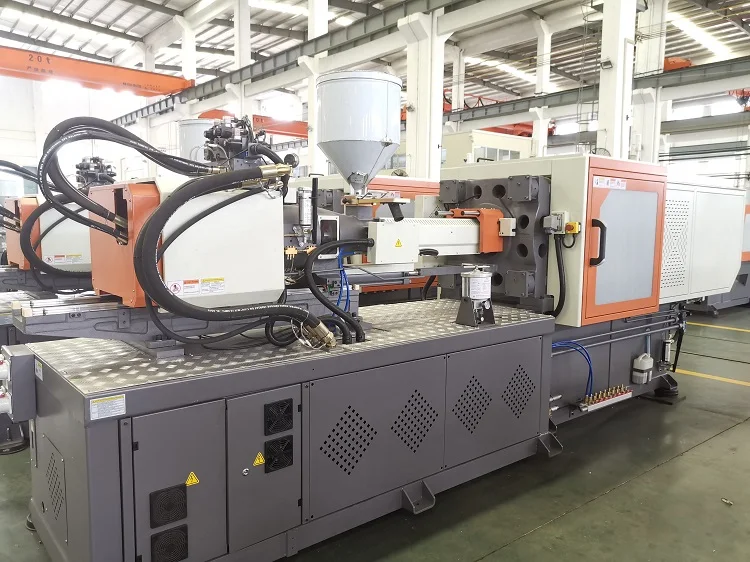

NEWLY Upgraded GT3 series single injection molding machine

GT3 series single injection molding machine integrates Lanson's mature single injection cylinder technology and employing cutting-edge industrial concept and technical research platform. It features precision, fast response, high efficiency and energy saving with 27 national patents.

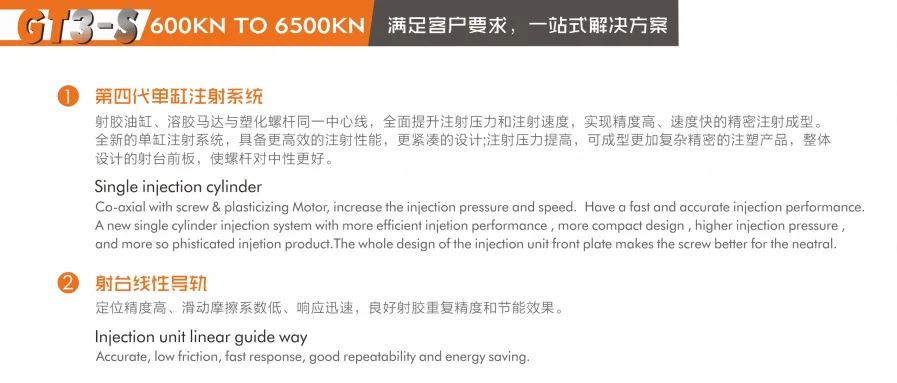

GT3 series single injection system features

Injection cylinder, plasticizing motor and screw work together in one linear axis to improve injection pressure and speed, which is attain to precision injection modling with high precision and high speed. Injection efficiency increase than traditional twin-cylinder 97.5%

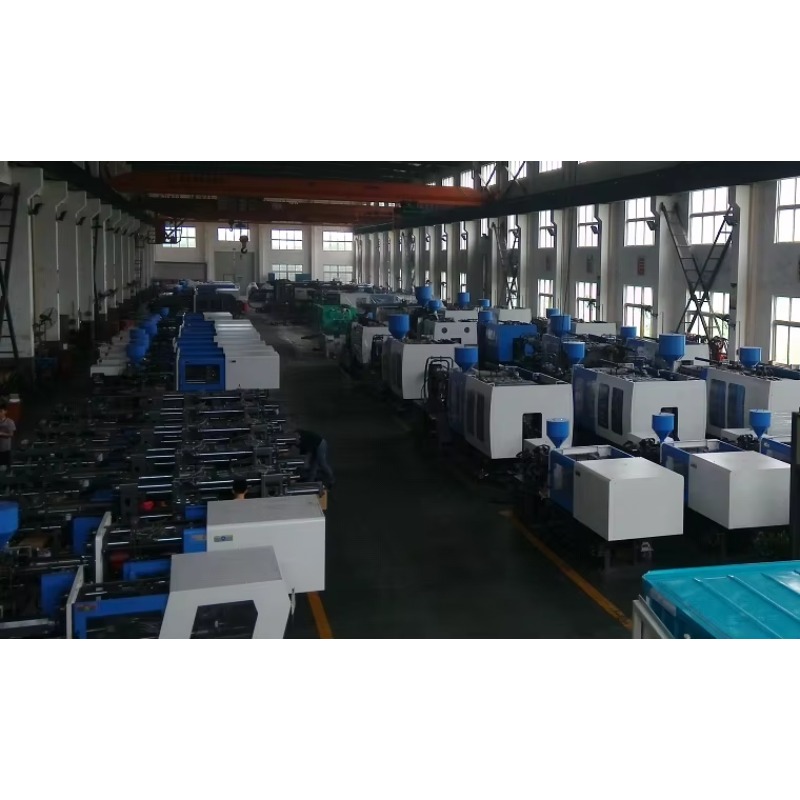

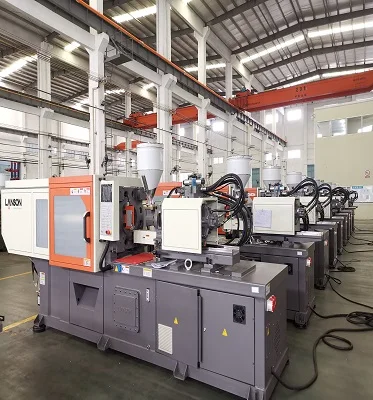

Manufacturing Technique

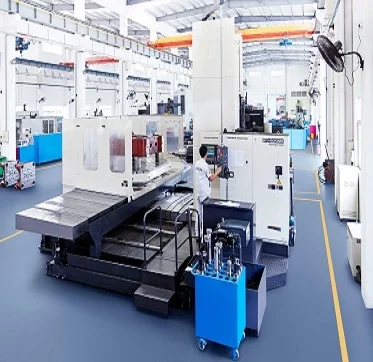

Toshiba TOSNUC 999 Milling Machine

6 sets of this kind high-end machines to make sure platen, toggle, circuit board, cylinder components unit under high precision CNC machining, persuing the machine high precision performance.

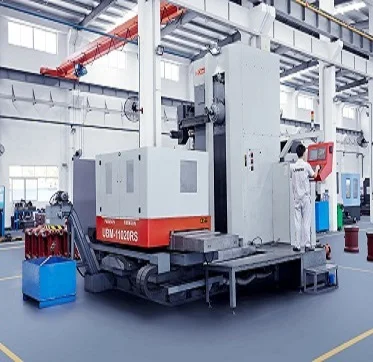

Parkson UBM-11020RS CNC machine

10 sets of this kind advance equipment to strictly control components precision and longer service life, to make sure Lanson injection molding machine precision beyond the industry level.

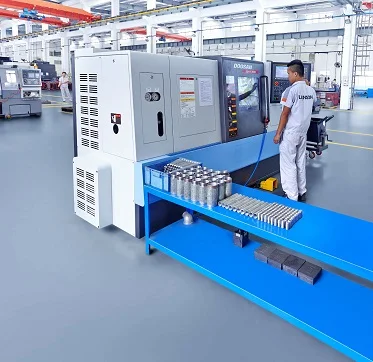

Doosan Duma 280M Lathe machine

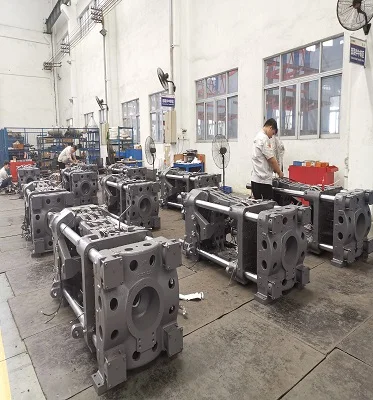

Over 40 sets imported machining equipments to maintain frame, sheet metal, parts processing surface spraying forming complete independent supply capacity.

Installation Instructions

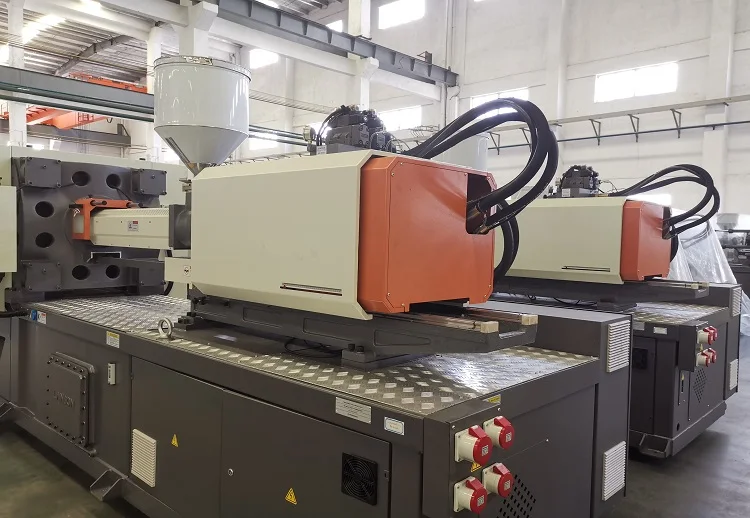

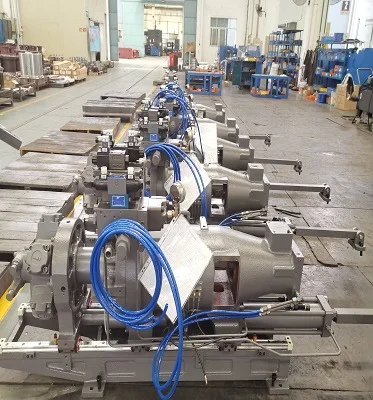

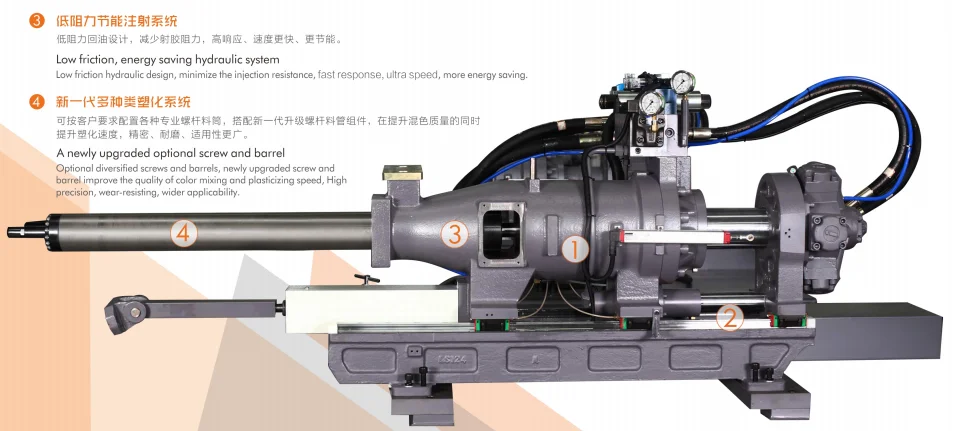

Injection System Features

1. Single injection cylinder

2. Injection unit linear guide way

3. injection action connect with control valve rigidit

4. Optional screw and barrel

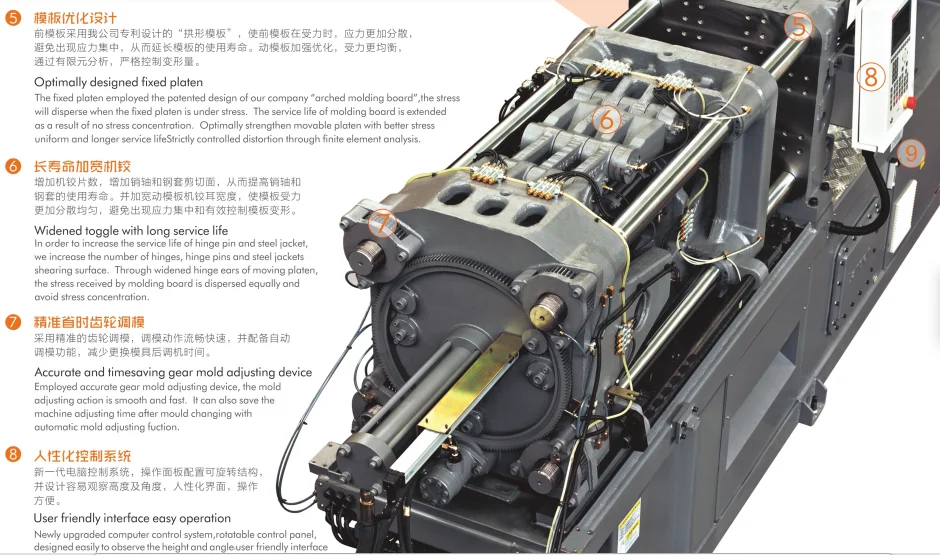

Clamping System Features

1. High rigidity high strength

2. Accurate and timesaving gear mold adjusting device

3. Widened toggle with long service life

4. Centralizing electric lubrication

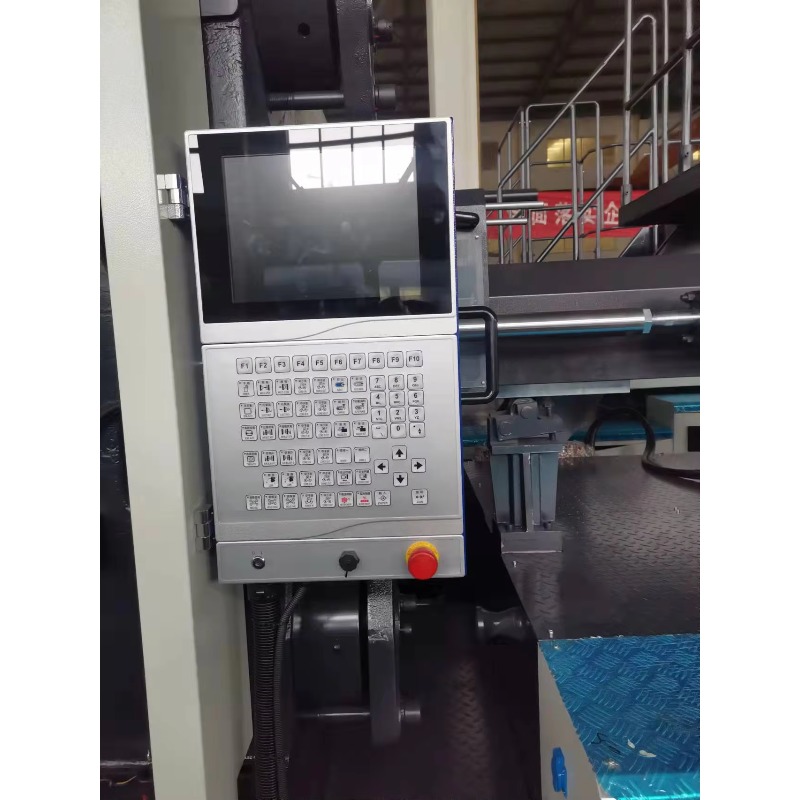

Control System Features

1. diversification professional control system

2. equip with servo control system

3. famous brand hydraulic component

4. precision hydraulic filter element

Product Paramenters

Model	Unit	GT3-LS480S
International Size Desciption		4800-2993
Injection Unit
Screw No.		A	B	C
Screw Diameter	mm	70	80	85
Screw Ratio	L/D	24	21	19.8
Shot Volume	cm3	1385	1810	2043
Shot Weight(PS)	g	1261	1647	1859
Plasticizing Capacity(PS)	g/s	76	111	131
Injection Pressure	Mpa	216	165	147
Screw Speed	rpm	190
Clamping Unit
Clamping Force	KN	4800
Mould Opening Stroke	mm	755
Space between Tie Bar	mm	830X800
Platen Size	mm	1165X1135
Max. Mold Height	mm	265
Min. Mold Height	mm	825
Ejector Stroke	mm	250
Ejector Force	KN	111
Ejector Number	PC	13
Other
Hydraulic Pressure	MPa	17.5
Pump Motor Power	KW	52
Heater Power	KW	30.6
Oil Tank Capacity	L	695
Machine Dimension(LXWXH)	mm	8405X1876X2277
Machine Weight	ton	20.5

Machine Applications

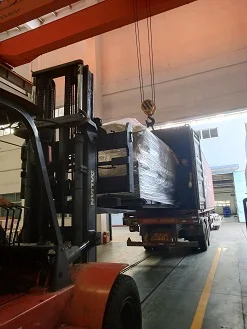

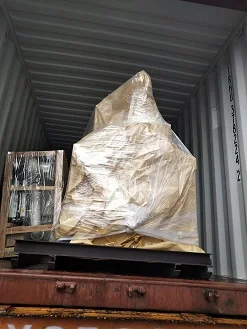

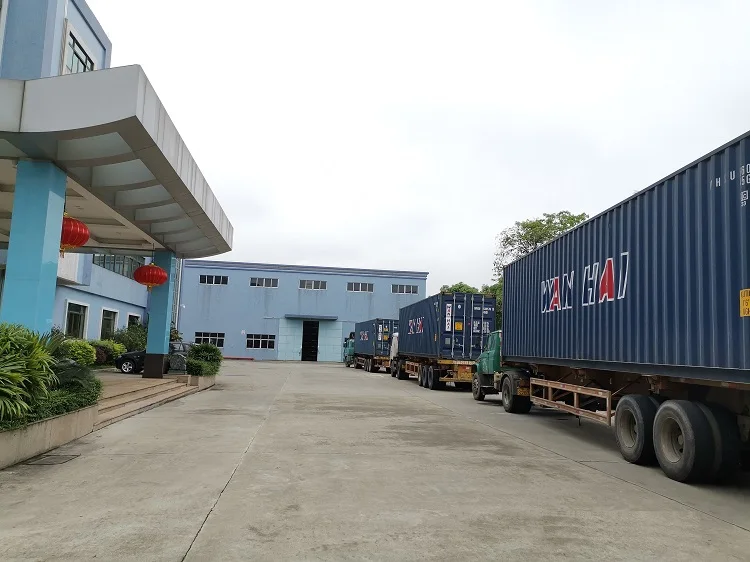

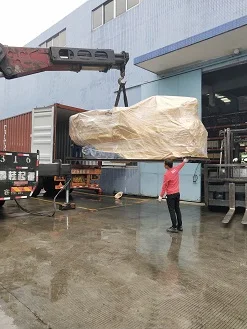

Product packaging

Company Profile

Henan Foodline Machinery Co., Ltd. is headquartered in Zhengzhou, a national central city. It is a large-scale comprehensive machinery production enterprise that integrates the research and development, production, and sales of food processing equipment such as frying production lines, fruit and vegetable processing machinery, and automatic vending machines. The company's main products include potato chip production line, Guoba snack production line, puffed snack food processing production line, fried peanut production line, freeze-drying machine, fruit and vegetable cleaning machine, fruit and vegetable sorting machine, fruit and vegetable peeling machine, vending machine, dining car and more than 100 other products. Over the years, Foodline Machinery has received unanimous praise from domestic and foreign customers for its professional quality, reasonable prices, good service and reputation. With a total of over 100000 service projects, its products are exported to more than 100 countries and regions around the world! Foodline Machinery, with the cooperation concept of "customer first, integrity first, win-win growth", is committed to the corporate mission of "making the world fall in love with Henan manufacturing", continuously improving product quality and service quality, and warmly looking forward to sincere cooperation, mutual benefit, and win-win with our customers and friends!

FAQ：
1. Who are we?
We are located in Henan, China, established in 2025, and our products are sold to North America (22%), South America (17%), Northern Europe (14%), Western Europe (12%), Middle East (10%), Eastern Europe (7%), Southeast Asia (6%), Oceania (5%), Southern Europe (2%), Africa (2%), South Asia (1%), East Asia (1%), Central America (1%). There are about 11-50 employees in our office.
2. How do we ensure quality?
Pre-production samples are always provided before mass production;
Final inspection is always carried out before shipment;
3. What can you buy from us?
Food machines such as dining carts, pizza machines, cotton candy machines, ice cream machines, popcorn machines, vending machines, etc.
4. Why should you buy from us instead of other suppliers?
We adhere to the technology research and development strategy. Technical design, material procurement, precision manufacturing and strict quality inspection are all carried out in accordance with ISO9001 standards.
5. What services can we provide?
Accepted delivery terms: FOB, CFR, CIF, EXW, FAS, FCA, DDP, Express;
Accepted payment currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, RMB, CHF;
Accepted payment methods: T/T, L/C, D/A, ABN, CREDIT, Credit card, PayPal, Cash;
Supported languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
