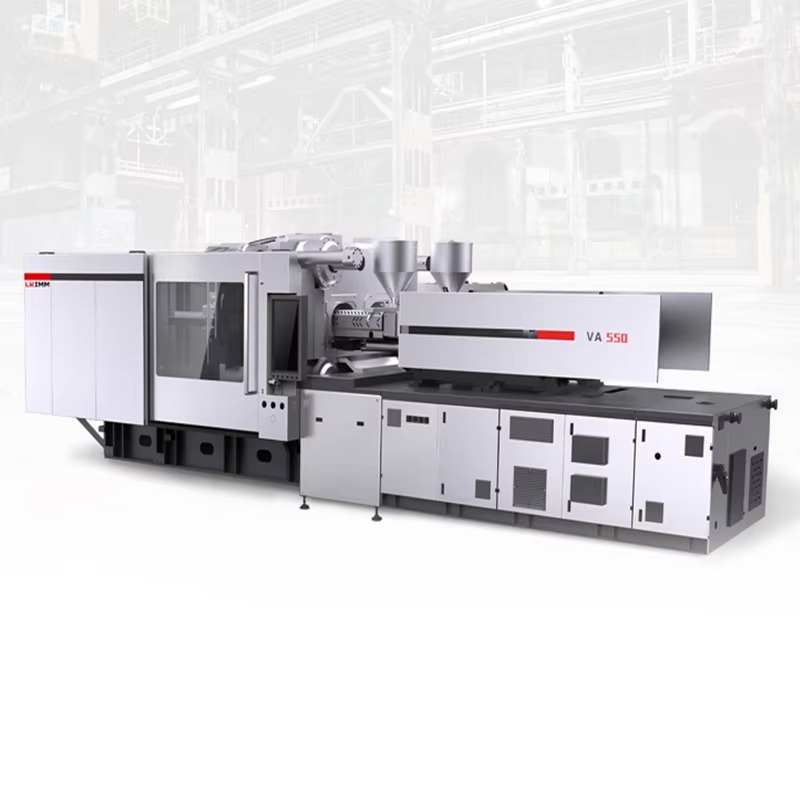

Customizable Industrial equipment Rust-Proof Injection Molding Machine for Humid Factory Environments

(0 レビュー)

発送予定時間: 3 日々

により販売されています: 自社製品

価格:

$9,633.00 /Pc

量:

(3984 利用可能)

払い戻し:

ポリシーを見る

売れ筋商品

説明レビュー

PLEASE NOTE:

1.This product is custom-made. Please contact us if you have any other requirements.

2.We will provide you with a final price after understanding your specific needs.

3.Due to variations in product size and shipping costs, all products on our website do not include shipping fees.

4.The final cost will be calculated based on your requirements and shipping costs.

5.Please confirm with us before placing your order.

email address : Mike042025@163.com

whatsapp:+86 13598012672

Product Paramenters

Model	unit	VA 550 (two-plate type)
Injection unit		Note 1					Note 2
Injection part		Optional	Standard	Optional	Optional	Standard	Optional
Shot volume (PS)	g	518	627	746	575			518
Screw diameter	mm	50	55	60	45			50
Injection stroke	mm	290					260		290
Shot volume	cm	569	689	820	4	13	56
Injection pressure	MPa	253	209	175	2	85	253
Screw aspect ratio	L/D	238	216	19.8	2	2
Injection rate	cm/s	230	279	332	1	86	250
Screw speed	r/min	0-230					0-230
Hopper volume	L	60					60
Distance between the center and the tube	mm	650
Clamping part
Clamping force	KN	5500
Mold capacity (minimum-maximum)	mm	320-800
Maximum template opening distance	mm	1650
Internal distance of the column	mm	1130X930
Ejector stroke	mm	150
Ejector force	kN	2x110
Mold capacity diameter of the turntable	mm	1300
Maximum rotation diameter of the turntable	mm	1520
Load bearing capacity of the turntable	kg	4000
other
Oil pump motor power	kW	41.4						41.4
Maximum working pressure	Mpa	17.5
Oil tank capacity	L	900
Electrical heating power	kW	22			25	1	6.7
Dimensions (LxWxH)	mm		89	00x27	00	x26	00
