24GHz K Band Doppler Speed Radar Module | 180m Long Distance ±1km/h Accuracy | Highway Traffic Speed Detection Sensor | ZLYTR20

24Ghz Speed Radar Sensor Traffic Vehicle Speed Measurement

     ZLYTR20 velocity measurement radar is a millimeter wave radar module integrating microstrip antenna, RF circuit and signal      processing circuit, directly output target speed information. It can be used for long-distance automobile speed measurement      of more than 180 meters, using integrated RF chip, high frequency stability, speed measurement accuracy of 1KM/h.

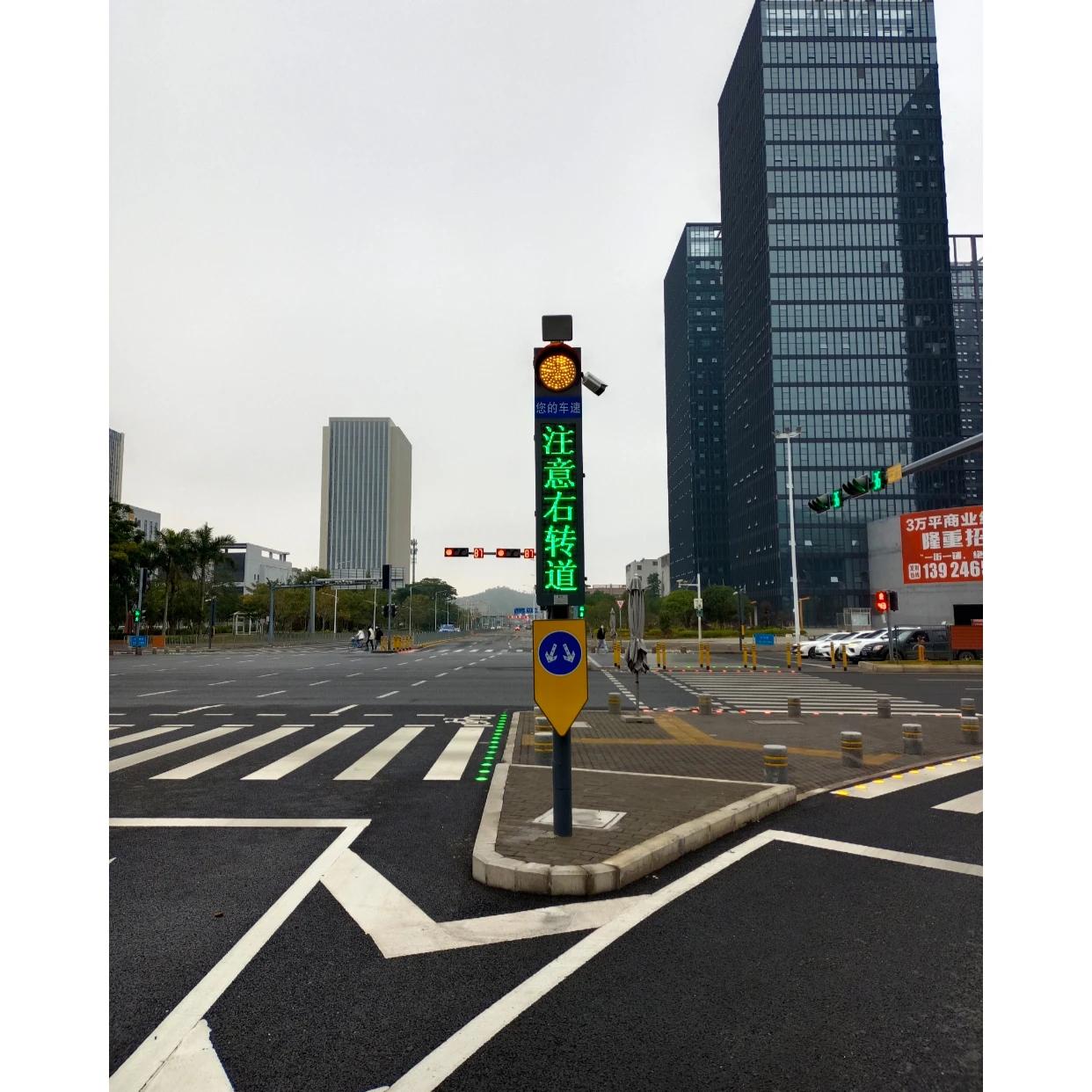

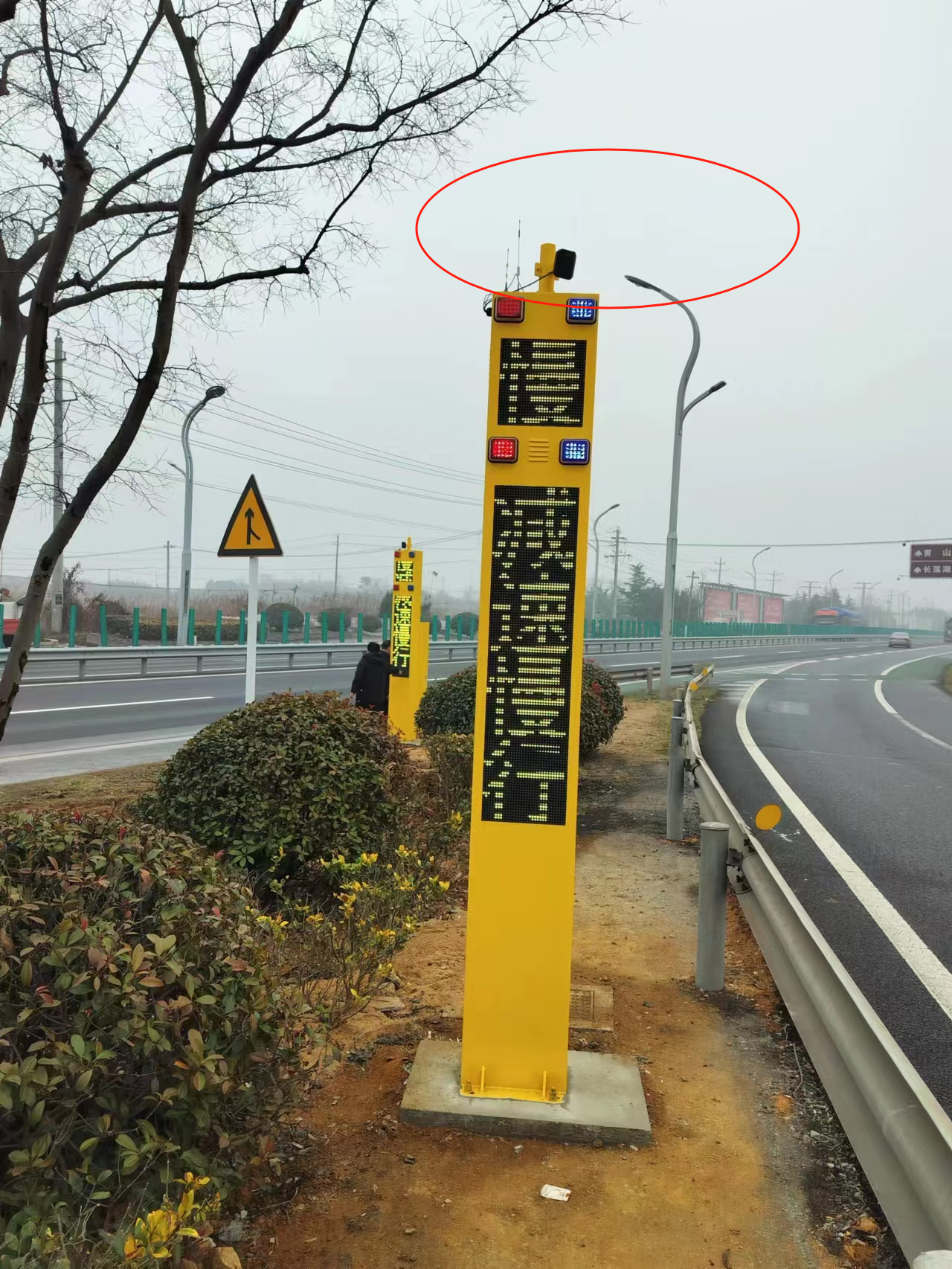

     It is widely used in speed warning of highway, urban trunk line, city-county level highway, urban and rural trunk road and              other roads, as well as road curve and intersection warning.

1. K-band RF integrated circuit design.

2. Frequency range: 24.125GHz (customizable frequency).

3. Modulation mode: CW detection of moving vehicles, detection distance ≥200 meters.

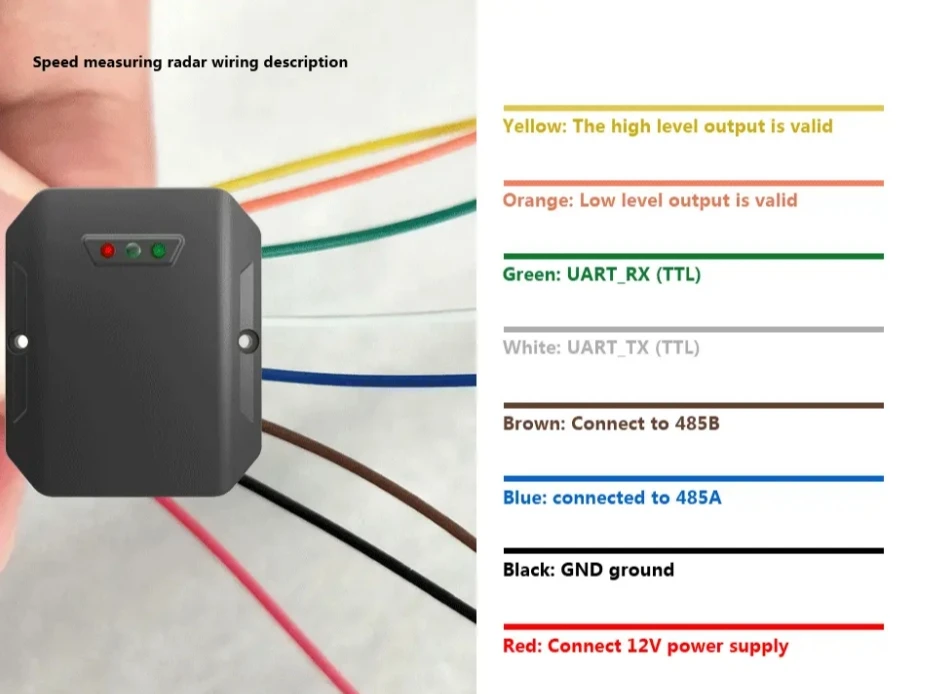

4. Support RS485 interface and TTL serial port (baud rate 9600bps).

5. Measuring range: 1KM/H~240KM/H.

6. The velocity measurement error is less than ±1KM/H(when the Angle between the motion direction and the radar beam bearing is zero).

7. Voltage: 9~24V, current ≤50mA@12V.

8. Output power (EIRP) : 20dBm; Actual power consumption ≤1.2W.

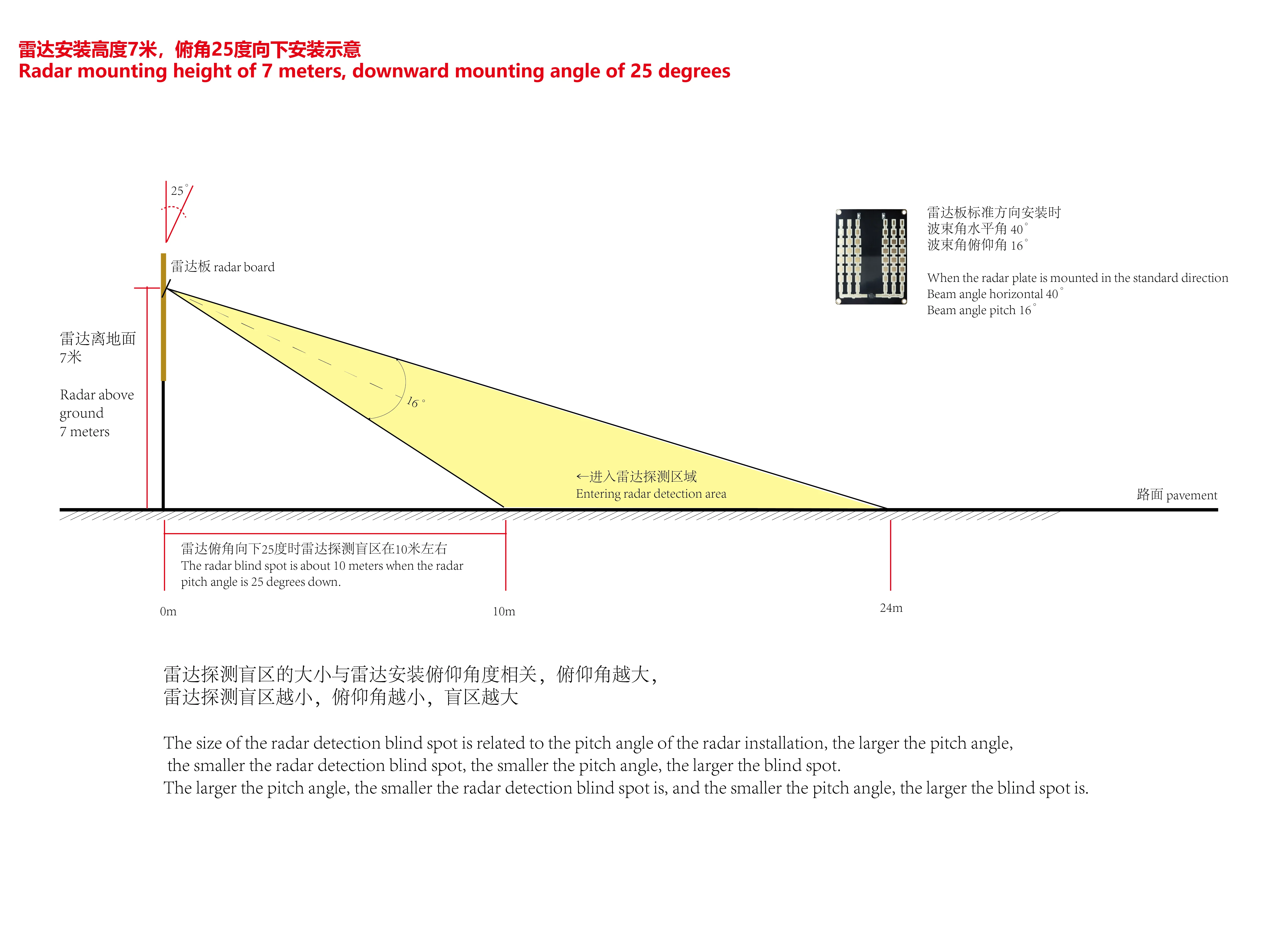

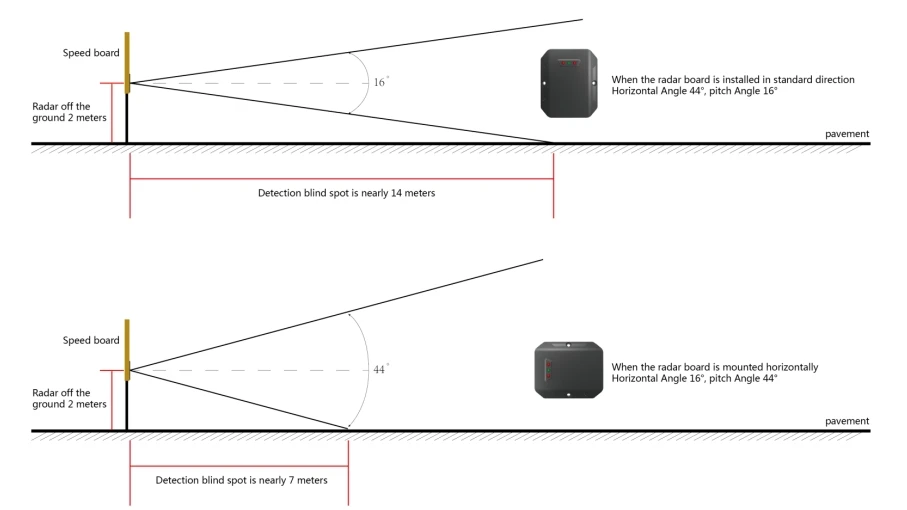

9. Antenna Angle: Horizontal 44°, pitch 16° (3dB beamwidth, actual detection Angle greater than 4 lanes).

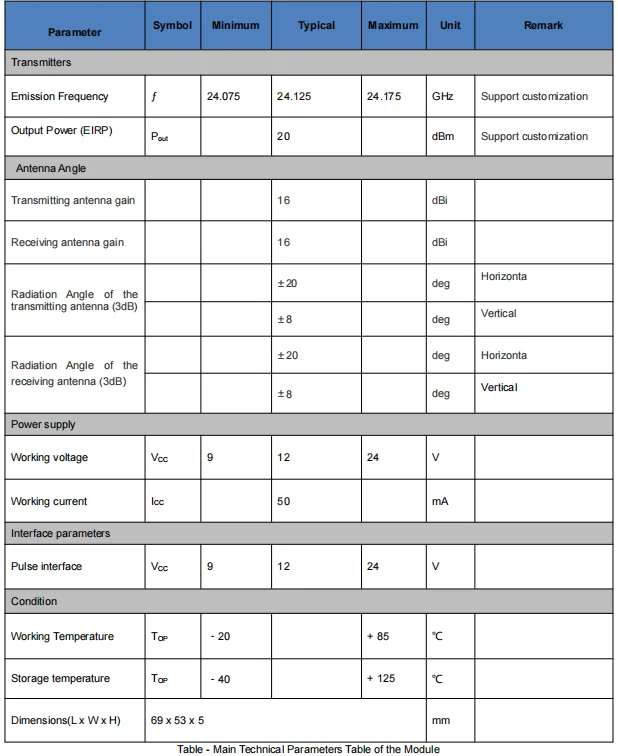

Main parameter indicators
