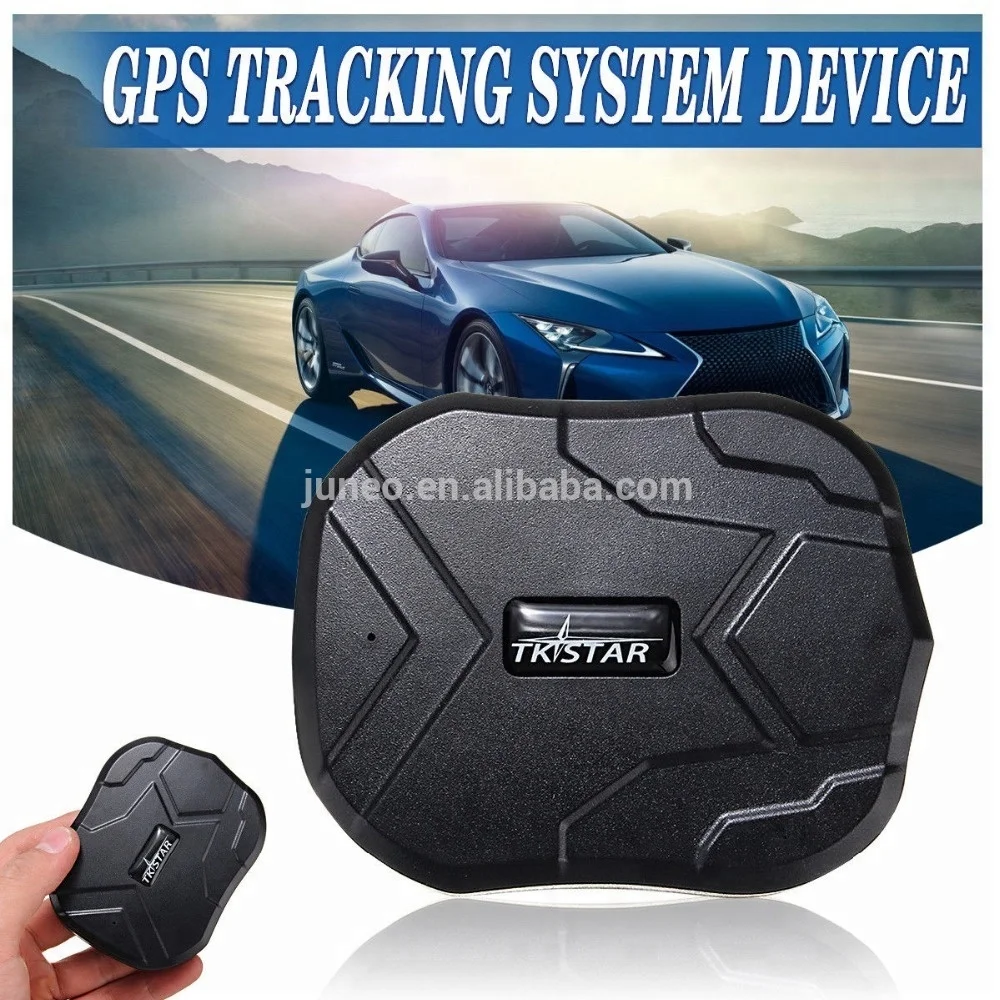

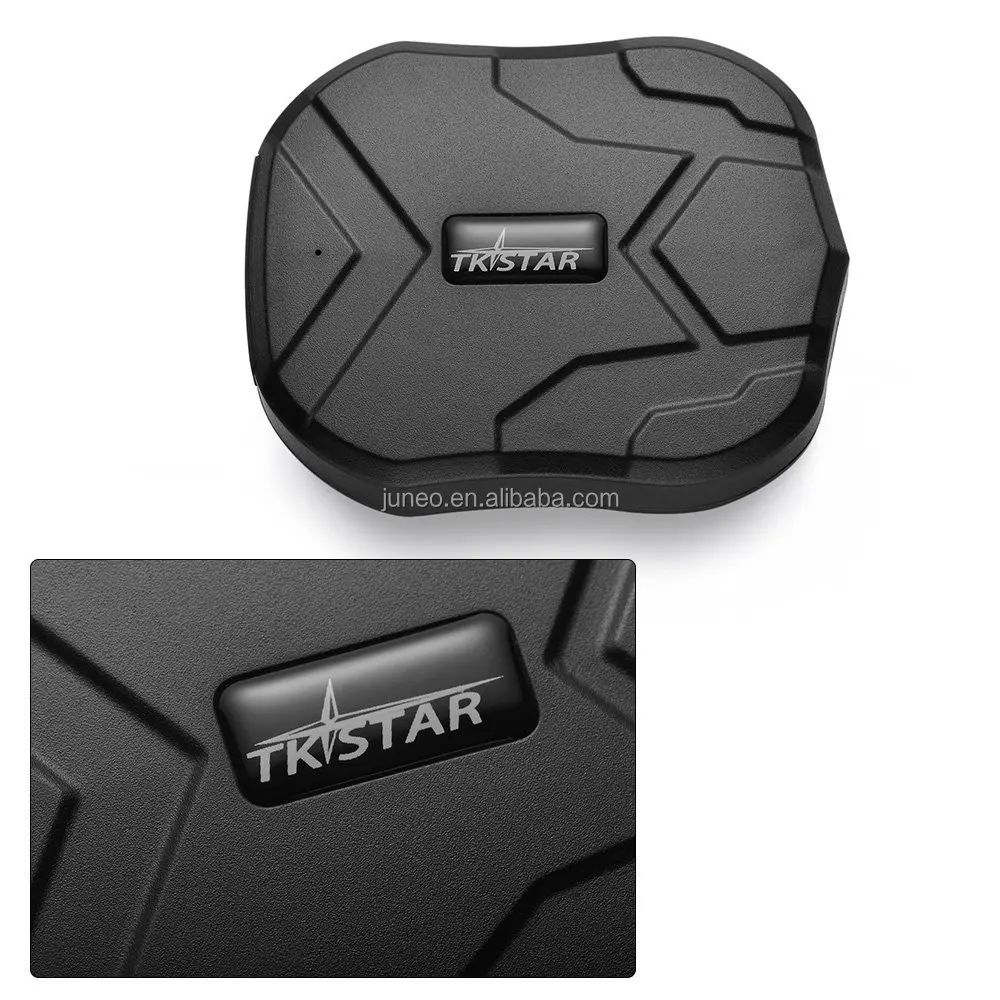

TKSTAR TK905 GPS Tracker Long Standby MAX 20000mAh Waterproof Magtic Device for Car Management IOS App Track View 2G 4G LTE IP65

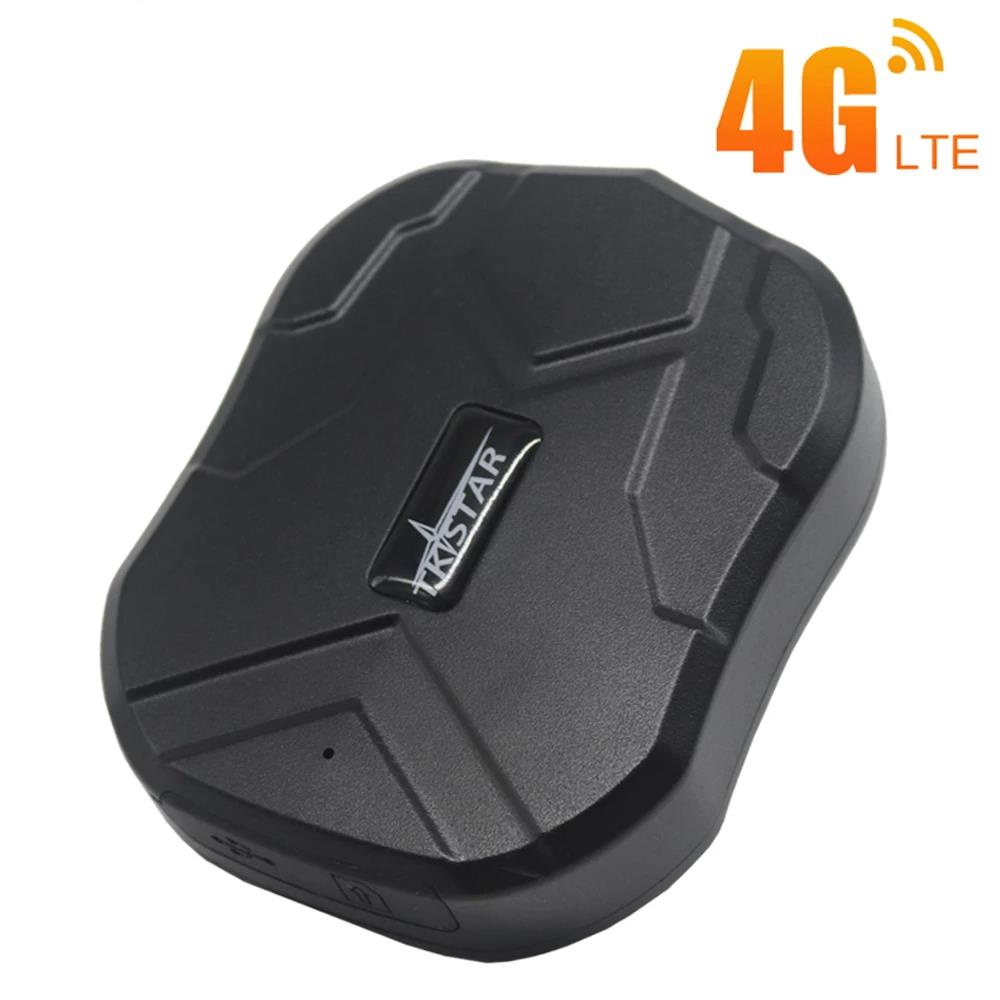

4G Lte Wireless GPS Tracker TK905 5000-20000mAh Magnet Tracking Device Car2g/ 4G GPS
Advantage:
-----------Standard size:90mm*72mm*22mm
-----------Power save sleeping mode
-----------Long battery life, default sleeping model when static
-----------GPS +AGPS double location
.
Network: GSM/GPRS
GPRS module: MTK
2G Version Band: 850/900/1800/1900Mhz
4G Version Band:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE-TDD: B34/B38/B39/B40/B41
GSM:850/900/1800/1900MhzCommunication protocol: TCP
GPS accuracy: 5m
Time To First Fix: Cold status 45sHot status 1s
Wall charger: DC 5V - 1.0A
Battery: 3.7V 5000-20000mAh Li-ion battery
Standby: 50days
Storage Temp: -40°C to +85°C
Operation Temp: -20°C to +55°C
Humidity: 5%--95% non-condensing
Application
Vehicle for rental or manage of outside equipment, etc. Protect the elder, kid, employee and pet, etc. Protect the businessmen. Manage the outworker.
1. GPS+LBS Dual Positioning Ways:
If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS!
Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!

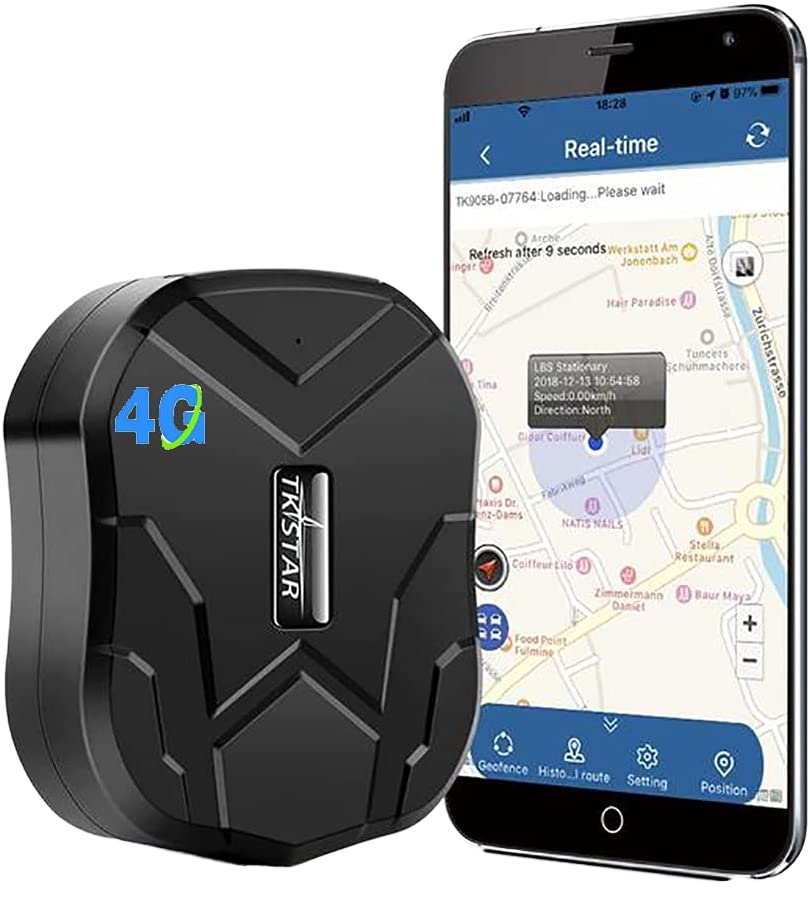

2. Realtime Tracking:
You can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!
3. History Route Playback:
The APP and web server can record the uploaded data of each device up to 6 months.
4. Long Standby Time:
It has built-in 3.7V 5000mAh Li-ion battery, can standby up to 90 days.

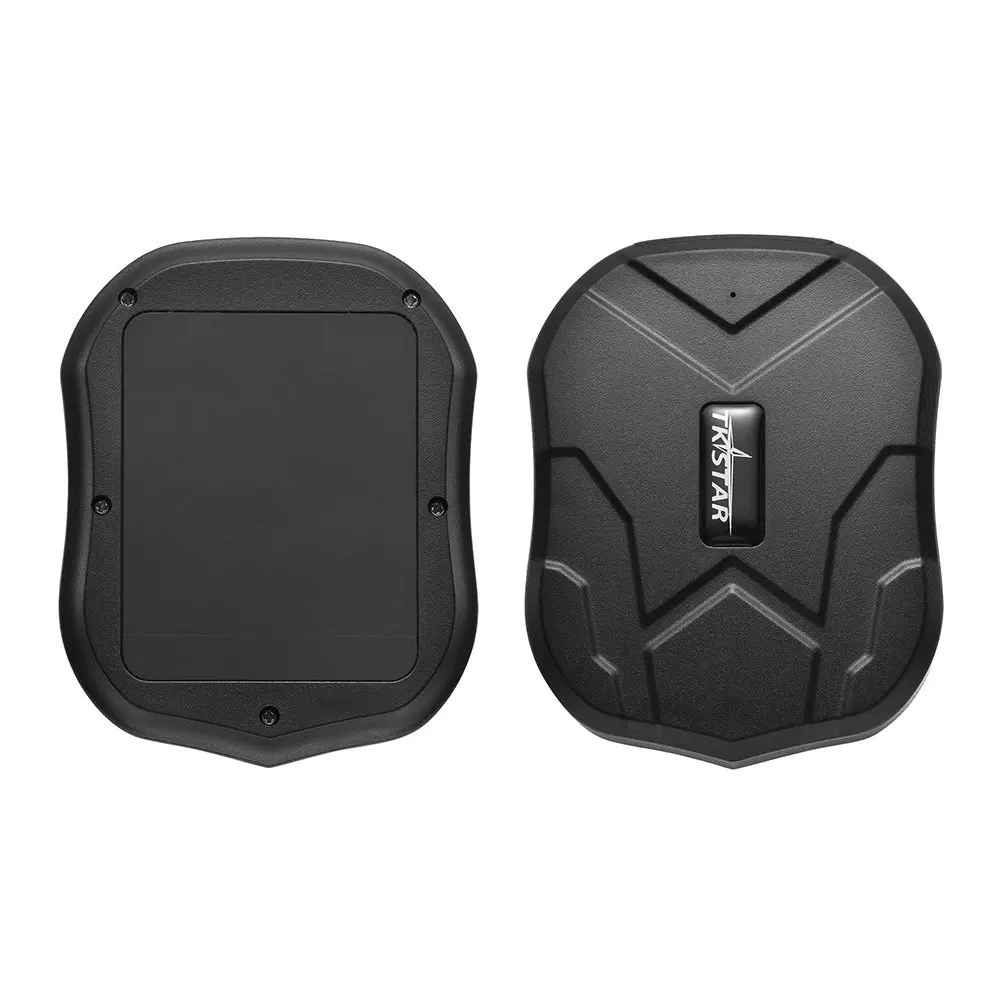

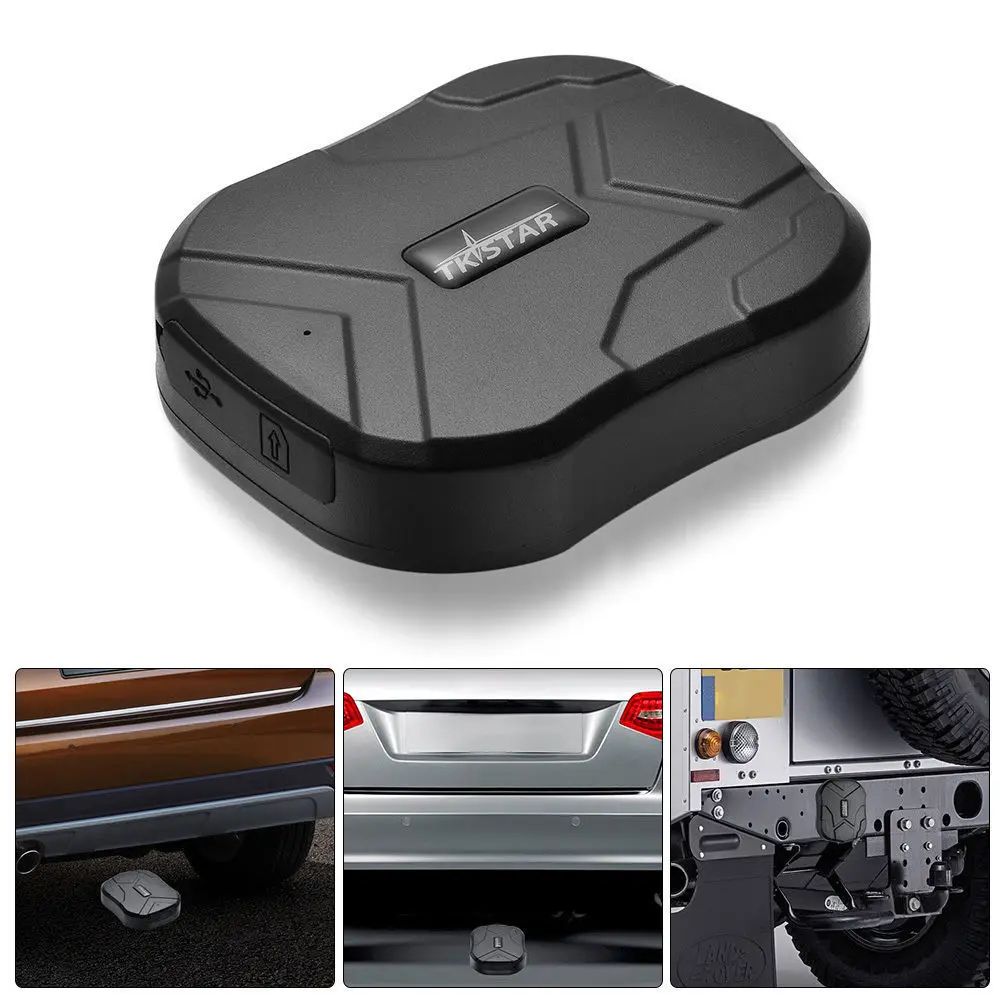

5. Powerful Magnetic:
It has 5pcs built-in magnets,with super strong powerful magnetic, can be very easily installed.

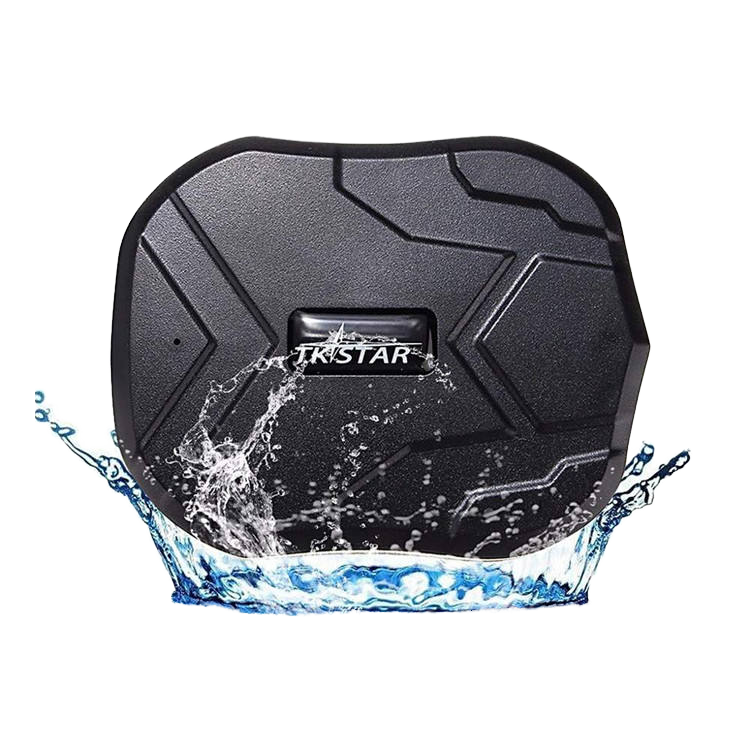

6. IP65 Waterproof:
It can resist splash water but can't be put under water!
8. Overspeed Alarm:
This alarm works only under continuous positioning mode.When the unit speed exceeds the speedyou presetted, it will send message “speed alarm!” to the admin number every 5 minutes.
9. Shake Alarm:
After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working.It will send SMS “sensor alarm!” to the admin number when the unit get shocked.
10. Movement Alarm:
When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command "move+passord", then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to the authorized number.
11. low battery Alarm:
The device will send SMS “Low bat alarm!” to the SOS number and Admin number,when the device battery is low.
12. Geofence:
Set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.
13. Sleep Mode for Saving Battery:
Sleep by shock sensor mode: After did this setting, if no shock for 5 minutes, the tracker will work under "sleep by shock" mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.
Can be tracked by computer or mobile phone for the platform
MY TKSTAR PLATFORM
Free for IOS & Android APP and Platform; Free all the time.
website/APP SEVER:www.mytkstar.net
demo account: 888
passward:123456
app name:WINNES GPS

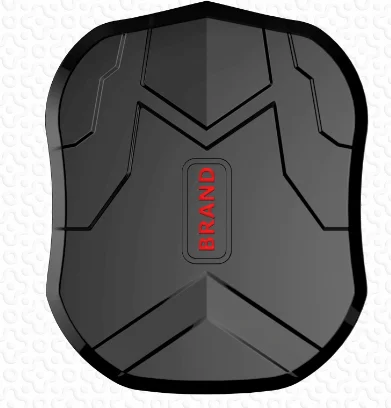

SUPPORTS OEM/ODM LOGO CUSTOMIZATION:
