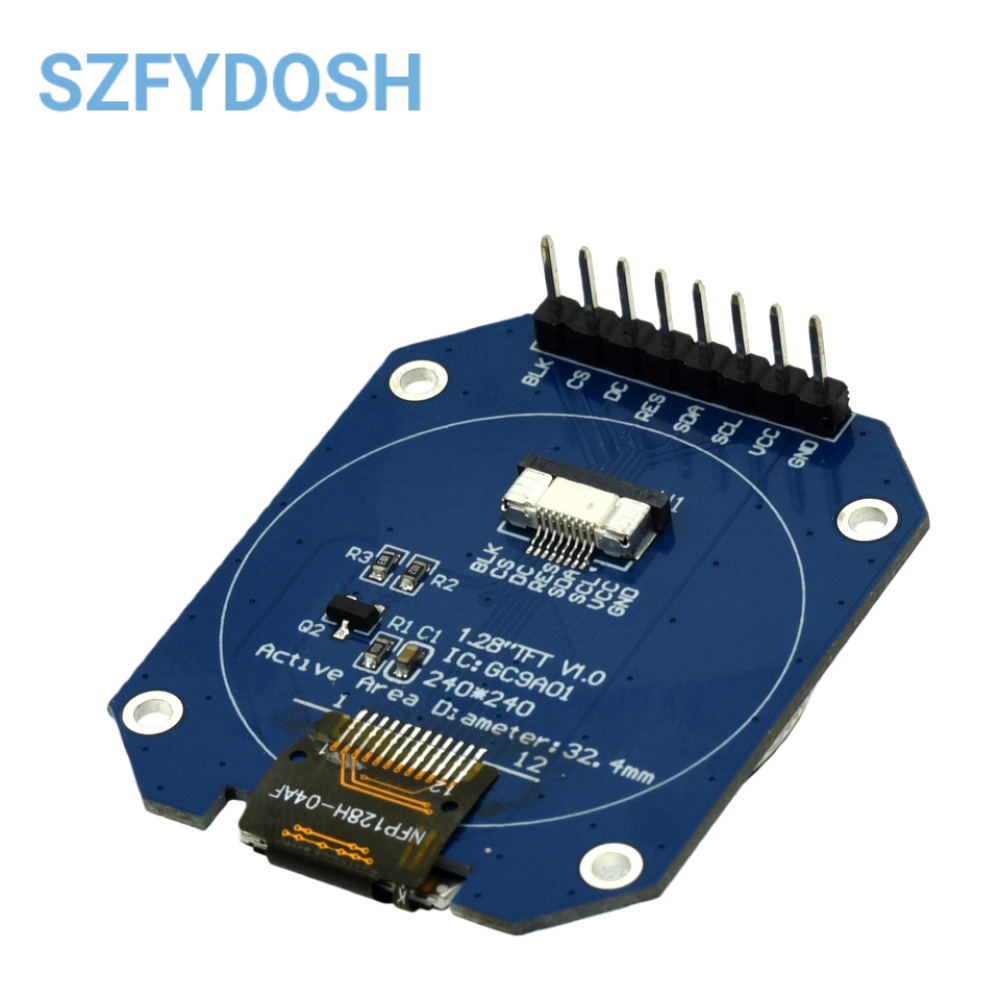

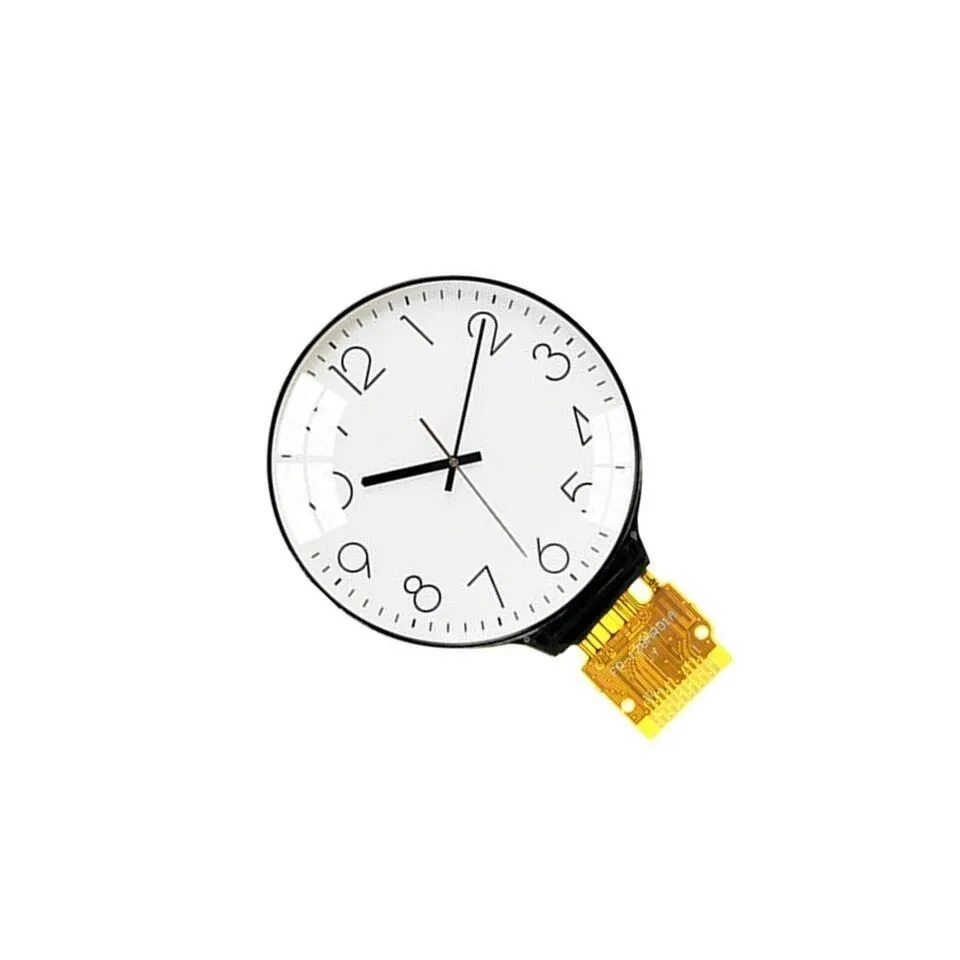

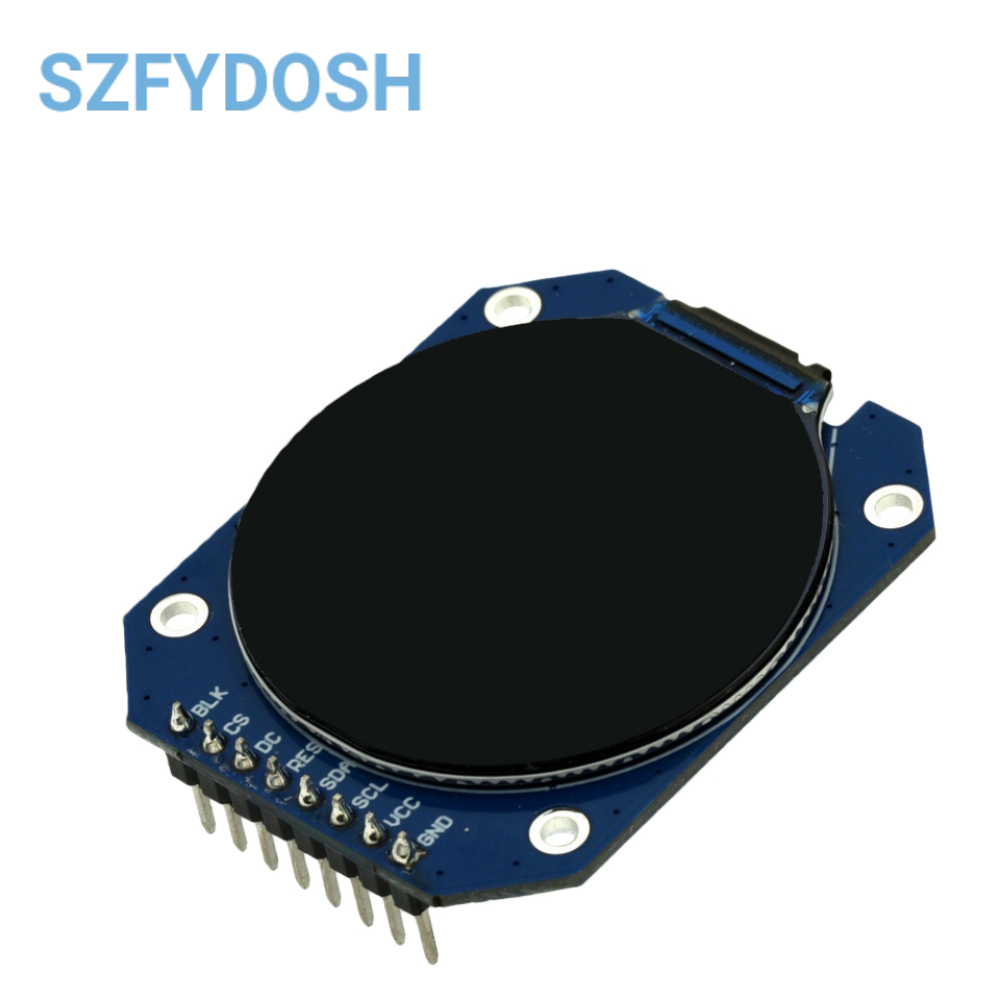

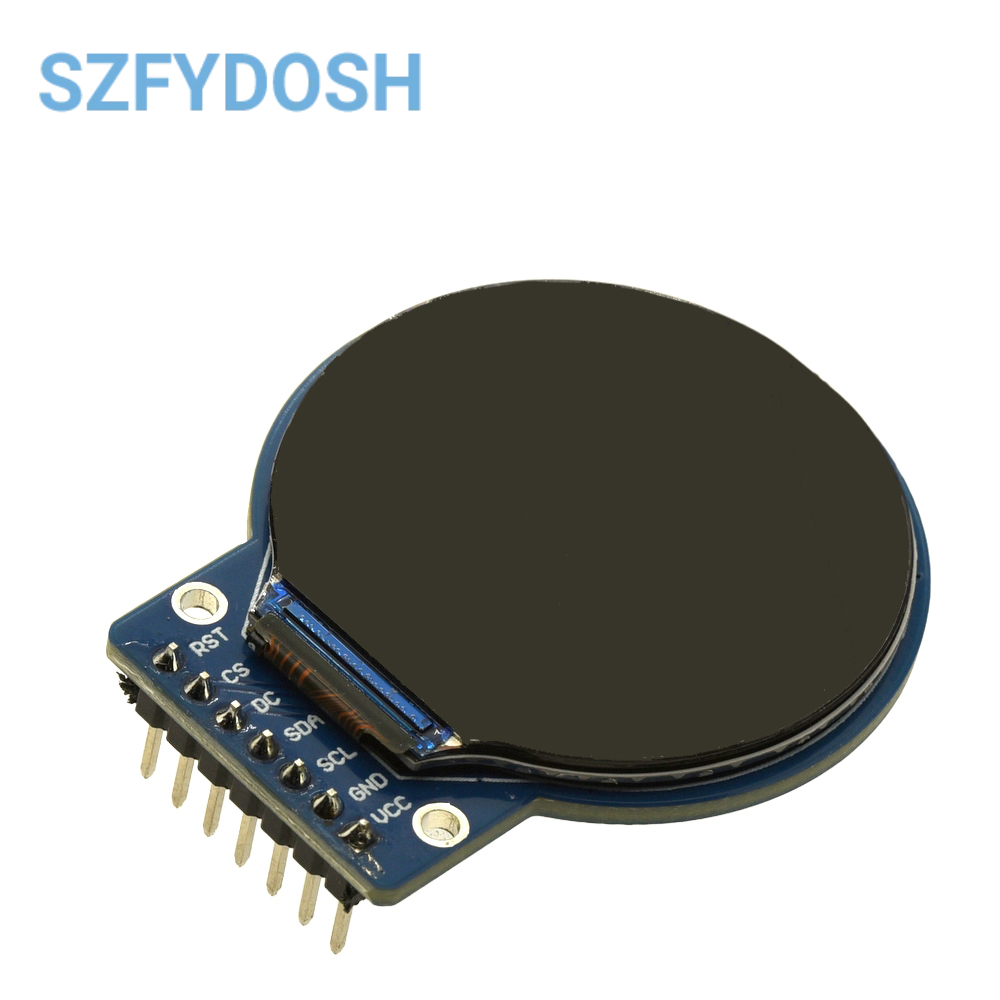

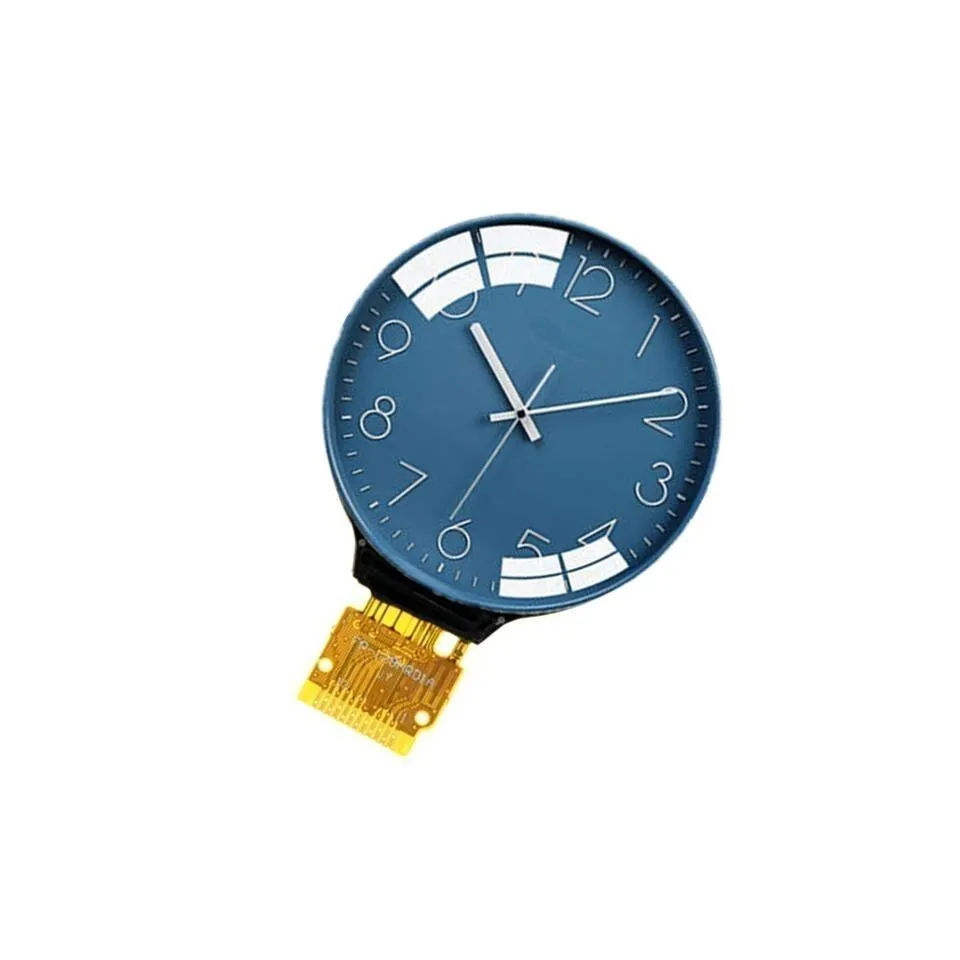

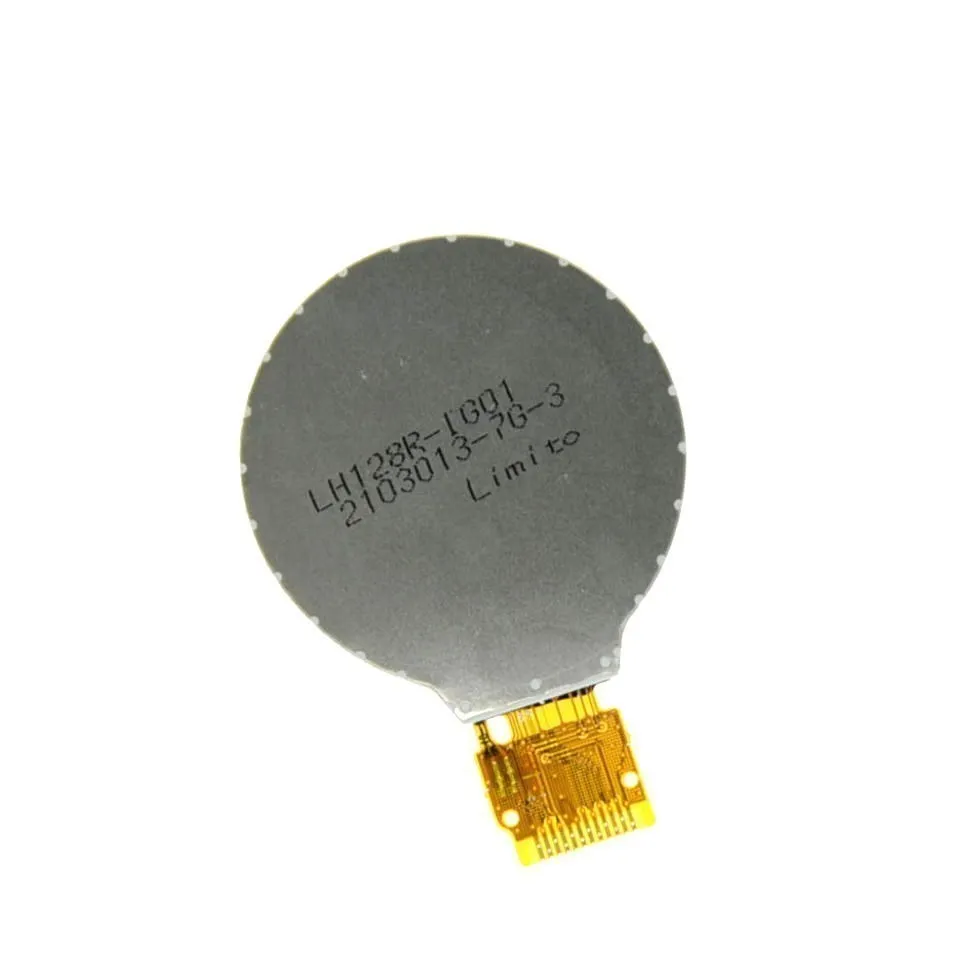

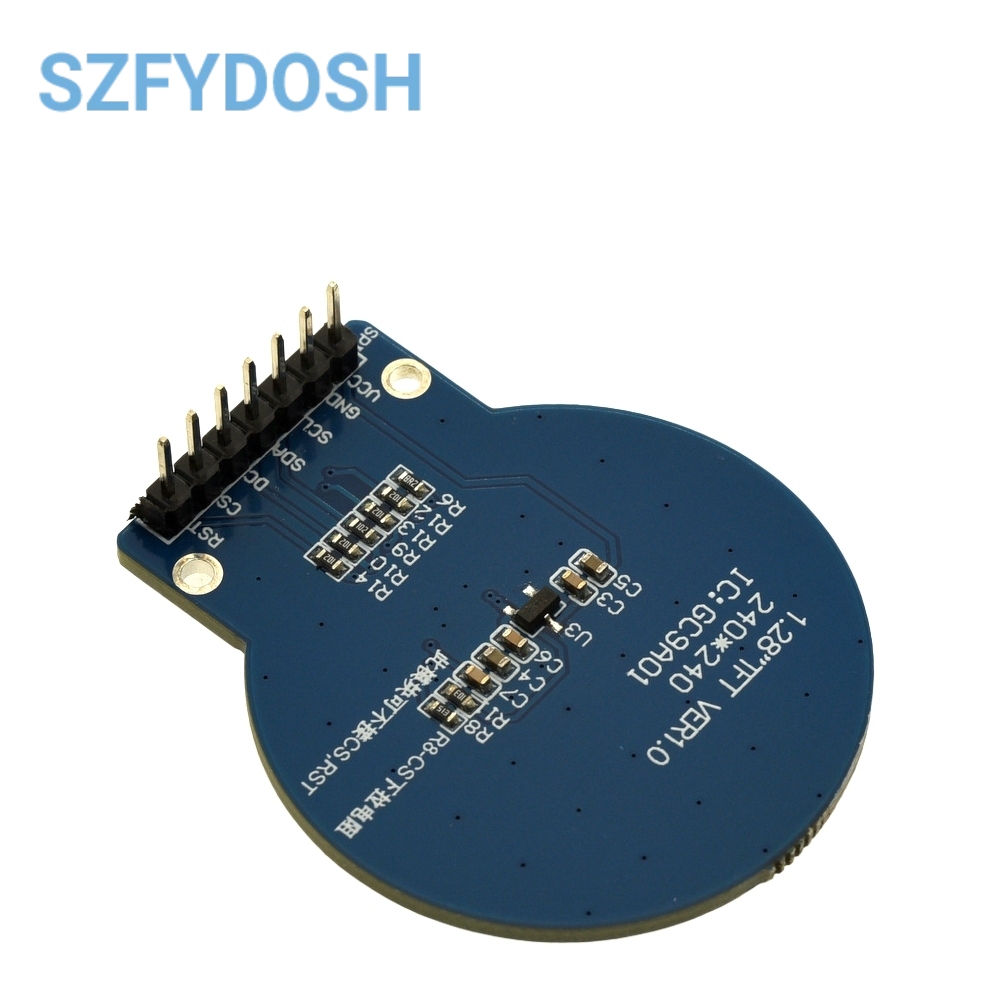

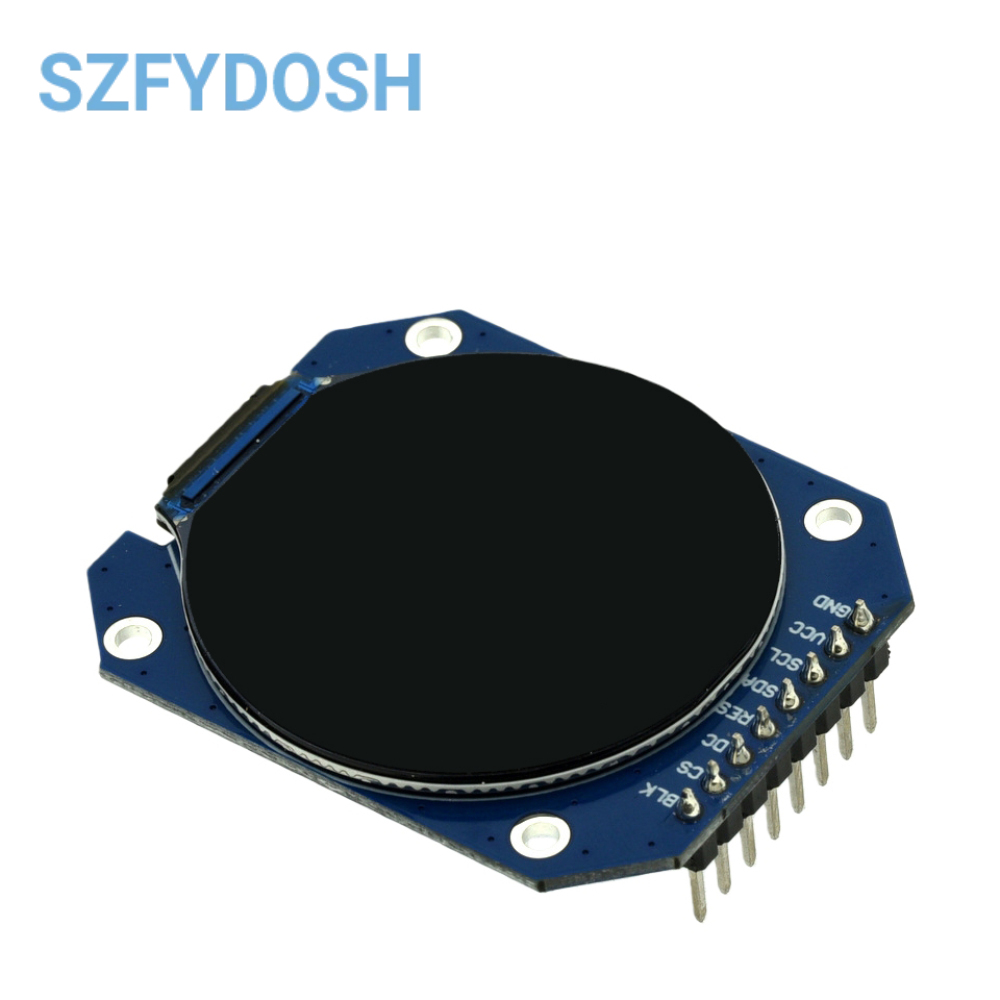

1-10pcs 1.28" Round IPS LCD 240x240 GC9A01 SPI Display for Arduino for ESP32 Wearable
価格:
$3.45
/Pc
払い戻し:
シェア:
売れ筋商品
Description:
- It is a 1.28inch 240*240 IPS LCD Display Screen.
- It uses IPS color display screen and the display effect is more vivid than ordinary TFT LCD effect.
Features:
- It uses IPS color display screen and the display effect is more vivid than ordinary TFT LCD effect.
Features:
1>.IPS color display screen
2>.4Pin SPI communication
3>.Adjustable display direction
4>.Full viewing angle display
Parameters:
2>.4Pin SPI communication
3>.Adjustable display direction
4>.Full viewing angle display
Parameters:

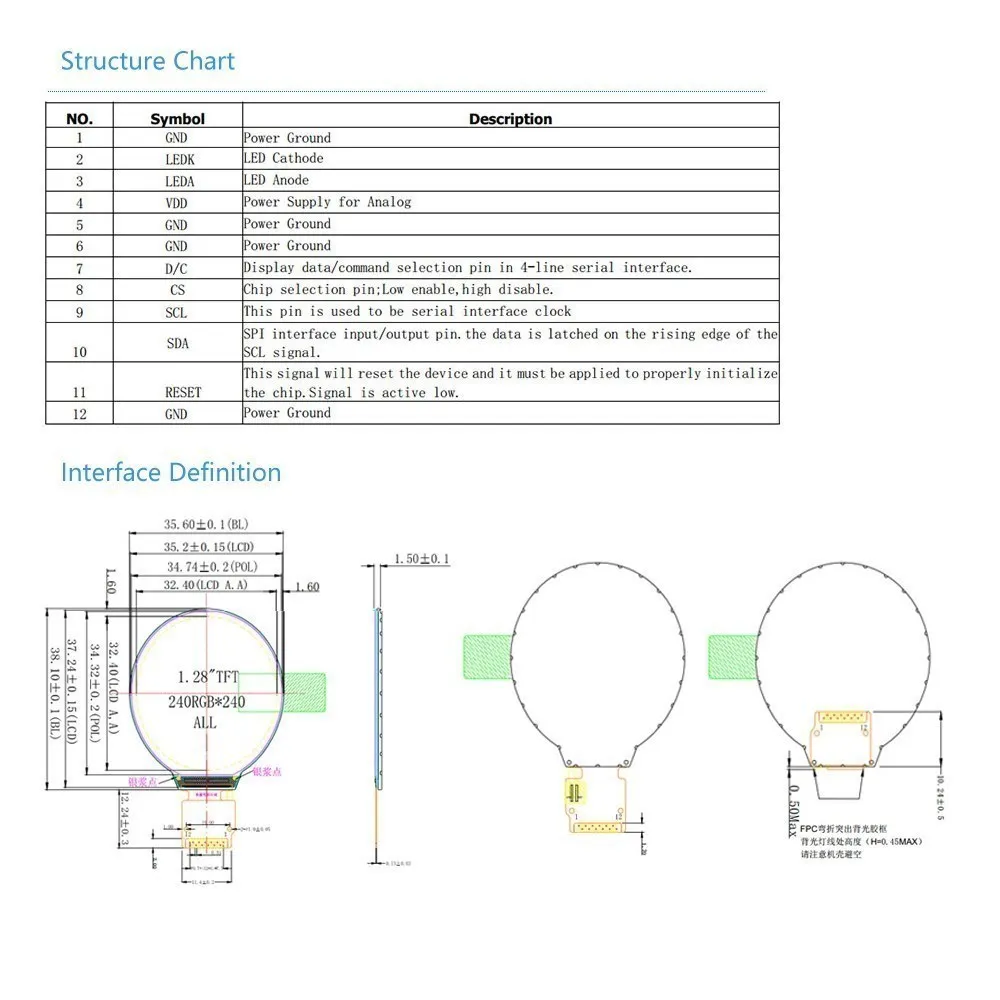

1>.Product Name:1.28inch 240*240 IPS LCD Display Screen
2>.Material:IPS color display screen
3>.Resolution:240*240
4>.Driver Chip:GC9A01
5>.Display Size:1.28inch
6>.Display area:D32.4mm

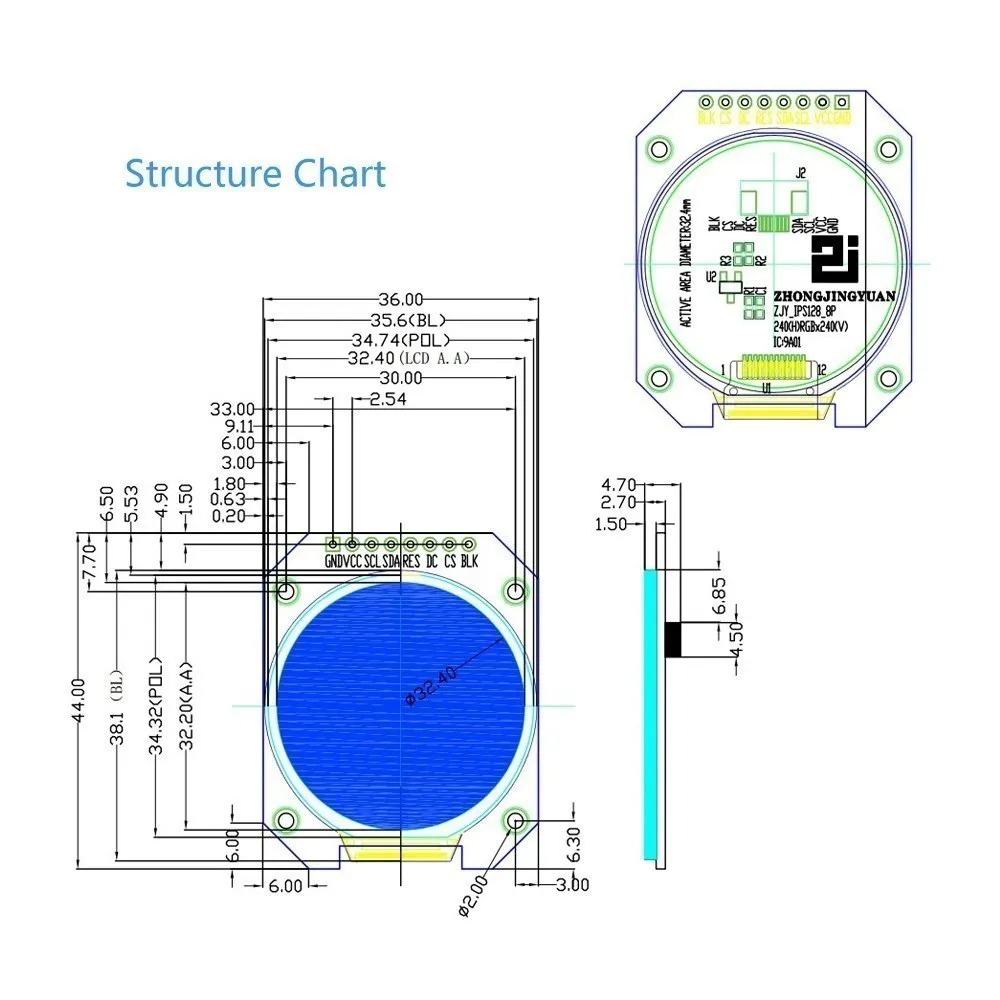

7>.Panel size:35.6*38.1*1.5mm
8>.Interface type:4-Pin SPI
9>.Work voltage:2.8V-3.3V
10>.Pins:2.54mm 8Pin
11>.View:Full viewing angle display
12>.Working Temperature range:-20℃~70℃
13>.Working Humidity Range:5%-95%RH

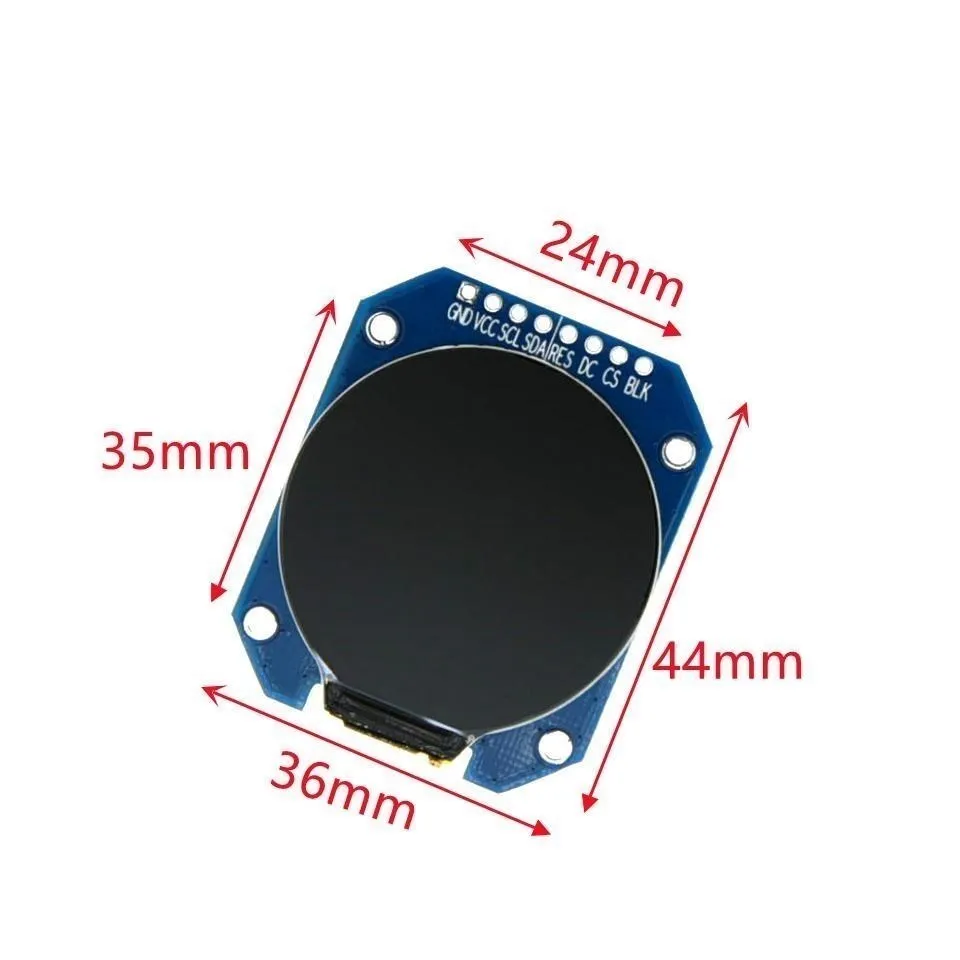

14>.PCB Size:44*36*5mm
Application:
2>.Material:IPS color display screen
3>.Resolution:240*240
4>.Driver Chip:GC9A01
5>.Display Size:1.28inch
6>.Display area:D32.4mm
7>.Panel size:35.6*38.1*1.5mm
8>.Interface type:4-Pin SPI
9>.Work voltage:2.8V-3.3V
10>.Pins:2.54mm 8Pin
11>.View:Full viewing angle display
12>.Working Temperature range:-20℃~70℃
13>.Working Humidity Range:5%-95%RH
14>.PCB Size:44*36*5mm
Application:
1>.Instrument display
2>.Mobile devices
3>.Wearable display device
4>.Real-time monitoring and display equipment
2>.Mobile devices
3>.Wearable display device
4>.Real-time monitoring and display equipment
