B-CUBE Rocket 5inch FPV Frame Kit Carbon Fiber Racing Drone Quadcopter Freestyle INAV Beatflight F745 H743 Flight Control

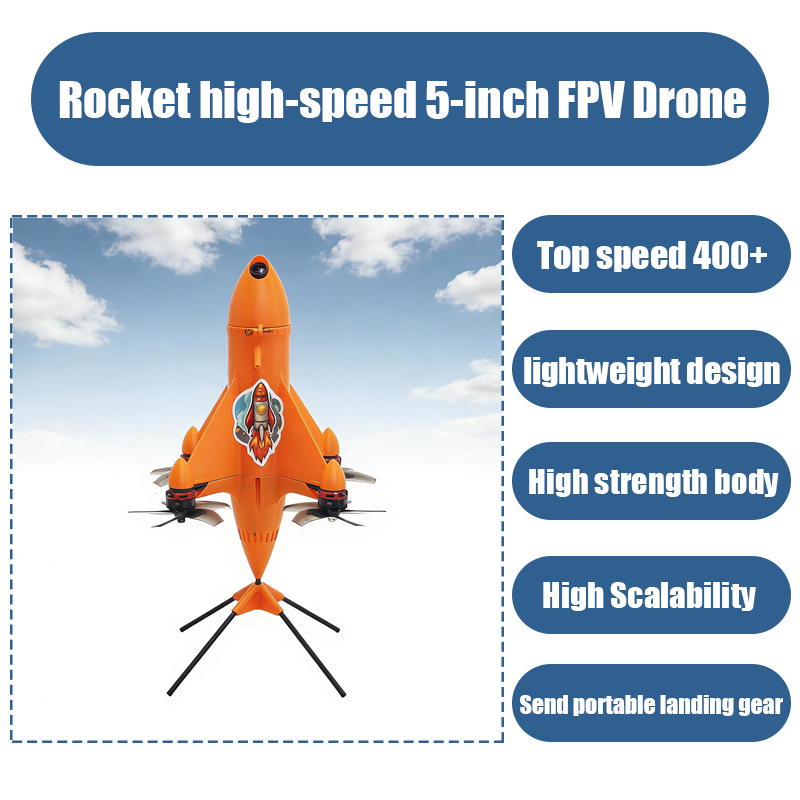

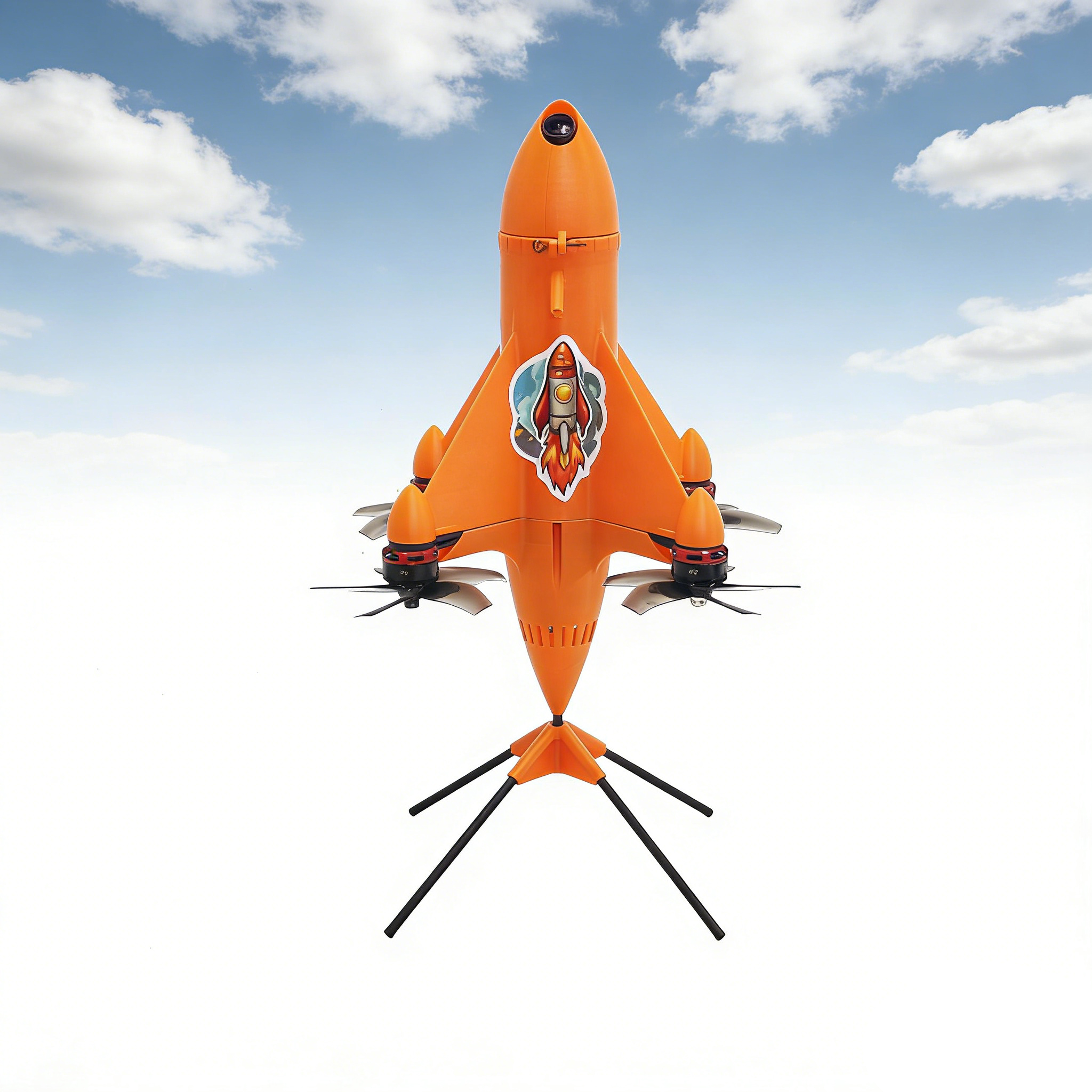

Rocket high-speed 5-inch FPV Drone
Product parameters:
Wheelbase: 133mm (5inch)
Shell material: PLA 3D printed
Collor:Black/Origan/Green
Rocket Height: 316MM
Weight: Approximately 34g
Thickness: Center plate 1.0mm, arm 4.0mm
Paddle: 5inch paddle
Flight control hole spacing: 2020MM (M2) 3030MM (M3)
Video transfer hole spacing: 30*30MM (M3)
Motor installation hole positions: 12mm * 12mm (M3)
Battery: 3S 5200mAh
Recommended configuration:
Motor: 2205 2300KV motor
ESC: B-CUBE 4IN1 45A 30MM
Battery: 3S
Paddle: 5inch paddle
Video transfer: B-CUBE VTX1000
B-F745 NO Battery:
1PCS Rocket 5inch Black+1PCS F745 V2 Flight Controller+1PCS 45A 4INI ESC+1PCS VTX1000+1PCS 1080P Camera+4PCS RS2205 2300KV Motor+1PCS ELRS 2.4G Receiver RX+1PCS LiteRadio 3 Radio Transmitter+
1PCS External USB+2Pairs of D4-5 5bladed propellers+1PCS 5.8G VTX OTG Receiver
O-F745 NO Battery:
1PCS Rocket 5inch Orange+1PCS F745 V2 Flight Controller+1PCS 45A 4INI ESC+1PCS VTX1000+1PCS 1080P Camera+4PCS RS2205 2300KV Motor+1PCS ELRS 2.4G Receiver RX+1PCS LiteRadio 3 Radio Transmitter+
1PCS External USB+2Pairs of D4-5 5bladed propellers+1PCS 5.8G VTX OTG Receiver
B-H743 NO Battery:
1PCS Rocket 5inch Black+1PCS H743 Flight Controller+1PCS 45A 4INI ESC+1PCS VTX1000+1PCS 1080P Camera+4PCS RS2205 2300KV Motor+1PCS ELRS 2.4G Receiver RX+1PCS LiteRadio 3 Radio Transmitter+
1PCS External USB+2Pairs of D4-5 5bladed propellers+1PCS 5.8G VTX OTG Receiver
O-H743 NO Battery:
1PCS Rocket 5inch Orange+1PCS H743 Flight Controller+1PCS 45A 4INI ESC+1PCS VTX1000+1PCS 1080P Camera+4PCS RS2205 2300KV Motor+1PCS ELRS 2.4G Receiver RX+1PCS LiteRadio 3 Radio Transmitter+
1PCS External USB+2Pairs of D4-5 5bladed propellers+1PCS 5.8G VTX OTG Receiver
B-F745 With Battery:
1PCS Rocket 5inch Black+1PCS F745 V2 Flight Controller+1PCS 45A 4INI ESC+1PCS VTX1000+1PCS 1080P Camera+4PCS RS2205 2300KV Motor+1PCS ELRS 2.4G Receiver RX+1PCS LiteRadio 3 Radio Transmitter+
1PCS External USB+2Pairs of D4-5 5bladed propellers+1PCS 5.8G VTX OTG Receiver+5200 mAh Battery
O-F745 With Battery:
1PCS Rocket 5inch Orange+1PCS F745 V2 Flight Controller+1PCS 45A 4INI ESC+1PCS VTX1000+1PCS 1080P Camera+4PCS RS2205 2300KV Motor+1PCS ELRS 2.4G Receiver RX+1PCS LiteRadio 3 Radio Transmitter+
1PCS External USB+2Pairs of D4-5 5bladed propellers+1PCS 5.8G VTX OTG Receiver+5200 mAh Battery

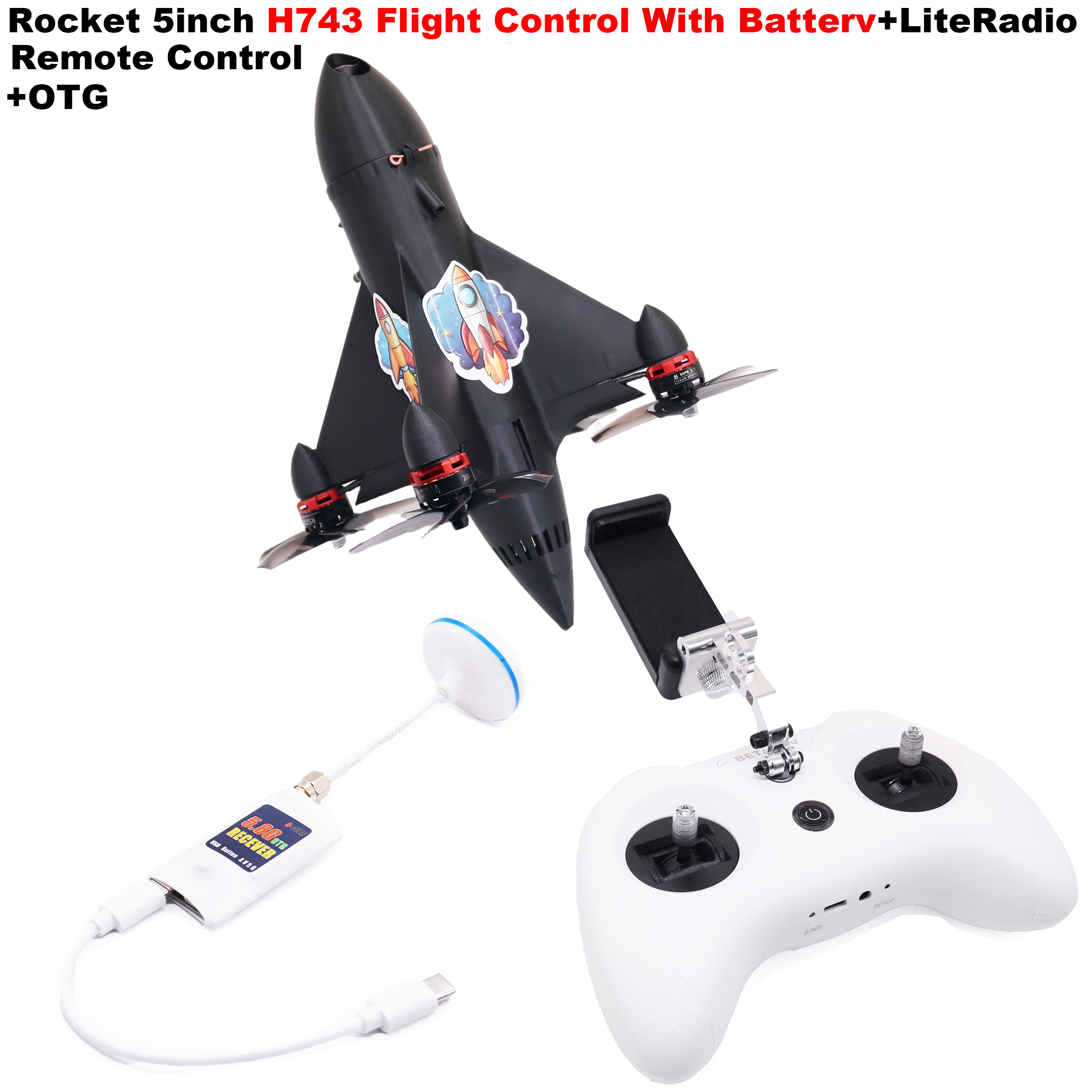

B-H743 With Battery:
1PCS Rocket 5inch Black+1PCS H743 Flight Controller+1PCS 45A 4INI ESC+1PCS VTX1000+1PCS 1080P Camera+4PCS RS2205 2300KV Motor+1PCS ELRS 2.4G Receiver RX+1PCS LiteRadio 3 Radio Transmitter+
1PCS External USB+2Pairs of D4-5 5bladed propellers+1PCS 5.8G VTX OTG Receiver+5200 mAh Battery

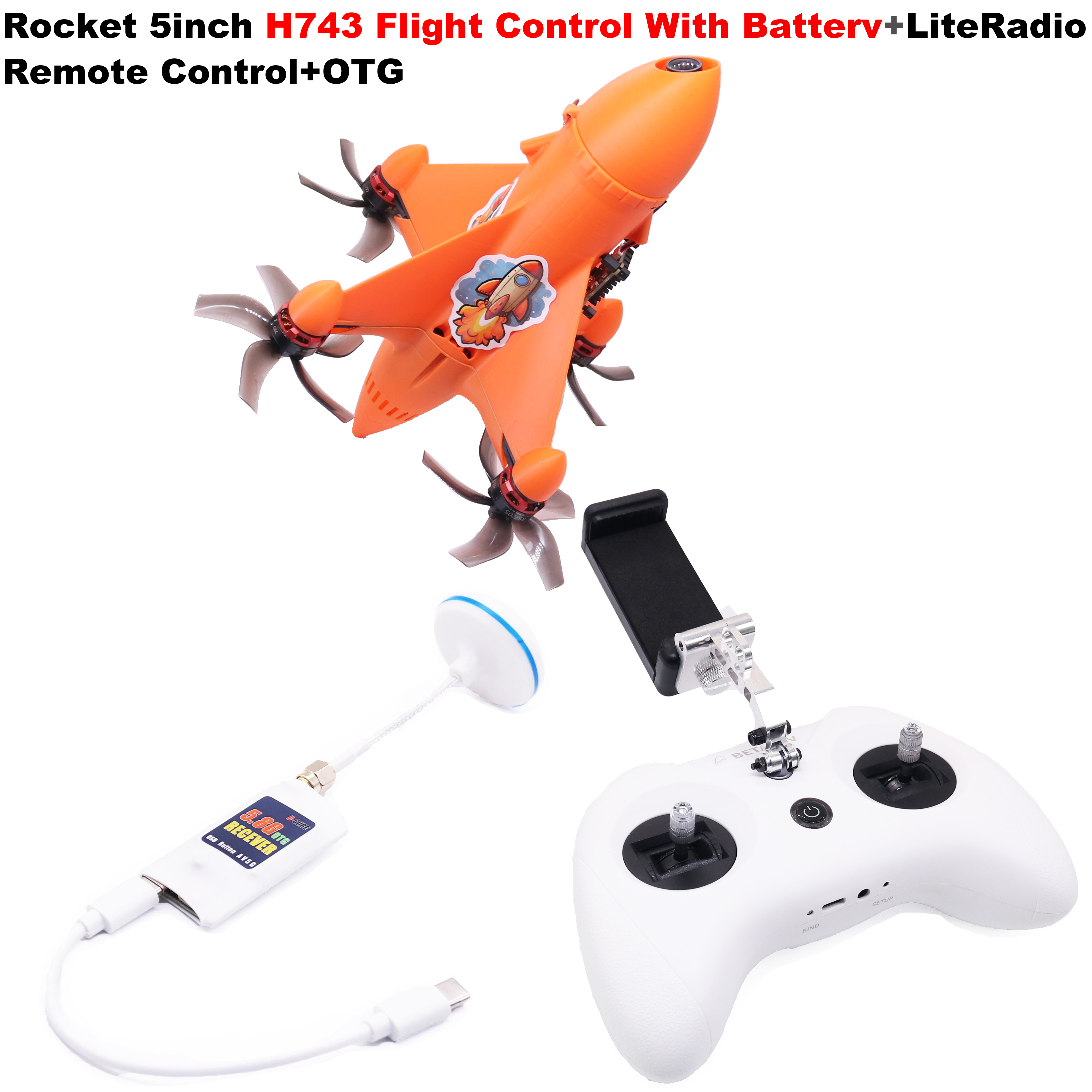

O-H743 With Battery:
1PCS Rocket 5inch Orange+1PCS H743 Flight Controller+1PCS 45A 4INI ESC+1PCS VTX1000+1PCS 1080P Camera+4PCS RS2205 2300KV Motor+1PCS ELRS 2.4G Receiver RX+1PCS LiteRadio 3 Radio Transmitter+
1PCS External USB+2Pairs of D4-5 5bladed propellers+1PCS 5.8G VTX OTG Receiver+5200 mAh Battery
B-CUBE F745 V2 Flight Controller
Features:
1. The F745 V2 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.
Descriptions:
F745 V2 is a major upgrade, offering enhanced performance and precision. It features a CPU upgrade from STM32F745VG to STM32F746VG, boosting processing power for faster response and improved flight stability. The IMU has been upgraded from MPU6000 to ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, V2 delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.
Specifications:
Chip:STM32F746VG(216MHZ)
Gyro:ICM-42688-P
Barometer:SPL06-001
OSD Chip:AT7456E
Black box:16MM
LED Program:Support
BB buzzer:Support
Input voltage:3-6S
I2C Connector:Support
BEC:5V/2.5A
BEC:10V/2.0A
Cam Input:Support
USART:UART1,UART2.UART3.UART4.UART6.UART7
Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
GPS:YES
COMPASS:YES
HD O3:YES
ESC Signal:Dshoot150.Dshot300,Dshot600
USB:TYPE-C
Current Port:Yes.
Voltage Sensor:Yes
DFU Button:YES
FC firmware:betaflight_4.4.2_JHEF745V2.HEX / inav_8.0.0_JHEMCUF745.HEX
Install hole:30.5*30.5*4MM
Board size:36*36MM
Weight:7.5g
B-CUBE H743 Flight Controller
Features:
1. The H743 is a 3-6S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.
Specifications:
Chip:STM32H743VIT6(480MHZ)
Gyro:BMI270 *2
Barometer:SPL06-01
OSD Chip:AT7456E
Black box:16MM
LED Program:Support
BB buzzer:Support
Input voltage:3-6S
I2C Connector:Support
BEC:5V/2.5A
BEC:10V/2.0A
Cam Input:Support
USART:UART1,UART2.UART3.UART4.UART6.UART7
Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
GPS:YES
COMPASS:YES
HD O3:YES
ESC Signal:Dshoot150.Dshot300,Dshot600
USB:TYPE-C
Current Port:Yes.
Voltage Sensor:Yes
Firmware: cleanflight/betaflight/inav/ardupilot
FC firmware:betaflight_4.5.5_STM32H743_JHEH743_HD.hex/ inav_9.0.1_JHEMCUH743HD.hex / arducopter4.6_with_bl.hex
Install hole:30.5*30.5*4MM
Board size:36*36MM
Weight:7.9g
LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.
8 channels in total.
USB Joystick support for most practice simulators.
Nano module bay for external TX module.
Newly designed joystick gimbal for longer usage life.
Support BETAFPV Configurator for updating, configuring, and tuning.
Provide ExpressLRS 2.4G protocol version .
Built-in 2000mAh battery and USB charge supported.
5.8G VTX OTG Receiver
Note:
If you use a 2.4G remote control, some remote controls may interfere with the 5.8G signal after increasing the frequency through the 2.4G frequency band. Using a high-frequency band frequency of 5945MHz for video transmitters can avoid this problem. Or keep the video receiver away from the 2.4G remote control.
Features:
1.150CH 5.8Ghz analog signal, 1500 scans cover all bands.
2.Resolution 640*480 30fps.
3.Mushroom RX antenna, omnidirectional pointing, strong transmission signal. It can greatly improve the stability and distance of 5.8G image to video transmission.
4.Can display frequency spectrum, to check the signal strength of antenna or transmitter.
5.Support dual display on smartphone, can be used as VR goggles.
6.Please calibrate it in open area, and keep away from transmitter more than 30m. Long press the menu button and power on receiver, enter into calibration mode.
Descriptions:
1.Support OTG cable connect to android smartphone or tablet.
2.Single Antenna FPV receiver for Android Tablet PC Monitor.
Specifications:
Frequency: 5645MHz-5945MHz
Resolution: 640480 30fps
Working Current: USB 5V 190mA
Connector: RP-SMA
USB: Type-C
Working Temp.: -10°~65°
Size: 50MM30MM
Weight: 26g
Working Methods
Install APP:
1.Download apk app from here,//github.com/BCUBE-RC/VTX-OTG/
2.Use OTG cable connect with receiver
3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal automatically.
PC:
1.Use usb cable to connect it with PC.
2.XP: open the camera;WIN7: install AMCP camera software;WIN10: open camera. Or MP groundstation.
3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.
AV:
1.Use 4P cable (should DIY by player), 5V power input.
2.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.
Note:
1.Do not support IOS system.
2.Some smartphones should open the otg function before use.
3.Some players have complained that it has the issue of flicker or short distance. After testing in open area, the reason has been found to be its high scanning accuracy,that the transmitted frequency is reflected by wall indoors and make the real frequency detected by receiver higher than it should be. So it is quite important to operate it in an open area and keep the receiver and transmitter more than 30m.
Package Included:
1 x 5.8Ghz 150ch Receiver
1 x Type-C OTG cable
1 x Mushroom head RX Antenna
External USB
