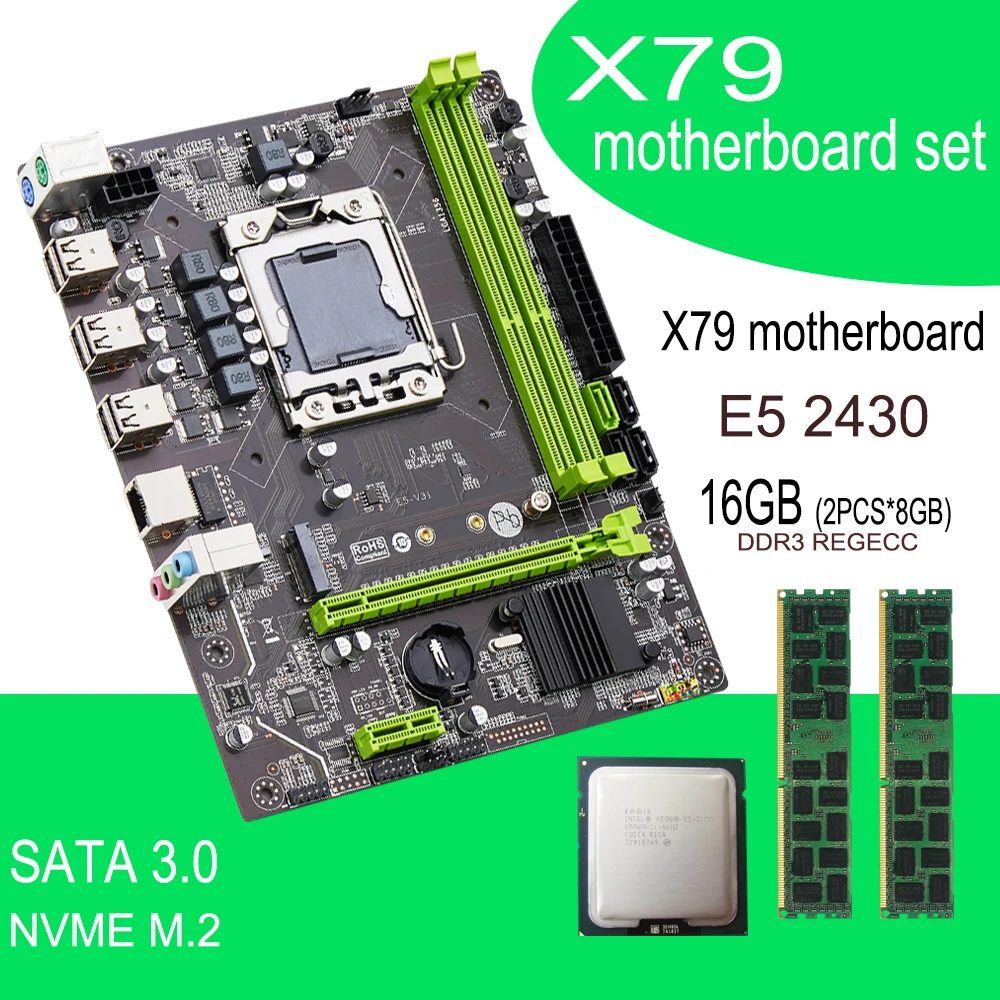

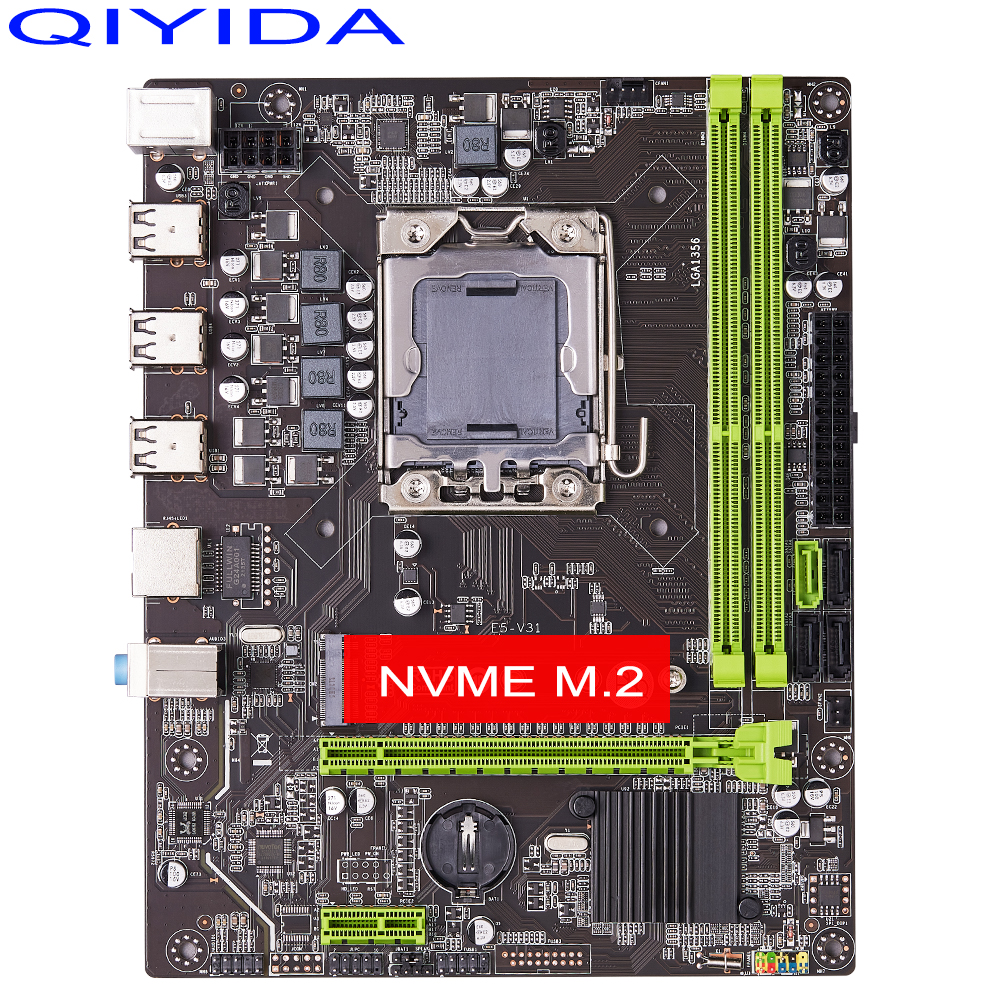

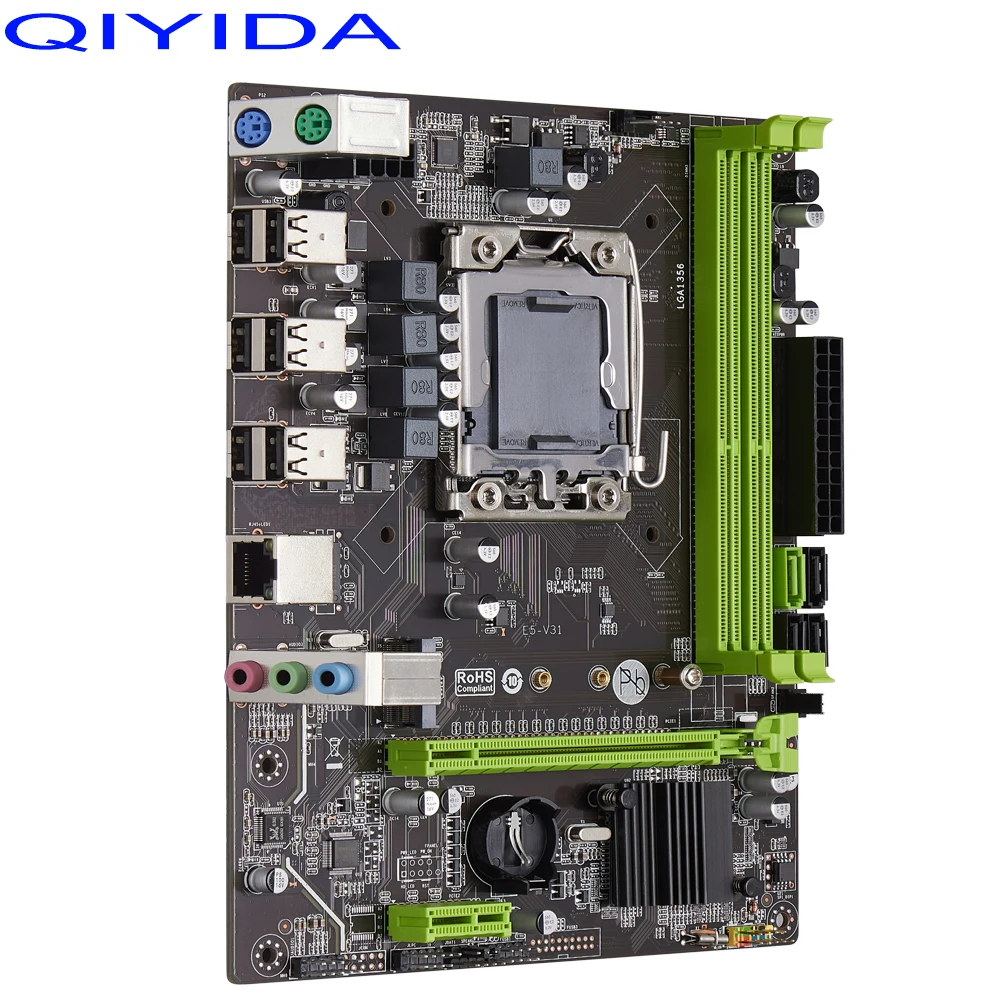

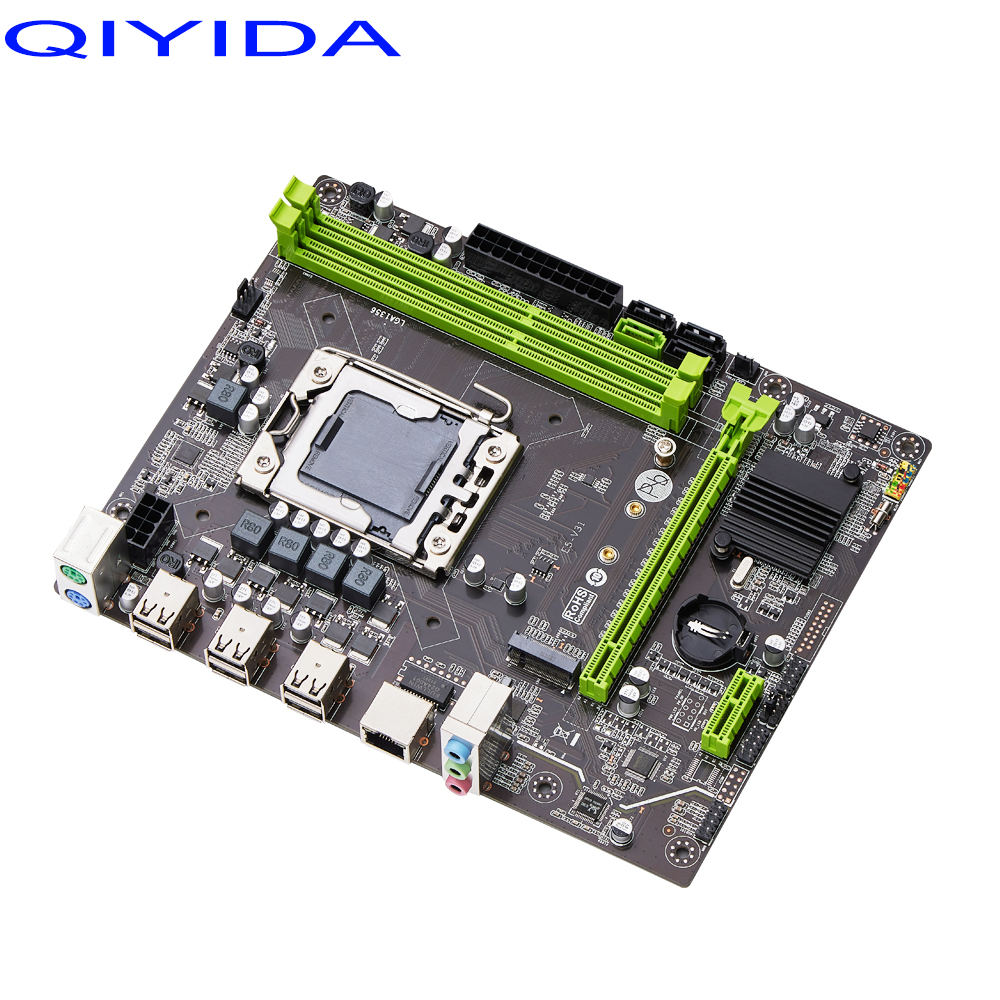

Qiyida X79 Motherboard set E5 2430 2*8GB=16GB DDR3 memory combo kit set NVME SATA USB PCI16x M ATX Server E5 V32
価格:
$94.39
/Pc
払い戻し:
シェア:
売れ筋商品

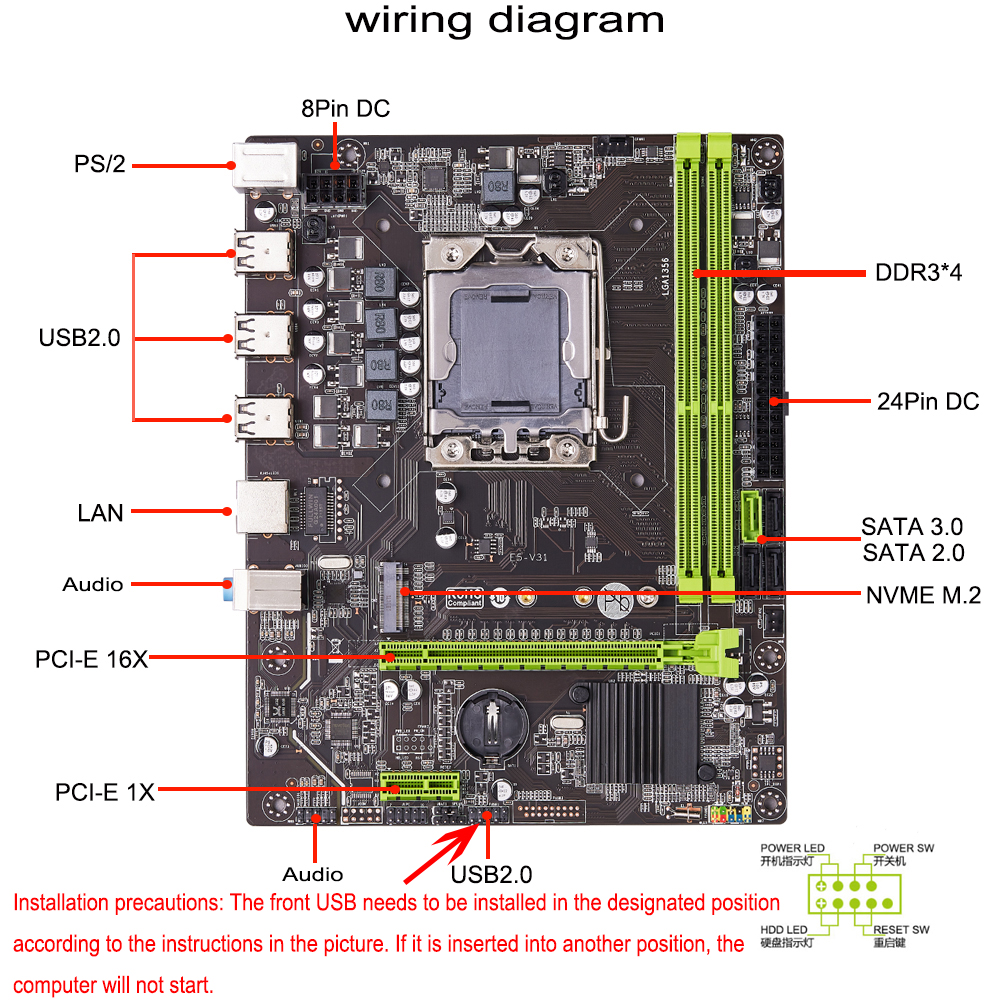

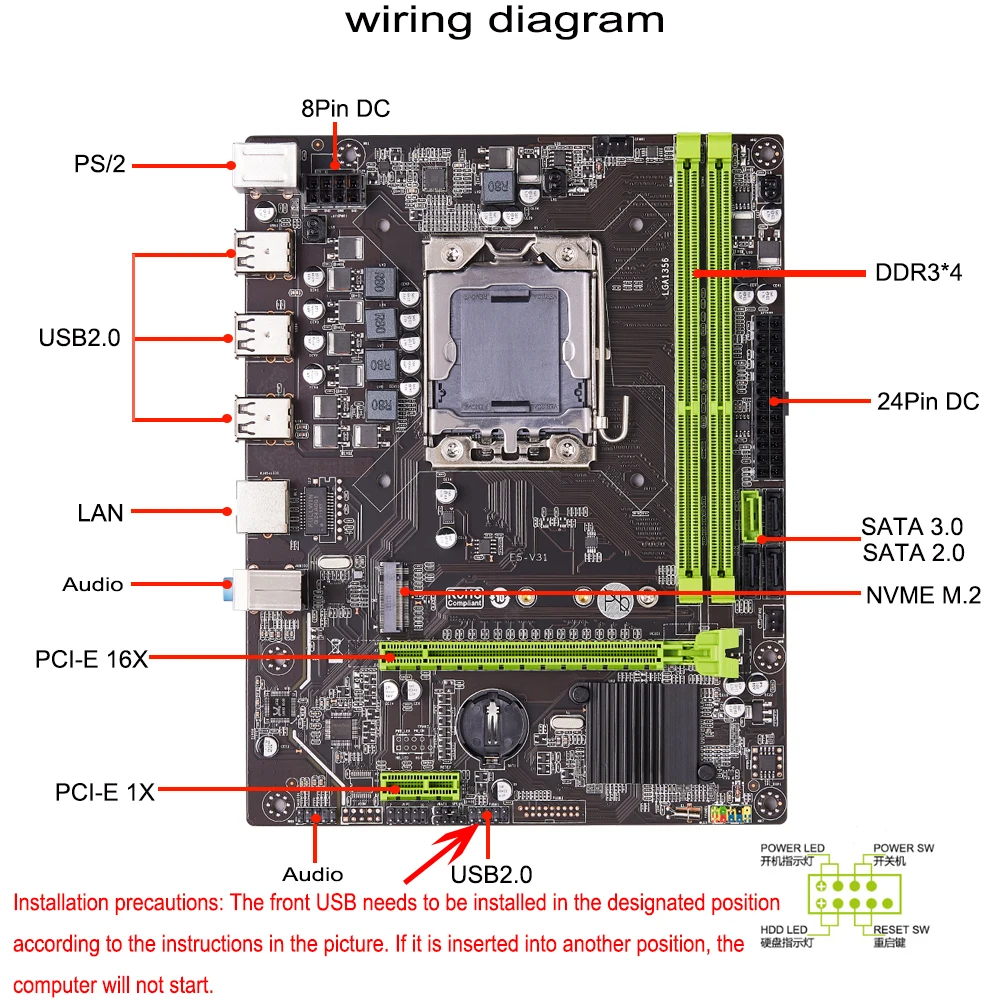

Attention: The front USB needs to be inserted in the correct position.(Yellow pin) Inserting the wrong pin can cause it to not start.
Our motherboard set includes motherboard, 1*CPU and 2* 8GB RECC Ram.
CPU:
Processor Series: Xeon E5 2430 (6 cores/12 threads)
Main frequency: 2.2GHz
Socket type: LGA 1356
3rd level cache: 15MB
Technology: 32nm
Power consumption: 95W
Memory:
Chip: SEC / HY/ MIC and others (ship at random)
Type: ECC REG (server memory)
Frequency: DDR3
Capacity: 16GB (2*8GB)
Feature:
Support M.2 NVME SSD.
High compatibility for a higher experience.
All solid capacitors, fine workmanship, professional stability.
The power socket has an 8-pin, 24-pin power connector.
Specification:
Model: X79 E5V32
Condition: Full new
CPU socket: LGA 1356
Structure:M-ATX
CPU supported: for Intel series with LGA1356 socket (XEON E5 Processor)
Memory socket: 2* DDR3
Max memory supported: 2*16G DDR3
Memory type supported: non-ecc/reg ecc/ecc(The server ram can't work with the desktop ram, it has the compability problem.)
Integrated video card: No
Motherboard dimension: 215*170mm
Motherboard weight(including package): 1.0kg or so
Note:
1: The CR2032 battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
2: Some motherboards may have little scratches or thermal paste or finger print on the metal bracket or other metal parts, this is normal, they could be caused in assembly at workshop or during testing. It does not mean they are refurbished, all QIYIDA store motherboards are full new as we stated.
3: On the basis of not bringing function changes to the motherboard, the factory would probably improve the motherboard external design, which would probably lead to some appearance difference between batches, please refer to the real-life object.
The north bridge chip is Intel Sandy Bridge-EP and integrated with the motherboard, users can test it with softwares, the south bridge chip is not the one that defines what the motherboard is, that's why it could range from B75 to Q75, or from C204 to C206, this is technology common sense. South bridge chip is in charge of communication of I/O main line, such as PCI mainline, USB, LAN, ATA, SATA, Audio controller, keyboard controller etc. These are relatively stable, so different version of motherboard may have the same south bridge chip, the difference is the main chip, namely, north bridge chip.
Specification:
Model: X79 E5V32
Condition: Full new
CPU socket: LGA 1356
Structure:M-ATX
CPU supported: for Intel series with LGA1356 socket (XEON E5 Processor)
Memory socket: 2* DDR3
Max memory supported: 2*16G DDR3
Memory type supported: non-ecc/reg ecc/ecc(The server ram can't work with the desktop ram, it has the compability problem.)
Integrated video card: No
Motherboard dimension: 215*170mm
Motherboard weight(including package): 1.0kg or so
note:
North bridge : Intel Sandy Bridge-EP IMC
South bridge: Intel Panther point H61/HM70/HM65/B75/P75/Q75/H77 etc.; Intel Cougar Point C204/C206 etc. If you can't accept, please don't buy.
The north bridge chip is Intel Sandy Bridge-EP and integrated with the motherboard, users can test it with softwares, the south bridge chip is not the one that defines what the motherboard is, that's why it could range from B75 to Q75, or from C204 to C206, this is technology common sense. South bridge chip is in charge of communication of I/O main line, such as PCI mainline, USB, LAN, ATA, SATA, Audio controller, keyboard controller etc. These are relatively stable, so different version of motherboard may have the same south bridge chip, the difference is the main chip, namely, north bridge chip.
We value every single buyers, we know time is money in this world, we state it here just in case of these unexpected problems, if you dont agree, pls do not make order, if you make orders, we will think you agree on these terms and conditions above, your understanding would be highly appreciated!!!
Quality- Each item have been tested critically before shipment effected ,we have build several testing stations specially for CPU ,please buy it with worry-free .- Please make sure the contact of fan and CPU is good, will not cause the CPU temperature is too high. Thank you- Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.- Below is the testing planform that we use.Shipping- We usually use China Post Air Mail(shipping free). Please contact with us if you want to use other courier, such as DHL, FedEx, UPS, TNT, EMS. You will pay the extra charge. We will give you the tracking number after sent out.- We only ship to ORDER registered address. So please be assure your address in ORDER is correct and valid. Please make sure to leave the correct telephone number when filling your buyer information.- We ship the package in 2 business day after receive cleared payment.-.You can check the goods where it is in transit through tracking NO .Feedback- We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.- Since your feedback is very important to our business's development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. It'll just take you 1 minute.Returns- Returns accepted. Item must be in original condition. And you should pay the additional shipping fees incurred and the items returned should be kept in their original s
