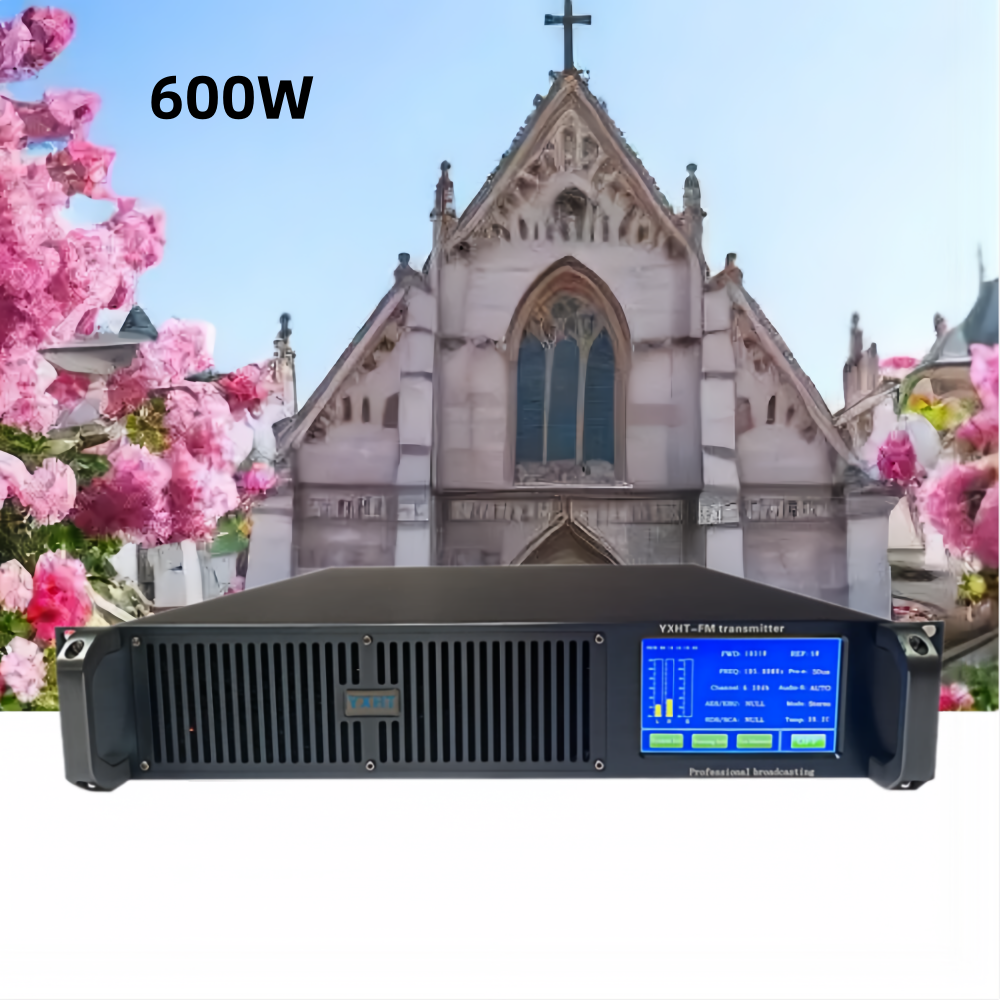

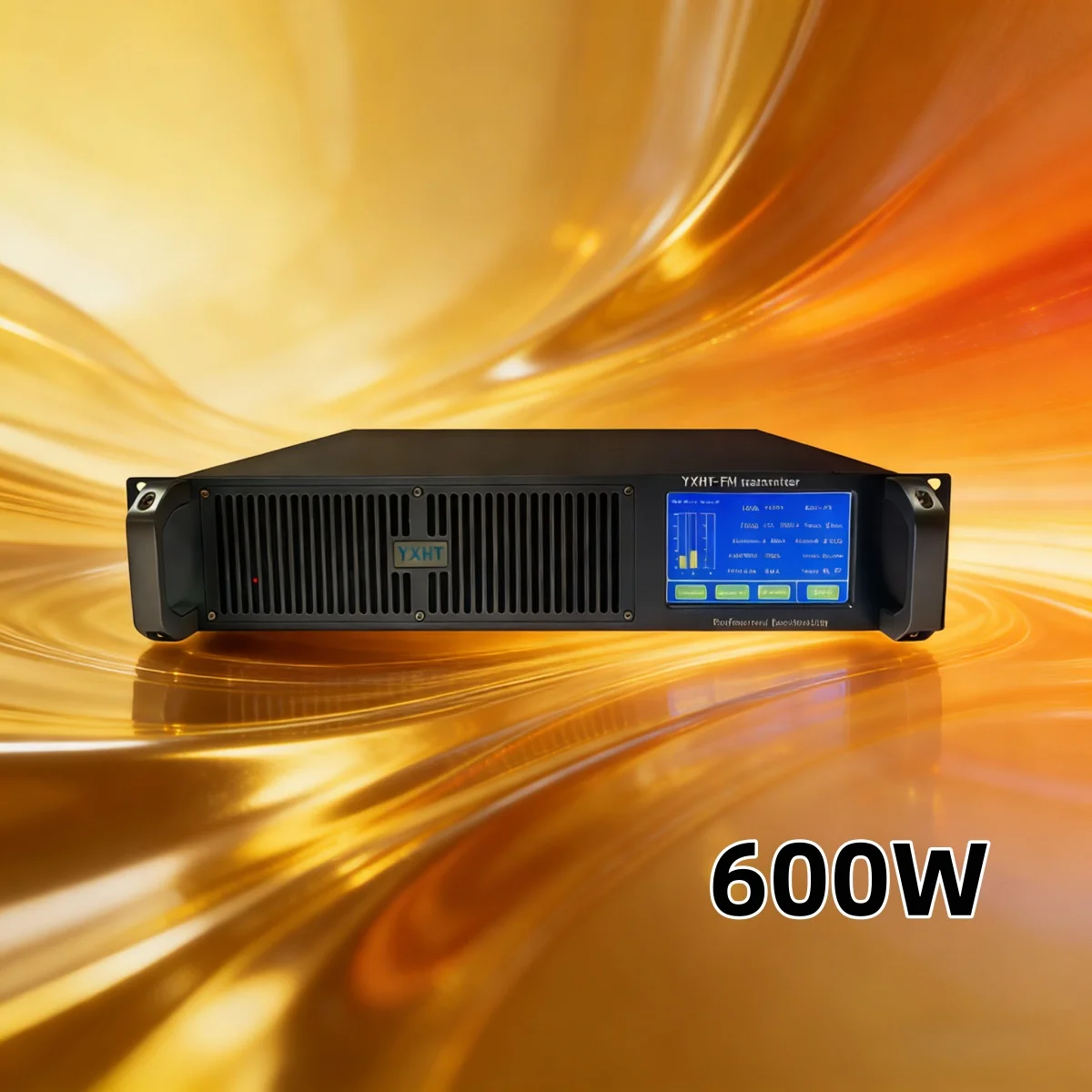

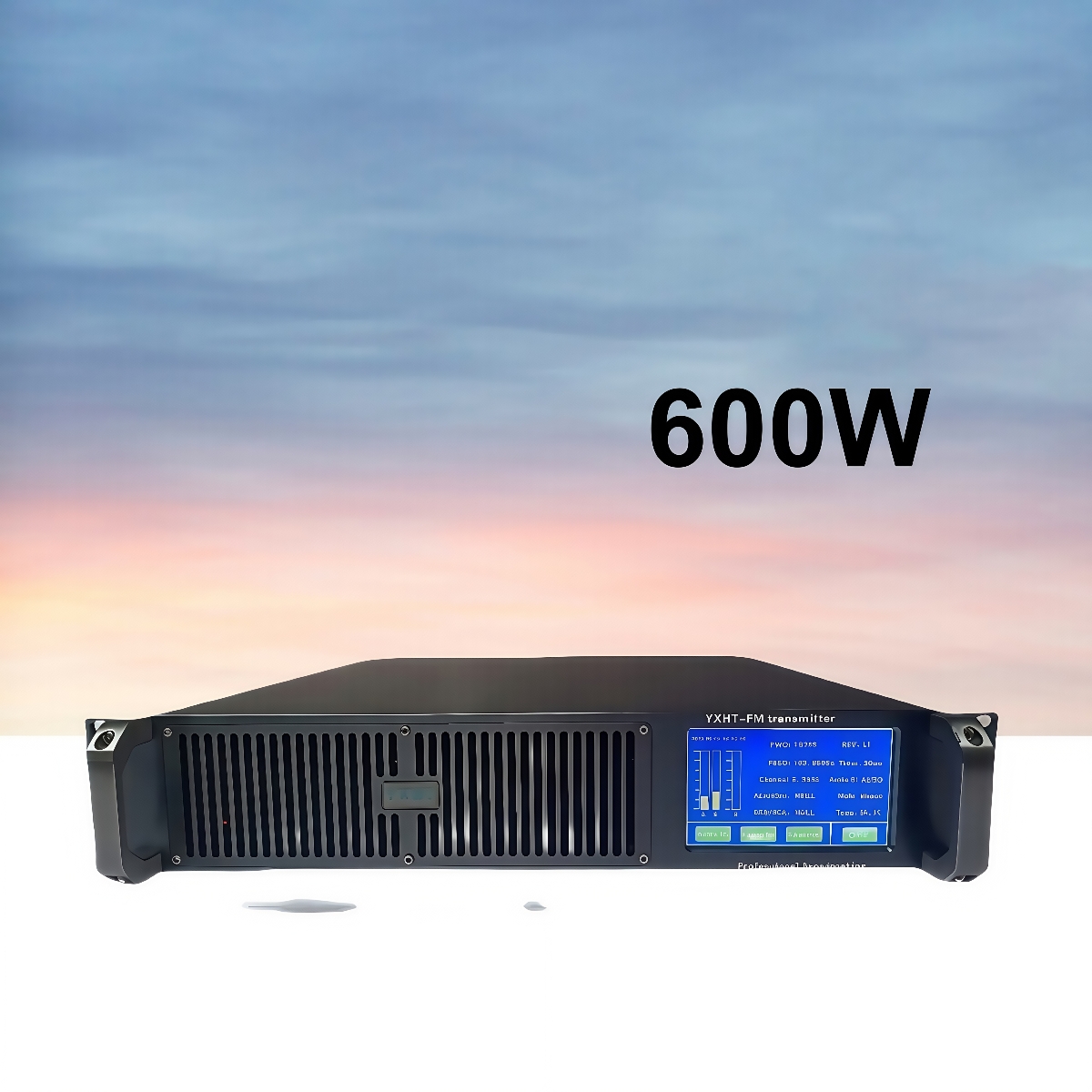

600W FM Transmitter FCC/ISO Approved, Stable Performance, for School/Industrial/Factory Dispatch, Power On-Off Menu, Low Noise
価格:
$1,680.00
/Pc
払い戻し:
シェア:
売れ筋商品

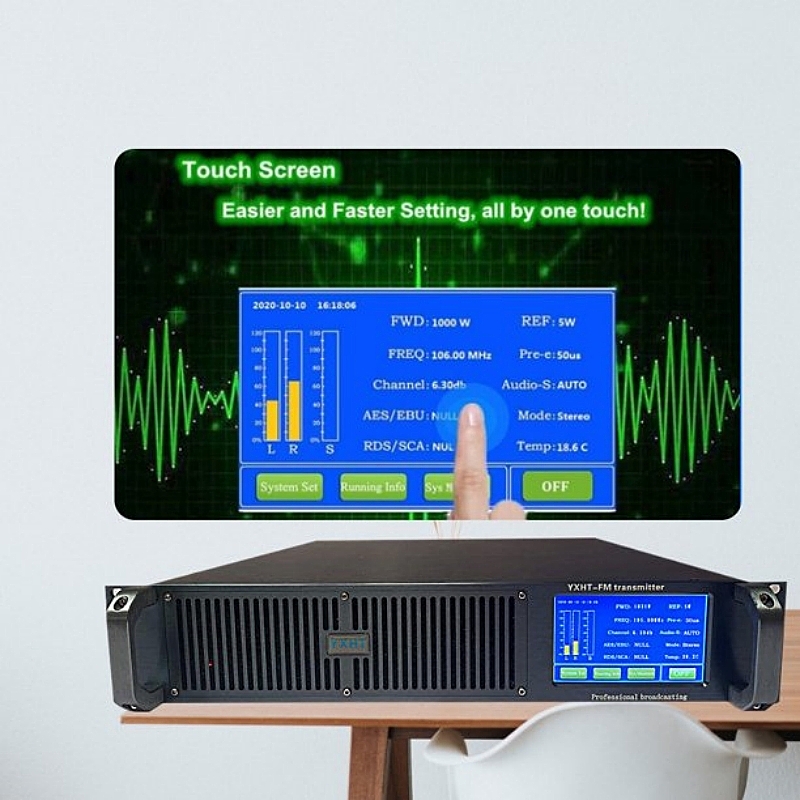

Digital Touch Screen 600W FM Transmitter
Product Description
1. Overview
FM YXHT-2 600W/LIGHT stereo FM radio transmitter is an integrated high-quality FM transmitter that stereo-encodes the input left and right channel audio signals and adjusts the FM modulation to the broadcast band, then RF amplify to the 600W output power for wireless broadcasting. The transmitter adopts the most advanced software radio technology to achieve the international leading level of product performance indicators.
With a new large-scale field-programmable gate array (FPGA) and direct digital frequency synthesis (DDS) technology at up to 5G, the product achieves the highest technical specifications in the industry to date, providing listeners with a CD-like sound experience.
With a new large-scale field-programmable gate array (FPGA) and direct digital frequency synthesis (DDS) technology at up to 5G, the product achieves the highest technical specifications in the industry to date, providing listeners with a CD-like sound experience.
The product consists of audio interface unit, digital processing and frequency modulation unit, RF power amplifier unit,
human-machine interface unit, communication interface unit, clock synchronization unit and power supply unit. The transmitter is installed in a 19-inch 2U standard chassis, intensive design, small size and light weight. The whole transmitter is designed with high reliability, which makes the product run continuously and stably for a long time.
human-machine interface unit, communication interface unit, clock synchronization unit and power supply unit. The transmitter is installed in a 19-inch 2U standard chassis, intensive design, small size and light weight. The whole transmitter is designed with high reliability, which makes the product run continuously and stably for a long time.
Warranty: 6 years for all transmitters in our factory.
2. Technical characteristics and principle block diagram
Product technology has the following technical features:

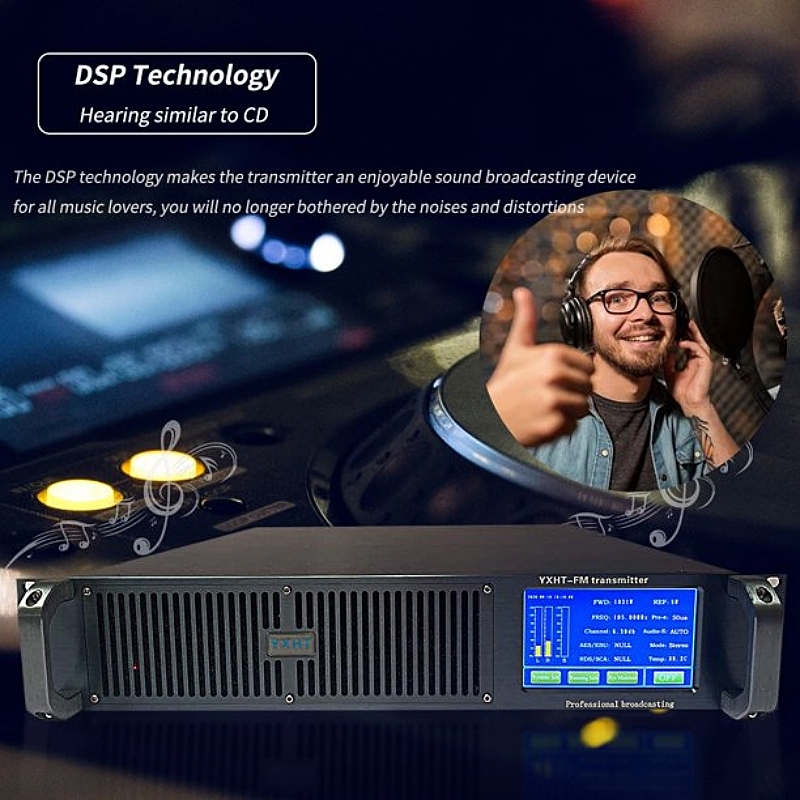

• Full process digital processing to achieve a perfect auditory effect of CD-like sound quality
• Full-scale digital processing with large-scale field-programmable gate array (FPGA) technology
• Direct digital frequency synthesis (DDS) technology at speeds up to 5G to peak transmitter specifications
• High reliability microprocessor (ARM) technology as the primary controller

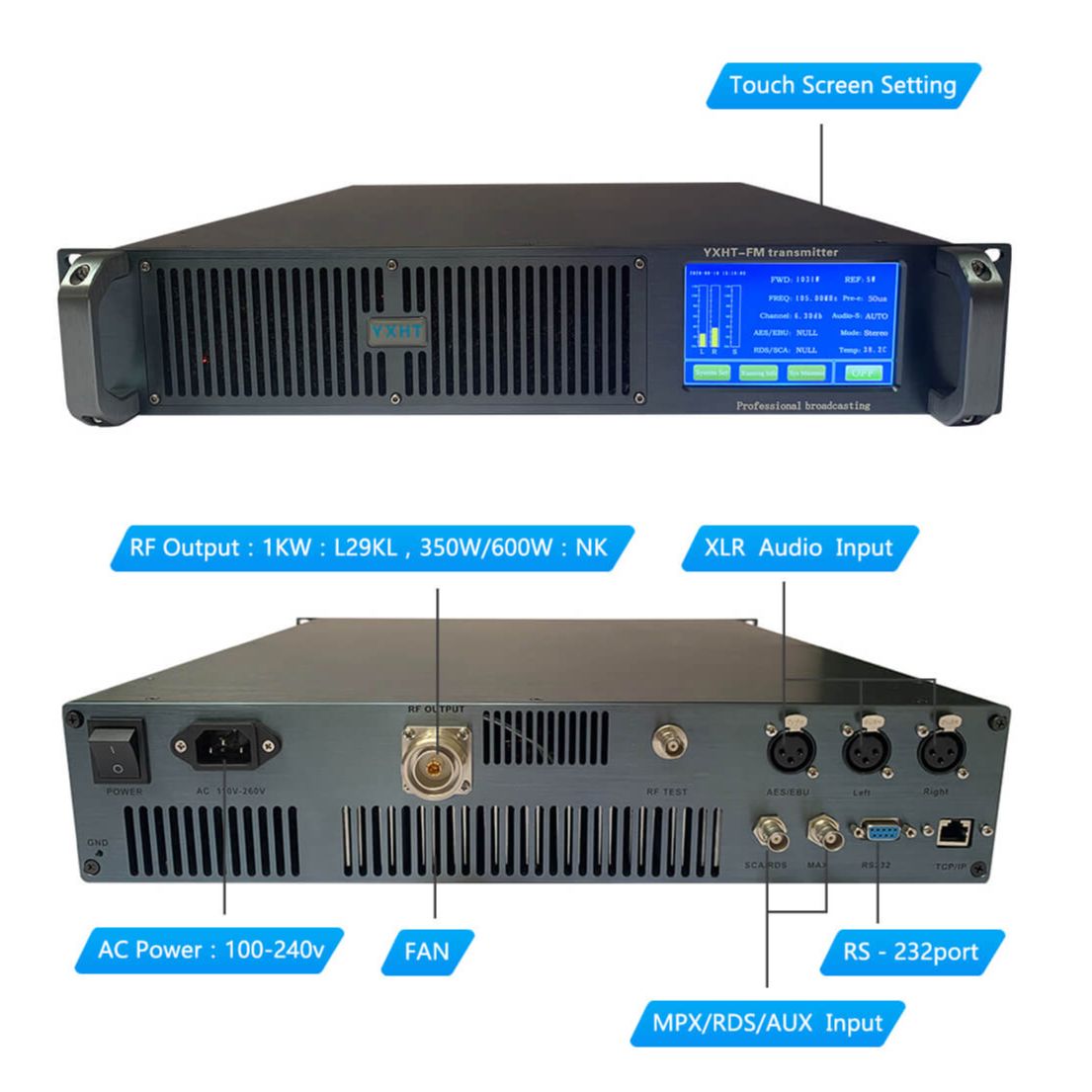

• Support for multiple audio source inputs (transmitters can be automatically selected by priority):
AES/EBU digital audio signal input (highest priority)
Analog stereo analog audio signal input (2nd priority)
MPX stereo composite signal input (3rd priority)
• Supports one RDS or SCA subcarrier input
• Upgradeable to FM synchronous broadcast transmitter
• Electronically controlled AGC controls output power zero drift
• Perfect over-current, over-voltage, over-temperature, over-power, standing wave ratio alarm and protection
• One-touch shuttle quick keyboard input
• Real-time display of operating parameters using OLED
• With TCP/IP, RS232 communication interface
• 19-inch standard chassis, height 2U
• Full process digital processing to achieve a perfect auditory effect of CD-like sound quality
• Full-scale digital processing with large-scale field-programmable gate array (FPGA) technology
• Direct digital frequency synthesis (DDS) technology at speeds up to 5G to peak transmitter specifications
• High reliability microprocessor (ARM) technology as the primary controller
• Support for multiple audio source inputs (transmitters can be automatically selected by priority):
AES/EBU digital audio signal input (highest priority)
Analog stereo analog audio signal input (2nd priority)
MPX stereo composite signal input (3rd priority)
• Supports one RDS or SCA subcarrier input
• Upgradeable to FM synchronous broadcast transmitter
• Electronically controlled AGC controls output power zero drift
• Perfect over-current, over-voltage, over-temperature, over-power, standing wave ratio alarm and protection
• One-touch shuttle quick keyboard input
• Real-time display of operating parameters using OLED
• With TCP/IP, RS232 communication interface
• 19-inch standard chassis, height 2U
AI Smart 5.0 Blue Tooth Audio Receiver / U Disk / FM playback / Computer Upgrade Wireless Module
5.0 Blue Tooth + U disk TF card playback + FM + audio input + AI song + computer + MP3 player + mobile phone
5.0 Blue Tooth + U disk TF card playback + FM + audio input + AI song + computer + MP3 player + mobile phone
How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
EXAMPLE 5W FM Transmitter use in the city and hometown:
I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).
I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).
I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).
Below are the approximate range of different power FM Transmitters. ( The range is diameter )
80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W FM Transmitter : 30KM ~ 50KM
1KW ~ 2KW FM Transmitter : 50KM ~100KM
2KW ~5KW FM Transmitter : 100KM ~150KM
5KW ~10KW FM Transmitter : 150KM ~200KM
EXAMPLE 5W FM Transmitter use in the city and hometown:
I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).
I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).
I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).
Below are the approximate range of different power FM Transmitters. ( The range is diameter )
80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W FM Transmitter : 30KM ~ 50KM
1KW ~ 2KW FM Transmitter : 50KM ~100KM
2KW ~5KW FM Transmitter : 100KM ~150KM
5KW ~10KW FM Transmitter : 150KM ~200KM
