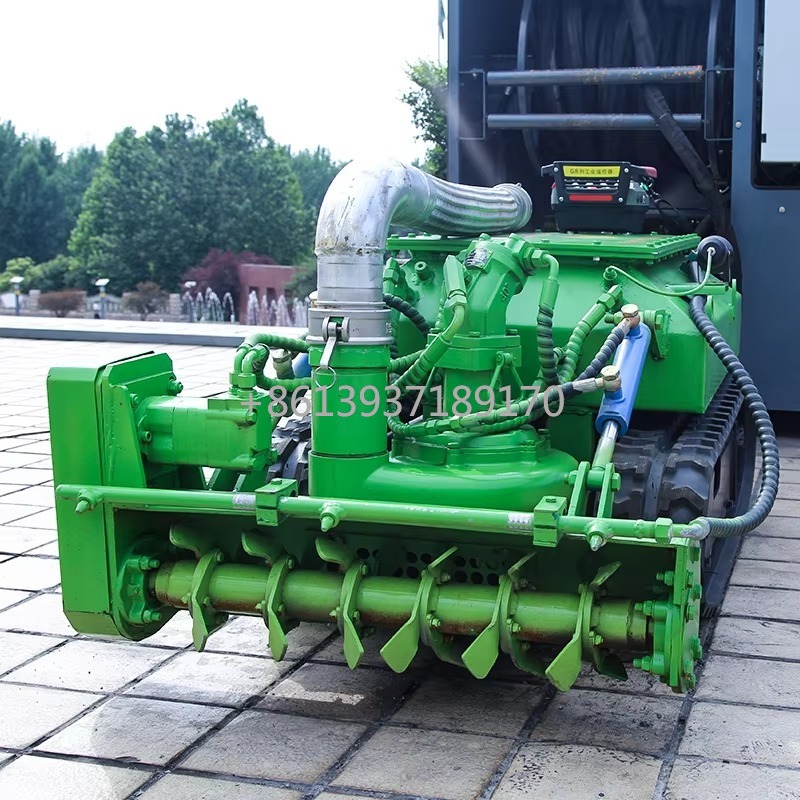

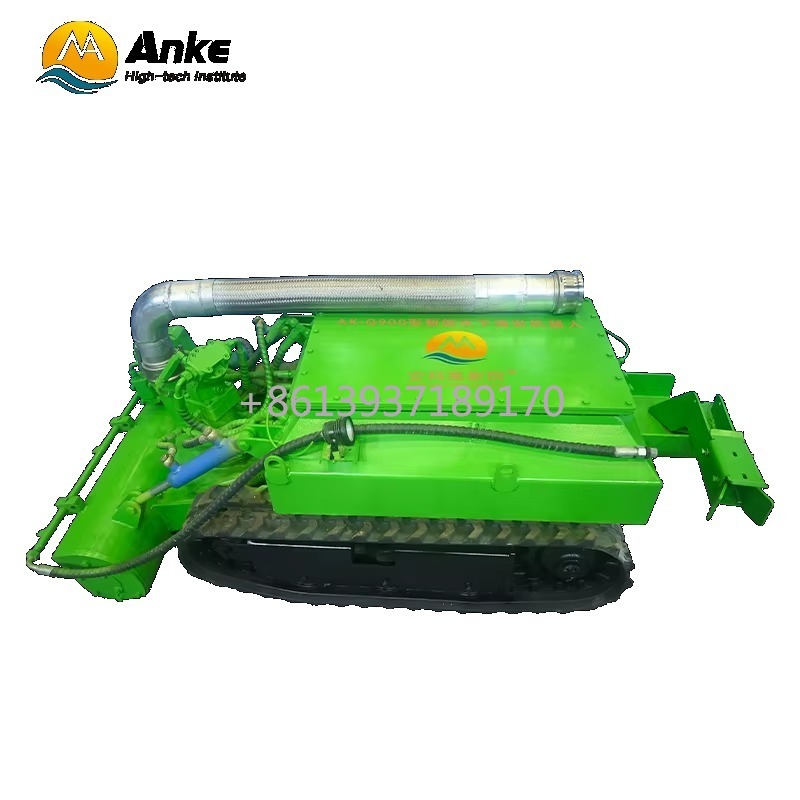

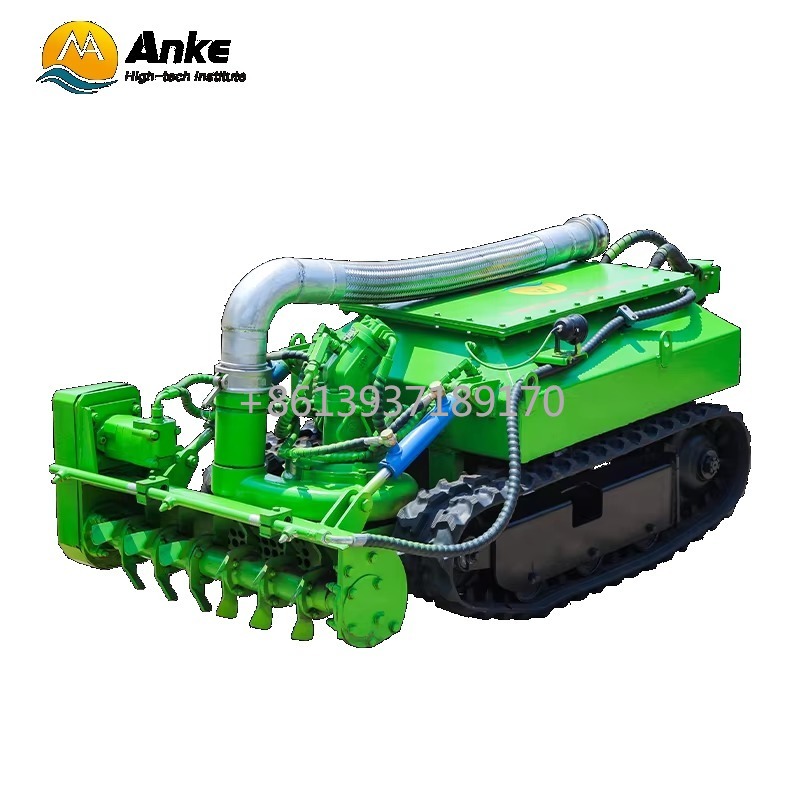

Superior Processing River Sediment Removal Machine Crawler Cleaning Robot Dredging Robot for Municipal Drainage Systems

PLEASE NOTE:

Superior Processing River Sediment Removal Machine Crawler Cleaning Robot Dredging Robot for Municipal Drainage Systems. Equipped with sensors, it senses the underwater environment in real time and avoids obstacles autonomously. Combined with navigation and positioning technology, it realizes precise path planning and job positioning. Equipped with an automated control system, the dredging intensity and scope are adjusted according to preset parameters or real-time data, reducing manual intervention.

Application: Industrial Scenarios, Dredging of mine sedimentation tanks, cleaning of blocked culverts, internal wall cleaning of oil tanks, and dredging of industrial pipelines; Municipal Scenarios, Addressing pipeline blockages during urban waterlogging, and cleaning debris in waterlogged areas (to avoid impacts on traffic and drainage); Special Operations, Acting as a mixing machine equipped with high-pressure water pipes to perform remote-controlled walking operations for sediment flushing, enhancing the thoroughness of dredging.

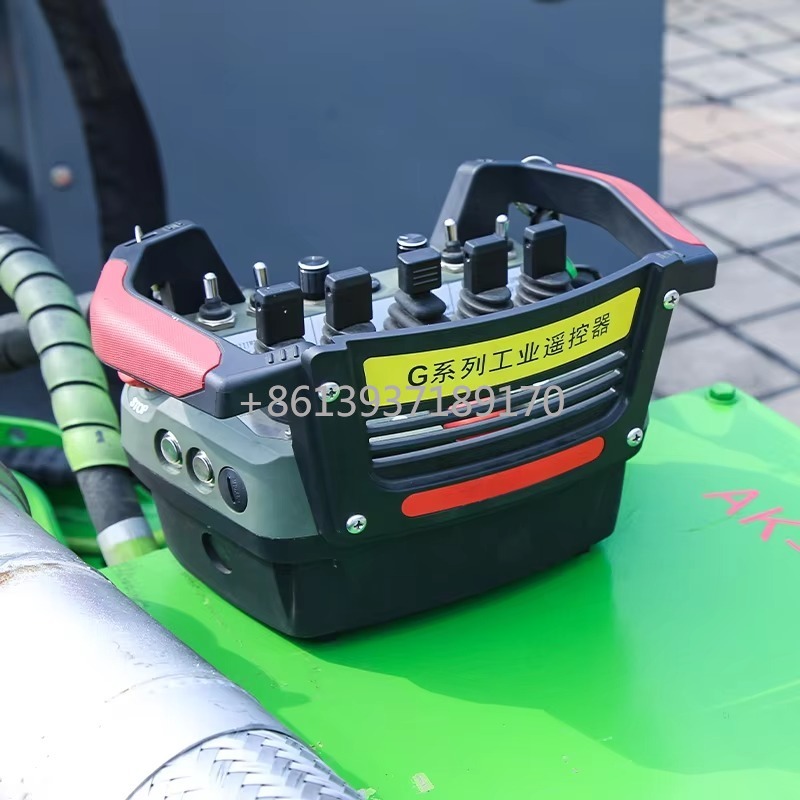

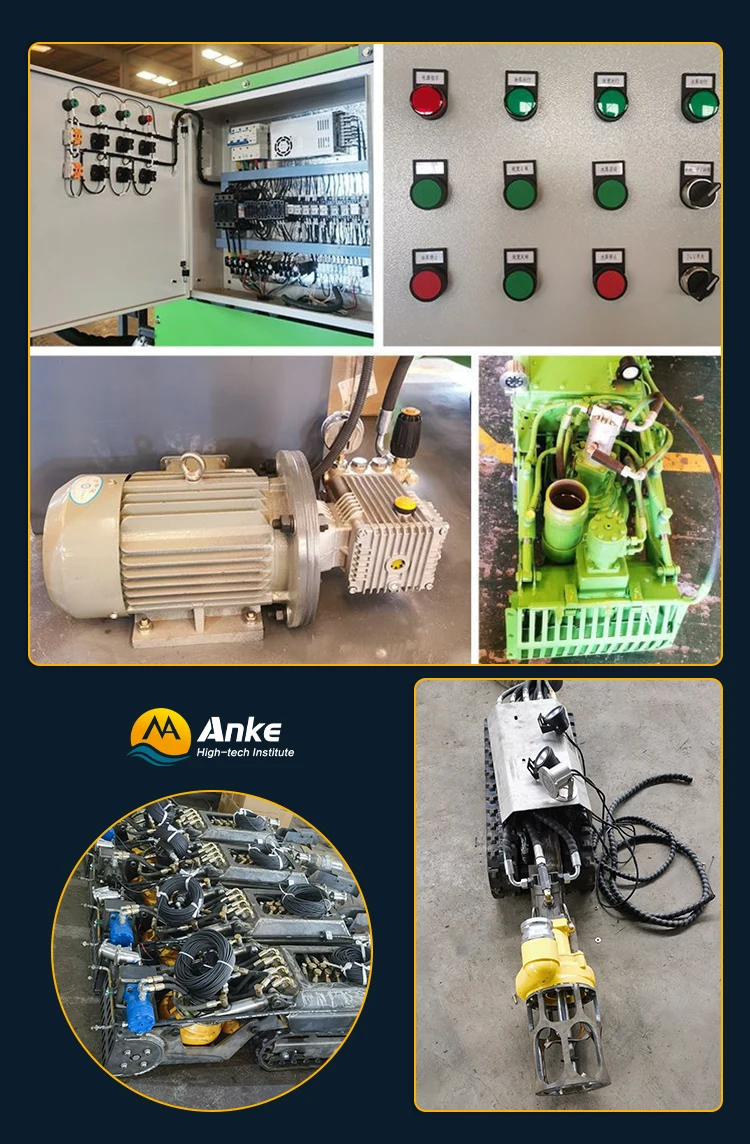

The hydraulic dredging robot consists of four core components: hydraulic power station, underwater tracked robot, wireless remote control system, and oil pipe reel conveying system. Hydraulic Power Station: Driven by a motor, the hydraulic oil pump generates hydraulic flow pressure, which serves as the power source for the robot’s movement, sludge suction and discharge, and mechanical actions (e.g., bucket and auger operation). Underwater Tracked Robot: It achieves anti-slip movement via rubber tracks (suitable for muddy or sloped surfaces). Equipped with built-in hydraulic proportional valves, it precisely controls the robot’s movement, auger rotation (to crush sludge), bucket lifting (to grab debris), and the start/stop of the slurry pump (to suck and discharge sludge). Wireless Remote Control System: Operators control the robot remotely via a remote controller (paired with a display), with a signal coverage distance of ≥200m, eliminating the need for close contact with harsh environments. The wireless remote control device manages the machine through the distribution box and signal terminal on the hydraulic power station; the entire control system is located at the hydraulic power station end, and overall operation is controlled by the remote controller. Oil Pipe Reel Conveying System: Responsible for the transportation of hydraulic oil and sludge pipelines, ensuring the robot’s continuous operation.

High Adaptability: Adopts enclosed hydraulic control with waterproof function (maximum underwater working depth ≤50m); the tracked structure enables strong anti-slip and climbing capabilities, supporting a 30° climbing capacity and a 35° tilt stability angle to adapt to complex terrains.

Low Maintenance & High Durability: All moving parts operate in a sealed hydraulic oil environment, effectively preventing the entry of contaminants. This ensures simple maintenance, low failure rate, and long service life. The robot features a compact structure and light weight, allowing for easy and cost-effective movement and transportation.

Efficient Continuous Operation: Equipped with a 200L large-capacity hydraulic oil tank and an efficient cooling system, enabling long-term continuous operation; the sewage discharge capacity reaches ≤200m³/h, ensuring high dredging efficiency.

Convenient & Safe Operation: Combines wireless remote control with a visual display, avoiding the risks of manual underwater operations. It is particularly suitable for toxic, oxygen-deficient, or highly polluted environments, and performs well in harsh underwater working conditions.

Special Operation Capability: Matched with a high-pressure water pump, it can initially dilute and penetrate caked sludge, achieving a more thorough cleaning effect.

1. Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2. Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
3. After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4. Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
5. How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
6. How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
7. How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
8. How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
