【2026】Vr Equipment 6Dof Metal Motion Platform Flight/Drive Simulator For Home Or Shopping Mall Use
価格:
$8,741.58
/Pc
払い戻し:
シェア:
売れ筋商品
Welcome to our store! I'm your good friend, Ivan·Lynn. For more model information and customized services, please add my WhatsApp at +86 19119209997 or send an email to 853295323@qq.com. (For oversized or overweight equipment, please confirm shipping and payment methods with me.) Please contact me for more discounts Should you need other goods, please feel free to put forward your requirements, and I will assist you in fulfilling them.
Welcome to our store! I'm your good friend, Ivan·Lynn. For more model information and customized services, please add my WhatsApp at +86 19119209997 or send an email to 853295323@qq.com. (For oversized or overweight equipment, please confirm shipping and payment methods with me.)
Please contact me for more discounts
Should you need other goods, please feel free to put forward your requirements, and I will assist you in fulfilling them.
Product Description

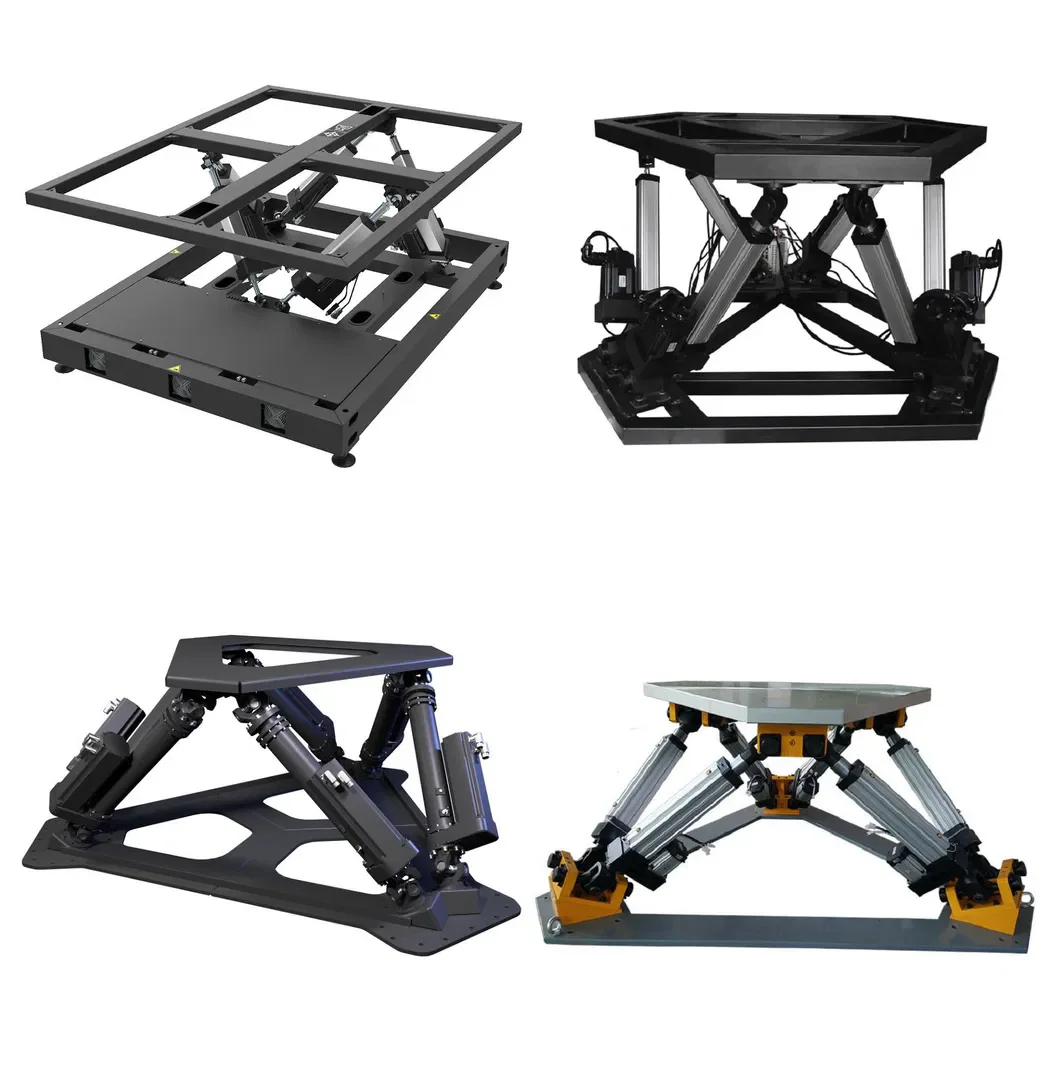

Hexapod Motion Simulating Platform 6 Dof Motion Base Stewart Mechnism Ship Simulator for Wholesale

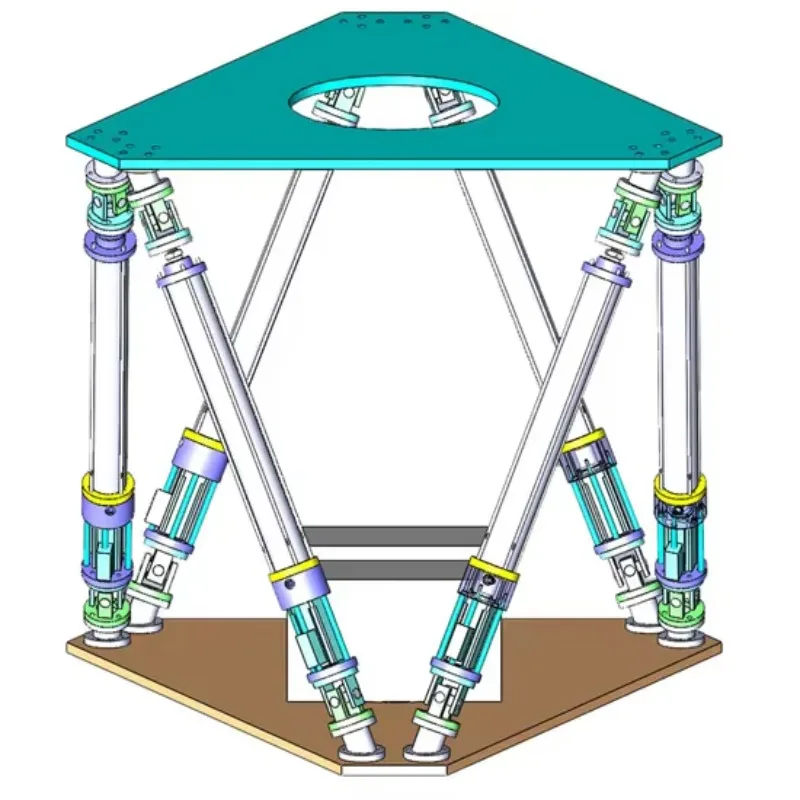

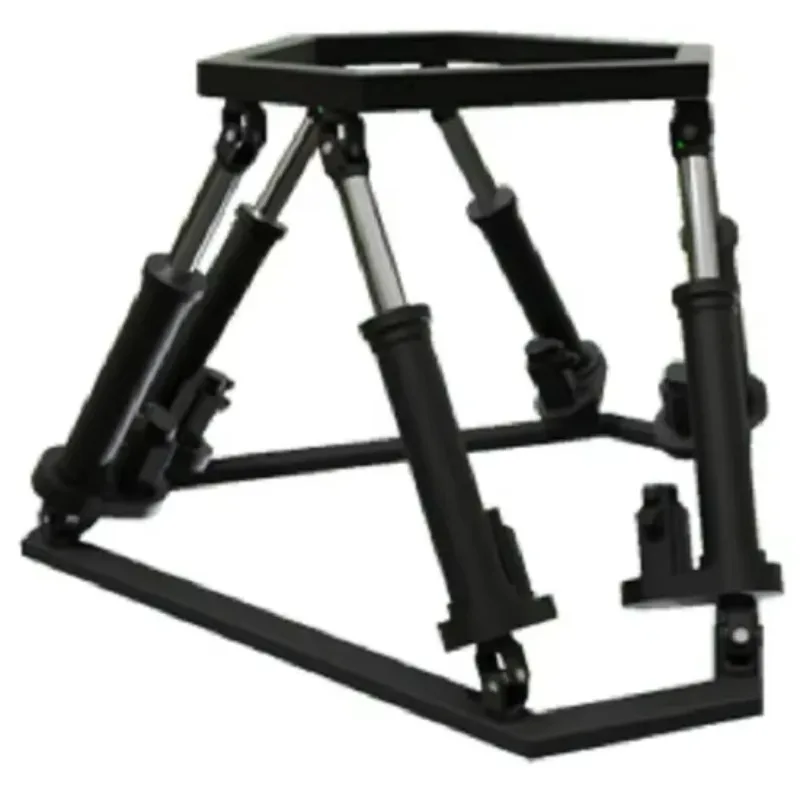

6 Degrees Of Freedom Platform also called Stewart Electric Cylinder Platform. DGR-6D of freedom motion platform is composed of six
moving cylinders, six universal dumpling chains at the top and bottom, and two platforms at the top and bottom.

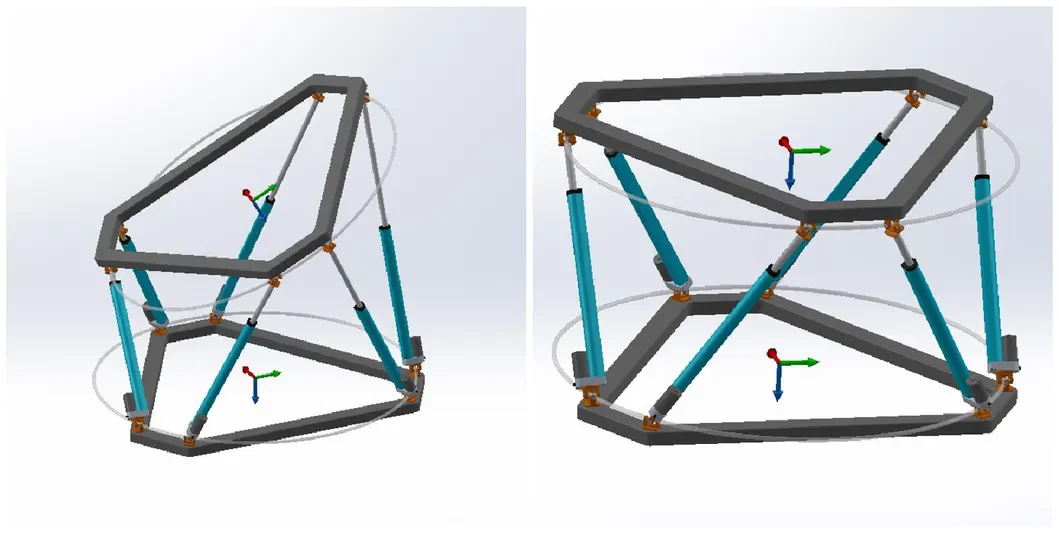

The lower platform of the 6D of freedom motion platform is fixed on the foundation, and with the help of the telescopic motion of
the six support cylinders, the upper platform completes 6D of freedom in space (X, Y, Z, α,β,γ).
Control System
The control system of the 6D of freedom simulation platform includes:
HS servo driver, Mbox motion controller, industrial computer, electrical cabinet, connecting cables, etc.
The main functions of the HS servo driver include:
1. CAN bus motion control function: position/speed/torque control, mode switching.
2. Fast current loop floating-point CLA kernel processing with good dynamic tracking performance.
3. RS485 communication interface supporting MODBUS protocol, directly communicating with upper computer and touch screen.
4. Support CAN bus interface, built-in proprietary communication protocol, convenient for customer customization and use.
5. The control port supports software allocation, logical settings, and programmable filtering, making it flexible, convenient,
and reliable to use.
6. Two analog outputs can observe the internal status of the driver, facilitating on-site debugging.
7. Built in electromagnetic brake control, providing logical and rigorous fall safety protection for the dynamic platform.
The main functions of the Mbox motion controller include:
1. The Ethernet interface is used for communication connections, with strong scalability and simple on-site wiring.
2. Equipped with a 6-way ADC input interface, it is compatible with the upper controller WffiS to achieve DAC board mode motion
control.
3. 12 digital outputs, supporting parameter programmable digital special effects control.
4. 2-way analog output, supporting continuous and delicate simulation of specific control.
5. Multifunctional application of 8-channel digital input and other signal interfaces.
6. The application supports fully infinite switch mode, and the upper limit supports soft limit.
7. Easy to monitor and diagnose, with RS232 for local monitoring of motion control.
8. Networking is convenient and flexible. Single groups of motion control form the entire system through Ethernet, and all single groups can achieve the expected designated motion control in an overall, row group, column group, or point group manner. RS232 interface is provided for external expansion of all devices that support MODBUS communication protocol.
Note: The above data is for reference only, and corresponding non-standard designs can be made according to the actual needs of customers.
6 Degrees Of Freedom Platform also called Stewart Electric Cylinder Platform. DGR-6D of freedom motion platform is composed of six
moving cylinders, six universal dumpling chains at the top and bottom, and two platforms at the top and bottom.
The lower platform of the 6D of freedom motion platform is fixed on the foundation, and with the help of the telescopic motion of
the six support cylinders, the upper platform completes 6D of freedom in space (X, Y, Z, α,β,γ).
Control System
The control system of the 6D of freedom simulation platform includes:
HS servo driver, Mbox motion controller, industrial computer, electrical cabinet, connecting cables, etc.
The main functions of the HS servo driver include:
1. CAN bus motion control function: position/speed/torque control, mode switching.
2. Fast current loop floating-point CLA kernel processing with good dynamic tracking performance.
3. RS485 communication interface supporting MODBUS protocol, directly communicating with upper computer and touch screen.
4. Support CAN bus interface, built-in proprietary communication protocol, convenient for customer customization and use.
5. The control port supports software allocation, logical settings, and programmable filtering, making it flexible, convenient,
and reliable to use.
6. Two analog outputs can observe the internal status of the driver, facilitating on-site debugging.
7. Built in electromagnetic brake control, providing logical and rigorous fall safety protection for the dynamic platform.
The main functions of the Mbox motion controller include:
1. The Ethernet interface is used for communication connections, with strong scalability and simple on-site wiring.
2. Equipped with a 6-way ADC input interface, it is compatible with the upper controller WffiS to achieve DAC board mode motion
control.
3. 12 digital outputs, supporting parameter programmable digital special effects control.
4. 2-way analog output, supporting continuous and delicate simulation of specific control.
5. Multifunctional application of 8-channel digital input and other signal interfaces.
6. The application supports fully infinite switch mode, and the upper limit supports soft limit.
7. Easy to monitor and diagnose, with RS232 for local monitoring of motion control.
8. Networking is convenient and flexible. Single groups of motion control form the entire system through Ethernet, and all single groups can achieve the expected designated motion control in an overall, row group, column group, or point group manner. RS232 interface is provided for external expansion of all devices that support MODBUS communication protocol.
Note: The above data is for reference only, and corresponding non-standard designs can be made according to the actual needs of customers.
Specification
|
Rated Load: 5KG-20000KG
|
|
|
|
|
||||
|
|
Movement
|
Max. Speed
|
Acceleration
|
Reciprocating Precision
|
||||
|
UP/DOWN
|
±600mm
|
±500mm/s
|
±5.0m/s
|
±0.05mm
|
||||
|
Back-Forward
|
±600mm
|
±500mm/s
|
±5.0m/s
|
±0.05mm
|
||||
|
Left-Right
|
±600mm
|
±500mm/s
|
±5.0m/s
|
±0.05mm
|
||||
|
Pitch
|
±25°
|
±40°/s
|
±400°/s
|
±0.01°
|
||||
|
Roll
|
±25°
|
±40°/s
|
±400°/s
|
±0.01°
|
||||
|
Yaw
|
±25°
|
±40°/s
|
±400°/s
|
±0.01°
|
||||
Features
1. Fully digital closed-loop servo control, professional motion control card ensures smooth motion and high simulation.
2. Flexible modular combination and free system integration to meet different customer needs.
3. High precision transmission system and optimized combination, ensuring system efficiency of up to 85%.
2. Flexible modular combination and free system integration to meet different customer needs.
3. High precision transmission system and optimized combination, ensuring system efficiency of up to 85%.

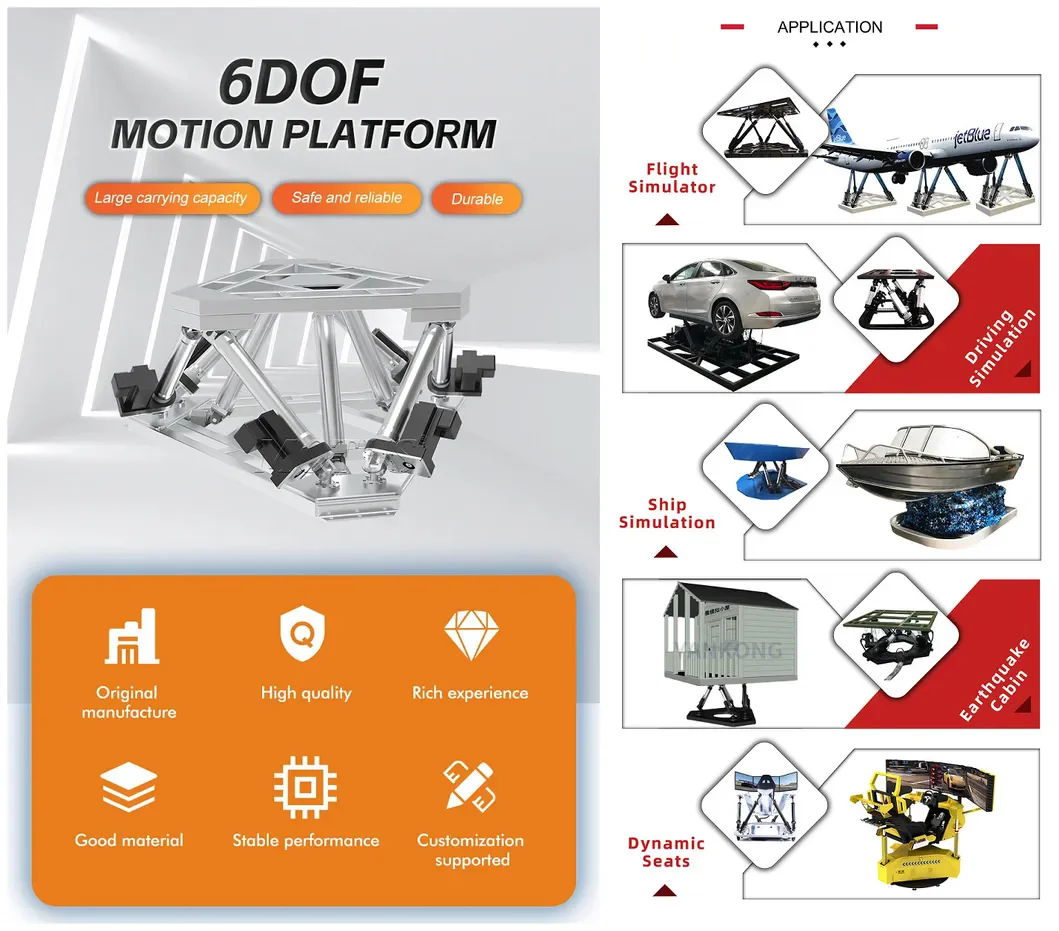

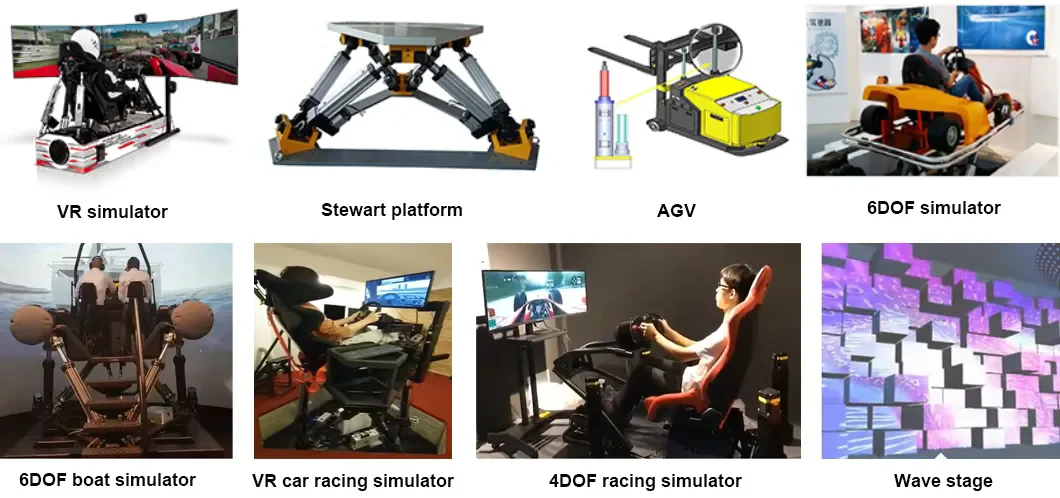

Application
It can be widely used in various scenarios that require simulating 6D of freedom motion.

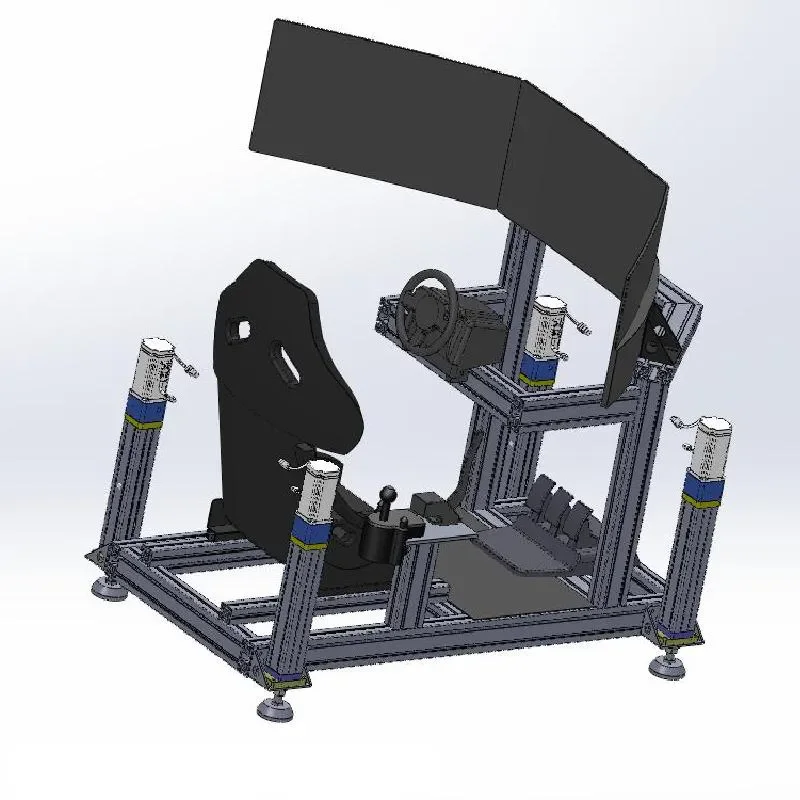

Virtual Reality Platform: For example, various training simulators such as flight simulators, ship simulators, naval helicopter takeoff and landing simulation platforms, tank simulators, car driving simulators, train driving simulators, earthquake simulators, as well as dynamic movies, entertainment equipment and other fields, can even be used for docking of space spacecraft and refueling docking of aerial refueling aircraft. In the processing and manufacturing industry, it can be made into six axis
linkage machine tools, flexible robots, etc.
Virtual Reality Platform: For example, various training simulators such as flight simulators, ship simulators, naval helicopter takeoff and landing simulation platforms, tank simulators, car driving simulators, train driving simulators, earthquake simulators, as well as dynamic movies, entertainment equipment and other fields, can even be used for docking of space spacecraft and refueling docking of aerial refueling aircraft. In the processing and manufacturing industry, it can be made into six axis
linkage machine tools, flexible robots, etc.
Why Choose Us
Our Advantage:
1.POWERFUL MANUFACTURER :10000m² Smart Factory，ISO9001 quality management standards. Directly interface with manufacturers to have ideal price and high quality products and Served over 2000 Clients more than 50 Countries.
2. ATTENTIVE SERVICE：Providing VR Shop / AR interactive kid game park / Immersive projection / Showroom display / software development a full set of solution
3.EXCELLENT TEAM:100 + R & D and design team talent for you to customize yourself Project solution, After-sales team 24-Hour online ,13 years of production experience of the technical team to provide you with free guidance/training.
4.QUALITY COMMITMENT TO CUSTOMERS：High durability, on time delivery，R&D unique technology and Proprietary software
5.SOFTWARE CUSTOMIZATION AND DEVELOPMENT:You only need to provide ideas, we provide one-on-one exclusive customization services
2. ATTENTIVE SERVICE：Providing VR Shop / AR interactive kid game park / Immersive projection / Showroom display / software development a full set of solution
3.EXCELLENT TEAM:100 + R & D and design team talent for you to customize yourself Project solution, After-sales team 24-Hour online ,13 years of production experience of the technical team to provide you with free guidance/training.
4.QUALITY COMMITMENT TO CUSTOMERS：High durability, on time delivery，R&D unique technology and Proprietary software
5.SOFTWARE CUSTOMIZATION AND DEVELOPMENT:You only need to provide ideas, we provide one-on-one exclusive customization services
Electric servo cylinder is widely used in all mechanical fields to help realize automation. You can find them everywhere, like mechnical devices manufaturing factories, heavy industry, automated production lines, automotive industry, intelligent robot,medical industry, games-field, entertainment industry, new energy field(like solar panel tracker), printing industry(includes 3D printing), textile industry, packaging industry, logistics field, etc.
Our factory is specialized in electric servo cylinder manufacturing with over 13 years, owning strong R&D team, expert before-sale and after-sale technicians, stresslessly helping customers complete standard and customized products. So far, we have successfully developed 6-dof stewart platform, racing car simulator, boat simulator, ship simulator, flight simulator, truck simulator and many
other servo driven electric linear items.
Our factory is specialized in electric servo cylinder manufacturing with over 13 years, owning strong R&D team, expert before-sale and after-sale technicians, stresslessly helping customers complete standard and customized products. So far, we have successfully developed 6-dof stewart platform, racing car simulator, boat simulator, ship simulator, flight simulator, truck simulator and many
other servo driven electric linear items.
FAQ
1.How does your company control quality ?
A: We have stable material suppliers, and our QC will check the materials one by one.also we will test the goods for 72 hours before shipping.
2.What's your company advantage ?
A: We have independent R&D team, so we are able to keep improve
hardware/software according to customers feedback. And we have served over 2000 clients
3.Do you provide venue design services?
A: Yes, dear, we have a very professional design team. Our designers can make lay out and 3D plans based on your ideas and our professional suggestions.There is no additional charge. Tell us your plans and site details, CAD drawings are better. Different sites have different sizes and are usually designed within 1-7 days.
4. The voltage is different in our country,what should we do?
A: We can make 110V, 220V, 380V to meet the standards of different countries.
5. How long is the service life?
A: 24 months warranty and life-time after-sales service.
6.How about the installation?
A: It's not difficult, don’ t worry,our technical dept will guide you online patiently or share you video and guides.
7.Do you provide after-sales service even in our country?
A: Yes, it is an important support. We not only guarantee 2 year warranty +lifetime technical support, but also our technicians can also come to your side in person if needed !
8.Do you have moq?
A:No moq,1 pc can also accept.
9.How about the delivery ?
A：Usually 31 days after confirmed order.
2.What's your company advantage ?
A: We have independent R&D team, so we are able to keep improve
hardware/software according to customers feedback. And we have served over 2000 clients
3.Do you provide venue design services?
A: Yes, dear, we have a very professional design team. Our designers can make lay out and 3D plans based on your ideas and our professional suggestions.There is no additional charge. Tell us your plans and site details, CAD drawings are better. Different sites have different sizes and are usually designed within 1-7 days.
4. The voltage is different in our country,what should we do?
A: We can make 110V, 220V, 380V to meet the standards of different countries.
5. How long is the service life?
A: 24 months warranty and life-time after-sales service.
6.How about the installation?
A: It's not difficult, don’ t worry,our technical dept will guide you online patiently or share you video and guides.
7.Do you provide after-sales service even in our country?
A: Yes, it is an important support. We not only guarantee 2 year warranty +lifetime technical support, but also our technicians can also come to your side in person if needed !
8.Do you have moq?
A:No moq,1 pc can also accept.
9.How about the delivery ?
A：Usually 31 days after confirmed order.
