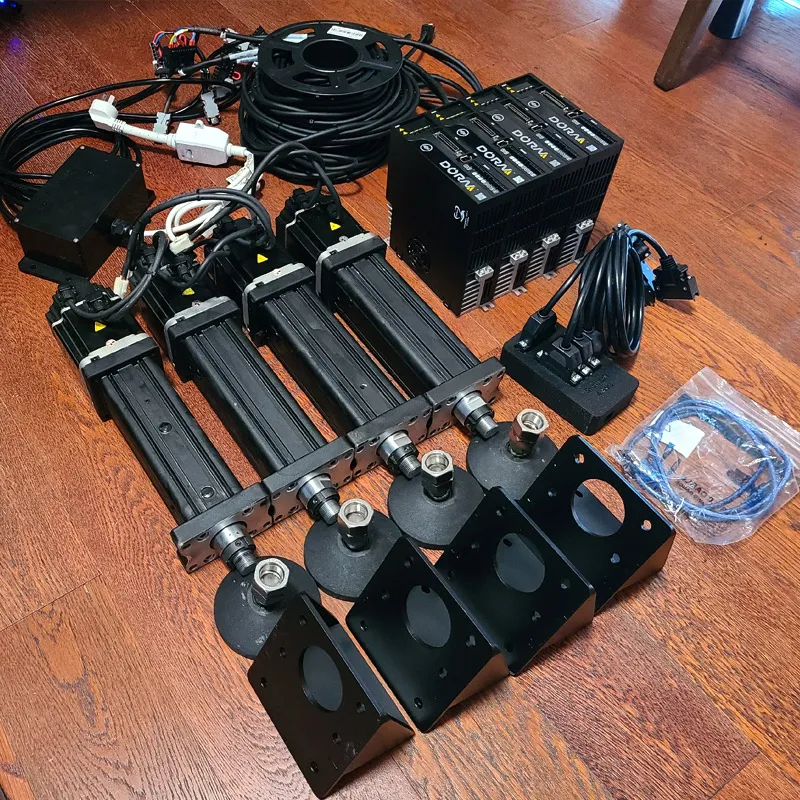

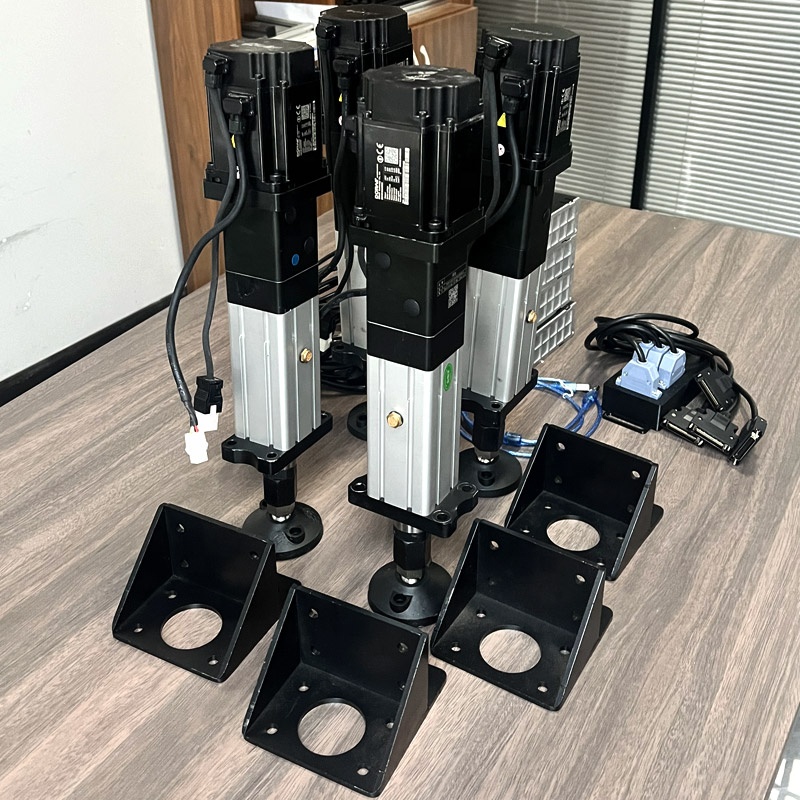

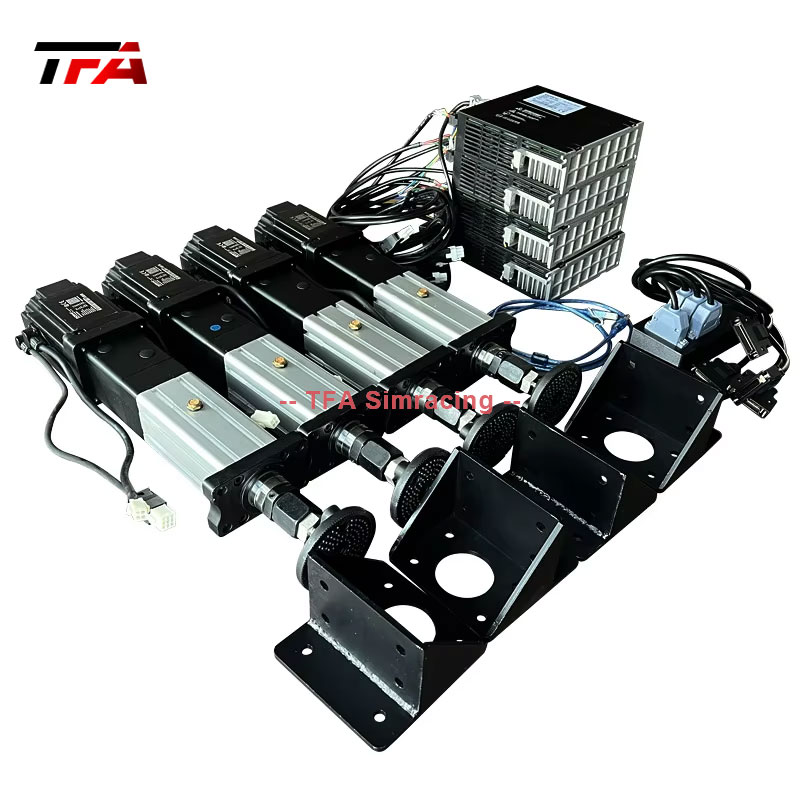

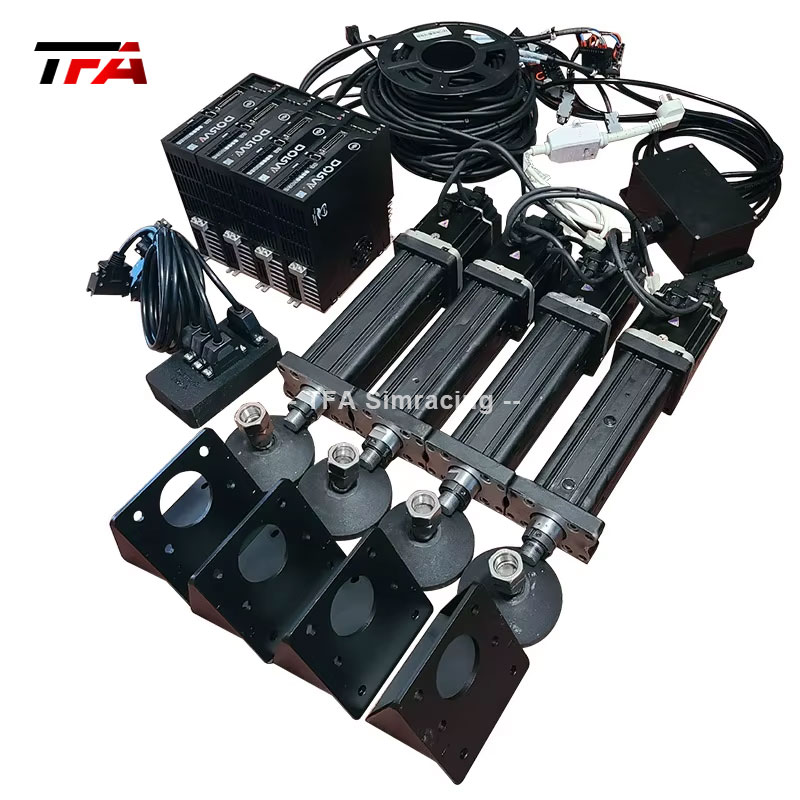

What is 4 DOF G-force included?

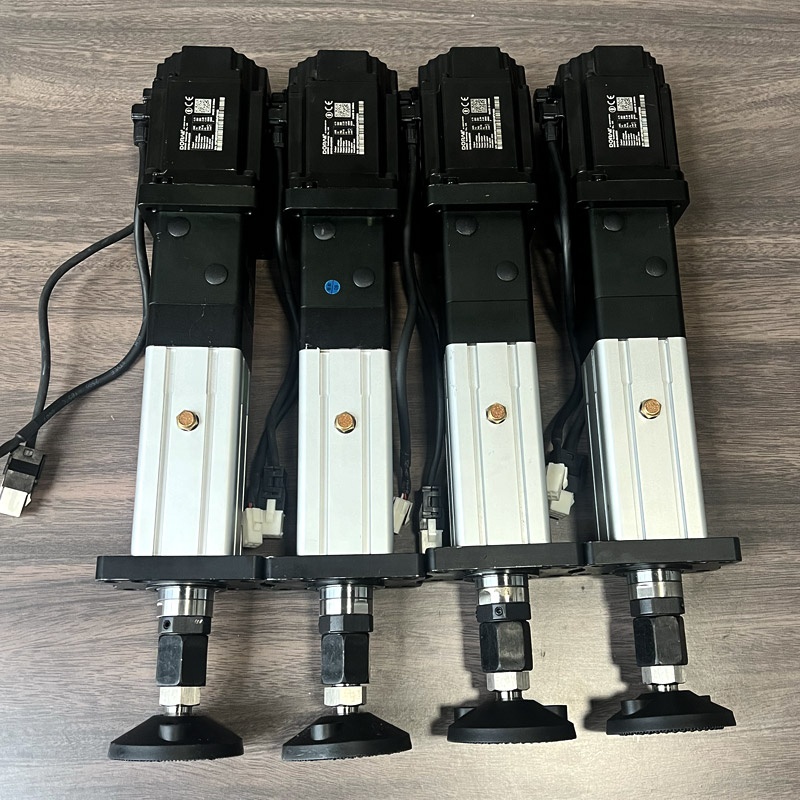

1. Four-axis G-force electric cylinder (including carbon steel adapter plate)
2. Four sets of industrial servo motors, servo controller
3. One four-axis controller
4. Power cable, screw accessories
5. Four-axis without traction
6. Four-axis with 3DOF motion of heave, pitch, roll
7. Cylinder speed500mm/s, power 750W
8. Surge travel 120mm, tail stroke 400mm, Upper four-axis travel 58mm
9. Voltage 220v (110v need extra transformer)
10. Package size: 93*24*18cm/79*16*19cm
11. G.W.: 36kgs
Customization Game Play Simulator Racing Simulator Pedal Vibration Kit Sim Racing Simulator Cockpit 6 Dof Motion Platform
価格:
$6,925.89
/Pc
払い戻し:
シェア:
売れ筋商品
Dear friends, welcome to our store! 1. If you see the shipping cost is too expensive, it is due to the size is too big cause the calculation error, you can contact us to get a better shipping price. 2. Page items have different models and styles, for more product information and detailed quotes, please contact us via WhatsApp or email! ----- Aaron ----- WhatsApp: +86 18107497246 (reply within 3 minutes) ----- Email: 3921654103@qq.com (reply within 8 hours)
Product Description

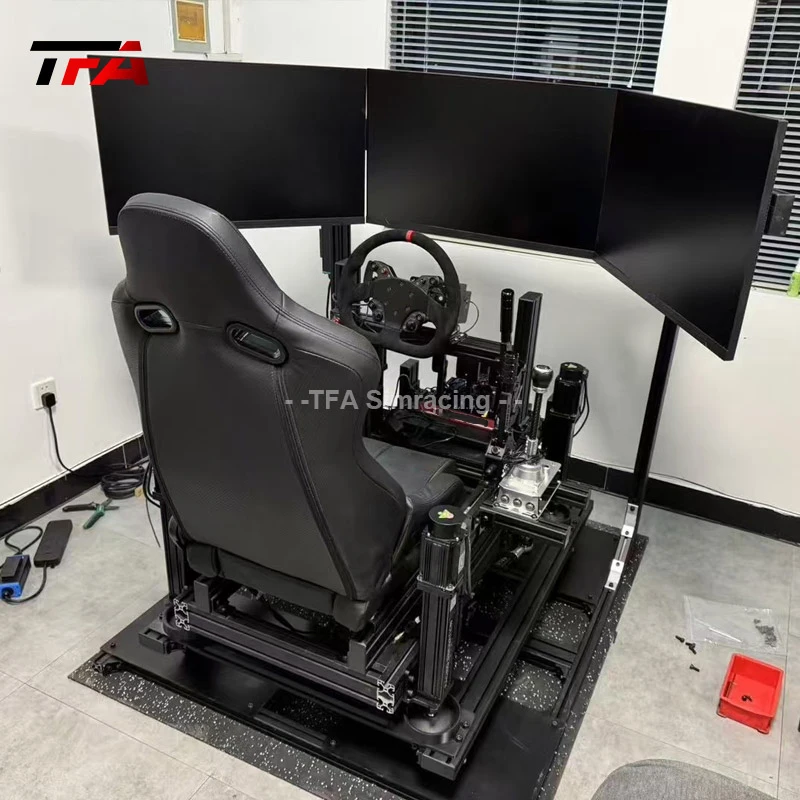

GT7, Assetto Corsa G-force racing simulator, dynamic seat, four-axis G-force, simulation of racing dynamics, support profiles and Integrated stand, accurate adjustment, high dynamic synchronization rate of the picture, home experience flying life.
Parameters:
Electric cylinder speed: 500mm/s Four-axis cylinder stroke: 58mm (have option of 100mm and 150mm)
Side slide electric cylinder stroke: 58mm, 100mm, 150mm
Motor power: 750w
Four bearing weight: 800KG
Tail stroke: 400mm
Surge stroke: 150mm
Function:
Simulate dynamic effects such as car ups and downs, pitch, roll, side slip, front and back, suspension adjustment is close to 8 real car effects, fast response, feedback time is similar to the steering wheel, used to experience the track can clearly feel the road material litter, shoulder tire ups and downs, accelerating pitch, turning tail and other effects, so that the driving immersion is greatly improved.
Electric cylinder speed: 500mm/s Four-axis cylinder stroke: 58mm (have option of 100mm and 150mm)
Side slide electric cylinder stroke: 58mm, 100mm, 150mm
Motor power: 750w
Four bearing weight: 800KG
Tail stroke: 400mm
Surge stroke: 150mm
Function:
Simulate dynamic effects such as car ups and downs, pitch, roll, side slip, front and back, suspension adjustment is close to 8 real car effects, fast response, feedback time is similar to the steering wheel, used to experience the track can clearly feel the road material litter, shoulder tire ups and downs, accelerating pitch, turning tail and other effects, so that the driving immersion is greatly improved.
Specification
|
Product Name
|
Customization Game Play Simulator Racing Simulator Pedal Vibration Kit Sim Racing Simulator Cockpit 6 Dof Motion Platform
|
|
Material
|
Aluminum profile, aluminum CNC machining panels, powder coated metal sheet
|
|
Accessories
|
Black screws, nut, joint, cup holder, adjust feet, angle bracket, slider, seat bracket, wheels
|
|

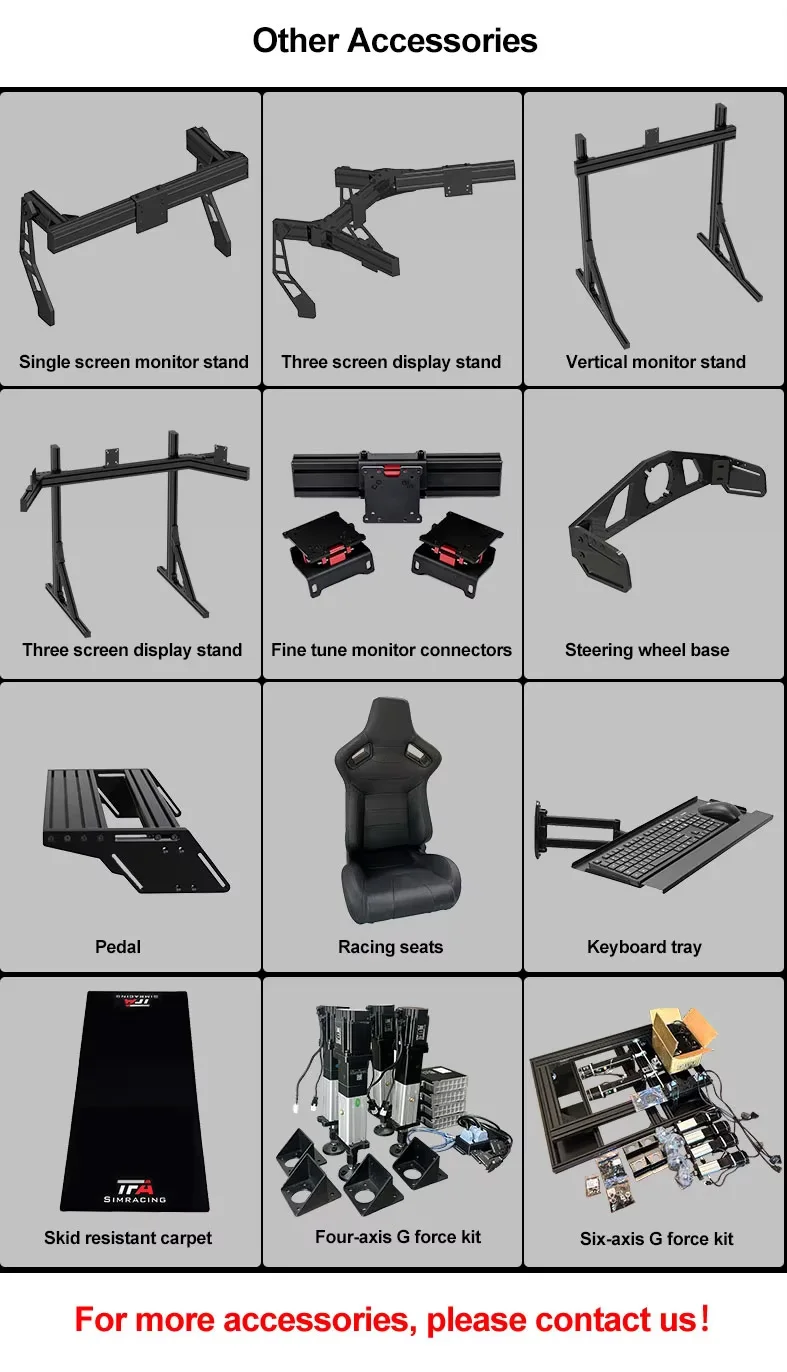

Related parts
|
Pedal, wheel mount, mouse mount, keyboard tray, PC holder, shifter, monitor stand, vesa mount
|
|
Service
|
OEM, ODM available
|
|
Color
|
Black, Silver, Blue, Gold, Gray
|

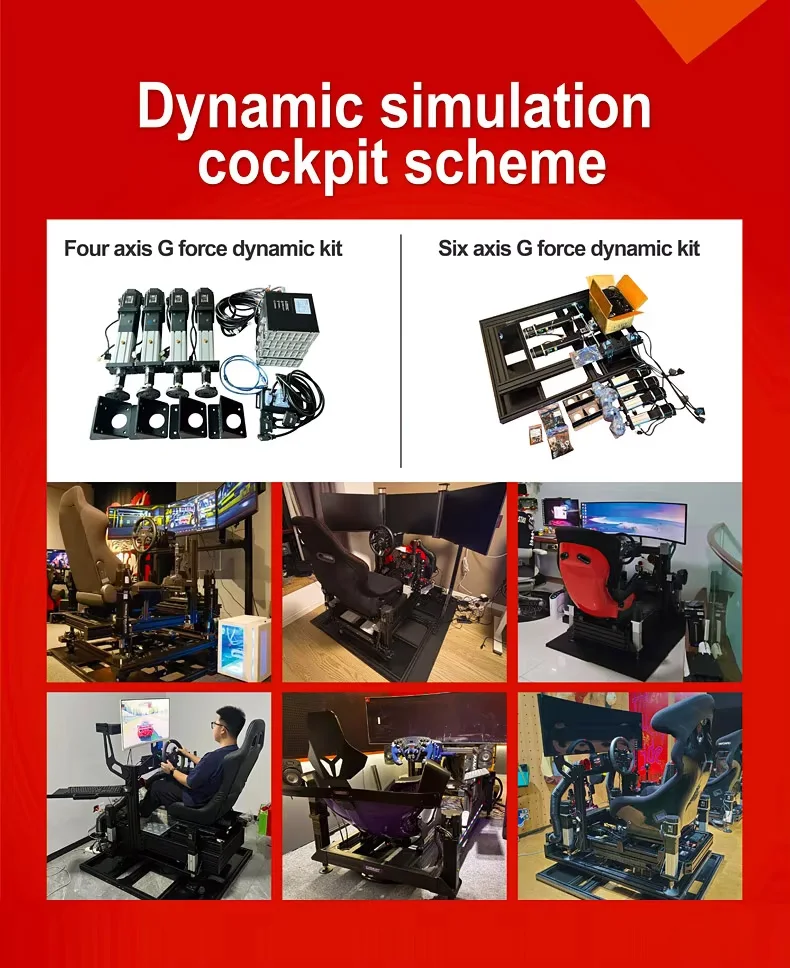

4DOF/6DOF G-force motion set

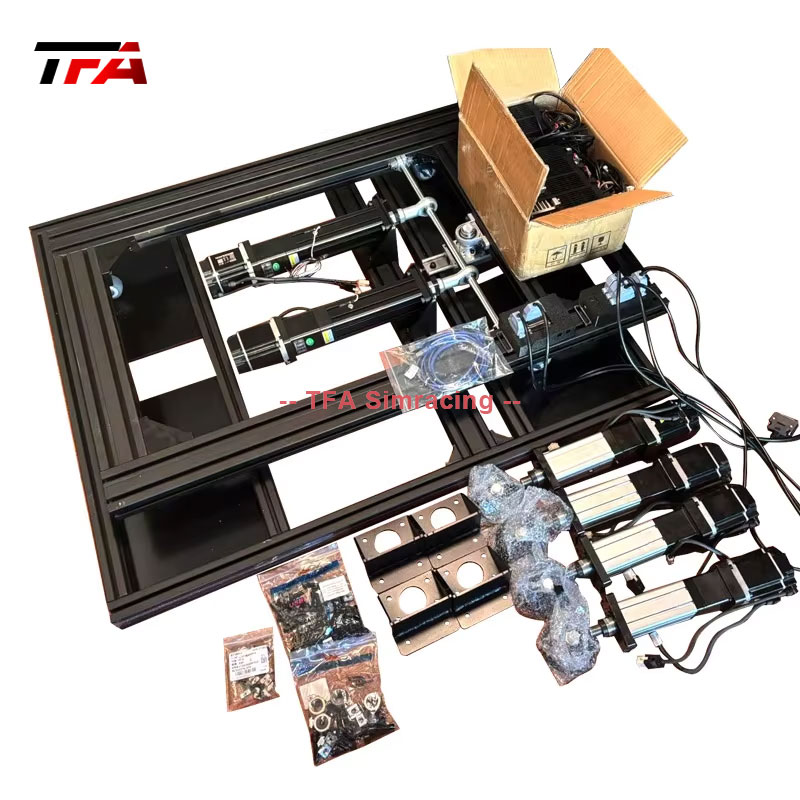

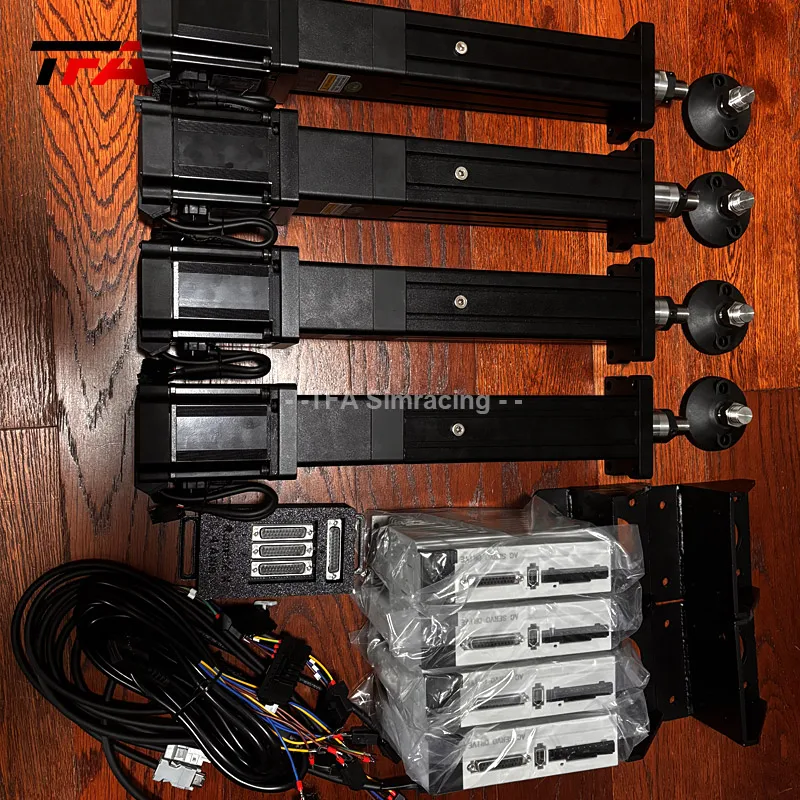

What is 6 DOF G-force included?
1. Four-axis G-force electric cylinder (including carbon steel adapter plate) 2. Four sets of servo motors, servo controller 3.
One four-axis controller,one Sideslip controller 4. One Sideslip aluminum profile base (Double cylinder, double motor servo) 5.
Power switch, Data cable, Power cord 6. Includes game G-force training presets and remote software teaching services 7. One-year
product warranty after-sales work, can provide simulator related consulting services8. Package size: 130x30x50cm
9. G.W.: 90kgs
One four-axis controller,one Sideslip controller 4. One Sideslip aluminum profile base (Double cylinder, double motor servo) 5.
Power switch, Data cable, Power cord 6. Includes game G-force training presets and remote software teaching services 7. One-year
product warranty after-sales work, can provide simulator related consulting services8. Package size: 130x30x50cm
9. G.W.: 90kgs

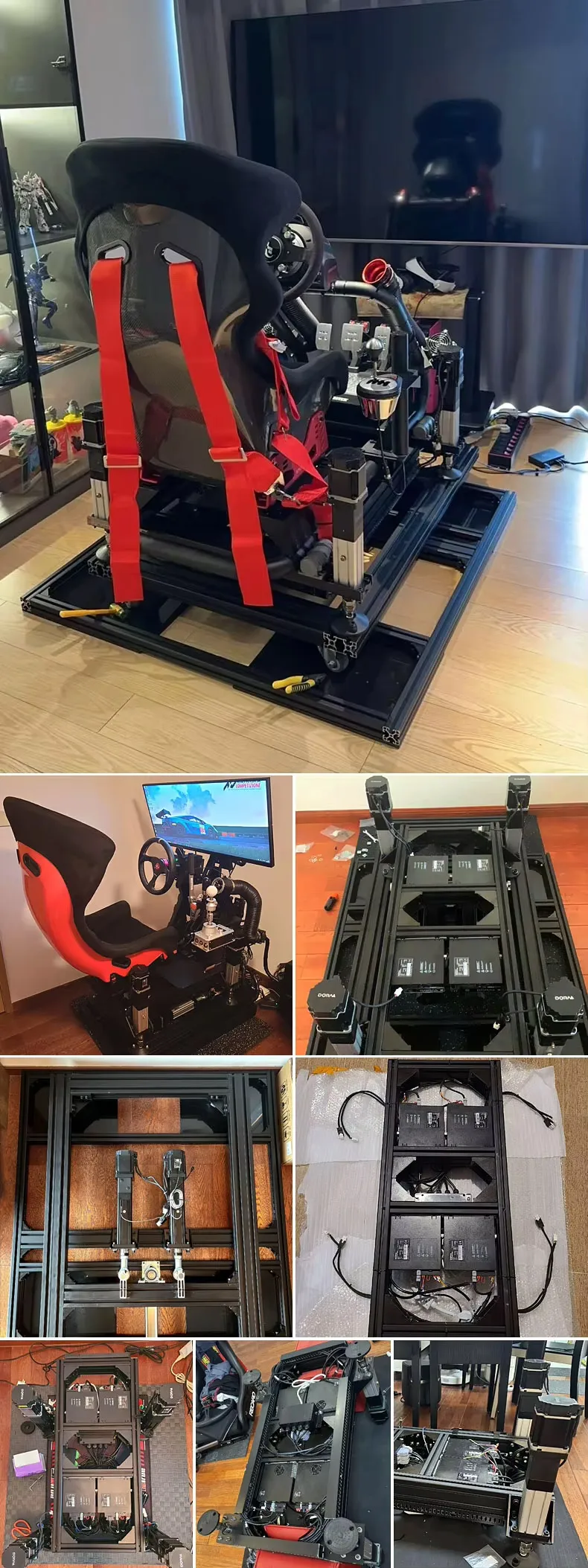

Details Images
Why chose aluminium profile sim racing rig?
Aluminium profile sim racing rigs is a true all in one formula/GT/Hybrid position racing cockpit pushing the boundaries of what is expected of an aluminium profile cockpit and setting a new standard for sim racing. It is among the most sturdy sim rigs available on the market. They are often used to eliminate any flexing when racing with powerful racing wheels. SimorReal sets the functionality and quality for an aluminium profile cockpit or what’s commonly referred to as an 8020 racing simulator cockpit. Sim racing with powerful direct drive wheel bases can often make sim rigs vibrate and flex during heavy use.
Does sim racing improve real driving?
Sim racing's biggest advantage is helping drivers train their minds. It is very mentally demanding. For some, it's even more
mentally demanding than real-life driving. To understand how to use it, we will first break down each of our mental states while driving.
What are the ergonomics for sim racing?
Aluminium profile sim racing rigs is a true all in one formula/GT/Hybrid position racing cockpit pushing the boundaries of what is expected of an aluminium profile cockpit and setting a new standard for sim racing. It is among the most sturdy sim rigs available on the market. They are often used to eliminate any flexing when racing with powerful racing wheels. SimorReal sets the functionality and quality for an aluminium profile cockpit or what’s commonly referred to as an 8020 racing simulator cockpit. Sim racing with powerful direct drive wheel bases can often make sim rigs vibrate and flex during heavy use.
Does sim racing improve real driving?
Sim racing's biggest advantage is helping drivers train their minds. It is very mentally demanding. For some, it's even more
mentally demanding than real-life driving. To understand how to use it, we will first break down each of our mental states while driving.
What are the ergonomics for sim racing?
The upper back should be resting fully on the seat back while the shoulders should be 1 to
2 inches away. The distance to the steering wheel should be set by extending the arms around the side of the steering wheel and setting it so the wheel touches the arm midway between the wrist and elbow.
Welcome to figure customization, we also have professional designers to provide you with aluminum profiles and accessories selection reference.
Welcome to figure customization, we also have professional designers to provide you with aluminum profiles and accessories selection reference.

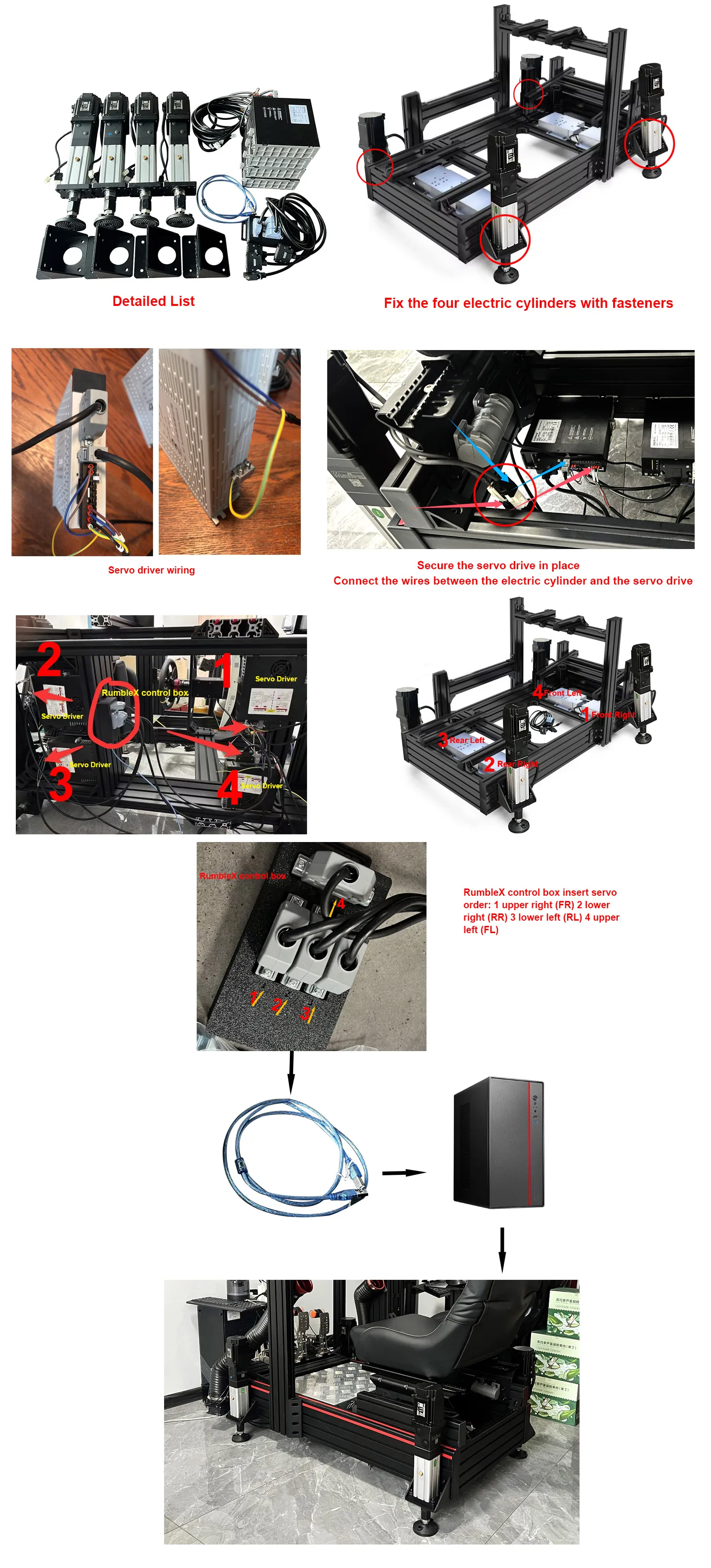

Installation Instructions
Installation Instructions:
Building Your Own Racing Simulator

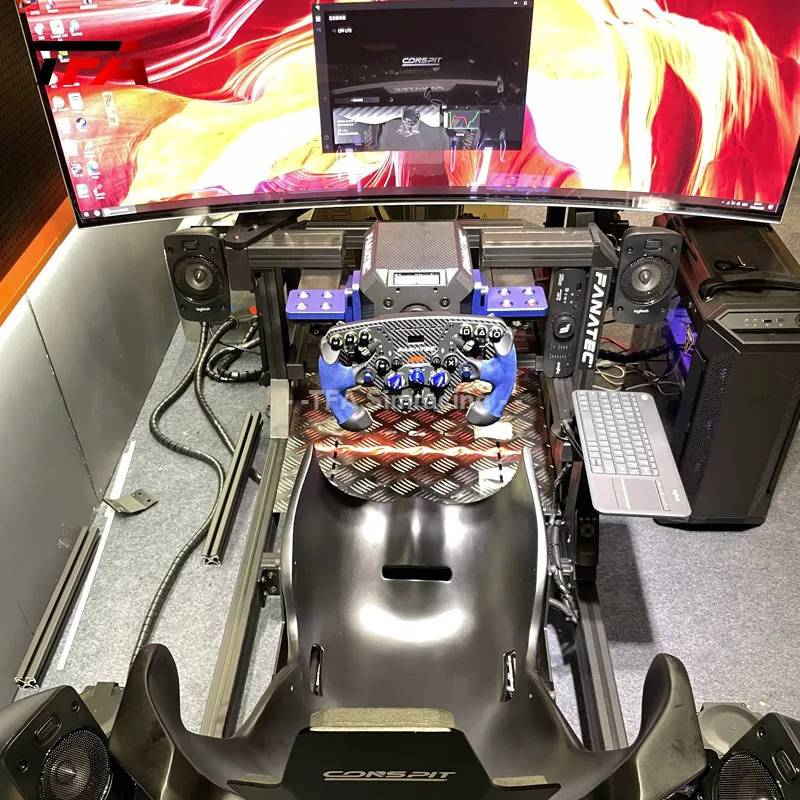

A sim racing setup typically consists of a racing seat or racing rig, pedals, steering wheel, and a PC or gaming console. Getting started is easy. Once you've researched and chosen all of the components and the accessories you need (hopefully by reading our buyer's guides!), assembly is guided by instruction manuals. Assemble the cockpit, mount the wheelbase and seat, mount the monitors and you're done.
A sim racing setup typically consists of a racing seat or racing rig, pedals, steering wheel, and a PC or gaming console. Getting started is easy. Once you've researched and chosen all of the components and the accessories you need (hopefully by reading our buyer's guides!), assembly is guided by instruction manuals. Assemble the cockpit, mount the wheelbase and seat, mount the monitors and you're done.
NEED NEW SERVO AND LARGE STROKE CYLINDER CAN BE CUSTOMIZED PRIVATELY
Advantage: High precision, good stability, suitable for simulating car suspension and body
dynamics, after debugging, suitable for the mainstream racing games on the market, body dynamics and game screen synchronization rate is high, driving experience is better, not motion sickness.
Support software: Simtools, Flypt, and

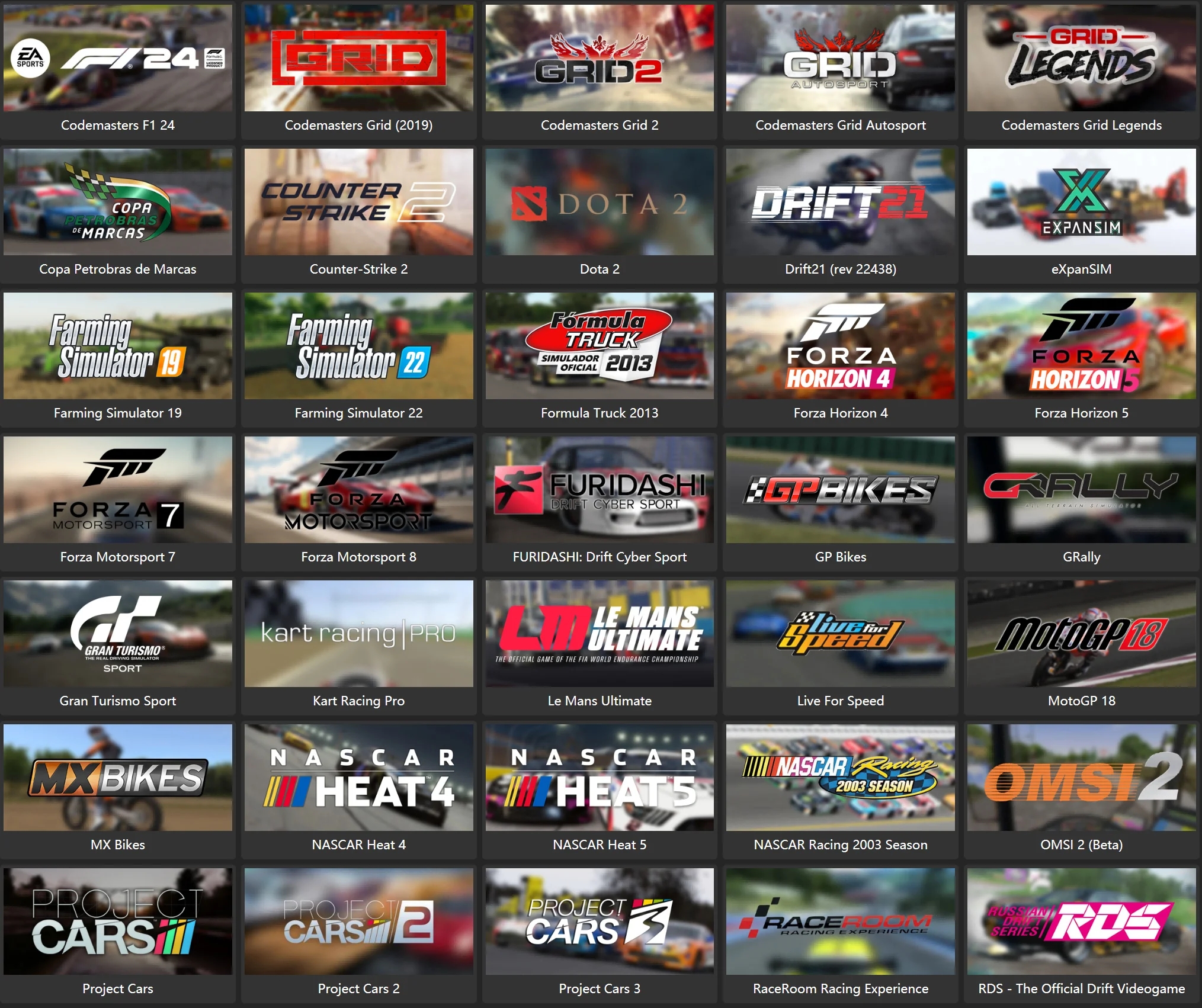

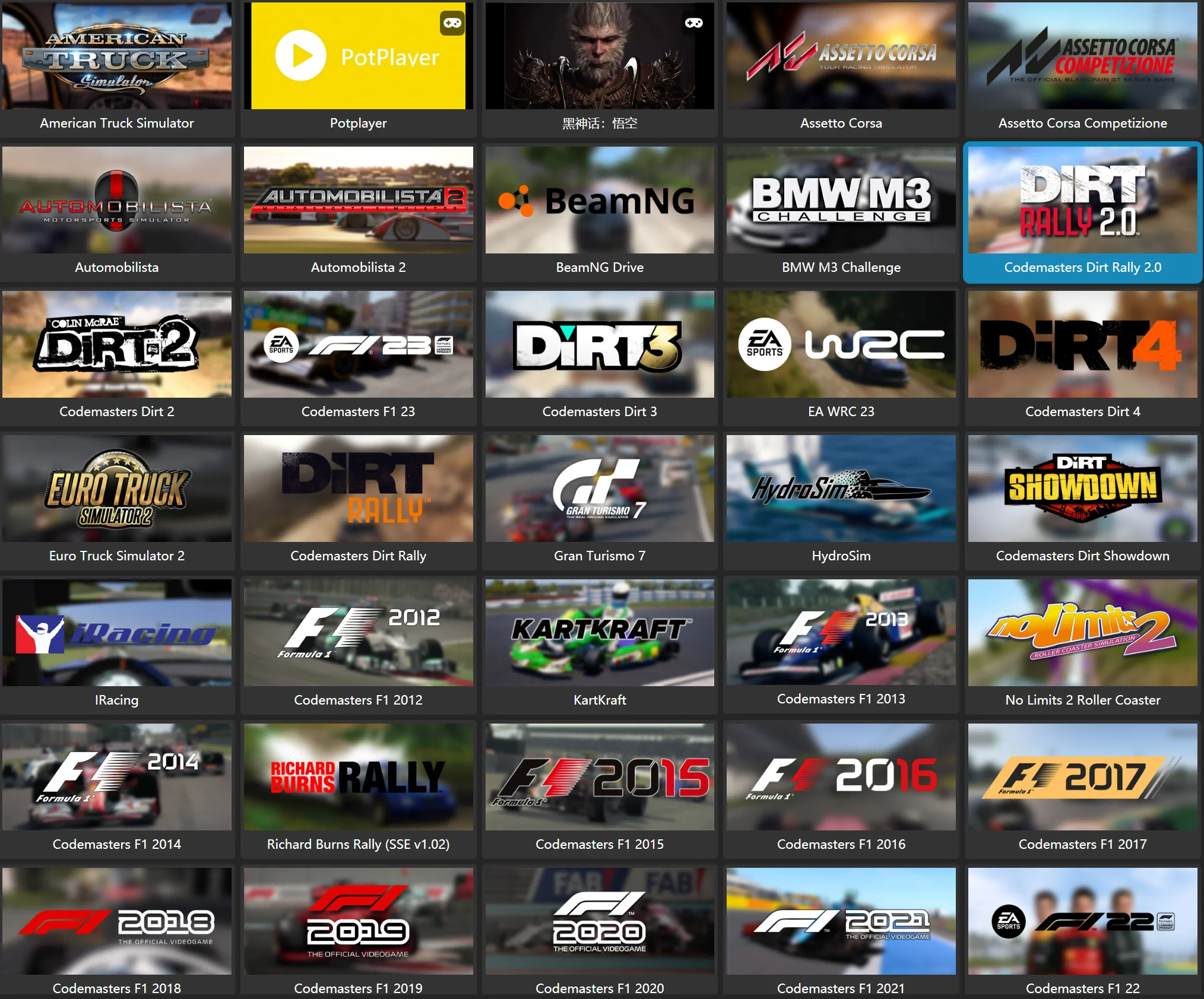

Support Gaming:

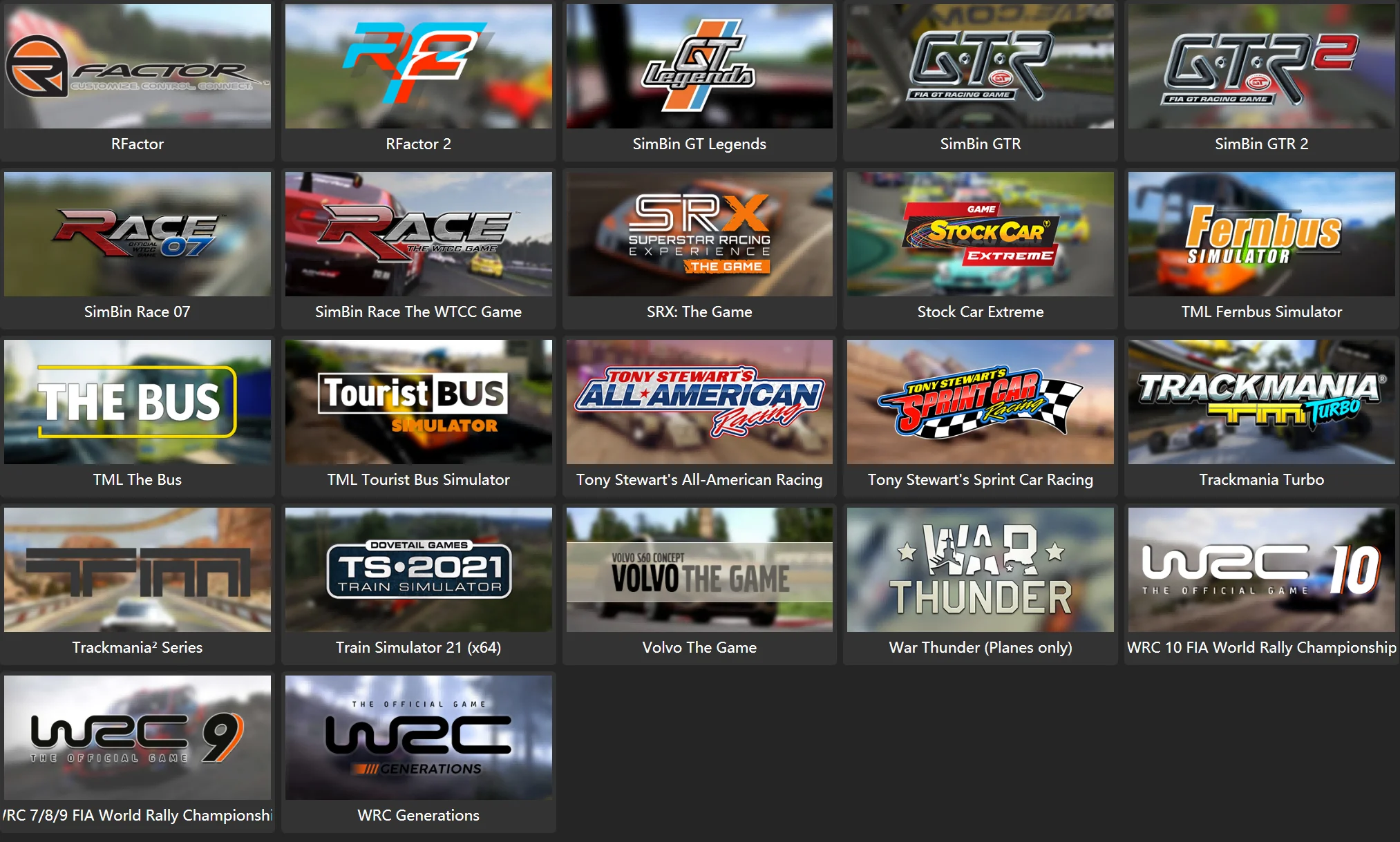

Compatible with gt7，gts of PS5, and almost games of PC.
dynamics, after debugging, suitable for the mainstream racing games on the market, body dynamics and game screen synchronization rate is high, driving experience is better, not motion sickness.
Support software: Simtools, Flypt, and
Support Gaming:
Compatible with gt7，gts of PS5, and almost games of PC.

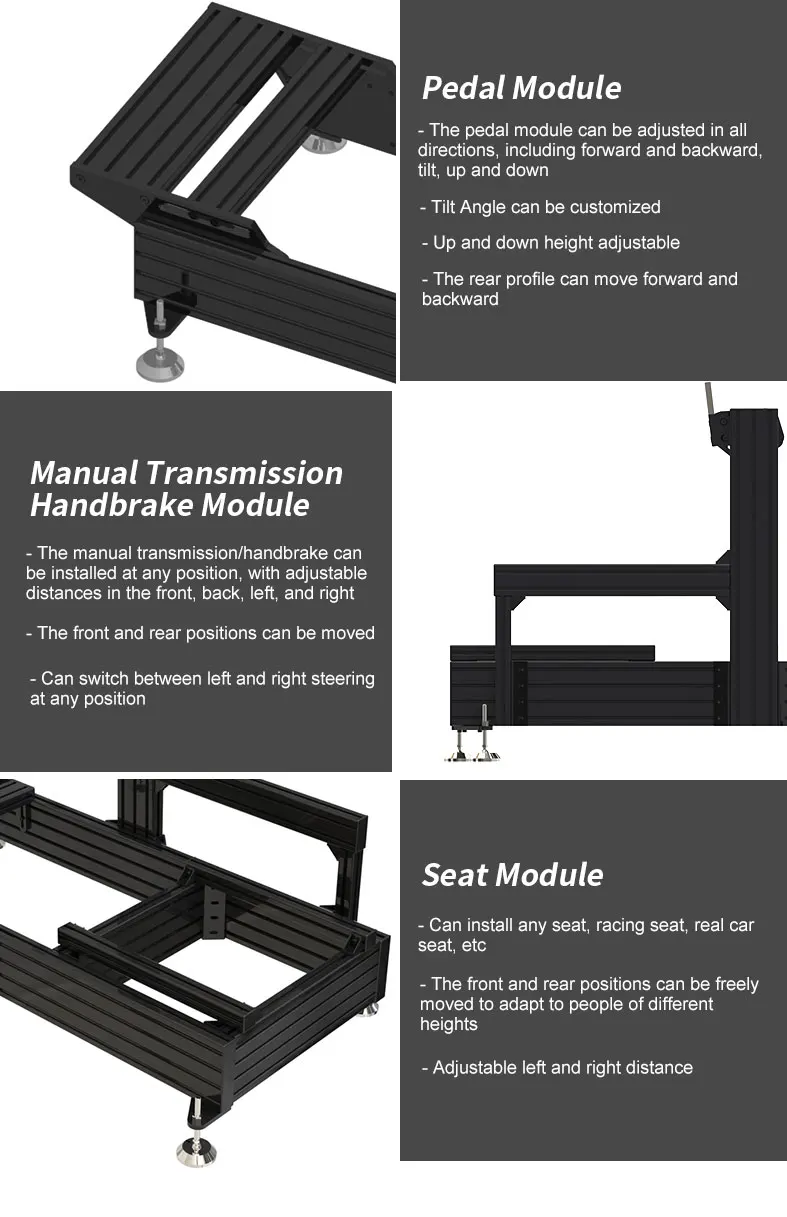

Pedal Tray
The newly designed pedal tray give the extra flexibility needed to handle a wide variety of seating positions. It covers movement in all directions including completely flipped around to have the pedals sit on the deck. Also, its configured in such a way that it will accommodate different pedals sets, and the possibility to add an adjustable heel plate which we will release soon.
Connector Plates
The uprights are the main focus point when creating a rigid frame. Steering forces are creating a moment (torque force) at the base of the uprights, even more so with the high forces Direct Drive wheels are operating. To counter these effectively, a play-free connection of the upright is essential. These sandwich plates lock the uprights firmly into place. Because they are easy to install, success guaranteed.
Side Mounts
Standard the F1 is fitted with a shifter/accessories mount, running from the uprights to the back of the rig. Can be mounted both left and right. In addition, extra 2 profiles are provided to add the possibility of multiple configurations.
Key Features:

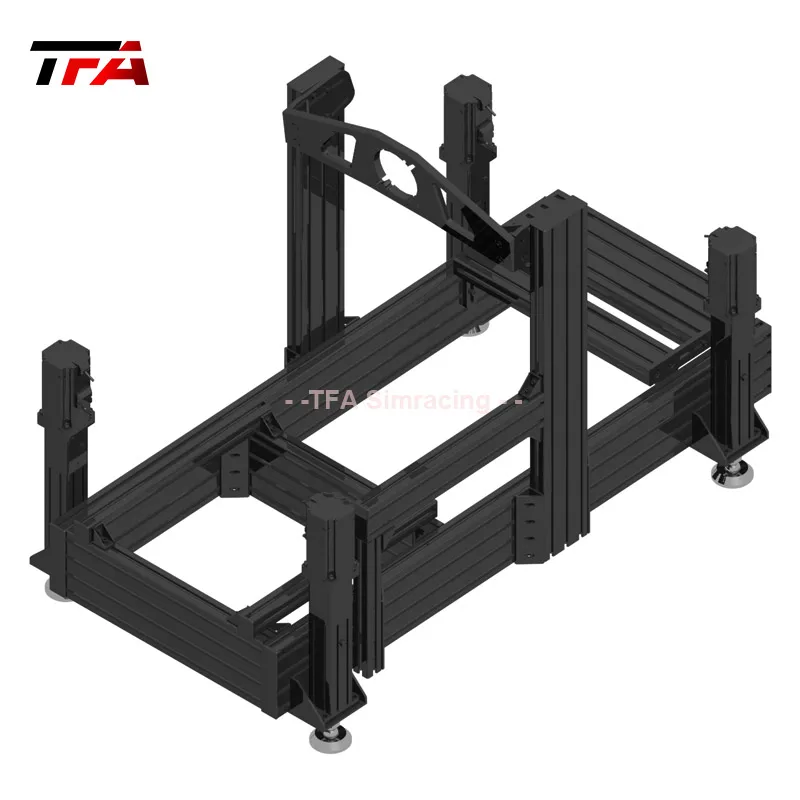

* Base structure featuring 160x40 mm aluminium profiles. Special sandwich plates lock the uprights from any movement.
* Dashboard bracket securely fixates you Servo Drive wheel (Mige, SimuCube)
* Movable seat position (can be positioned inclined)
* Steering wheel position fully adjustable
* Pedal position fully adjustable
* Side mounting point included that can be configured in different ways
* Fanatec pedals can be mounted without additional hardware. Heusinkveld pedals can be mounted without extra materials, allbolts/nuts included.
* Heel plate can be purchased separately.
* Different sizes of spare bolts to mount seat brackets, shifters, and pedals
Included in the package:
* Aluminium profiles and mounting materials
* Bolts for mounting seats and peripherals
* Rubber feet
The newly designed pedal tray give the extra flexibility needed to handle a wide variety of seating positions. It covers movement in all directions including completely flipped around to have the pedals sit on the deck. Also, its configured in such a way that it will accommodate different pedals sets, and the possibility to add an adjustable heel plate which we will release soon.
Connector Plates
The uprights are the main focus point when creating a rigid frame. Steering forces are creating a moment (torque force) at the base of the uprights, even more so with the high forces Direct Drive wheels are operating. To counter these effectively, a play-free connection of the upright is essential. These sandwich plates lock the uprights firmly into place. Because they are easy to install, success guaranteed.
Side Mounts
Standard the F1 is fitted with a shifter/accessories mount, running from the uprights to the back of the rig. Can be mounted both left and right. In addition, extra 2 profiles are provided to add the possibility of multiple configurations.
Key Features:
* Base structure featuring 160x40 mm aluminium profiles. Special sandwich plates lock the uprights from any movement.
* Dashboard bracket securely fixates you Servo Drive wheel (Mige, SimuCube)
* Movable seat position (can be positioned inclined)
* Steering wheel position fully adjustable
* Pedal position fully adjustable
* Side mounting point included that can be configured in different ways
* Fanatec pedals can be mounted without additional hardware. Heusinkveld pedals can be mounted without extra materials, allbolts/nuts included.
* Heel plate can be purchased separately.
* Different sizes of spare bolts to mount seat brackets, shifters, and pedals
Included in the package:
* Aluminium profiles and mounting materials
* Bolts for mounting seats and peripherals
* Rubber feet
