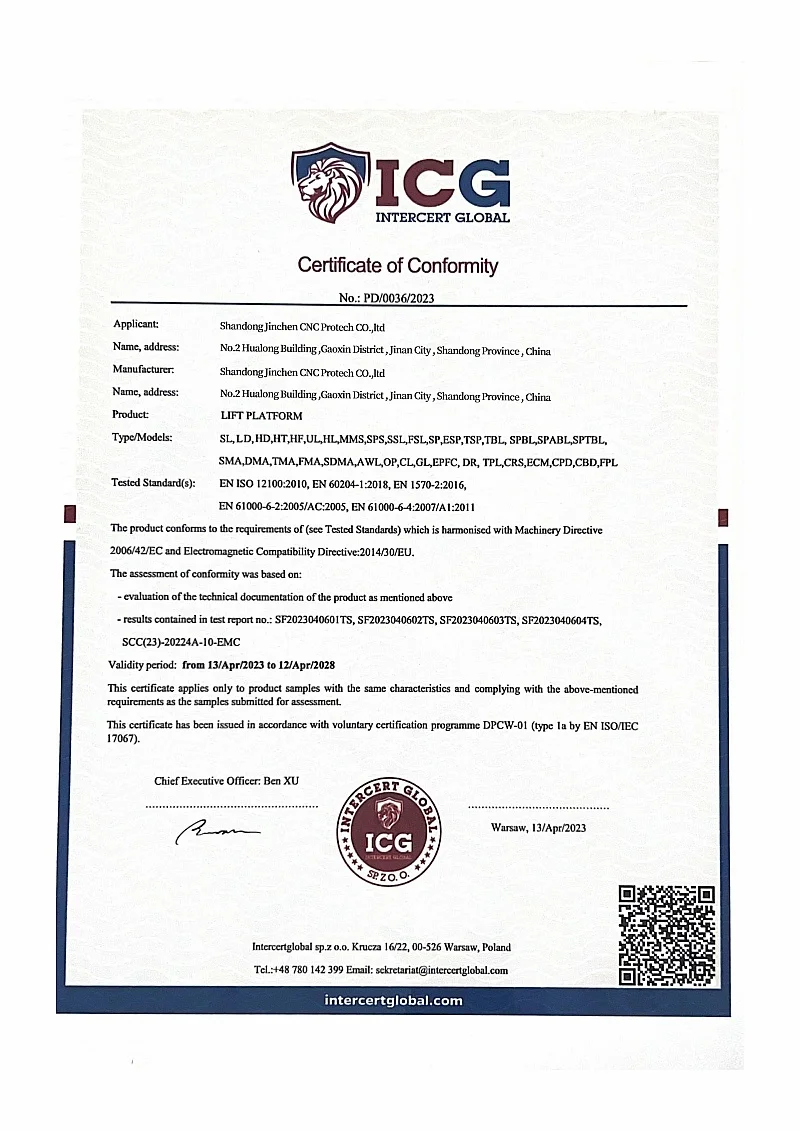

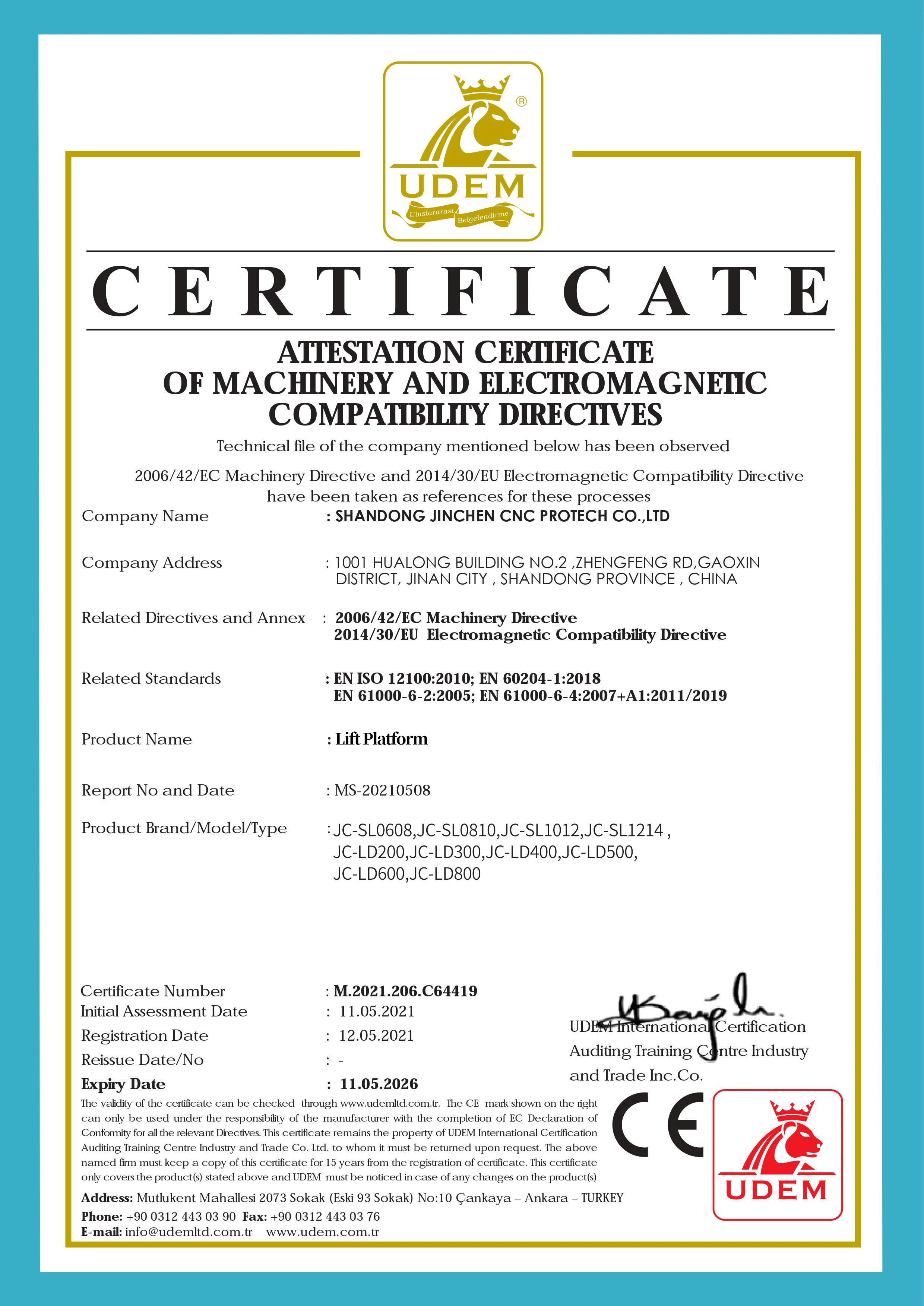

CE Approved Electric Platform 4m-12m Aluminum Alloy Lift For Building Materials Construction Moveable Mast Lift

(0 レビュー)

発送予定時間: 3 日々

により販売されています: 自社製品

価格:

$1,088.25 /Pc

量:

(1949 利用可能)

払い戻し:

ポリシーを見る

売れ筋商品

説明レビュー

PLEASE NOTE:

1.This is a customized machine. The price on the page is only a deposit, and does not include shipping, accessories and packaging fees.

2.Please contact Karen for a free quote❤

Whatsapp/WeChat/Phone number : +86 19937147086
Email : SNOWing2001@outlook.com

Products Description

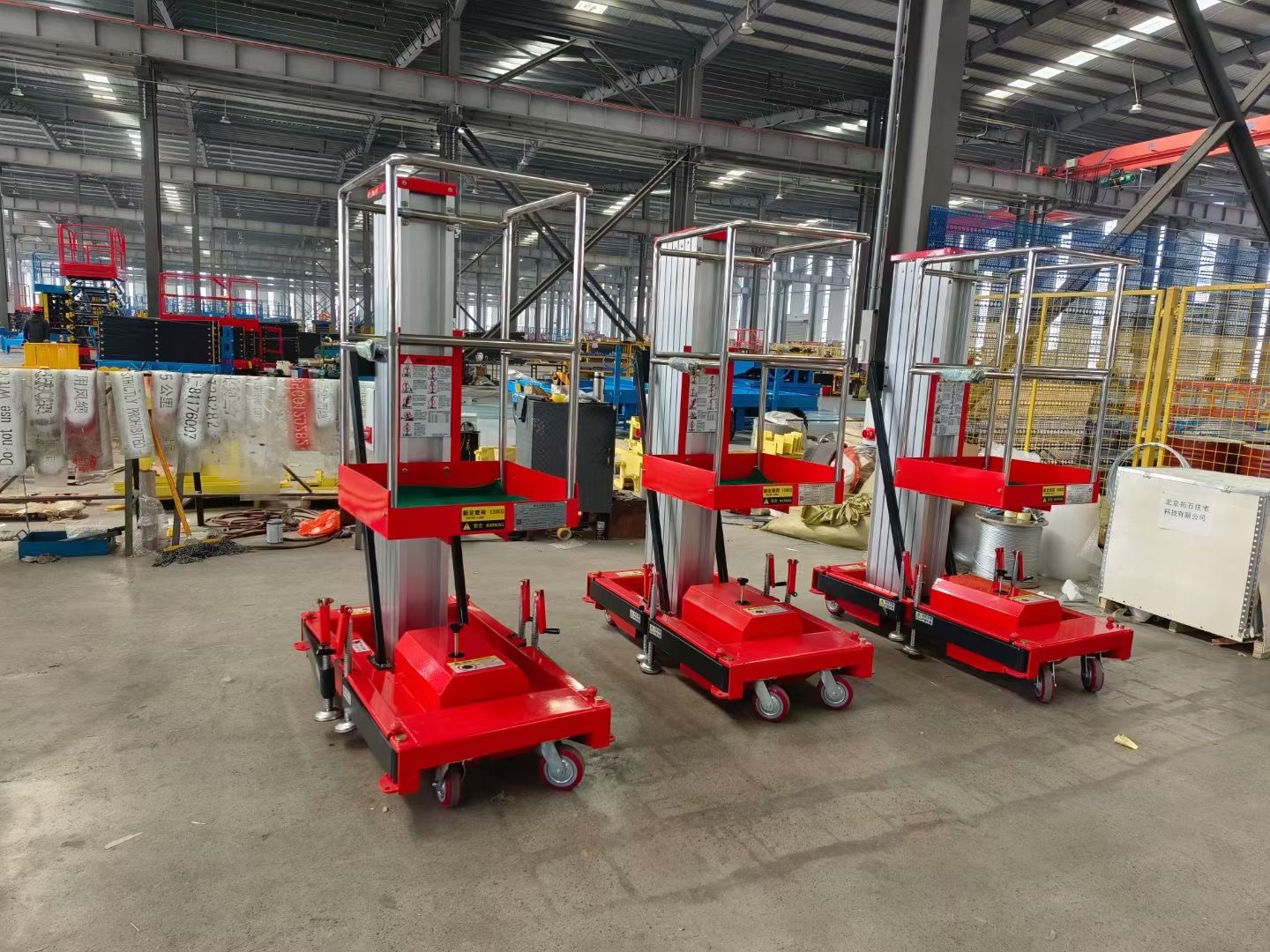

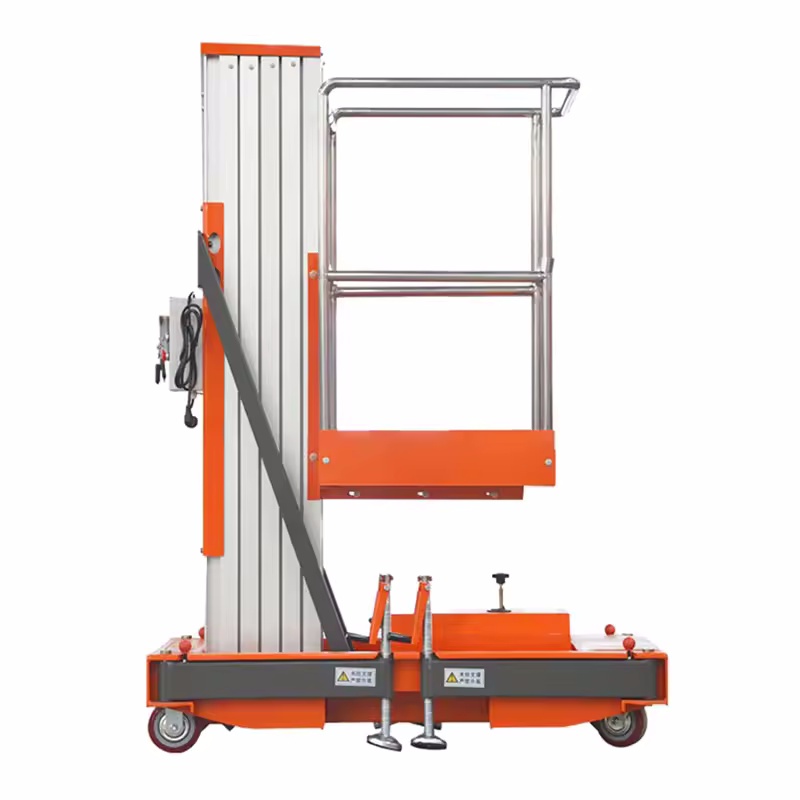

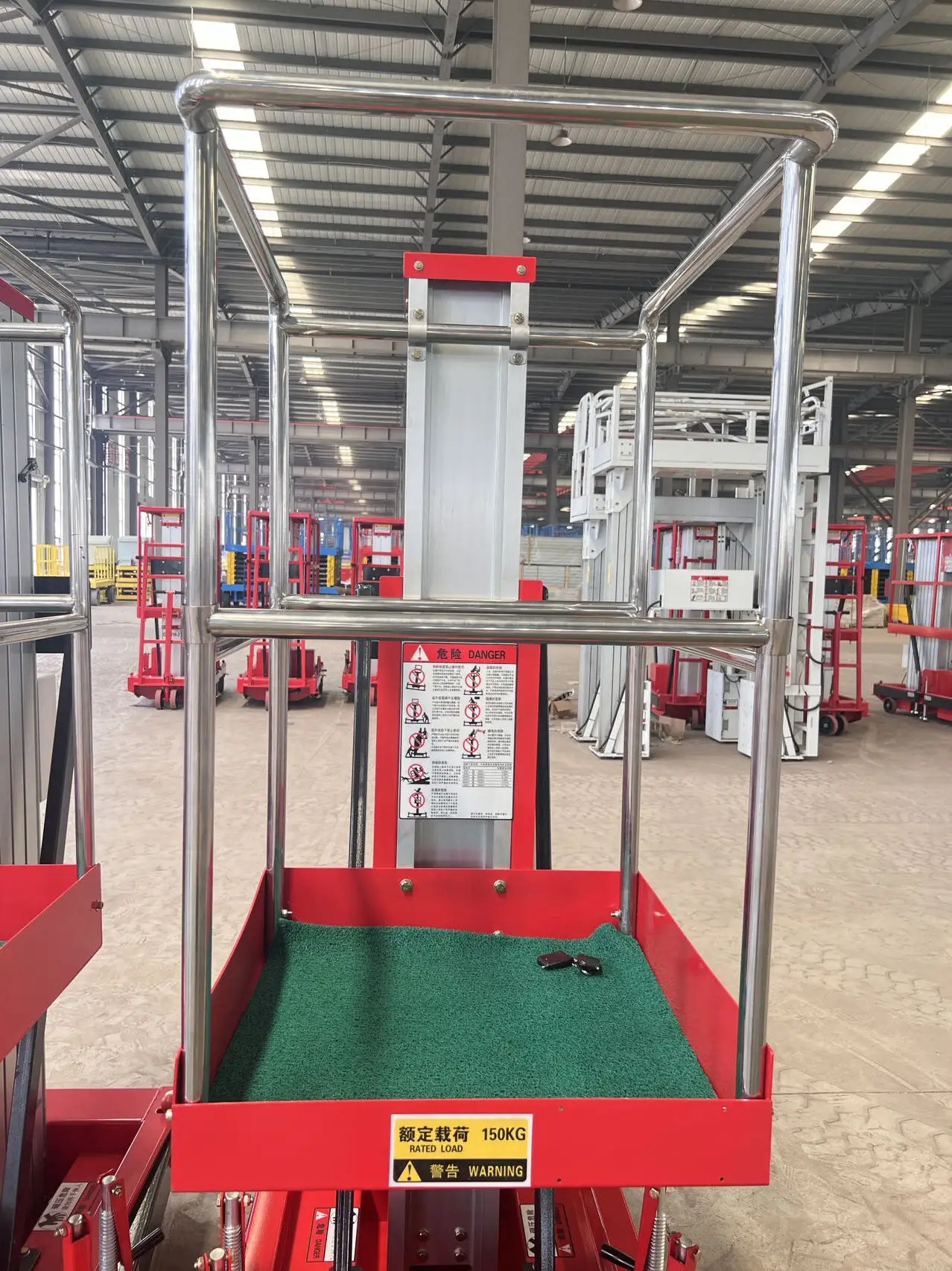

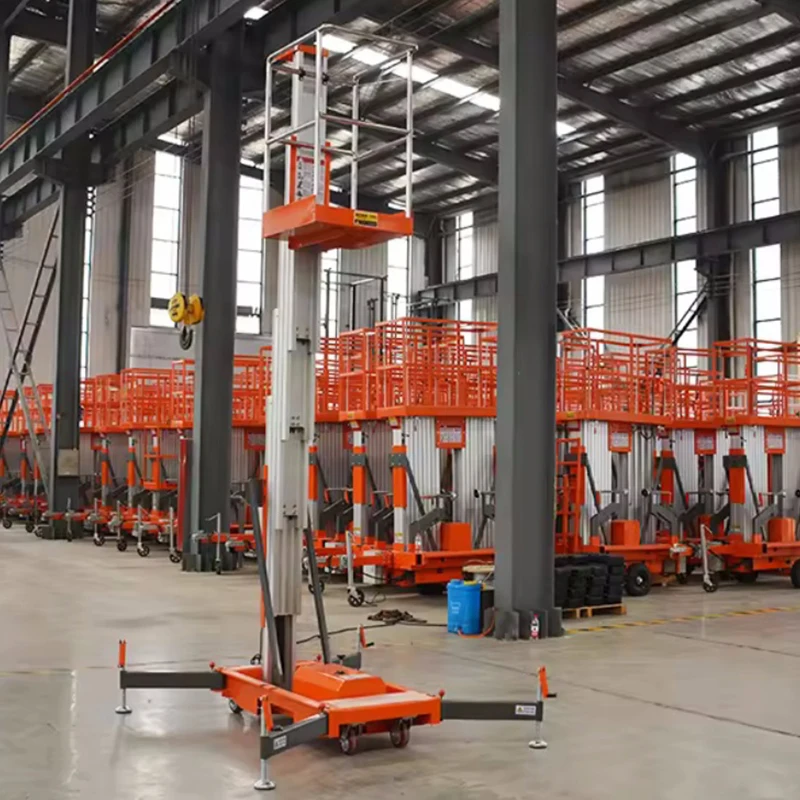

Single Mast Aluminum Alloy Lift

An aluminum alloy lift is a widely used industrial equipment primarily employed in construction, warehouse management, and aerial operations. Constructed from high-strength aluminum alloy, this type of lift offers advantages such as lightweight

portability, corrosion resistance, and low maintenance requirements.

Compared to ladders or scaffolding, vertical mast lifts significantly reduce labor and time requirements—and most importantly, they provide enhanced safety.

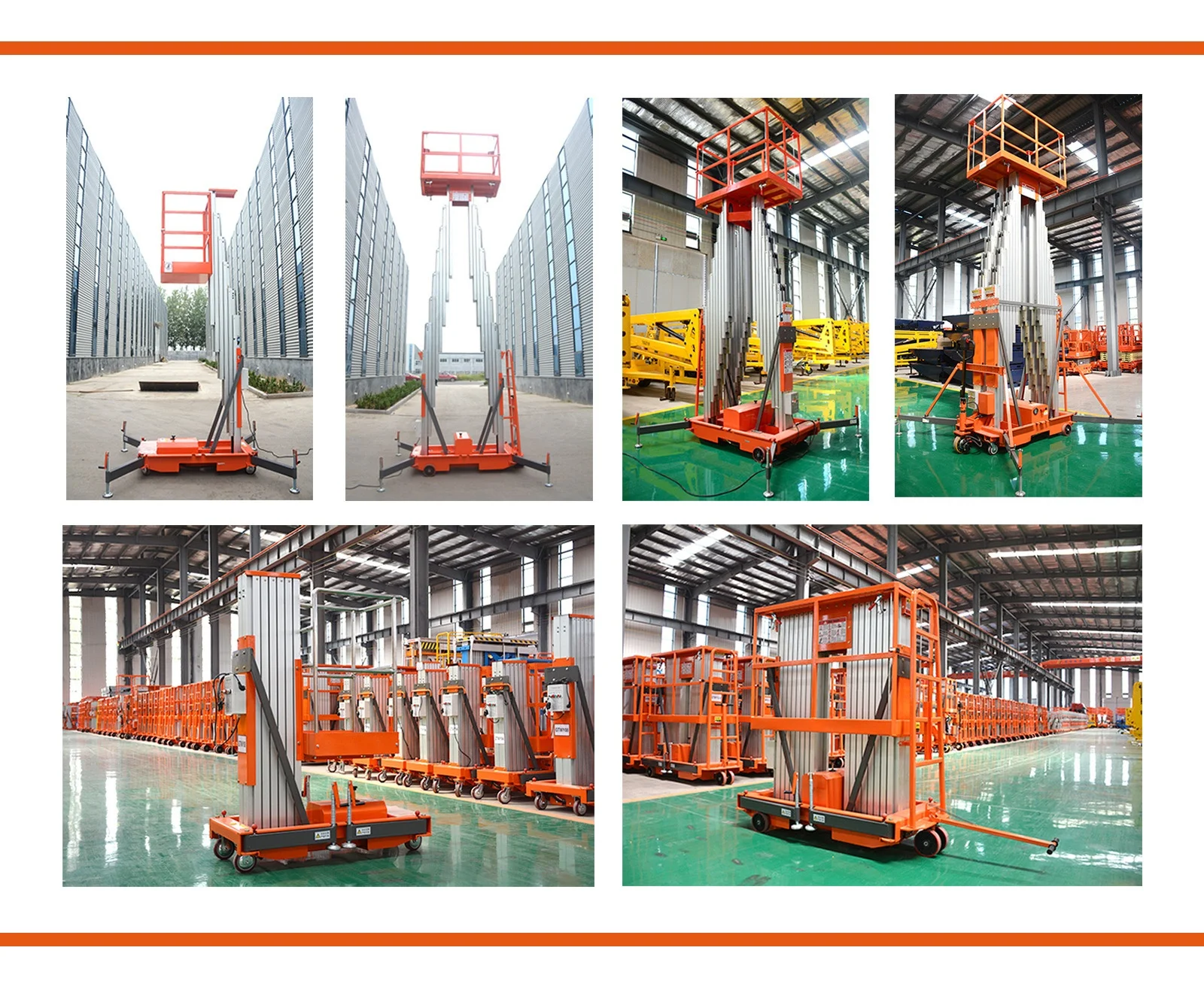

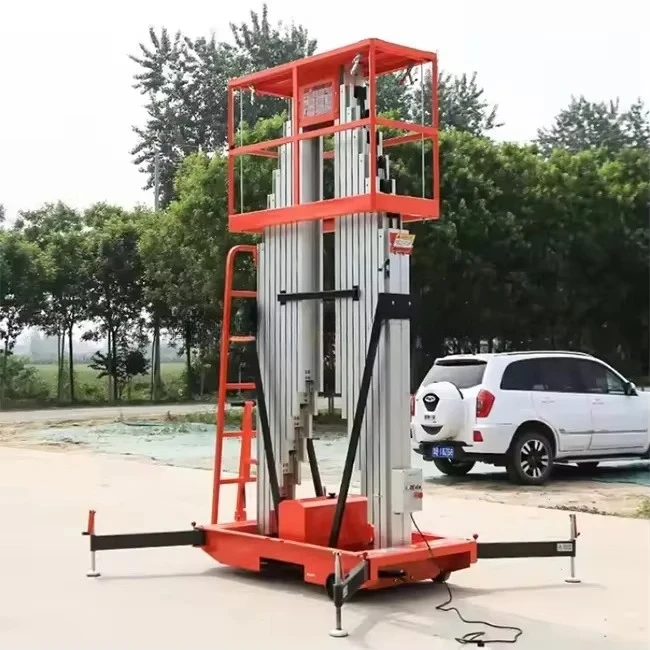

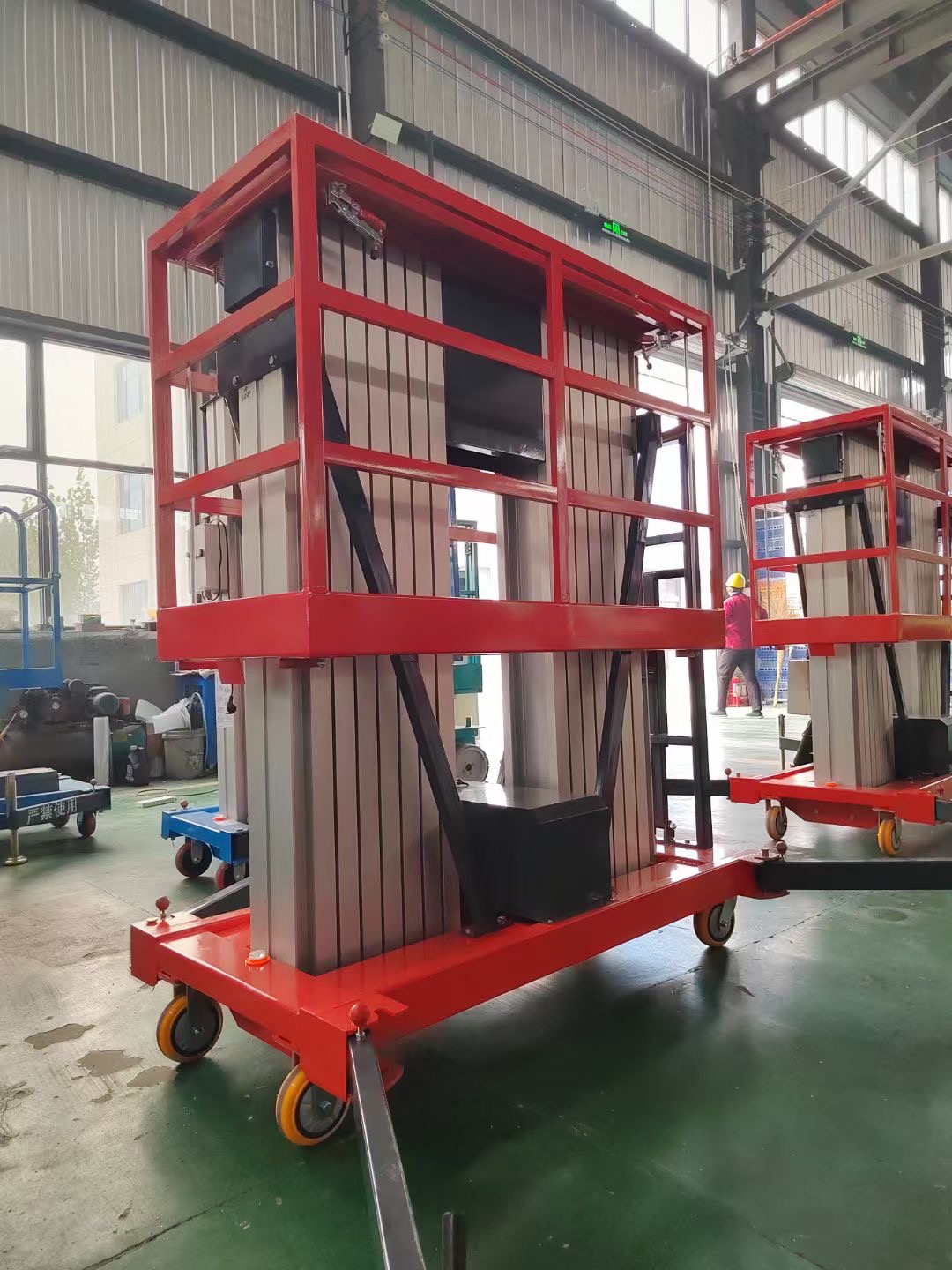

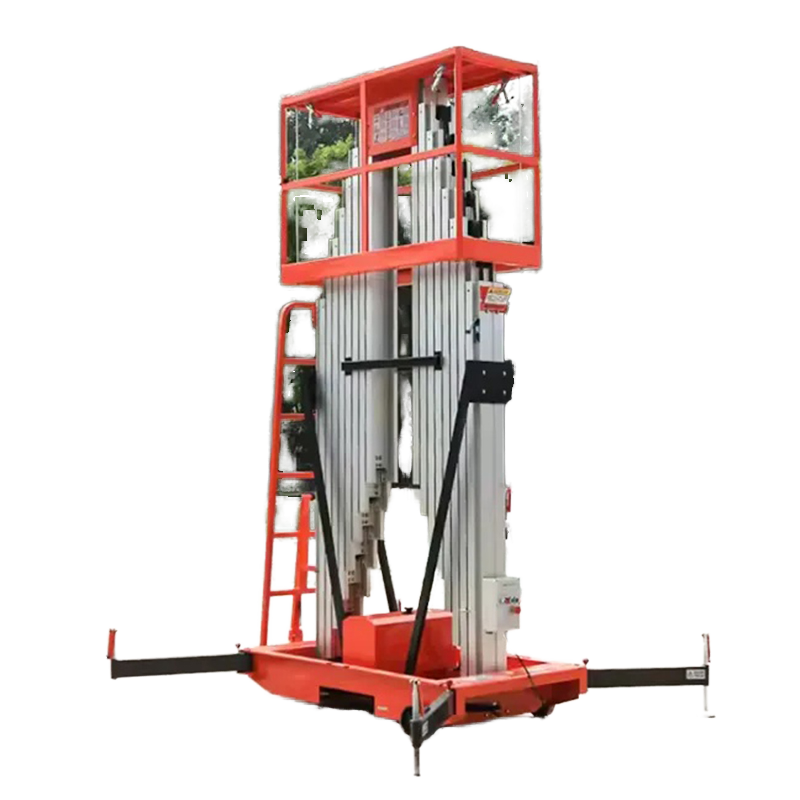

Double Mast Aluminum Alloy Lift

* Light weight for easier transport or move
around
* Compact size, fit for elevators
Safe operation precautions Outrigger Interlock

Leveling Gradienter

Emergency Stop

Manual Lowering Device

Platform &Ground Control

Additional Wheels for Truck Loading

High Cost Effective

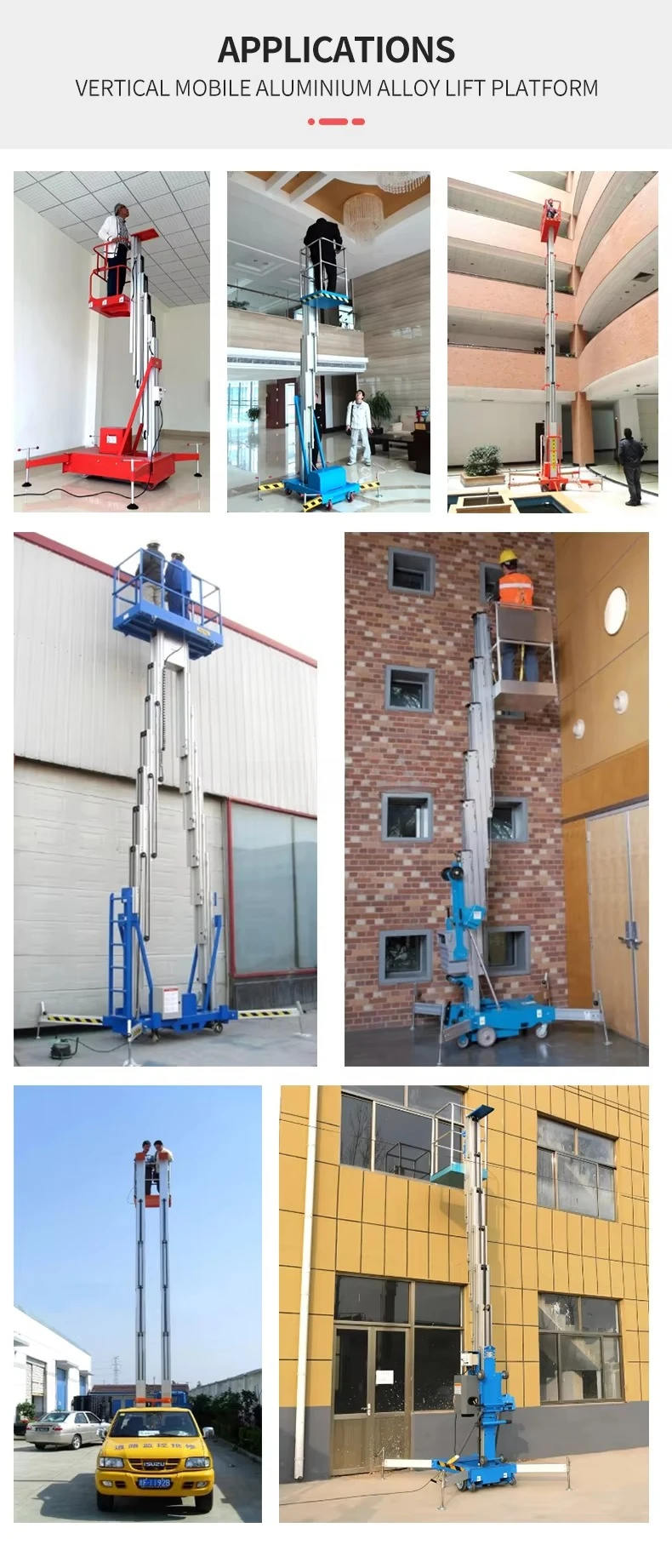

Safe & Reliable & Durable Indoor & Out Door Application

Low Maintenance

Single Mast Aluminum Alloy Lift Model List

Model No.	JC-SL0406	JC-SL0608	JC-SL0810	JC-SL10
Maxi Lifting Height	6M	8M	10M	12M
Maxi Platform Height	4M	6M	8M	10M
Safe Working Load /kg	130KG	130KG	130KG	100KG
Working table size	6006001000MM	6006001000MM	6006001000MM	6006001000MM
Whole dimension	12508501900MM	12508501900MM	13008501980MM	13608502100MM
Whole dimension ( With supports)	2050*2050MM	2100*2100mm	2150*2100MM	2150*2150MM
Maximum loading worker	1 person	1 person	1 person	1 person
Driving wheel	150mm	150mm	150mm	150mm
Lifting motor	220V/0.75KW	220V/0.75KW	220V/1.1KW	220V1.1KW
Up/down time	3-5m/min	3-5m/min	3-5m/min	3-5m/min
Column material	Aluminum alloy 6.5mm	Aluminum alloy 6.5mm	Aluminum alloy 6.5mm	Aluminum alloy 6.5mm
Weight	210KG	260KG	280KG	330KG

Double Mast Aluminum Alloy Lift Model List

Model No.	JC-SL0810D	JC-SL1012D	JC-SL1214D	JC-SL1416D
Maxi Lifting Height	10M	12M	14M	16M
Maxi Platform Height	8M	10M	12M	14M
Safe Working Load /kg	200KG	200KG	200KG	200KG
Working table size	11506001000MM	14006001000MM	15006001000MM	15006001000MM
Whole dimension	13608502000MM	16009501900MM	17009502000MM	17009502300MM
Maximum loading worker	2 Persons	2 Persons	2 Persons	2 Persons
Driving wheel	150mm	150mm	150mm	150mm
Lifting motor	220V/1.5KW	220V1.5KW	220V1.5KW	220V1.5KW
Up/down time	3-5m/min	3-5m/min	3-5m/min	3-5m/min
Weight	280KG	460KG	630KG	710KG
Weight	210KG	260KG	280KG	330KG
