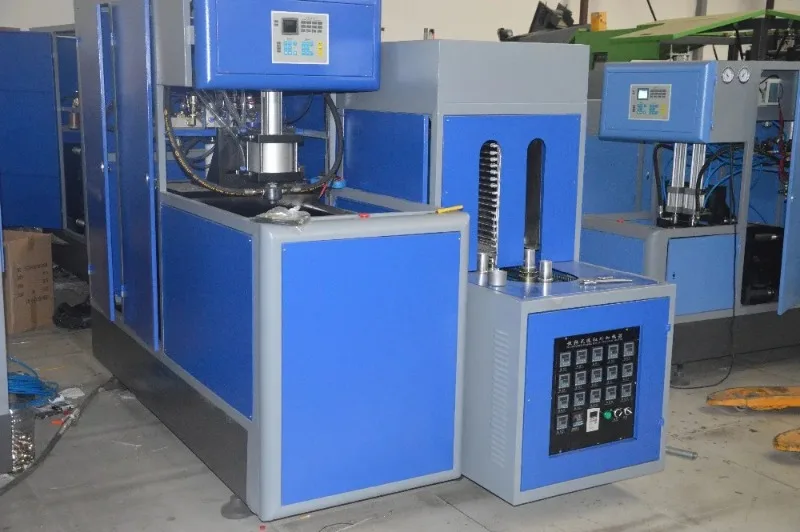

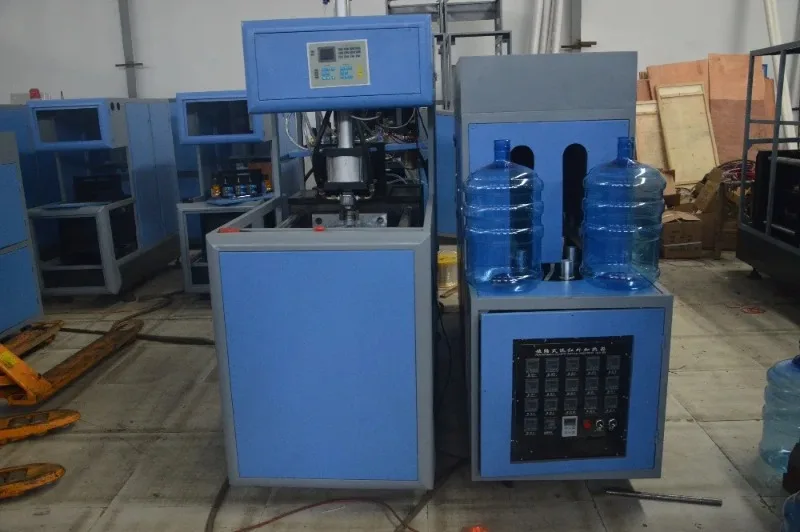

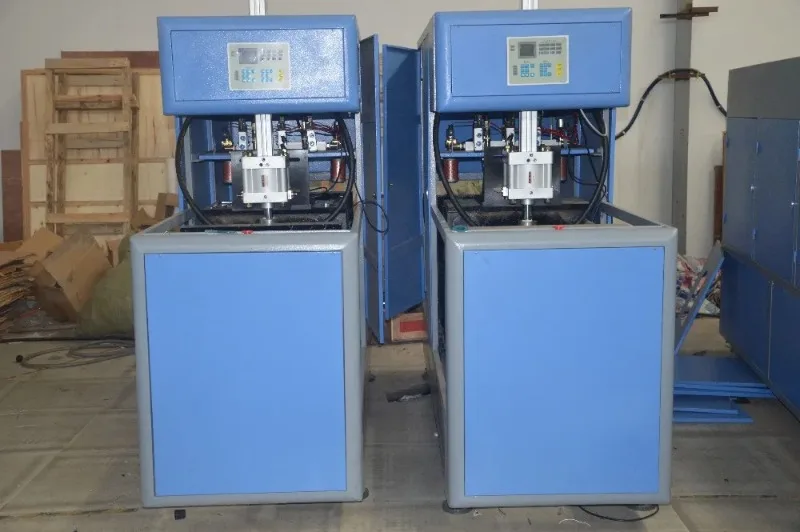

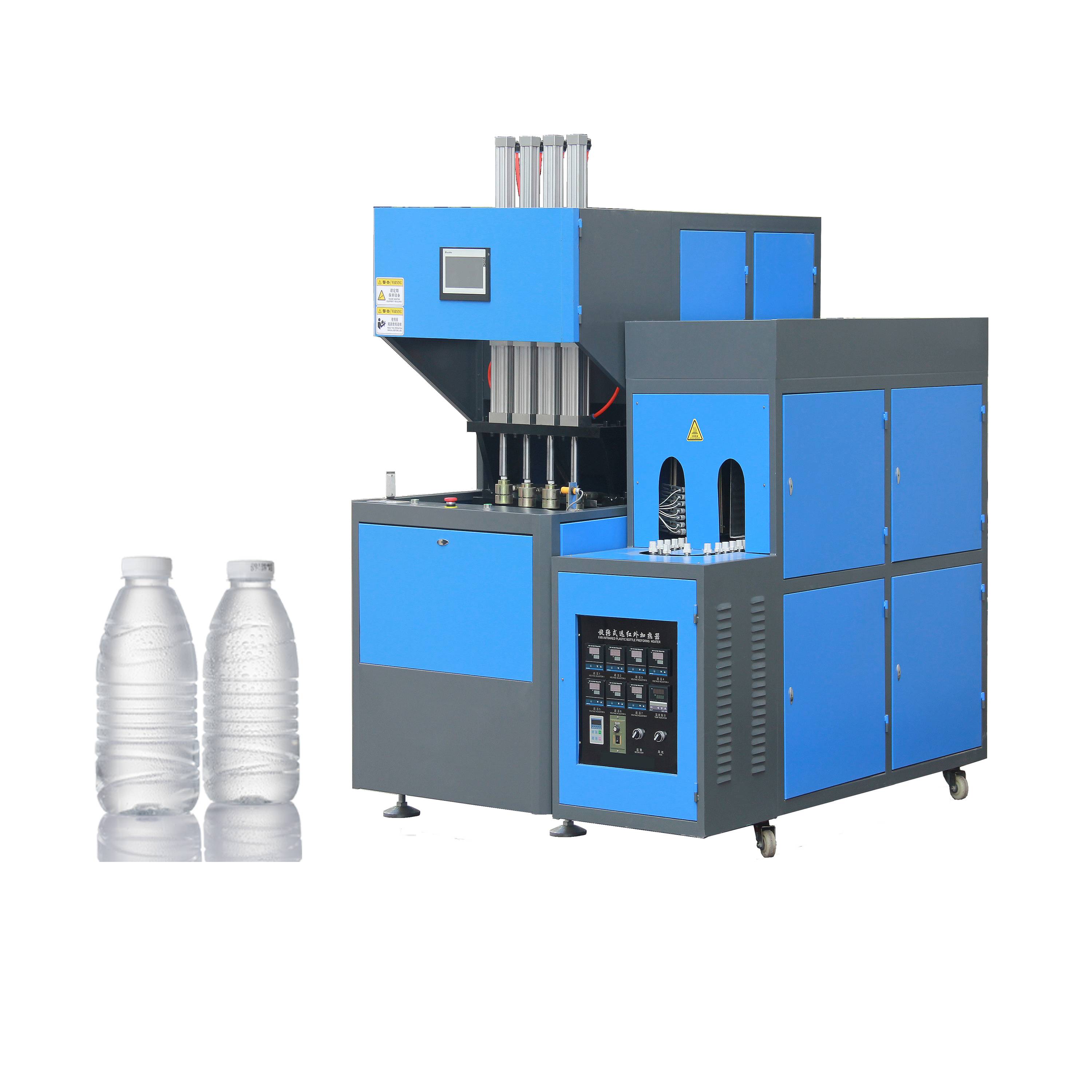

2025 New Design 500ml - 3L Semi Automatic PET Water Bottle Blowing Machine Plastic Bottle Making Machine
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com
CONTACT US:
3 to 5 gallon pet bottle Blowing molding machine, 5L 10L 15L 20L 5 Gallon water bottle container blow
Product Description
1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
4. PLC control system,the operaton is easy.

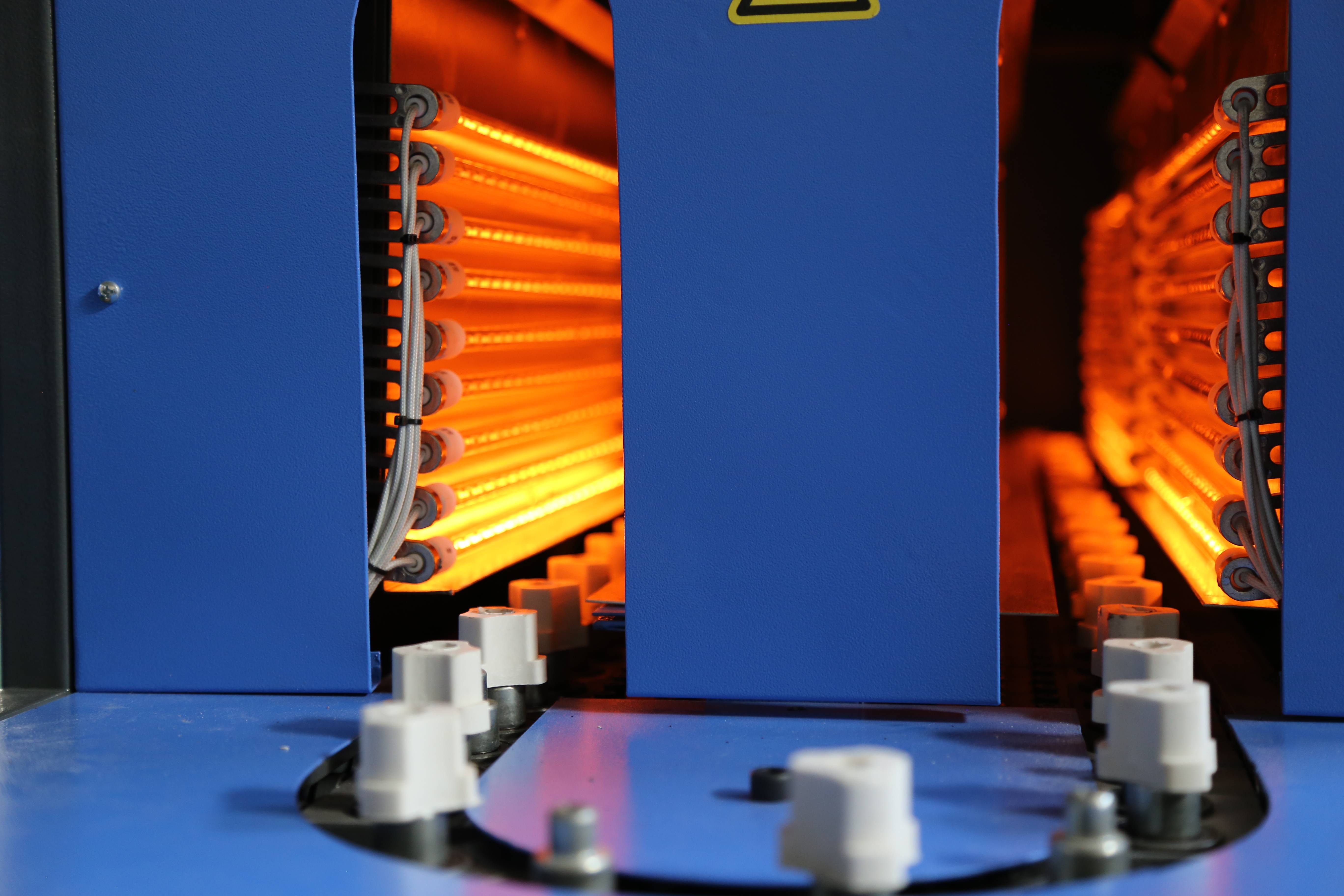

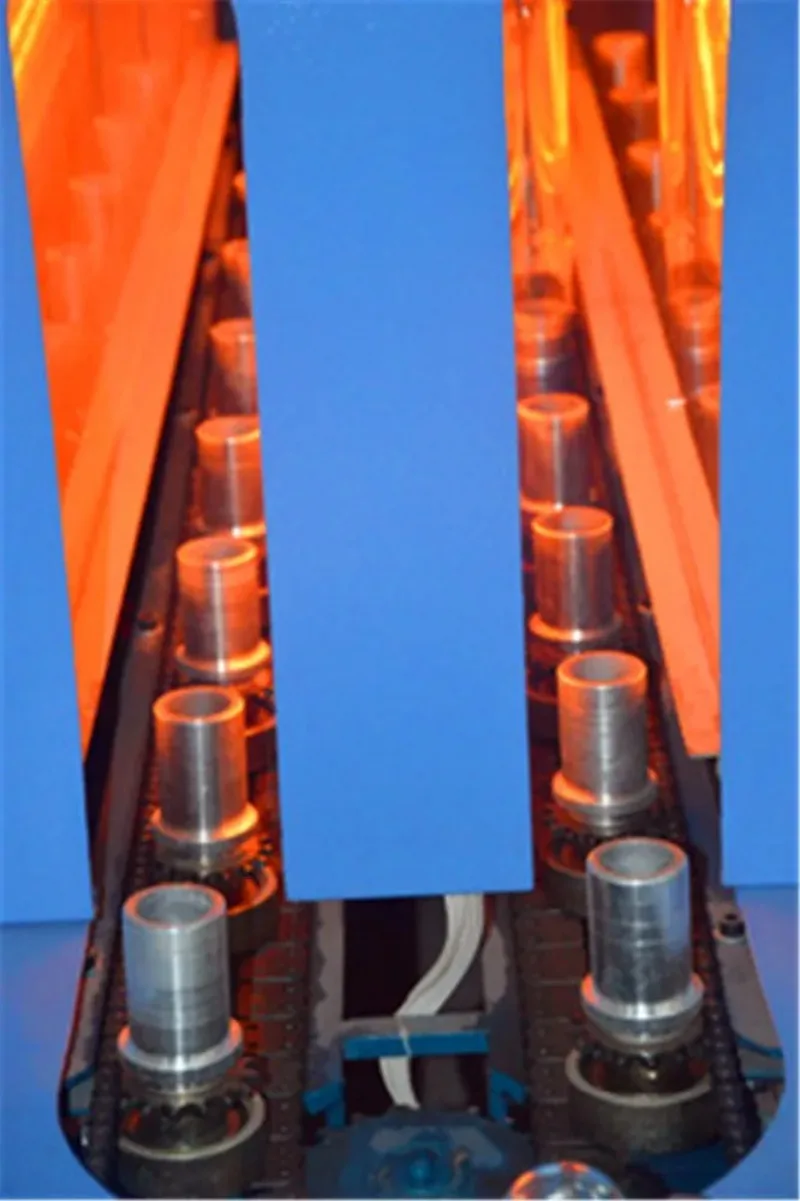

5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.

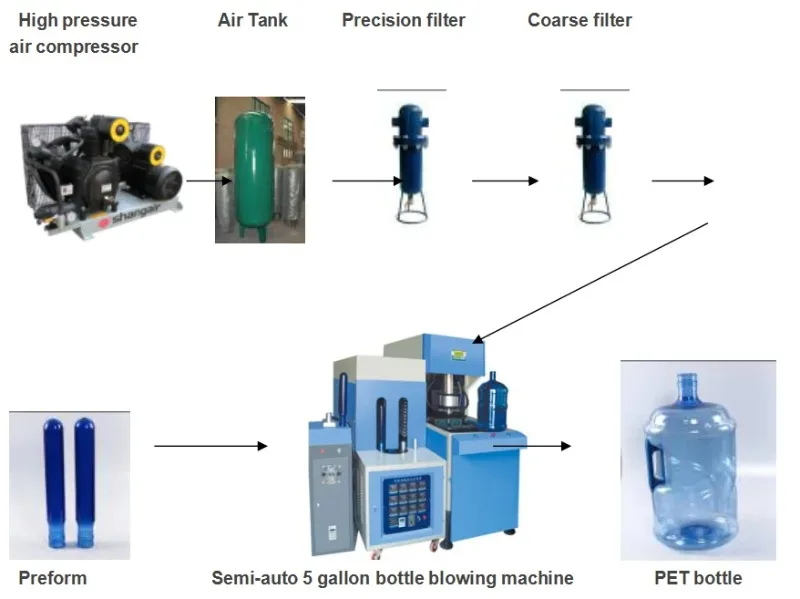

NC120 air supply flow chart
|
Item |
Name |
Brand |
|
Pneumatic components |
Cylinder |
YG |
|
Valve |
YONGCHENG |
|
|
Electrical components |
Main computer |
DELTA |
|
Human machine interface (HMI) |
||
|
Circuit breaker |
LS |
|
|
Photoelectric switch |
AUTONICS |
|
|
Remark |
All the components are selected with Internationally applied high-tech products. |
|
Ⅲ. Description:
Technology Parameters:
|
Type |
NC-100 |
|
|
Output |
According to bottle type |
100-120PCS/H |
|
Product species |
Bottle diameter |
150mm-300mm |
|
bottle height |
250mm-550mm |
|
|
Bottle mouth diameter |
15mm-100mm |
|
|
Mold |
cavity |
1 cavity |
|
mould thickness |
200~450mm |
|
|
Effective area of mold |
600*600mm |
|
|
Main power |
Power |
127v monophase 50/60HZ |
|
install power/actual power |
30kw/10kw |
|
|
Air source |
|
|
|
High pressure air compressor |
1.2m3/min 3.0MPa |
|
|
Cold dry machine |
2.0m3/min 3.0MPa 1set |
|
|
cooling water |
Cooling water quantity |
15L/min |
|
Main machine size |
Length width height/weight |
2150*730*1700mm/950kg |
|
Oven size |
Length width height /weight |
2650*680*1580mm/750kg |
Machine components
| Item | Name of the main spare parts | Brand Name |
| 1 | Closing cylinder | YG |
| 2 | Stretching/sliding cylinder | YG |
| 3 | Sealing cylinder | YG |
| 4 | High Pressure Blowing cylinder | YG |

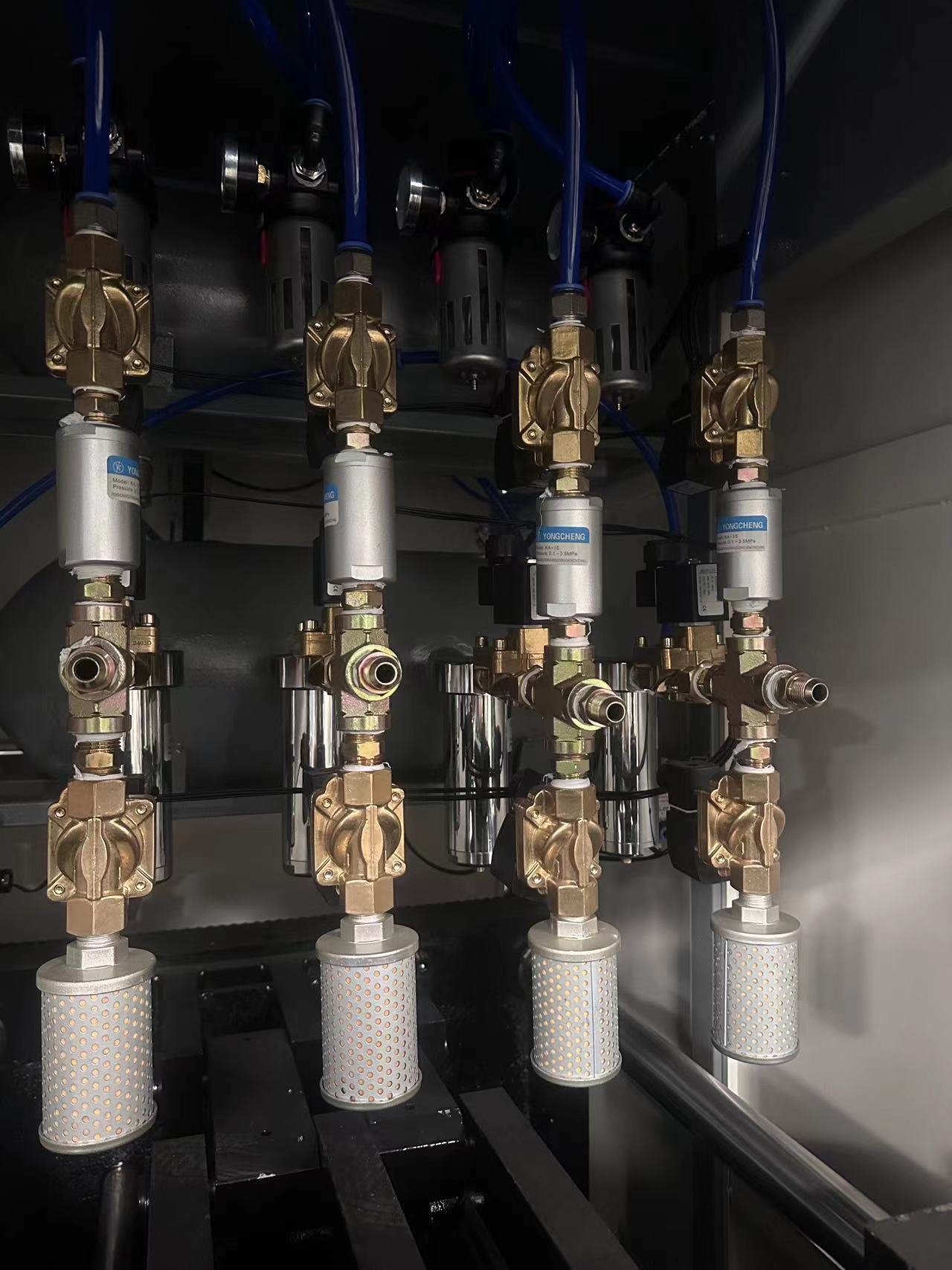

| 5 | Closing magnetic valve | YG |
| 6 | Stretching magnetic valve | YG |
| 7 | High pressure Blowing magnetic valve | YG |
| 8 | Pre-blow magnetic valve | YG |
